Grimac

GRIMAC NUVOLA

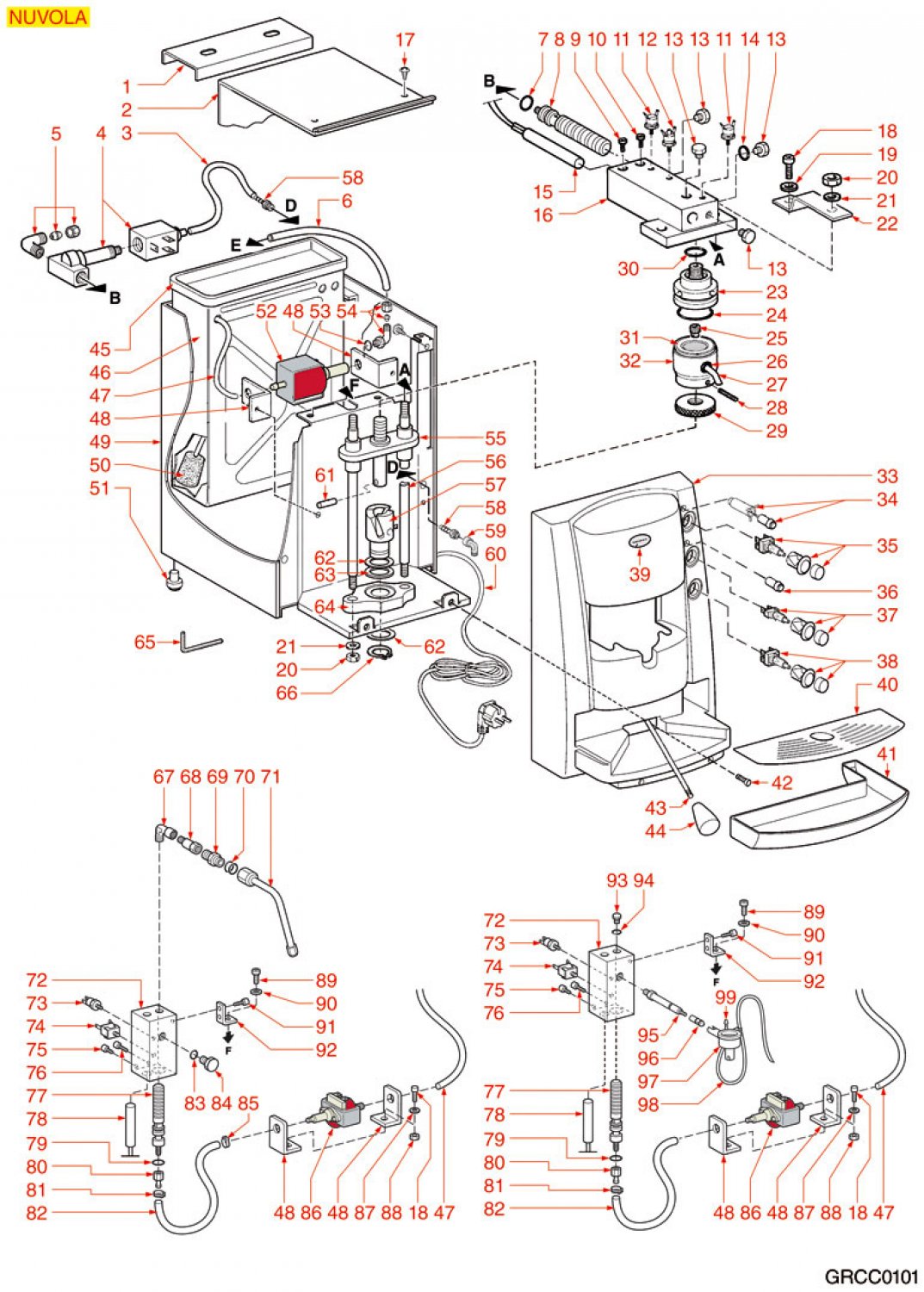

Drawing number 8062481

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
43 way solenoid valve parker 230v 50 60hz8000878
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
55,81 €

excl. Shipping costs
immediately available, 1 available
4coil parker wb4 5 6w 220 230v 50 60hz8000972
COIL PARKER WB4.5 6W 220/230V 50/60Hz
18,18 €

excl. Shipping costs
immediately available, 3 available
6teflon pipe o 4x6 mm 1 m8006801
TEFLON PIPE ø 4x6 mm - 1 M
5,50 €

excl. Shipping costs
immediately available, 8.5 available
7o ring 0115 epdm8001977
O-RING 0115 EPDM
0,93 €

excl. Shipping costs
immediately available
8brass torpedo pin8005186
BRASS TORPEDO PIN
25,57 €

excl. Shipping costs
Delivery time
is determined
10schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available
11contact thermostat 90 deg c m48006513
CONTACT THERMOSTAT 90°C M4
9,97 €

excl. Shipping costs
Delivery time
is determined
11contact thermostat 958064032
CONTACT THERMOSTAT 95
17,05 €

excl. Shipping costs
immediately available, 4 available
12contact thermostat 145 deg c m48006507
CONTACT THERMOSTAT 145°c M4
14,16 €

excl. Shipping costs
immediately available, 5 available
15cartridge heating element 500w 230v8007537
CARTRIDGE HEATING ELEMENT 500W 230V
28,82 €

excl. Shipping costs
Delivery time
is determined

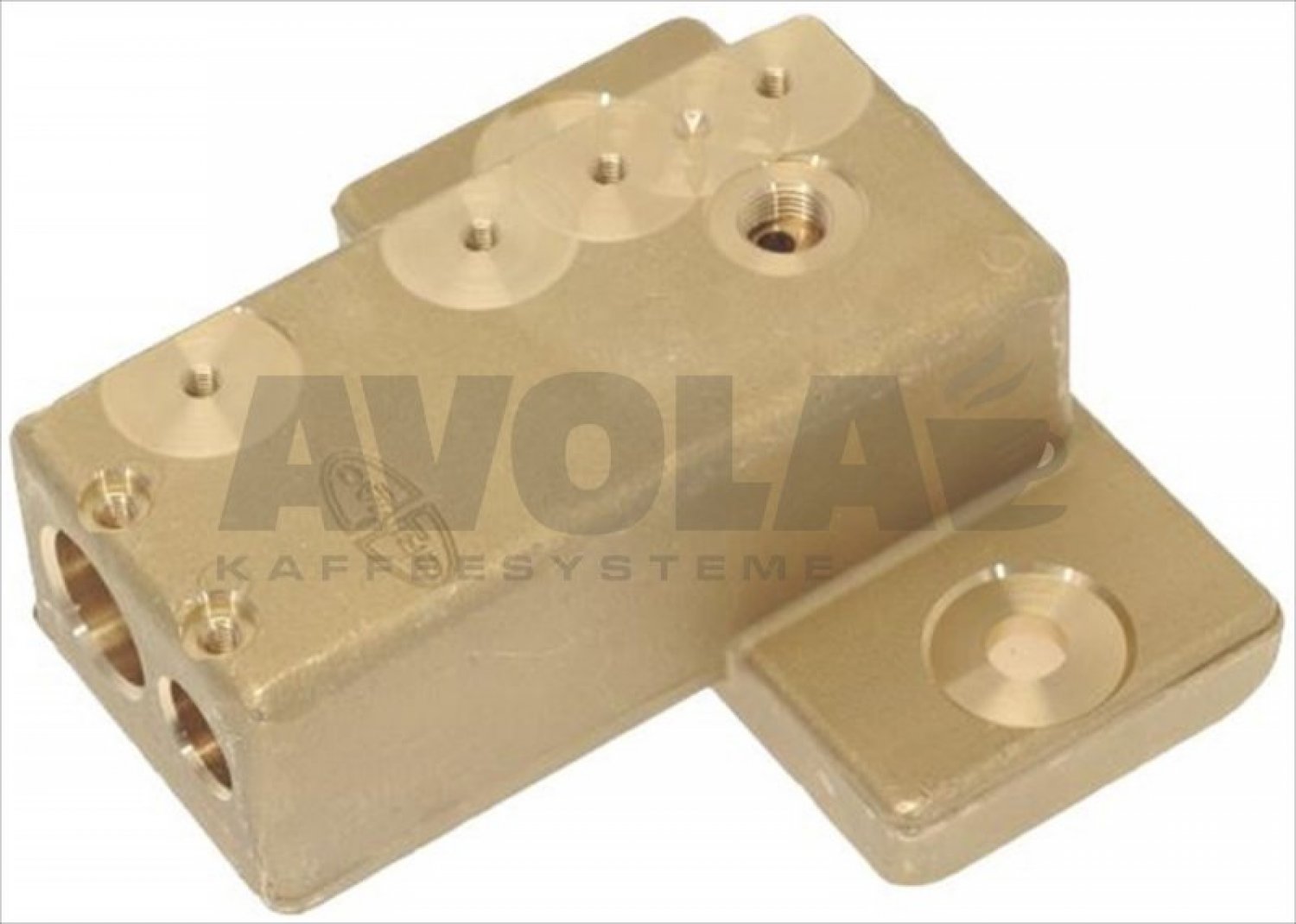

16grimac messingkorpus durchlauferhitzer nuvola terry opale8118462
Grimac Messingkorpus Durchlauferhitzer NUVOLA-TERRY-OPALE
108,61 €

excl. Shipping costs
Delivery time 4-6 weeks
20hexagonal nut m8 medium8011323
HEXAGONAL NUT M8 MEDIUM
1,04 €

excl. Shipping costs
immediately available
23messing duschentraeger verteiler grimac8125614
Messing Duschenträger Verteiler Grimac
50,62 €

excl. Shipping costs
Delivery time 4-6 weeks
24epdm o ring gasket 01478014715
EPDM O-RING GASKET 0147
3,00 €

excl. Shipping costs
immediately available
25group diffuser8006999
GROUP DIFFUSER
8,35 €

excl. Shipping costs
immediately available, 3 available
26o ring 02031 epdm8001647
O-RING 02031 EPDM
1,18 €

excl. Shipping costs
immediately available
28screws no head with hex socket m4x208007316
SCREWS NO HEAD WITH HEX. SOCKET M4x20
1,19 €

excl. Shipping costs
Delivery time 4-6 weeks
30o ring 04075 epdm8001699
O-RING 04075 EPDM
0,77 €

excl. Shipping costs
immediately available
31shower screen8000582
SHOWER SCREEN
7,10 €

excl. Shipping costs
immediately available, 3 available
31shower screen8000601
SHOWER SCREEN
This article is no longer available
31shower screen8000602
SHOWER SCREEN
14,10 €

excl. Shipping costs
Delivery time 4-6 weeks..
31shower screen o 55 mm ty38000603
SHOWER SCREEN ø 55 mm TY3
This article is no longer available
31shower screen8000604
SHOWER SCREEN
7,75 €

excl. Shipping costs
immediately available, 4 available
32shower holder sprayer8000632
SHOWER HOLDER SPRAYER
9,90 €

excl. Shipping costs
immediately available, 2 available
34red indicator light 240v8002755
RED INDICATOR LIGHT 240V
8,88 €

excl. Shipping costs
Delivery time
is determined
35complete bipolar switch 16a 250v8004935
COMPLETE BIPOLAR SWITCH 16A 250V
This article is no longer available
37complete monopolar switch 10a 250v8004939
COMPLETE MONOPOLAR SWITCH 10A 250V
12,72 €

excl. Shipping costs
Delivery time 4-6 weeks
38complete bipolar push button 10a 250v8004938
COMPLETE BIPOLAR PUSH-BUTTON 10A 250V
13,51 €

excl. Shipping costs
Delivery time
is determined
40chrome plated cup shelf8001317
CHROME-PLATED CUP SHELF
45,10 €

excl. Shipping costs
Delivery time 4-6 weeks

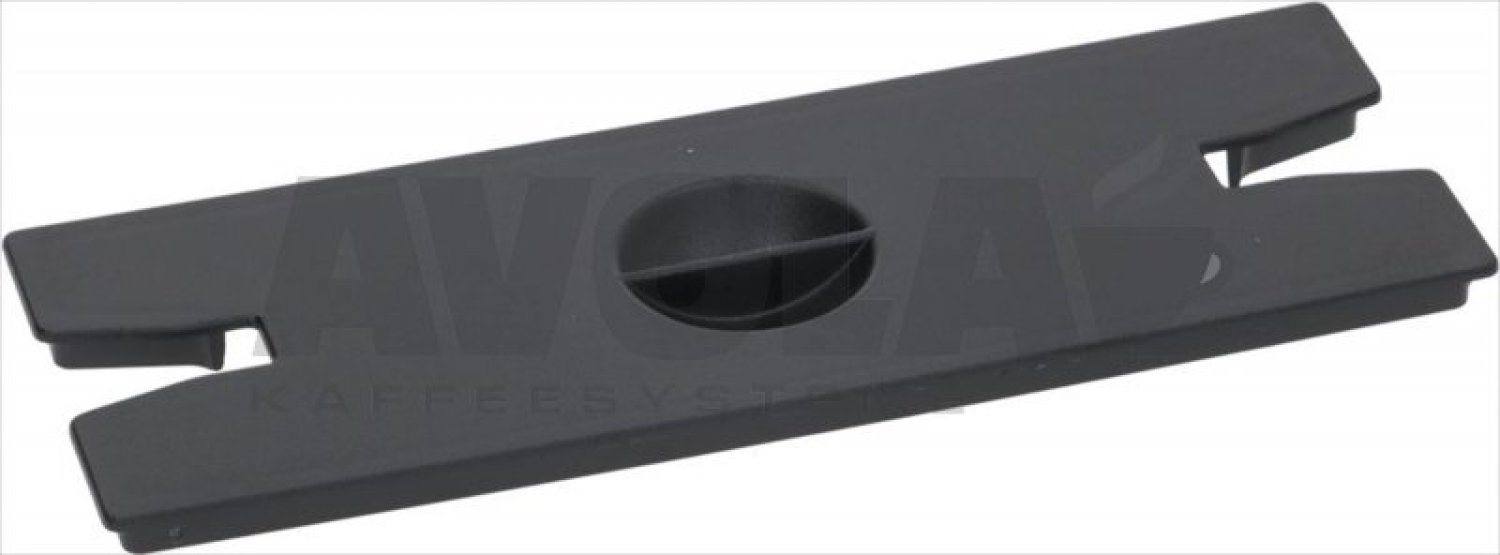

45water container lid 197x73 mm8000519
WATER CONTAINER LID 197x73 mm
8,21 €

excl. Shipping costs
immediately available, 5 available
46water container 2l8000520
WATER CONTAINER 2L
38,08 €

excl. Shipping costs
immediately available, 2 available
47silicone hose o 4x7 shore 60 1 m8006716
Silicone hose ø 4x7 SHORE 60 - 1 m
5,95 €

excl. Shipping costs
immediately available, 16 available
48square damper ex ep ek ea8005273
SQUARE DAMPER EX-EP-EK-EA
2,63 €

excl. Shipping costs
immediately available
50water softener for ocs nical 1258008055
WATER SOFTENER FOR OCS NICAL 125
3,95 €

excl. Shipping costs
immediately available
52vibratory pump ulka ex5 48w 230v 50hz8001016
VIBRATORY PUMP ULKA EX5 48W 230V 50Hz
14,90 €

excl. Shipping costs
immediately available
53o ring 02031 epdm8001647
O-RING 02031 EPDM
1,18 €

excl. Shipping costs
immediately available
54anschluss l foermig o 1 8 m 1 8 m komplett8005805
ANSCHLUSS L-FÖRMIG ø 1/8 M-1/8 M KOMPLETT
7,85 €

excl. Shipping costs
Delivery time 4-6 weeks
57brass cam pin8005185
BRASS CAM PIN
46,09 €

excl. Shipping costs
Delivery time
is determined
59l fitting o 1 88005885
L-FITTING ø 1/8
5,46 €

excl. Shipping costs
immediately available, 6 available

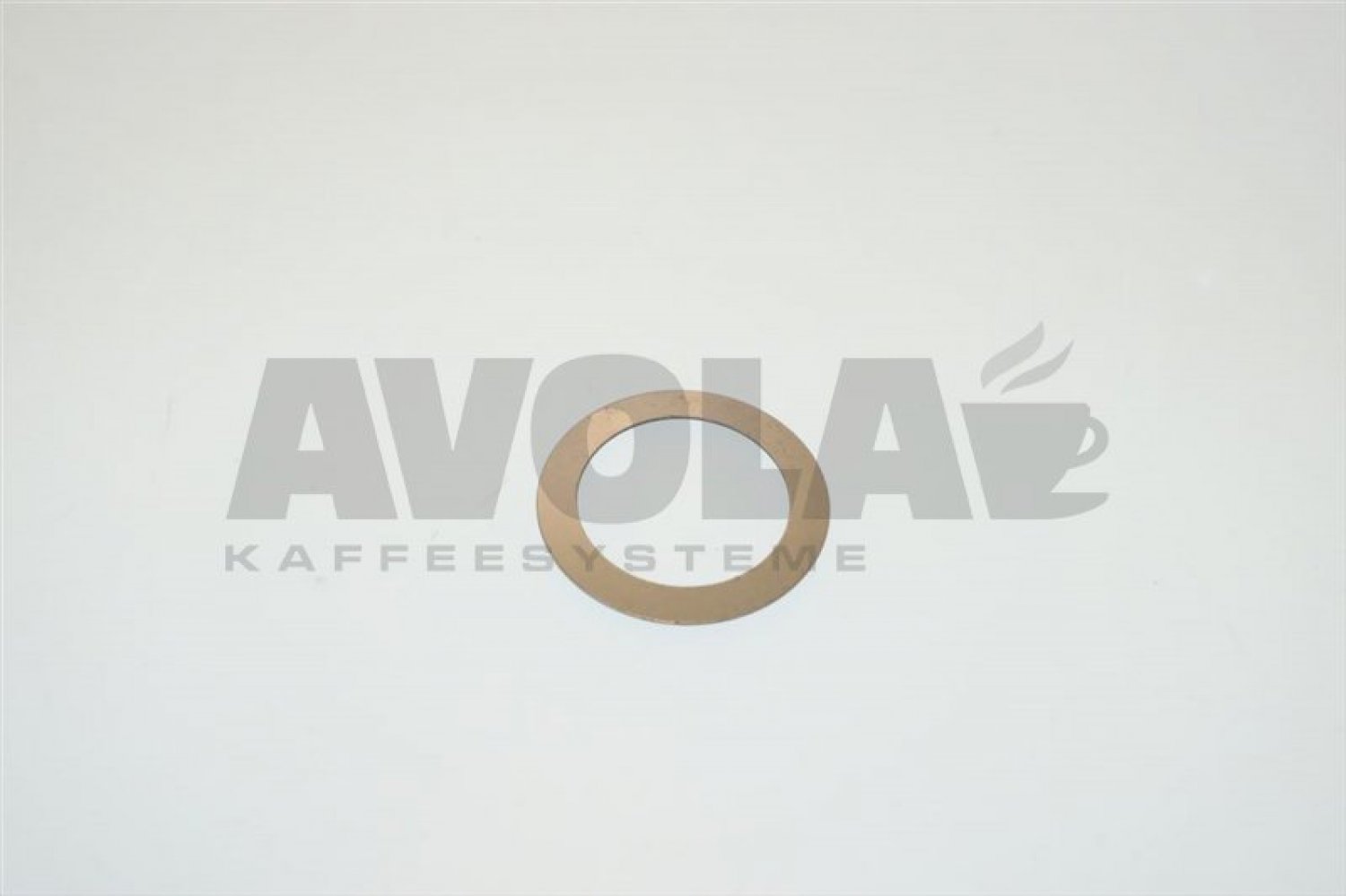

62unterlegscheibe 25x35x0 58118464
Unterlegscheibe 25x35x0,5
Price on request

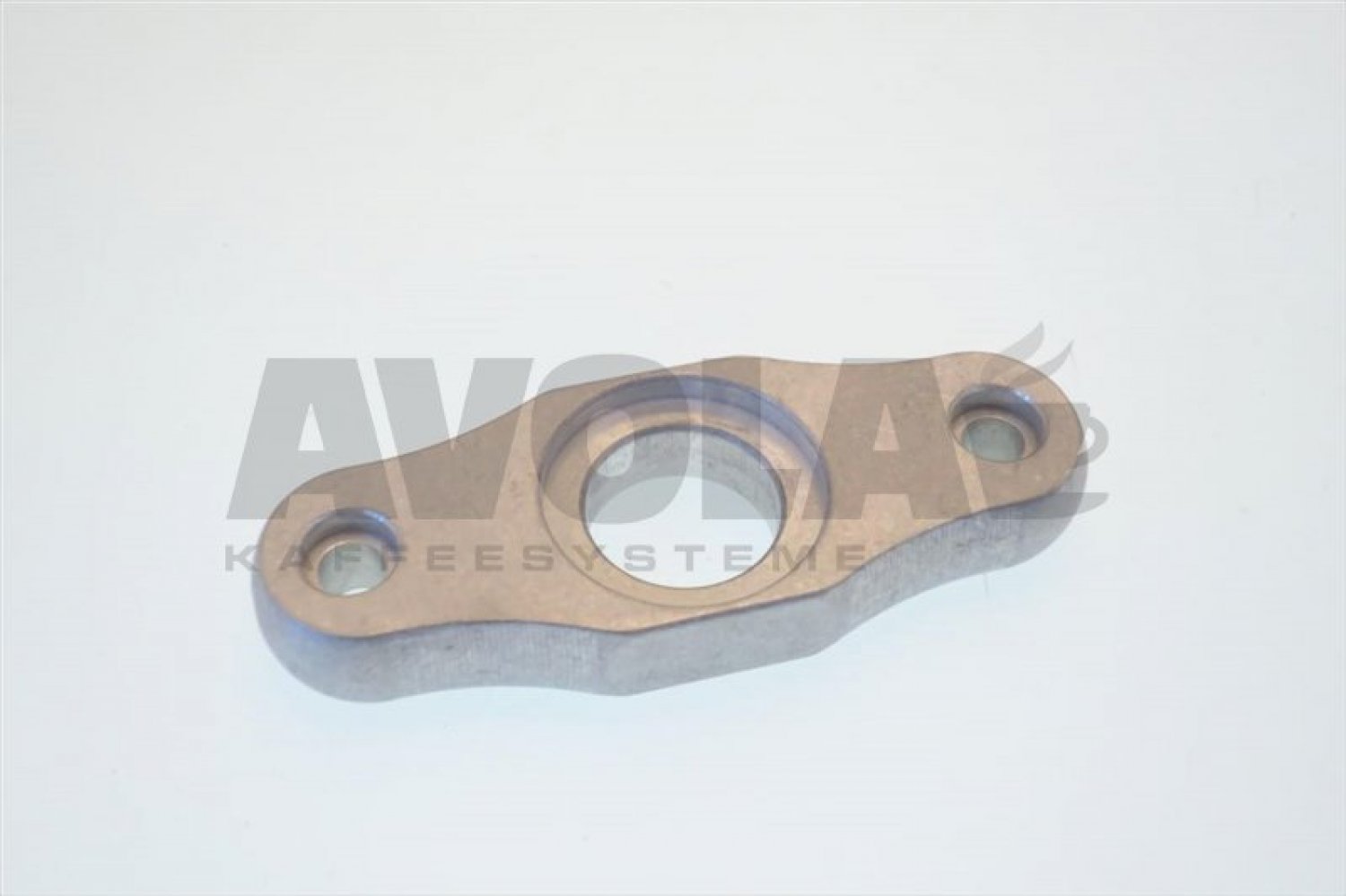

64untere befestigung grimac8118465
Untere Befestigung Grimac
Price on request

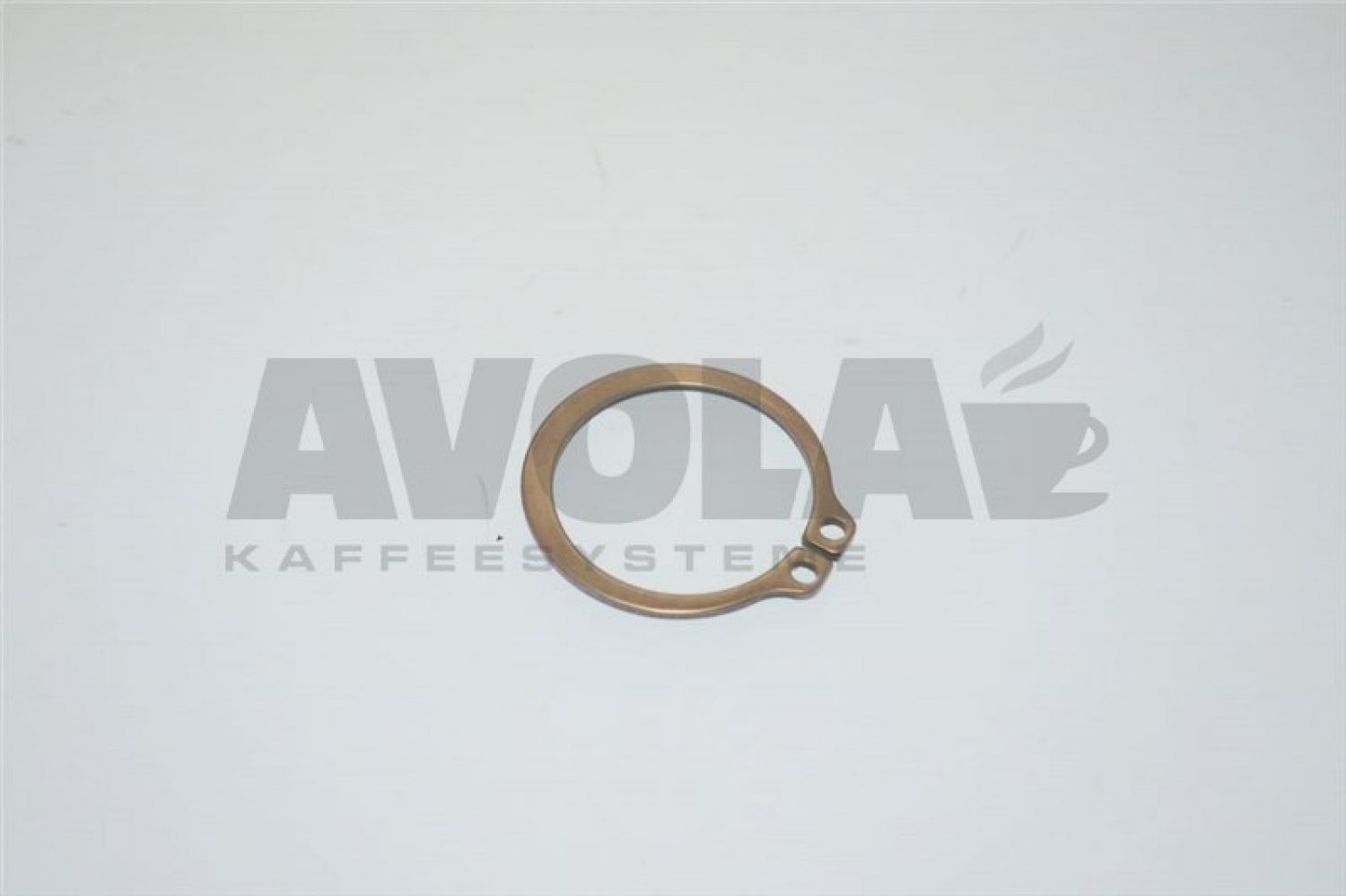

66grimac seeger ring8118463
Grimac Seeger Ring
Price on request
67l fitting o 1 88005885
L-FITTING ø 1/8
5,46 €

excl. Shipping costs
immediately available, 6 available
70o ring m 0080 20 viton8001872
O-RING M 0080-20 VITON
1,00 €

excl. Shipping costs
immediately available
71st steel complete steam pipe8006688
ST.STEEL COMPLETE STEAM PIPE
24,42 €

excl. Shipping costs
Delivery time 4-6 weeks
73contact thermostat 155 deg c m48006518
CONTACT THERMOSTAT 155°C M4
This article is no longer available
74contact thermostat 2008006452
CONTACT THERMOSTAT 200
7,39 €

excl. Shipping costs
Delivery time 4-6 weeks
77brass torpedo pin8005186
BRASS TORPEDO PIN
25,57 €

excl. Shipping costs
Delivery time
is determined
78cartridge heating element 800w 230v8007538
CARTRIDGE HEATING ELEMENT 800W 230V
29,83 €

excl. Shipping costs
immediately available, 1 available
79o ring 0115 epdm8001977
O-RING 0115 EPDM
0,93 €

excl. Shipping costs
immediately available

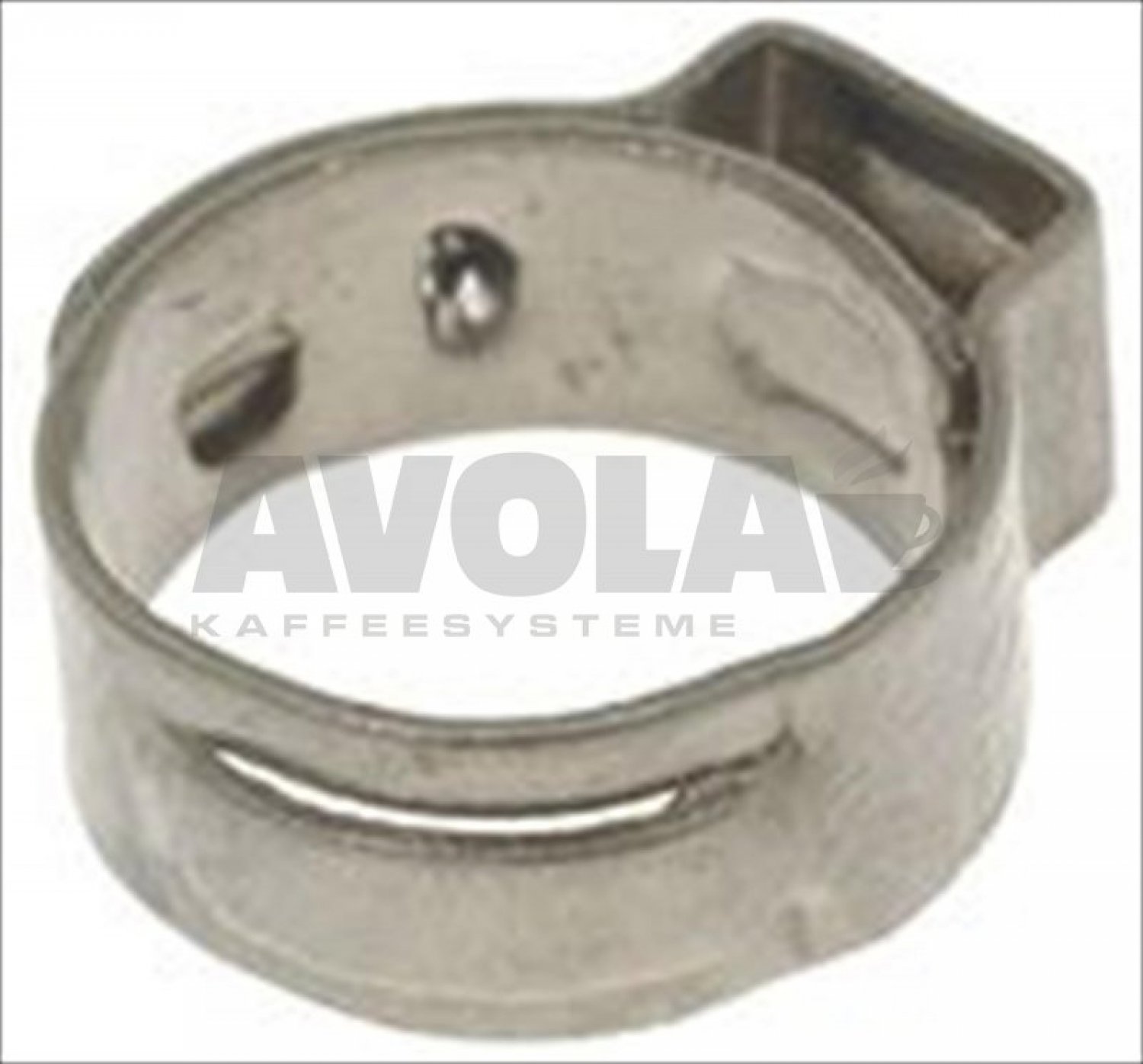

81hose clamp8027748
HOSE CLAMP
1,65 €

excl. Shipping costs
Delivery time
is determined

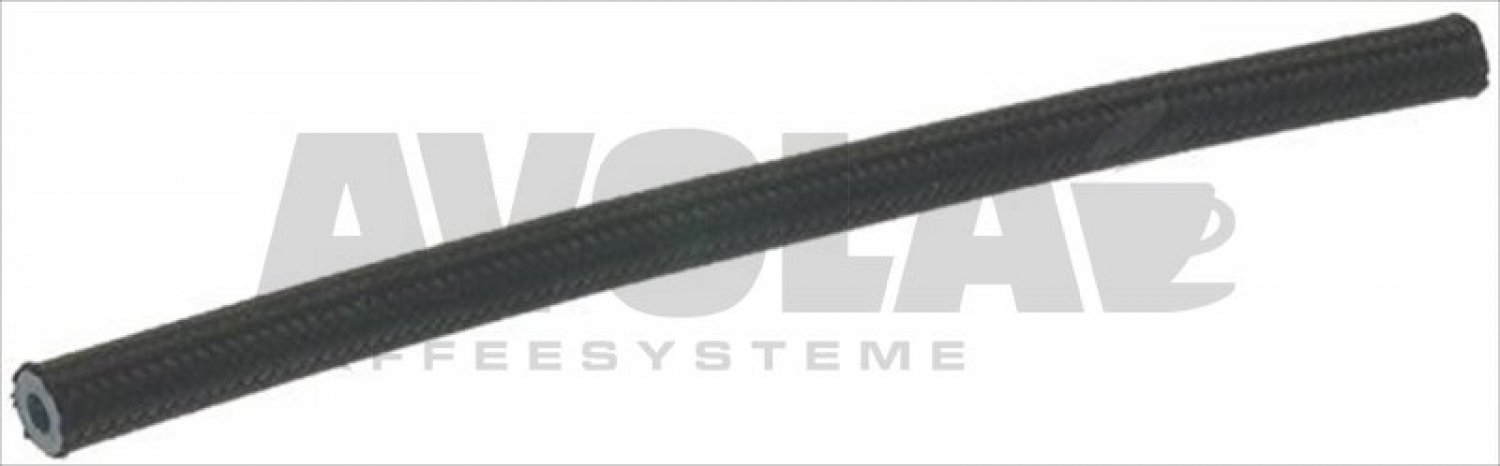

82gewebeummantelter silikonschlauch 5x10mmx20cm8105698
Gewebeummantelter Silikonschlauch 5x10mmx20cm
8,33 €

excl. Shipping costs
immediately available, 2 available
86vibratory pump nme 3s 16w 230v 50hz8005267
VIBRATORY PUMP NME 3S 16W 230V 50Hz
21,93 €

excl. Shipping costs
Delivery time
is determined
88hexagonal nut mid m58029978
HEXAGONAL NUT MID M5
Price on request
91schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available
96cappuccinatore connector tube8000344
CAPPUCCINATORE CONNECTOR TUBE
3,55 €

excl. Shipping costs
immediately available, 2 available
97complete small cappuccinatore white8000331
COMPLETE SMALL CAPPUCCINATORE WHITE
37,16 €

excl. Shipping costs
Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
