GRIMAC ZOLA I-ZOLA II-ECLISSE-TEN KAFFEEGRUPPE MANUELL

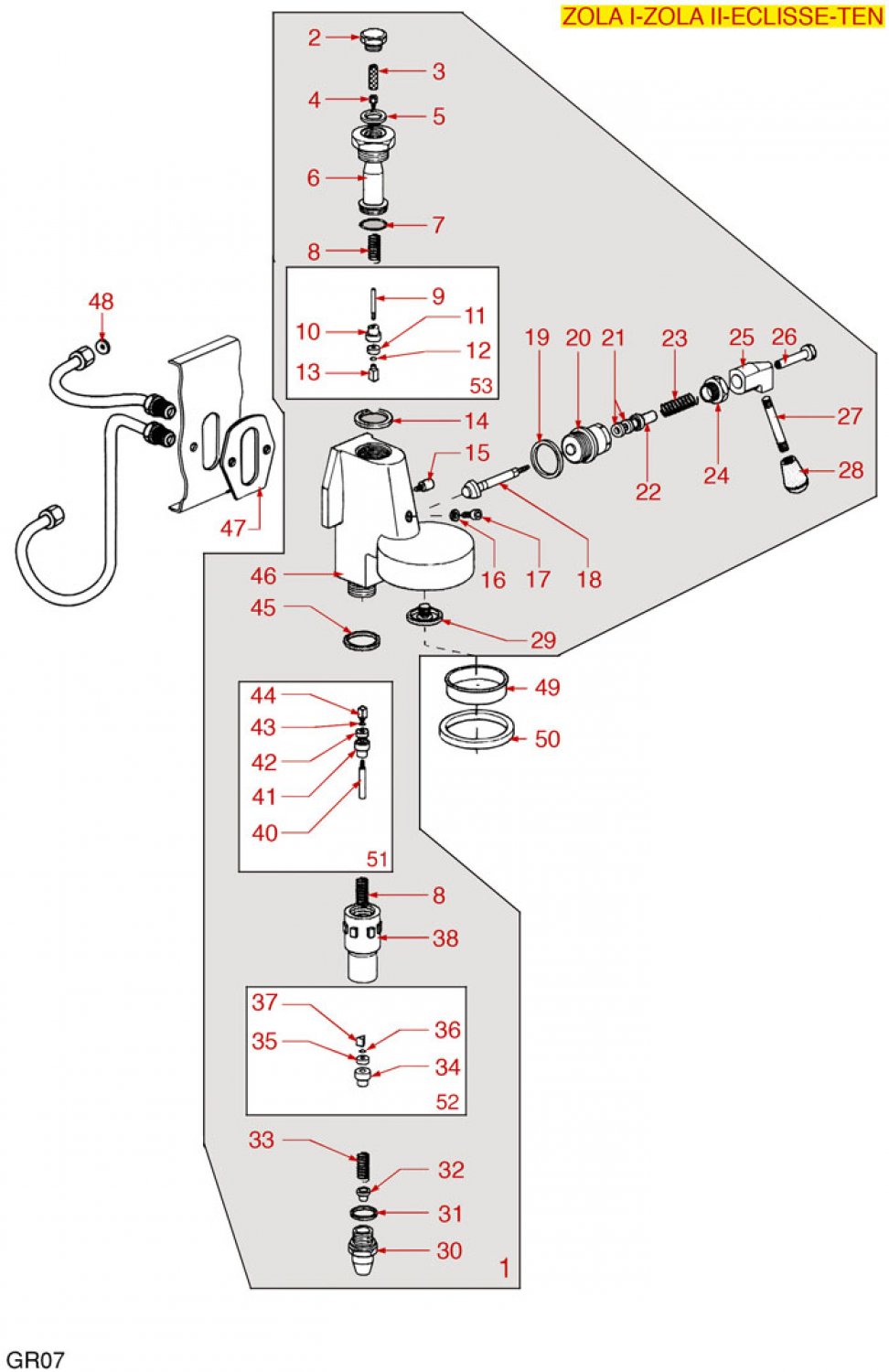

Drawing number 8057341

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1lever brew group e61 8002190
LEVER BREW GROUP E61
169,90 €

excl. Shipping costs

immediately available, 1 available
2deckel fuer auslaufgruppe o 16 mm 8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs

immediately available, 15 available
3water filter o 8 5x22 mm 8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs

immediately available, 20 available
4nozzle m6x1 hole 8006971
NOZZLE M6x1 HOLE
4,46 €

excl. Shipping costs

immediately available, 16 available
5ptfe flat gasket o 16x22 5x2 mm 8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs

immediately available
7o ring 0128 viton 8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs

immediately available
8spring o 13x42 mm 8003819
SPRING ø 13x42 mm
3,50 €

excl. Shipping costs

immediately available, 17 available
9spindle for gasket holder 40 mm 8003811
SPINDLE FOR GASKET HOLDER 40 mm
4,82 €

excl. Shipping costs

Delivery time
is determined
11nbr flat gasket o 13x4x4 mm 8001569
NBR FLAT GASKET ø 13x4x4 mm
0,49 €

excl. Shipping costs

immediately available
16flat washer m6 8029809
FLAT WASHER M6
1,43 €

excl. Shipping costs

immediately available
17cylinder head screw m6x8 8001304
CYLINDER HEAD SCREW M6x8
1,67 €

excl. Shipping costs

immediately available, 10 available
18cam rod for e61 coffee group 8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs

immediately available
19ptfe flat gasket 36x30x2 mm 8001567
PTFE FLAT GASKET 36x30x2 mm
1,70 €

excl. Shipping costs

immediately available
20ecm rocket anschluss nockenwelle e61 verchromt hochglanzpoliert 8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert
19,90 €

excl. Shipping costs

immediately available, 2 available
21flat gasket 8001562
FLAT GASKET
1,11 €

excl. Shipping costs

immediately available
22cam guide bushing 8001571
CAM GUIDE BUSHING
3,90 €

excl. Shipping costs

immediately available, 13 available
23spring o 15x25 mm 8003821
SPRING ø 15x25 mm
2,02 €

excl. Shipping costs

immediately available
24stuffing gland chrome plated fitting 8006414
STUFFING GLAND CHROME-PLATED FITTING
7,87 €

excl. Shipping costs

immediately available, 3 available
25chromium plated cam 8002189
CHROMIUM-PLATED CAM
45,72 €

excl. Shipping costs

immediately available, 2 available
26magnet screw 8007323
MAGNET SCREW
5,15 €

excl. Shipping costs

Delivery time 4-6 weeks..
27unit operating rod 8005109
UNIT OPERATING ROD
13,39 €

excl. Shipping costs

immediately available, 2 available
28knob m8x1 8003294
KNOB M8x1
6,56 €

excl. Shipping costs

immediately available, 3 available
29group spray nozzle o 30 mm m10x1 e61 8006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs

immediately available
30drain chromium plated fitting 8005865
DRAIN CHROMIUM-PLATED FITTING
4,40 €

excl. Shipping costs

immediately available, 2 available
30drain chromium plated fitting 8105825
DRAIN CHROMIUM-PLATED FITTING
7,20 €

excl. Shipping costs

immediately available, 2 available
31flat gasket ptfe o 26x21x2 mm 8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs

Delivery time
is determined
31ptfe flat gasket o 22x17x2 mm 8001572
PTFE FLAT GASKET ø 22x17x2 mm
1,69 €

excl. Shipping costs

immediately available
32drain jet swirl 8005864
DRAIN JET SWIRL
2,78 €

excl. Shipping costs

immediately available, 16 available
33feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen 8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs

immediately available
38outlet chromium plated sleeve 8000146
OUTLET CHROMIUM-PLATED SLEEVE
46,68 €

excl. Shipping costs

immediately available, 1 available
45ptfe flat gasket 36x30x2 mm 8001567
PTFE FLAT GASKET 36x30x2 mm
1,70 €

excl. Shipping costs

immediately available
47coffee group gasket 80x70x2 mm 8001624
COFFEE GROUP GASKET 80x70x2 mm
3,51 €

excl. Shipping costs

immediately available, 13 available
47coffee group gasket 79x71x2 mm 8001723
COFFEE GROUP GASKET 79x71x2 mm
5,49 €

excl. Shipping costs

immediately available, 12 available
48rohr zum waermetauscher oben grimac 8101263
Rohr zum Wärmetauscher oben Grimac
41,65 €

excl. Shipping costs

immediately available, 1 available
48grimac rohr zur gruppe 8080472
GRIMAC ROHR ZUR GRUPPE
31,90 €

excl. Shipping costs

Delivery time 4-6 weeks..
49shower screen fuer e61 brew unit 8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs

immediately available
50cafelat e61 portafilter gasket 73x57x8 mm red 8081202
Cafelat E61 portafilter gasket 73x57x8 mm red
5,95 €

excl. Shipping costs

immediately available
50filter holder gasket o 74x57 5x8 mm 8001901
Filter holder gasket ø 74x57,5x8 mm
3,82 €

excl. Shipping costs

immediately available
50gasket 73x57x8 mm for e61 brew unit 8060996
Gasket 73x57x8 mm - for E61 brew unit
3,90 €

excl. Shipping costs

immediately available
51complete drain valve 8007124
COMPLETE DRAIN VALVE
9,90 €

excl. Shipping costs

immediately available
52e61 drain valve with gasket 8007125
E61 drain valve with gasket
5,90 €

excl. Shipping costs

immediately available
53complete spout valve 8007123
COMPLETE SPOUT VALVE
8,40 €

excl. Shipping costs

immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
