GRIMAC ZOLA I-ZOLA II-ECLISSE-TEN KAFFEEGRUPPE MIT VENTIL

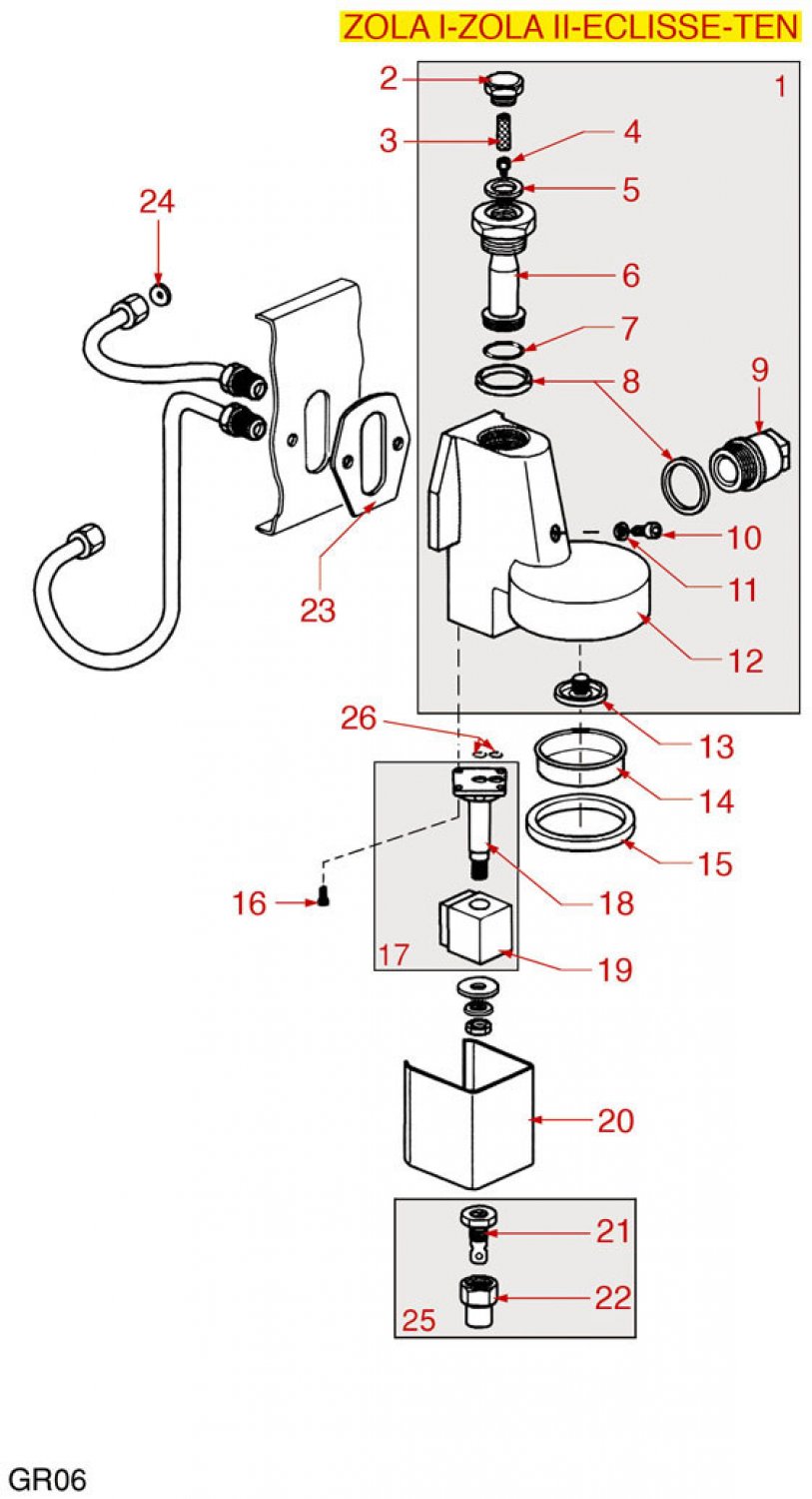

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Pos.:	Item No.:	Image:	Description:	Shipment:	Price (inkl. VAT):	Qty.:

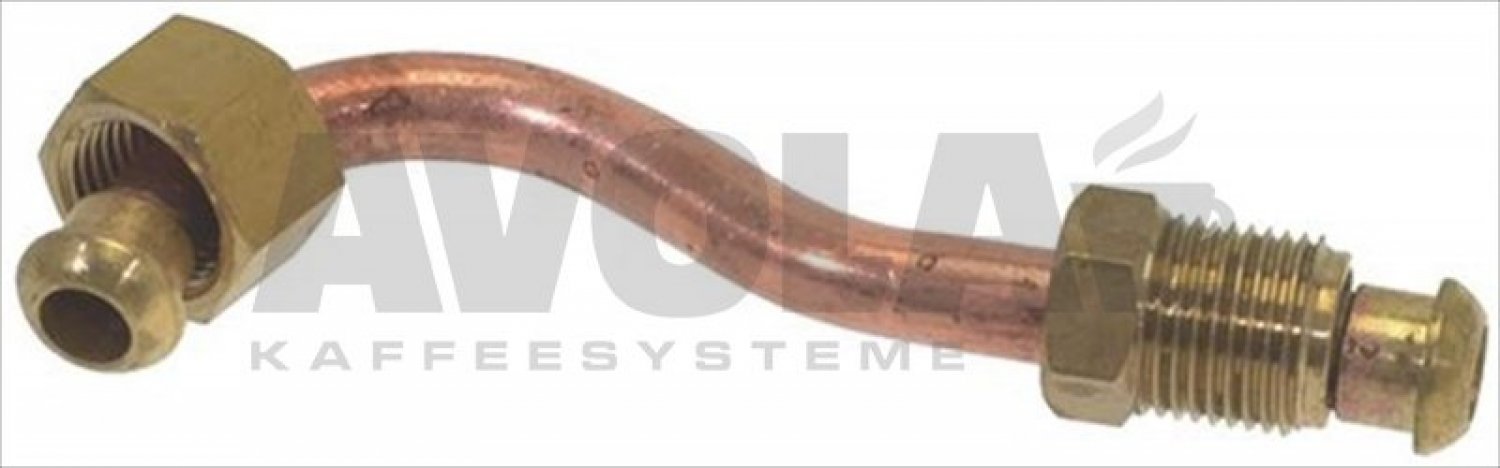

0	8101263		8101263 Rohr zum Wärmetauscher oben Grimac	excl. Shipping costs immediately available, 1 available	41,65 €	41,65 € excl. Shipping costs immediately available, 1 available

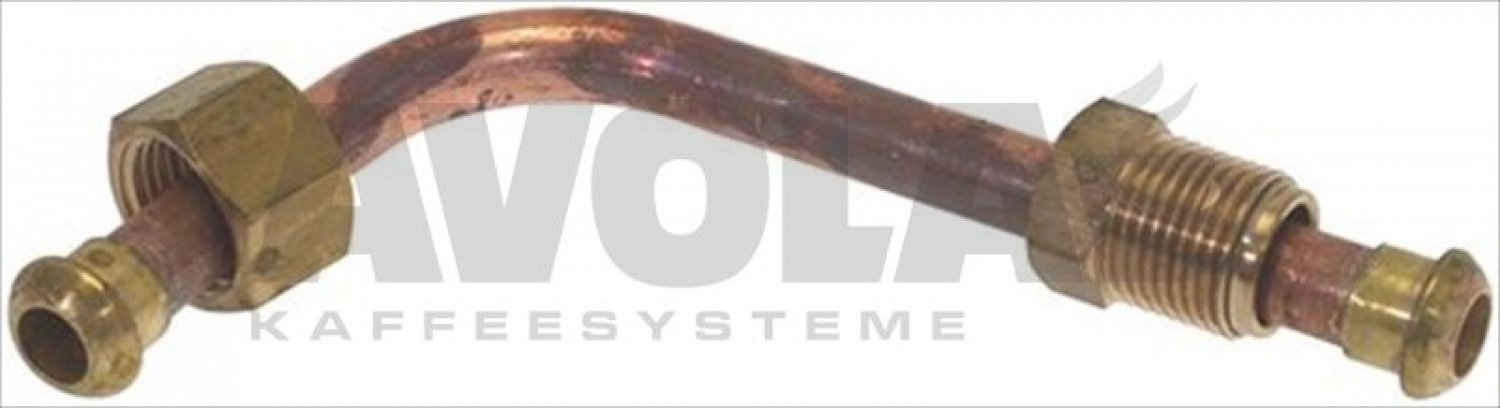

0	8080472		8080472 GRIMAC ROHR ZUR GRUPPE	excl. Shipping costs Delivery time 4-6 weeks	31,90 €	31,90 € excl. Shipping costs Delivery time 4-6 weeks
1	8002194		8002194 BREW GROUP E61	excl. Shipping costs Delivery time is determined	180,51 €	180,51 € excl. Shipping costs Delivery time is determined
2	8006373		8006373 Deckel für Auslaufgruppe ø 16 mm	excl. Shipping costs immediately available, 8 available	8,46 €	8,46 € excl. Shipping costs immediately available, 8 available
3	8001115		8001115 Water Filter Ø8.5x22 mm	excl. Shipping costs immediately available	1,81 €	1,81 € excl. Shipping costs immediately available
4	8006971		8006971 Nozzle M6x0.75 Hole Ø0.7 mm	excl. Shipping costs immediately available	4,61 €	4,61 € excl. Shipping costs immediately available
5	8001581		8001581 PTFE FLAT GASKET ø 16x22,5x2 mm	excl. Shipping costs immediately available	0,98 €	0,98 € excl. Shipping costs immediately available
6	8000148		8000148 Chrome-Plated Upper Collector for Brew Groups with 3-Way Solenoid Valve	excl. Shipping costs immediately available, 6 available	56,80 €	56,80 € excl. Shipping costs immediately available, 6 available
7	8001794		8001794 O-RING 0128 VITON	excl. Shipping costs immediately available	1,69 €	1,69 € excl. Shipping costs immediately available
8	8001567		8001567 PTFE FLAT GASKET 36x30x2 mm	excl. Shipping costs immediately available	1,73 €	1,73 € excl. Shipping costs immediately available
13	8006987		8006987 Group Head Diffuser / Spray Nozzle – Ø30 mm – M10x1	excl. Shipping costs immediately available, 13.3 available	5,90 €	5,90 € excl. Shipping costs immediately available, 13.3 available
14	8000608		8000608 Shower screen für E61 brew unit	excl. Shipping costs immediately available	3,99 €	3,99 € excl. Shipping costs immediately available
14	8102192		8102192 E61 Nanotec Precision Shower Screen – Ø60 mm – Full Perforation	excl. Shipping costs immediately available, 2 available	26,87 €	26,87 € excl. Shipping costs immediately available, 2 available
15	8081202		8081202 Cafelat E61 Portafilter Gasket Silicone Red 73x57x8 mm	excl. Shipping costs immediately available	5,95 €	5,95 € excl. Shipping costs immediately available
15	8001901		8001901 Filter holder gasket ø 74x57,5x8 mm	excl. Shipping costs immediately available	3,84 €	3,84 € excl. Shipping costs immediately available
15	8060996		8060996 Gasket 73x57x8 mm - for E61 brew unit	excl. Shipping costs immediately available	3,90 €	3,90 € excl. Shipping costs immediately available
16	8061180		8061180 Socket Head Cap Screw M4x10 – DIN 912 – Stainless Steel A2-70	excl. Shipping costs immediately available	0,68 €	0,68 € excl. Shipping costs immediately available
17	8000955		8000955 3-WAY SOLENOID VALVE LUCIFER 240V 50Hz	excl. Shipping costs immediately available, 12 available	46,20 €	46,20 € excl. Shipping costs immediately available, 12 available
17	8000960		8000960 Parker 3-Way Solenoid Valve VE128IR 230V 50/60Hz 9W	excl. Shipping costs immediately available	53,55 €	53,55 € excl. Shipping costs immediately available
18	8000962		8000962 3-WAY MECHANICAL COMPONENT PARKER	excl. Shipping costs immediately available, 7 available	42,72 € 42,72 €	42,72 € 42,72 € excl. Shipping costs immediately available, 7 available
19	8012418		8012418 COIL PARKER ZB09 9W 220/240V 50/60Hz	excl. Shipping costs immediately available, 9 available	20,74 €	20,74 € excl. Shipping costs immediately available, 9 available
23	8001624		8001624 COFFEE GROUP GASKET 80x70x2 mm	excl. Shipping costs immediately available, 6 available	3,71 €	3,71 € excl. Shipping costs immediately available, 6 available
23	8001723		8001723 COFFEE GROUP GASKET 79x71x2 mm	excl. Shipping costs immediately available, 8 available	5,53 €	5,53 € excl. Shipping costs immediately available, 8 available
25	8005636		8005636 DRAIN CHROMIUM-PLATED FITTING	excl. Shipping costs immediately available, 2 available	19,04 €	19,04 € excl. Shipping costs immediately available, 2 available
26	8001809		8001809 RED SILICONE O-RING R5 GASKET	excl. Shipping costs immediately available	1,38 €	1,38 € excl. Shipping costs immediately available
26	8001810		8001810 FKM O-Ring Seal 02025 – 6.07 x 1.78 mm	excl. Shipping costs immediately available	0,88 €	0,88 € excl. Shipping costs immediately available

If your article is not listed, please use the following form and enter the desired numbers.
