RANCILIO GRUPPE CLASSE 10 UND MILLENIUM

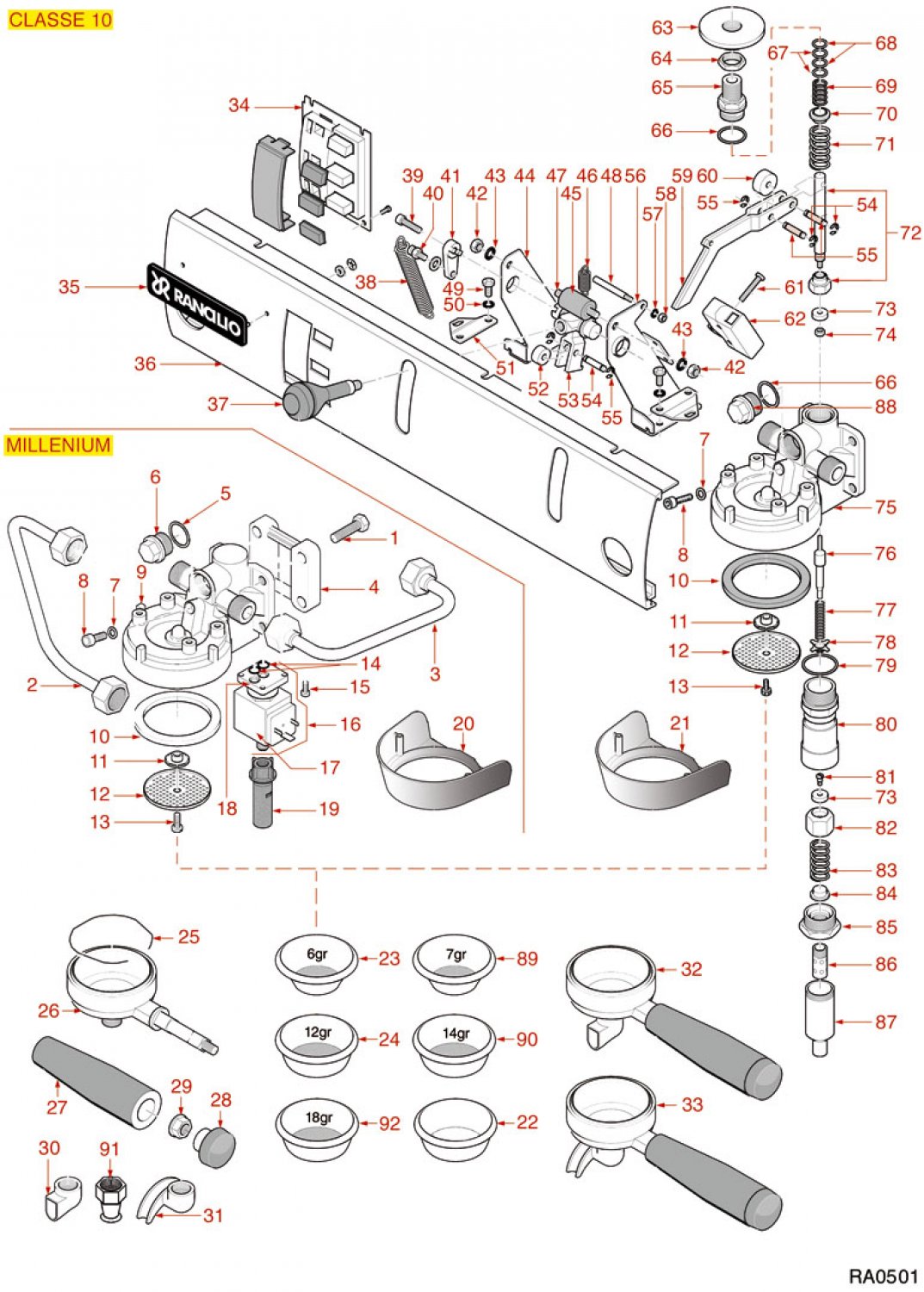

Drawing number 8057403

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
5flat copper gasket o 24x21x1 mm8001982
FLAT COPPER GASKET ø 24x21x1 mm
0,96 €

excl. Shipping costs
immediately available
6blindstopfen 1 2 quot m8062411
BLINDSTOPFEN 1/2 " M
3,45 €

excl. Shipping costs
immediately available, 9 available
7copper flat gasket o 10x6x1 mm8001983
COPPER FLAT GASKET ø 10x6x1 mm
1,31 €

excl. Shipping costs
immediately available, 14 available
8cylinder head screw m6x88001304
CYLINDER HEAD SCREW M6x8
1,67 €

excl. Shipping costs
immediately available, 10 available
10filter holder gasket8001984
FILTER HOLDER GASKET
4,09 €

excl. Shipping costs
immediately available
11brew group spray nozzle o 21 mm8005890
BREW GROUP SPRAY NOZZLE ø 21 mm
9,69 €

excl. Shipping costs
immediately available, 6 available
12shower o 57 5 mm8000577
SHOWER ø 57,5 mm
4,00 €

excl. Shipping costs
immediately available, 15 available
13cylinder head screw m5x128007321
CYLINDER HEAD SCREW M5x12
1,38 €

excl. Shipping costs
immediately available
14red silicone o ring r5 gasket8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs
immediately available
14o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available
15schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available
163 way solenoid valve lucifer 240v 50hz8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs
immediately available, 10 available
163 way solenoid valve parker 230v 50 60hz8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs
immediately available, 8 available
17coil lucifer parker 220 240v 9w 50hz8000957
COIL LUCIFER/PARKER 220/240V 9W 50Hz
19,92 €

excl. Shipping costs
immediately available, 7 available
17coil parker zb09 9w 220 240v 50 60hz8012418
COIL PARKER ZB09 9W 220/240V 50/60Hz
20,74 €

excl. Shipping costs
immediately available, 9 available
183 way mechanical component lucifer8000959
3-WAY MECHANICAL COMPONENT LUCIFER
39,77 €

excl. Shipping costs
immediately available, 8 available
183 way mechanical component parker8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs
immediately available, 8 available
19rancilio drain pipe8005659
Rancilio DRAIN PIPE
11,02 €

excl. Shipping costs
immediately available, 1 available
21group covering ring8000003
GROUP COVERING RING
62,95 €

excl. Shipping costs
Delivery time
is determined
22blind filter o58mm8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs
immediately available
231 cup filter 6 g8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs
immediately available, 13 available
242 cup filter 12 grams8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs
immediately available, 15 available
25filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available
26filter holder rancilio8001205
FILTER HOLDER RANCILIO
41,57 €

excl. Shipping costs
immediately available, 1 available
27filter holder knob8003156
FILTER HOLDER KNOB
32,94 €

excl. Shipping costs
immediately available, 3 available

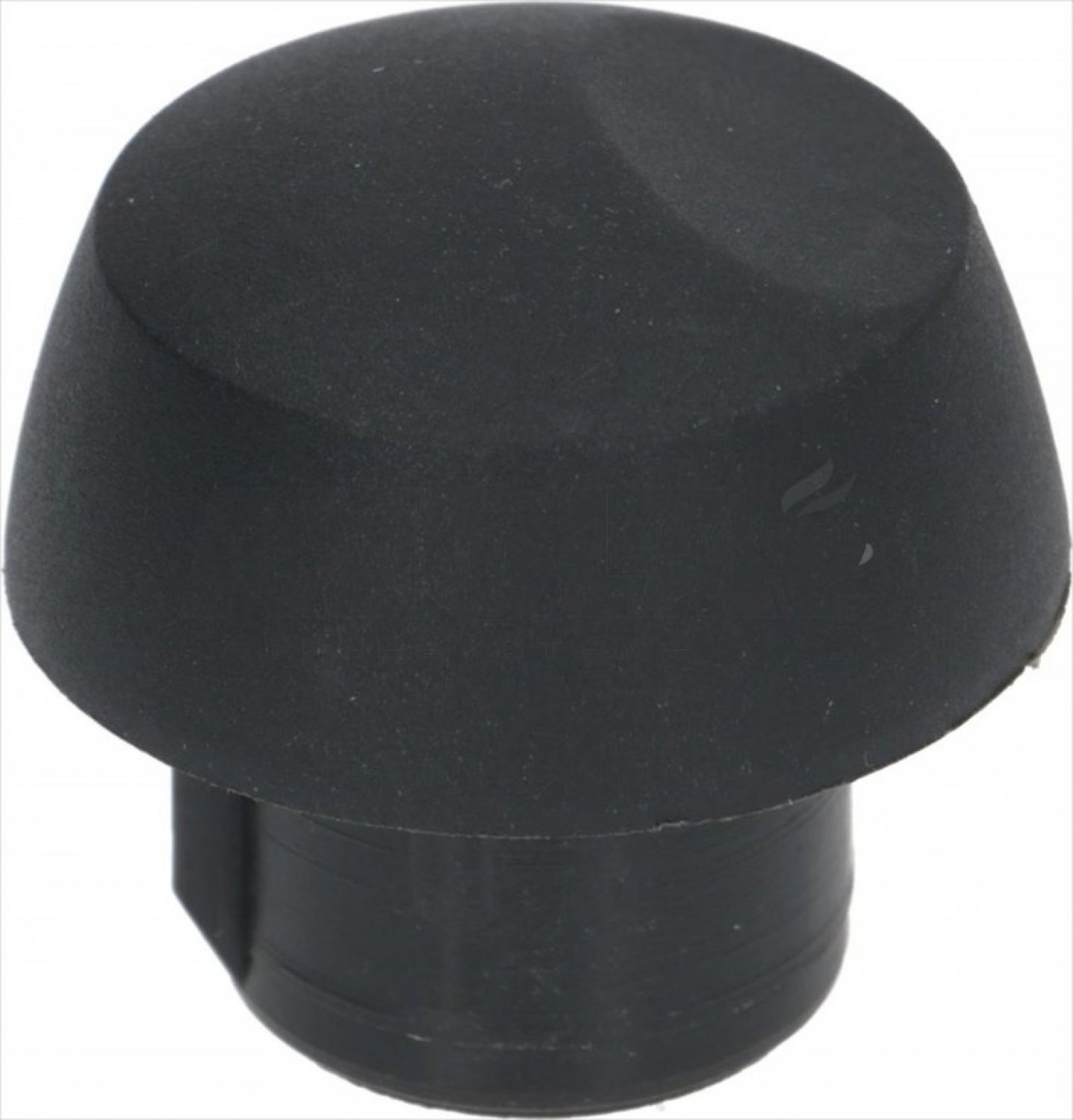

28filter holder knob cap8003158
FILTER HOLDER KNOB CAP
5,55 €

excl. Shipping costs
immediately available, 3 available
29blind hexagonal nut m8 uni 57218003355
BLIND HEXAGONAL NUT M8 UNI 5721
Price on request
29scheibe f schraube sechs kopf m10uni65928007249
SCHEIBE F.SCHRAUBE SECHS.KOPF M10UNI6592
Price on request
30single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available, 13 available
31lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
31double spout o 3 88000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs
immediately available, 7 available
321 cup filter holder assembly rancilio8001117
1 CUP FILTER HOLDER ASSEMBLY RANCILIO
Price on request

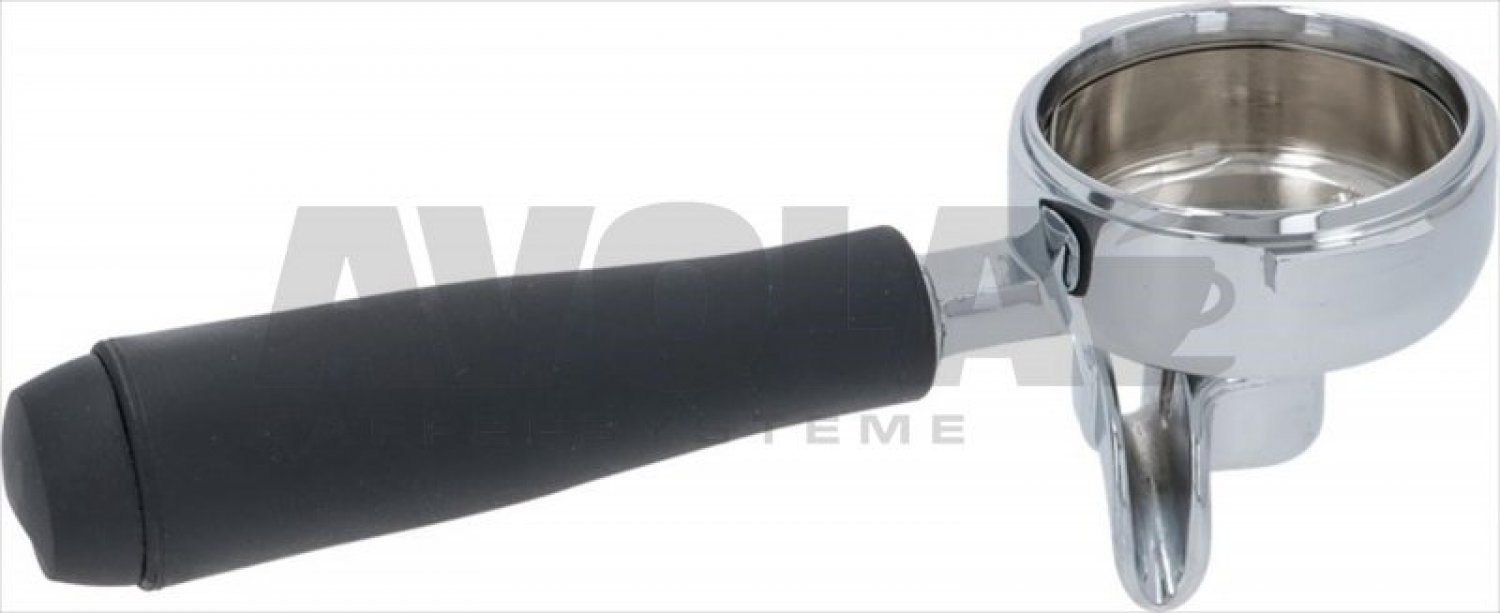

332 cups filter holder assembly rancilio8001122
2 CUPS FILTER HOLDER ASSEMBLY RANCILIO
Price on request
38shock absorber spring8003849
SHOCK ABSORBER SPRING
5,56 €

excl. Shipping costs
Delivery time
is determined
39countersunk flat head screws m5x168007262
COUNTERSUNK FLAT HEAD SCREWS M5x16
0,50 €

excl. Shipping costs
immediately available
45rubber shock absorber8000015
RUBBER SHOCK ABSORBER
4,26 €

excl. Shipping costs
Delivery time
is determined

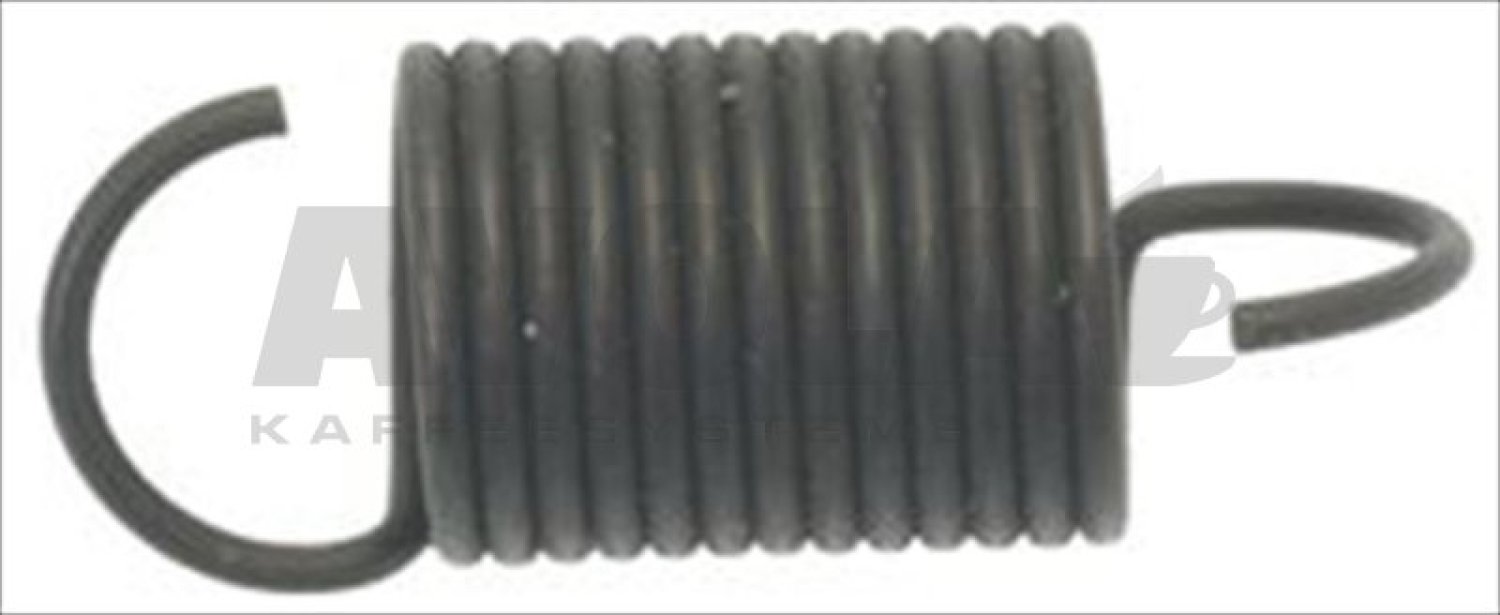

46lever spring8003562
LEVER SPRING
10,47 €

excl. Shipping costs
Delivery time
is determined
54stainless steel circlip ra 4 uni 74378005617
STAINLESS STEEL CIRCLIP RA-4 UNI 7437
0,48 €

excl. Shipping costs
immediately available
55roll pin8001310
ROLL PIN
2,19 €

excl. Shipping costs
Delivery time
is determined
59micro control lever8001309
MICRO CONTROL LEVER
25,06 €

excl. Shipping costs
Delivery time
is determined

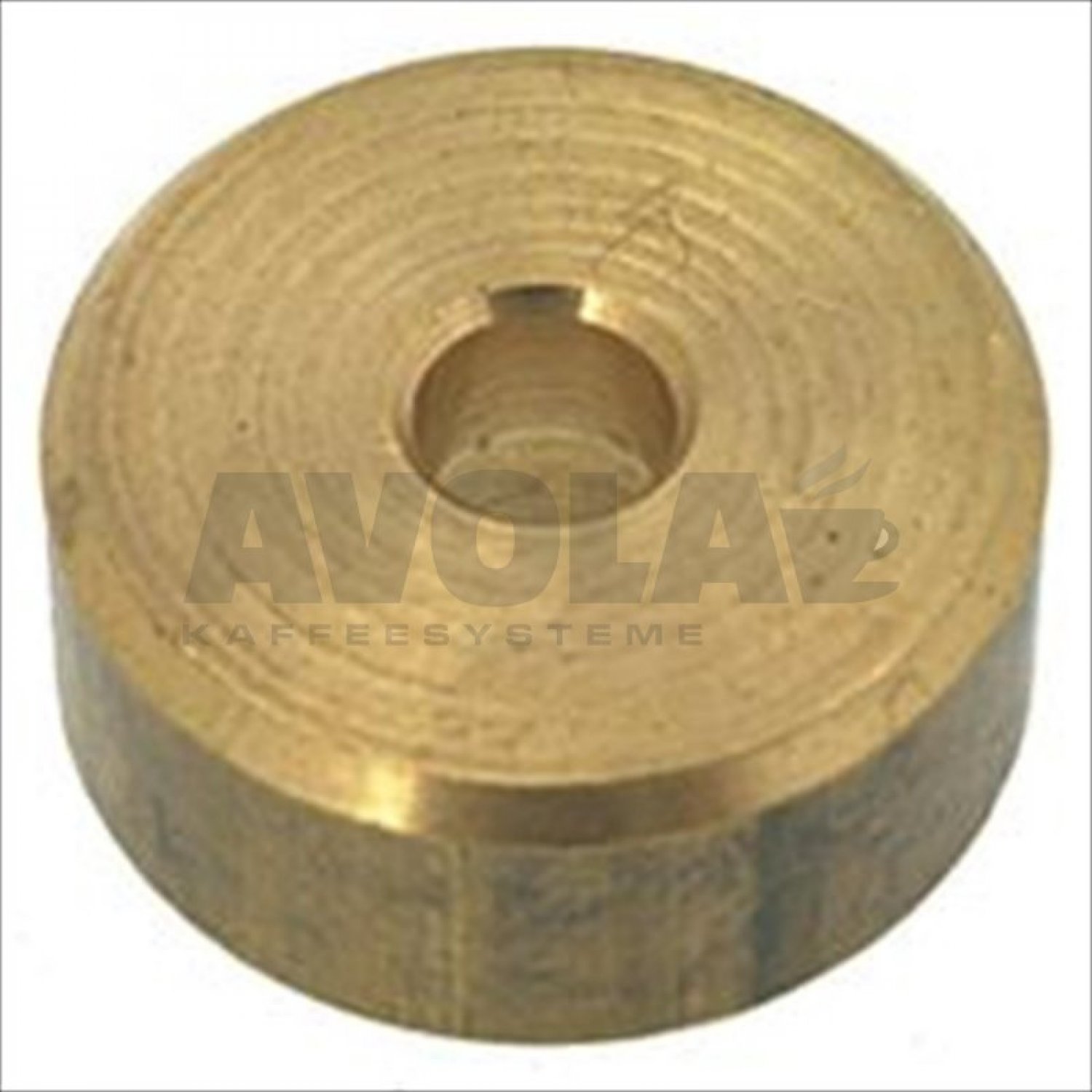

60lever bushing8005425
LEVER BUSHING
3,61 €

excl. Shipping costs
Delivery time
is determined
62microswitch 5a 250v8003095
MICROSWITCH 5A 250V
16,70 €

excl. Shipping costs
Delivery time
is determined

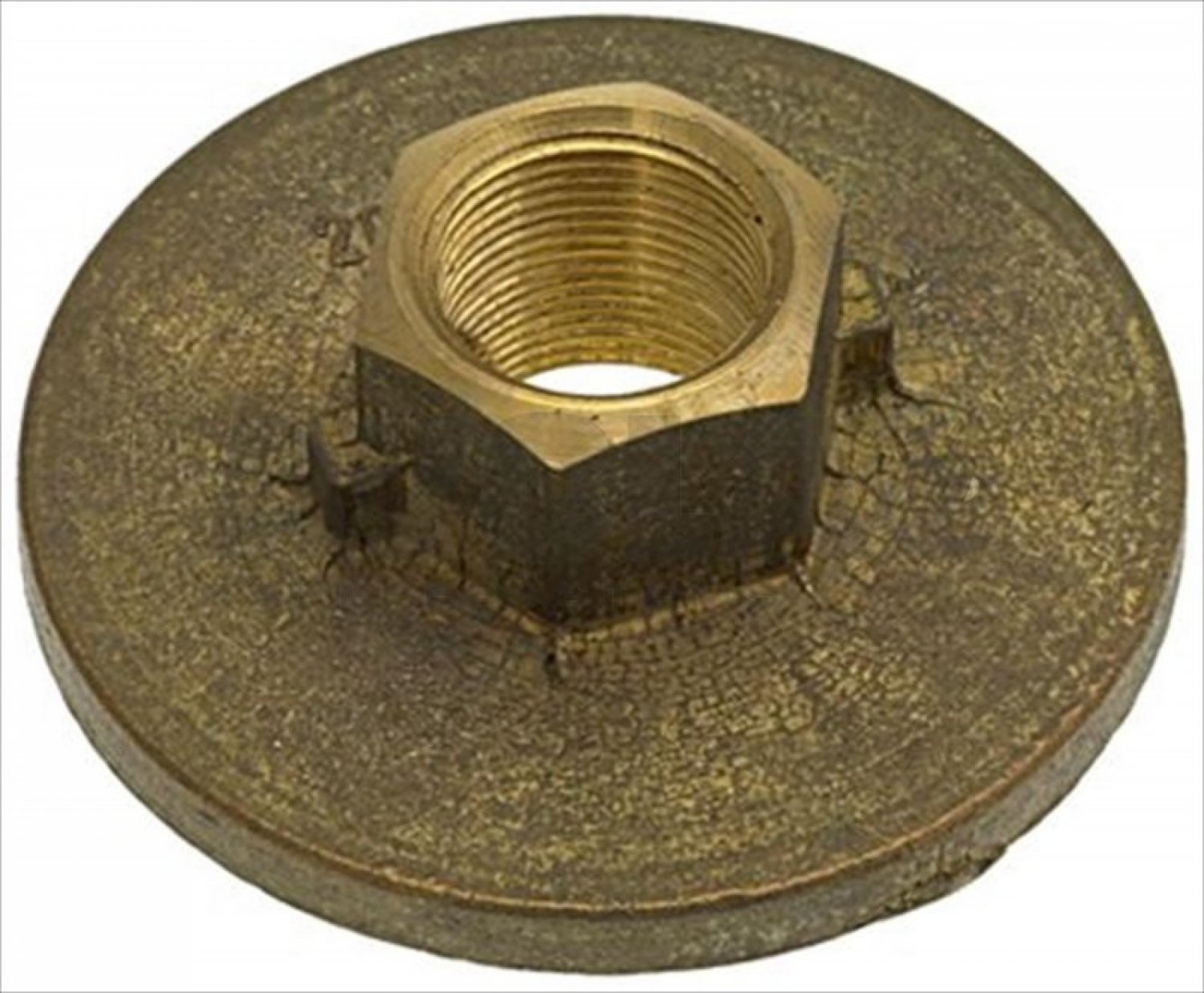

63buchse fuer einstellplatte8007174
BUCHSE FÜR EINSTELLPLATTE
11,16 €

excl. Shipping costs
Delivery time 4-6 weeks

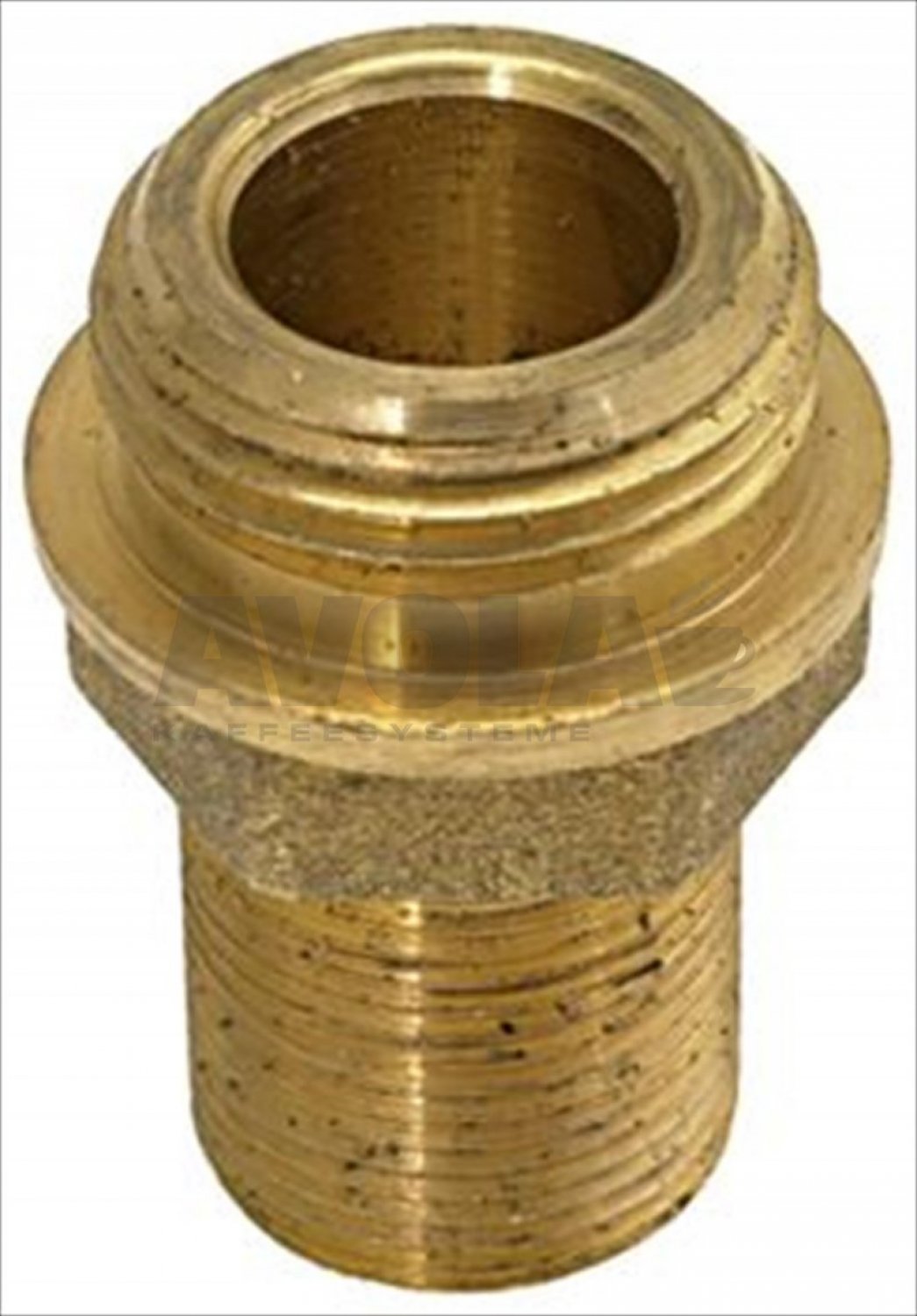

65infusion rod bushing8007175
INFUSION ROD BUSHING
17,74 €

excl. Shipping costs
Delivery time
is determined
66flat copper gasket o 24x21x1 mm8001982
FLAT COPPER GASKET ø 24x21x1 mm
0,96 €

excl. Shipping costs
immediately available
67flat ptfe gasket o 12x9x1 mm8001981
Flat PTFE gasket ø 12x9x1 mm
3,45 €

excl. Shipping costs
Delivery time
is determined
68o ring 02037 epdm8001975
O-RING 02037 EPDM
0,76 €

excl. Shipping costs
immediately available
69cap spring8003850
CAP SPRING
1,55 €

excl. Shipping costs
immediately available, 20 available

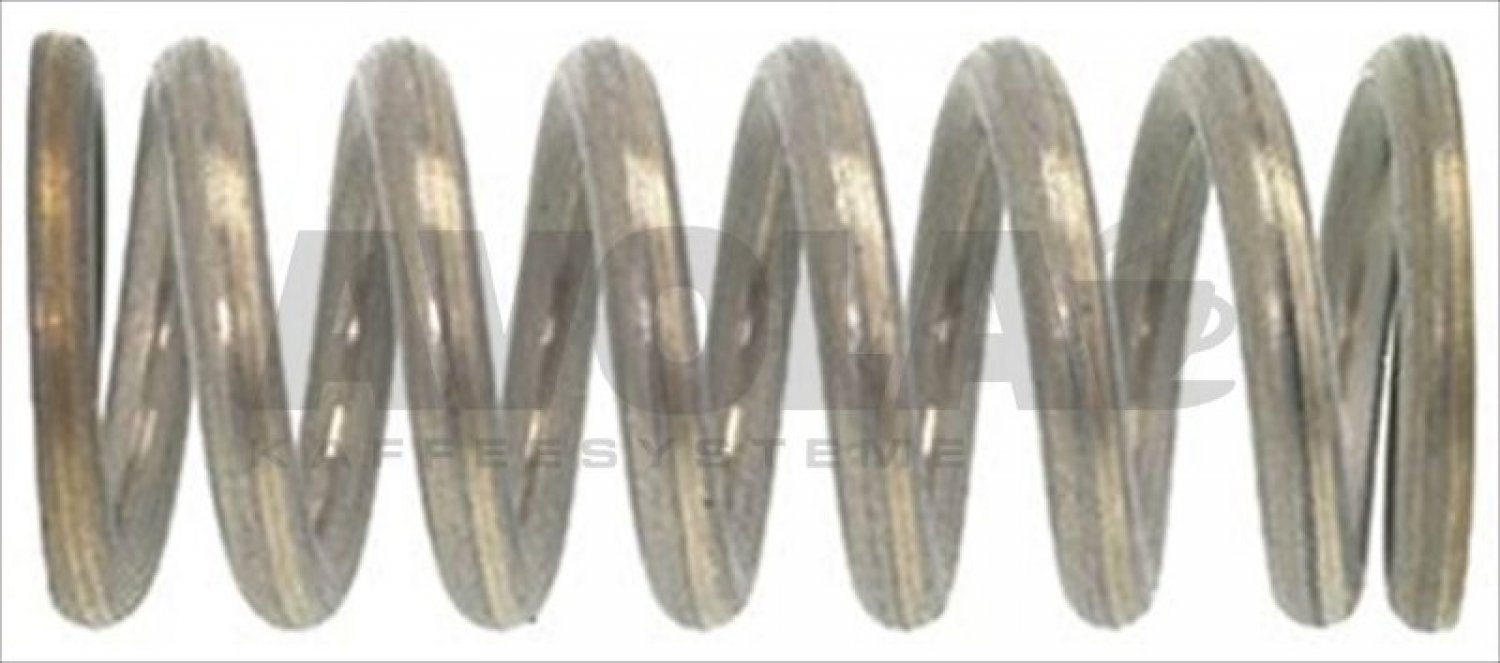

71valve spring8003851
VALVE SPRING
4,12 €

excl. Shipping costs
immediately available, 1 available
73viton flat gasket 13x4x4 mm8001990
VITON FLAT GASKET 13x4x4 mm
1,62 €

excl. Shipping costs
immediately available, 20 available
76spindle for control rod8005201
SPINDLE FOR CONTROL ROD
15,17 €

excl. Shipping costs
Delivery time
is determined

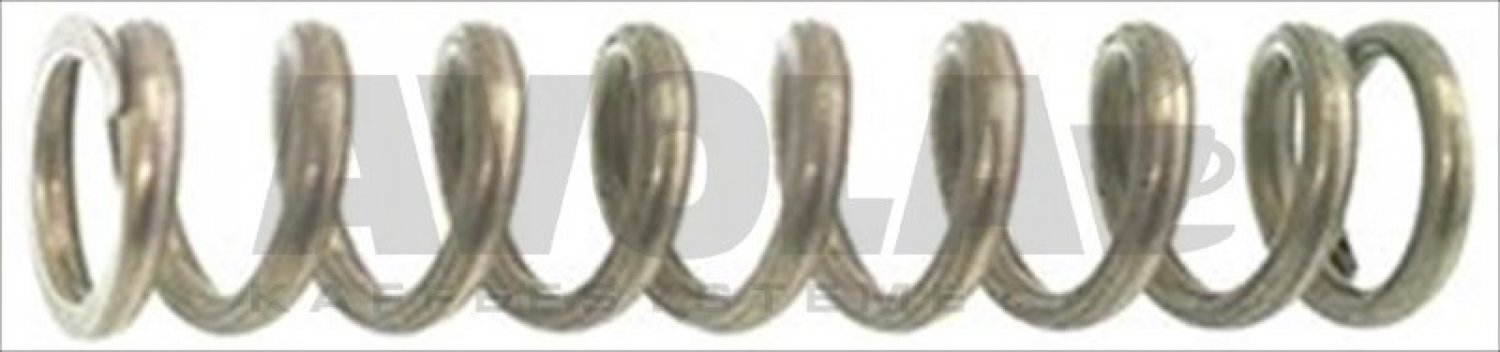

77drain rod spring8003852
DRAIN ROD SPRING
1,54 €

excl. Shipping costs
Delivery time
is determined

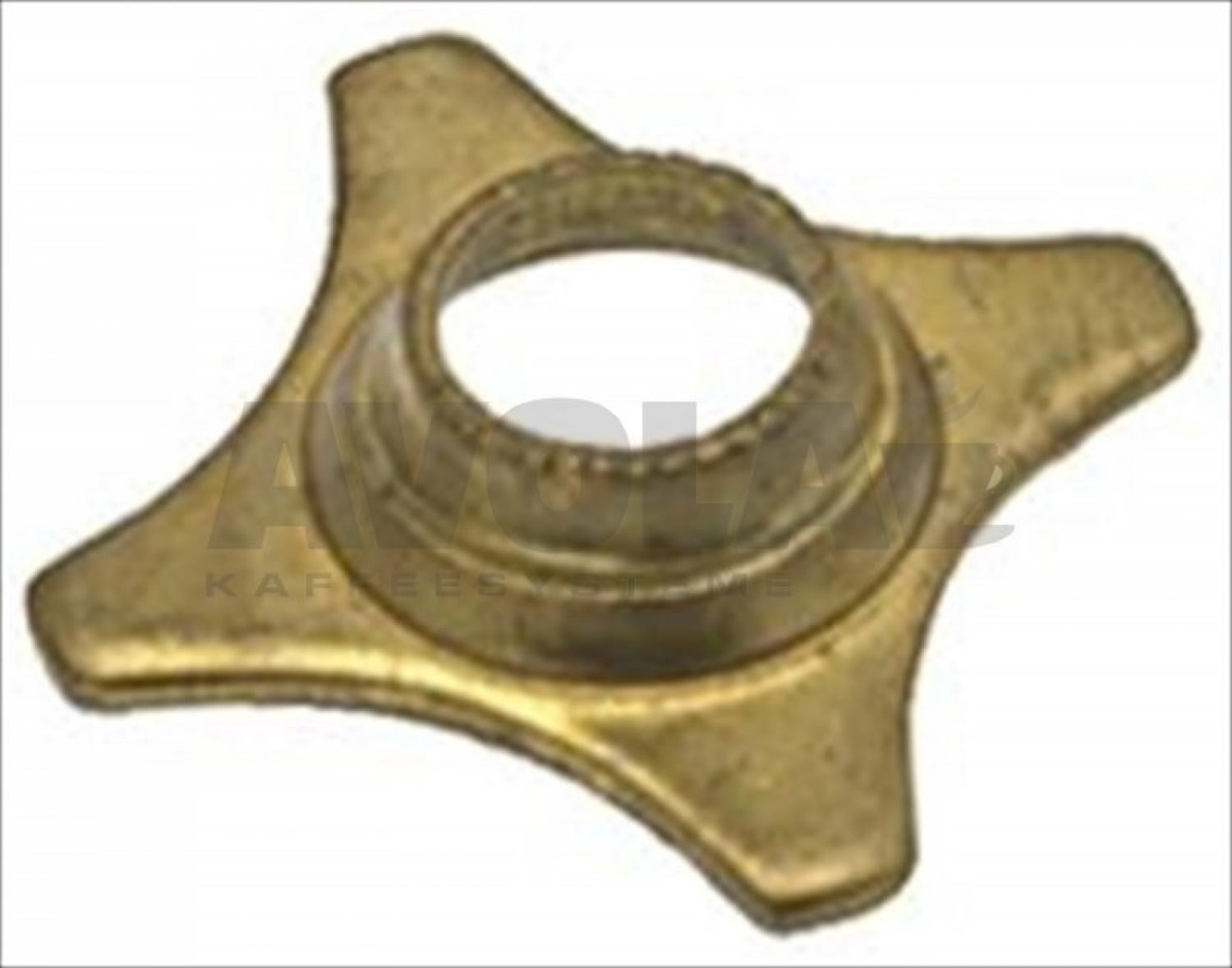

78infusion spring guide bushing8007171
INFUSION SPRING GUIDE BUSHING
23,99 €

excl. Shipping costs
immediately available, 5 available

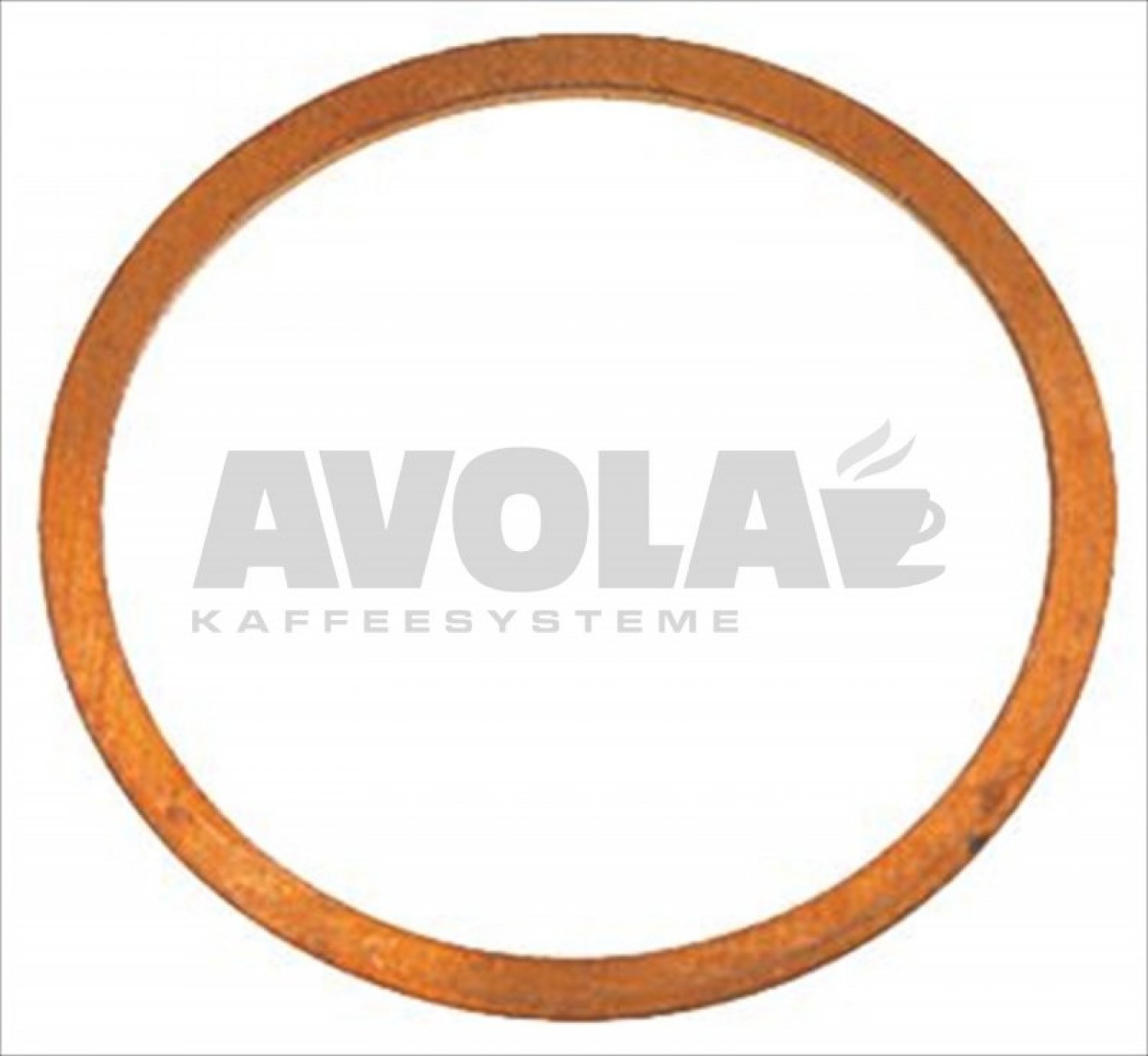

79copper flat gasket8001995
COPPER FLAT GASKET
1,43 €

excl. Shipping costs
Delivery time
is determined

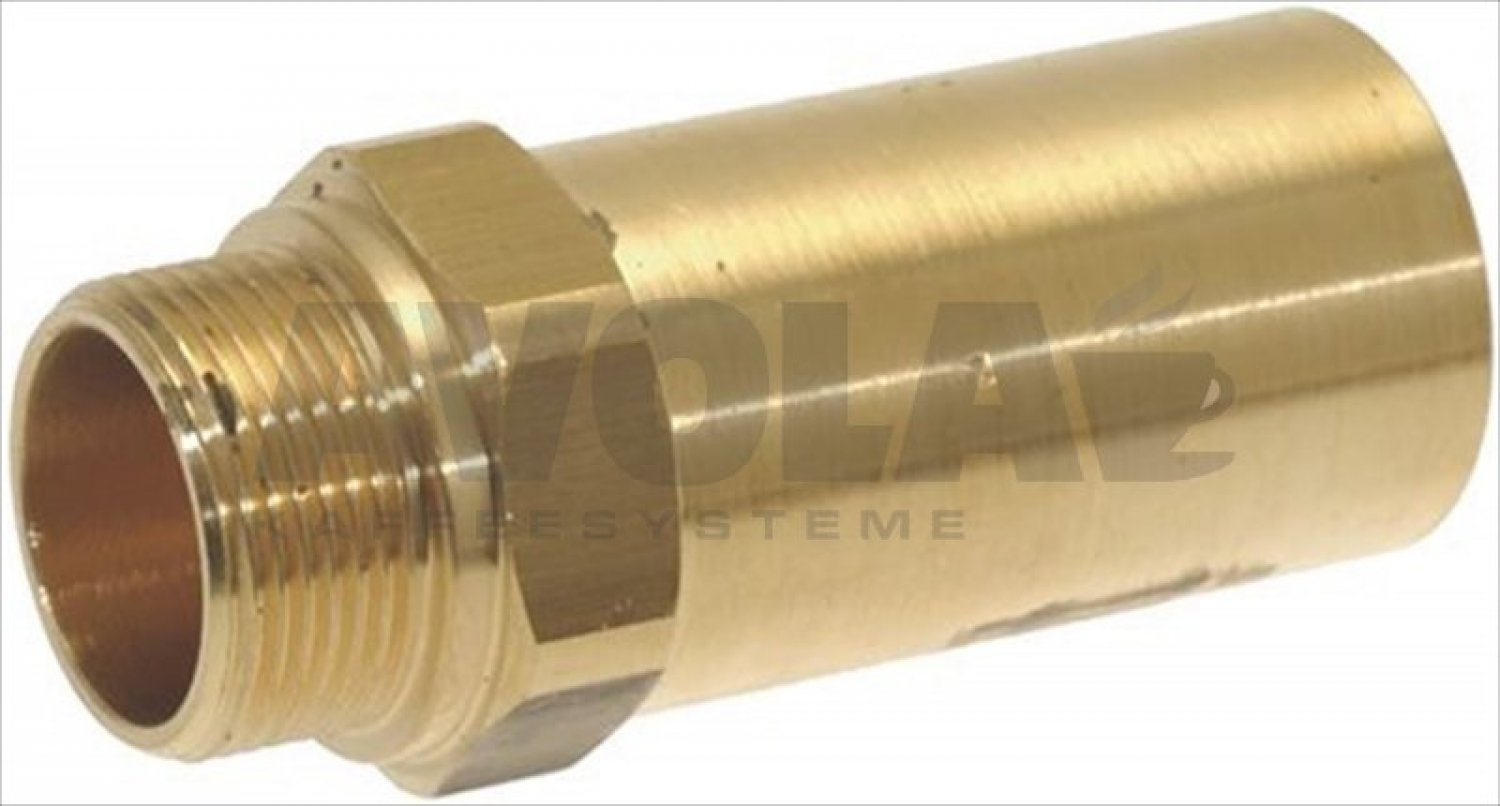

80drain pipe fitting8007170
DRAIN PIPE FITTING
41,48 €

excl. Shipping costs
Delivery time
is determined
82outlet gasket holder bushing8007172
OUTLET GASKET HOLDER BUSHING
16,49 €

excl. Shipping costs
Delivery time
is determined
83valve spring o 16x30 mm8003853
VALVE SPRING ø 16x30 mm
2,18 €

excl. Shipping costs
immediately available, 8 available

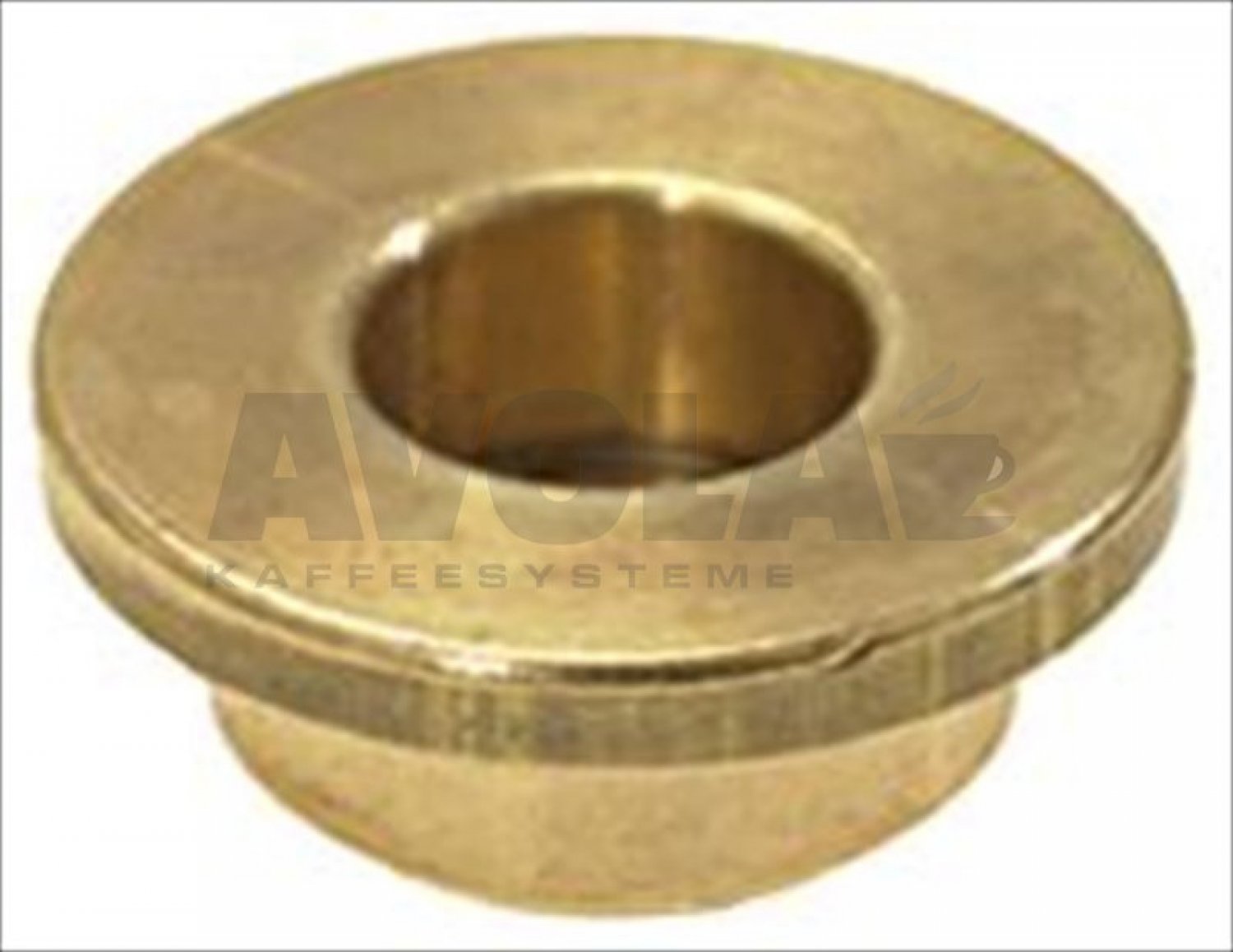

84outlet spring guide bushing8007173
OUTLET SPRING GUIDE BUSHING
24,89 €

excl. Shipping costs
Delivery time
is determined
87drain pipe8005658
DRAIN PIPE
14,22 €

excl. Shipping costs
Delivery time 4-6 weeks
891 cup filter 7 g8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs
immediately available, 9 available
902 cup filter 12 grams8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs
immediately available, 15 available
91straight single spout o 3 88000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs
immediately available, 5 available
922 cups filter 18 21gr o 70x28 mm8001104
2 Cups Filter 18/21gr ø 70x28 mm
4,46 €

excl. Shipping costs
immediately available, 10 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
