Izzo

IZZO HEBELGRUPPE

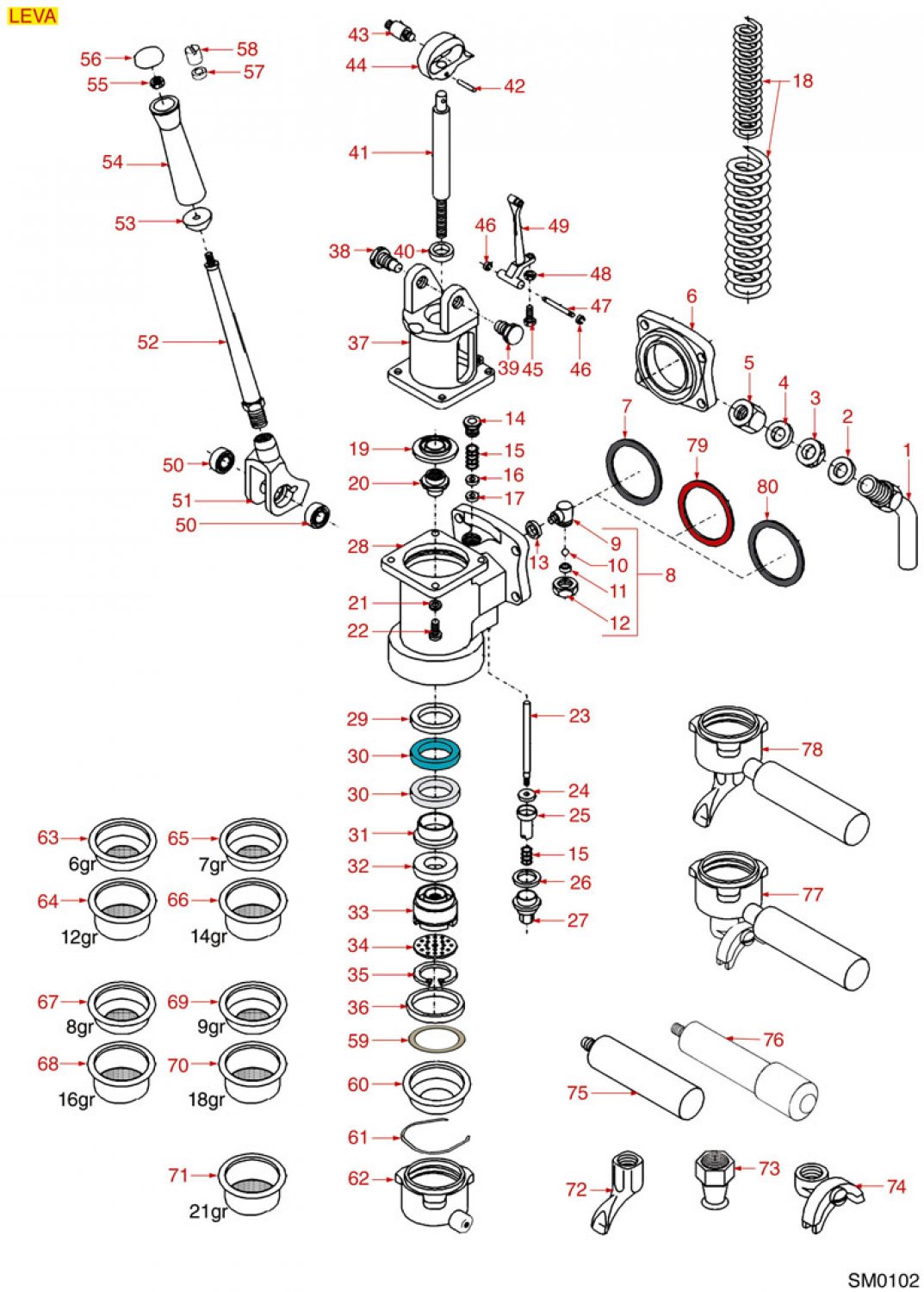

Drawing number 8062668

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
0san marco spezialschluessel werkzeug zur montage des kolbens handhebelgruppe 1 stueck 8280659
San Marco Spezialschlüssel Werkzeug zur Montage des Kolbens Handhebelgruppe (1 Stück)
109,50 €

excl. Shipping costs

Delivery time: 4-6 weeks
2asbestos free flat gasket o 34x26 5x2 mm 8001438
ASBESTOS FREE FLAT GASKET ø 34x26,5x2 mm
1,88 €

excl. Shipping costs

immediately available, 7 available
2ptfe flat gasket o 34x27x2 mm 8001603
PTFE FLAT GASKET ø 34x27x2 mm
2,44 €

excl. Shipping costs

immediately available, 15 available
3heat exchanger fitting nut 8005664
HEAT EXCHANGER FITTING NUT
8,06 €

excl. Shipping costs

Delivery time 4-6 weeks..
4round copper gasket o 24x18 4x2 5 mm 8001437
ROUND COPPER GASKET ø 24x18,4x2,5 mm
2,28 €

excl. Shipping costs

immediately available
5fitting 8005849
FITTING
12,23 €

excl. Shipping costs

immediately available, 4 available
7group gasket o 87x75x5 8 mm 8001549
GROUP GASKET ø 87x75x5,8 mm
3,20 €

excl. Shipping costs

immediately available, 9 available
8non return valve o 1 8 a 8007116
NON-RETURN VALVE ø 1/8 A
40,46 €

excl. Shipping costs

Delivery time
is determined
10stainless steel ball 8005090
STAINLESS STEEL BALL
2,74 €

excl. Shipping costs

immediately available, 2 available
13asbestos free flat gasket o 15x10x1 mm 8001412
ASBESTOS FREE FLAT GASKET ø 15x10x1 mm
0,95 €

excl. Shipping costs

immediately available, 6 available
14spring guide bushing 8007113
SPRING GUIDE BUSHING
3,94 €

excl. Shipping costs

immediately available, 2 available
15spring o 15x20 mm 8003823
SPRING ø 15x20 mm
1,45 €

excl. Shipping costs

immediately available, 11 available
16conical ptfe seal 8001404
CONICAL PTFE SEAL
3,26 €

excl. Shipping costs

immediately available, 9 available
16brass washer flat o 15x7x0 8 mm 8002148
BRASS WASHER FLAT ø 15x7x0,8 mm
1,38 €

excl. Shipping costs

Delivery time
is determined
17conical ptfe seal 8001404
CONICAL PTFE SEAL
3,26 €

excl. Shipping costs

immediately available, 9 available
18lever group spring pair 8003632
LEVER GROUP SPRING PAIR
23,86 €

excl. Shipping costs

immediately available, 2 available
19scheibe mit nut fuer feder handhebelgruppe 8080644
SCHEIBE MIT NUT FÜR FEDER HANDHEBELGRUPPE
29,80 €

excl. Shipping costs

Delivery time
is determined
20san marco feder spannmutter 8080645
San Marco Feder Spannmutter
24,59 €

excl. Shipping costs

Delivery time
is determined
21scheibe edelstahl o 6 4mm a2 din 125 8062380
Scheibe Edelstahl Ø 6,4mm A2 Din 125
0,30 €

excl. Shipping costs

immediately available
23stainless steel pin 8005099
STAINLESS STEEL PIN
6,88 €

excl. Shipping costs

Delivery time
is determined
24flachdichtung epdm o 16x5x4 mm 8104523
Flachdichtung EPDM ø 16x5x4 mm
3,46 €

excl. Shipping costs

immediately available, 6 available
25gasket holder bushing 8001418
GASKET HOLDER BUSHING
8,76 €

excl. Shipping costs

Delivery time
is determined
26asbestos free flat gasket o 29x22x2 mm 8001433
ASBESTOS FREE FLAT GASKET ø 29x22x2 mm
1,14 €

excl. Shipping costs

immediately available, 20 available
29compression bushing 8001430
COMPRESSION BUSHING
25,24 €

excl. Shipping costs

Delivery time
is determined

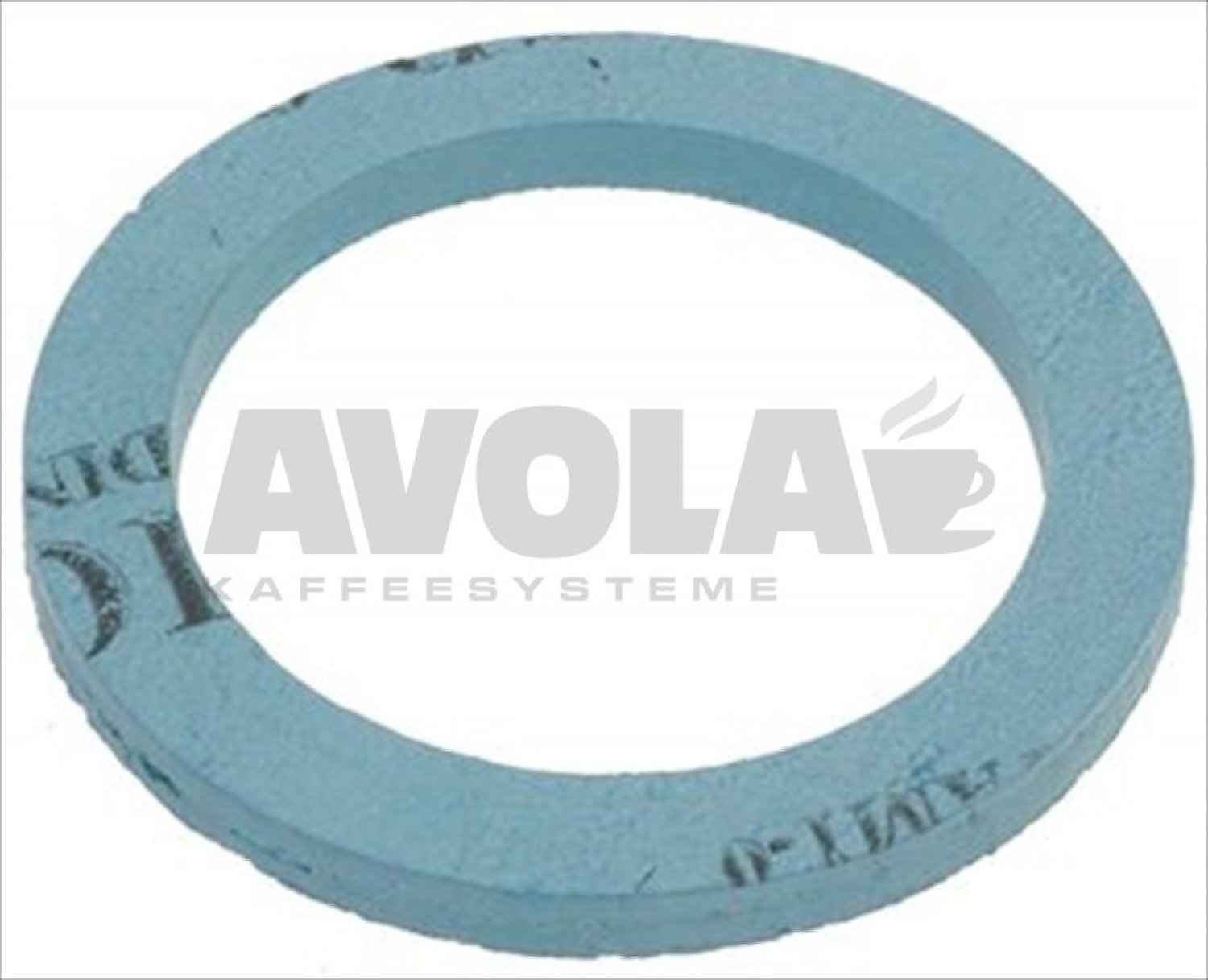

30asbestos free flat gasket o 50x38x4 mm 8001423
ASBESTOS FREE FLAT GASKET ø 50x38x4 mm
8,95 €

excl. Shipping costs

immediately available, 3 available
30ptfe flat gasket o 50x40x5 5 mm 8002150
PTFE flat gasket ø 50x40x5,5 mm
6,35 €

excl. Shipping costs

immediately available, 7 available
31schaft kolben 8080646
SCHAFT KOLBEN
32,18 €

excl. Shipping costs

Delivery time 4-6 weeks..
32lip seal o 50x31x10 mm 8001421
Lip seal ø 50x31x10 mm
3,12 €

excl. Shipping costs

immediately available, 14 available
32san marco handhebelgruppe lippendichtung fkm o 51x31x9 5mm 8358069
San Marco Handhebelgruppe Lippendichtung FKM Ø 51x31x9,5mm
7,78 €

excl. Shipping costs

immediately available, 12 available
33san marco handhebelgruppe kolben 8080647
San Marco Handhebelgruppe Kolben
54,04 €

excl. Shipping costs

Delivery time 4-6 weeks..
34shower o 50 5 mm 8000592
SHOWER ø 50,5 mm
4,37 €

excl. Shipping costs

immediately available, 7 available
35seeger ring j 48 uni 7437 edelstahl 8281521
Seeger Ring J-48 Uni 7437 Edelstahl
2,38 €

excl. Shipping costs

immediately available, 11 available
36filter holder gasket o 64x53x5 5 mm 8002016
FILTER HOLDER GASKET ø 64x53x5,5 mm
3,86 €

excl. Shipping costs

immediately available, 15 available
36la san marco silikon dichtung siebtraegerdichtung 64 6x53xh 5 5mm 8279244
La San Marco Silikon Dichtung Siebträgerdichtung 64,6X53XH.5.5MM
5,95 €

excl. Shipping costs

immediately available
36la san marco original siebtraegerdichtung mit praegung 8079300
La San Marco Original Siebträgerdichtung mit Prägung
5,90 €

excl. Shipping costs

immediately available
40flat felt gasket 8001432
FLAT FELT GASKET
2,13 €

excl. Shipping costs

immediately available, 6 available
42elastic clasp 8005467
ELASTIC CLASP
Price on request
42clasp 8029583
CLASP
Price on request
43pin for bearing 8005102
PIN FOR BEARING
32,95 €

excl. Shipping costs

immediately available, 3 available
46stainless steel circlip ra 4 uni 7437 8005617
STAINLESS STEEL CIRCLIP RA-4 UNI 7437
0,43 €

excl. Shipping costs

immediately available
50bearing 6001 zz nsk 8002414
BEARING 6001 ZZ NSK
12,69 €

excl. Shipping costs

Delivery time
is determined
51chromium plated fork for lever group 8002198
CHROMIUM-PLATED FORK FOR LEVER GROUP
97,85 €

excl. Shipping costs

Delivery time 4-6 weeks..
51la san marco aufnahme fuer handhebel griff innengewinde gabel m22 8281616
La San Marco Aufnahme für Handhebel Griff Innengewinde Gabel M22
95,00 €

excl. Shipping costs

Delivery time: 4-6 weeks
52stange fuer griff handhebelgruppe verchromt 272mm 8080554
STANGE FÜR GRIFF HANDHEBELGRUPPE VERCHROMT 272MM
90,24 €

excl. Shipping costs

Delivery time 4-6 weeks..
54lever group handle 8003205
LEVER GROUP HANDLE
37,88 €

excl. Shipping costs

Delivery time
is determined
59paper seal o 64x53x0 7 mm 8002176
Paper seal ø 64x53x0,7 mm
0,55 €

excl. Shipping costs

immediately available
61filter blocking spring o 1 00 mm 8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,06 €

excl. Shipping costs

immediately available
65coffee filter 1 cup 7 grams 8001086
Coffee filter 1 cup 7 grams
7,45 €

excl. Shipping costs

immediately available, 3 available
66filter 2 cups 14 gr new type 8001084
FILTER 2 CUPS 14 gr NEW TYPE
5,68 €

excl. Shipping costs

immediately available, 5 available
75san marco black knob for filter holder m10 8003207
San Marco black knob for filter holder M10
12,97 €

excl. Shipping costs

immediately available, 3 available
76filter holder handle m10 8003350
FILTER HOLDER HANDLE M10
6,26 €

excl. Shipping costs

immediately available, 3 available
772 cups filter holder assembly san marco 8001182
2 CUPS FILTER HOLDER ASSEMBLY SAN MARCO
37,22 €

excl. Shipping costs

immediately available, 2 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
