La Faimac

LA FAIMAC GRUPPE HEBELGRUPPE ALLE MODELLE

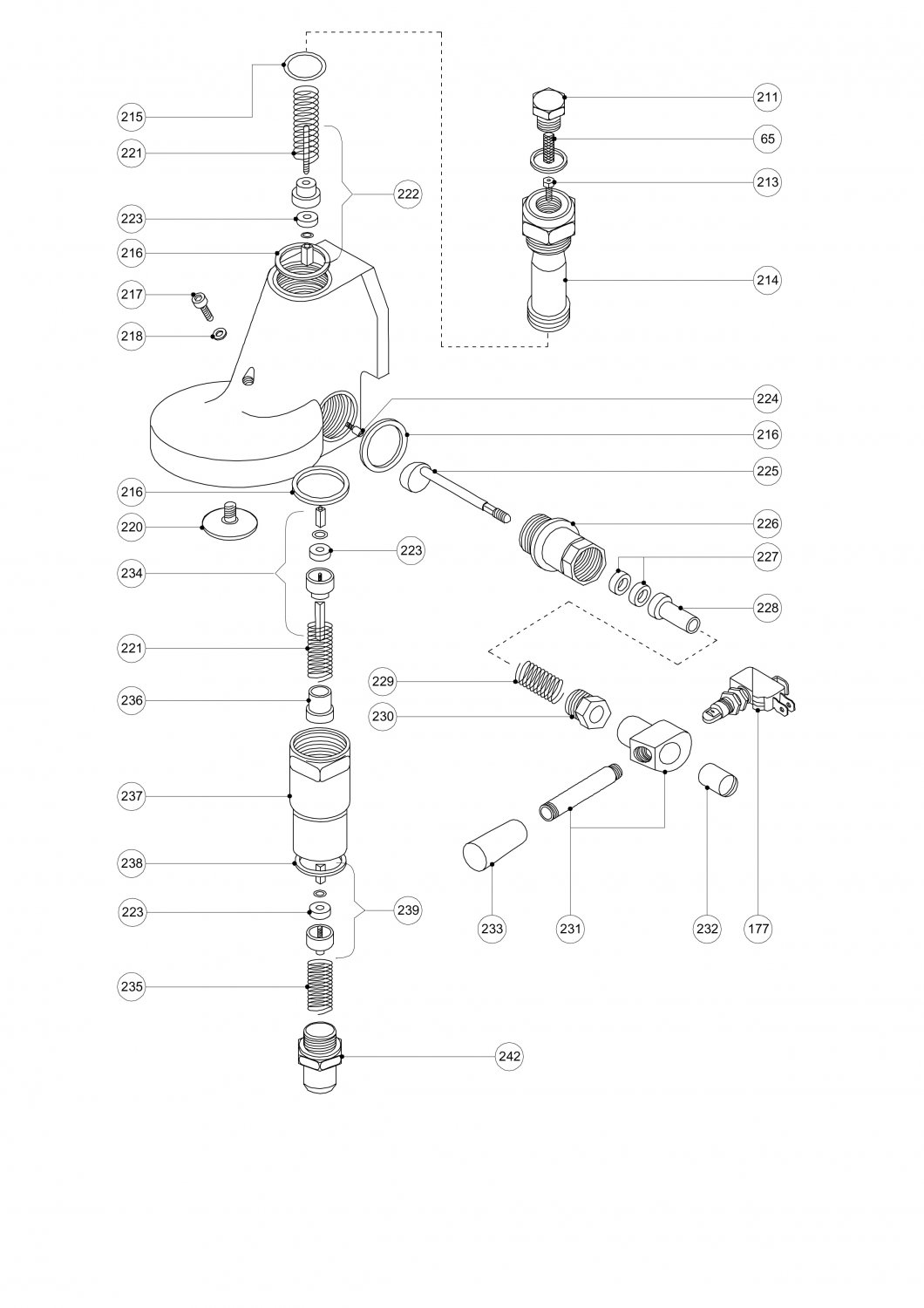

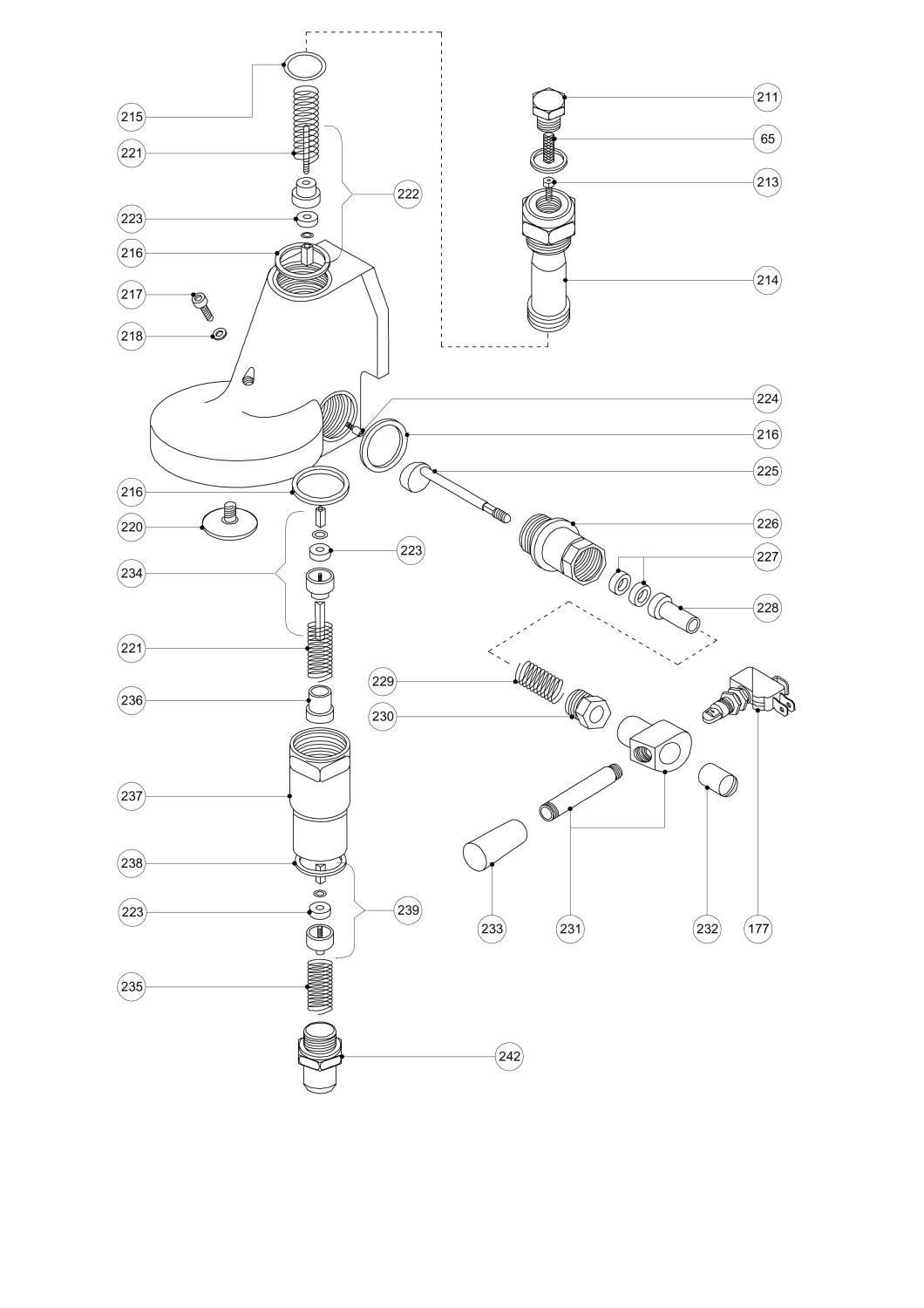

Drawing number 8069122

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
65water filter o 8 5x22 mm 8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs

immediately available
211deckel fuer auslaufgruppe o 16 mm 8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs

immediately available, 13 available
213nozzle m6x0 75 hole 8006989
NOZZLE M6x0,75 HOLE
3,12 €

excl. Shipping costs

immediately available
215o ring 0128 viton 8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs

immediately available
216ptfe flat gasket o 35x30x2 mm 8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs

immediately available
220group spray nozzle o 30 mm m10x1 e61 8006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs

immediately available, 10 available
221feder e61 mittleres ventil fuer gruppen mit fuehrungsbuchse 42 x 14mm 8062485
Feder E61 Mittleres Ventil (für Gruppen mit Führungsbuchse) 42 x 14mm
2,63 €

excl. Shipping costs

immediately available
221spring o 14x45 mm 8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs

immediately available
222complete spout valve 8007091
COMPLETE SPOUT VALVE
7,90 €

excl. Shipping costs

immediately available
223nbr flat gasket o 13x4x4 mm 8001569
NBR FLAT GASKET ø 13x4x4 mm
0,49 €

excl. Shipping costs

immediately available
225cam rod for e61 coffee group 8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs

immediately available
227epdm flat gasket 15 5x7 5x4 mm 8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs

immediately available
228cam guide bushing 8001571
CAM GUIDE BUSHING
3,90 €

excl. Shipping costs

immediately available, 16 available
229spring o 14 6x21 mm 8003547
SPRING ø 14,6x21 mm
6,89 €

excl. Shipping costs

immediately available
234complete drain valve 8007124
COMPLETE DRAIN VALVE
9,90 €

excl. Shipping costs

immediately available
235feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen 8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs

immediately available
238flat gasket ptfe o 26x21x2 mm 8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs

immediately available
239e61 drain valve with gasket 8007125
E61 drain valve with gasket
5,90 €

excl. Shipping costs

immediately available
300cafelat e61 portafilter gasket 73x57x8 mm red 8081202
Cafelat E61 portafilter gasket 73x57x8 mm red
5,95 €

excl. Shipping costs

immediately available
300paper shim o 73x59x0 8 mm 8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs

immediately available
300shower screen fuer e61 brew unit 8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs

immediately available
300gasket 73x57x8 mm for e61 brew unit 8060996
Gasket 73x57x8 mm - for E61 brew unit
3,90 €

excl. Shipping costs

immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
