La Marzocco

GB5 X-S Dampf Boiler Heizung

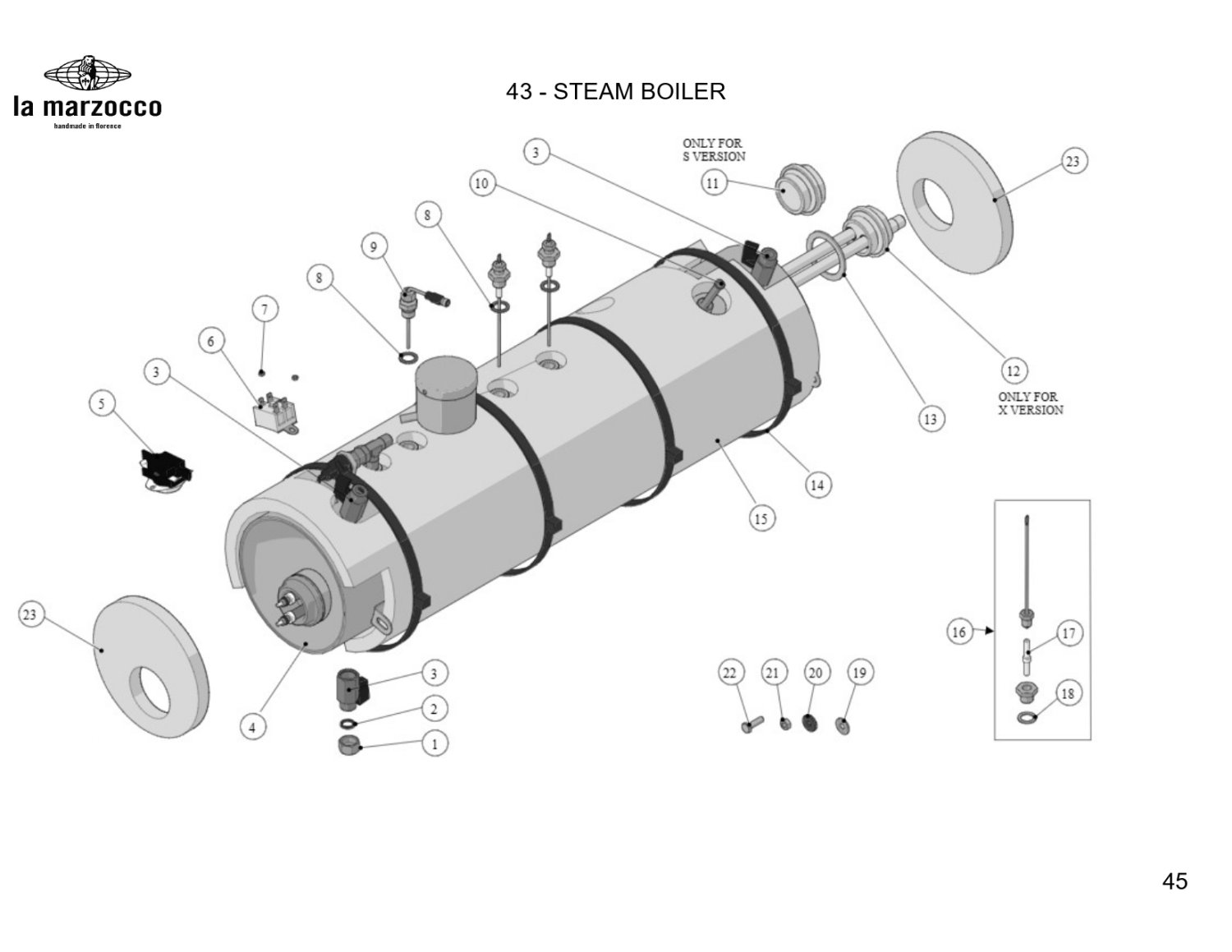

Drawing number 8357643

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1 8353269
Original - La Marzocco CAP NUT G3/8 H11 WR19 BRASS
10,00 €

excl. Shipping costs

Delivery time
is determined
2original la marzocco o ring 2 62x10 77 epdm 70 sha 8353036
Original - La Marzocco O-RING 2,62X10,77 EPDM 70 ShA
3,45 €

excl. Shipping costs

immediately available, 19 available

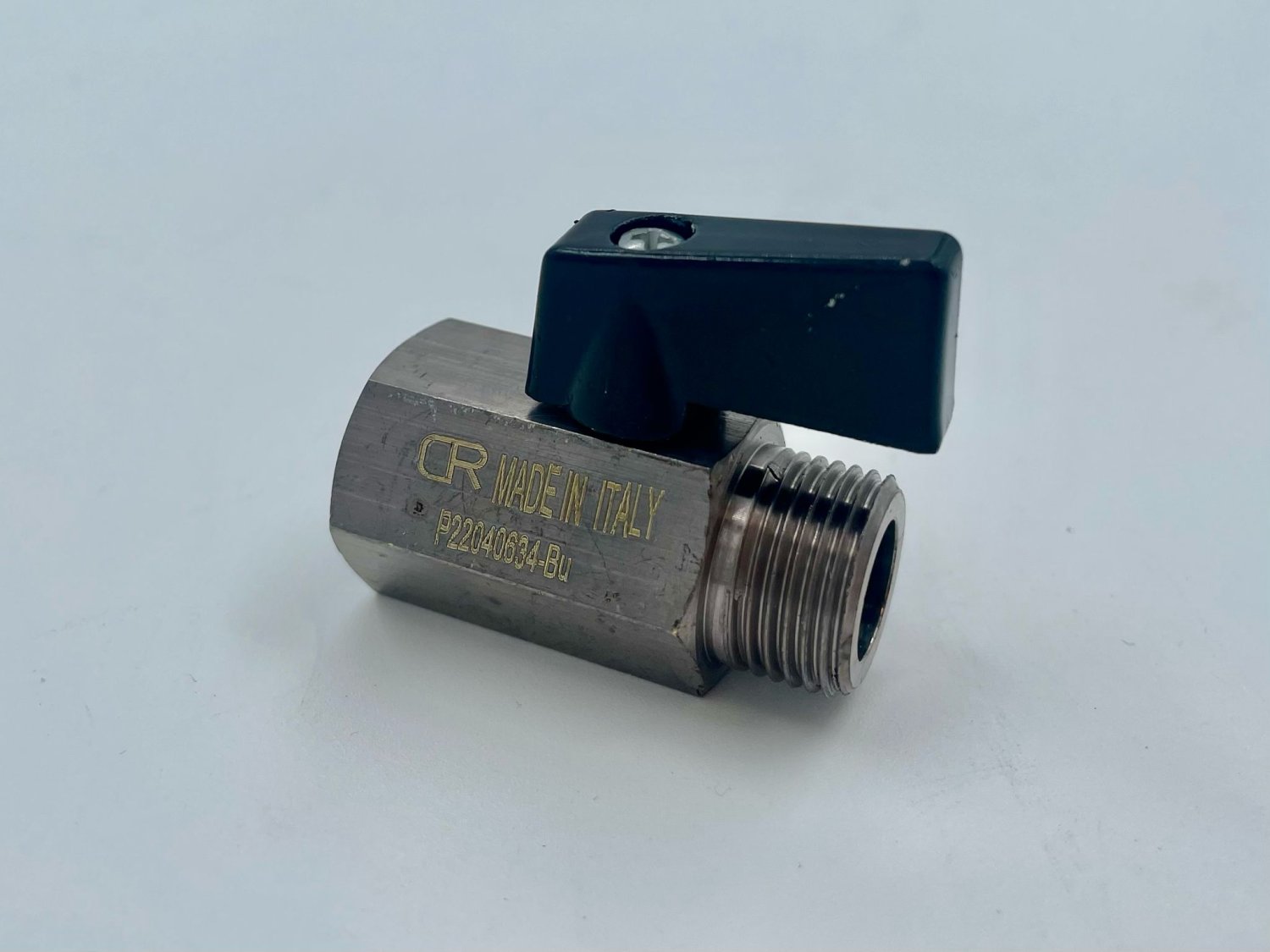

3original la marzocco ball valve g3 8m g3 8f brass treated 8354104
Original - La Marzocco BALL VALVE G3/8M-G3/8F BRASS TREATED
24,04 €

excl. Shipping costs

immediately available, 7 available
4 8357277
Original - La Marzocco STEAM BOILER CONCAVE SIDE 2GR W/PREH.
737,80 €

excl. Shipping costs

Delivery time
is determined
4 8357383
Original - La Marzocco STEAM BOILER CONCAVE SIDE 3GR W/PREH.
833,00 €

excl. Shipping costs

Delivery time
is determined
4 8357435
Original - La Marzocco STEAM BOILER CONCAVE SIDE 4GR W/PREH.
928,20 €

excl. Shipping costs

Delivery time
is determined
5original la marzocco safety thermostat 2p trip free 130c 600v 8355901
Original - La Marzocco SAFETY THERMOSTAT 2P TRIP FREE 130C 600V
152,32 €

excl. Shipping costs

immediately available, 5 available
6contact thermostat 130 deg c 8006516
CONTACT THERMOSTAT 130°C
27,95 €

excl. Shipping costs

immediately available, 4 available
7original la marzocco nut m3 h3 wr5 5 brass 8352819
Original - La Marzocco NUT M3 H3 WR5,5 BRASS
0,57 €

excl. Shipping costs

immediately available
8original la marzocco washer 13 5x19x1 5 copper 8352937
Original - La Marzocco WASHER 13,5X19X1,5 COPPER
2,09 €

excl. Shipping costs

immediately available
9original la marzocco temperature probe pt1000 100mm 8355946
Original - La Marzocco TEMPERATURE PROBE PT1000 100MM
163,65 €

excl. Shipping costs

immediately available, 3 available
10 8353609
Original - La Marzocco TUBE WATER SUCTION STEAM B. TREATED
11,02 €

excl. Shipping costs

Delivery time
is determined
11 8354322
Original - La Marzocco CAP G1-1/4 H30 WR42 BRASS TREATED
28,56 €

excl. Shipping costs

Delivery time
is determined
12 8356004
Original - La Marzocco PREHEATER 2GR L384 MM W/Y JUNCTION
178,86 €

excl. Shipping costs

Delivery time
is determined
12 8356089
Original - La Marzocco PREHEATER 3/4GR L584 MM W/Y JUNCTION
200,30 €

excl. Shipping costs

Delivery time
is determined
13original la marzocco gasket o 55x42x2 8353840
Original - La Marzocco GASKET Ø 55X42X2
17,47 €

excl. Shipping costs

immediately available, 4 available
14original la marzocco plastic fastener 750x7 5 8353108
Original - La Marzocco PLASTIC FASTENER 750X7.5
5,24 €

excl. Shipping costs

immediately available
15 8354189
Original - La Marzocco INSULATION PANEL 420X515X15 STEAM B. 2GR
25,70 €

excl. Shipping costs

immediately available, 1 available
16 8354987
Original - La Marzocco INSULATION PANEL 4GR LINEA&GB5 STEAM B.
53,79 €

excl. Shipping costs

Delivery time
is determined
16 8354734
Original - La Marzocco INSULATION PANEL 650X515X15 STEAM B. 3GR
41,89 €

excl. Shipping costs

Delivery time
is determined
16original la marzocco water level probe 8354376
Original - La Marzocco WATER LEVEL PROBE
29,51 €

excl. Shipping costs

immediately available, 5 available
17 8353423
Original - La Marzocco TEFLON INSULATOR PROBE
7,33 €

excl. Shipping costs

Delivery time
is determined

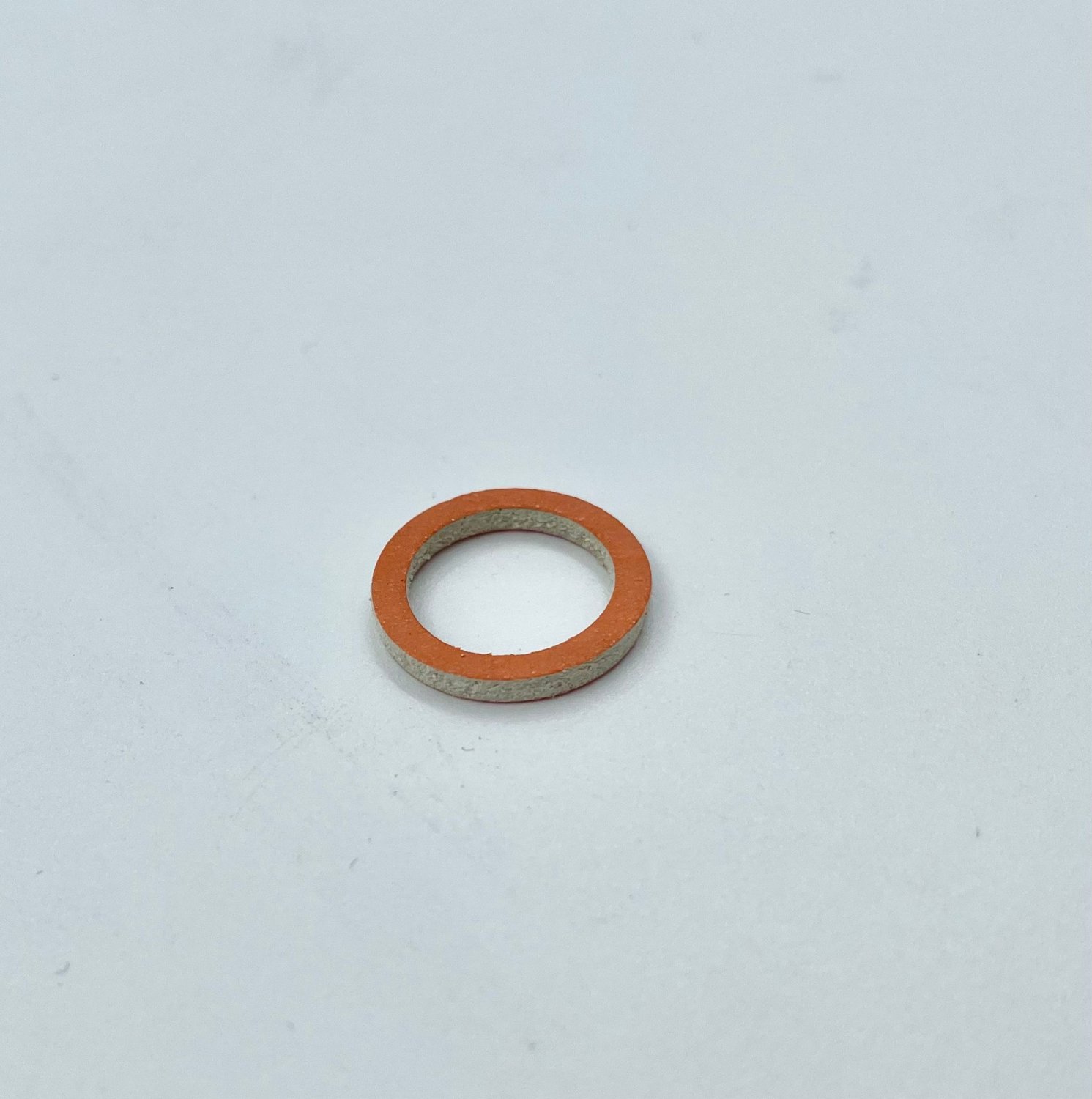

18original la marzocco autofill probe gasket 8353014
Original - La Marzocco AUTOFILL PROBE GASKET
2,86 €

excl. Shipping costs

immediately available
19original la marzocco washer 6 5x18x1 5 galvanized 8352933
Original - La Marzocco WASHER 6,5X18X1,5 GALVANIZED
1,90 €

excl. Shipping costs

immediately available, 8 available
20 8352934
Original - La Marzocco WASHER 6,5x18x3
2,00 €

excl. Shipping costs

Delivery time
is determined
21 8352802
Original - La Marzocco NUT M6 H5 WR10 S/S A2
0,48 €

excl. Shipping costs

Delivery time
is determined
22 8352896
Original - La Marzocco SCREW M6X20 HEX HEAD S/S
1,43 €

excl. Shipping costs

Delivery time
is determined
23 8353319
Original - La Marzocco INSULATING CONCAVE SIDE SB
12,73 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
