La Marzocco

GS3 Kaffeegruppe MP

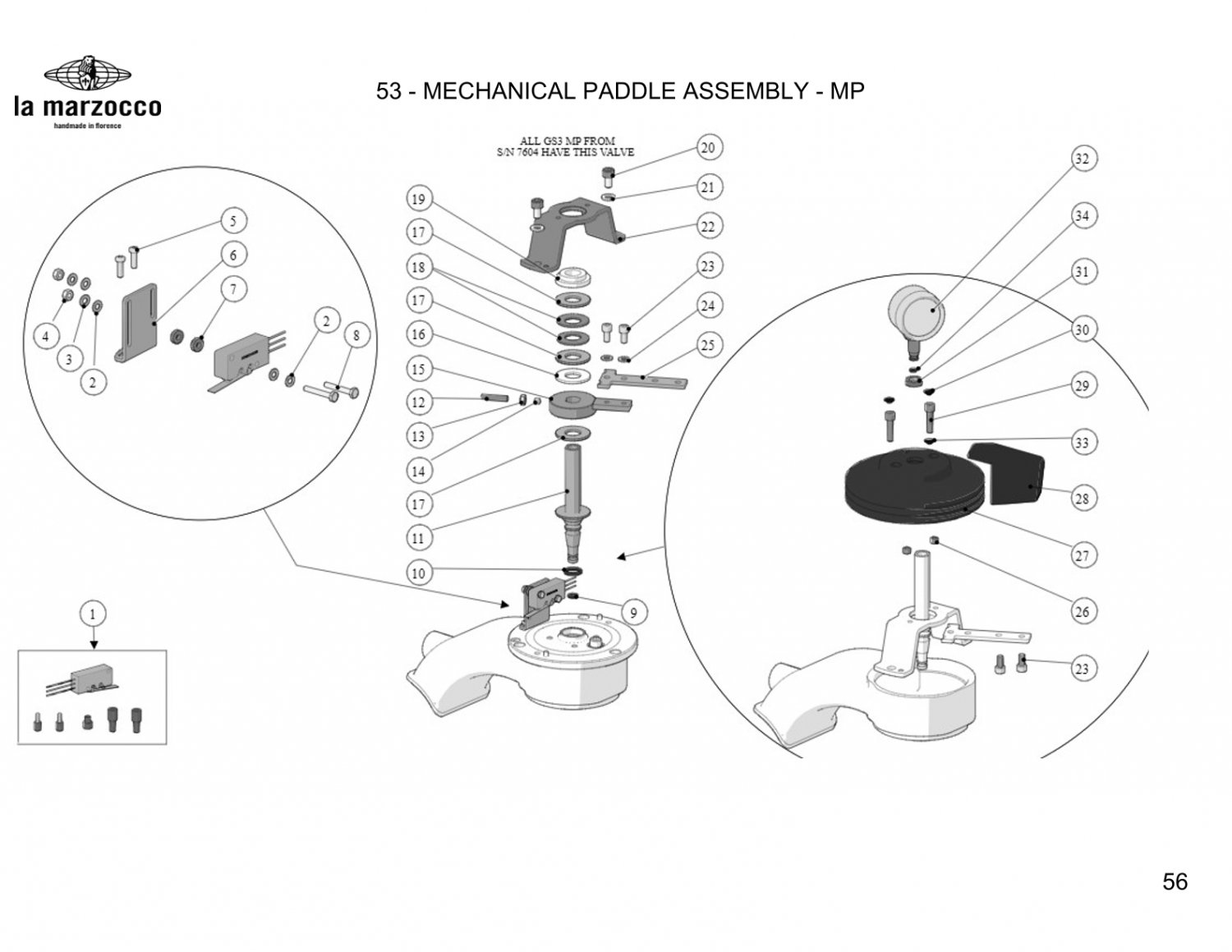

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Pos.:	Item No.:	Image:	Description:	Shipment:	Price (inkl. VAT):	Qty.:
1	8355033		8355033 Original - La Marzocco MICROSWITCH KIT WITH LUGS	excl. Shipping costs Delivery time is determined	57,12 €	57,12 € excl. Shipping costs Delivery time is determined
2	8352812		8352812 Original - La Marzocco WASHER 3X6X0,5 S/S A2	excl. Shipping costs immediately available, 7 available	0,48 €	0,48 € excl. Shipping costs immediately available, 7 available
3	8352781		8352781 Original - La Marzocco TOOTH LOCK WASHER 3,4X6X0,5 GALVANIZED	excl. Shipping costs immediately available, 9 available	0,10 €	0,10 € excl. Shipping costs immediately available, 9 available
4	8352819		8352819 Original - La Marzocco NUT M3 H3 WR5,5 BRASS	excl. Shipping costs immediately available	0,57 €	0,57 € excl. Shipping costs immediately available
5	8352791		8352791 Original - La Marzocco SCREW M3X10 PHILLIPS ROUND-PAN S/S A2	excl. Shipping costs Delivery time is determined	0,29 €	0,29 € excl. Shipping costs Delivery time is determined
6	8354381		8354381 Original - La Marzocco BRACKET MICROSWITCH GS3	excl. Shipping costs Delivery time is determined	29,70 €	29,70 € excl. Shipping costs Delivery time is determined
7	8352974		8352974 Original - La Marzocco SPACER 3,5X8X2,5 AL	excl. Shipping costs Delivery time is determined	2,02 €	2,02 € excl. Shipping costs Delivery time is determined
8	8352883		8352883 Original - La Marzocco SCREW M3X20 HEX HEAD S/S A2	excl. Shipping costs immediately available, 8 available	1,24 €	1,24 € excl. Shipping costs immediately available, 8 available
9	8353061		8353061 Original - La Marzocco O-RING 1,78x6,07 FKM	excl. Shipping costs immediately available, 20 available	4,28 €	4,28 € excl. Shipping costs immediately available, 20 available
10	8353528		8353528 Original - La Marzocco O-RING 2,62x9,13 EPDM 70 ShA	excl. Shipping costs immediately available, 5 available	9,28 €	9,28 € excl. Shipping costs immediately available, 5 available
11	8355973		8355973 Original - La Marzocco SHAFT CONICAL PADDLE VALVE GS3	excl. Shipping costs Delivery time is determined	171,36 €	171,36 € excl. Shipping costs Delivery time is determined
12	8353686		8353686 Original - La Marzocco PIN D5X23 THREAD M5X7,5 S/S	excl. Shipping costs Delivery time is determined	13,33 €	13,33 € excl. Shipping costs Delivery time is determined
13	8352797		8352797 Original - La Marzocco NUT M5 H4 WR8 S/S A2	excl. Shipping costs immediately available, 9 available	0,48 €	0,48 € excl. Shipping costs immediately available, 9 available
14	8352928		8352928 Original - La Marzocco SOCKET GRUB SCREW M5X5 S/S A2	excl. Shipping costs Delivery time is determined	1,90 €	1,90 € excl. Shipping costs Delivery time is determined
15	8356010		8356010 Original - La Marzocco LEVER CONICAL PADDLE VALVE	excl. Shipping costs Delivery time is determined	180,88 €	180,88 € excl. Shipping costs Delivery time is determined
16	8353901		8353901 Original - La Marzocco WASHER 14,1X30X2 PTFE	excl. Shipping costs immediately available, 4 available	19,04 €	19,04 € excl. Shipping costs immediately available, 4 available
17	8353898		8353898 Original - La Marzocco WASHER 14,2X30X2 S/S	excl. Shipping costs immediately available, 4 available	19,04 €	19,04 € excl. Shipping costs immediately available, 4 available
18	8353088		8353088 Original - La Marzocco BELLEVILLE SPRING 28X14,2X1,5 H2,15	excl. Shipping costs immediately available, 14 available	4,76 €	4,76 € excl. Shipping costs immediately available, 14 available
19	8354332		8354332 Original - La Marzocco BUSHING FLANGED 14,4X23X7,8 PTFE	excl. Shipping costs immediately available, 5 available	28,56 €	28,56 € excl. Shipping costs immediately available, 5 available
20	8352940		8352940 Original - La Marzocco SCREW M6X10 SOCKET CAP S/S A2	excl. Shipping costs immediately available, 18 available	2,28 €	2,28 € excl. Shipping costs immediately available, 18 available
21	8352859		8352859 Original - La Marzocco WASHER 6,4X12X1,5 S/S A2	excl. Shipping costs immediately available, 16 available	0,95 €	0,95 € excl. Shipping costs immediately available, 16 available
22	8355249		8355249 Original - La Marzocco BRACKET GROUP MP	excl. Shipping costs Delivery time is determined	76,16 €	76,16 € excl. Shipping costs Delivery time is determined
23	8352892		8352892 Original - La Marzocco SCREW M5X10 SOCKET CAP S/S A2	excl. Shipping costs immediately available, 8 available	1,43 €	1,43 € excl. Shipping costs immediately available, 8 available
24	8352799		8352799 Original - La Marzocco WASHER 5,4X10X1 S/S A2	excl. Shipping costs Delivery time is determined	0,48 €	0,48 € excl. Shipping costs Delivery time is determined
25	8354306		8354306 Original - La Marzocco EXTENSION LEVER PADDLE CONICAL GS3	excl. Shipping costs Delivery time is determined	28,13 €	28,13 € excl. Shipping costs Delivery time is determined
26	8353592		8353592 Original - La Marzocco SPACER 4X6X4 S/S	excl. Shipping costs Delivery time is determined	10,73 €	10,73 € excl. Shipping costs Delivery time is determined
27	8355208		8355208 Original - La Marzocco EXPOSED GROUP COVER W/PRESSURE GAUGE GS3	excl. Shipping costs Delivery time is determined	71,40 €	71,40 € excl. Shipping costs Delivery time is determined
28	8354793		8354793 Original - La Marzocco HANDLE PADDLE LINEA	excl. Shipping costs Delivery time is determined	44,67 €	44,67 € excl. Shipping costs Delivery time is determined
29	8353605		8353605 Original - La Marzocco SCREW M5X25 SOCKET CAP S/S	excl. Shipping costs Delivery time is determined	10,95 €	10,95 € excl. Shipping costs Delivery time is determined

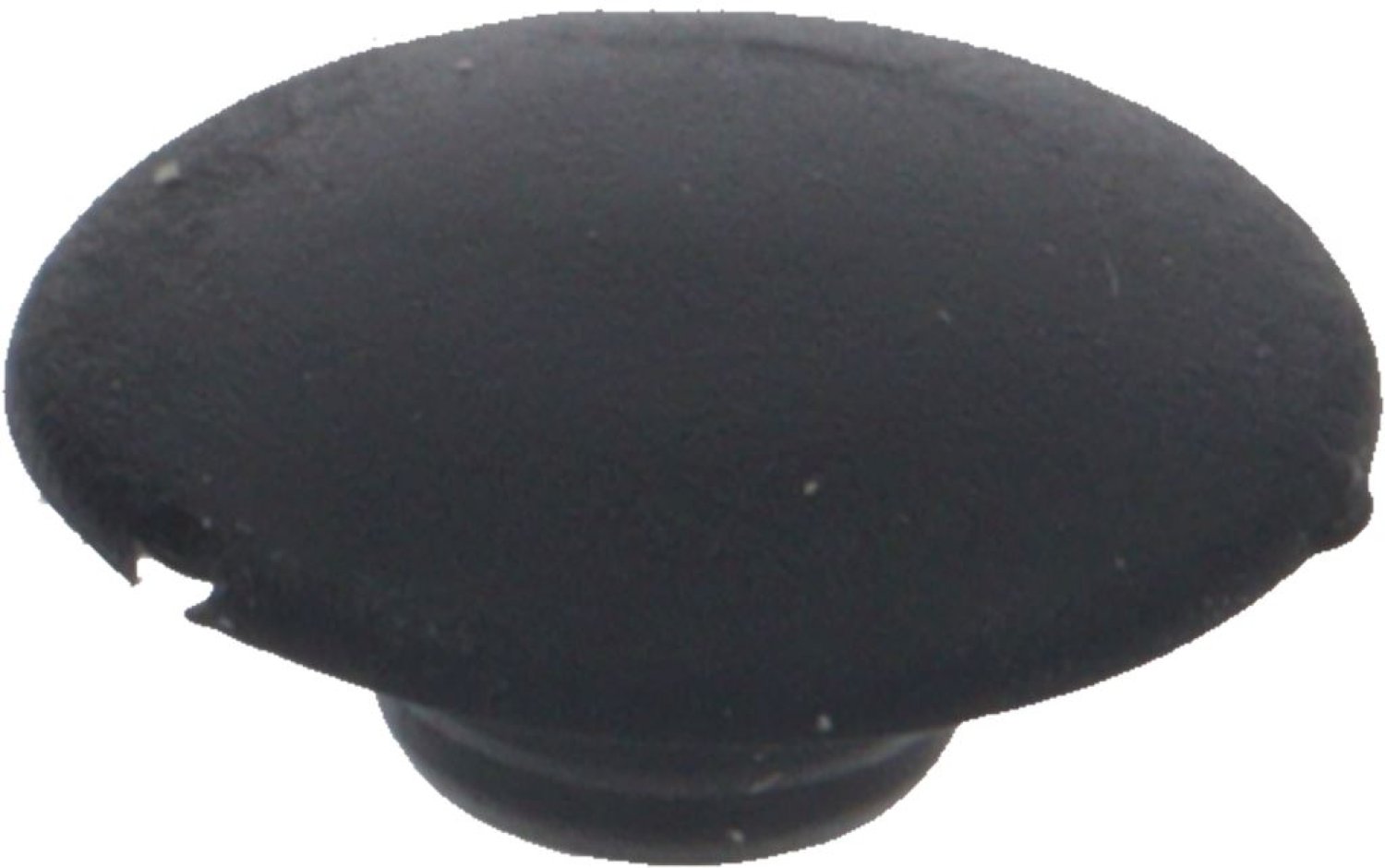

30	8352889		8352889 Original - La Marzocco CAP D9 FOR SOCKET HEAD M5 ES4 LDPE BLACK	excl. Shipping costs Delivery time is determined	1,43 €	1,43 € excl. Shipping costs Delivery time is determined
31	8353278		8353278 Original - La Marzocco NUT G1/8 H4,5 WR14 BRASS NICKEL PLATED	excl. Shipping costs immediately available, 7 available	10,47 €	10,47 € excl. Shipping costs immediately available, 7 available
32	8355173		8355173 Original - La Marzocco PRESSURE GAUGE 0-18 VERTICAL WHITE	excl. Shipping costs immediately available, 1 available	68,35 €	68,35 € excl. Shipping costs immediately available, 1 available
33	8352943		8352943 Original - La Marzocco CAP D8 SHEET METAL 1,6 NYLON BLACK	excl. Shipping costs immediately available, 20 available	2,38 €	2,38 € excl. Shipping costs immediately available, 20 available

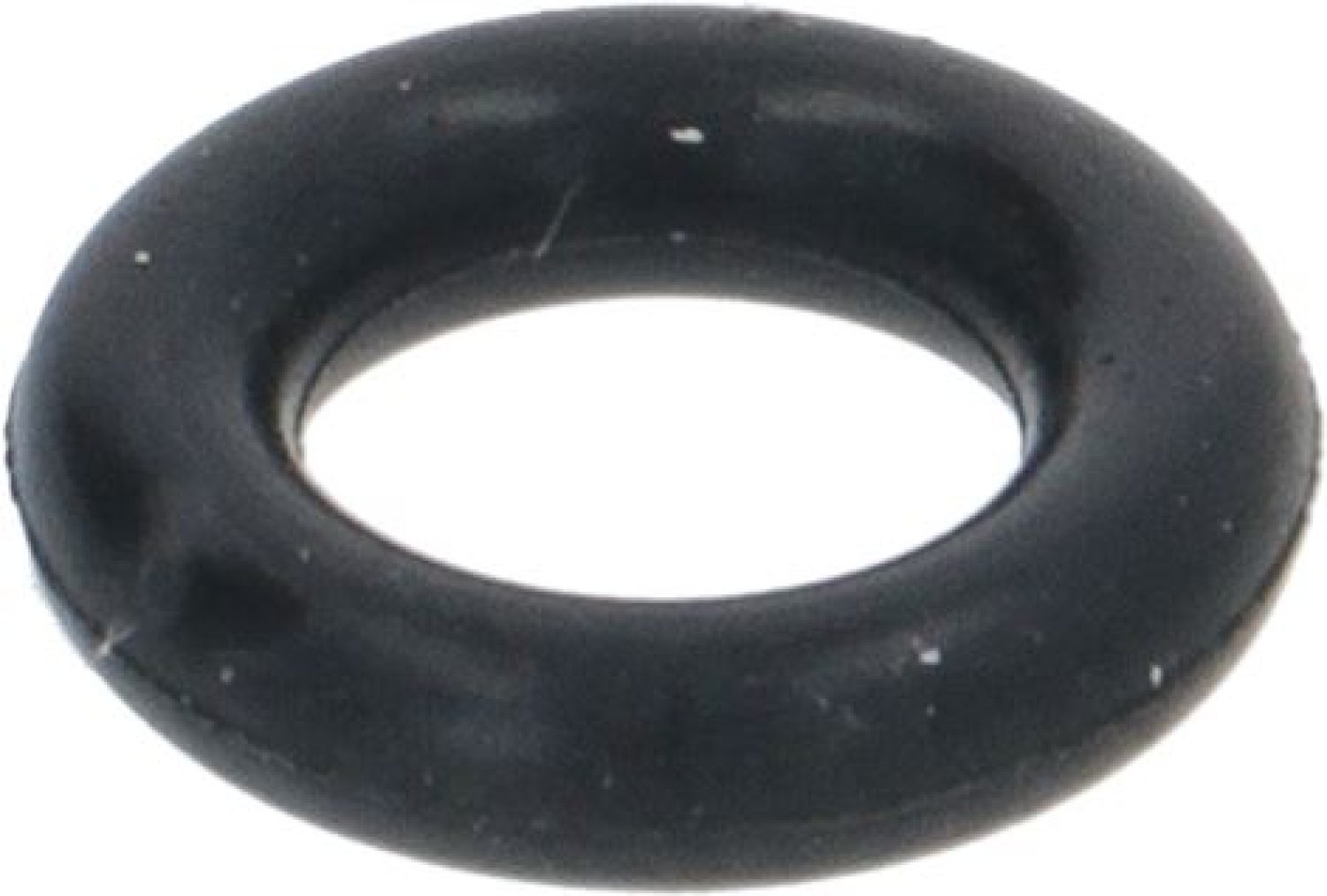

34	8353258		8353258 Original - La Marzocco O-Ring 1,78x4,47 EPDM 70 ShA	excl. Shipping costs immediately available	9,52 €	9,52 € excl. Shipping costs immediately available

If your article is not listed, please use the following form and enter the desired numbers.
