La Marzocco

KB90 Kaffeegruppe STRAIGHT-IN

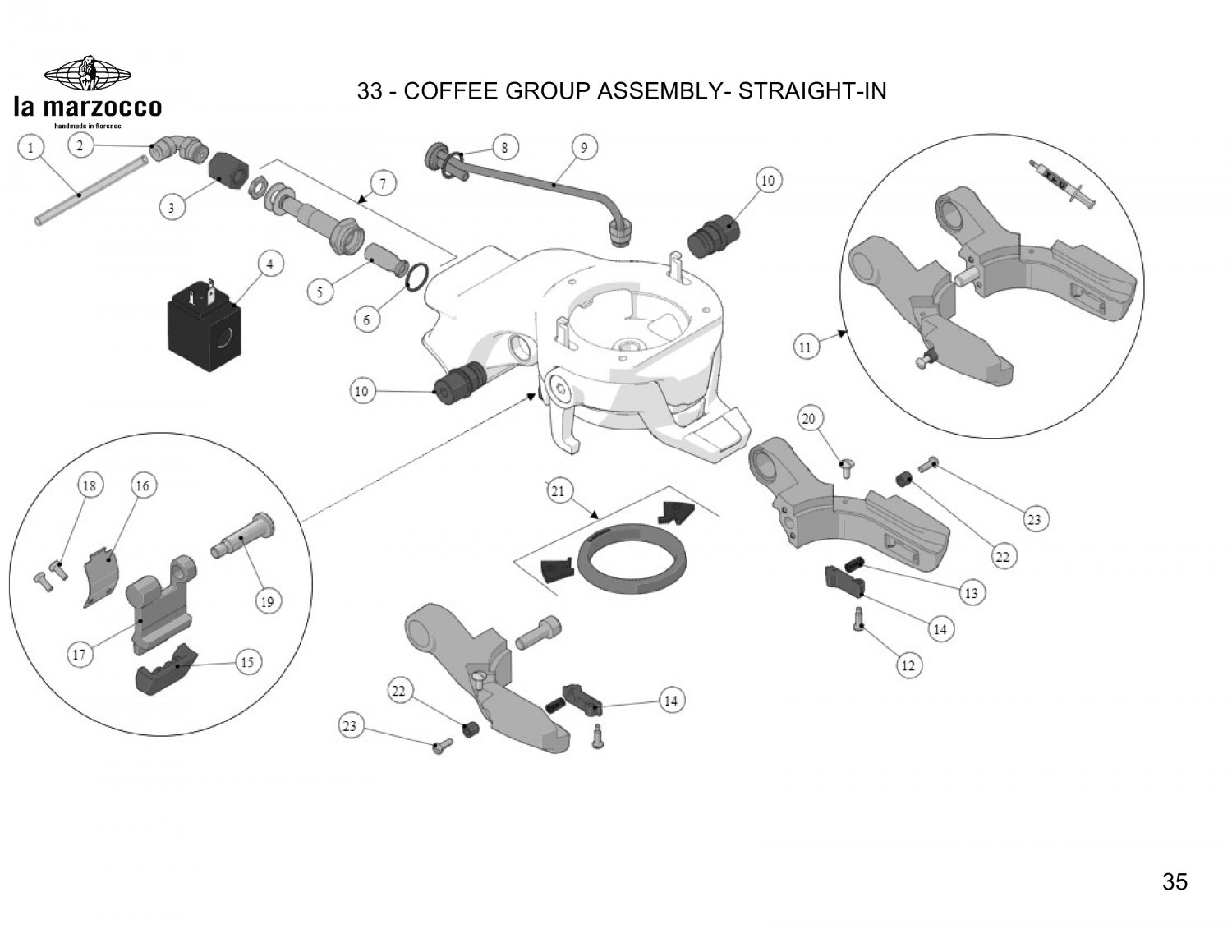

Drawing number 8358281

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1 8353977
Original - La Marzocco PTFE TUBE 6x4mm
21,13 €

excl. Shipping costs

Delivery time
is determined
2 8353736
Original - La Marzocco FITTING PUSH-IN 90° 6-R1/4M BRASS TR.
14,57 €

excl. Shipping costs

immediately available, 5 available
3 8353489
Original - La Marzocco FITTING G1/4F-G1/8F WR17 BRASS
8,57 €

excl. Shipping costs

Delivery time
is determined
4original la marzocco sv coil 220 240v 8w ul csa vde 8354643
Original - La Marzocco SV COIL 220-240V 8W UL CSA VDE
38,79 €

excl. Shipping costs

Delivery time
is determined
4 8354645
Original - La Marzocco SOLENOID COIL 200V
38,79 €

excl. Shipping costs

Delivery time
is determined
5original la marzocco plunger solenoid valve 3 way fkm 8354495
Original - La Marzocco PLUNGER SOLENOID VALVE 3 WAY FKM
33,32 €

excl. Shipping costs

immediately available, 16 available
6original la marzocco o ring 1 78x15 60 fkm 70 sh 8353130
Original - La Marzocco O-RING 1,78X15,60 FKM 70 SH
5,71 €

excl. Shipping costs

immediately available, 8 available
7original la marzocco solenoid valve 3 way no coil 8355193
Original - La Marzocco SOLENOID VALVE 3 WAY NO COIL
69,62 €

excl. Shipping costs

immediately available, 4 available
8original la marzocco o ring 1 78x15 6 fkm 70 sha 8137220
Original - La Marzocco O-RING 1,78x15,6 FKM 70 ShA
4,28 €

excl. Shipping costs

immediately available, 7 available
9 8354923
Original - La Marzocco TUBE PISTON STRAIGHT-IN
50,27 €

excl. Shipping costs

Delivery time
is determined
10 8354988
Original - La Marzocco AXLE ROTATION HOLDER PORTAFILTER
54,07 €

excl. Shipping costs

Delivery time
is determined
11original la marzocco kit for holder portafilter straight in 8357085

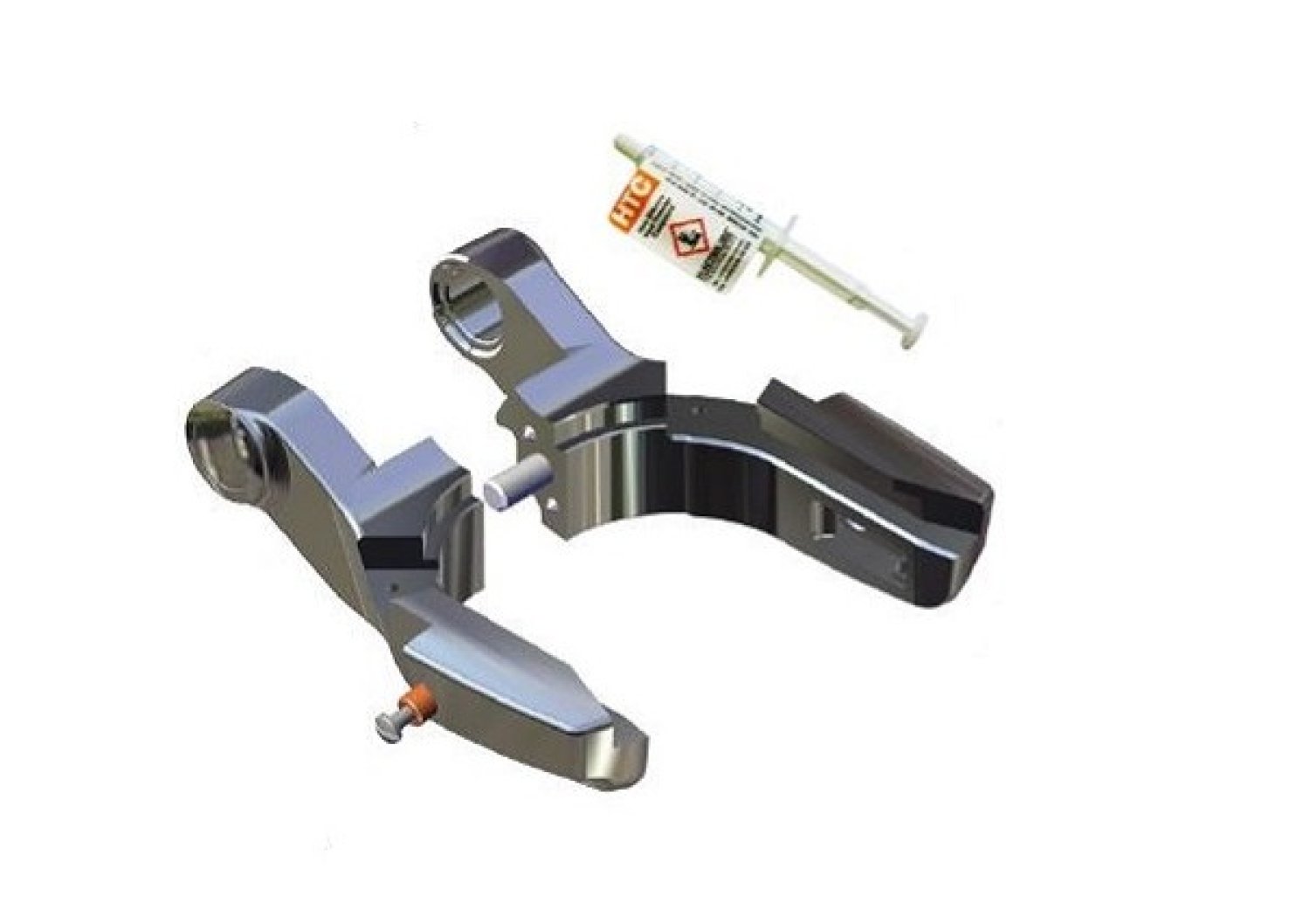

Original - La Marzocco KIT FOR HOLDER PORTAFILTER STRAIGHT-IN
591,43 €

excl. Shipping costs

Delivery time
is determined
12 8353078
Original - La Marzocco SCREW SHOULDER M3x10 - DIN 923
4,52 €

excl. Shipping costs

Delivery time
is determined
13 8353030
Original - La Marzocco SPRING LEVER CLICKER
3,27 €

excl. Shipping costs

immediately available, 10 available
14 8353578
Original - La Marzocco LEVER CLICKER HOLDER PORTAFILTER RAL3001
10,47 €

excl. Shipping costs

immediately available, 5 available
15 8353593
Original - La Marzocco KNOB CLEANING RELEASE RAL3001
10,76 €

excl. Shipping costs

Delivery time
is determined
16 8353349
Original - La Marzocco SPRING RELOCATION LEVER
14,58 €

excl. Shipping costs

immediately available, 5 available
17 8355257
Original - La Marzocco LEVER CLEANING RELEASE
76,92 €

excl. Shipping costs

Delivery time
is determined
18 8352815
Original - La Marzocco SCREW M3X8 PHILLIPS ROUND-PAN S/S A2
0,48 €

excl. Shipping costs

immediately available
19 8353320
Original - La Marzocco SCREW SHOULDER M6x25 - DIN 923
12,85 €

excl. Shipping costs

Delivery time
is determined
20 8353369
Original - La Marzocco SCREW M4X10 SLOTTED HEAD SPECIAL S/S
6,19 €

excl. Shipping costs

Delivery time
is determined
21original la marzocco group gasket and anti shock straight in 8353575

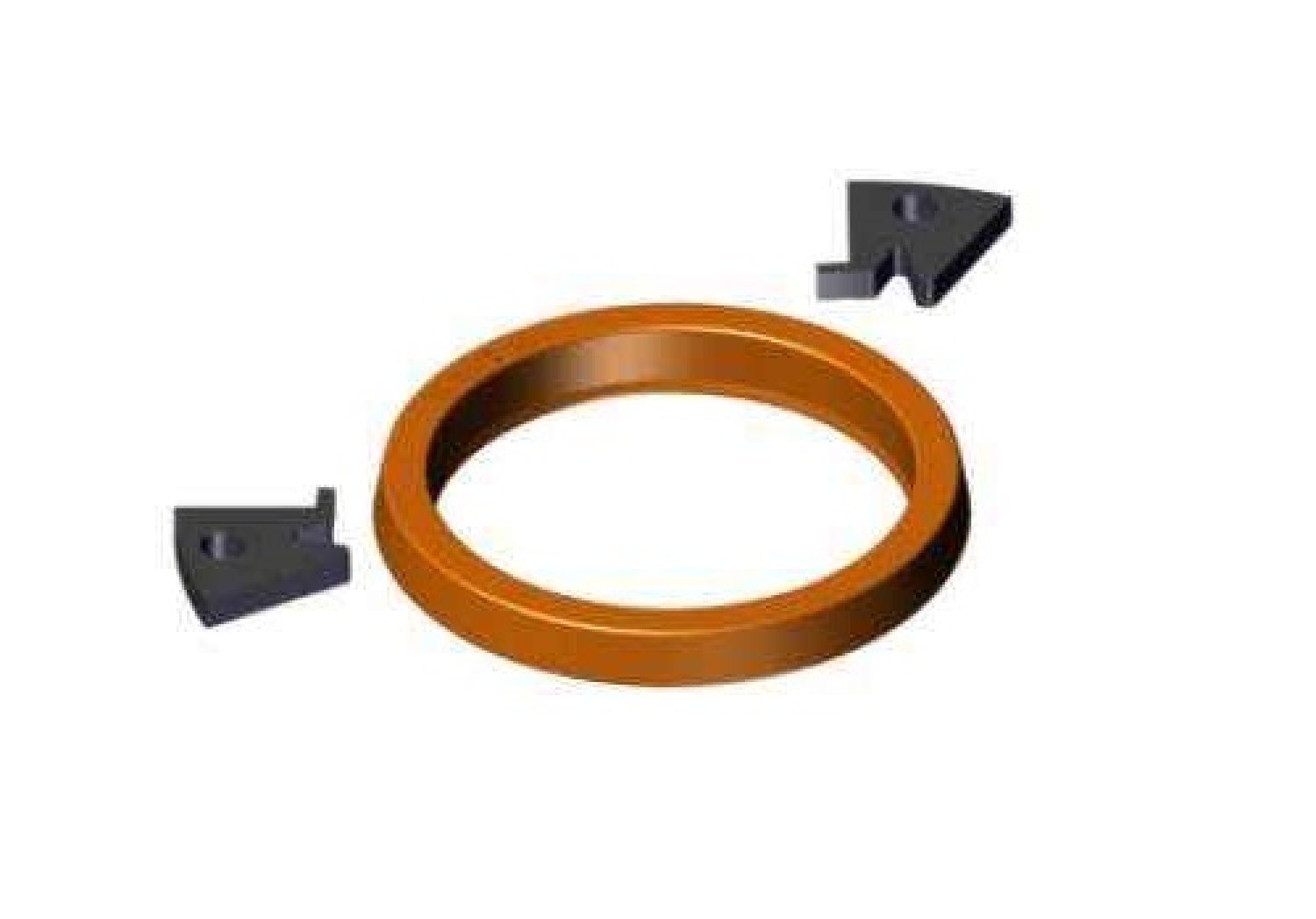

Original - La Marzocco GROUP GASKET & ANTI-SHOCK STRAIGHT-IN
10,47 €

excl. Shipping costs

immediately available, 6 available
22 8353495
Original - La Marzocco BUSH 8X8X4,2 BRONZE
8,57 €

excl. Shipping costs

Delivery time
is determined
23 8353604
Original - La Marzocco SCREW M4X12 BUSH LOCKING
10,95 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
