LOXEAL 83-54 High-Strength Threadlocker, High Temperature Resistant -50ml

Details LOXEAL 83-54 High-Strength Threadlocker, High Temperature Resistant -50ml

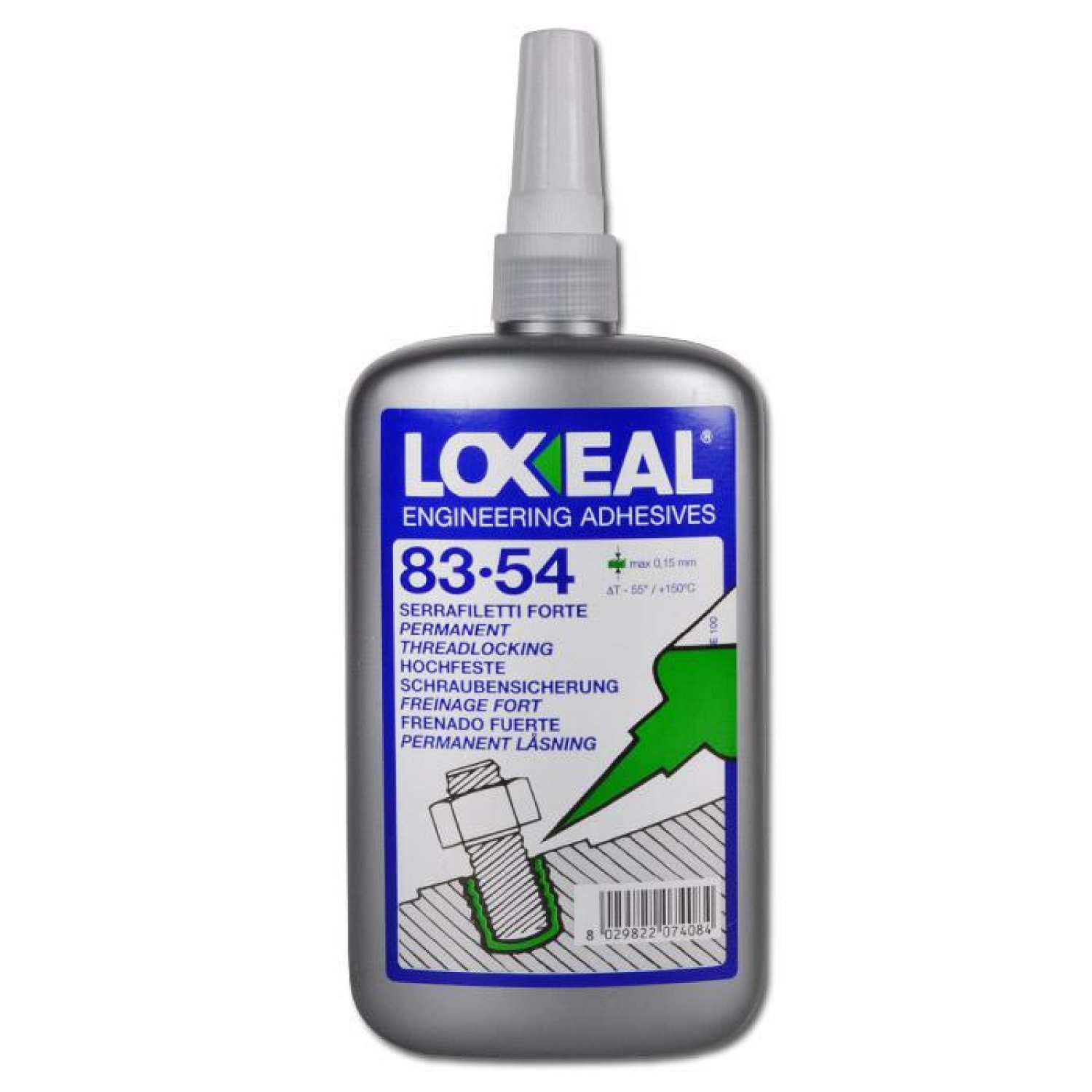

LOXEAL 83-54 High-Strength Threadlocker, High Temperature Resistant

LOXEAL 83-54 is a high-strength anaerobic threadlocker designed for locking and sealing studs, nuts, bolts, and other threaded fasteners where regular disassembly is not required. The product is suitable for all metals and cures anaerobically between close-fitting metal surfaces.

Thanks to its high breakaway and prevailing torque, LOXEAL 83-54 provides reliable and durable locking of threaded connections. It offers excellent resistance to heat, corrosion, vibration, water, gases, oils, hydrocarbons, and many chemicals. The operating temperature range extends from −55 to +200 °C.

Product Features
High-strength anaerobic threadlocker
For locking and sealing bolts, nuts, studs, and threaded fasteners
Designed for permanent connections where regular disassembly is not required
Suitable for all metal surfaces
Maximum thread size M20
Gap-filling capability up to 0.15 mm
High breakaway and prevailing torque
High resistance to vibration and corrosion
Temperature resistant from −55 to +200 °C
Resistant to water, gases, oils, hydrocarbons, and many chemicals
Green and fluorescent under blue light
Technical Data
Property Specification
Technology Anaerobic methacrylate
Color Green
Strength High
Fluorescence Under blue light
Viscosity at +25 °C 450–650 mPa·s
Specific gravity at +25 °C Approx. 1.1 g/ml
Maximum thread size M20
Maximum gap filling 0.15 mm
Flash point > +100 °C
Handling cure time 10–20 minutes
Functional cure time 1–3 hours
Full cure time* 5–10 hours
Breakaway torque 25–35 Nm
Prevailing torque 50–65 Nm
Shear strength 15–20 N/mm²
Temperature range −55 to +200 °C

According to the LOXEAL technical data sheet, resistance to a 50% water/glycol mixture at 87 °C is rated as “excellent” after 100 hours and “good” after 1,000 and 5,000 hours.

Application: Clean and degrease the metal surfaces before application. Apply LOXEAL 83-54 in sufficient quantity to completely fill the thread gap, assemble the components, and allow the product to cure. On passive surfaces or at low temperatures, LOXEAL Activator 11 can be used to accelerate curing.

Note: The available technical data sheet does not state any drinking-water or food-contact certification, such as KTW-BWGL or NSF/ANSI 61. Resistance to water should therefore not be interpreted as approval for drinking-water contact.

*The data sheet states a general full cure time of 24–36 hours, while 5–10 hours is specified under the stated M10 test conditions.
