Mazzer Grinder

MAZZER SUPER JOLLY

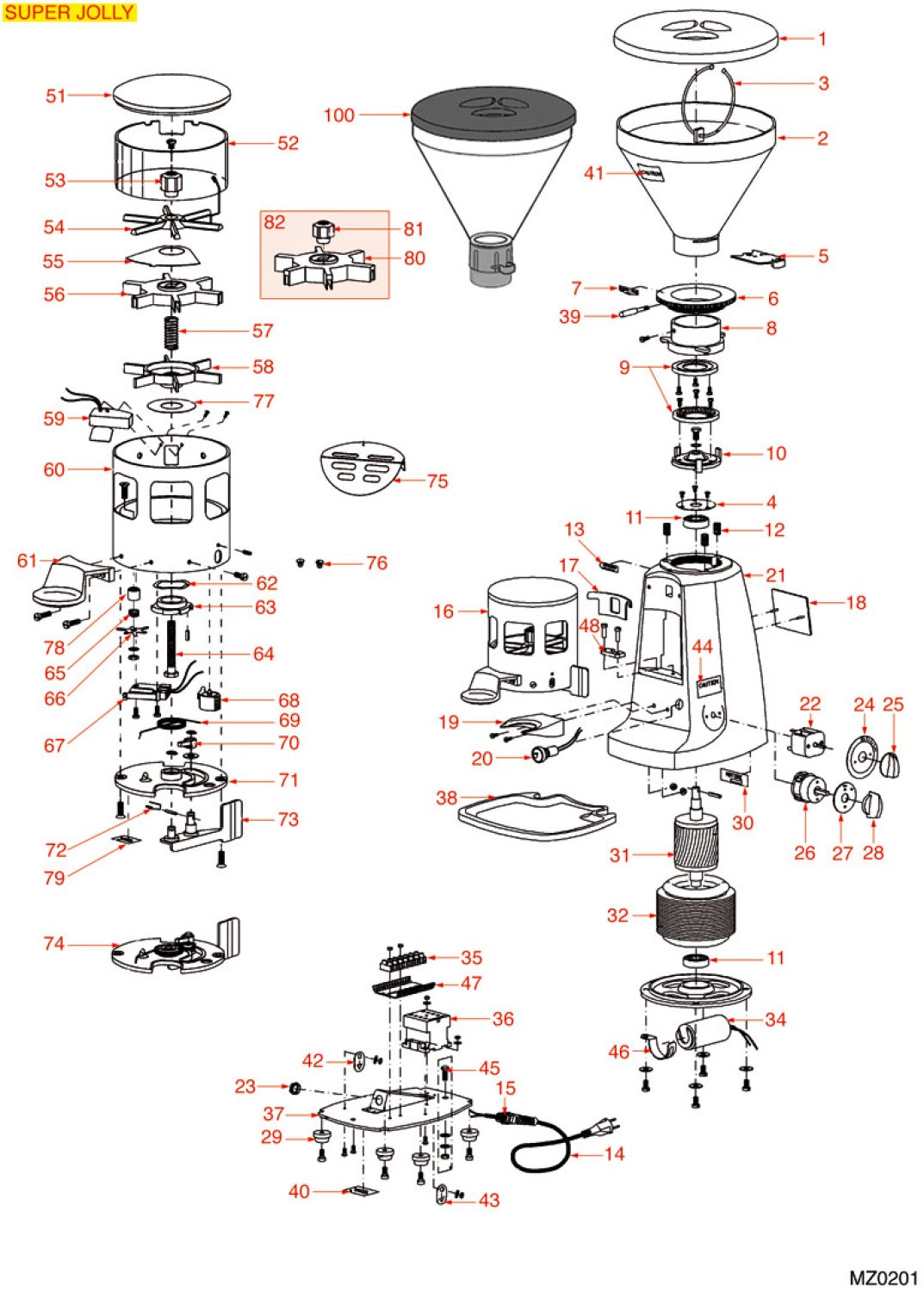

Drawing number 8057662

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1coffee hopper lid 8004143
COFFEE HOPPER LID
16,28 €

excl. Shipping costs

Delivery time
is determined
2mazzer coffee hopper 8000535
MAZZER COFFEE HOPPER
36,78 €

excl. Shipping costs

Delivery time
is determined
4bearing cap 8000310
BEARING CAP
6,76 €

excl. Shipping costs

Delivery time
is determined
5coffee hopper closing sheet 8004144
COFFEE HOPPER CLOSING SHEET
6,72 €

excl. Shipping costs

immediately available, 4 available
6adjustment ring 8004562
ADJUSTMENT RING
91,05 €

excl. Shipping costs

Delivery time
is determined
7coarse fine label 8000021
COARSE-FINE LABEL
2,90 €

excl. Shipping costs

immediately available, 4 available

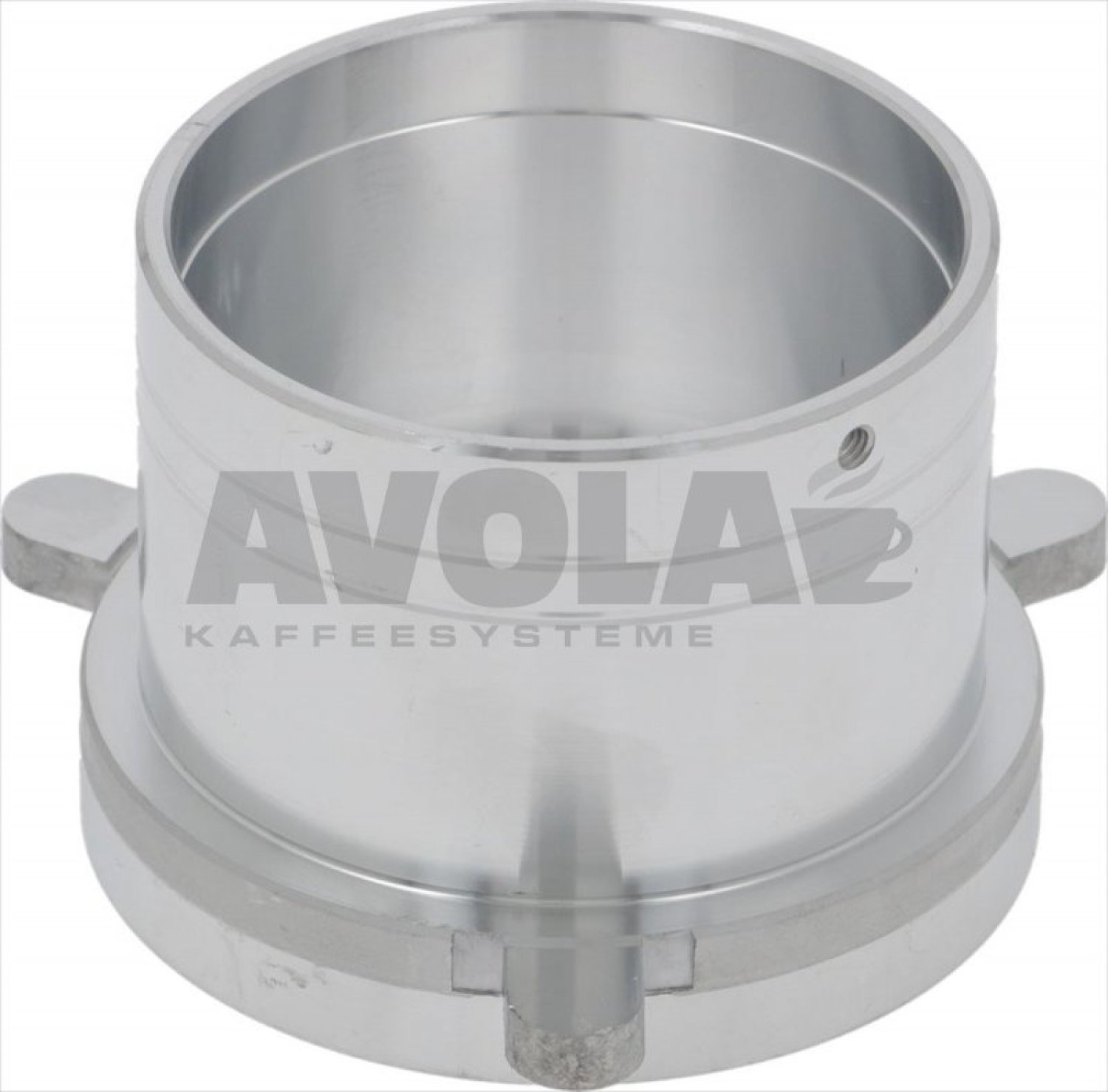

8upper burrs holder 8004077
UPPER BURRS HOLDER
95,16 €

excl. Shipping costs

Delivery time
is determined

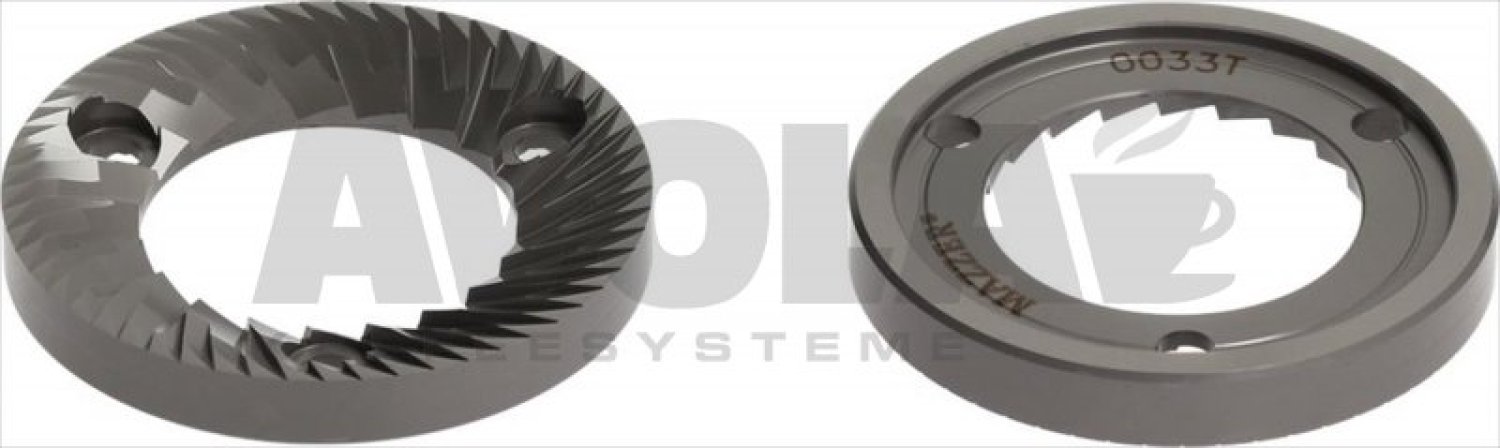

9grind burrs mazzer pair rh three ph 8004086
GRIND.BURRS MAZZER (PAIR) RH THREE-PH.
41,65 €

excl. Shipping costs

immediately available, 1 available
9grind burrs mazzer pair rh single ph 8004090
GRIND.BURRS MAZZER (PAIR) RH SINGLE-PH.
47,60 €

excl. Shipping costs

immediately available, 2 available
10lower burrs holder 8004078
LOWER BURRS HOLDER
60,82 €

excl. Shipping costs

immediately available, 1 available
11bearing 6202 ddu nsk 8011521
BEARING 6202 DDU NSK
12,79 €

excl. Shipping costs

Delivery time
is determined
12grinding control spring 8003595
GRINDING CONTROL SPRING
3,19 €

excl. Shipping costs

immediately available, 10 available
13motor rotation label 8003106
MOTOR ROTATION LABEL
Price on request
17mazzer aer stop gasket 8002070
Mazzer AER-STOP GASKET
2,75 €

excl. Shipping costs

immediately available, 5 available
18label 4m mazzer 8004147
LABEL 4M MAZZER
11,69 €

excl. Shipping costs

immediately available, 3 available
19filter holder fork 8004158
FILTER HOLDER FORK
27,17 €

excl. Shipping costs

Delivery time
is determined
20green indicator lamp 230 400v 8002776
GREEN INDICATOR LAMP 230/400V
11,27 €

excl. Shipping costs

Delivery time
is determined
22timer 50 seconds 16a 250v 8006536
TIMER 50 SECONDS 16A 250V
67,18 €

excl. Shipping costs

immediately available, 2 available
22three polar timer 50 seconds 8006537
THREE-POLAR TIMER 50 SECONDS
71,88 €

excl. Shipping costs

Delivery time
is determined
24timer label 8006538
TIMER LABEL
9,38 €

excl. Shipping costs

Delivery time
is determined
25mazzer timer knob 8006539
MAZZER TIMER KNOB
15,93 €

excl. Shipping costs

Delivery time
is determined
26selector switch 0 1 positions 25a 690v 8000297
SELECTOR SWITCH 0-1 POSITIONS 25A 690V
37,58 €

excl. Shipping costs

Delivery time
is determined
26selector switch 0 1 start positions 20a 8000298
SELECTOR SWITCH 0-1-START POSITIONS 20A
59,52 €

excl. Shipping costs

Delivery time
is determined
26selector switch 0 1 positions 20a 690v 8000299
SELECTOR SWITCH 0-1- POSITIONS 20A 690V
61,76 €

excl. Shipping costs

Delivery time
is determined
26selector switch 0 1 positions 20a 8004639
SELECTOR SWITCH 0-1 POSITIONS 20A
52,98 €

excl. Shipping costs

Delivery time
is determined
27label for selector switch 0 1 positions 8004148
LABEL FOR SELECTOR SWITCH 0-1 POSITIONS
5,36 €

excl. Shipping costs

Delivery time
is determined
28black knob 8003378
BLACK KNOB
14,21 €

excl. Shipping costs

immediately available, 3 available
29foot assembly m5x0 75 8004624
FOOT ASSEMBLY M5x0,75
4,64 €

excl. Shipping costs

immediately available, 6 available

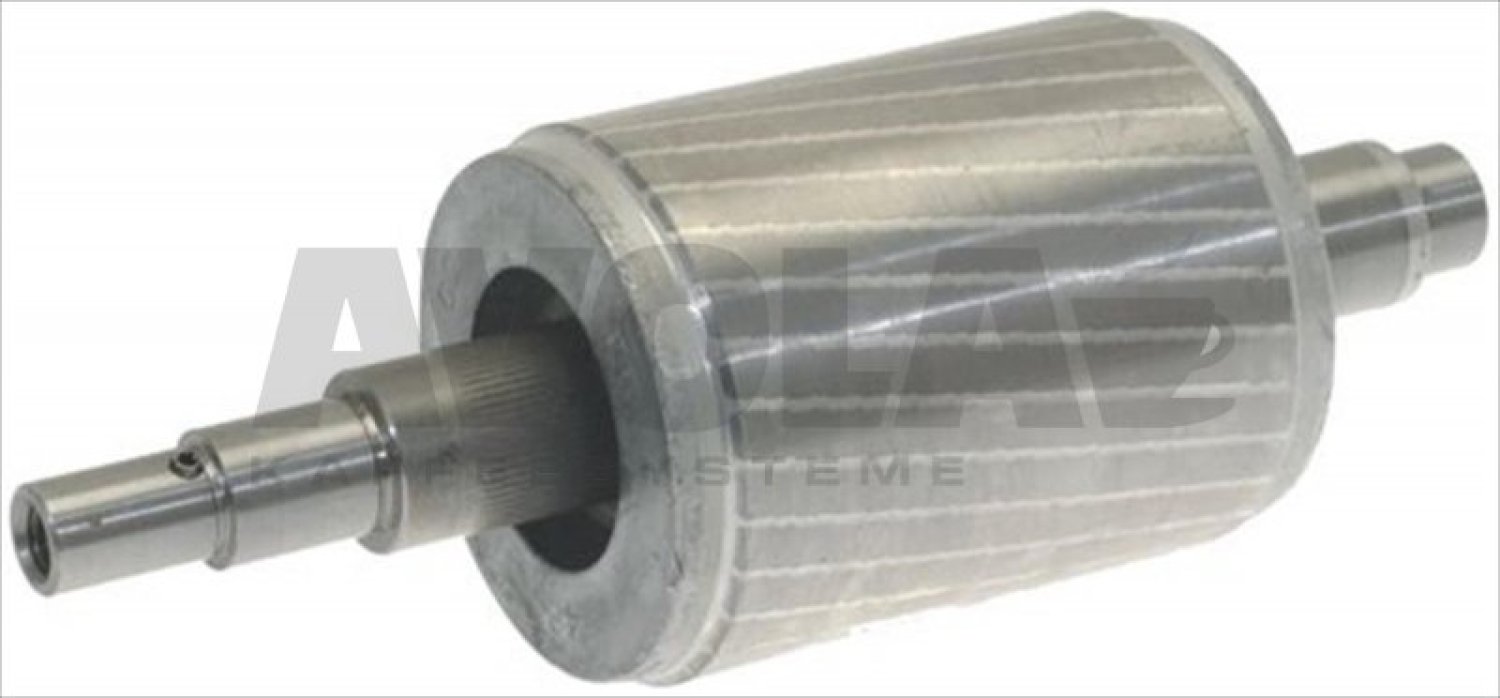

31rotor super jolly 8003102
ROTOR SUPER JOLLY
114,87 €

excl. Shipping costs

immediately available, 1 available

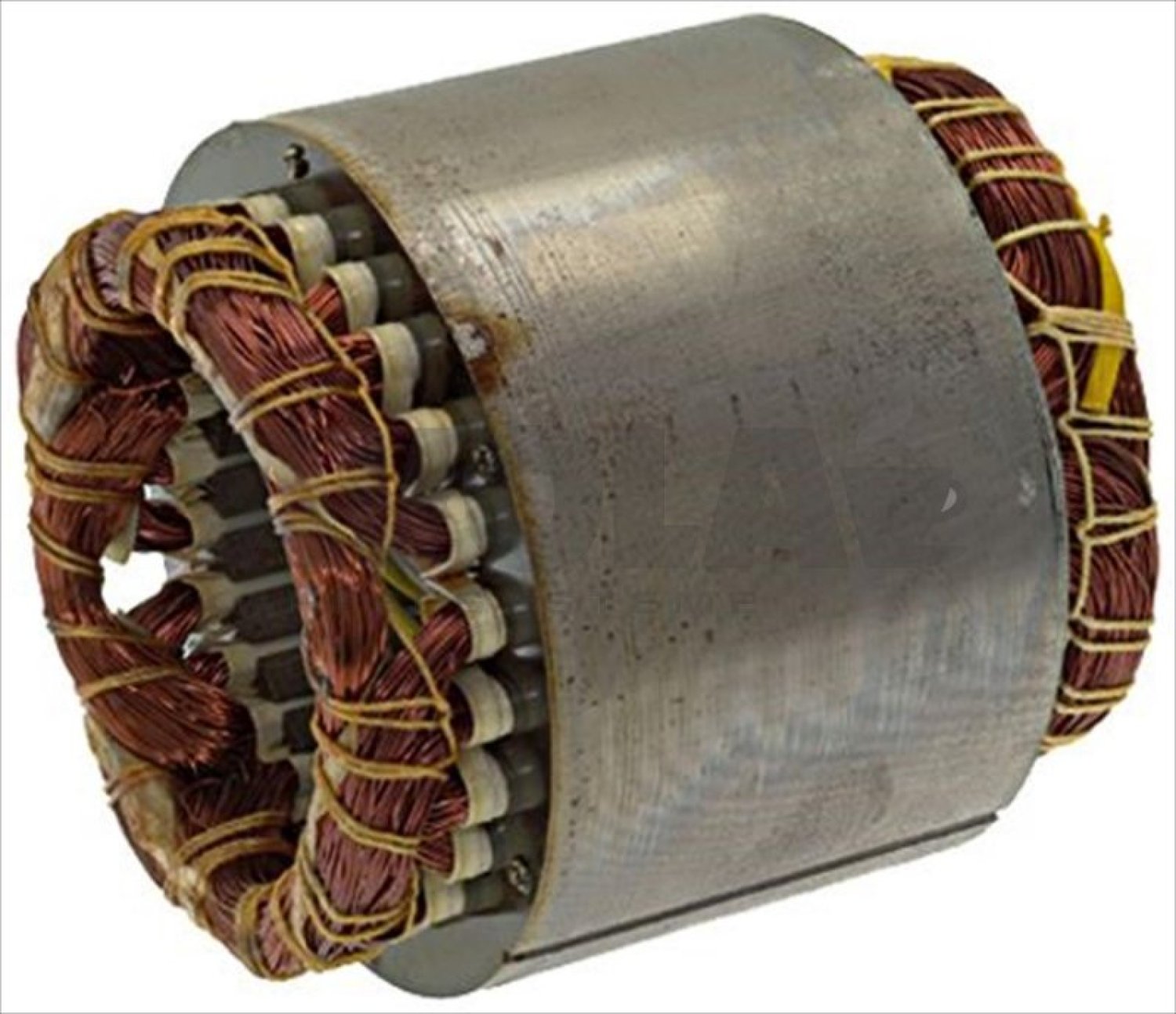

32wound stator 230 400v 50hz 8003099
WOUND STATOR 230/400V 50Hz
233,41 €

excl. Shipping costs

Delivery time 4-6 weeks..

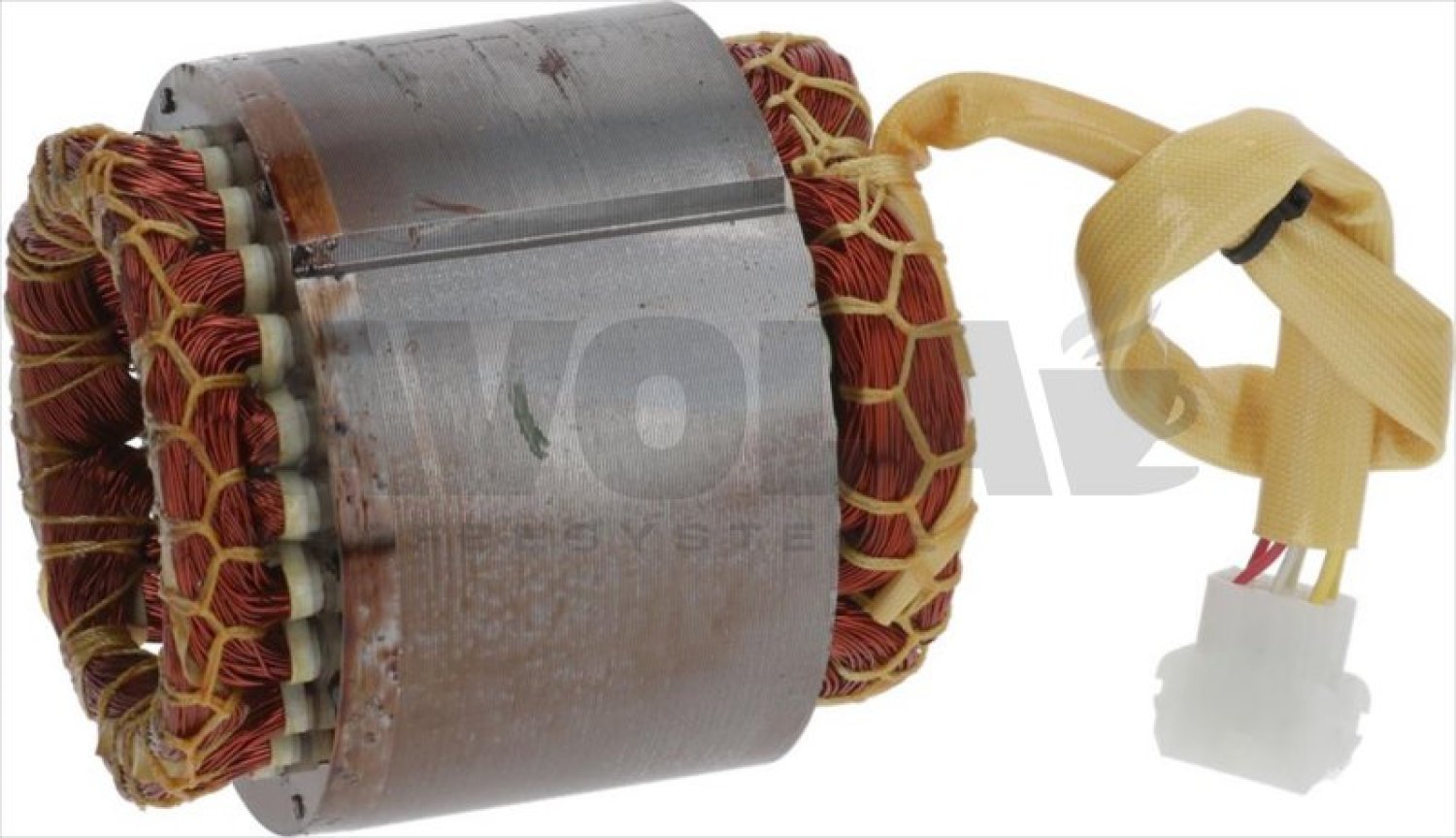

32wound stator 220 240v 50hz 8003100
WOUND STATOR 220/240V 50Hz
233,41 €

excl. Shipping costs

Delivery time
is determined
34capacitor 8011680
CAPACITOR
11,07 €

excl. Shipping costs

immediately available, 8 available
36contactor lovato bg0910a 8006909
CONTACTOR LOVATO BG0910A
54,59 €

excl. Shipping costs

immediately available, 1 available
36schuetz lovato bg0910a spule 9a 230v 50 60hz 4kw steuerspannung 230v 8005918
Schütz Lovato Bg0910a / Spule 9A 230V 50/60hz 4kw Steuerspannung 230V
55,41 €

excl. Shipping costs

immediately available, 2 available
38grounds tray 8004560
GROUNDS TRAY
59,64 €

excl. Shipping costs

Delivery time
is determined
39adjustment ring pin m5 8005206
ADJUSTMENT RING PIN M5
18,81 €

excl. Shipping costs

immediately available, 4 available
40aufkleber danger 8004174
Aufkleber Danger
2,42 €

excl. Shipping costs

Delivery time
is determined
41caution hopper label 8000022
CAUTION-HOPPER LABEL
1,55 €

excl. Shipping costs

Delivery time
is determined
44caution fire label 8000023
CAUTION-FIRE LABEL
5,81 €

excl. Shipping costs

Delivery time 4-6 weeks..
51mazze doser lid o 125 mm 8004161
MAZZE DOSER LID ø 125 mm
17,46 €

excl. Shipping costs

immediately available, 1 available
52doser cylinder o 120x68 mm 8004162
DOSER CYLINDER ø 120x68 mm
17,54 €

excl. Shipping costs

Delivery time
is determined
53small control handle 8003411
SMALL CONTROL HANDLE
11,67 €

excl. Shipping costs

Delivery time 4-6 weeks..

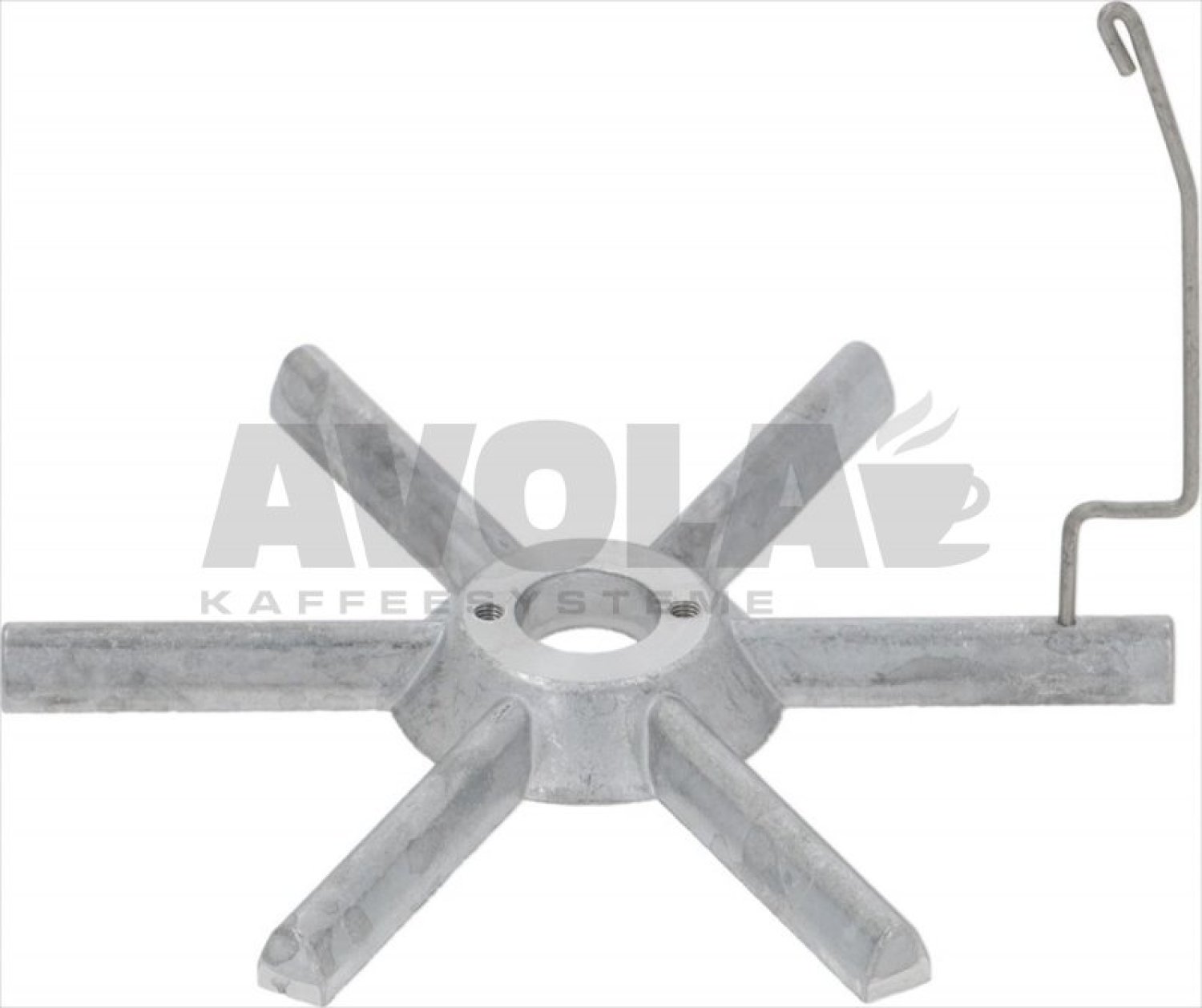

54upper star with pin 8005341
UPPER STAR WITH PIN
22,93 €

excl. Shipping costs

Delivery time
is determined
55closing sector 8004163
CLOSING SECTOR
11,17 €

excl. Shipping costs

Delivery time
is determined
56star female 8005412
STAR (FEMALE)
21,78 €

excl. Shipping costs

Delivery time
is determined
57doser pressure spring 8004164
DOSER PRESSURE SPRING
Price on request
58mazzer star male new version o 112mm 8005413
Mazzer STAR (MALE) new Version Ø 112mm
19,67 €

excl. Shipping costs

Delivery time
is determined
59upper microswitch assembly 8003109
UPPER MICROSWITCH ASSEMBLY
95,78 €

excl. Shipping costs

Delivery time
is determined
61coffee tamper 8006221
COFFEE TAMPER
28,92 €

excl. Shipping costs

Delivery time
is determined
61coffee tamper 8006222
COFFEE TAMPER
29,04 €

excl. Shipping costs

Delivery time
is determined
61coffee tamper o 57 5 mm 8006223
COFFEE TAMPER ø 57,5 mm
29,23 €

excl. Shipping costs

Delivery time
is determined
62compensation ring 8004166
COMPENSATION RING
Price on request
63pawl for coffee grinder doser 8004167
PAWL FOR COFFEE GRINDER/DOSER
25,70 €

excl. Shipping costs

Delivery time
is determined
64st steel screw for dosing adjust m8x70 8004168
ST.STEEL SCREW FOR DOSING ADJUST. M8x70
12,36 €

excl. Shipping costs

Delivery time
is determined
65lower microrelease spring 8003861
LOWER MICRORELEASE SPRING
1,56 €

excl. Shipping costs

Delivery time
is determined
66lower microswitch star 8005414
LOWER MICROSWITCH STAR
Price on request
67microswitch 12a 250 v 8003110
MICROSWITCH 12A 250 V
62,11 €

excl. Shipping costs

Delivery time
is determined
68counter for coffee grinder 8004169
COUNTER FOR COFFEE GRINDER
51,77 €

excl. Shipping costs

Delivery time
is determined
69doser lever return spring 8003862
DOSER LEVER RETURN SPRING
5,94 €

excl. Shipping costs

immediately available, 10 available
70doser retainer 8004170
DOSER RETAINER
10,98 €

excl. Shipping costs

immediately available, 2 available
72retainer spring 8003863
RETAINER SPRING
2,98 €

excl. Shipping costs

immediately available, 3 available
73doser lever 8004171
DOSER LEVER
80,50 €

excl. Shipping costs

Delivery time
is determined
74doser lever assembly 8004172
DOSER LEVER ASSEMBLY
73,84 €

excl. Shipping costs

Delivery time
is determined
75coffee outlet protection 8004458
COFFEE OUTLET PROTECTION
50,29 €

excl. Shipping costs

Delivery time
is determined
77doser washer 8004173
DOSER WASHER
Price on request
78lower microswitch star spacer 8005415
LOWER MICROSWITCH STAR SPACER
6,43 €

excl. Shipping costs

Delivery time 4-6 weeks..
79aufkleber danger 8004174
Aufkleber Danger
2,42 €

excl. Shipping costs

Delivery time
is determined
82star with adjustment knob 8005416
STAR WITH ADJUSTMENT KNOB
62,83 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
