Nuova Simonelli Grinder

NSM03 DOSIERMAHLWERK MDX-MDXA

Drawing number 8057373

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1coffee hopper lid8000402
COFFEE HOPPER LID
17,18 €

excl. Shipping costs
Delivery time
is determined
2complete hopper8000404
COMPLETE HOPPER
55,35 €

excl. Shipping costs
Delivery time
is determined
3coffee hopper inner protection8000407
COFFEE HOPPER INNER PROTECTION
This article is no longer available
5coffee container closing sheet8000408
COFFEE CONTAINER CLOSING SHEET
6,33 €

excl. Shipping costs
Delivery time
is determined
6top grinding burrs cover8003939
TOP GRINDING BURRS COVER
12,42 €

excl. Shipping costs
Delivery time
is determined
7cylinder head screw m4x12 uni 76878007317
CYLINDER HEAD SCREW M4x12 Uni 7687
0,80 €

excl. Shipping costs
immediately available
9oberer mahlscheibentraeger 65 mm8003940
OBERER MAHLSCHEIBENTRÄGER 65 mm
27,26 €

excl. Shipping costs
Delivery time
is determined
10grinding burrs eureka pair right 64mm8003949
GRINDING BURRS EUREKA (PAIR) RIGHT 64mm
40,88 €

excl. Shipping costs
immediately available, 3 available
10mahlscheiben eureka rechts mac64 cp original8281338
Mahlscheiben Eureka rechts MAC64 CP - Original
58,31 €

excl. Shipping costs
Delivery time
is determined
11cross head flush screw m4x88029981
CROSS HEAD FLUSH SCREW M4x8
1,29 €

excl. Shipping costs
immediately available
12countersunk flat head screws m4x108007244
COUNTERSUNK FLAT HEAD SCREWS M4x10
1,05 €

excl. Shipping costs
immediately available
13grinding burrs holder locking nut8007275
GRINDING BURRS HOLDER LOCKING NUT
13,38 €

excl. Shipping costs
Delivery time
is determined
15washer flat m108001725
WASHER FLAT M10
Price on request
19hexagonal head screw m6x168029903
HEXAGONAL HEAD SCREW M6x16
1,44 €

excl. Shipping costs
immediately available

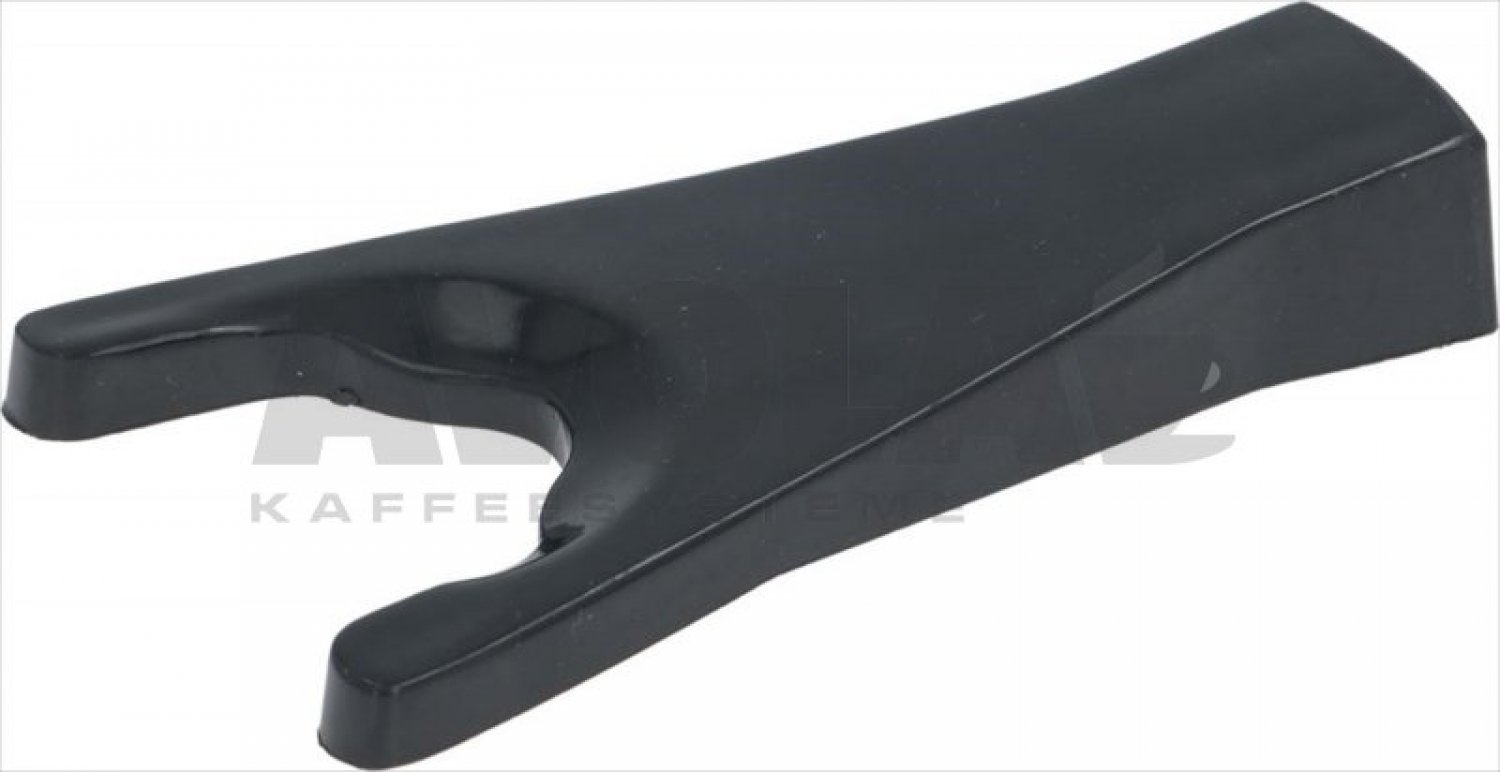

21filter holder plastic fork8001147
FILTER HOLDER PLASTIC FORK
12,82 €

excl. Shipping costs
Delivery time 4-6 weeks
36tie rod adjustment spring8003648
TIE ROD ADJUSTMENT SPRING
2,51 €

excl. Shipping costs
immediately available, 10 available
38capacitor8011677
CAPACITOR
13,10 €

excl. Shipping costs
immediately available, 3 available
40coffee collecting tray8004401
COFFEE COLLECTING TRAY
12,15 €

excl. Shipping costs
Delivery time
is determined
41foot o 20 mm8004588
FOOT ø 20 mm
2,92 €

excl. Shipping costs
immediately available, 4 available
43black bipolar switch 16a 250v8020540
BLACK BIPOLAR SWITCH 16A 250V
5,57 €

excl. Shipping costs
immediately available, 1 available
48doser lid8004402
DOSER LID
16,87 €

excl. Shipping costs
Delivery time
is determined
508101259
Schraube 2.2X9.5
3,45 €

excl. Shipping costs
Delivery time
is determined
51automatic microswitch box8004407
AUTOMATIC MICROSWITCH BOX
24,73 €

excl. Shipping costs
Delivery time 4-6 weeks
52microswitch 16a 250v8016308
MICROSWITCH 16A 250V
9,54 €

excl. Shipping costs
immediately available, 3 available
53doser cylinder8000649
DOSER CYLINDER
22,09 €

excl. Shipping costs
immediately available, 1 available
59plastic top star8005364
PLASTIC TOP STAR
16,86 €

excl. Shipping costs
Delivery time
is determined
62cylinder head screw m4x88007331
CYLINDER HEAD SCREW M4x8
1,13 €

excl. Shipping costs
immediately available
63dividing sheet8005367
DIVIDING SHEET
7,50 €

excl. Shipping costs
Delivery time
is determined

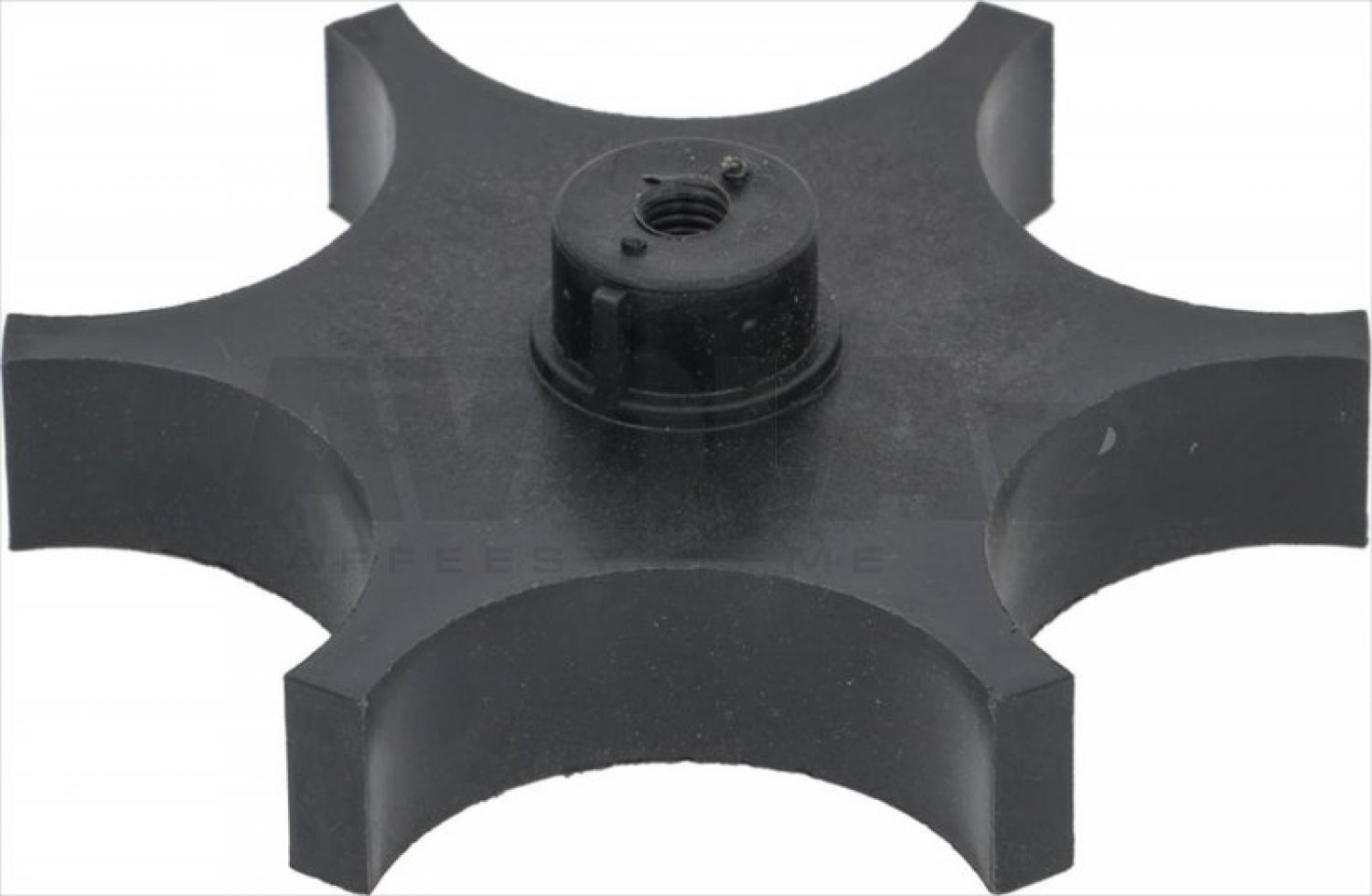

64central star8005368
CENTRAL STAR
16,24 €

excl. Shipping costs
Delivery time
is determined
65star spring8003649
STAR SPRING
4,00 €

excl. Shipping costs
Delivery time 4-6 weeks
66bottom star8005369
BOTTOM STAR
21,16 €

excl. Shipping costs
Delivery time 4-6 weeks
68doser group pin8004413
DOSER GROUP PIN
2,42 €

excl. Shipping costs
Delivery time 4-6 weeks
69spring8003612
SPRING
2,48 €

excl. Shipping costs
Delivery time
is determined
70madenschraube m6x68101260
Madenschraube M6x6
3,34 €

excl. Shipping costs
Delivery time 4-6 weeks
72hexagonal head screw m6x168029903
HEXAGONAL HEAD SCREW M6x16
1,44 €

excl. Shipping costs
immediately available
73doser lever return spring 8x85 mm8003651
DOSER LEVER RETURN SPRING 8x85 mm
2,51 €

excl. Shipping costs
Delivery time
is determined
74coffee tamper8006172
COFFEE TAMPER
17,67 €

excl. Shipping costs
Delivery time 4-6 weeks
82star spring8003650
STAR SPRING
3,76 €

excl. Shipping costs
Delivery time
is determined

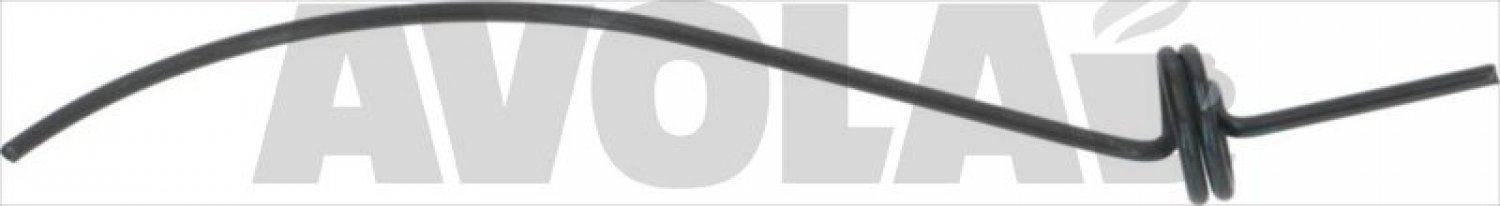

83feder kaffeemuehle dosierer8101261
Feder Kaffeemühle Dosierer
14,03 €

excl. Shipping costs
Delivery time 4-6 weeks
85spring8003612
SPRING
2,48 €

excl. Shipping costs
Delivery time
is determined
86nut for doser group8007276
NUT FOR DOSER GROUP
9,48 €

excl. Shipping costs
Delivery time 4-6 weeks

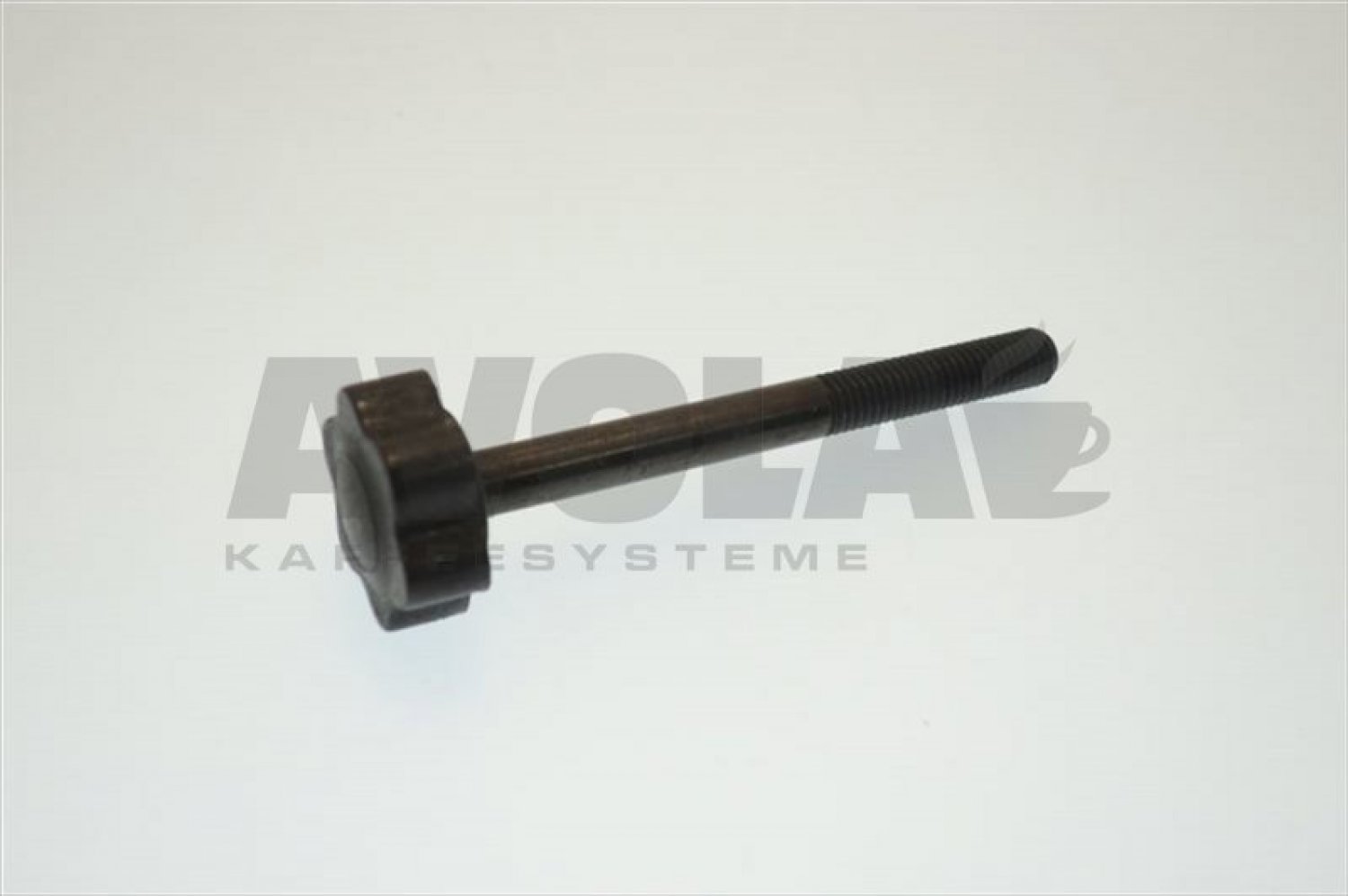

88regulierstift dosierer8101262
Regulierstift Dosierer
23,12 €

excl. Shipping costs
Delivery time 4-6 weeks
91doser pawl8004410
DOSER PAWL
13,59 €

excl. Shipping costs
Delivery time
is determined
92doser lever8002809
DOSER LEVER
16,05 €

excl. Shipping costs
Delivery time
is determined
93washer for doser lever8004411
WASHER FOR DOSER LEVER
6,26 €

excl. Shipping costs
Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
