Nuova Simonelli

NS1101 HYDRAULISCHE TEILE

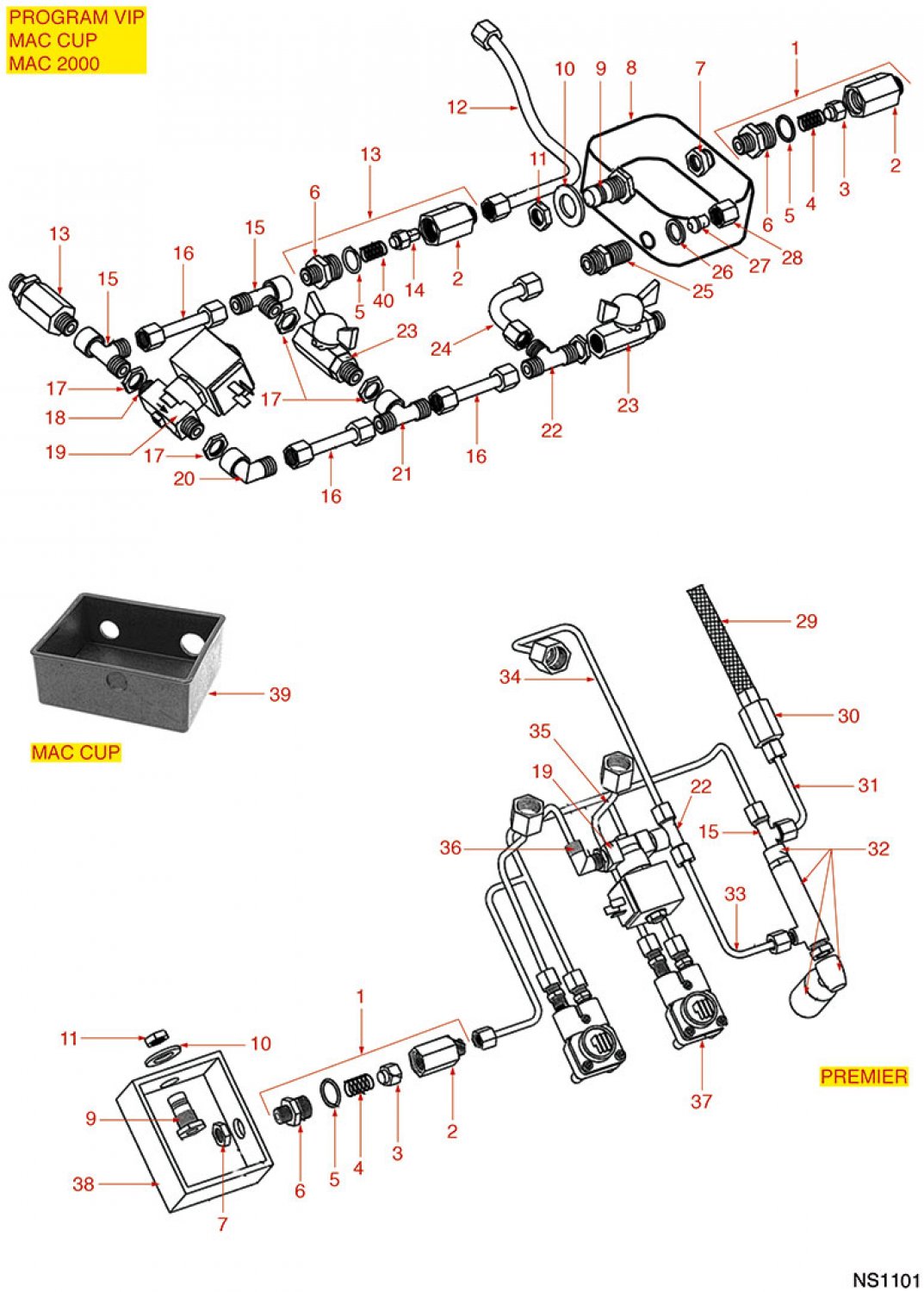

Drawing number 8057365

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1expansion valve o 1 4 m 1 4 m 8007102
EXPANSION VALVE ø 1/4 M-1/4 M
29,00 €

excl. Shipping costs

immediately available, 1 available

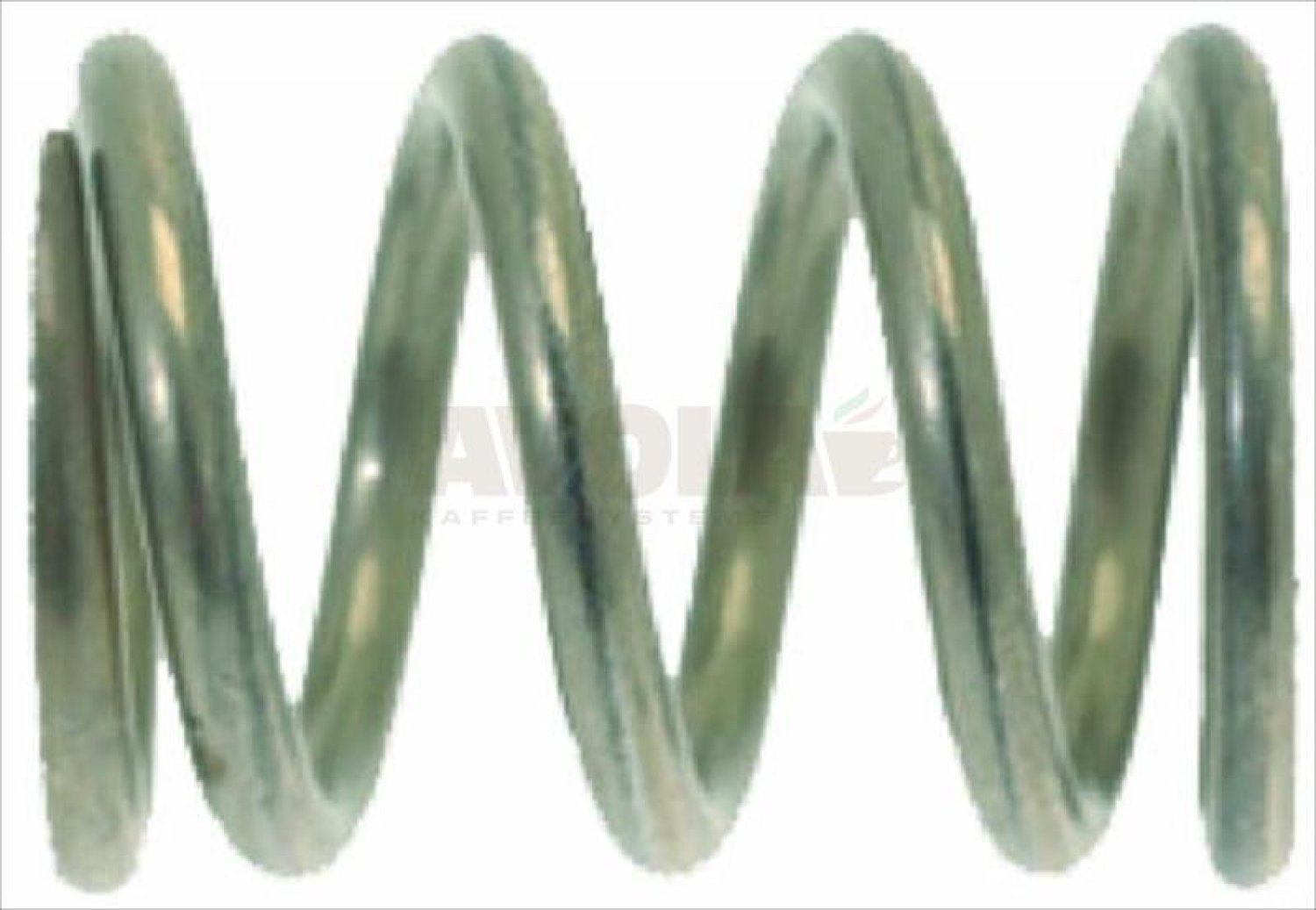

4feder fuer expansionsventil 21 5x11 5 mm 8038348
Feder für Expansionsventil 21,5x11,5 mm
4,76 €

excl. Shipping costs

immediately available, 6 available
5o ring 0117 epdm 8018537
O-RING 0117 EPDM
0,73 €

excl. Shipping costs

immediately available

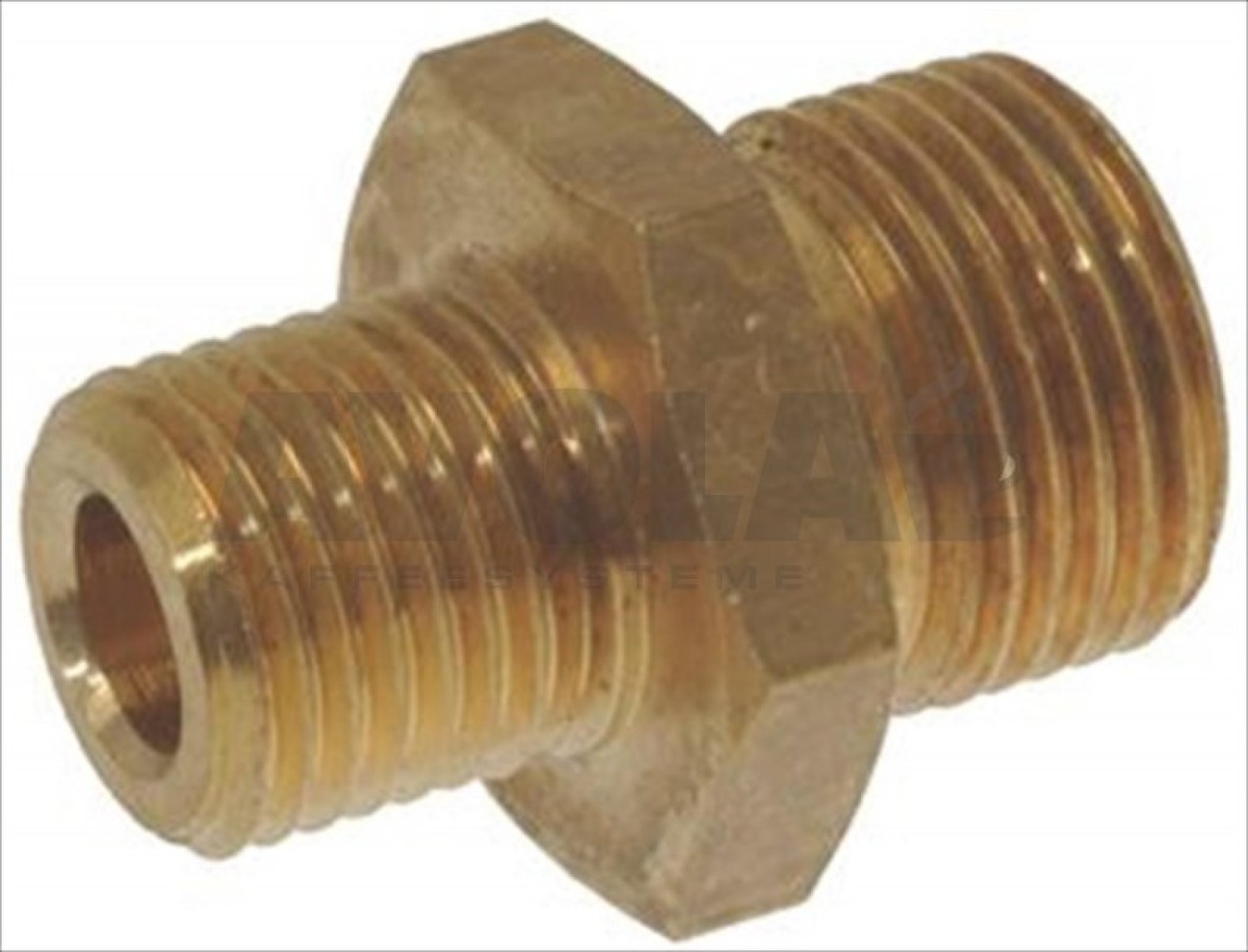

6coupling 3 8 1 4 8005653
COUPLING 3/8 -1/4
5,78 €

excl. Shipping costs

Delivery time
is determined

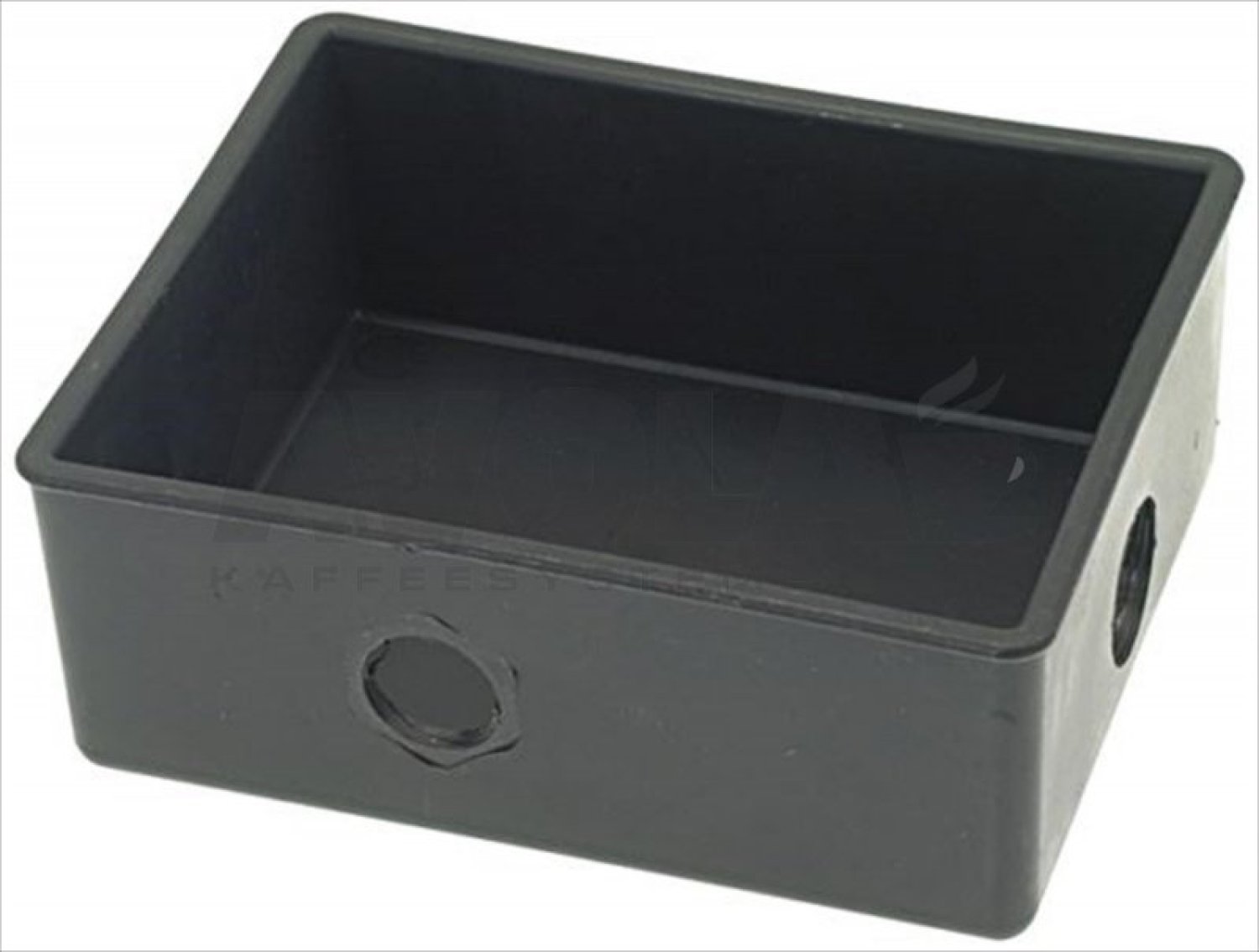

8drain tub 8007234
DRAIN TUB
10,48 €

excl. Shipping costs

Delivery time 4-6 weeks..
11nut 8005455
NUT
3,38 €

excl. Shipping costs

immediately available, 12 available
13non return valve 8007046
NON-RETURN VALVE
22,69 €

excl. Shipping costs

immediately available, 4 available
15t verschraubung o 1 4 quot 1 4 quot 1 4 quot 8062749
T-VERSCHRAUBUNG ø 1/4"-1/4"-1/4"
9,91 €

excl. Shipping costs

immediately available, 5 available

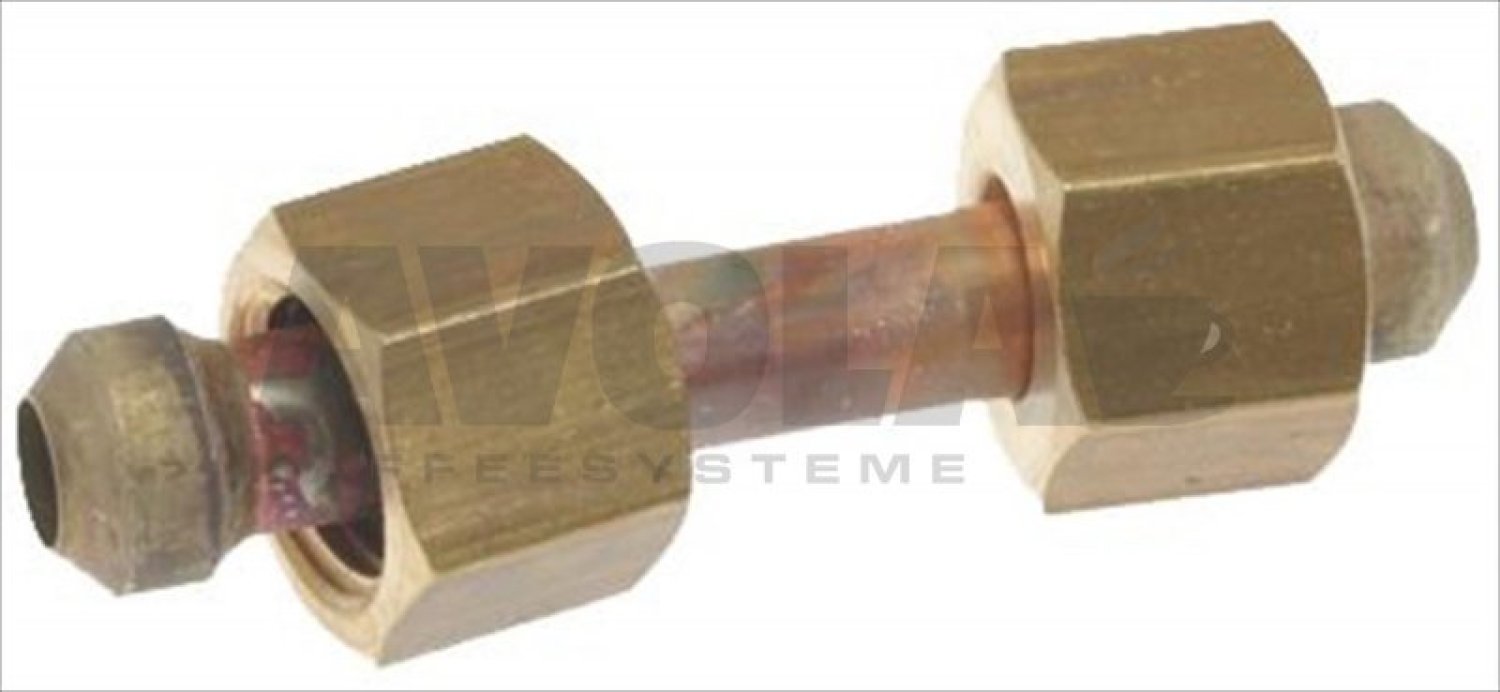

16hydraulic pipe for drain tank 8006572
HYDRAULIC PIPE FOR DRAIN TANK
14,67 €

excl. Shipping costs

immediately available, 6 available
23ball valve o 1 4 rime in and out 8029763
ball valve ø 1/4″ in and out
12,97 €

excl. Shipping costs

immediately available, 8 available
26copper flat gasket o 18x14x1 5 mm 8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs

immediately available
38drain tub 8007234
DRAIN TUB
10,48 €

excl. Shipping costs

Delivery time 4-6 weeks..
39drain tub 8007234
DRAIN TUB
10,48 €

excl. Shipping costs

Delivery time 4-6 weeks..

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
