Nuova Simonelli

NUOVA SIMONELLI BRÜHGRUPPE OPTIMA-ISXE-ISXV-ISX-ISXM

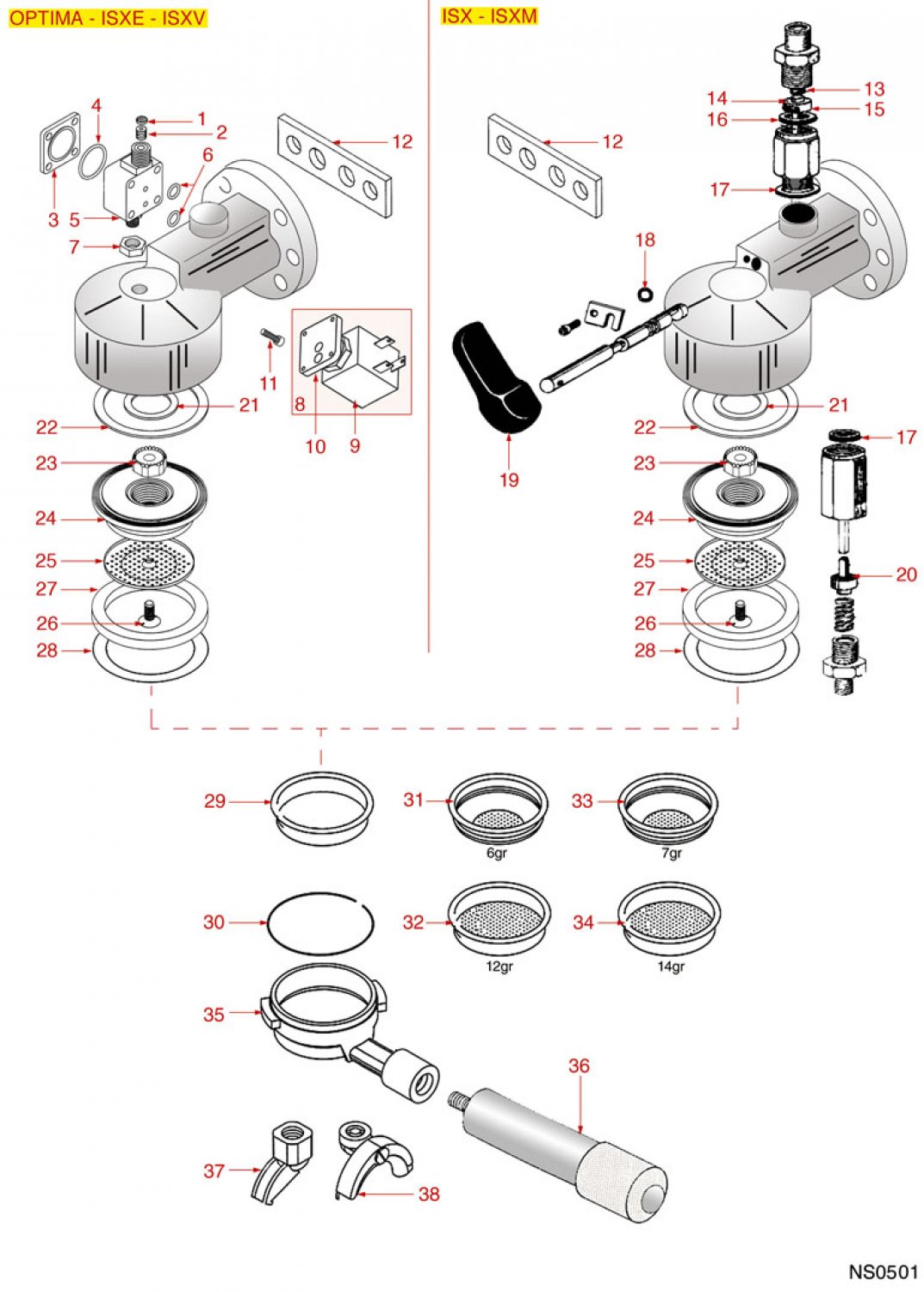

Drawing number 8057359

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1stainless steel water filter 8001124
STAINLESS STEEL WATER FILTER
2,69 €

excl. Shipping costs

immediately available
2jet m6x6 lock 8006993
JET M6x6 LOCK
2,96 €

excl. Shipping costs

Delivery time
is determined
3fitting cap 8000048
FITTING CAP
9,52 €

excl. Shipping costs

immediately available, 1 available
4o ring 02093 epdm 8001639
O-RING 02093 EPDM
1,00 €

excl. Shipping costs

immediately available
5nozzle holder fitting for solenoid valve 8000047
NOZZLE HOLDER FITTING FOR SOLENOID VALVE
This article is no longer available
6red silicone o ring r5 gasket 8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs

immediately available
6o ring 02025 viton 8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs

immediately available
6o ring 02025 viton 8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs

immediately available
7nut 1 8 rime 8005454
NUT 1/8″
2,78 €

excl. Shipping costs

immediately available, 8 available
83 way solenoid valve lucifer 240v 50hz 8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs

immediately available, 8 available
83 way solenoid valve parker 230v 50 60hz 8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs

immediately available, 19 available
9coil lucifer parker 220 240v 9w 50hz 8000957
COIL LUCIFER/PARKER 220/240V 9W 50Hz
19,92 €

excl. Shipping costs

immediately available, 6 available
9coil parker zb09 9w 220 240v 50 60hz 8012418
COIL PARKER ZB09 9W 220/240V 50/60Hz
20,74 €

excl. Shipping costs

immediately available, 17 available
103 way mechanical component lucifer 8000959
3-WAY MECHANICAL COMPONENT LUCIFER
39,77 €

excl. Shipping costs

immediately available, 7 available
103 way mechanical component parker 8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs

immediately available, 3 available
11low cylinder head screw m4x12 8001290
LOW CYLINDER HEAD SCREW M4x12
2,24 €

excl. Shipping costs

immediately available
12coffee group gasket 100x30x3 mm 8001763
COFFEE GROUP GASKET 100x30x3 mm
11,79 €

excl. Shipping costs

immediately available, 5 available

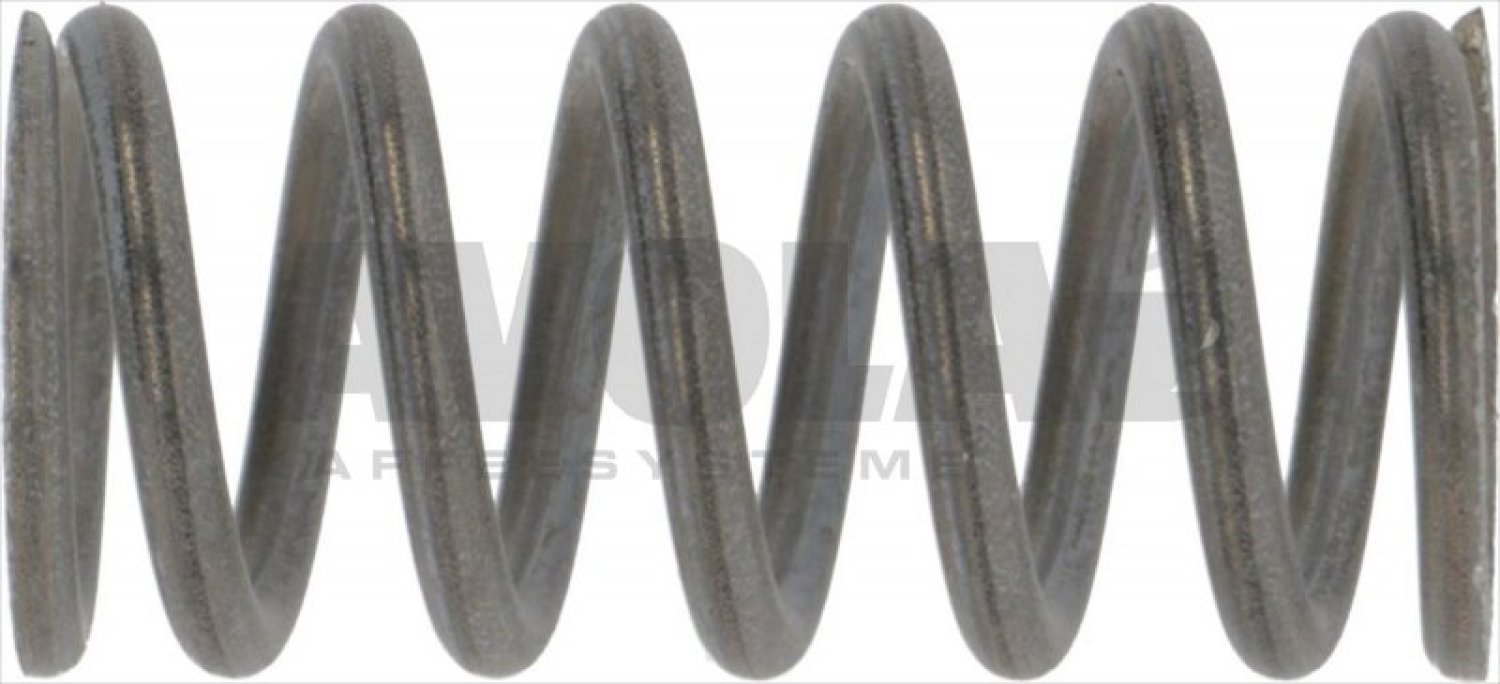

13nuova simonelli spring o 11 5x25 mm 8003816
NUOVA SIMONELLI SPRING ø 11,5x25 mm
1,89 €

excl. Shipping costs

immediately available, 8 available
17round copper gasket o 22x16 3x2 75 mm 8001460
ROUND COPPER GASKET ø 22x16,3x2,75 mm
1,15 €

excl. Shipping costs

immediately available, 20 available
18o ring gasket 0106 epdm 8018501
O-RING GASKET 0106 EPDM
1,44 €

excl. Shipping costs

immediately available
21flat carbo gasket 8001764
FLAT CARBO GASKET
1,21 €

excl. Shipping costs

immediately available
22flat teflon gasket o 73x61 5x1 5 mm 8001765
FLAT Teflon GASKET ø 73x61,5x1,5 mm
3,82 €

excl. Shipping costs

immediately available, 6 available
23brew group spray nozzle 8006994
BREW GROUP SPRAY NOZZLE
6,08 €

excl. Shipping costs

immediately available, 1 available
24shower holder sprayer 8005221
SHOWER HOLDER SPRAYER
24,68 €

excl. Shipping costs

Delivery time 4-6 weeks..
25shower o 56 5 mm 8000568
Shower ø 56,5 mm
5,75 €

excl. Shipping costs

immediately available
26countersunk flat head screws m6x16 8007255
COUNTERSUNK FLAT HEAD SCREWS M6x16
1,37 €

excl. Shipping costs

immediately available

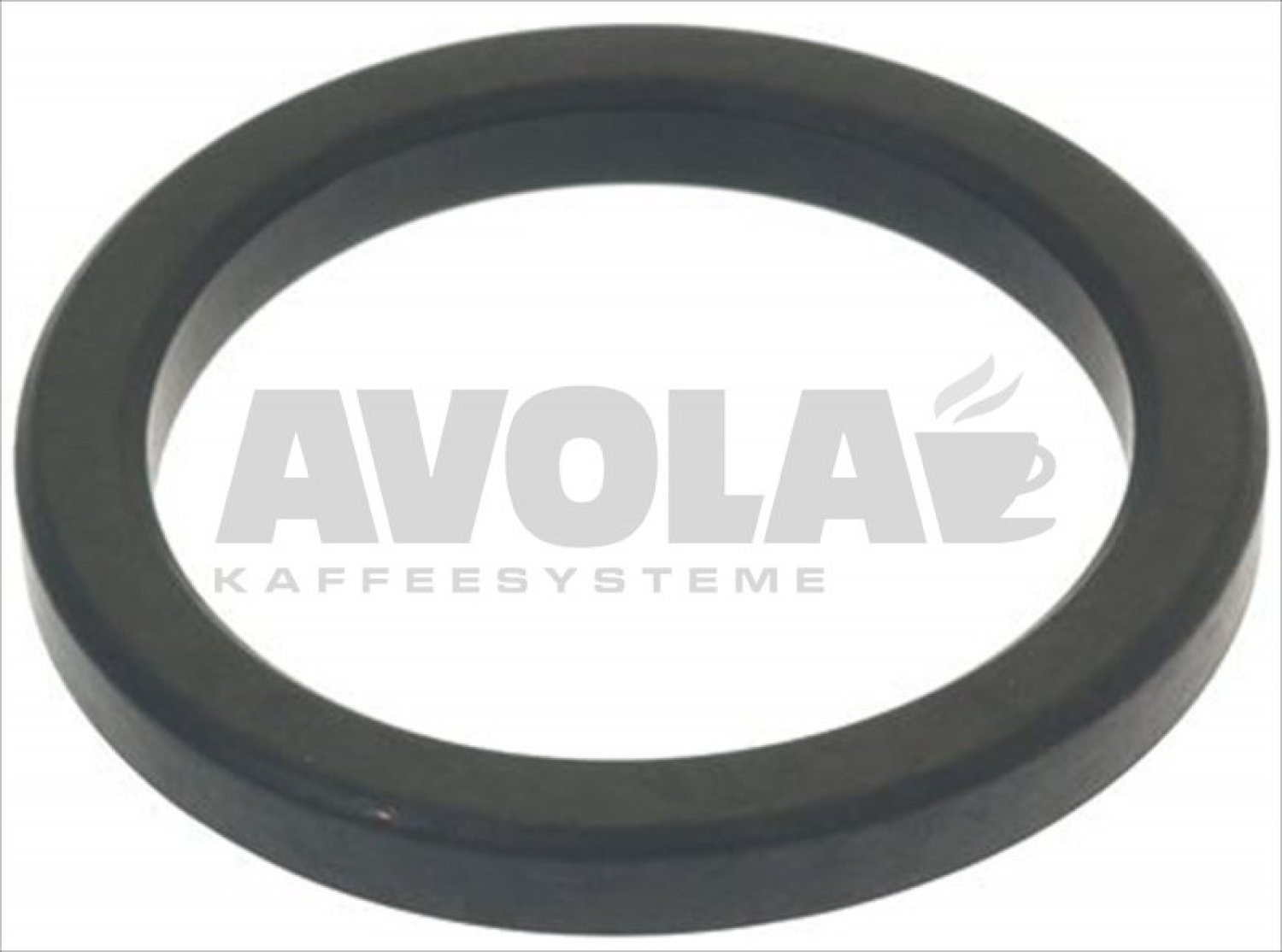

27filter holder gasket o 72x58x4 5 mm faema family 8002002
FILTER HOLDER GASKET ø 72x58x4,5 mm Faema Family
3,81 €

excl. Shipping costs

immediately available, 6 available
27nuova simonelli filter holder gasket o 72x58x7 mm 8002003
Nuova Simonelli Filter Holder Gasket ø 72x58x7 mm
4,08 €

excl. Shipping costs

immediately available, 20 available
28paper seal o 70x57x0 8 mm 8002175
PAPER SEAL ø 70x57x0,8 mm
0,39 €

excl. Shipping costs

immediately available
29blind filter o58mm 8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs

immediately available, 20 available
30filter blocking spring o 1 00 mm 8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs

immediately available
311 cup filter 6 gr 8001063
1 CUP FILTER 6 gr
Price on request
322 cups filter 12 gr 8001064
2 CUPS FILTER 12 gr
6,28 €

excl. Shipping costs

immediately available, 7 available
33nuova simonelli 1 cup filter 7 gr 8001065
Nuova Simonelli 1 CUP FILTER 7 gr
5,90 €

excl. Shipping costs

immediately available, 6 available
342 cup filter 14 grams 8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs

immediately available
35siebtraeger nuova simonelli 8038341
Siebträger Nuova Simonelli
35,70 €

excl. Shipping costs

immediately available, 1 available
36filter holder handle m10 8003350
FILTER HOLDER HANDLE M10
6,55 €

excl. Shipping costs

immediately available, 3 available
37single spout o 3 8 8000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs

immediately available, 13 available
37straight single spout o 3 8 8000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs

immediately available, 9 available
38lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne 8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
38double spout o 3 8 8000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs

immediately available, 7 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
