Obel Grinder

DOSIERMAHLWERK DSQ

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Pos.:	Item No.:	Image:	Description:	Shipment:	Price (inkl. VAT):	Qty.:
1	8004328		8004328 COFFEE HOPPER LID	excl. Shipping costs immediately available, 1 available	9,42 €	9,42 € excl. Shipping costs immediately available, 1 available
2	8000424		8000424 OBEL COFFEE HOPPER	excl. Shipping costs Delivery time is determined	26,43 €	26,43 € excl. Shipping costs Delivery time is determined
3	8004321		8004321 COFFEE HOPPER INNER PROTECTION	excl. Shipping costs immediately available, 4 available	5,90 €	5,90 € excl. Shipping costs immediately available, 4 available
3	8004395		8004395 COFFEE HOPPER INNER PROTECTION	excl. Shipping costs immediately available, 1 available	8,65 €	8,65 € excl. Shipping costs immediately available, 1 available
4	8004313		8004313 GRINDING BURRS TOP HOLDER W/RING NUT	excl. Shipping costs Delivery time 4-6 weeks..	43,93 €	43,93 € excl. Shipping costs Delivery time 4-6 weeks..
5	8004309		8004309 LOCKING PIN	excl. Shipping costs immediately available, 6 available	3,81 €	3,81 € excl. Shipping costs immediately available, 6 available
6	8003766		8003766 LOCKING PIN SPRING	excl. Shipping costs immediately available, 3 available	1,09 €	1,09 € excl. Shipping costs immediately available, 3 available

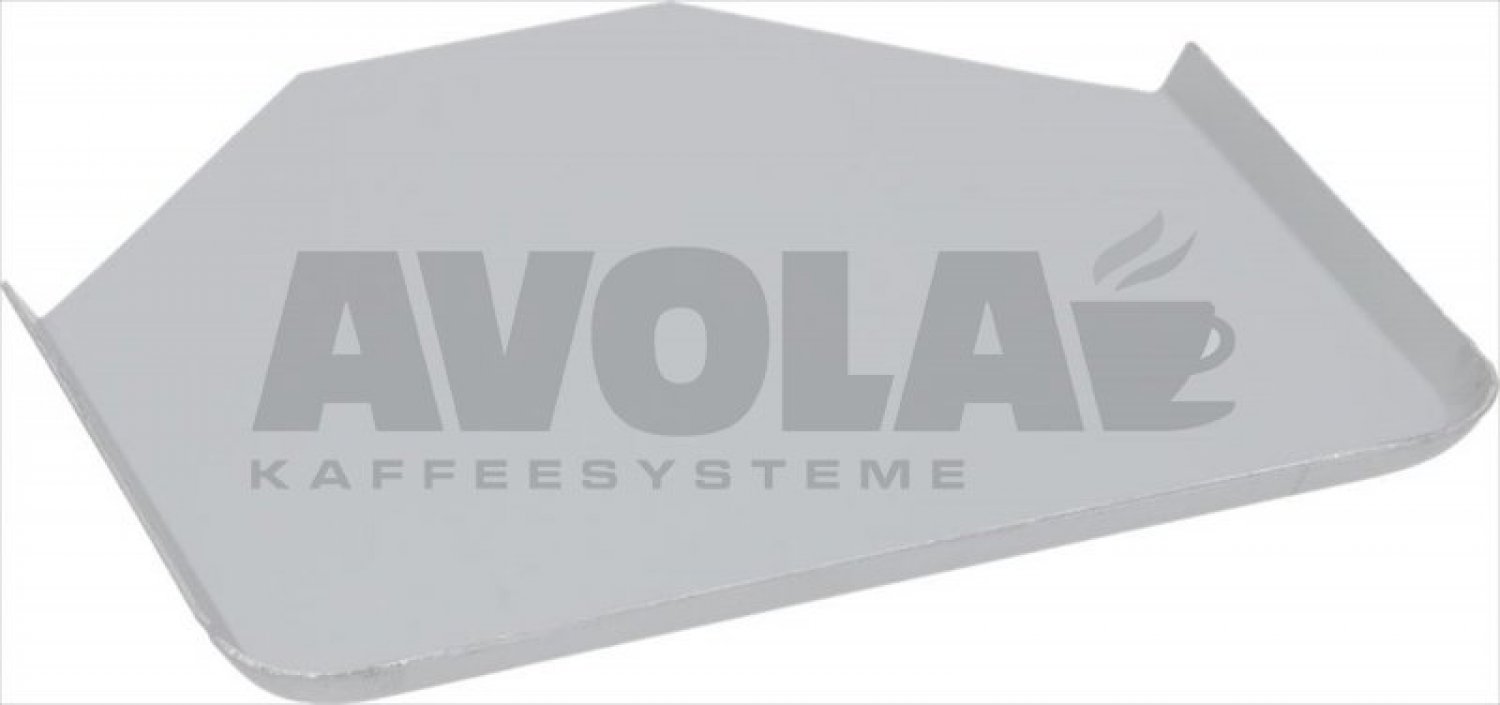

10	8004329		8004329 COFFEE COLLECTION TRAY			This article is no longer available
13	8003936		8003936 GRINDING BURRS OBEL-CARIMALI (PAIR) LEFT	excl. Shipping costs immediately available, 1 available	28,82 €	28,82 € excl. Shipping costs immediately available, 1 available
15	8011521		8011521 BEARING 6202 DDU NSK	excl. Shipping costs Delivery time is determined	12,79 €	12,79 € excl. Shipping costs Delivery time is determined
17	8000321		8000321 BEARING 6203 ZZ NSK	excl. Shipping costs Delivery time is determined	11,48 €	11,48 € excl. Shipping costs Delivery time is determined

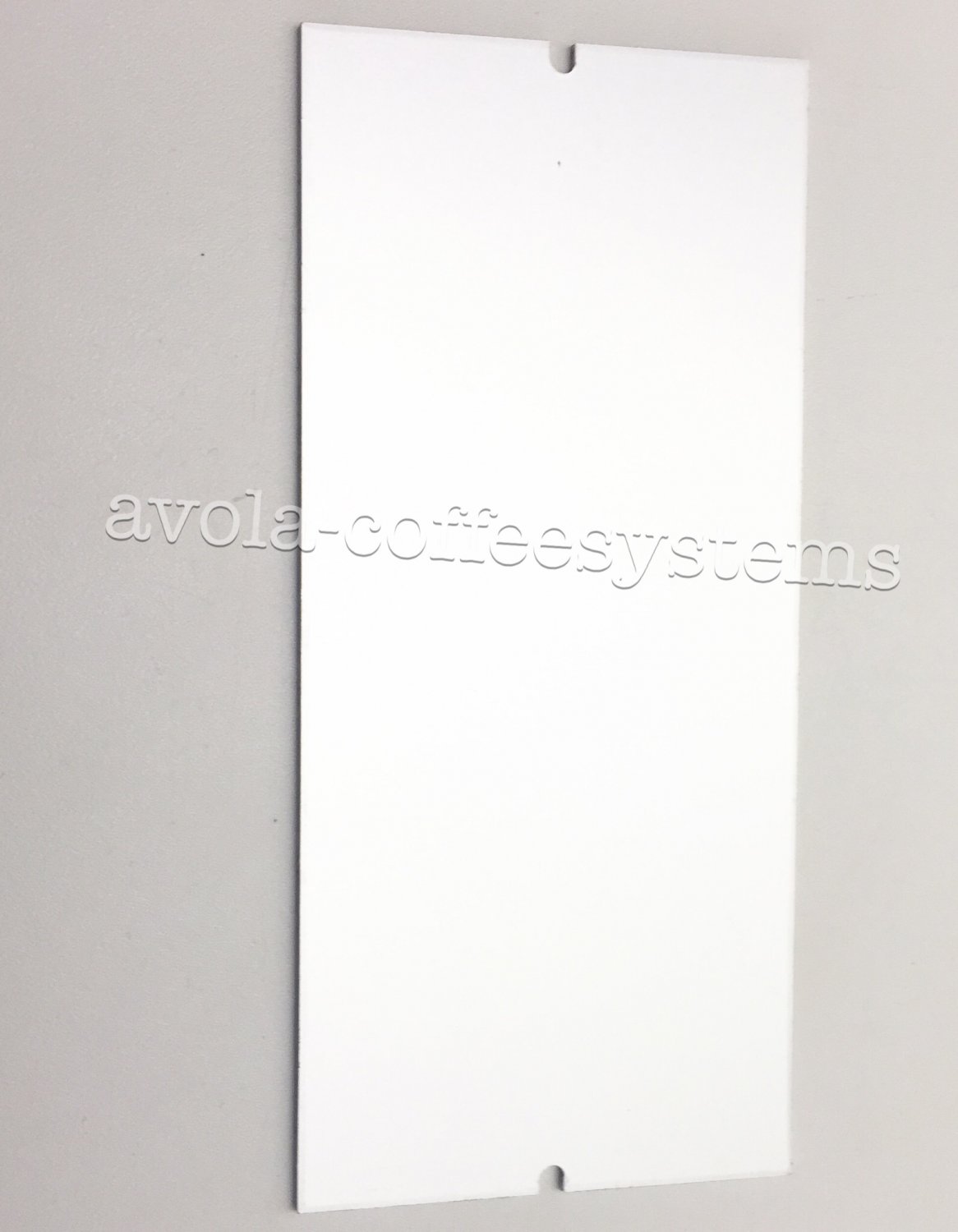

18	8037954		8037954 OBEL DSQ PLATTE HINTEN	excl. Shipping costs Delivery time is determined	13,09 €	13,09 € excl. Shipping costs Delivery time is determined
24	8004640		8004640 BLACK SINGLE POLE PUSH-BUTTON 0.7A 250V	excl. Shipping costs immediately available, 1 available	12,67 €	12,67 € excl. Shipping costs immediately available, 1 available
25	8033607		8033607 RED SINGLE-POLE PUSH-BUTTON 0.7A 250V	excl. Shipping costs Delivery time is determined	10,86 €	10,86 € excl. Shipping costs Delivery time is determined
26	8004605		8004605 RUBBER FOOT ø 19mm - high 18mm M5	excl. Shipping costs Delivery time is determined	1,95 €	1,95 € excl. Shipping costs Delivery time is determined
27	8005916		8005916 RELAY 10A 230V	excl. Shipping costs Delivery time 4-6 weeks..	45,12 €	45,12 € excl. Shipping costs Delivery time 4-6 weeks..
29	8004311		8004311 DOSER LID BEZZERA CARIMALI OBEL	excl. Shipping costs Delivery time is determined	10,36 €	10,36 € excl. Shipping costs Delivery time is determined
30	8004312		8004312 DOSER LID WITH KEY	excl. Shipping costs Delivery time 4-6 weeks..	28,58 €	28,58 € excl. Shipping costs Delivery time 4-6 weeks..
31	8006240		8006240 COVER LOCK	excl. Shipping costs Delivery time 4-6 weeks..	21,04 €	21,04 € excl. Shipping costs Delivery time 4-6 weeks..
32	8000665		8000665 DOSER CYLINDER ø 120x117 mm	excl. Shipping costs Delivery time is determined	18,15 €	18,15 € excl. Shipping costs Delivery time is determined
34	8003085		8003085 MICROSWITCH 6A 250V	excl. Shipping costs Delivery time 4-6 weeks..	14,85 €	14,85 € excl. Shipping costs Delivery time 4-6 weeks..
36	8004315		8004315 MICROSWITCH HOLDER			This article is no longer available
37	8004308		8004308 DOSE ADJUSTMENT KNOB	excl. Shipping costs Delivery time is determined	14,24 €	14,24 € excl. Shipping costs Delivery time is determined
38	8003767		8003767 DOSER SCRAPER	excl. Shipping costs immediately available, 5 available	4,34 €	4,34 € excl. Shipping costs immediately available, 5 available
39	8005419		8005419 TOP STAR	excl. Shipping costs immediately available, 1 available	6,93 €	6,93 € excl. Shipping costs immediately available, 1 available
40	8004310		8004310 DOSER SHEET	excl. Shipping costs Delivery time is determined	10,14 €	10,14 € excl. Shipping costs Delivery time is determined
41	8005420		8005420 MIDDLE STAR	excl. Shipping costs Delivery time is determined	8,09 €	8,09 € excl. Shipping costs Delivery time is determined
42	8003761		8003761 STAR SPRING	excl. Shipping costs Delivery time is determined	2,33 €	2,33 € excl. Shipping costs Delivery time is determined
44	8005421		8005421 BOTTOM STAR	excl. Shipping costs immediately available, 1 available	19,21 €	19,21 € excl. Shipping costs immediately available, 1 available
47	8007330		8007330 HEXAGON HEAD SCREW M5x10	excl. Shipping costs immediately available	1,15 €	1,15 € excl. Shipping costs immediately available
48	8004306		8004306 COUNTER FOR COFFEE GRINDER	excl. Shipping costs Delivery time 4-6 weeks..	23,62 €	23,62 € excl. Shipping costs Delivery time 4-6 weeks..
50	8003762		8003762 STROKE COUNTER SPRING		Price on request
51	8004451		8004451 PIN FOR DOSER LEVER SPRING	excl. Shipping costs immediately available, 2 available	1,79 €	1,79 € excl. Shipping costs immediately available, 2 available
52	8003768		8003768 PEG SPRING ø 4mm - L 33mm	excl. Shipping costs immediately available, 2 available	1,21 €	1,21 € excl. Shipping costs immediately available, 2 available
53	8004317		8004317 DOSER LEVER	excl. Shipping costs Delivery time 4-6 weeks..	15,86 €	15,86 € excl. Shipping costs Delivery time 4-6 weeks..
54	8004318		8004318 LEVER COVER	excl. Shipping costs Delivery time is determined	3,92 €	3,92 € excl. Shipping costs Delivery time is determined
55	8003764		8003764 DOSER LEVER RETURN SPRING	excl. Shipping costs immediately available, 7 available	2,50 €	2,50 € excl. Shipping costs immediately available, 7 available
58	8003085		8003085 MICROSWITCH 6A 250V	excl. Shipping costs Delivery time 4-6 weeks..	14,85 €	14,85 € excl. Shipping costs Delivery time 4-6 weeks..
59	8004452		8004452 6-TEETH PAWL	excl. Shipping costs Delivery time 4-6 weeks..	7,02 €	7,02 € excl. Shipping costs Delivery time 4-6 weeks..
62	8003683		8003683 SHEET SPRING 89 mm	excl. Shipping costs immediately available, 5 available	2,73 €	2,73 € excl. Shipping costs immediately available, 5 available
65	8004314		8004314 FILTER HOLDER FORK	excl. Shipping costs Delivery time 4-6 weeks..	15,09 €	15,09 € excl. Shipping costs Delivery time 4-6 weeks..
67	8005190		8005190 COFFEE TAMPER PIN	excl. Shipping costs Delivery time 4-6 weeks..	14,32 €	14,32 € excl. Shipping costs Delivery time 4-6 weeks..
69	8003765		8003765 ROD SPRING	excl. Shipping costs immediately available, 6 available	4,46 €	4,46 € excl. Shipping costs immediately available, 6 available
72	8037961		8037961 Obel Dsq EB Tamper Kaffeepresser ø 56mm H 15,5mm Gewinde M8	excl. Shipping costs immediately available, 2 available	9,40 €	9,40 € excl. Shipping costs immediately available, 2 available
73	8037963		8037963 OBEL DSQ EB GRIFF TAMPER	excl. Shipping costs immediately available, 1 available	7,14 €	7,14 € excl. Shipping costs immediately available, 1 available
90	8000666		8000666 DOSER LID ø 58 mm	excl. Shipping costs Delivery time 4-6 weeks..	8,97 €	8,97 € excl. Shipping costs Delivery time 4-6 weeks..
100	8006204		8006204 COFFEE TAMPER COMPLETE	excl. Shipping costs Delivery time 4-6 weeks..	27,95 €	27,95 € excl. Shipping costs Delivery time 4-6 weeks..
101	8006205		8006205 COFFEE TAMPER COMPLETE	excl. Shipping costs Delivery time is determined	41,80 €	41,80 € excl. Shipping costs Delivery time is determined
102	8000696		8000696 COMPLETE DISPENSER	excl. Shipping costs Delivery time 4-6 weeks	176,63 €	176,63 € excl. Shipping costs Delivery time 4-6 weeks

If your article is not listed, please use the following form and enter the desired numbers.
