BRÜHGRUPPE ORCHESTRALE ETNICA PHONICA

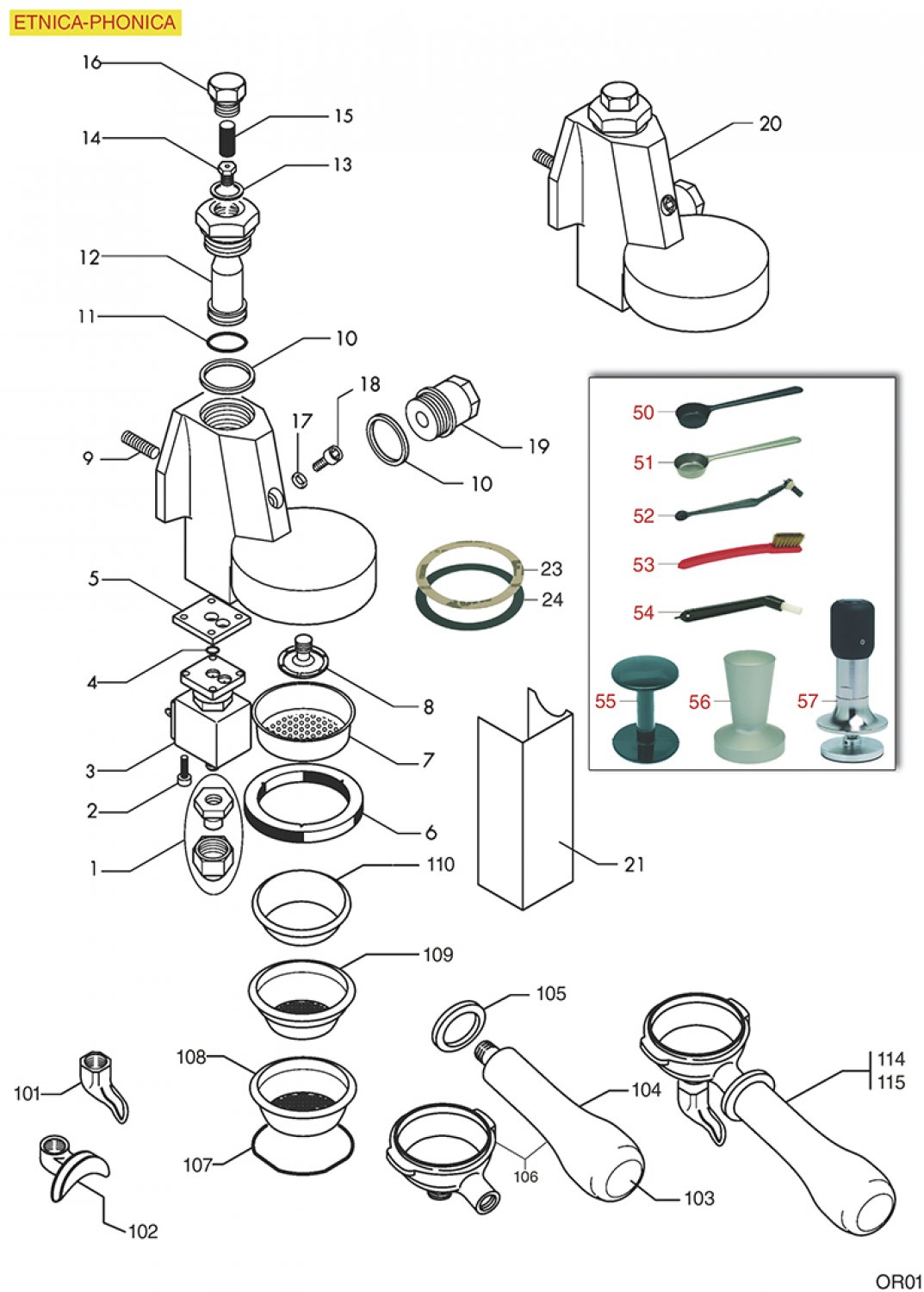

Drawing number 8062631

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
2schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 912 8061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs

immediately available
33 way solenoid valve lucifer 240v 50hz 8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs

immediately available, 7 available
4o ring 02025 viton 8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs

immediately available

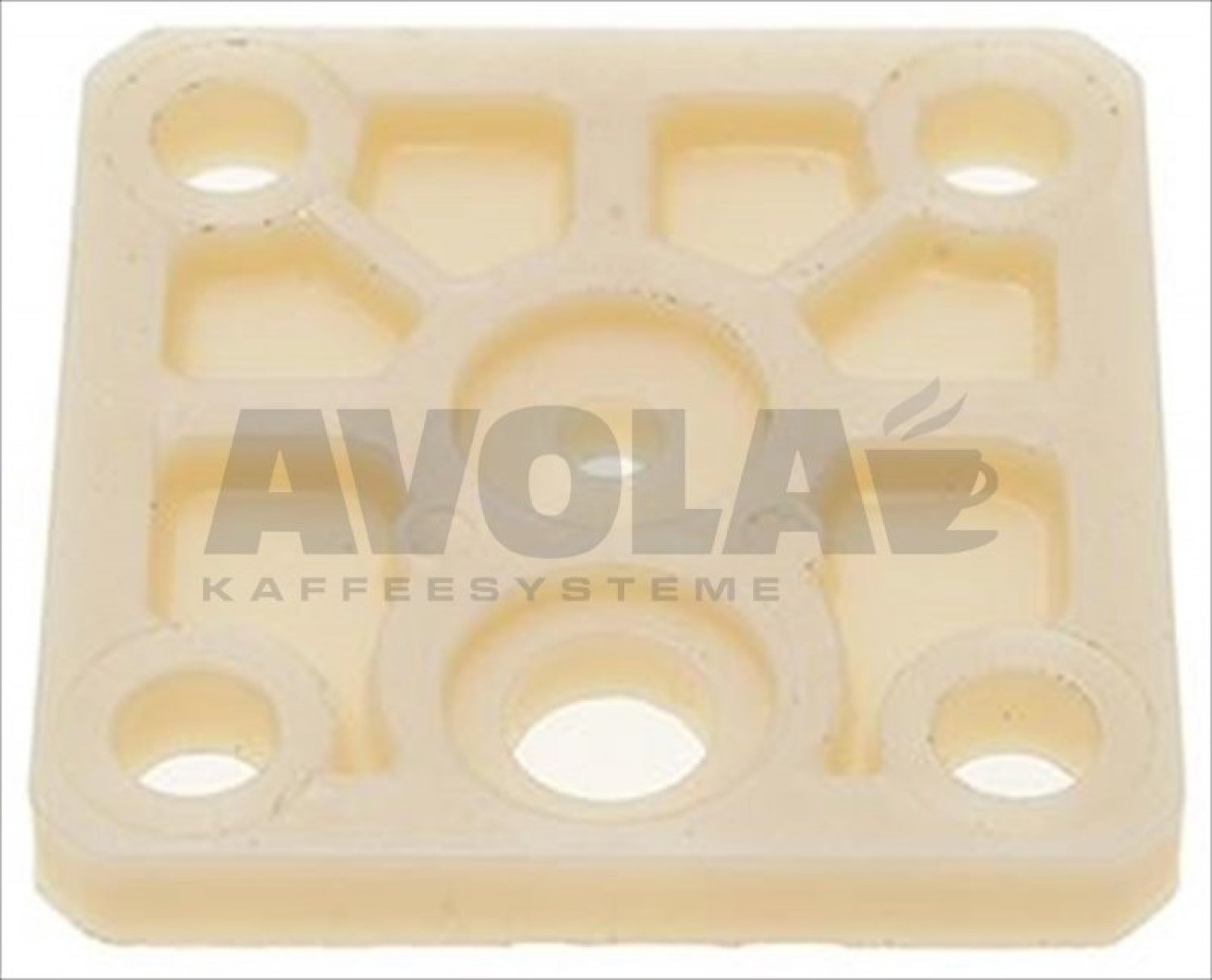

5magnetventil flat ptfe gasket 8001651
Magnetventil FLAT PTFE GASKET
12,48 €

excl. Shipping costs

immediately available, 10 available
6cafelat e61 portafilter gasket 73x57x8 mm red 8081202
Cafelat E61 portafilter gasket 73x57x8 mm red
5,95 €

excl. Shipping costs

immediately available
6rubber 73x57x8 5 mm for e61 brew unit 8002056
RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT
3,90 €

excl. Shipping costs

immediately available
6gasket 73x57x8 mm for e61 brew unit 8060996
Gasket 73x57x8 mm - for E61 brew unit
3,90 €

excl. Shipping costs

immediately available

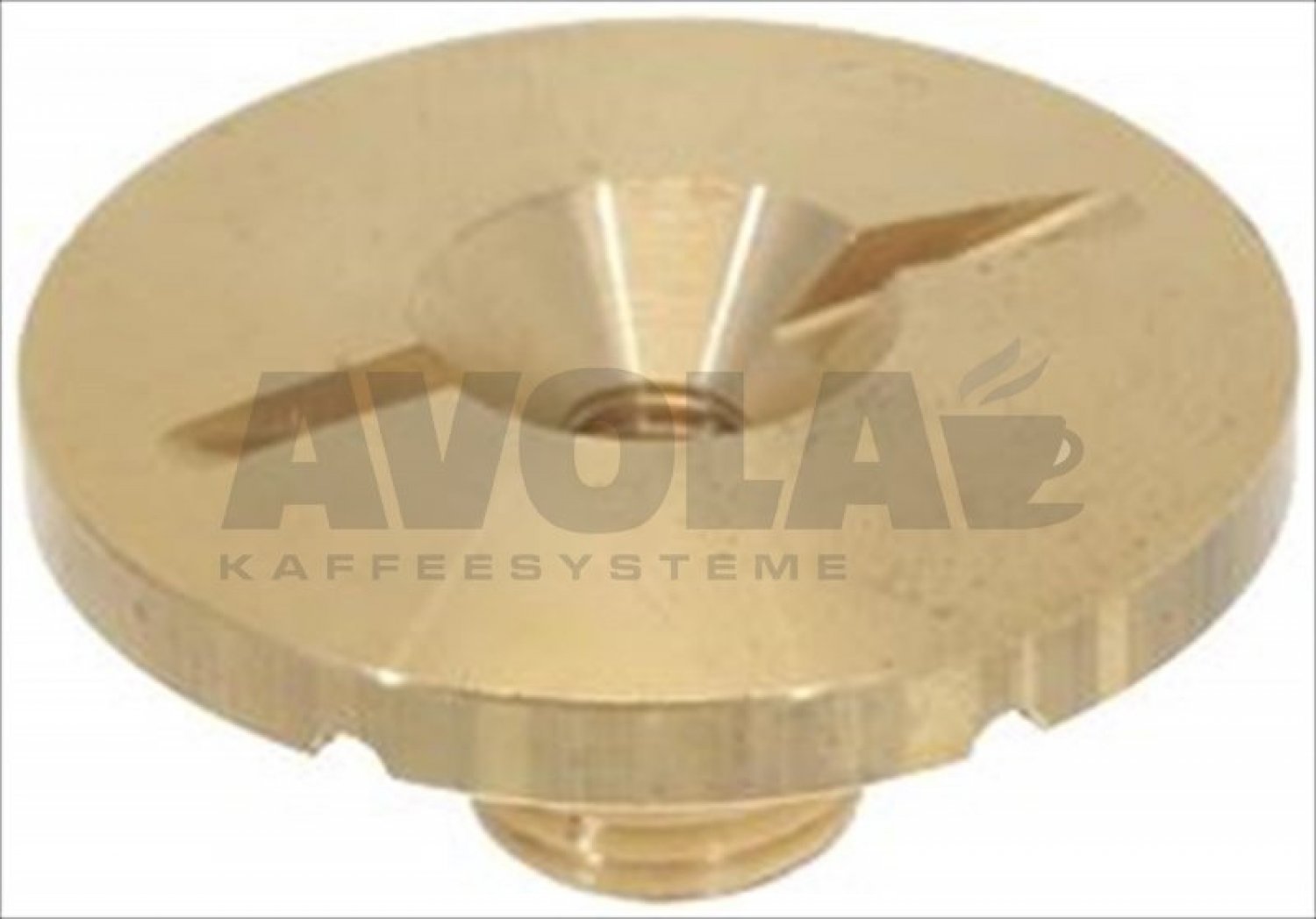

8brew group spray nozzle 8006973
BREW GROUP SPRAY NOZZLE
50,60 €

excl. Shipping costs

Delivery time 4-6 weeks..

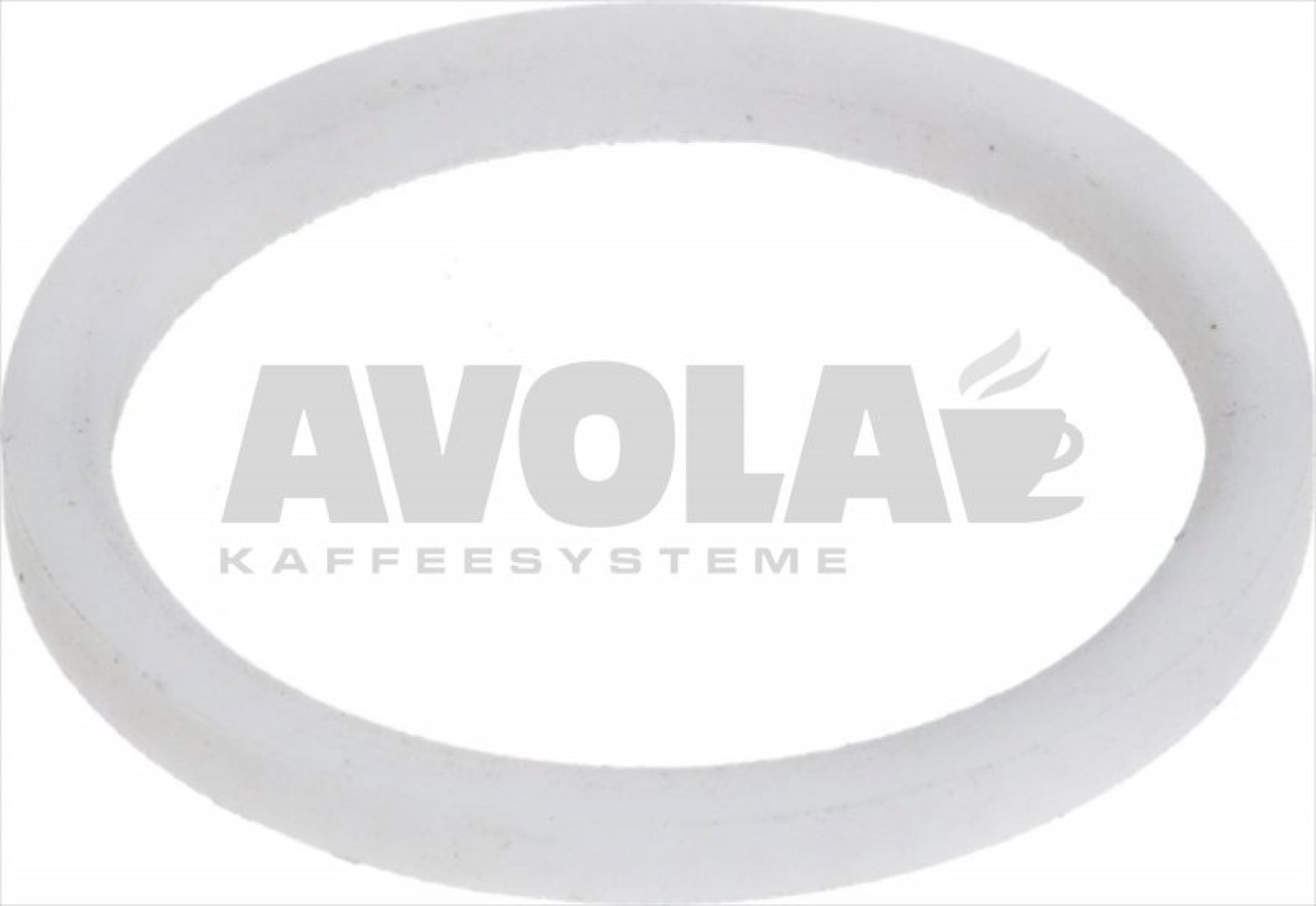

10ptfe flat gasket 36x30x2 mm 8001567
PTFE FLAT GASKET 36x30x2 mm
1,70 €

excl. Shipping costs

immediately available

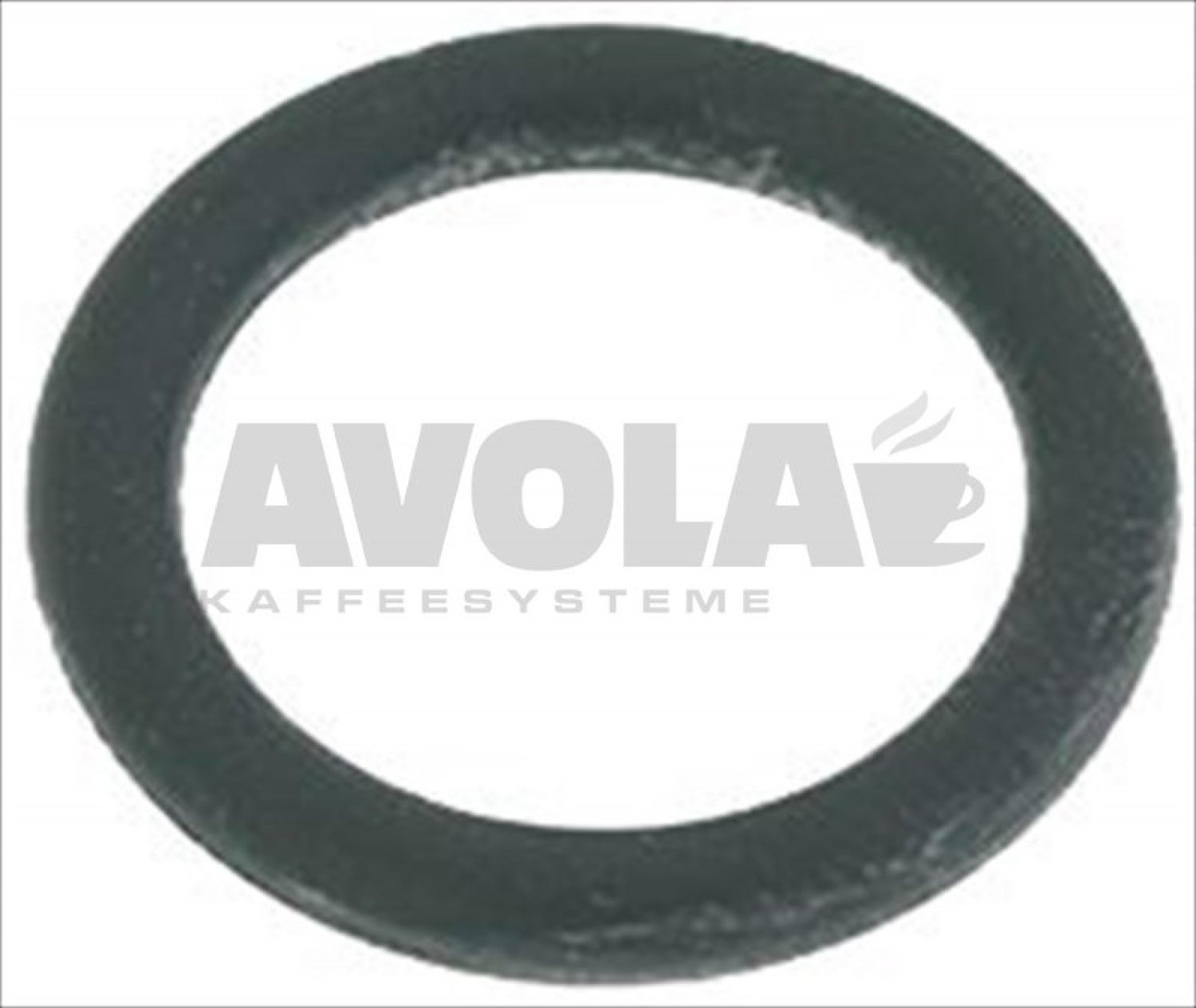

11o ring 04075 epdm 8001699
O-RING 04075 EPDM
0,77 €

excl. Shipping costs

immediately available, 20 available

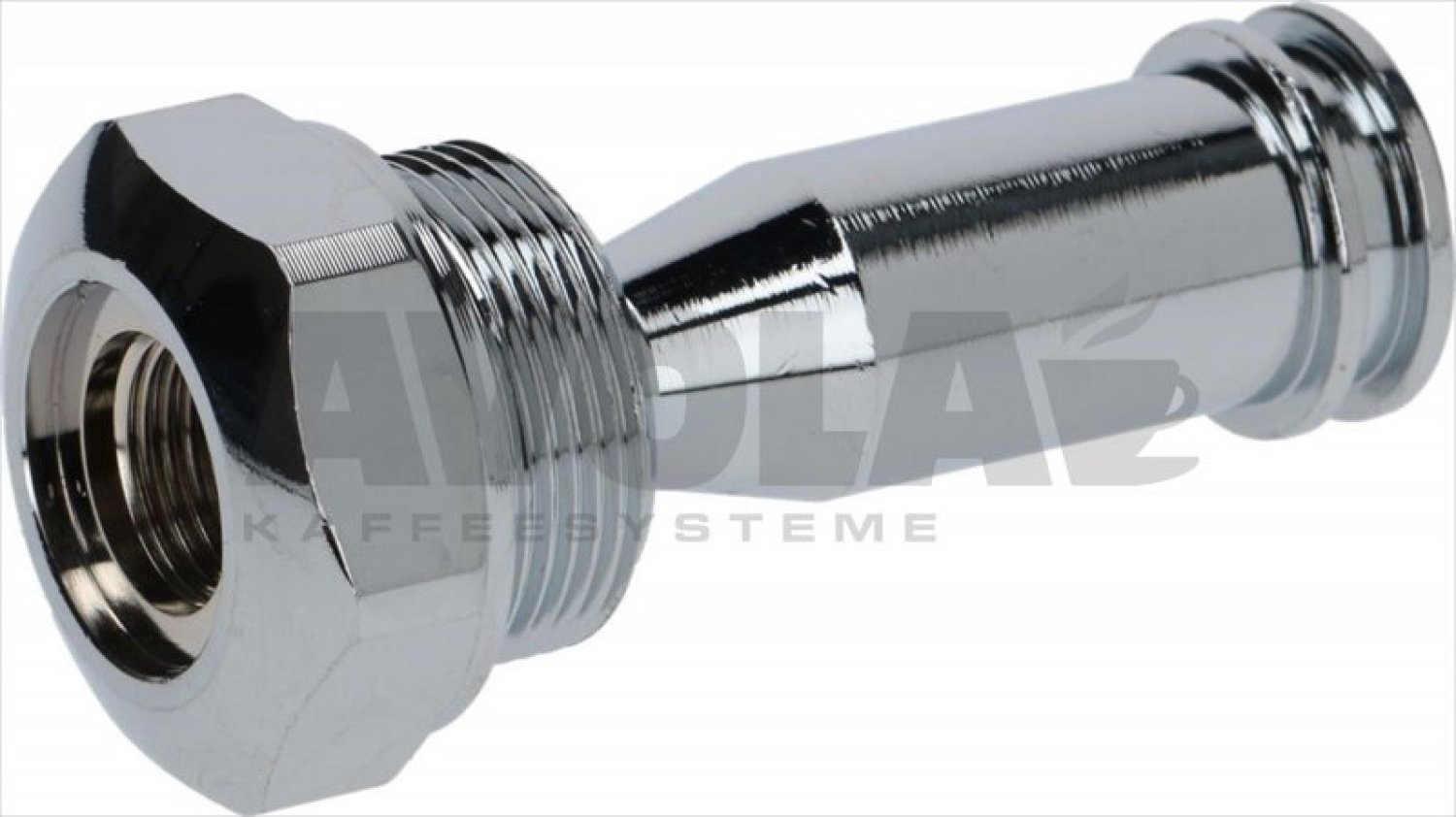

12upper chromium plated sleeve 8000148
UPPER CHROMIUM-PLATED SLEEVE
56,80 €

excl. Shipping costs

immediately available, 2 available
13ptfe flat gasket o 16x22 5x2 mm 8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs

immediately available
14nozzle m6x1 hole 8006971
NOZZLE M6x1 HOLE
4,46 €

excl. Shipping costs

immediately available
15water filter o 8 5x22 mm 8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs

immediately available
16deckel fuer auslaufgruppe o 16 mm 8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs

immediately available, 14 available

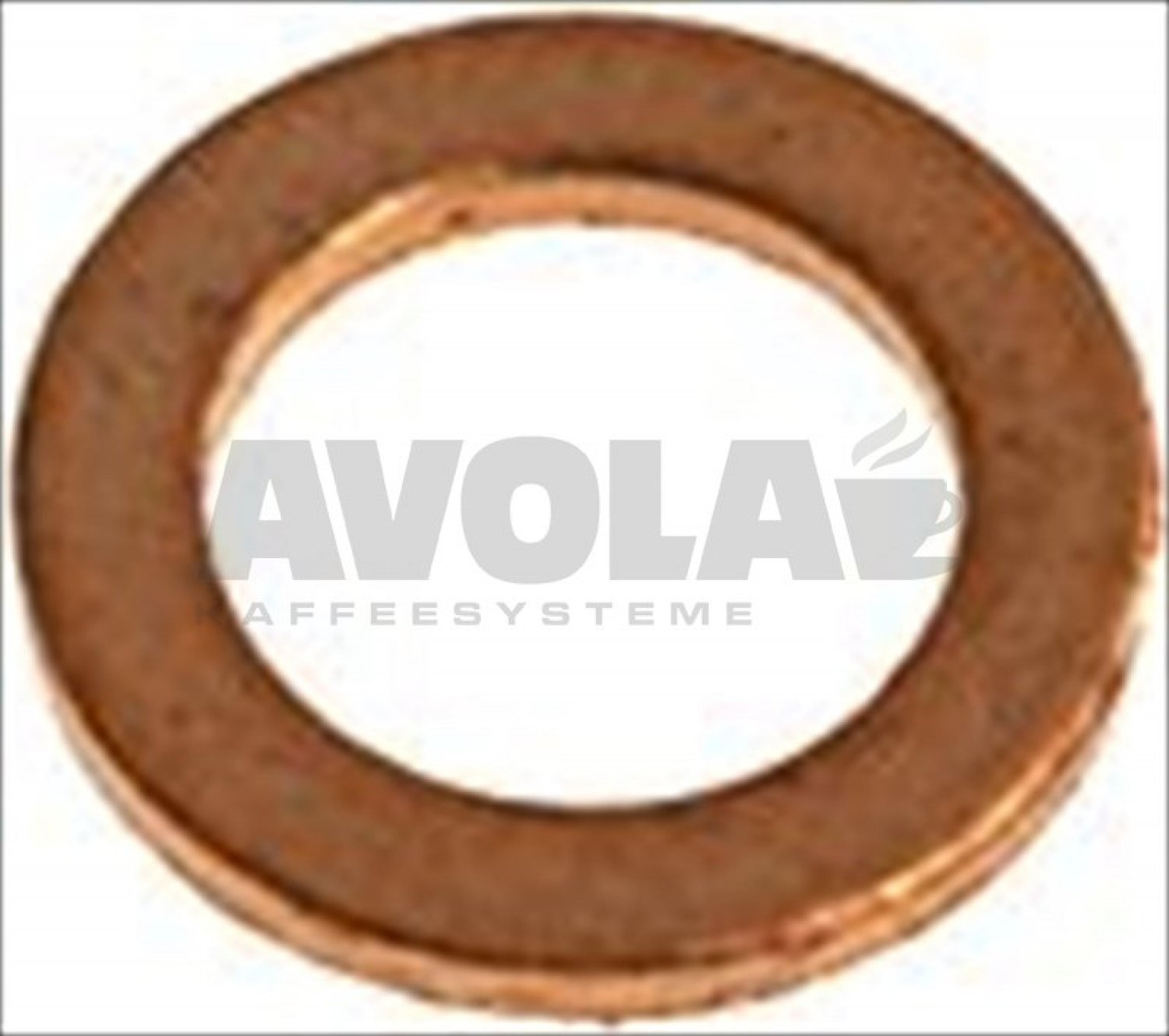

17copper flat gasket o 10x6x1 mm 8001983
COPPER FLAT GASKET ø 10x6x1 mm
1,31 €

excl. Shipping costs

immediately available
18cylinder head screw m6x8 8001304
CYLINDER HEAD SCREW M6x8
1,67 €

excl. Shipping costs

immediately available, 10 available
23paper shim o 73x59x0 8 mm 8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs

immediately available
24rubber shim o 73 5x59x1 mm epdm 8002168
RUBBER SHIM ø 73,5x59x1 mm EPDM
1,05 €

excl. Shipping costs

immediately available
50plastic measuring spoon 20 ml 8000327
PLASTIC MEASURING SPOON 20 ml
1,73 €

excl. Shipping costs

immediately available, 7 available
51stainless steel measuring spoon 20 ml 8000328
STAINLESS STEEL MEASURING SPOON 20 ml
4,97 €

excl. Shipping costs

Delivery time
is determined
52black shower cleaning brush 8006155
BLACK SHOWER CLEANING BRUSH
14,07 €

excl. Shipping costs

immediately available, 6 available
53brush for maintenance 8006154
BRUSH FOR MAINTENANCE
4,52 €

excl. Shipping costs

immediately available, 5 available
54brush for coffee shower 8006153
BRUSH FOR COFFEE SHOWER
3,92 €

excl. Shipping costs

immediately available
55nylon coffee tamper 8006165
NYLON COFFEE TAMPER
2,75 €

excl. Shipping costs

immediately available, 7 available
56anodised aluminum tamper o 58 mm 8006191
ANODISED ALUMINUM TAMPER ø 58 mm
36,85 €

excl. Shipping costs

Delivery time
is determined
57dynamometric manual coffee tamper 8006217
DYNAMOMETRIC MANUAL COFFEE TAMPER
194,40 €

excl. Shipping costs

Delivery time
is determined
101single spout o 3 8 8000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs

immediately available, 4 available
102double spout o 3 8 rime 8000115
Double Spout ø 3/8″
5,95 €

excl. Shipping costs

immediately available, 6 available

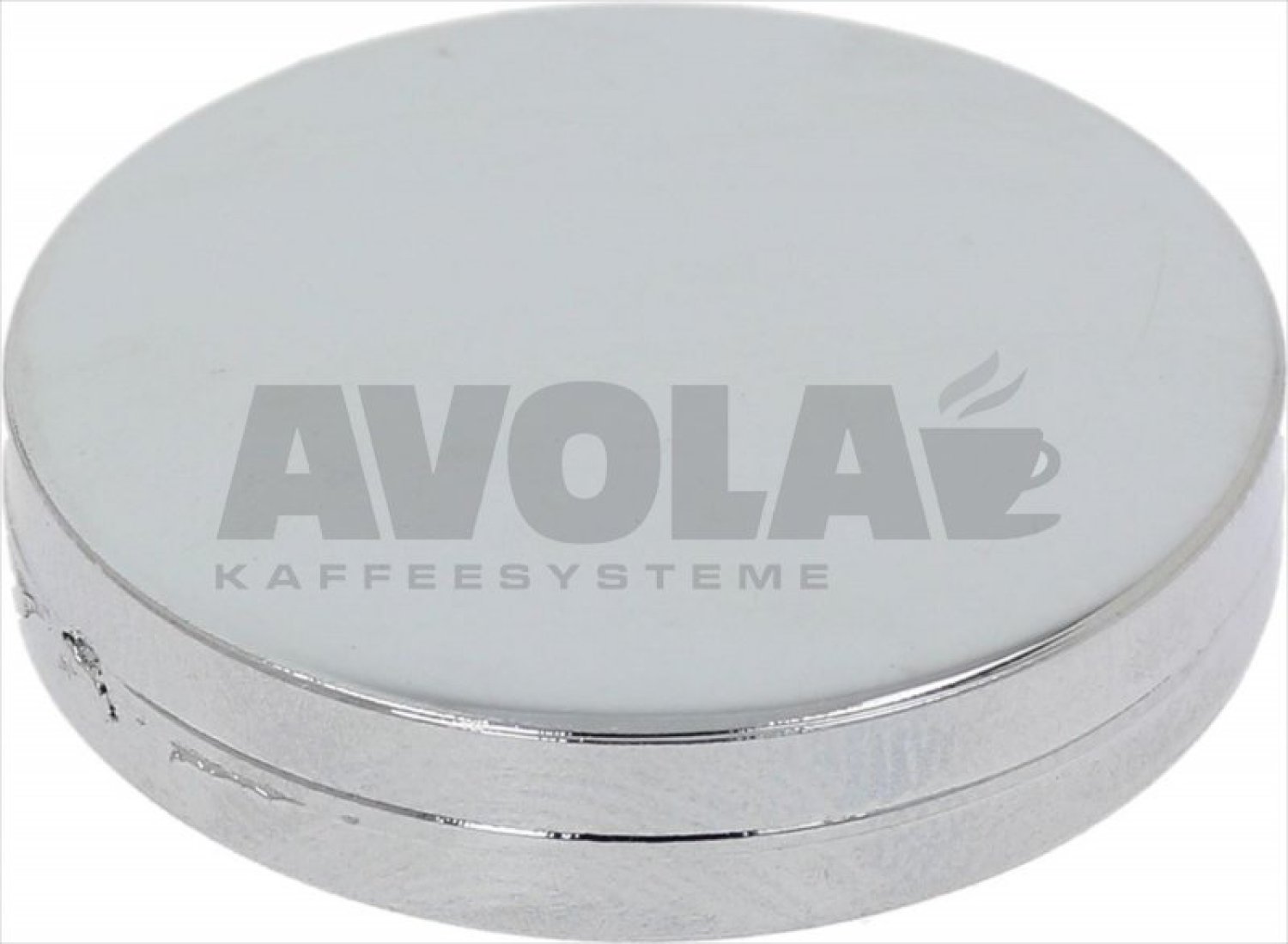

103chrome plated cap for filter holder knob 8003336
CHROME PLATED CAP FOR FILTER HOLDER KNOB
3,81 €

excl. Shipping costs

immediately available, 7 available
104black filter holder handle m12 8003250
BLACK FILTER HOLDER HANDLE M12
14,85 €

excl. Shipping costs

immediately available, 8 available

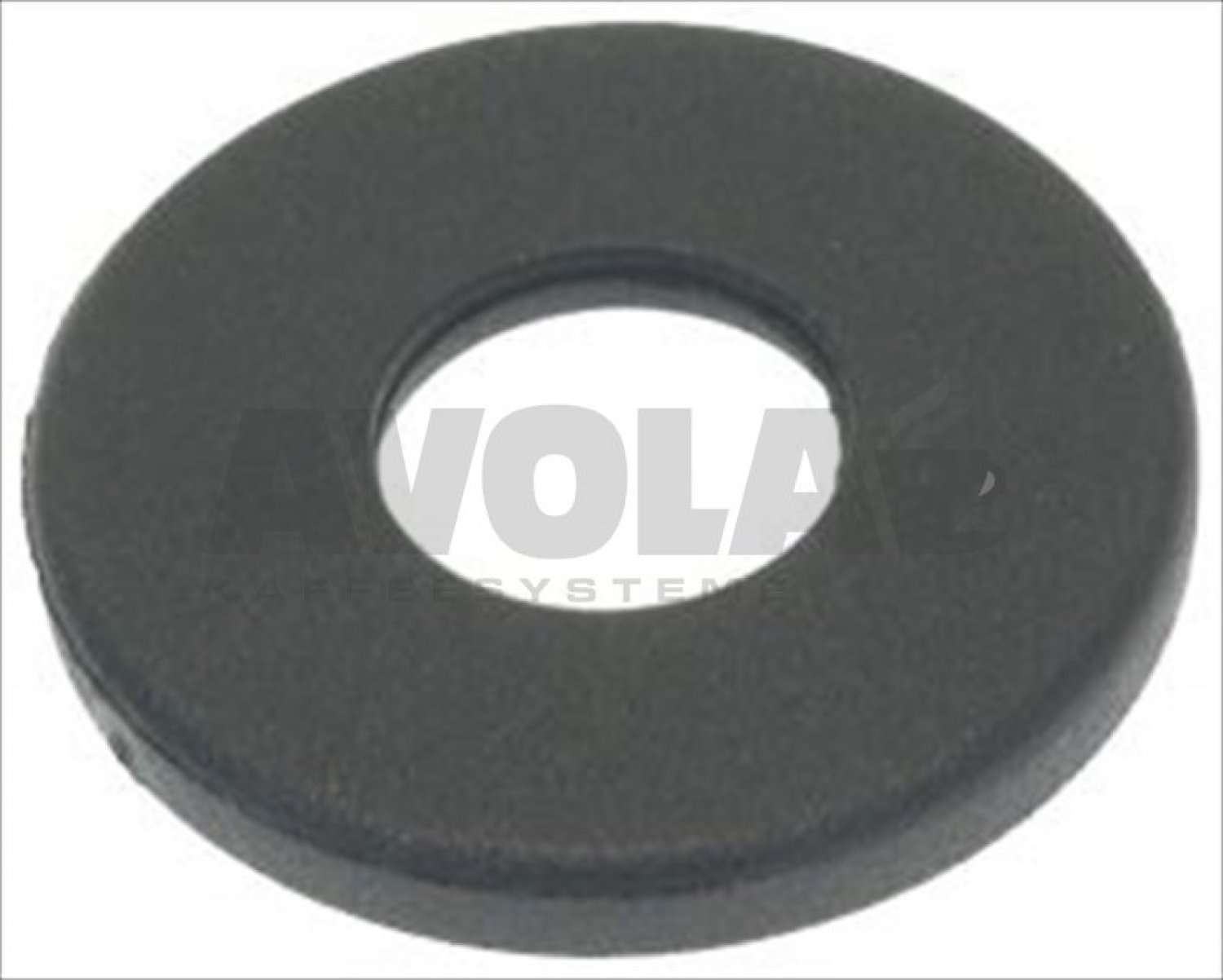

105burn preventing ring for handle 8001951
BURN PREVENTING RING FOR HANDLE
0,81 €

excl. Shipping costs

immediately available, 8 available

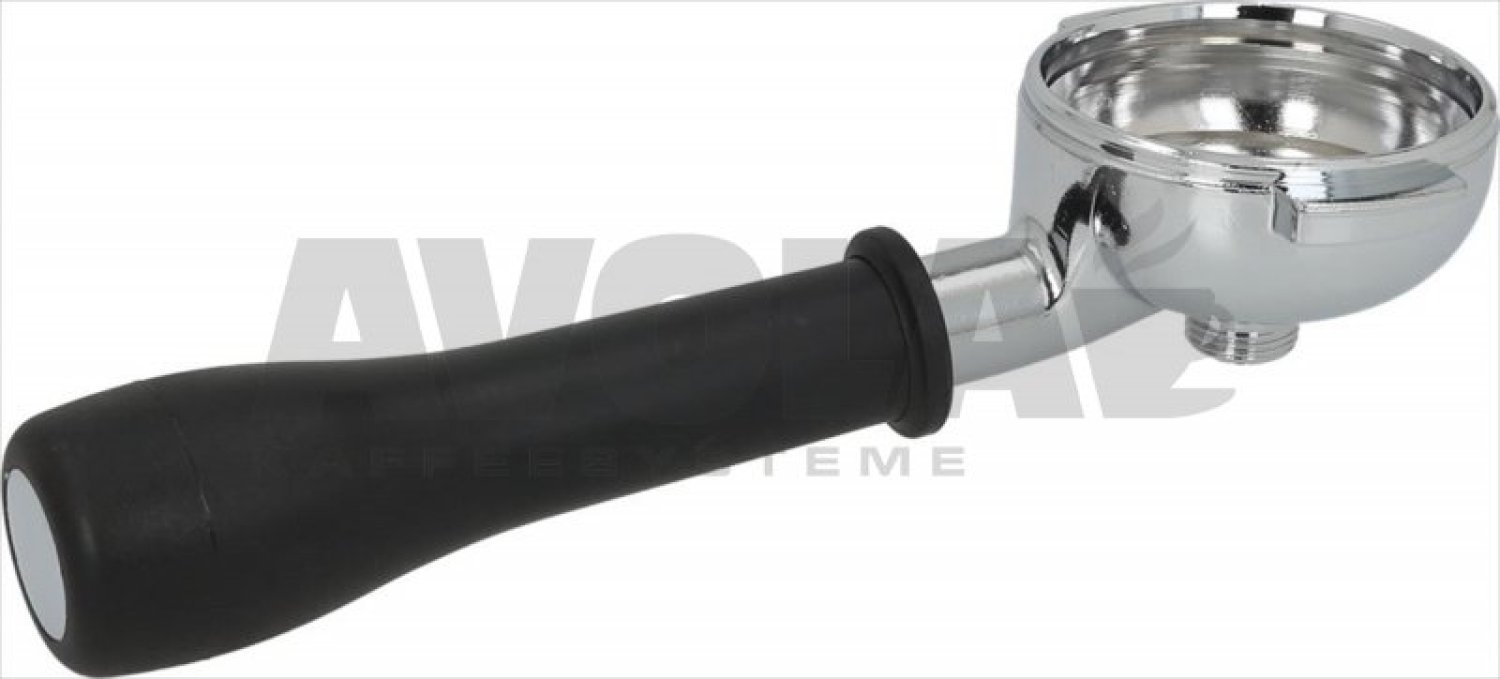

106filter holder assy wega 8001233
FILTER HOLDER ASSY WEGA
56,60 €

excl. Shipping costs

Delivery time
is determined
1082 cups filter 14 gr o 70x24 5 mm 8001058
2 Cups Filter 14 gr ø 70x24,5 mm
5,50 €

excl. Shipping costs

immediately available, 10 available

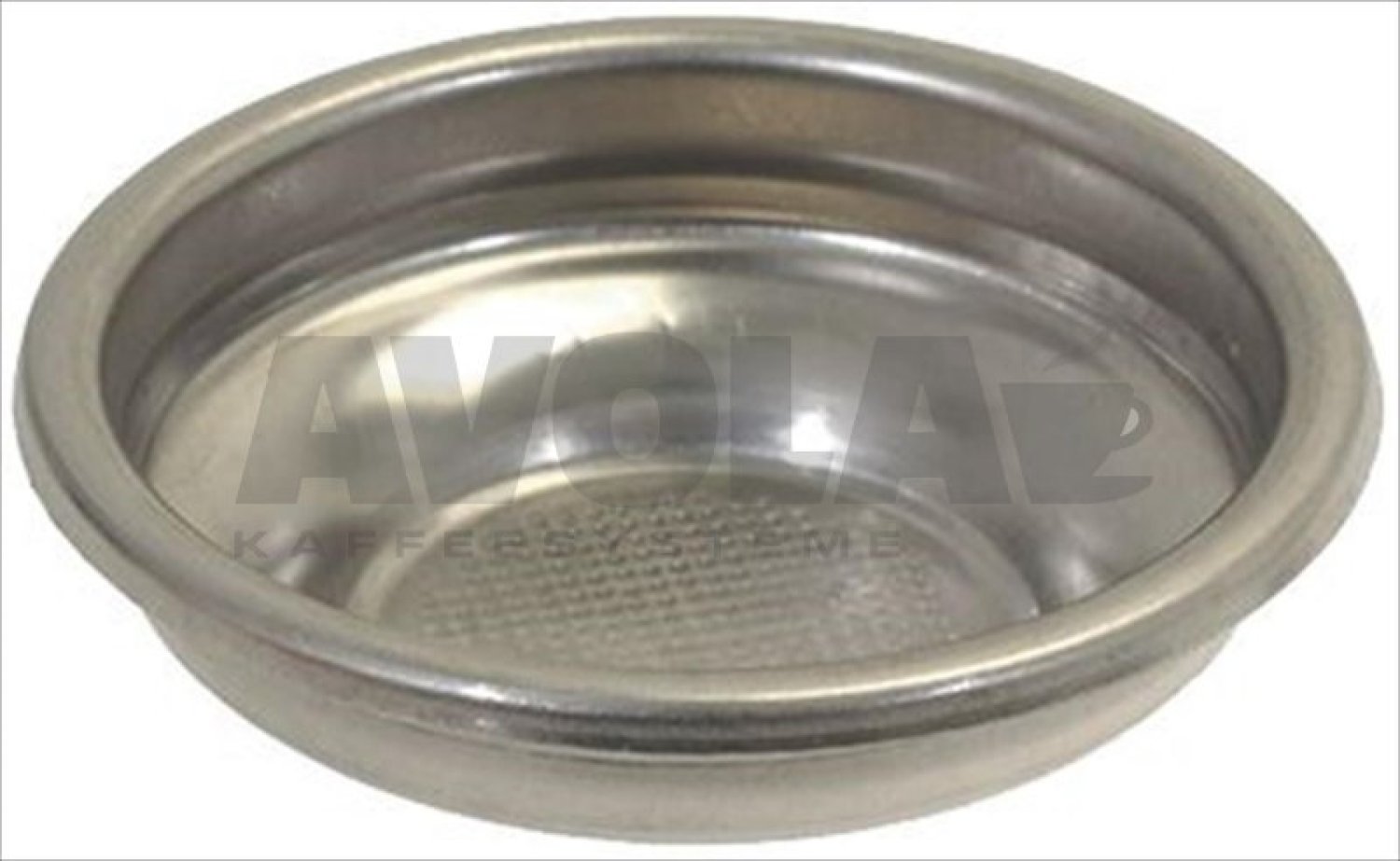

1091 cup filter 6 gr 8001056
1 CUP FILTER 6 gr
5,39 €

excl. Shipping costs

immediately available, 5 available
110blind filter o58mm 8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs

immediately available
