Pavoni

PA1101 HEBELGRUP.KAFFEEAUSGABE BAR-BART-PUB-HO

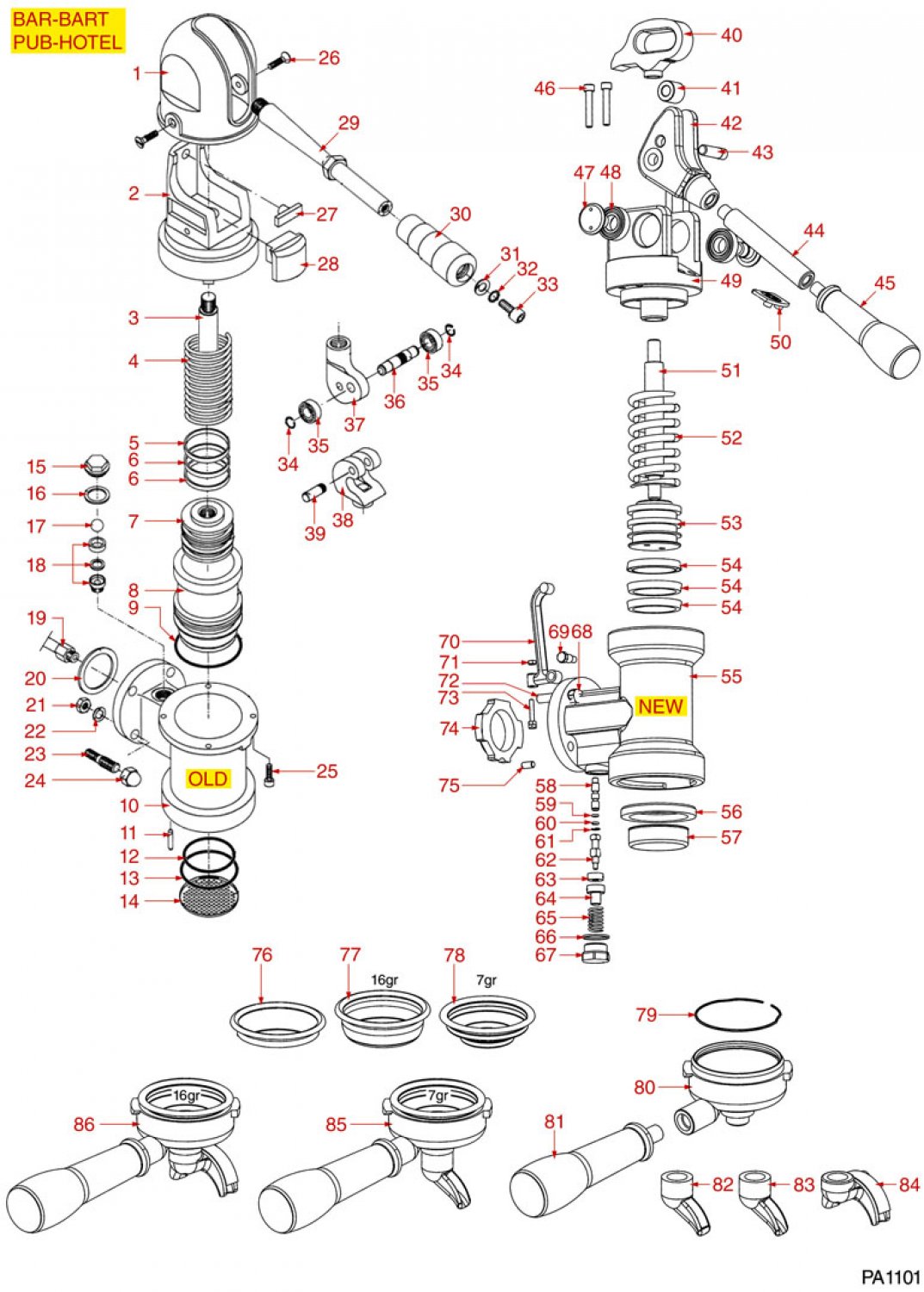

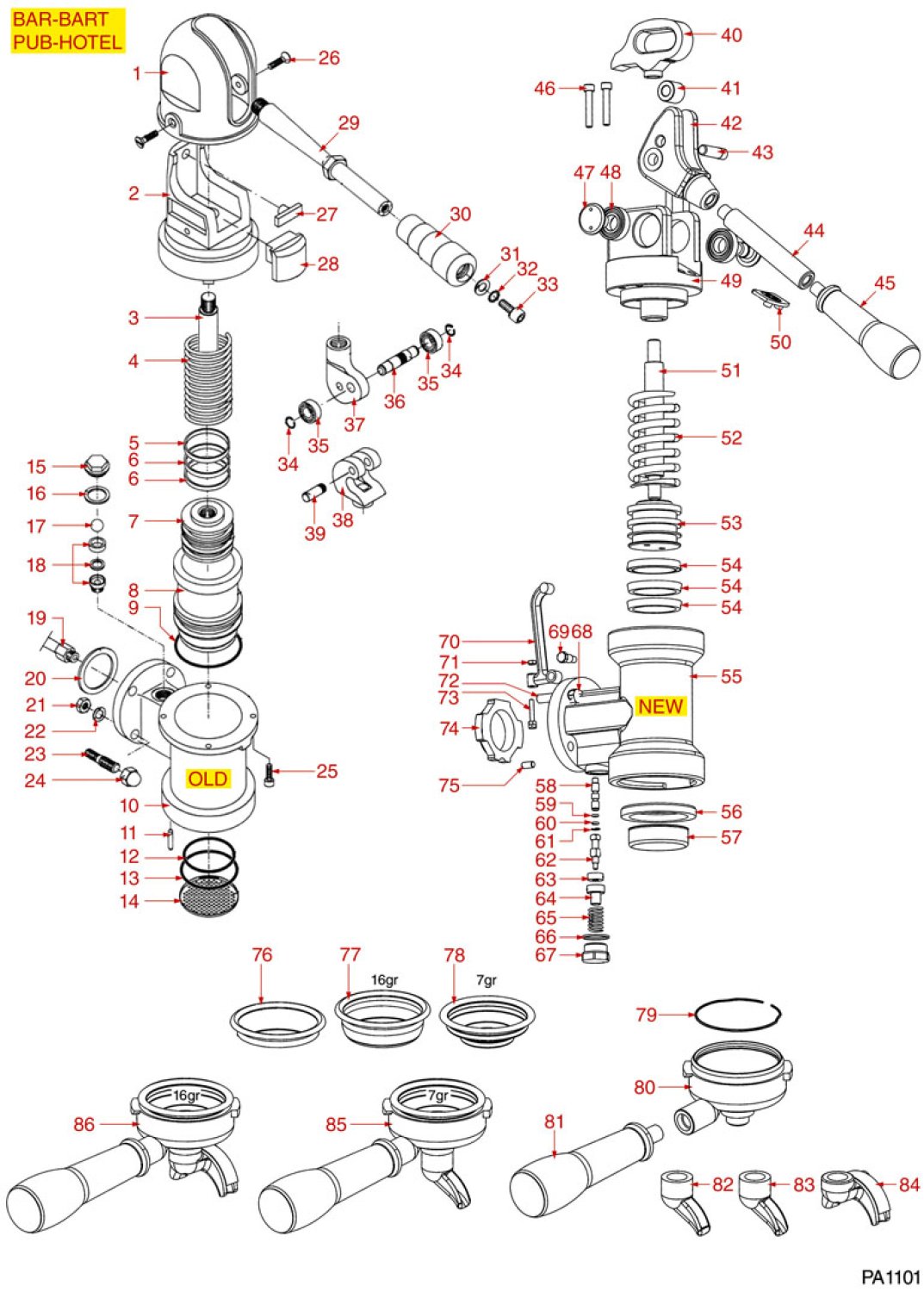

Drawing number 8057380

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1cap for coffee group 8002263
CAP FOR COFFEE GROUP
12,78 €

excl. Shipping costs

immediately available, 3 available
3welle fuer hebelgruppegabel 8005130
WELLE FÜR HEBELGRUPPEGABEL
Price on request
4lever group spring 46x141mm 8003807
LEVER GROUP SPRING 46x141MM
17,99 €

excl. Shipping costs

immediately available, 1 available
5lip seal o 52x40x7 mm 8001482
LIP SEAL ø 52x40x7 mm
2,93 €

excl. Shipping costs

immediately available, 14 available
5lippendichtung handhebelgruppe o 52x40x7 mm silikon profitec 8137175
Lippendichtung Handhebelgruppe ø 52x40x7 mm Silikon Profitec
4,50 €

excl. Shipping costs

immediately available
6lip seal o 52x40x7 mm 8001482
LIP SEAL ø 52x40x7 mm
2,93 €

excl. Shipping costs

immediately available, 14 available
6lippendichtung handhebelgruppe o 52x40x7 mm silikon profitec 8137175
Lippendichtung Handhebelgruppe ø 52x40x7 mm Silikon Profitec
4,50 €

excl. Shipping costs

immediately available
7kolben fuer hebelgruppe 8001295
KOLBEN FÜR HEBELGRUPPE
78,62 €

excl. Shipping costs

Delivery time 4-6 weeks..
9o ring 0162 epdm 8001484
O-RING 0162 EPDM
4,00 €

excl. Shipping costs

immediately available
12o ring 0161 epdm 8001483
O-RING 0161 EPDM
2,15 €

excl. Shipping costs

immediately available, 11 available
14shower screen o 57 5 mm 8000548
SHOWER SCREEN ø 57,5 mm
8,85 €

excl. Shipping costs

immediately available, 8 available
15cap 8006411
CAP
13,02 €

excl. Shipping costs

Delivery time 4-6 weeks..
17stainless steel ball 8005088
STAINLESS STEEL BALL
7,94 €

excl. Shipping costs

immediately available, 6 available
18non return valve 1 4 8007101
NON-RETURN VALVE 1/4
11,51 €

excl. Shipping costs

immediately available, 4 available

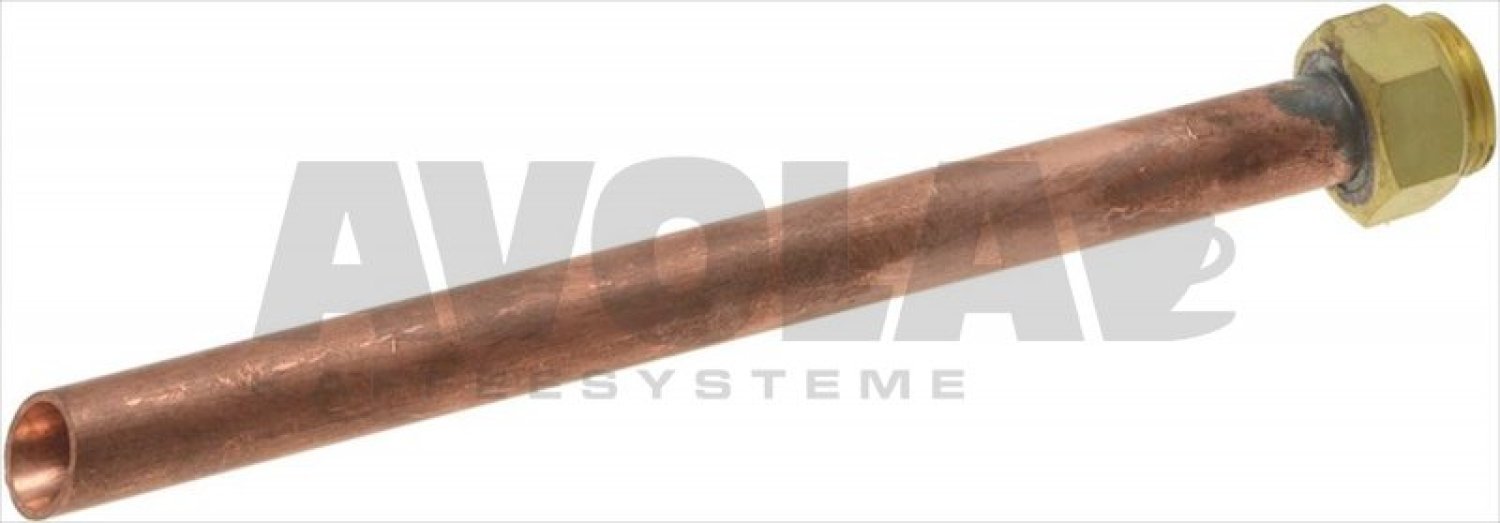

19delivery group injector pipe 8006697
DELIVERY GROUP INJECTOR PIPE
34,50 €

excl. Shipping costs

immediately available, 1 available
21hexagonal nut m8 medium 8011323
HEXAGONAL NUT M8 MEDIUM
1,04 €

excl. Shipping costs

immediately available, 1 available

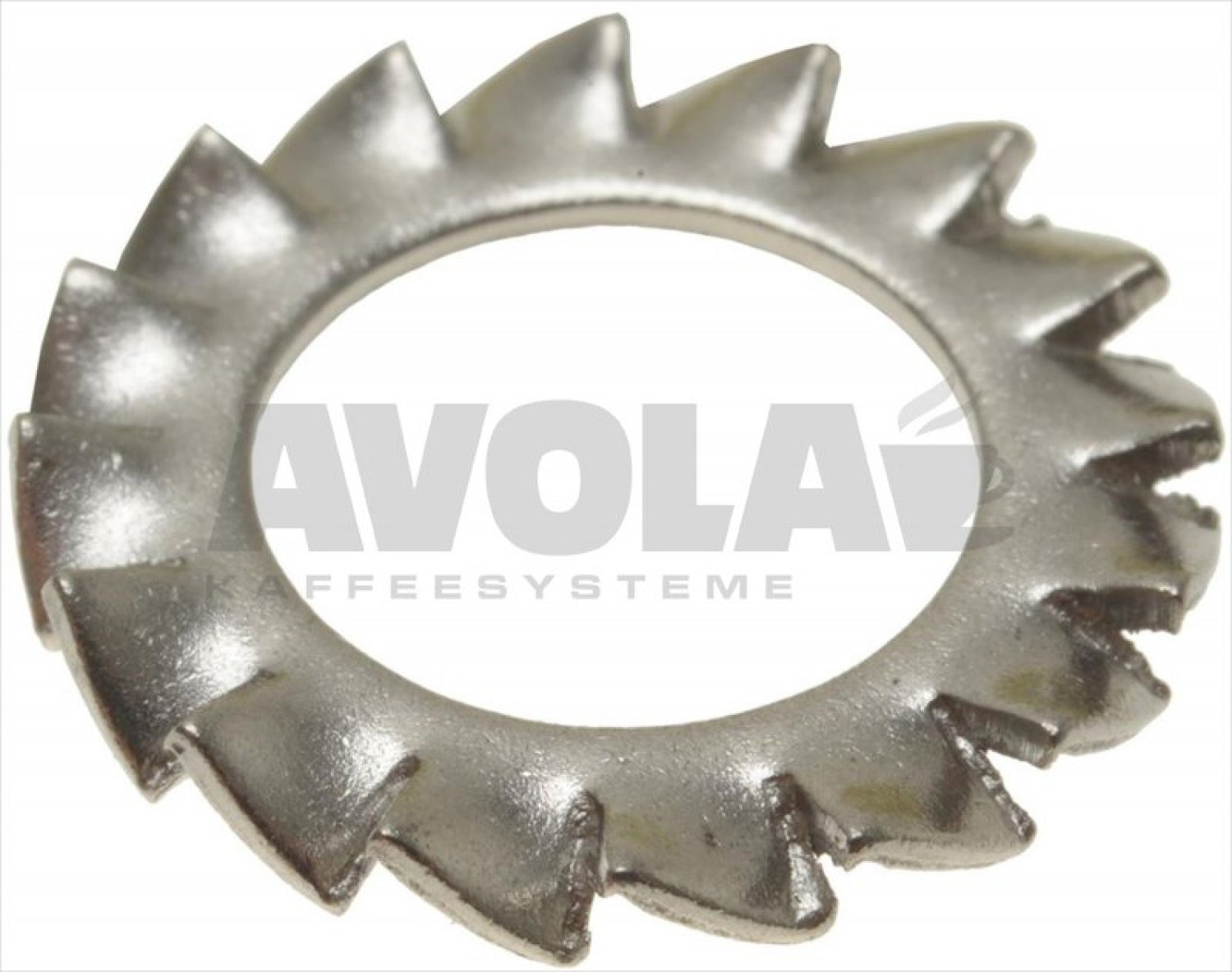

22cogged washer external m8 8001370
COGGED WASHER EXTERNAL M8
0,54 €

excl. Shipping costs

immediately available
27rubber shock absorber 8001488
RUBBER SHOCK ABSORBER
4,24 €

excl. Shipping costs

immediately available, 5 available
28rubber shock absorber 8001361
RUBBER SHOCK ABSORBER
7,79 €

excl. Shipping costs

immediately available, 5 available
30lever group handle 8003246
LEVER GROUP HANDLE
11,19 €

excl. Shipping costs

Delivery time
is determined
32cogged washer external m8 8001370
COGGED WASHER EXTERNAL M8
0,54 €

excl. Shipping costs

immediately available
33schraube zylinderkopf innensechskant vollgewinde edelstahl m8x20 a2 70 din 912 8061169
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M8x20 A2-70 Din 912
2,67 €

excl. Shipping costs

immediately available

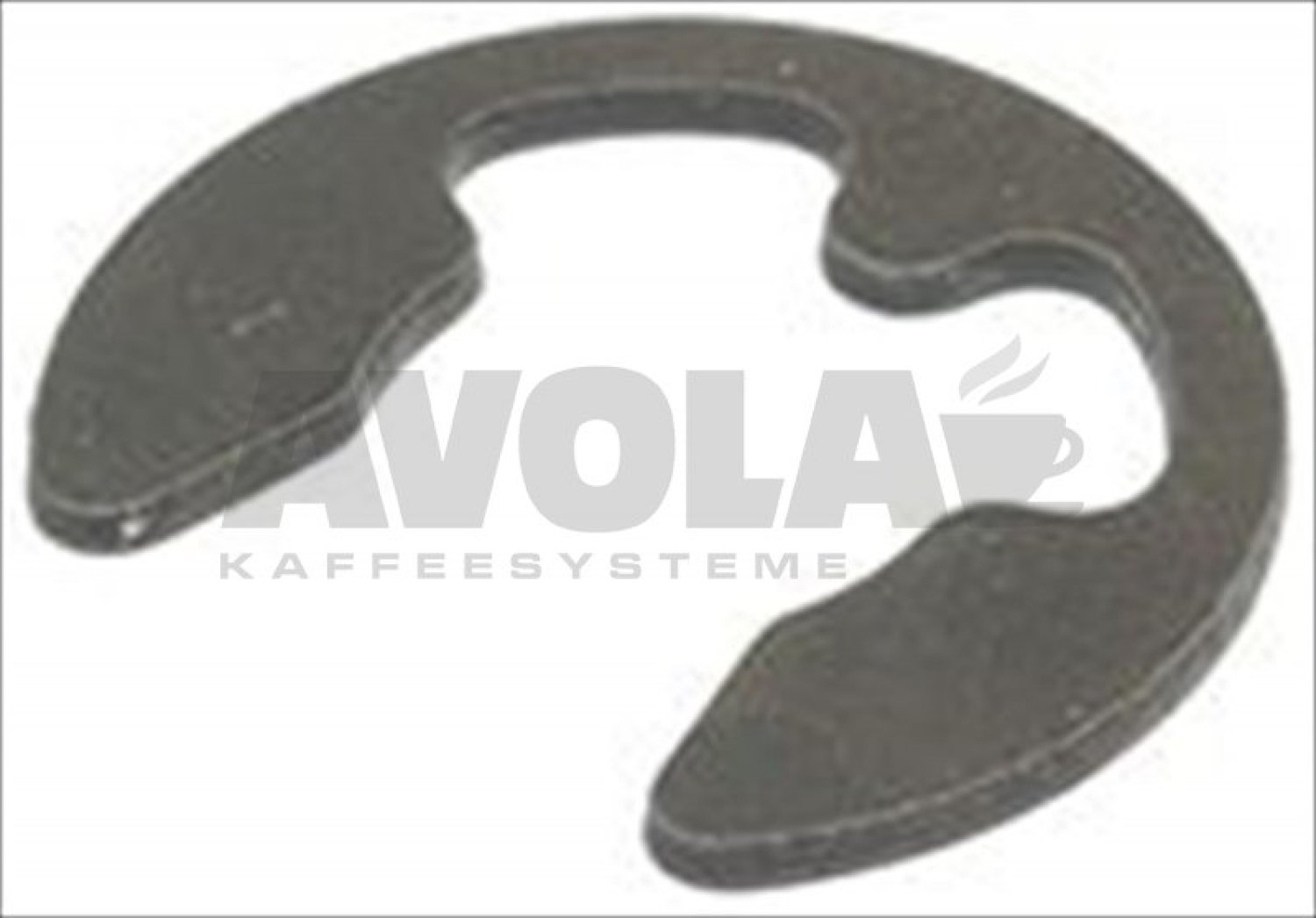

34radial seeger ring ra 9 uni 7437 8005444
RADIAL SEEGER RING RA-9 UNI 7437
4,84 €

excl. Shipping costs

immediately available, 6 available
35bearing 6300 2rs 8000317
BEARING 6300 2RS
16,42 €

excl. Shipping costs

Delivery time
is determined

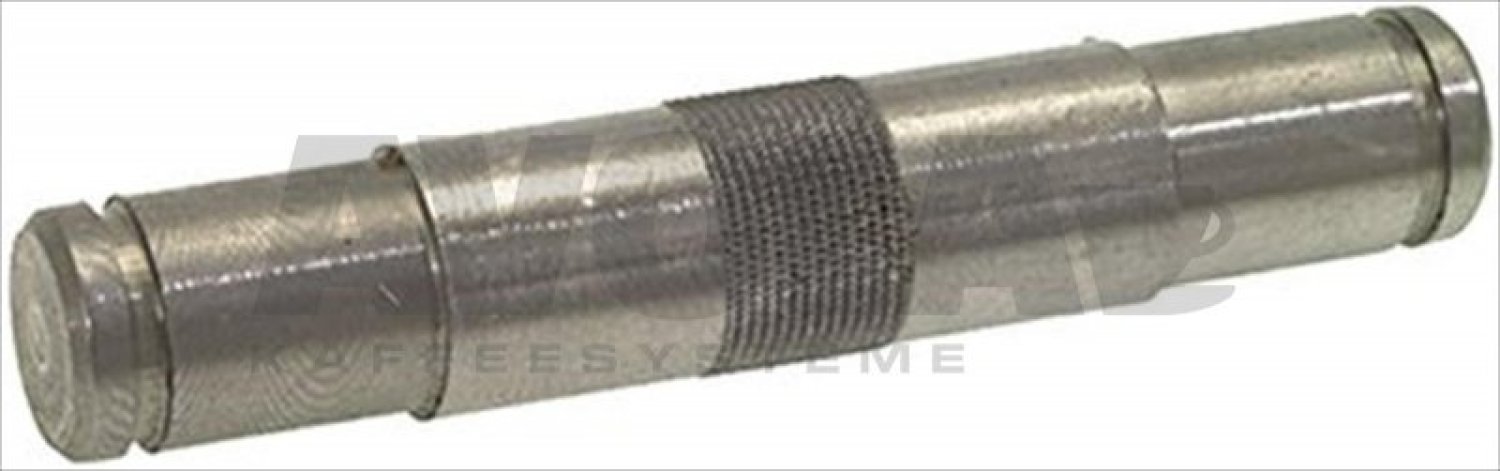

36pin for bearing 8005187
PIN FOR BEARING
10,22 €

excl. Shipping costs

immediately available, 2 available
37chromium plated fork for lever group 8002264
CHROMIUM-PLATED FORK FOR LEVER GROUP
53,95 €

excl. Shipping costs

immediately available, 1 available
38gabel chromiert fuer hebelgruppe 8002195
GABEL CHROMIERT FÜR HEBELGRUPPE
34,71 €

excl. Shipping costs

Delivery time 4-6 weeks..

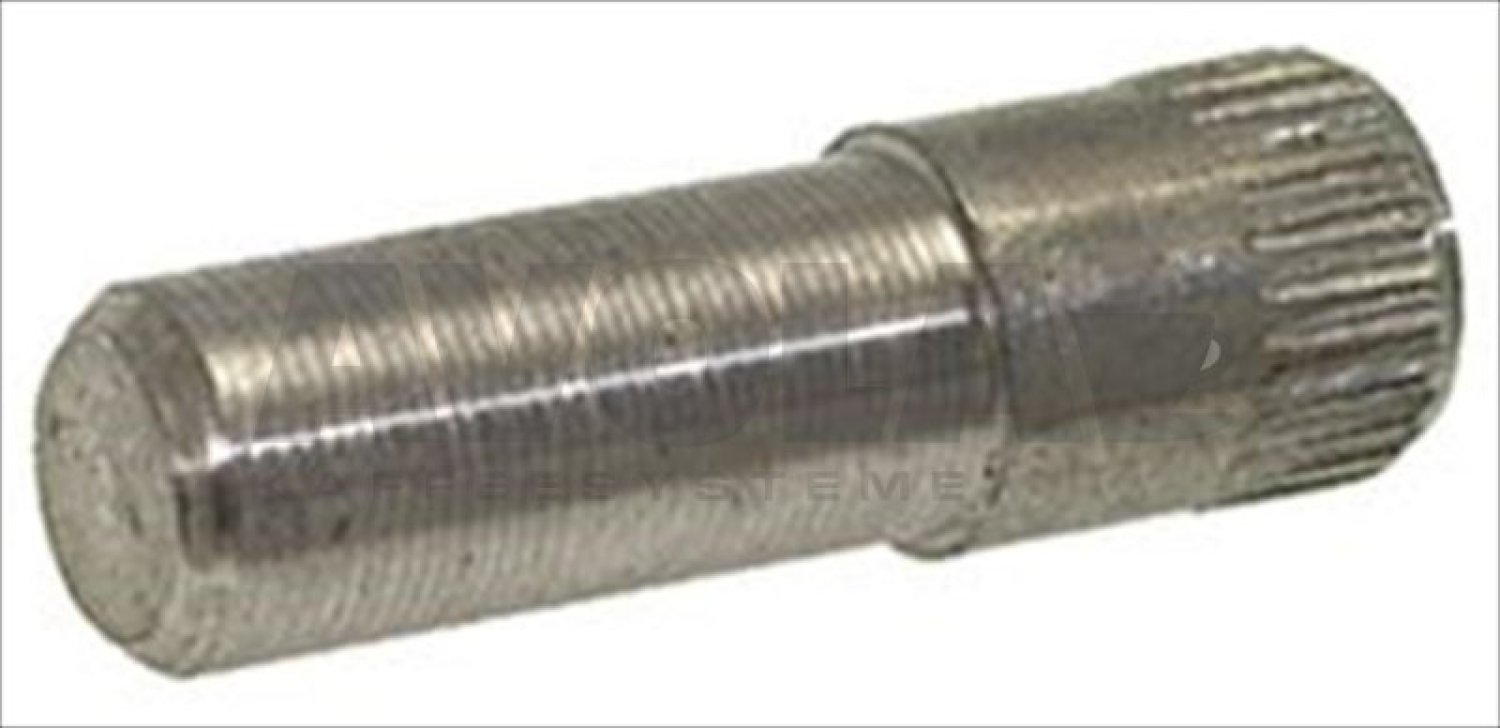

39pin for fork 8005188
PIN FOR FORK
13,27 €

excl. Shipping costs

immediately available, 2 available

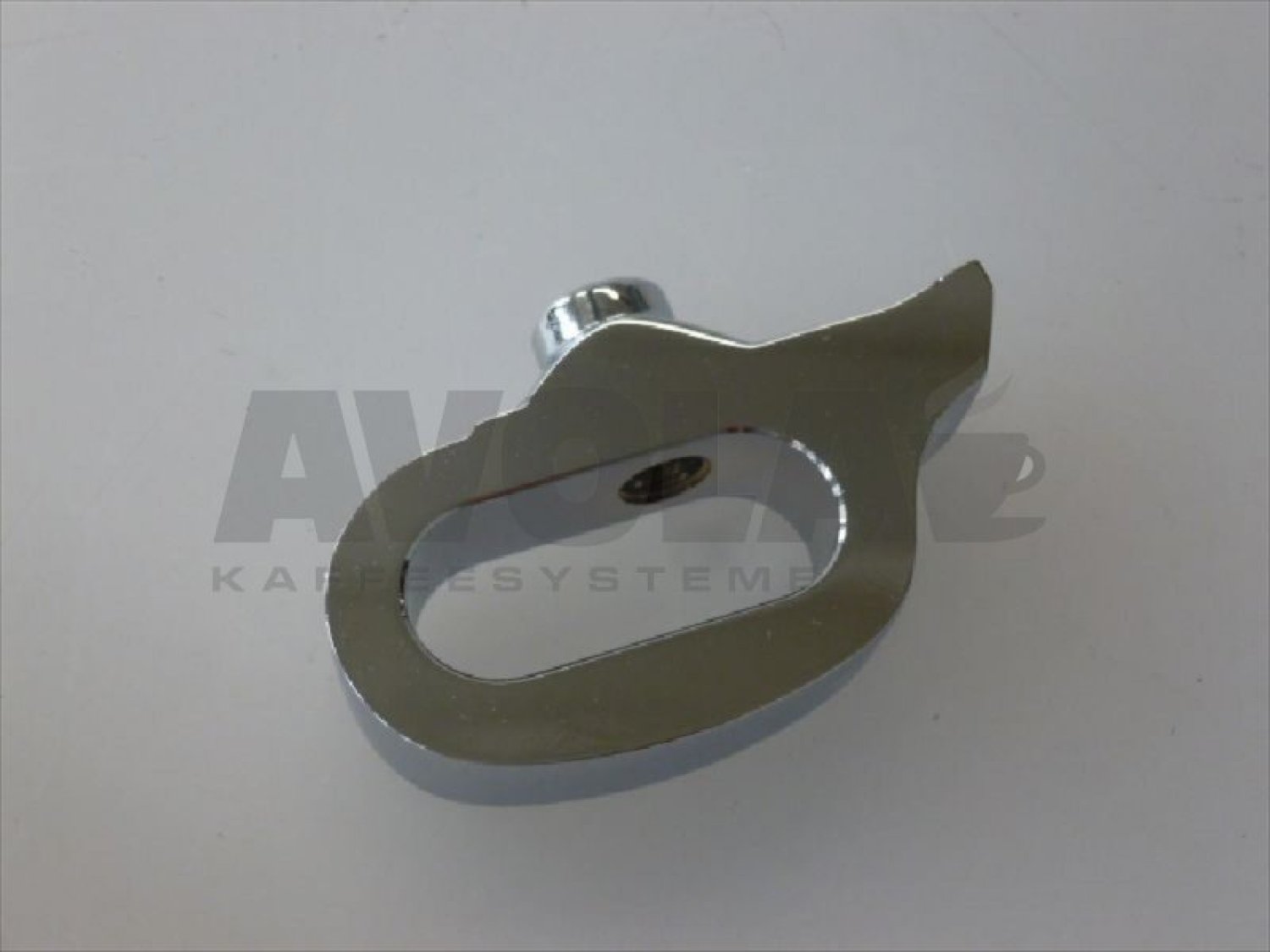

40la pavoni gabel fuer handhebelgruppe neues modell m12 8125554
La Pavoni Gabel für Handhebelgruppe (neues Modell) M12
81,06 €

excl. Shipping costs

Delivery time 4-6 weeks..

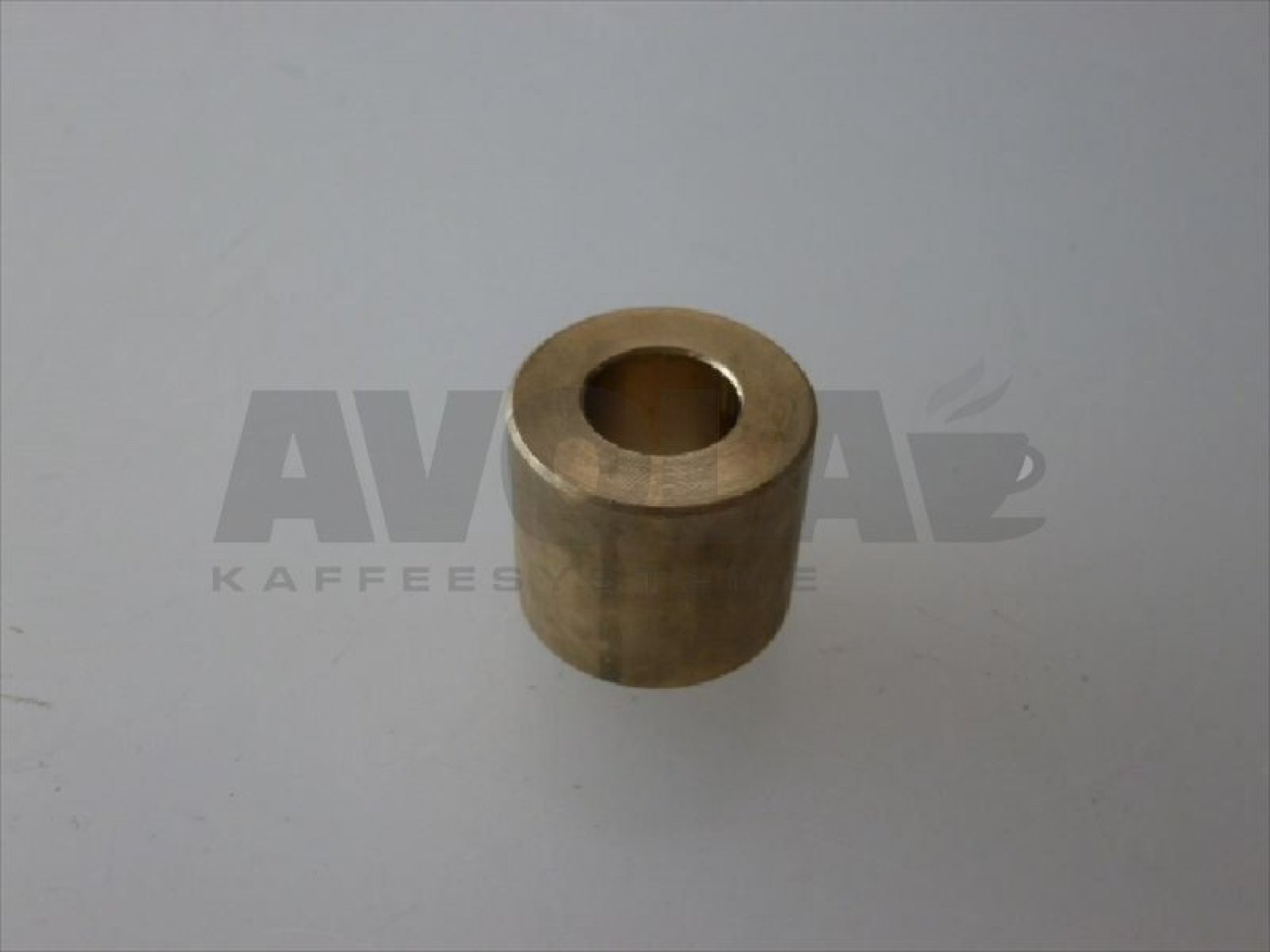

41la pavoni handhebelgruppe messingrolle o 20x10x18 mm 8137161
La Pavoni Handhebelgruppe Messingrolle ø 20x10x18 mm
22,72 €

excl. Shipping costs

Delivery time 4-6 weeks..
42la pavoni gabel fuer handhebelgruppe neues modell m12 8125554
La Pavoni Gabel für Handhebelgruppe (neues Modell) M12
81,06 €

excl. Shipping costs

Delivery time 4-6 weeks..

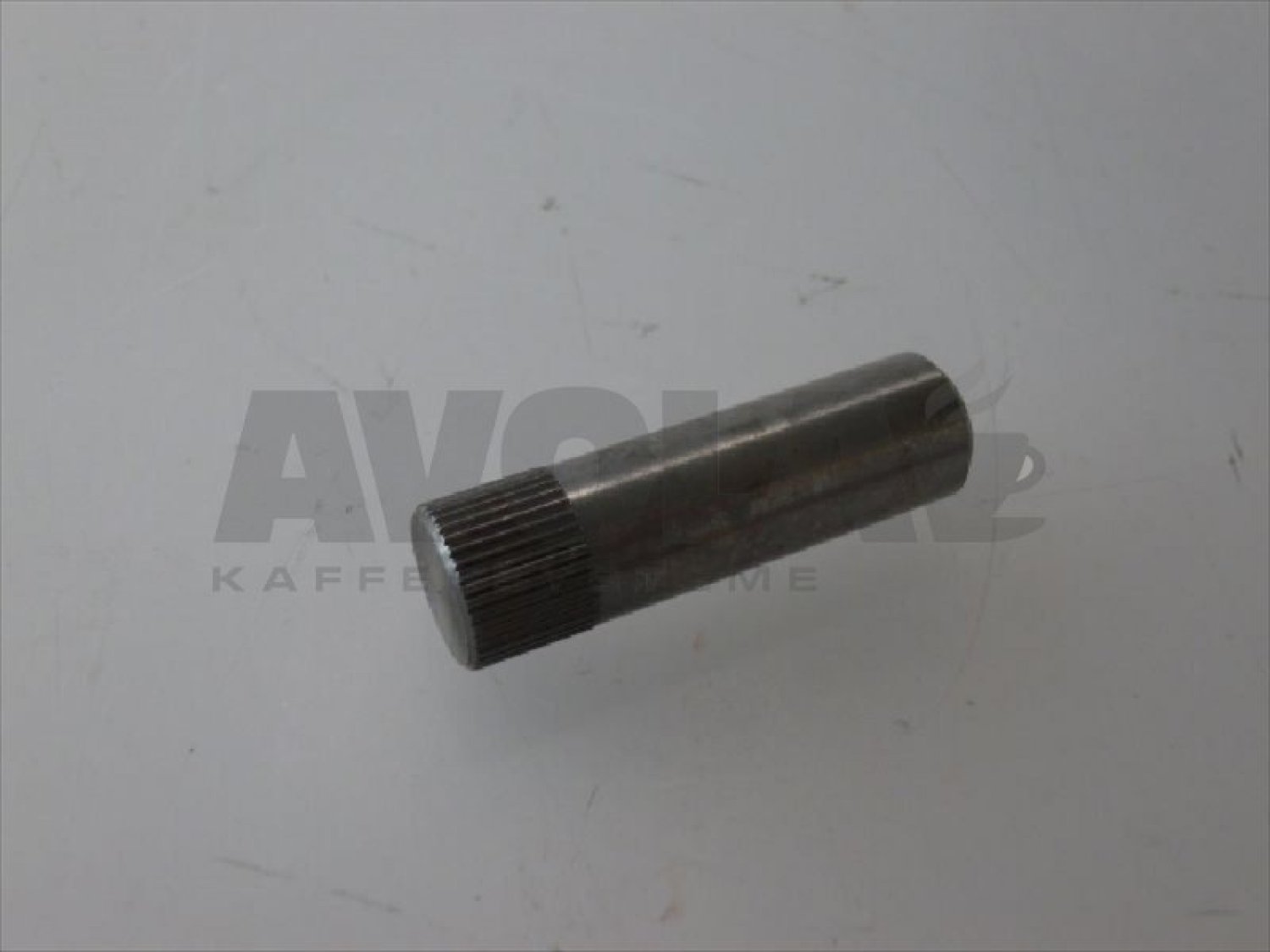

43la pavoni handhebelgruppe bolzen o 10x35 mm 8137162
La Pavoni Handhebelgruppe Bolzen ø 10x35 mm
10,23 €

excl. Shipping costs

Delivery time 4-6 weeks..
44pavoni bolzen stift fuer griff handhebelgruppe 128 mm 8181437
Pavoni Bolzen Stift für Griff Handhebelgruppe 128 mm
26,19 €

excl. Shipping costs

Delivery time 4-6 weeks..

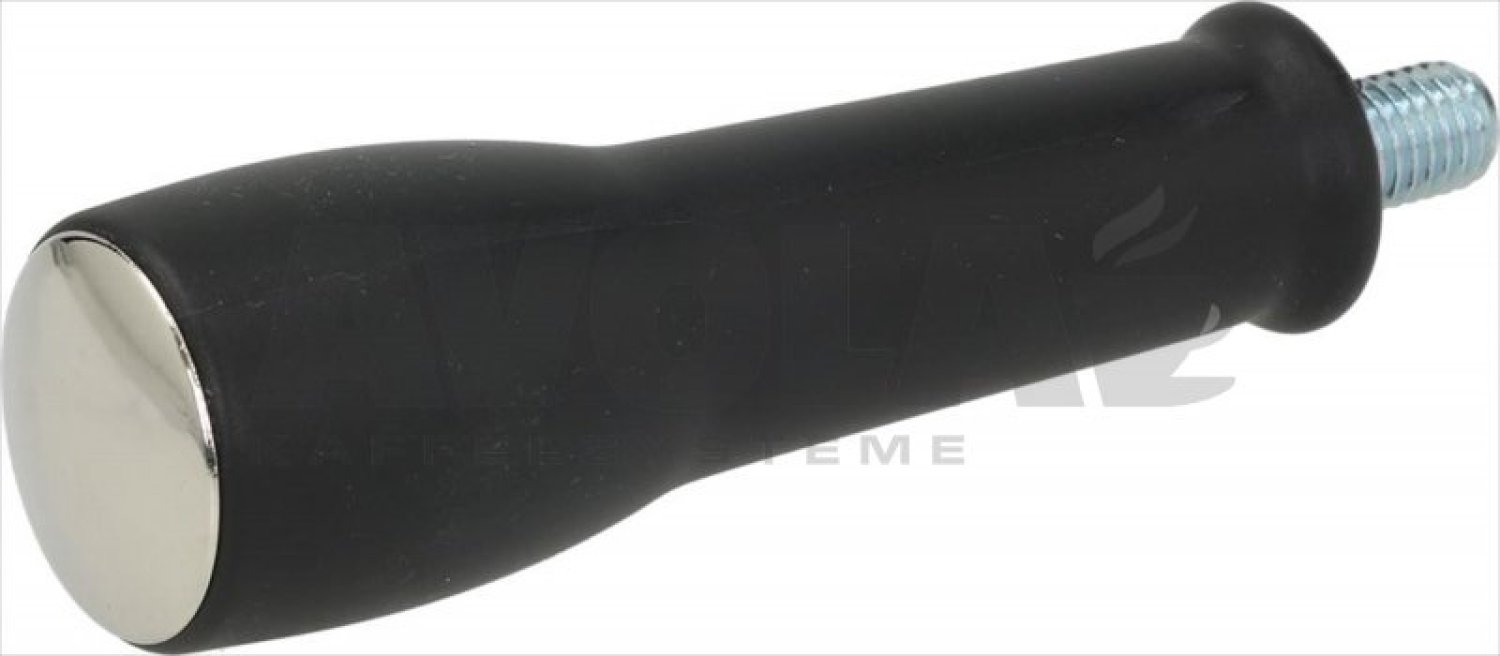

45filter holder handle m12 8003399
FILTER HOLDER HANDLE M12
13,24 €

excl. Shipping costs

immediately available, 1 available

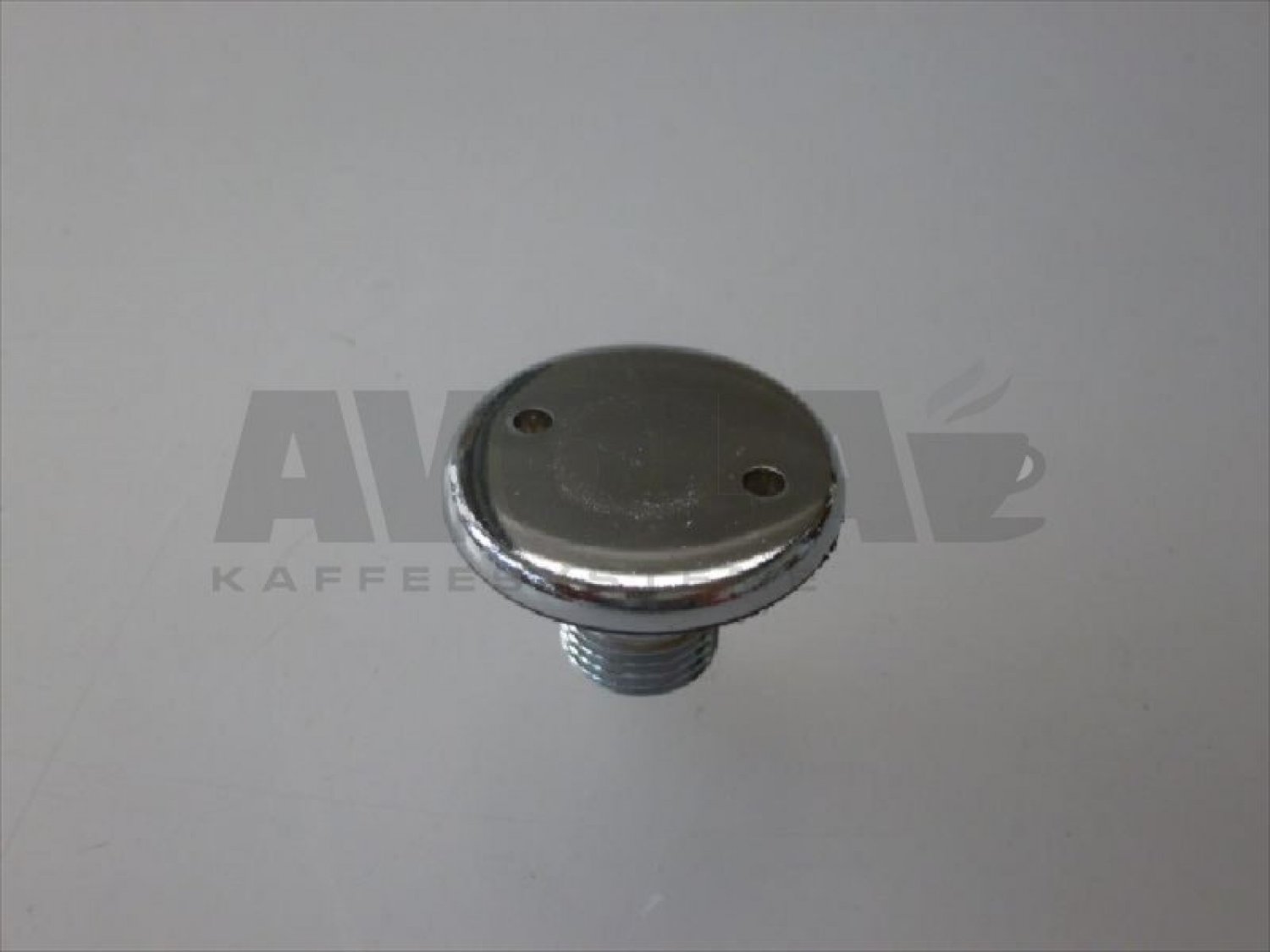

47schraube kugellagerabdeckung pavoni handhebelgruppe 8080639
SCHRAUBE KUGELLAGERABDECKUNG PAVONI HANDHEBELGRUPPE
23,99 €

excl. Shipping costs

Delivery time 4-6 weeks..

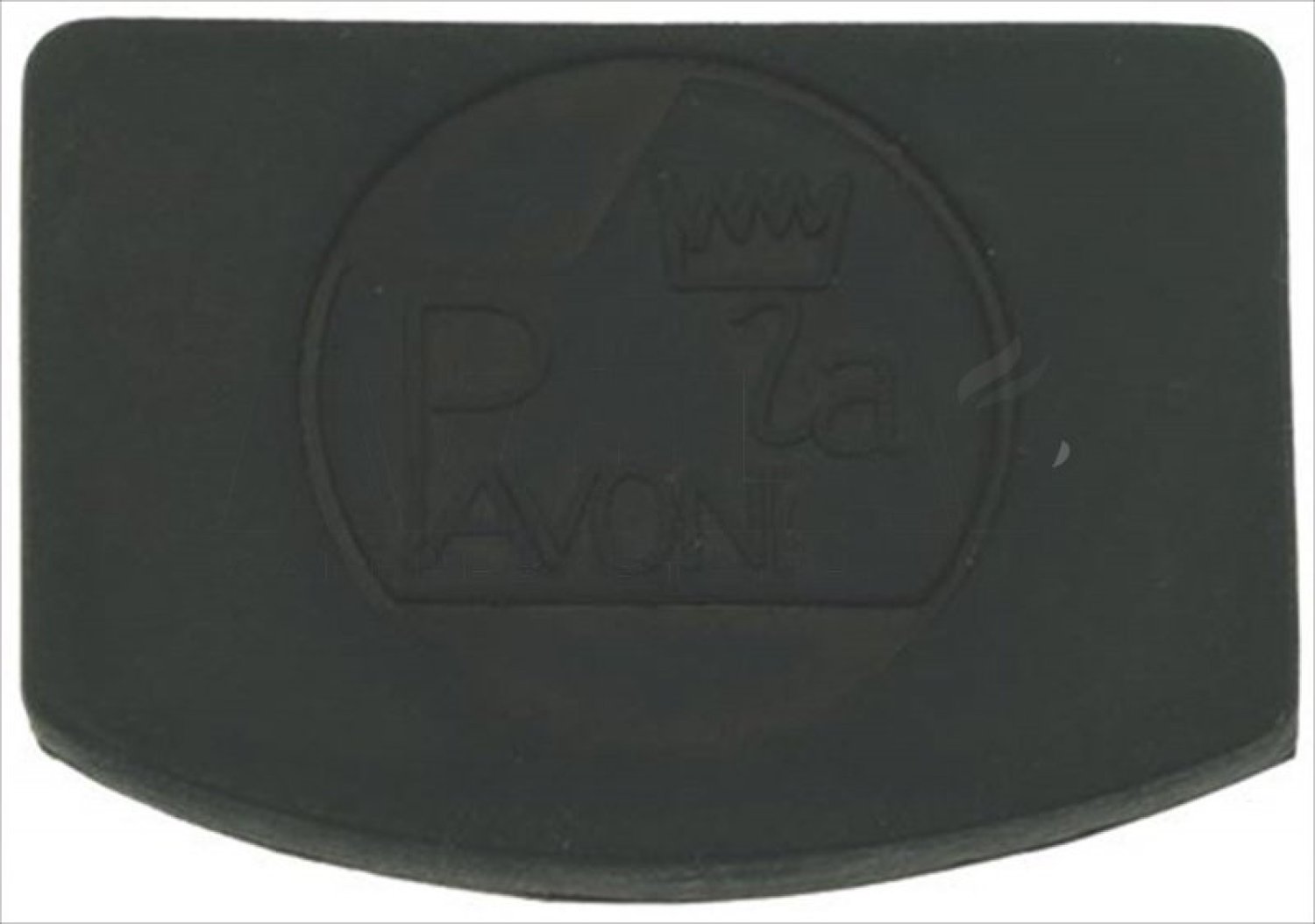

50la pavoni dichtung fuer anschlag handhebel neue gruppe 8101384
La Pavoni Dichtung für Anschlag Handhebel neue Gruppe
5,74 €

excl. Shipping costs

immediately available, 7 available

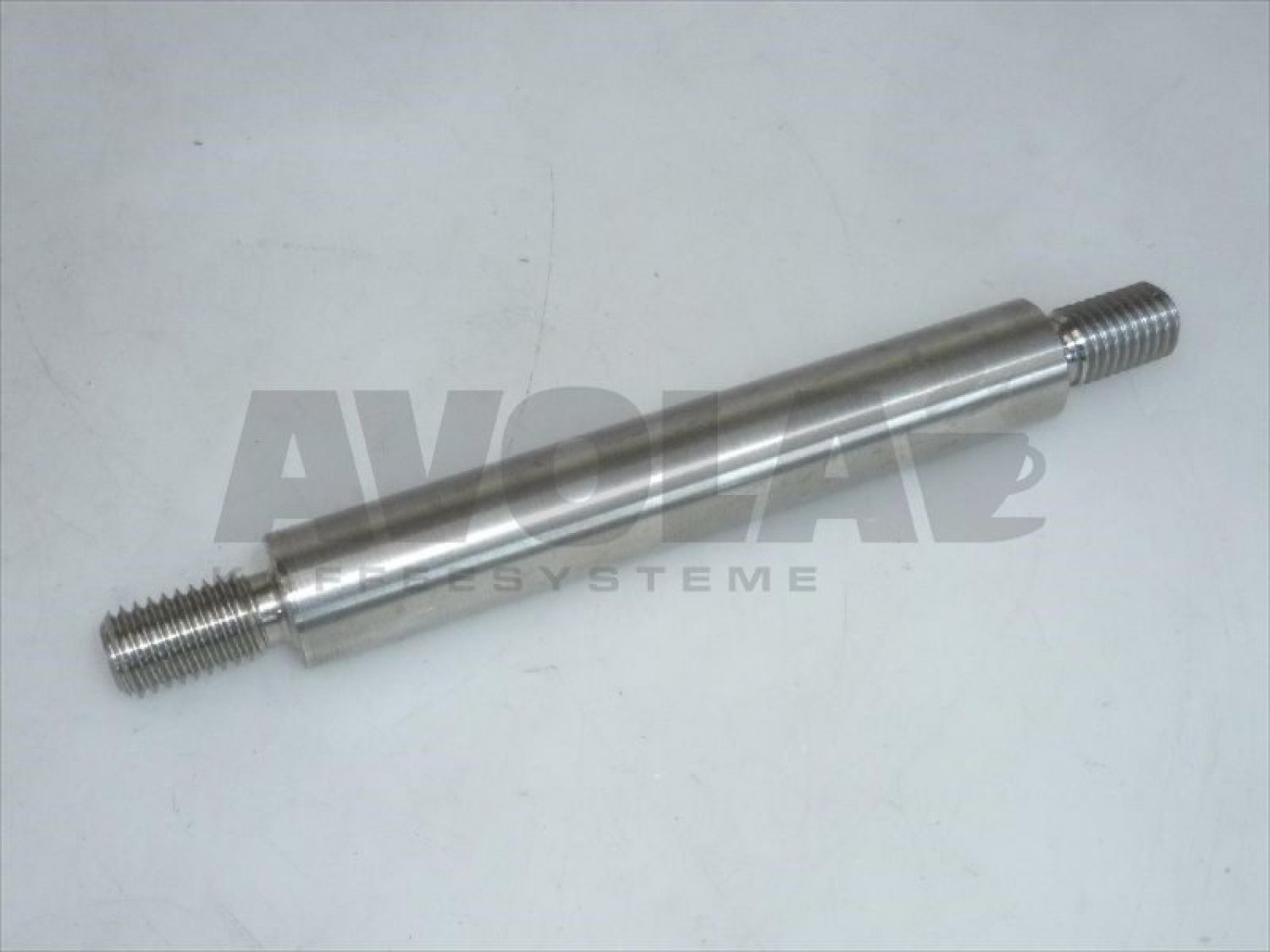

51kolbenstange fuer hebelgruppe pavoni m12 154 mm 8062777
Kolbenstange für Hebelgruppe Pavoni M12 154 mm
54,20 €

excl. Shipping costs

Delivery time 4-6 weeks..

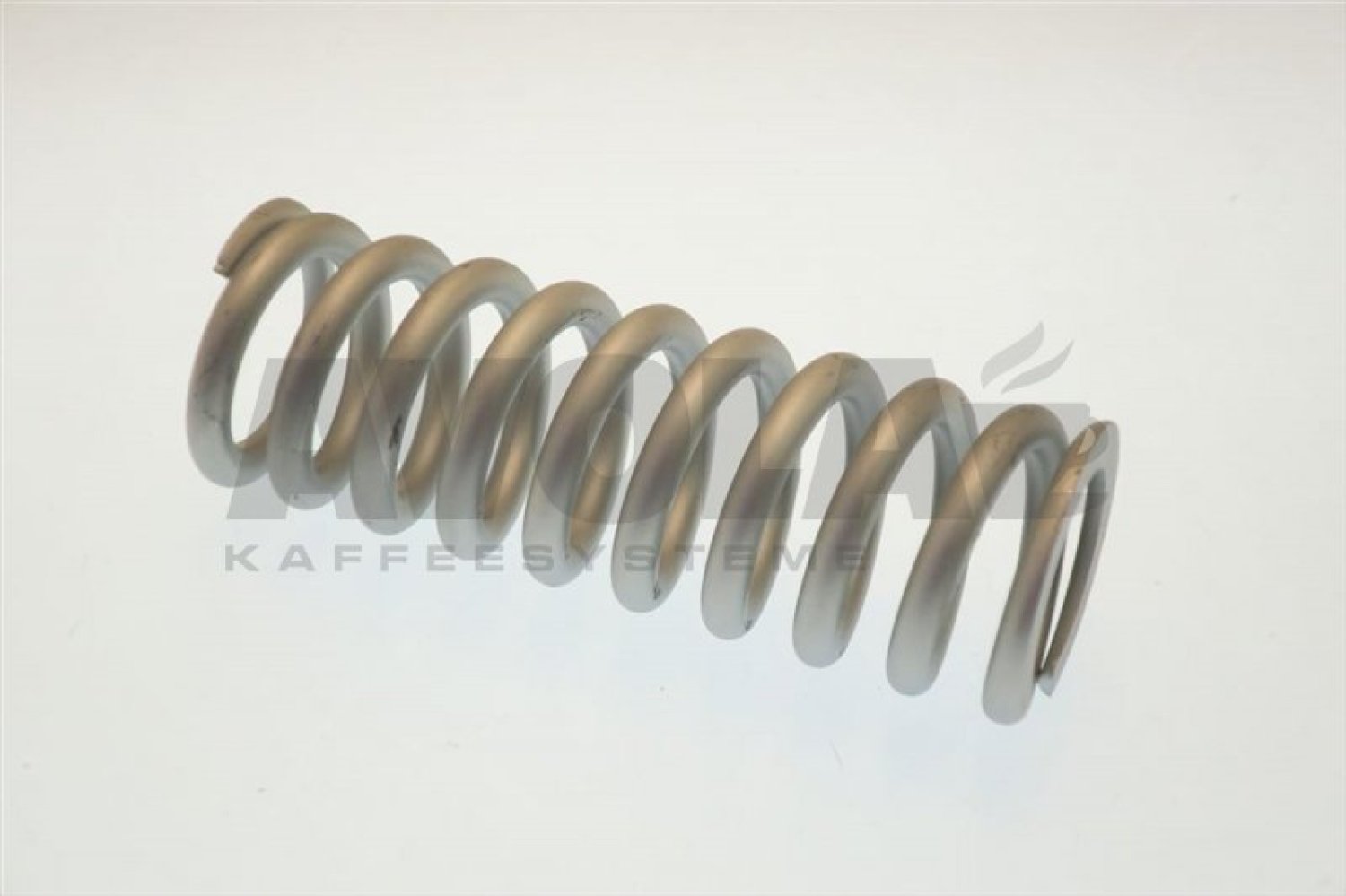

52feder handhebelgruppe la pavoni neue version 135mm o 52mm 8101385
Feder Handhebelgruppe La Pavoni neue Version 135mm ø 52mm
26,19 €

excl. Shipping costs

Delivery time 4-6 weeks

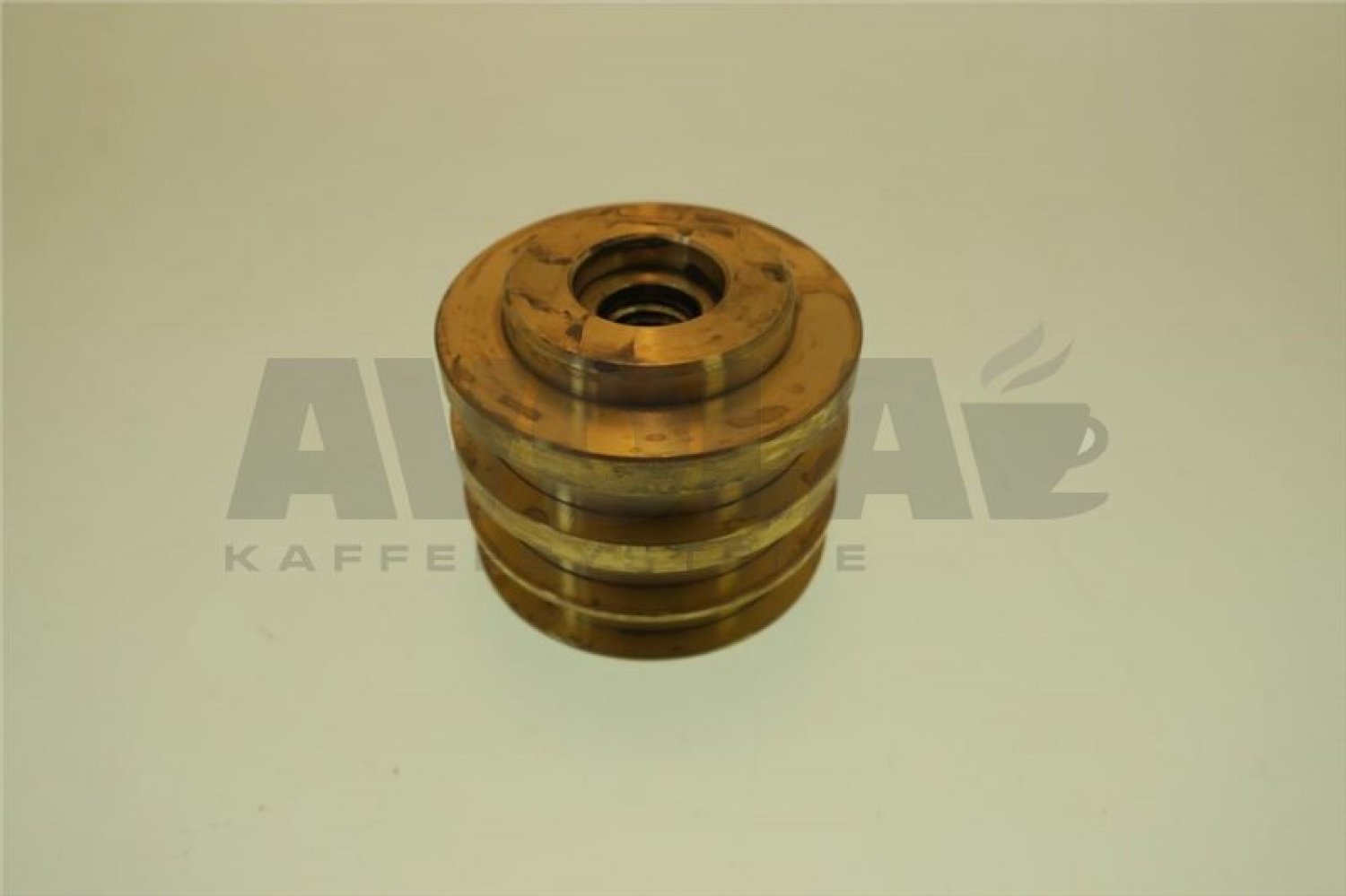

53kolben pavoni handhebel neues modell o 52x43 mm 8125590
Kolben Pavoni Handhebel neues Modell ø 52x43 mm
75,40 €

excl. Shipping costs

Delivery time 4-6 weeks..

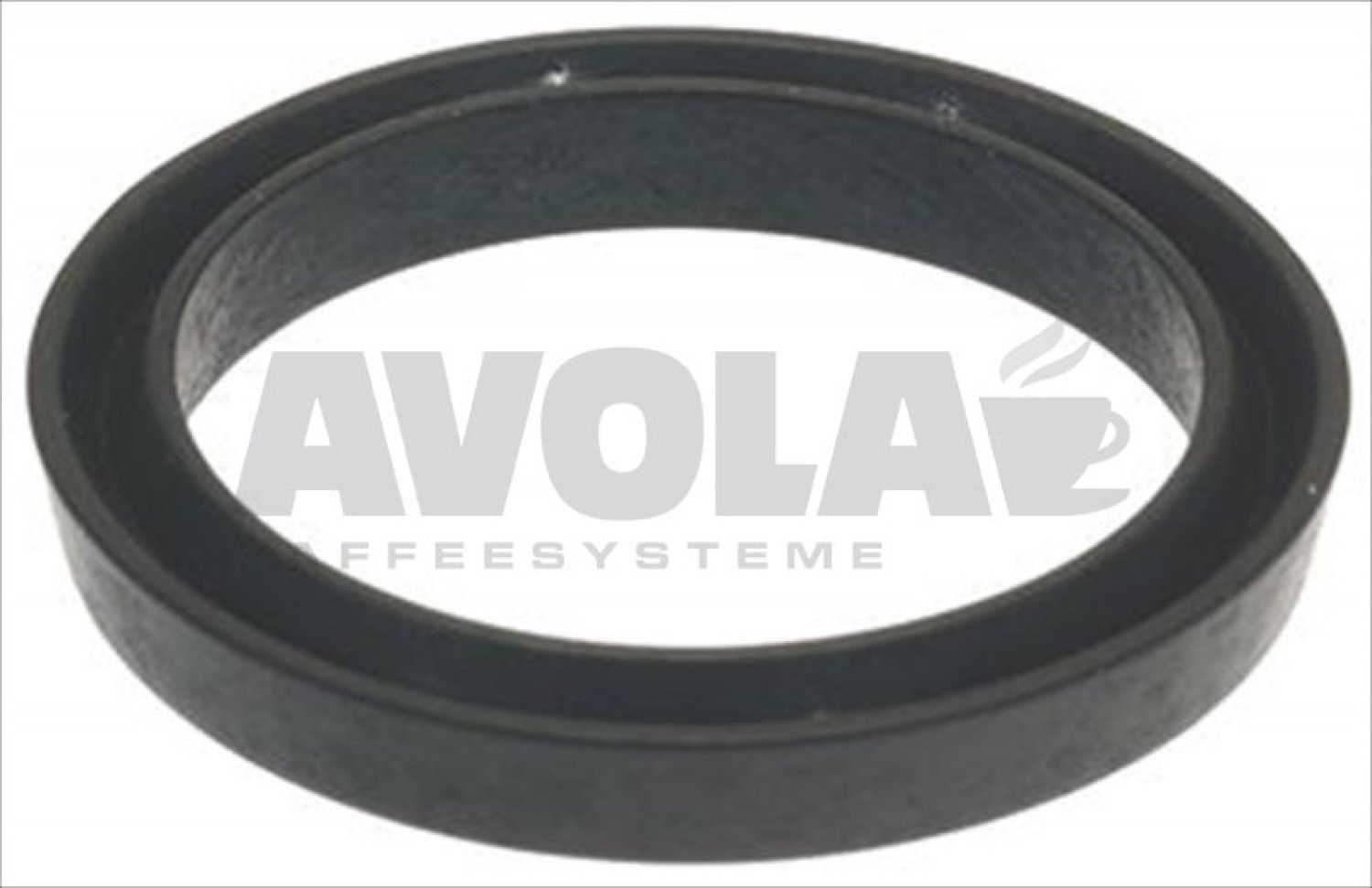

54lip gasket o 53x42x7 5 mm 8062848
LIP GASKET ø 53x42x7,5 mm
7,14 €

excl. Shipping costs

immediately available, 16 available

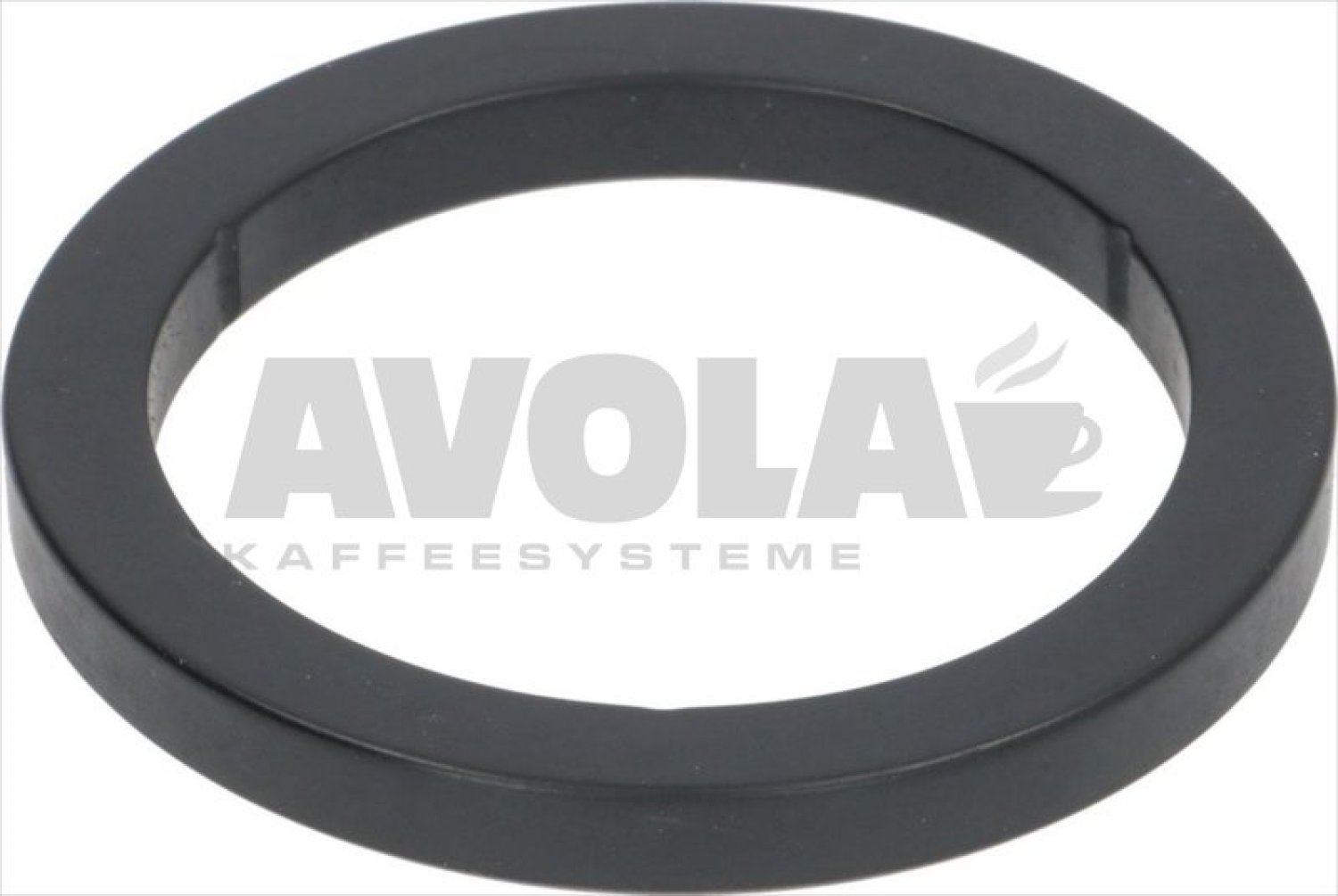

56filter holder gasket o 73x57x8 mm 8001826
FILTER HOLDER GASKET ø 73x57x8 mm
4,09 €

excl. Shipping costs

immediately available, 11 available

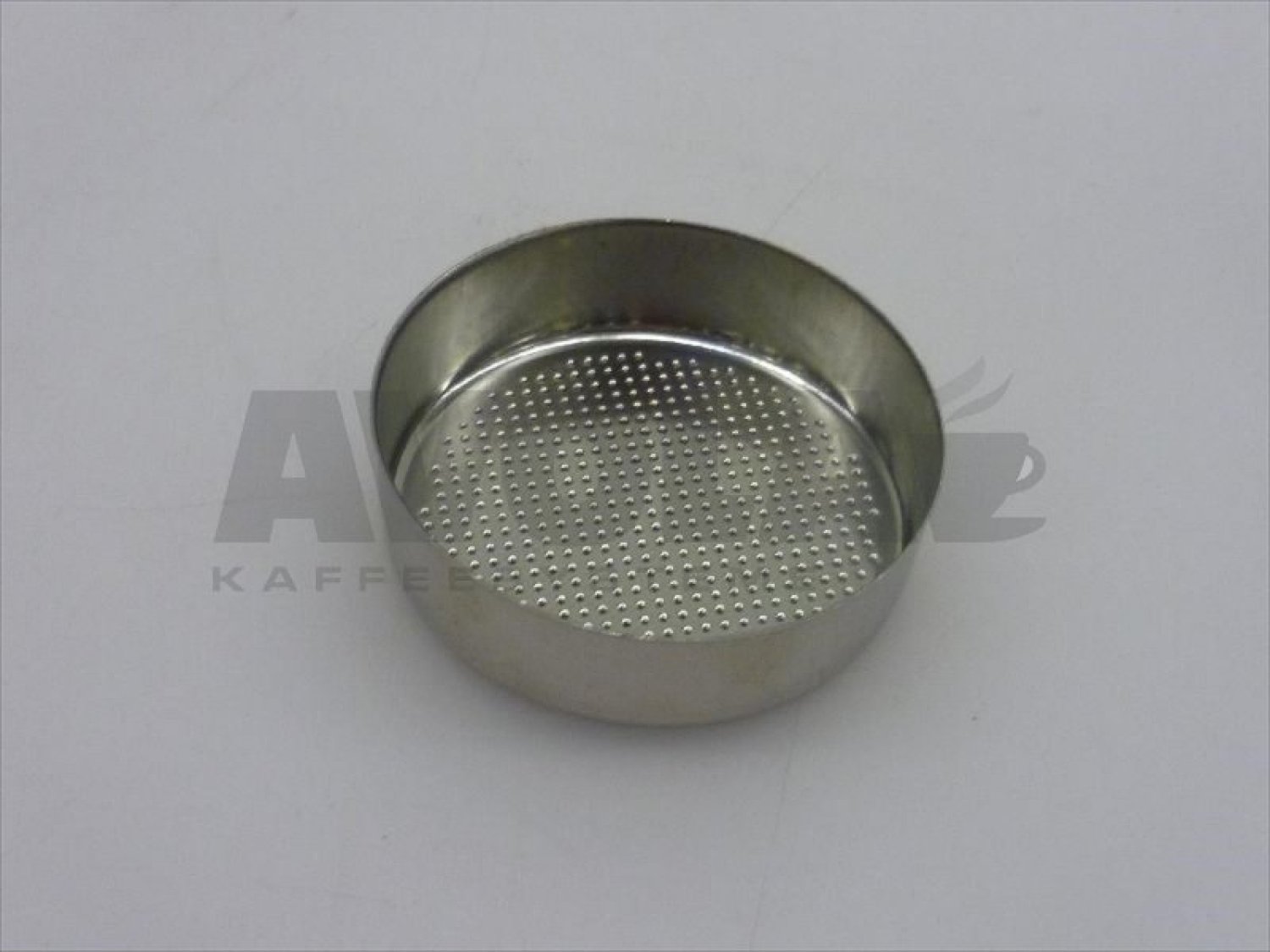

57original dusche la pavoni hanhebelgruppe o 57 5 mm 8062850
Original Dusche La Pavoni Hanhebelgruppe ø 57,5 mm
20,31 €

excl. Shipping costs

immediately available, 5 available
58tap shutter control pin 8068278
TAP SHUTTER CONTROL PIN
10,04 €

excl. Shipping costs

Delivery time
is determined

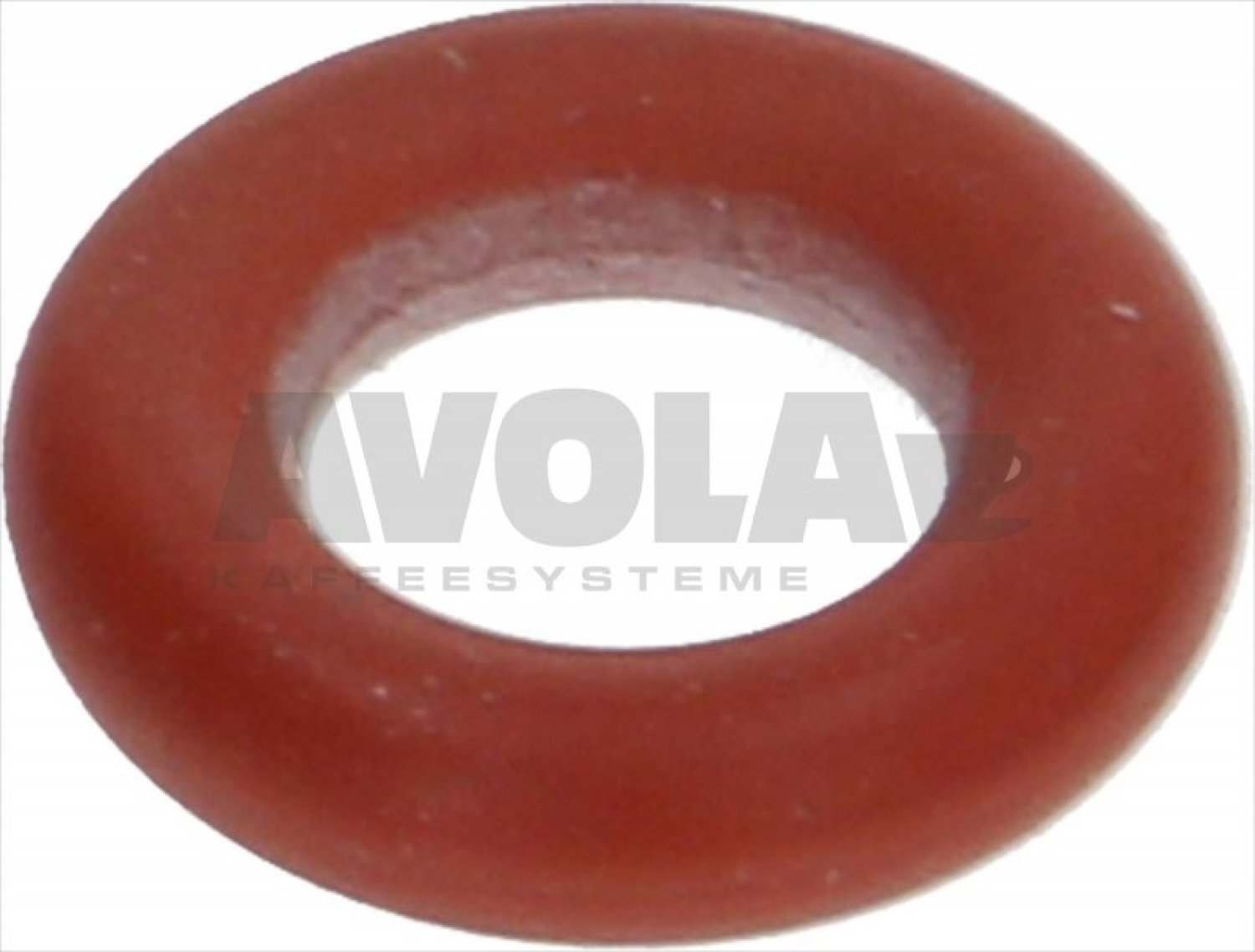

59o ring 02015 silicon 8001735
O-RING 02015 SILICON
1,02 €

excl. Shipping costs

immediately available
60o ring 02015 silicon 8001735
O-RING 02015 SILICON
1,02 €

excl. Shipping costs

immediately available
61stainless steel circlip ra 4 uni 7437 8005617
STAINLESS STEEL CIRCLIP RA-4 UNI 7437
0,48 €

excl. Shipping costs

immediately available

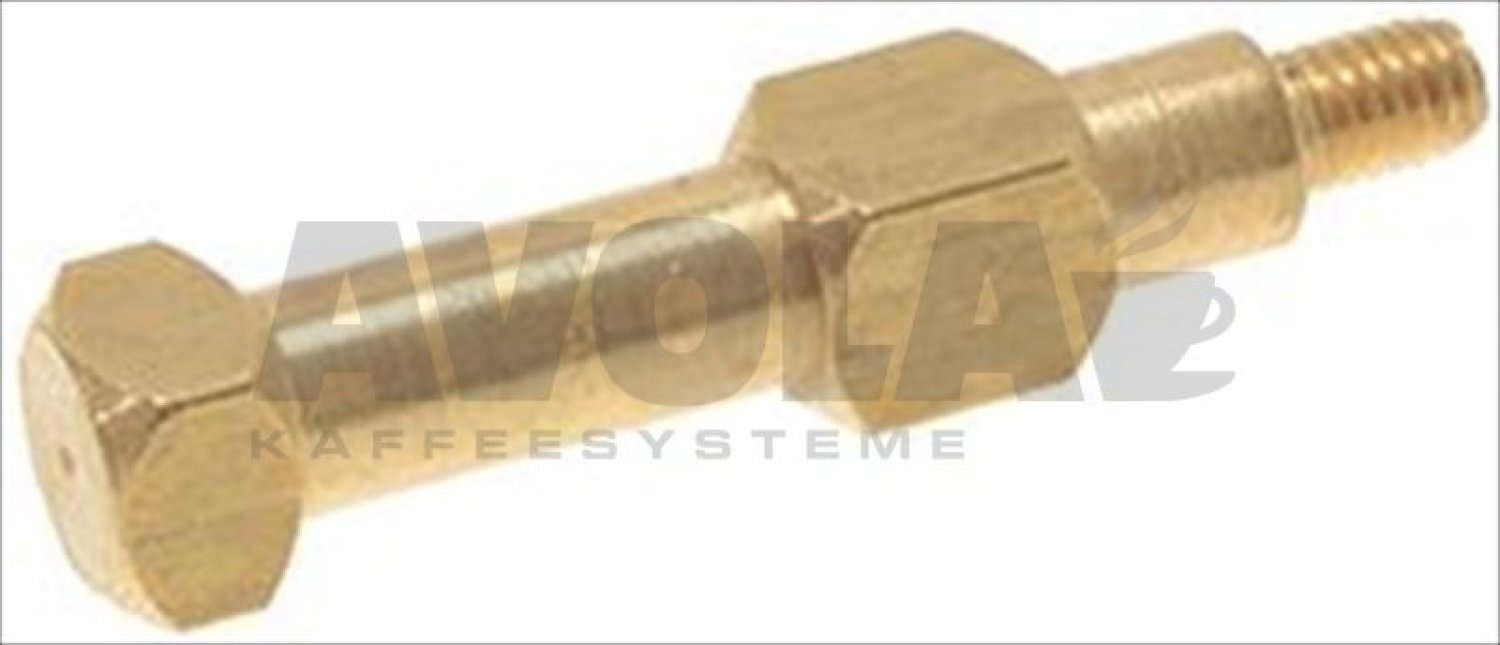

62water steam tap pin 8062623
WATER/STEAM TAP PIN
7,33 €

excl. Shipping costs

immediately available, 3 available

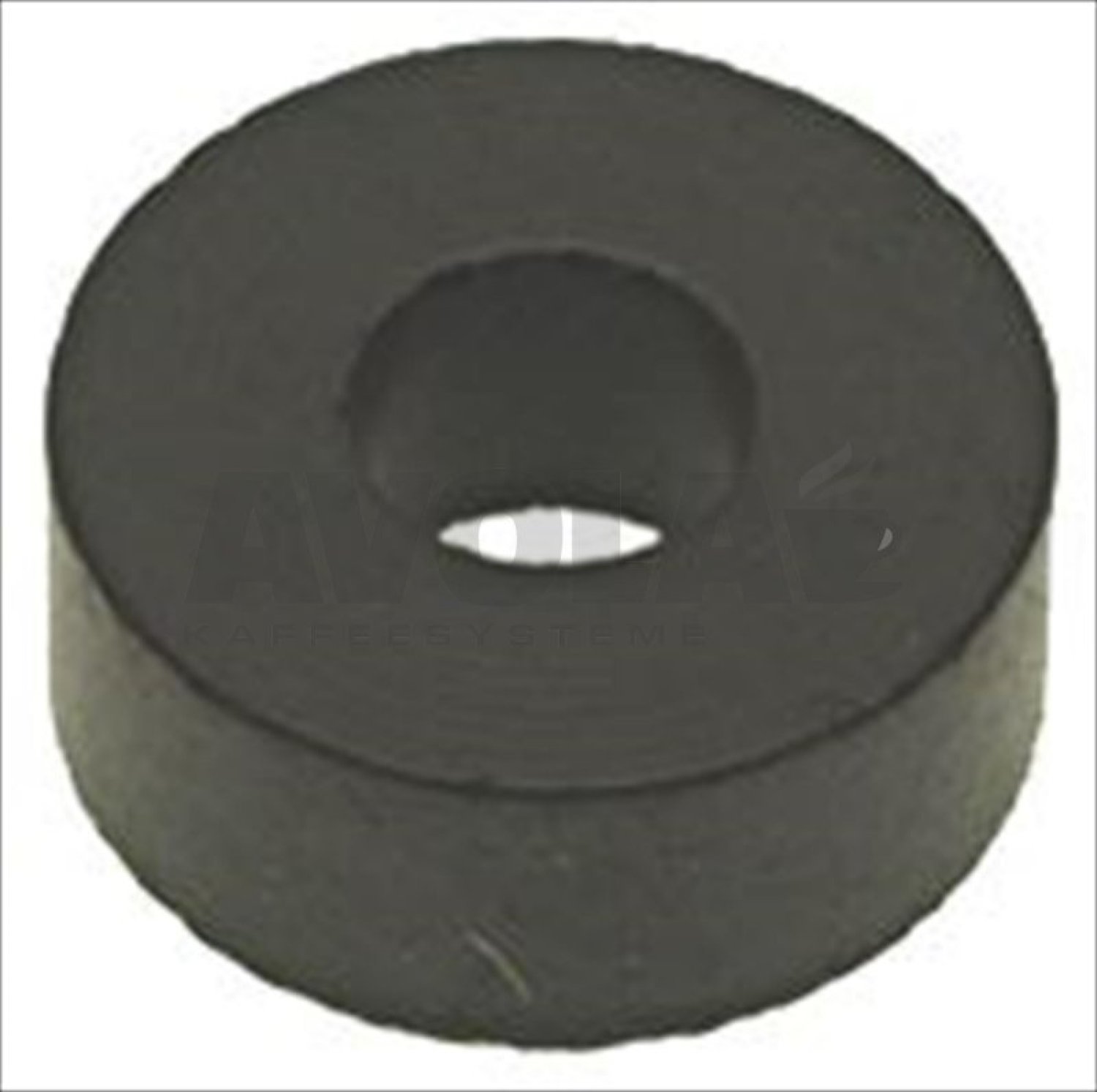

63flat epdm gasket 8002142
FLAT EPDM GASKET
1,37 €

excl. Shipping costs

immediately available, 10 available

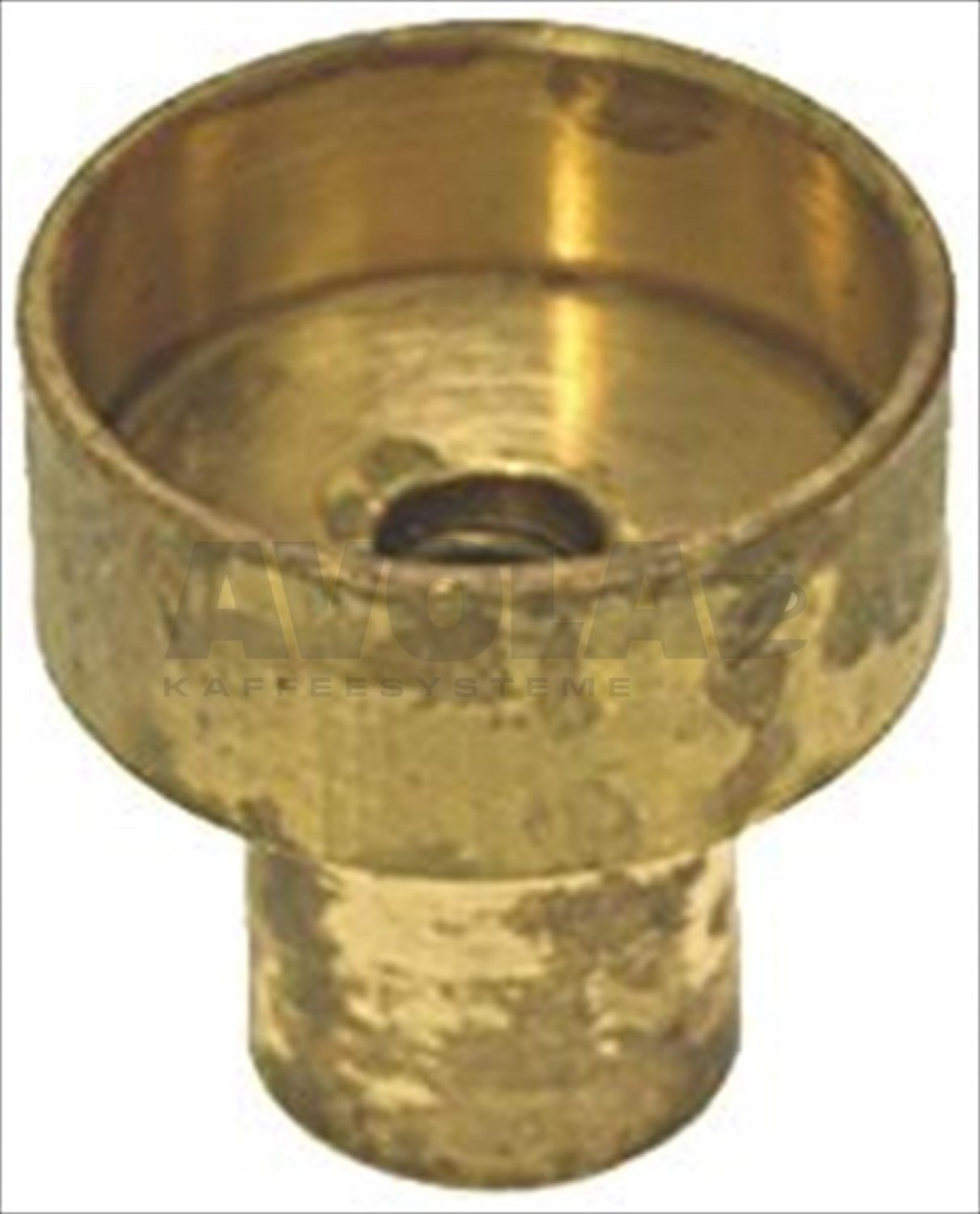

64dichtungstraeger o 17 8063095
Dichtungsträger ø 17
4,15 €

excl. Shipping costs

immediately available, 3 available

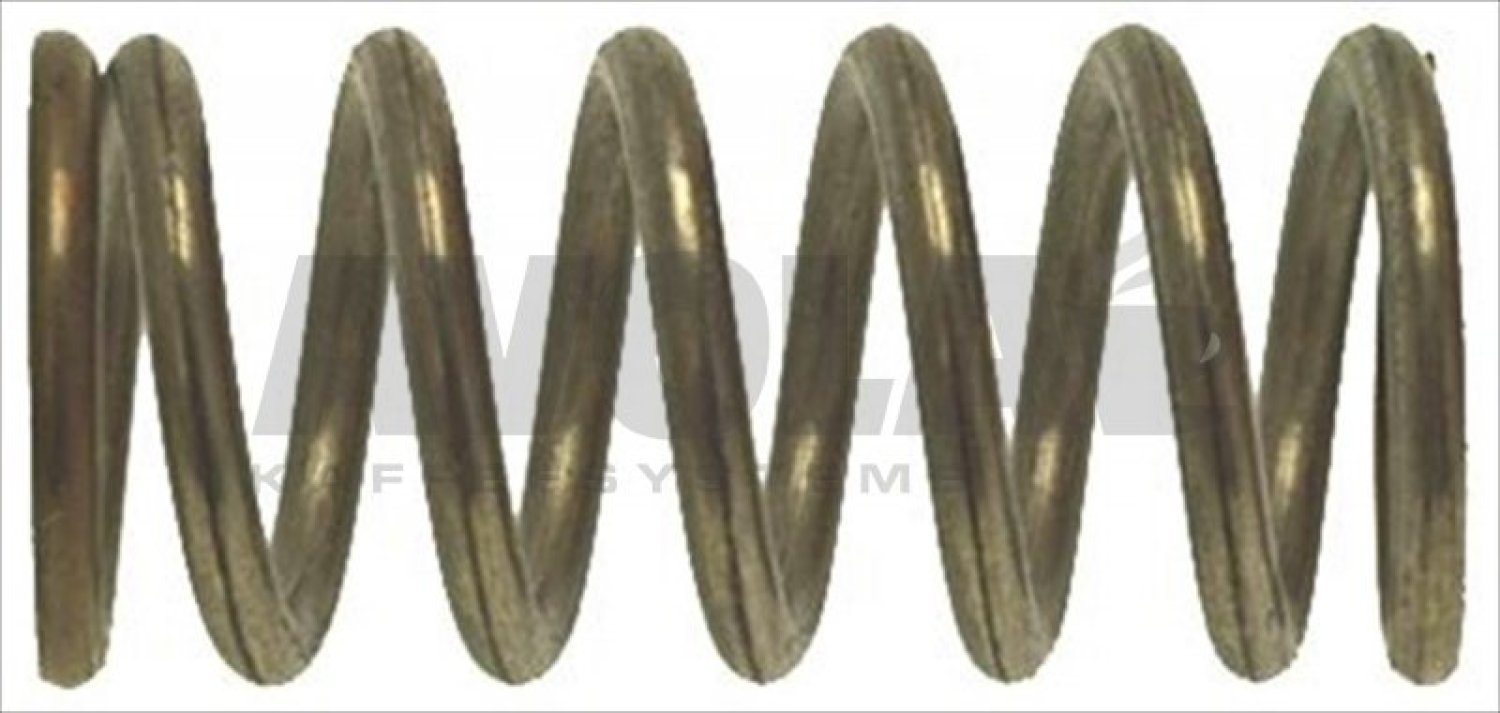

65spring o 14x33 mm 8035301
SPRING ø 14x33 mm
2,59 €

excl. Shipping costs

immediately available, 4 available
66flat ptfe gasket o 26x21 5x2 mm 8001754
FLAT PTFE GASKET ø 26x21,5x2 mm
6,44 €

excl. Shipping costs

immediately available

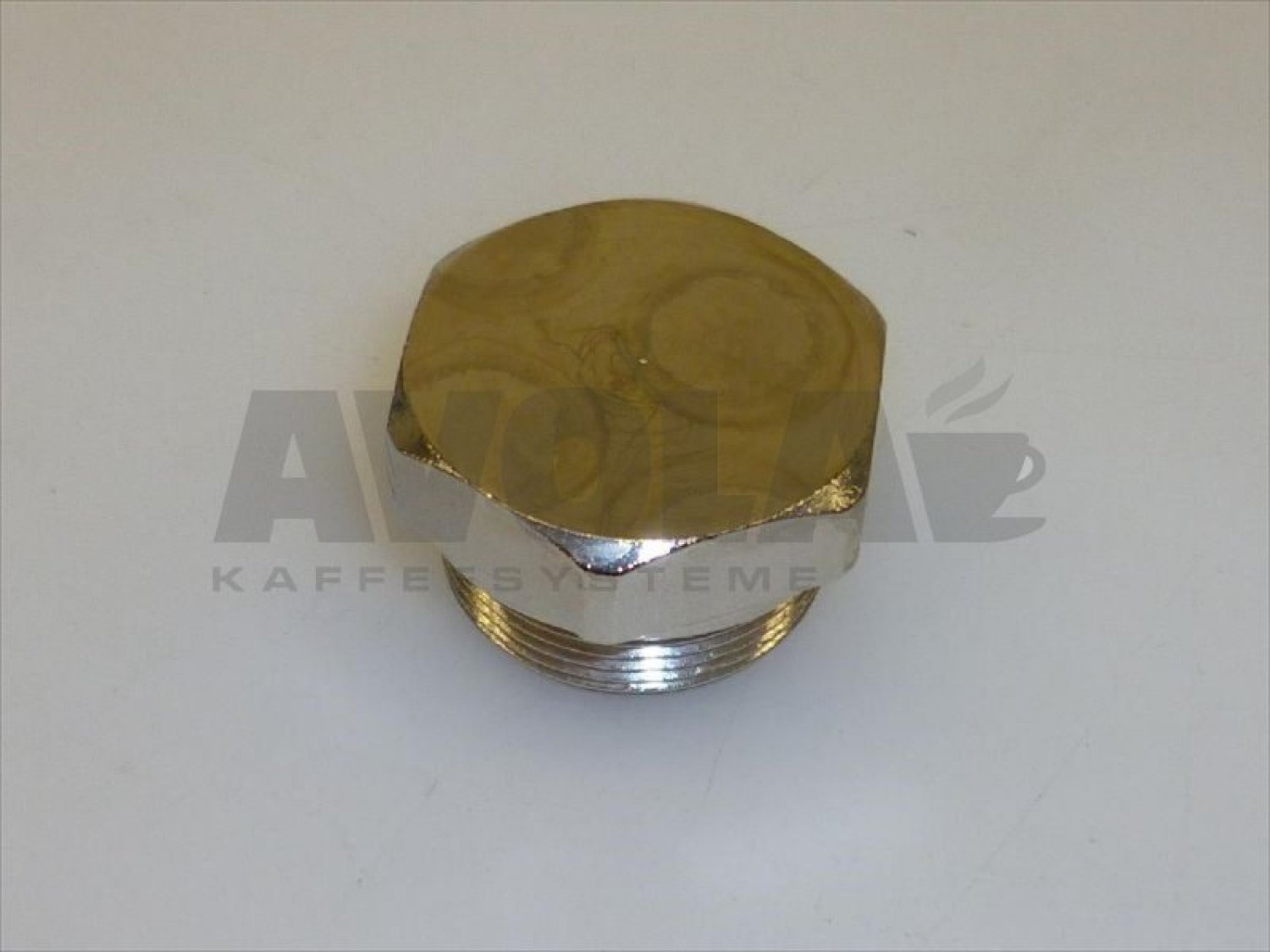

67tappo o 22 mm per gruppo erogazion 8169857
TAPPO ø 22 mm PER GRUPPO EROGAZION
7,79 €

excl. Shipping costs

Delivery time 4-6 weeks
68blind hexagonal nut m8 uni 5721 8003355
BLIND HEXAGONAL NUT M8 UNI 5721
Price on request
71sechskantmutter edelstahl m4 a2 din 934 8061380
Sechskantmutter Edelstahl M4 A2 Din 934
0,25 €

excl. Shipping costs

immediately available

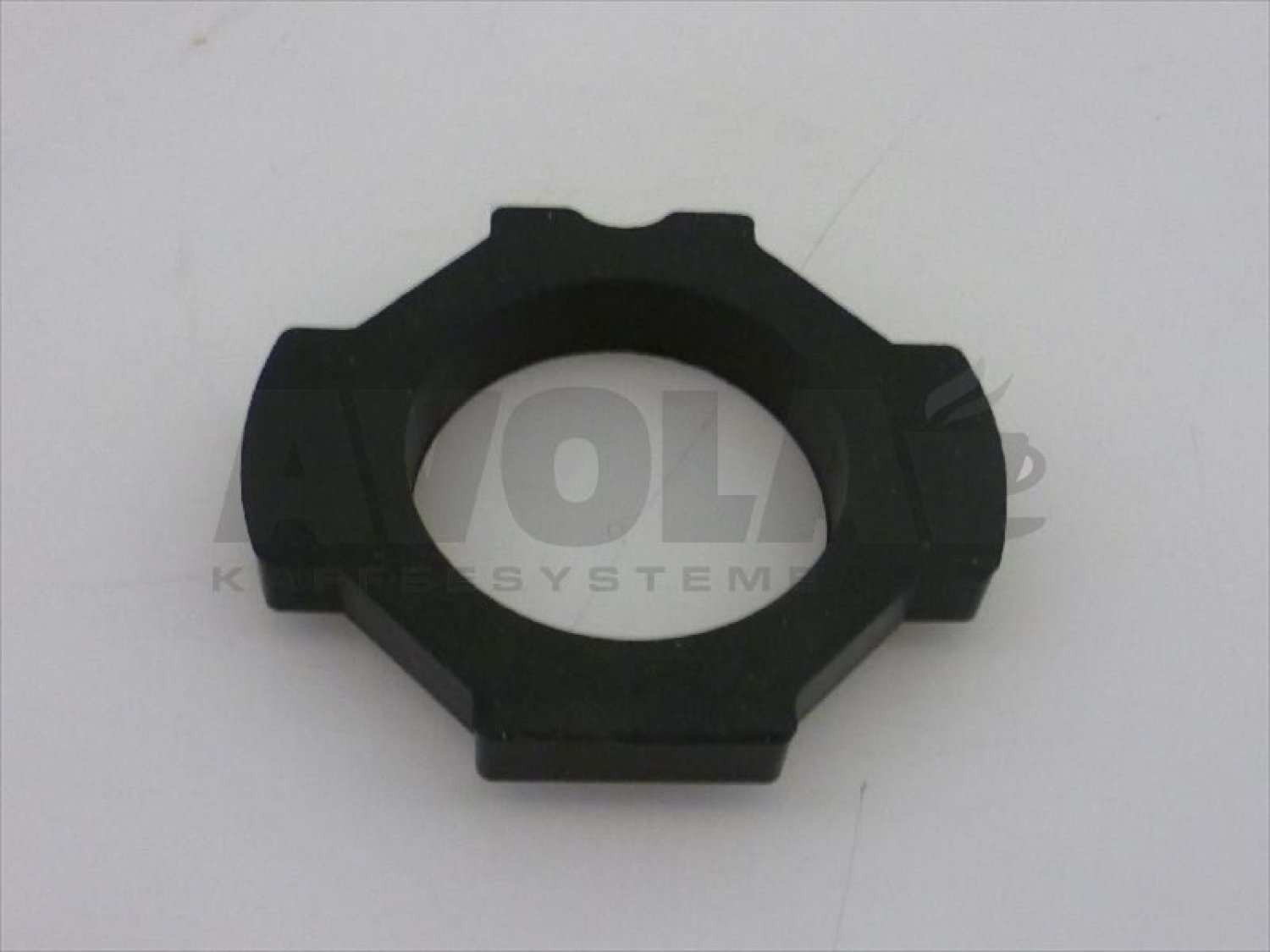

74gruppendichtung la pavoni 8069159
Gruppendichtung La Pavoni
19,06 €

excl. Shipping costs

immediately available, 9 available
76blind filter o58mm 8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs

immediately available

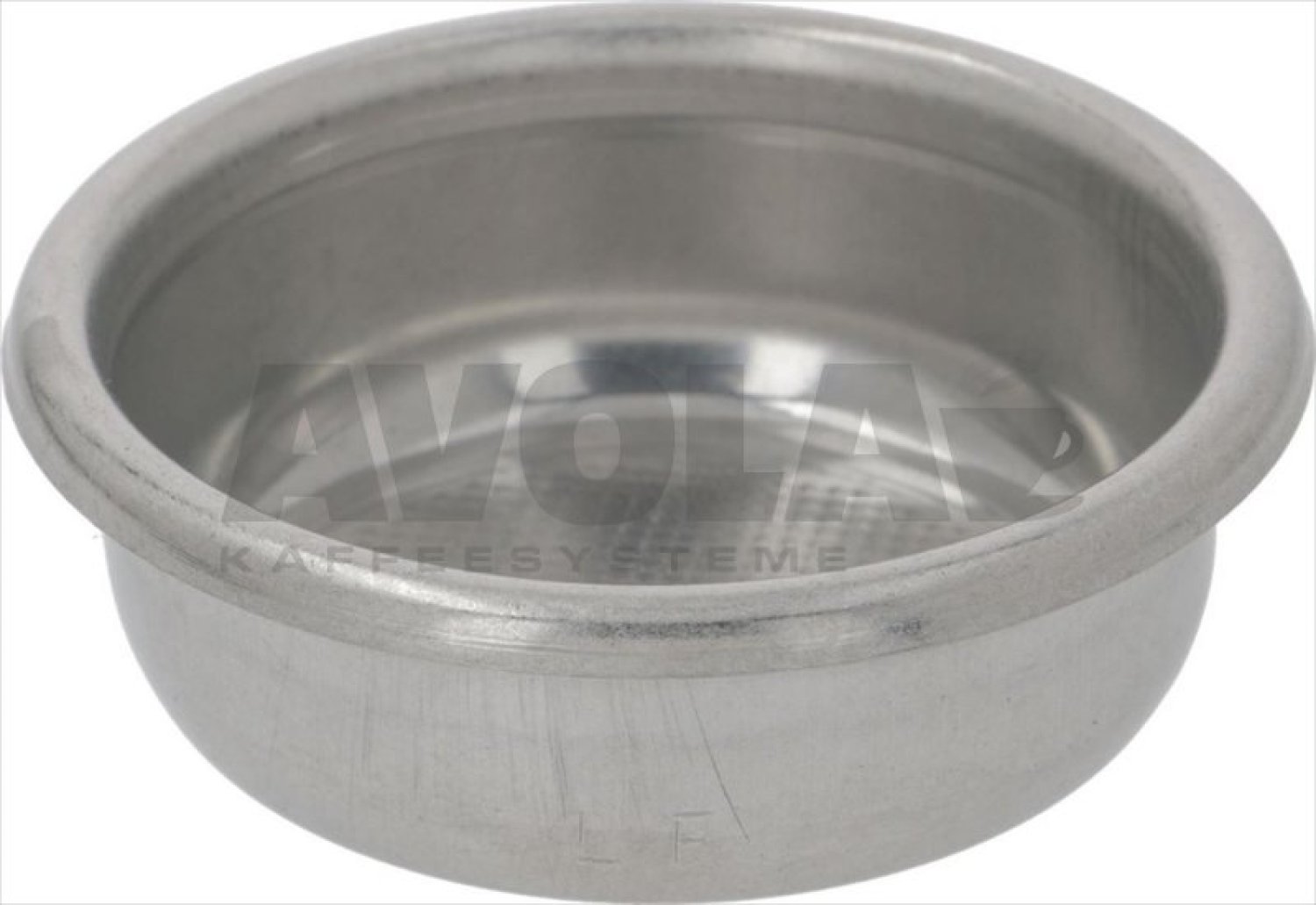

772 cups filter 16 gr 8001067
2 CUPS FILTER 16 gr
7,93 €

excl. Shipping costs

immediately available, 3 available

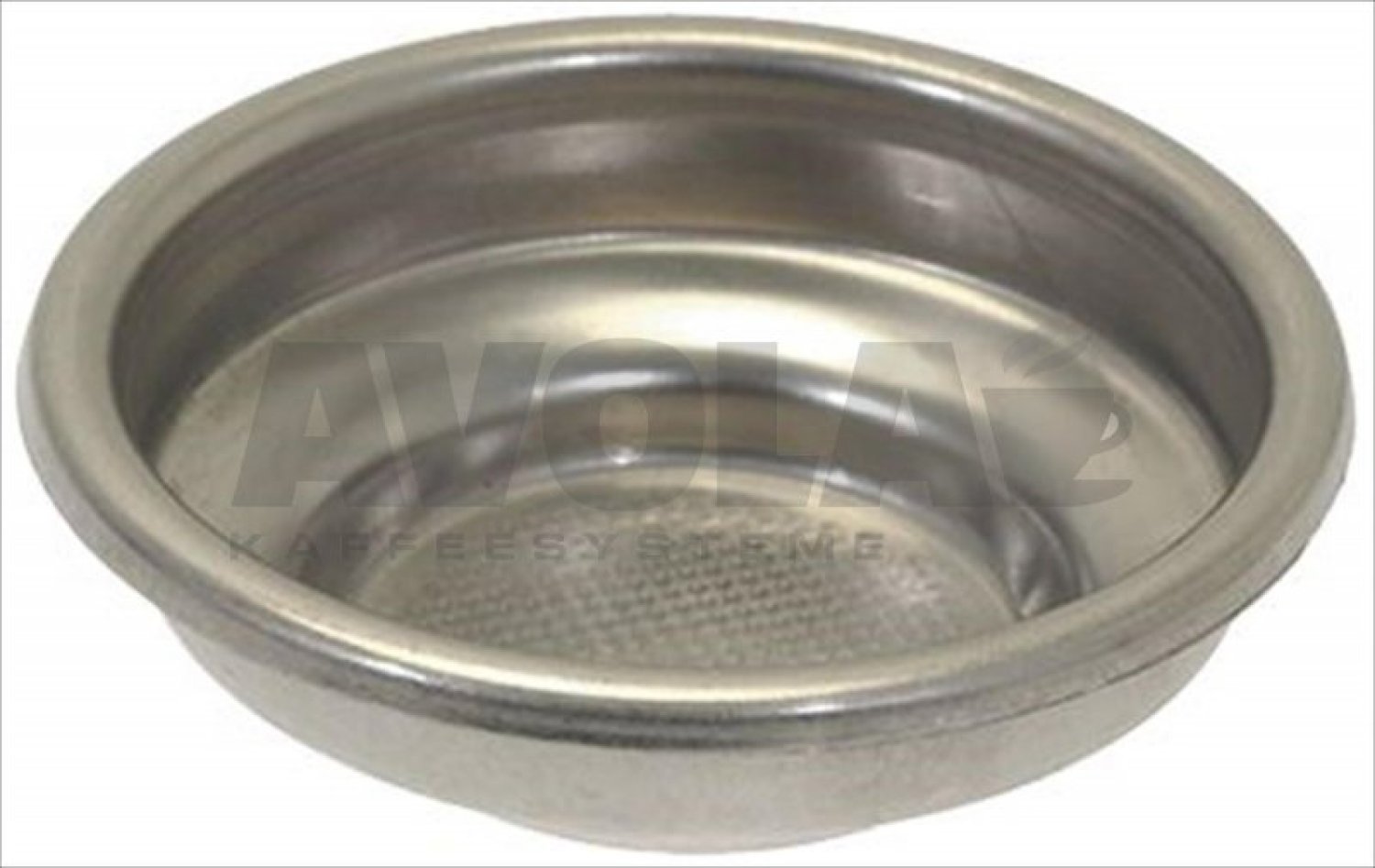

781 cup filter 7 gr 8001066
1 CUP FILTER 7 gr
7,29 €

excl. Shipping costs

immediately available, 4 available
79filter blocking spring o 1 00 mm 8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs

immediately available

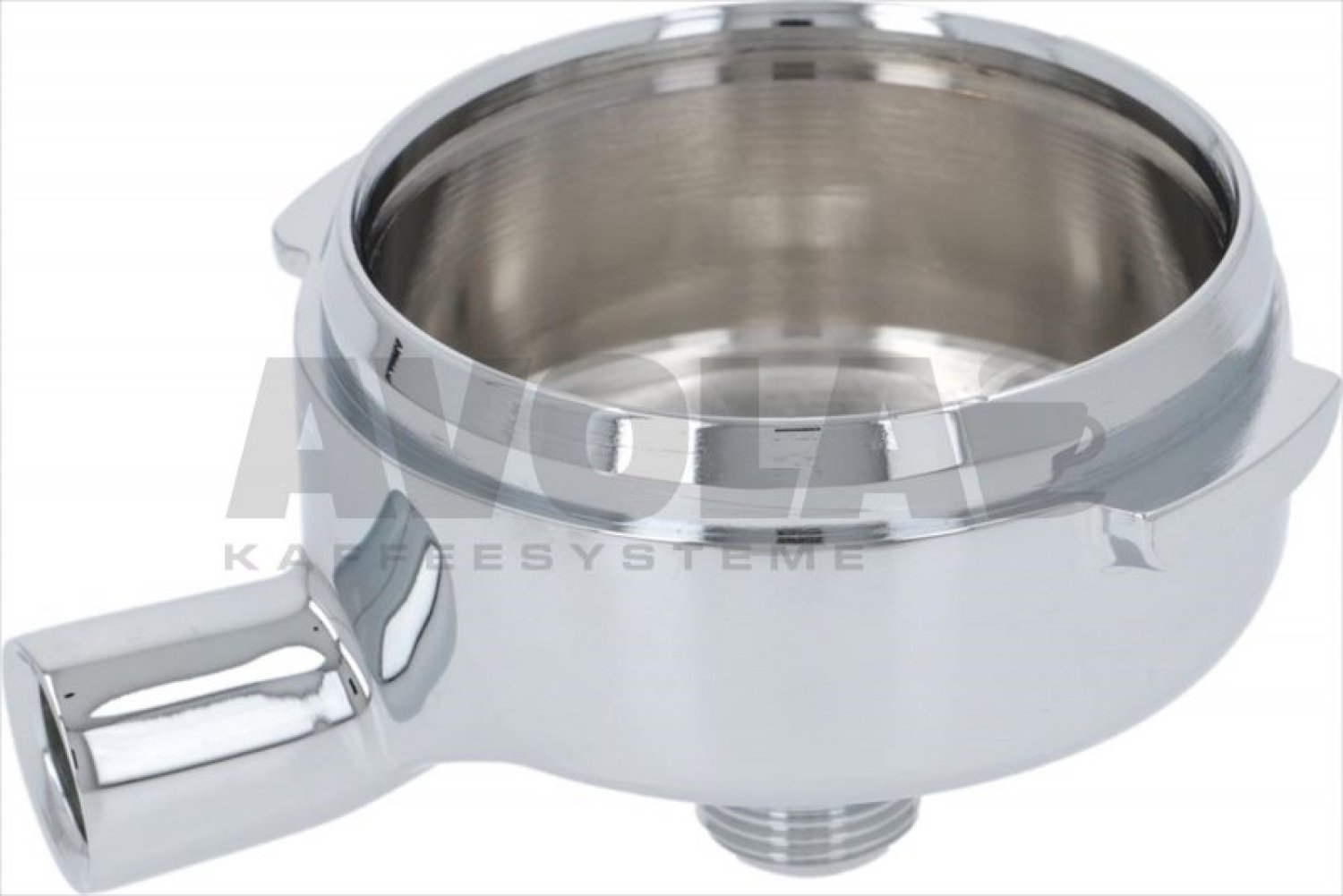

80filter holder pavoni 8001200
FILTER HOLDER PAVONI
24,95 €

excl. Shipping costs

immediately available, 2 available
81filter holder handle m12 8003399
FILTER HOLDER HANDLE M12
13,24 €

excl. Shipping costs

immediately available, 1 available
82closed single spout o 3 8 8000113
CLOSED SINGLE SPOUT ø 3/8
7,25 €

excl. Shipping costs

immediately available, 5 available
83single spout o 3 8 8000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs

immediately available, 8 available
84lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne 8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
84double spout o 3 8 8000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs

immediately available, 8 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
