PAVONI VEROBAR BRÜHGRUPPE

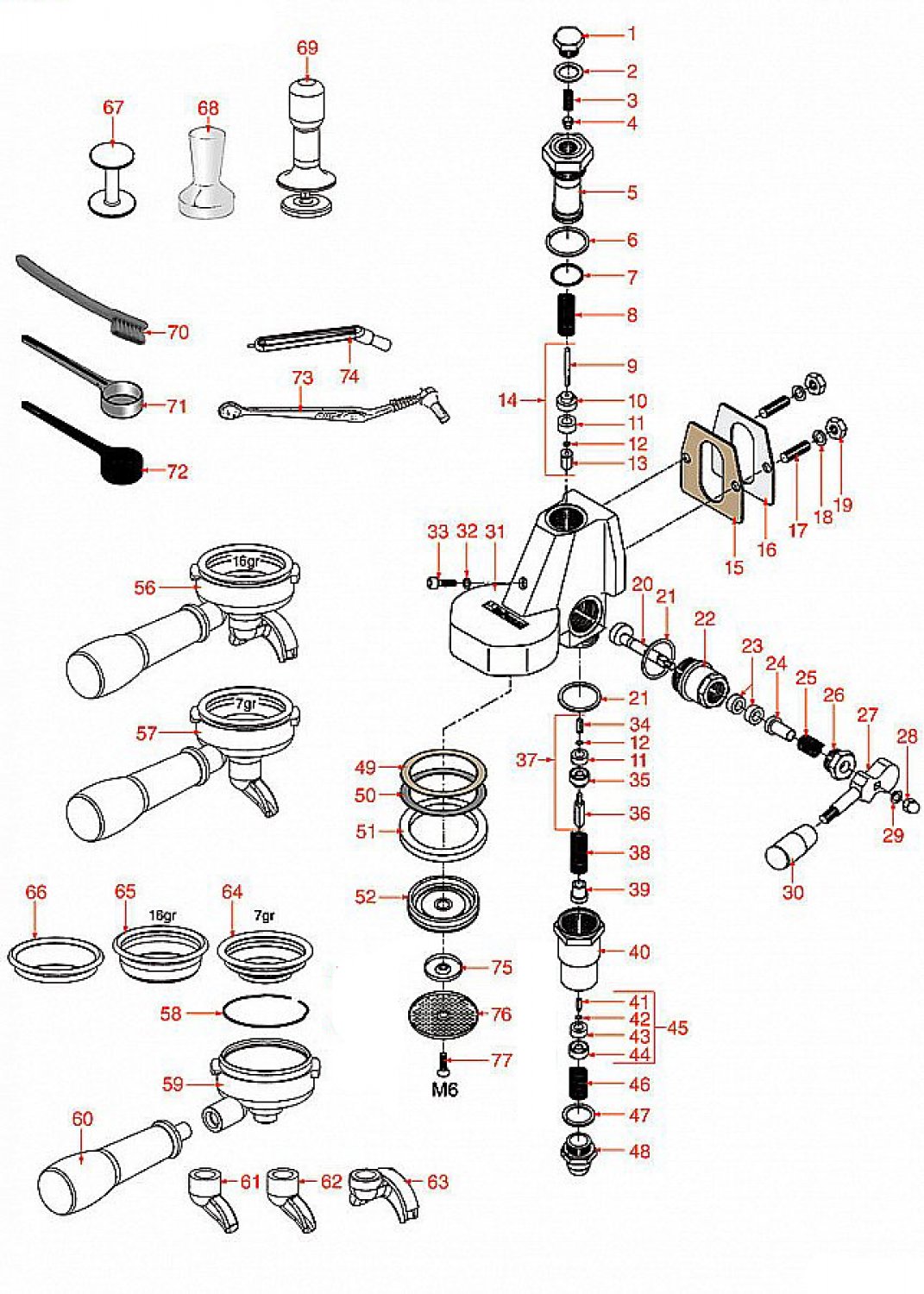

Drawing number 8081264

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1deckel fuer auslaufgruppe o 16 mm8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs
immediately available, 8 available
2ptfe flat gasket o 16x22 5x2 mm8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs
immediately available
3water filter o 8 5x22 mm8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs
immediately available
4nozzle m6x0 75 hole8006989
NOZZLE M6x0,75 HOLE
3,12 €

excl. Shipping costs
immediately available
5e61 gruppenpilz kollektor oben verchromt grosse nut8073648
E61 Gruppenpilz Kollektor oben verchromt (große Nut)
29,90 €

excl. Shipping costs
immediately available, 7 available
6ptfe flat gasket o 35x30x2 mm8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs
immediately available
7o ring 0128 viton8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs
immediately available
9delivery valve pin8005098
DELIVERY VALVE PIN
2,71 €

excl. Shipping costs
immediately available, 10 available
10gasket holder bushing8001568
GASKET HOLDER BUSHING
3,26 €

excl. Shipping costs
immediately available, 14 available
11nbr flat gasket o 13x4x4 mm8001569
NBR FLAT GASKET ø 13x4x4 mm
0,49 €

excl. Shipping costs
immediately available
12brass washer 6x3x0 5 mm8001584
BRASS WASHER 6x3x0,5 mm
0,68 €

excl. Shipping costs
immediately available, 17 available
13square pin 12 1 mm 6x6 mm m38005113
SQUARE PIN 12.1 mm 6x6 mm M3
1,90 €

excl. Shipping costs
immediately available, 12 available
14complete spout valve8007123
COMPLETE SPOUT VALVE
8,40 €

excl. Shipping costs
immediately available
15coffee group gasket 80x70x2 mm8001624
COFFEE GROUP GASKET 80x70x2 mm
3,51 €

excl. Shipping costs
immediately available, 6 available
16coffee group gasket 77x73x2 mm8001729
COFFEE GROUP GASKET 77x73x2 mm
8,44 €

excl. Shipping costs
immediately available, 7 available
17stainless steel m8x25 mm stud8001292
STAINLESS STEEL M8x25 mm STUD
1,42 €

excl. Shipping costs
immediately available, 5 available
18spiral spring washer m88029867
SPIRAL SPRING WASHER M8
0,98 €

excl. Shipping costs
Delivery time
is determined
19hexagonal nut m8 medium8011323
HEXAGONAL NUT M8 MEDIUM
1,04 €

excl. Shipping costs
immediately available
20cam rod for e61 coffee group8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs
immediately available
21ptfe flat gasket o 35x30x2 mm8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs
immediately available
22ecm rocket anschluss nockenwelle e61 verchromt hochglanzpoliert8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert
19,90 €

excl. Shipping costs
immediately available, 10 available
23epdm flat gasket 15 5x7 5x4 mm8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs
immediately available
24cam guide bushing8001571
CAM GUIDE BUSHING
3,90 €

excl. Shipping costs
immediately available, 20 available
25spring o 15x25 mm8003821
SPRING ø 15x25 mm
2,02 €

excl. Shipping costs
immediately available, 13 available
26stuffing gland chrome plated fitting8006414
STUFFING GLAND CHROME-PLATED FITTING
7,87 €

excl. Shipping costs
immediately available, 5 available
28blind hexagonal nut m68007252
BLIND HEXAGONAL NUT M6
1,11 €

excl. Shipping costs
immediately available
29washer elastic spiral m68001672
WASHER ELASTIC SPIRAL M6
1,64 €

excl. Shipping costs
immediately available
30brewing group handle8003320
BREWING GROUP HANDLE
6,05 €

excl. Shipping costs
immediately available, 2 available
30filter holder knob m10 elektra8003132
FILTER HOLDER KNOB M10 Elektra
13,23 €

excl. Shipping costs
Delivery time
is determined
32ptfe flat gasket o10x6x1 mm8001400
PTFE FLAT GASKET ø10x6x1 mm
1,30 €

excl. Shipping costs
immediately available, 16 available
33low cylinder head screw m6x10 uni 93278001293
LOW CYLINDER HEAD SCREW M6x10, UNI 9327
2,49 €

excl. Shipping costs
immediately available
34square pin 12 1 mm 6x6 mm m38005113
SQUARE PIN 12.1 mm 6x6 mm M3
1,90 €

excl. Shipping costs
immediately available, 12 available
35gasket holder bushing8001568
GASKET HOLDER BUSHING
3,26 €

excl. Shipping costs
immediately available, 14 available
37complete drain valve8007124
COMPLETE DRAIN VALVE
10,50 €

excl. Shipping costs
immediately available
39spring guide bushing8001795
SPRING GUIDE BUSHING
4,64 €

excl. Shipping costs
immediately available, 9 available
40outlet chromium plated sleeve8000146
OUTLET CHROMIUM-PLATED SLEEVE
46,68 €

excl. Shipping costs
immediately available, 1 available
42brass washer 6x3x0 5 mm8001584
BRASS WASHER 6x3x0,5 mm
0,68 €

excl. Shipping costs
immediately available, 17 available
43nbr flat gasket o 13x4x4 mm8001569
NBR FLAT GASKET ø 13x4x4 mm
0,49 €

excl. Shipping costs
immediately available
45e61 drain valve with gasket8007125
E61 drain valve with gasket
5,90 €

excl. Shipping costs
immediately available
46feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs
immediately available
48drain chromium plated fitting8105825
DRAIN CHROMIUM-PLATED FITTING
7,20 €

excl. Shipping costs
immediately available, 2 available
49paper shim o 73x59x0 8 mm8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs
immediately available
50rubber shim o 73 5x59x1 mm epdm8002168
RUBBER SHIM ø 73,5x59x1 mm EPDM
1,05 €

excl. Shipping costs
immediately available
51filter holder gasket o 74x57 5x8 mm8001901
Filter holder gasket ø 74x57,5x8 mm
3,82 €

excl. Shipping costs
immediately available
52shower holder diffuser8005223
SHOWER HOLDER DIFFUSER
32,09 €

excl. Shipping costs
immediately available, 1 available
58filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available
59filter holder pavoni8001200
FILTER HOLDER PAVONI
24,95 €

excl. Shipping costs
immediately available, 2 available
60filter holder handle m128003399
FILTER HOLDER HANDLE M12
13,24 €

excl. Shipping costs
immediately available, 1 available
61closed single spout o 3 88000113
CLOSED SINGLE SPOUT ø 3/8
7,25 €

excl. Shipping costs
immediately available, 5 available
62single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available, 11 available
63lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
63double spout o 3 88000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs
immediately available, 6 available
641 cup filter 7 gr8001066
1 CUP FILTER 7 gr
7,29 €

excl. Shipping costs
immediately available, 4 available
652 cups filter 16 gr8001067
2 CUPS FILTER 16 gr
7,93 €

excl. Shipping costs
immediately available, 3 available
66blind filter o58mm8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs
immediately available
67nylon coffee tamper8006165
NYLON COFFEE TAMPER
2,75 €

excl. Shipping costs
immediately available, 7 available
68anodised aluminum tamper o 58 mm8006191
ANODISED ALUMINUM TAMPER ø 58 mm
36,85 €

excl. Shipping costs
Delivery time
is determined
69dynamometric manual coffee tamper8006217
DYNAMOMETRIC MANUAL COFFEE TAMPER
194,40 €

excl. Shipping costs
Delivery time
is determined
69manual dynamometrical tamper8006219
MANUAL DYNAMOMETRICAL TAMPER
86,98 €

excl. Shipping costs
Delivery time 4-6 weeks..
70brush for maintenance8006154
BRUSH FOR MAINTENANCE
4,52 €

excl. Shipping costs
immediately available, 6 available
71stainless steel measuring spoon 20 ml8000328
STAINLESS STEEL MEASURING SPOON 20 ml
4,97 €

excl. Shipping costs
Delivery time
is determined
72plastic measuring spoon 20 ml8000327
PLASTIC MEASURING SPOON 20 ml
1,73 €

excl. Shipping costs
immediately available, 8 available
73black shower cleaning brush8006155
BLACK SHOWER CLEANING BRUSH
14,07 €

excl. Shipping costs
immediately available, 9 available
74brush for coffee shower8006153
BRUSH FOR COFFEE SHOWER
3,92 €

excl. Shipping costs
immediately available
75group sprinkler8006974
GROUP SPRINKLER
22,61 €

excl. Shipping costs
Delivery time 4-6 weeks..
76shower screen o 56 mm8000600
SHOWER SCREEN ø 56 mm
5,99 €

excl. Shipping costs
immediately available, 3 available
