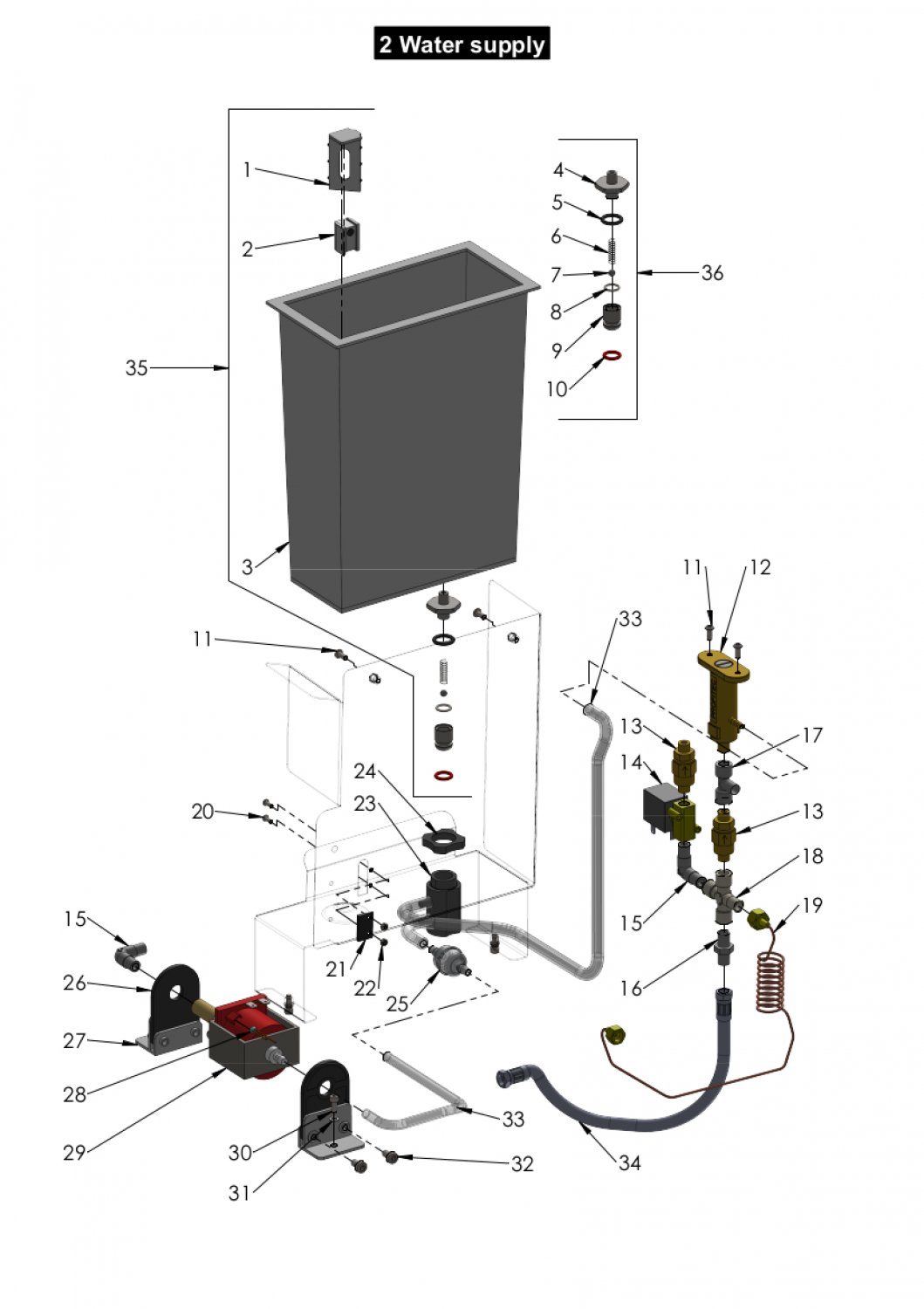

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.
| Pos.: |
Item No.: |
Image: |
Description: |
Shipment: |
Price
(inkl. VAT): |
Qty.: |
| 1 | 8101531 |  |
8101531
ECM / Profitec Cover for Float Guide
|
excl. Shipping costs
immediately available, 14 available
|
3,57 €
|
|
| 2 | 8069475 |  |
8069475
ECM / Profitec Reed Float for Water Tank
|
excl. Shipping costs
immediately available, 14 available
|
5,95 €
|
|
| 3 | 8080972 |  |
8080972
ECM and Profitec Water Tank Shell with Offset Opening
|
excl. Shipping costs
immediately available, 4 available
|
29,75 €
|
|
| 4 | 8164566 | |
8164566
Wassertankadapter Verschraubung
|
excl. Shipping costs
Delivery time: 4-6 weeks
|
17,73 €
|
|
| 5 | 8139642 |  |
8139642
ECM Profitec Dichtung Wassertankadapter oben
|
excl. Shipping costs
immediately available, 16 available
|
1,33 €
|
|
| 6 | 8069352 |  |
8069352
ECM Feder Wassertank
|
excl. Shipping costs
immediately available
|
2,68 €
|
|
| 7 | 8069353 |  |
8069353
ECM / Bezzera Stainless Steel Ball for Water Tank – Ø5.5 mm
|
excl. Shipping costs
immediately available, 8 available
|
2,26 €
|
|
| 8 | 8136878 |  |
8136878
Profitec O-Ring Wassertankadapter Mitte
|
excl. Shipping costs
immediately available
|
1,19 €
|
|
| 10 | 8136877 |  |
8136877
O-Ring Wassertankadapter unten ECM Profitec
|
excl. Shipping costs
immediately available
|
1,32 €
|
|
| 11 | 8080660 |  |
8080660
Linsenkopfschraube Innensechskant M4x10 – ISO 7380-1, Edelstahl A2, blank
|
excl. Shipping costs
immediately available
|
0,99 €
|
|
| 12 | 8069467 |  |
8069467
ECM / Profitec Adjustable Expansion Valve – 1/8" Male
|
excl. Shipping costs
immediately available, 11 available
|
37,90 €
|
|
| 13 | 8393687 |  |
8393687
ECM Non-Return Valve 1/8 Inch Male Thread – ECM & Profitec
|
excl. Shipping costs
immediately available, 20 available
|
11,00 €
|
|
| 14 | 8000815 |  |
8000815
ODE 2-Way Solenoid Valve 1/8" 230V 5W – Orifice Ø2.3 mm
|
excl. Shipping costs
immediately available, 19 available
|
26,41 €
|
|
| 15 | 8125580 |  |
8125580
L-Verbindungsstück 1/8"M 1/8"M
|
excl. Shipping costs
immediately available, 8 available
|
10,08 €
|
|
| 16 | 8005709 |  |
8005709
FITTING ø 1/8 A-1/8 A
|
excl. Shipping costs
immediately available, 9 available
|
2,42 €
|
|
| 17 | 8005873 |  |
8005873
T- Anschluss ø 1/8 I-1/8a-1/8 I vernickelt
|
excl. Shipping costs
immediately available, 5 available
|
7,31 €
|
|
| 18 | 8164570 | |
8164570
Kreuzfitting 1/8" MFFF
|
excl. Shipping costs
immediately available, 6 available
|
2,95 €
|
|
| 19 | 8073669 |  |
8073669
ECM Capillary Tube for Pump Pressure Gauge – 1/8" x 1/8"
|
excl. Shipping costs
immediately available, 7 available
|
8,91 €
|
|
| 21 | 8059519 |  |
8059519
ECM Füllstandsone Tank Reedkontakt Reed Sensor PIC MS-324/1253A
|
excl. Shipping costs
immediately available, 4 available
|
12,50 €
|
|
| 22 | 8118546 |  |
8118546
ECM Mutter M3
|
excl. Shipping costs
immediately available
|
0,26 €
|
|
| 23 | 8073606 |  |
8073606
ECM Water Tank Connector – Reinforced Version for ECM and Profitec
|
excl. Shipping costs
immediately available, 17 available
|
7,50 €
|
|
| 24 | 8073607 |  |
8073607
ECM Mutter für Wassertank Tankaufnahme
|
excl. Shipping costs
immediately available
|
4,52 €
|
|
| 25 | 8102293 |  |
8102293
Wasserfilter Tankfilter Partikelfilter
|
excl. Shipping costs
immediately available
|
5,02 €
|
|
| 27 | 8080944 |  |
8080944
ECM Pumpenhalterung Halterung Pumpe L- 1 Stück
|
excl. Shipping costs
immediately available, 6 available
|
3,80 €
|
|
| 28 | 8064013 |  |
8064013
Klixon Thermal Protector – 110 °C – for ULKA Vibration Pumps
|
excl. Shipping costs
immediately available, 6 available
|
6,63 €
|
|
| 30 | 8061180 |  |
8061180
Socket Head Cap Screw M4x10 – DIN 912 – Stainless Steel A2-70
|
excl. Shipping costs
immediately available
|
0,68 €
|
|
| 31 | 8062377 |  |
8062377
Scheibe Edelstahl Ø 4,3 mm A2 Din 125
|
excl. Shipping costs
immediately available
|
0,64 €
|
|
| 32 | 8164551 |  |
8164551
Schraube Pumpenhalterung 4,8x13mm
|
excl. Shipping costs
Delivery time: 4-6 weeks
|
1,31 €
|
|
| 33 | 8006817 |  |
8006817
Silicone Hose 5 × 8 mm – Platinum-Cured, Made in Germany
|
excl. Shipping costs
Delivery time 4-6 weeks
|
3,95 €
|
|
| 34 | 8164585 | |
8164585
Flexschlauch 1/8" FF 250mm
|
excl. Shipping costs
immediately available, 4 available
|
11,51 €
|
|
| 35 | 8080548 |  |
8080548
ECM / Profitec Complete Water Tank with Float and Brita Adapter
|
excl. Shipping costs
immediately available, 3 available
|
47,83 €
|
|
| 36 | 8140904 |  |
8140904
ECM / Profitec Stainless Steel Tank Adapter for BRITA Water Filter
|
excl. Shipping costs
immediately available
|
23,90 €
|
|
If your article is not listed, please use the following form and enter the desired numbers.
