Profitec Pro500 PID Kessel

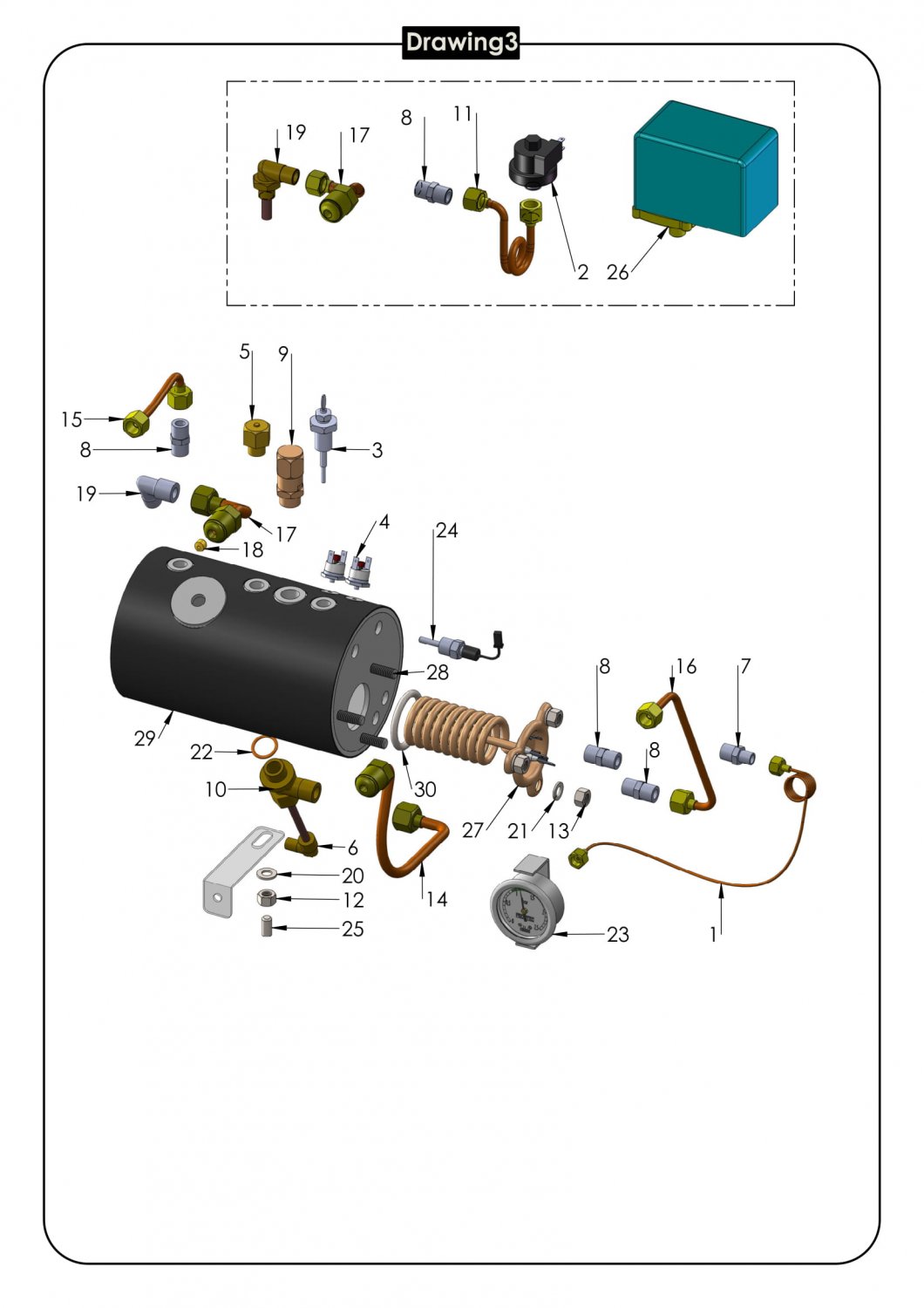

Drawing number 8280647

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1ecm profitec kapillarrohr manometer 0 5m 1 8f x 1 8f 8073670
ECM - Profitec Kapillarrohr Manometer 0,5M 1/8F x 1/8F
14,90 €

excl. Shipping costs

immediately available, 14 available
2pressure switch xp110 125 0 5 1 5 bar 1 4 8062916
Pressure Switch XP110 125 0.5-1.5 BAR 1/4
21,30 €

excl. Shipping costs

immediately available, 20 available
3niveausonde o 1 4 m 80 mm 8073951
Niveausonde ø 1/4 M-80 mm
21,30 €
17,26 €

excl. Shipping costs

Delivery time
is determined
4contact thermostat 135 deg c 145 deg c 8069003
CONTACT THERMOSTAT 135°C / 145°C
9,90 €

excl. Shipping costs

immediately available
5o 1 4 rime boiler valve 8007153
ø 1/4″ - BOILER VALVE
7,52 €

excl. Shipping costs

immediately available, 5 available
6ecm technika injektorrohr 8079607
ECM Technika Injektorrohr
9,52 €

excl. Shipping costs

immediately available, 2 available
7fitting o 1 8 and o 1 4 8005719
FITTING ø 1/8 and ø 1/4
6,08 €

excl. Shipping costs

immediately available, 15 available
8doppelnippel ecm rocket anschluss o 1 4 aussengewinde 1 stueck 8101400
Doppelnippel ECM Rocket Anschluss ø 1/4 Außengewinde (1 Stück)
5,95 €

excl. Shipping costs

immediately available
9boiler valve 8064144
BOILER VALVE
12,90 €

excl. Shipping costs

immediately available, 4 available
10kesselfitting t anschluss 3 8a x 3 8a x 1 4i 8069498
Kesselfitting T-Anschluss 3/8A x 3/8A x 1/4I
22,90 €

excl. Shipping costs

immediately available, 6 available
11ecm kupferrohr fuer druckwaechter pressostat 8101344
ECM Kupferrohr für Druckwächter Pressostat
16,72 €

excl. Shipping costs

immediately available, 3 available
12hexagonal nut m8 medium 8011323
HEXAGONAL NUT M8 MEDIUM
1,04 €

excl. Shipping costs

immediately available, 4 available
13sechskantmutter m8 messing 8164416
Sechskantmutter M8 Messing
1,05 €

excl. Shipping costs

immediately available
14 8164437
Rohr Rucklauf Gruppe
15,97 €

excl. Shipping costs

Delivery time
is determined

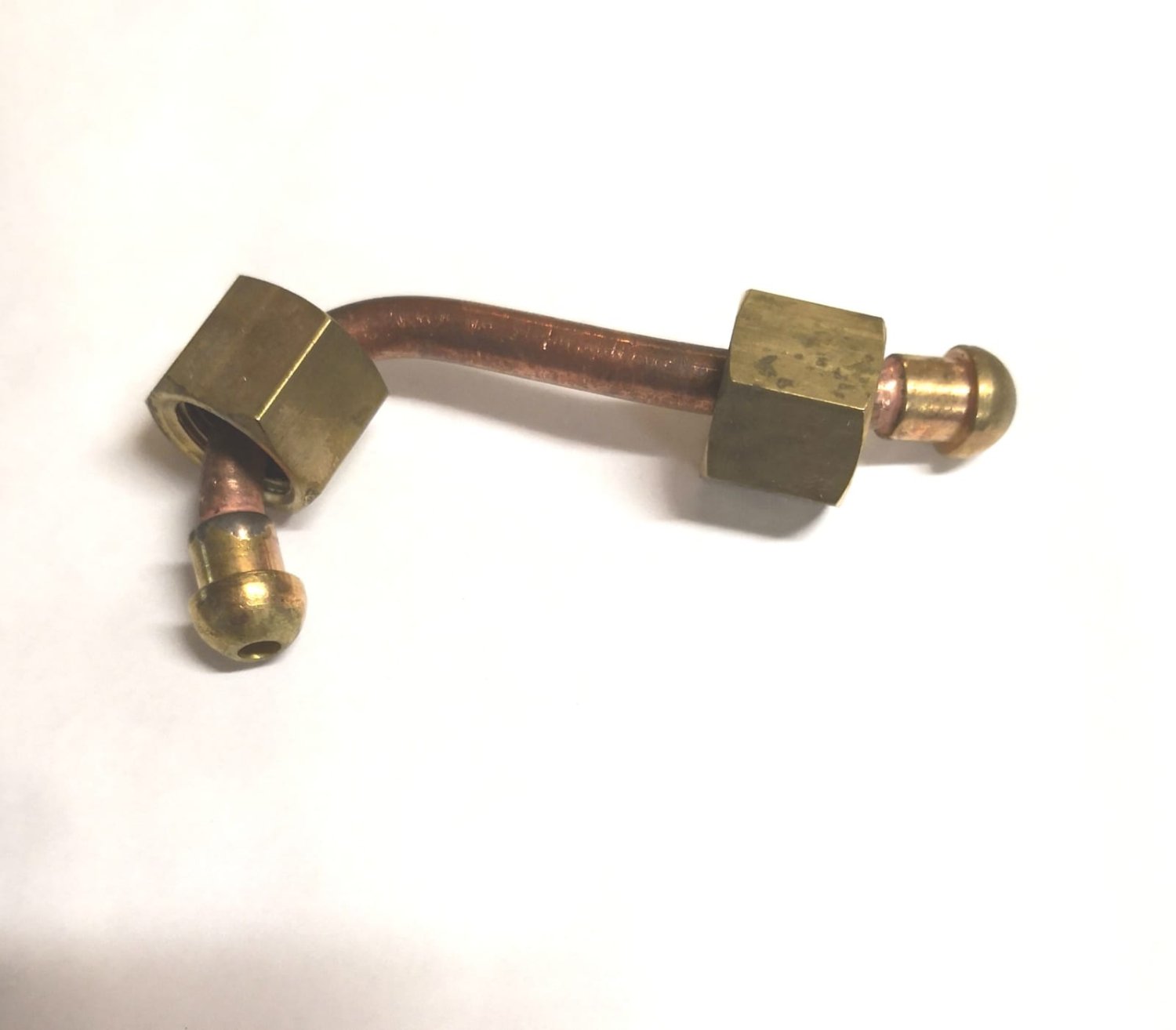

15ecm rohr edelstahlkessel zu dampfventil 8105714
ECM Rohr Edelstahlkessel zu Dampfventil
15,47 €

excl. Shipping costs

immediately available, 4 available
16rohr ecm kessel zum heisswasserventil 8105713
Rohr ECM Kessel zum Heisswasserventil
11,50 €

excl. Shipping costs

immediately available, 5 available
17ecm rohr waermetauscher oben zur gruppe mechanika iv technika rota 8079526
ECM Rohr Wärmetauscher oben zur Gruppe Mechanika IV Technika Rota
19,10 €

excl. Shipping costs

immediately available, 14 available

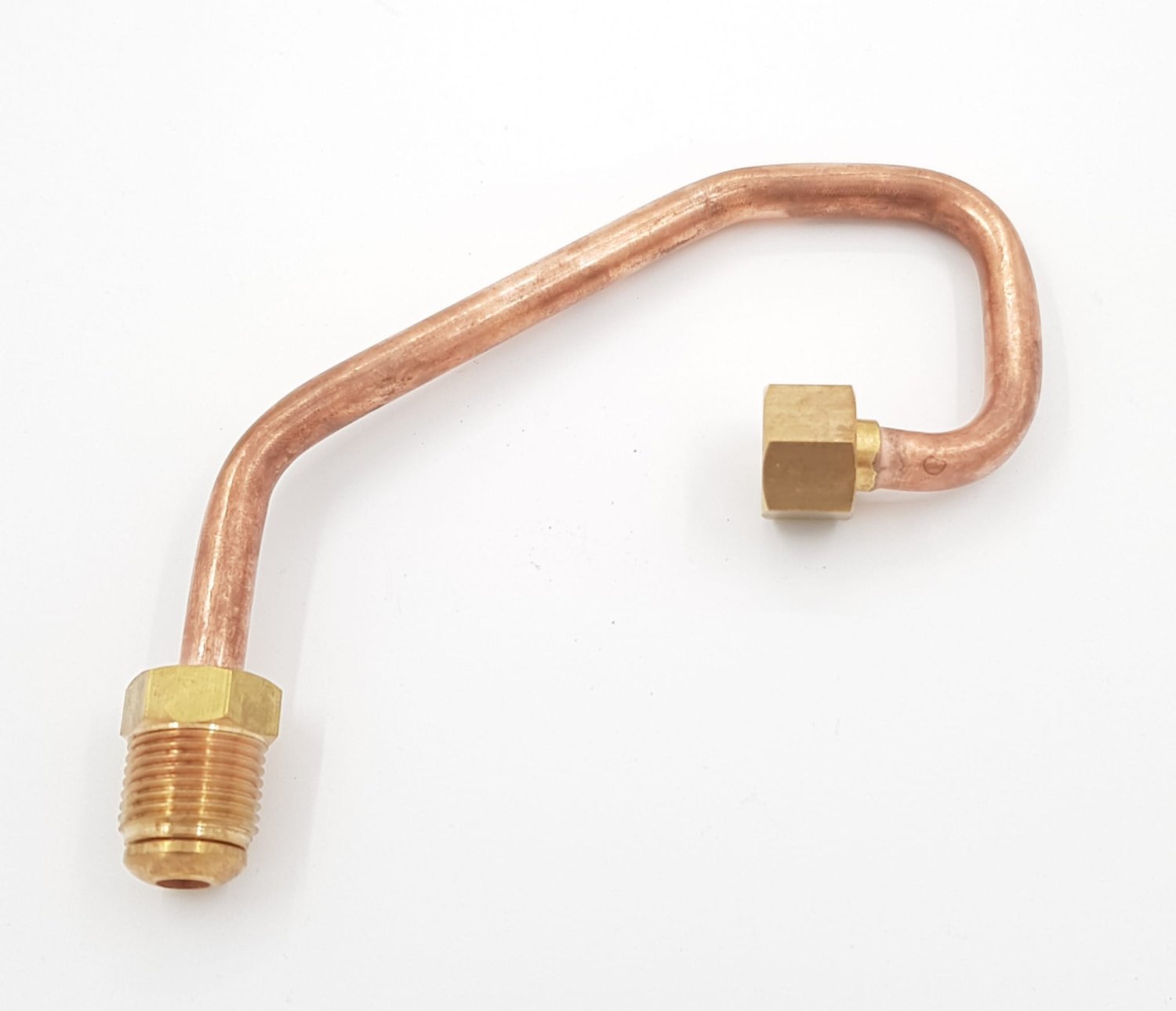

17ecm rohr waermetauscher zur gruppe oben ab baujahr 2018 8164439
ECM Rohr Wärmetauscher zur Gruppe oben (ab Baujahr 2018)
17,85 €

excl. Shipping costs

immediately available, 2 available

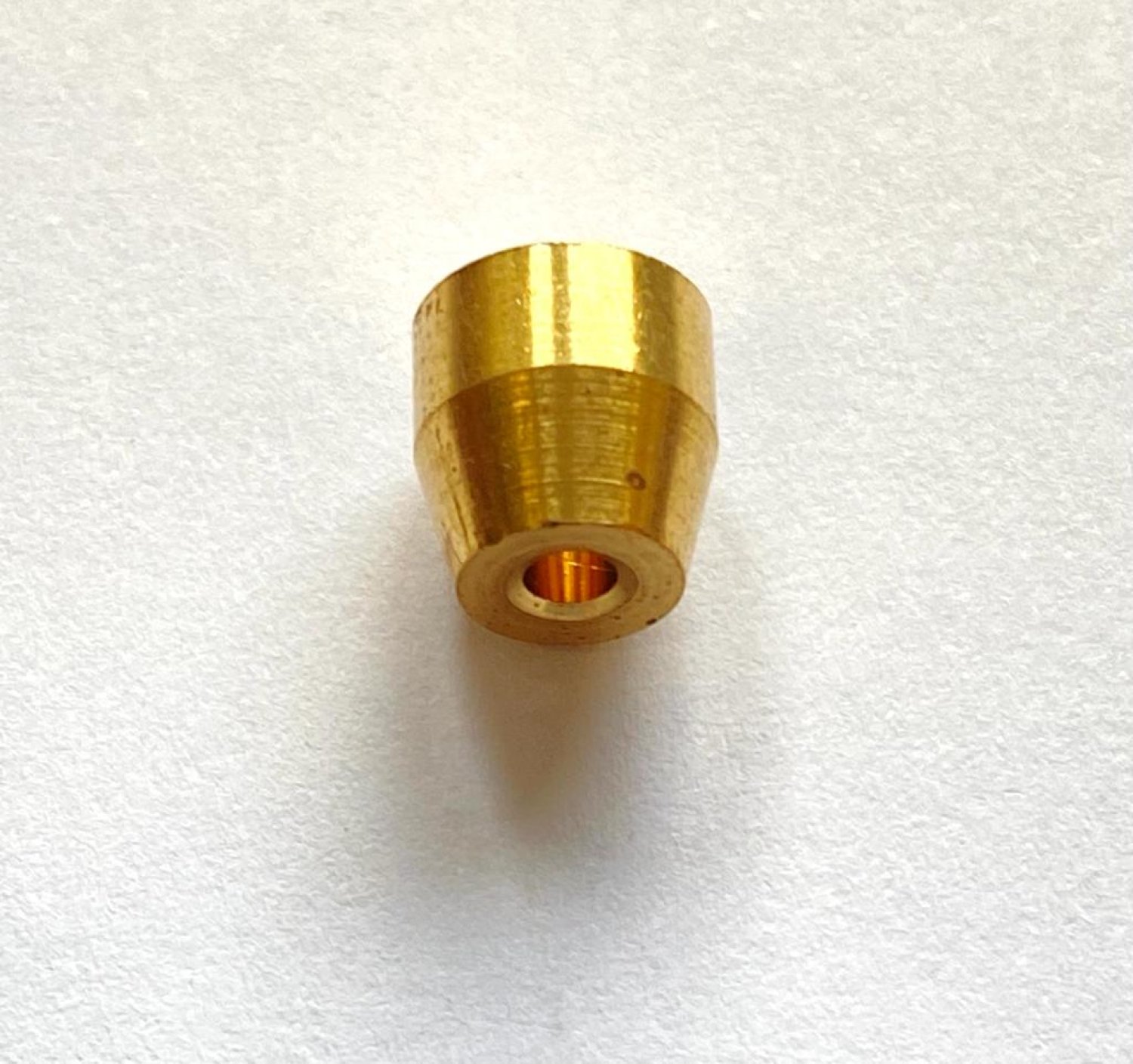

18stauscheibe 2 5mm drossel ecm 8164440
Stauscheibe 2,5mm Drossel ECM
1,96 €

excl. Shipping costs

immediately available

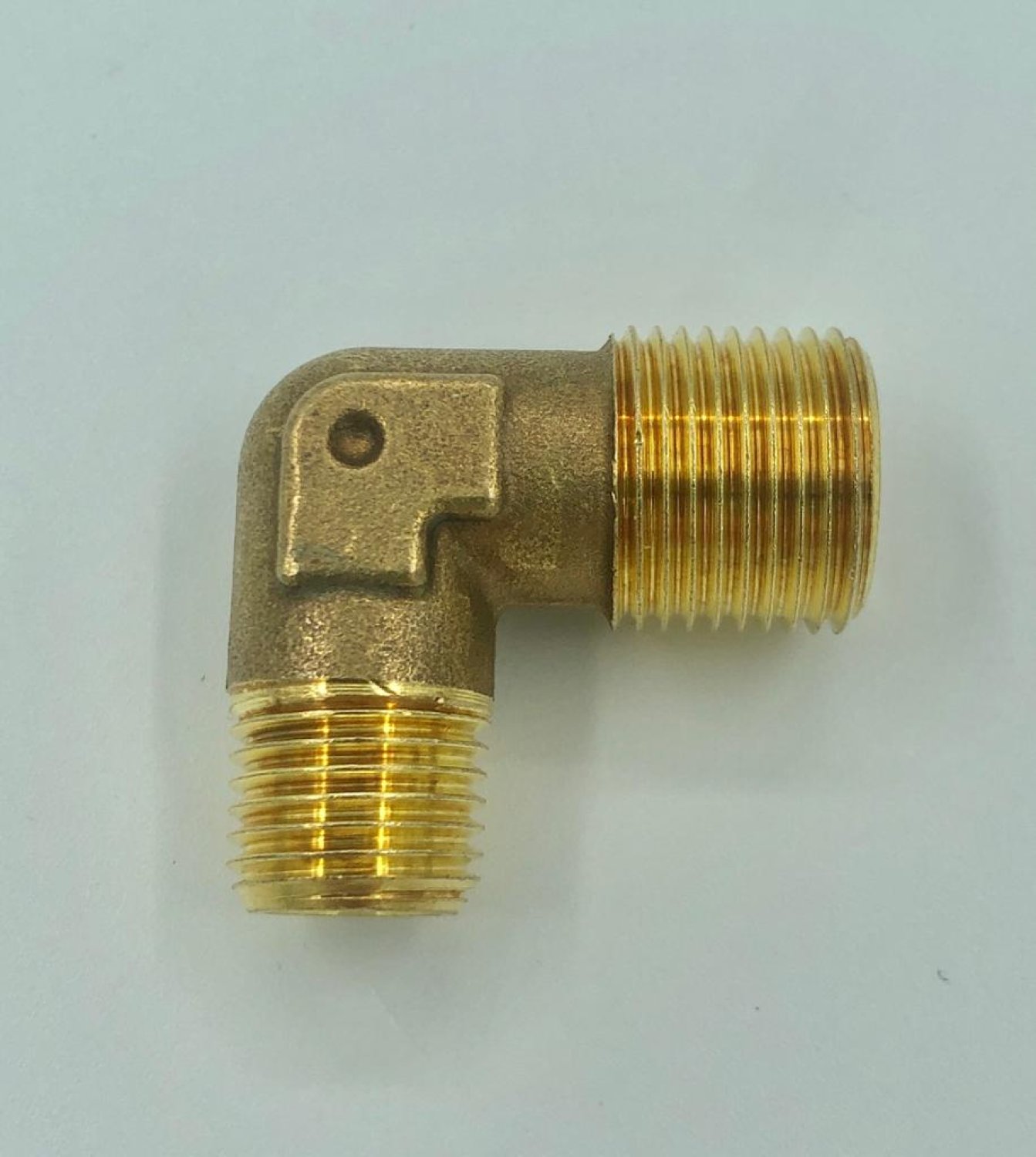

19ecm l verbindungsstueck 3 8 quot m 1 4 quot m 8118537
ECM L-Verbindungsstück 3/8"M 1/4"M
8,27 €

excl. Shipping costs

immediately available, 5 available
19ecm l stueck winkel waermetauscher mit tauchrohr 8079527
ECM L - Stück Winkel Wärmetauscher mit Tauchrohr
10,70 €

excl. Shipping costs

immediately available, 2 available
20ecm unterlegscheibe 8 4x16 1 6 8118545
ECM Unterlegscheibe 8,4x16,1,6
0,65 €

excl. Shipping costs

immediately available, 16 available
21federring m8 edelstahl din127 8080604
Federring M8 Edelstahl DIN127
0,92 €

excl. Shipping costs

immediately available, 10 available
22copper seal 3 8 rime 8118549
Copper seal 3/8″
1,84 €

excl. Shipping costs

immediately available
23kesseldruckmanometer profitec o 50 8080602
Kesseldruckmanometer Profitec Ø 50
43,91 €

excl. Shipping costs

immediately available, 10 available
24temperature probe ecm controvento profitec pro700 1 4 8073551
TEMPERATURE PROBE ECM CONTROVENTO PROFITEC PRO700 1/4
44,16 €

excl. Shipping costs

immediately available, 8 available

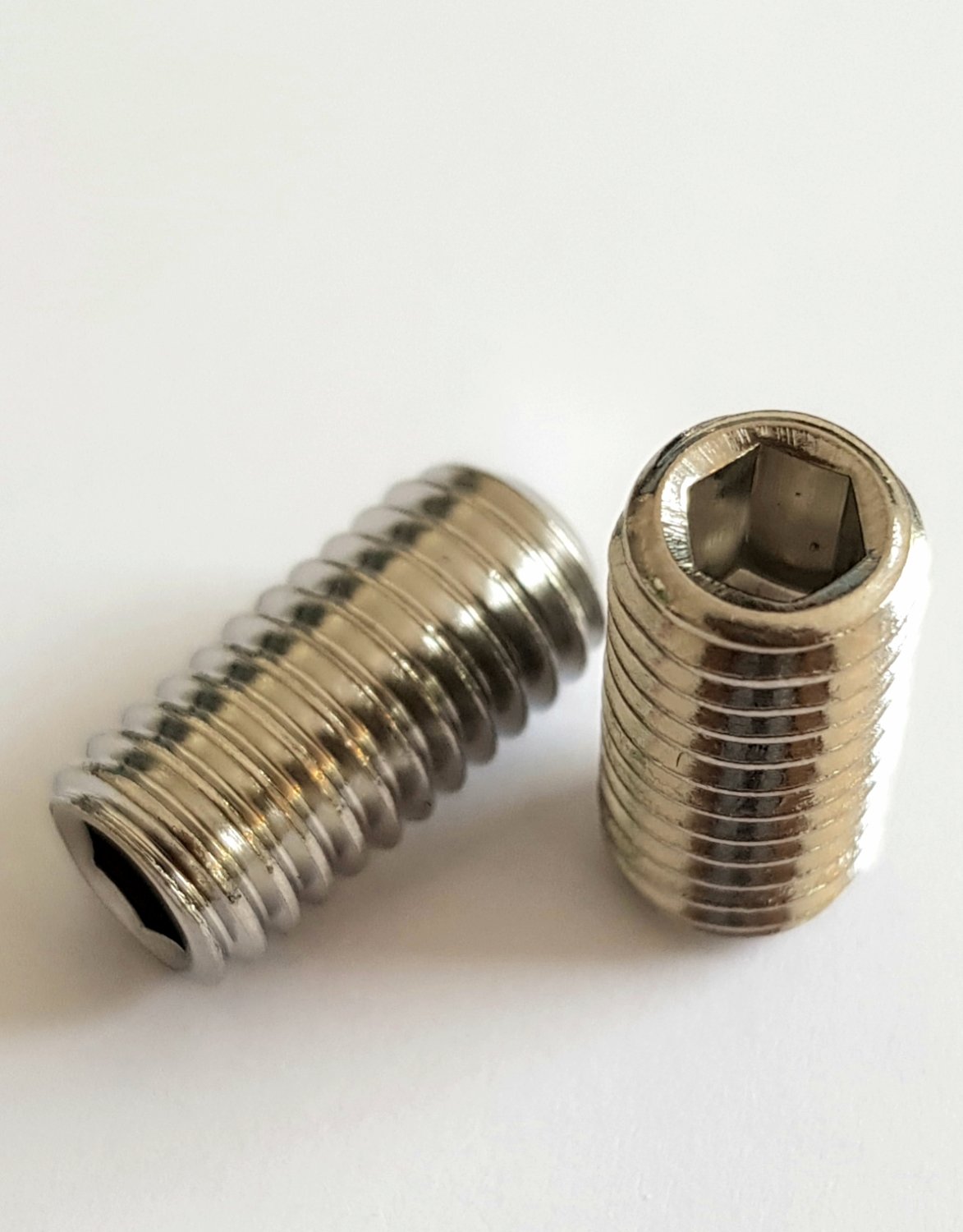

25gewindestift innensechskant m8x1 25 16mm laenge 1 stueck 8105750
Gewindestift Innensechskant M8x1,25 16mm Länge (1 Stück)
1,96 €

excl. Shipping costs

immediately available, 3 available
26pressure switch p303t01 3 poles 20a 1 4 8005077
PRESSURE SWITCH P303T01 3-POLES 20A 1/4
89,50 €
89,50 €

excl. Shipping costs

immediately available, 4 available
27heating element 1400w 230v 8069443
HEATING ELEMENT 1400W 230V
46,90 €

excl. Shipping costs

immediately available, 5 available
27 8164643
Heizung 110V 1400W
56,60 €

excl. Shipping costs

Delivery time
is determined
28ecm edelstahlkessel 8080705
ECM Edelstahlkessel
209,90 €

excl. Shipping costs

immediately available, 2 available
29ecm kesselisolierung edelstahlkessel 8073638
ECM Kesselisolierung Edelstahlkessel
29,75 €

excl. Shipping costs

immediately available, 2 available
30o ring dichtung fuer heizung mit 3 loch flansch ecm profitec 8014608
O-Ring Dichtung für Heizung mit 3-Loch-Flansch ECM Profitec
4,34 €

excl. Shipping costs

immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
