Profitec

PROFITEC PRO700 ELEKTRONIK

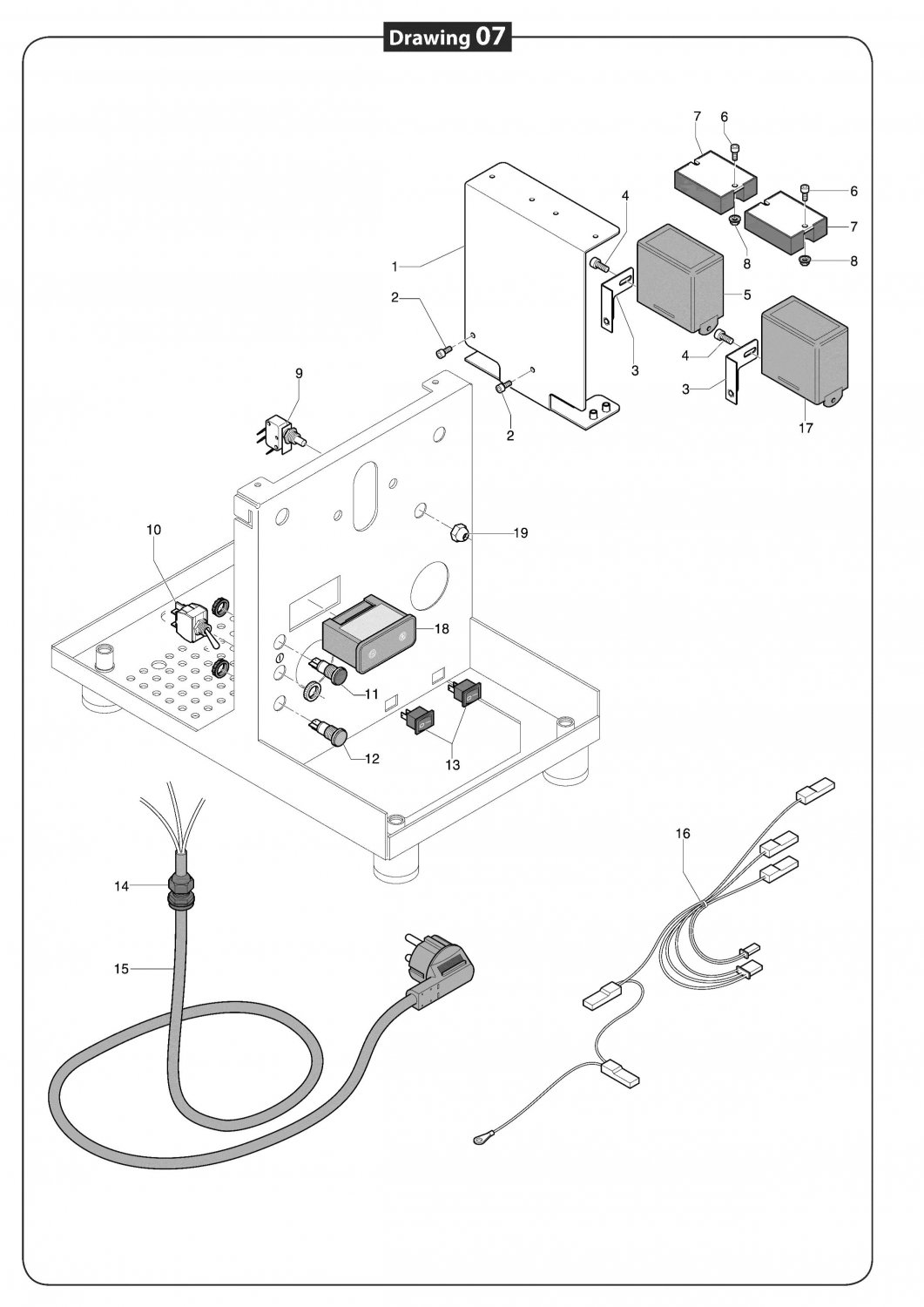

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Pos.:	Item No.:	Image:	Description:	Shipment:	Price (inkl. VAT):	Qty.:
1	8164465		8164465 Bracket electronic/power supply/relais	excl. Shipping costs Delivery time: 4-6 weeks	33,90 €	33,90 € excl. Shipping costs Delivery time: 4-6 weeks
2	8061180		8061180 Socket Head Cap Screw M4x10 – DIN 912 – Stainless Steel A2-70	excl. Shipping costs immediately available	0,68 €	0,68 € excl. Shipping costs immediately available
3	8081215		8081215 Halterung Relais ECM für Version mit Kupferkessel	excl. Shipping costs immediately available, 4 available	10,07 €	10,07 € excl. Shipping costs immediately available, 4 available
5	8069567		8069567 Gicar Control Box 9.9.36.12G.00 / DTI D530018800 / M2004 – 240 V for ECM / Profitec	excl. Shipping costs immediately available	119,00 €	119,00 € excl. Shipping costs immediately available
6	8061180		8061180 Socket Head Cap Screw M4x10 – DIN 912 – Stainless Steel A2-70	excl. Shipping costs immediately available	0,68 €	0,68 € excl. Shipping costs immediately available
7	8080399		8080399 ECM Profitec Solid State Relay SSR HFS15 D-240A25Z-LQ 25A 240VAC 4-32VDC	excl. Shipping costs immediately available, 7 available	34,50 €	34,50 € excl. Shipping costs immediately available, 7 available
9	8079440		8079440 Bezugsschalter Mikroschalter E61 mit Rolle	excl. Shipping costs immediately available	15,51 €	15,51 € excl. Shipping costs immediately available
9	8003091		8003091 MICROSWITCH 10A 250V	excl. Shipping costs immediately available, 20 available	13,69 €	13,69 € excl. Shipping costs immediately available, 20 available
10	8080744		8080744 Switch ECM 230V 15A	excl. Shipping costs immediately available, 9 available	19,42 €	19,42 € excl. Shipping costs immediately available, 9 available
11	8069346		8069346 GREEN INDICATOR LAMP 230V	excl. Shipping costs immediately available	5,95 €	5,95 € excl. Shipping costs immediately available
12	8069348		8069348 ORANGE INDICATOR LIGHT 230V	excl. Shipping costs immediately available	5,95 € 5,95 €	5,95 € 5,95 € excl. Shipping costs immediately available
13	8140902		8140902 Schalter ECM Profitec (1 Stück)	excl. Shipping costs immediately available, 1 available	9,66 €	9,66 € excl. Shipping costs immediately available, 1 available
14	8140900		8140900 Cable fastening with hex nut 5-10 mm	excl. Shipping costs Delivery time: 4-6 weeks	7,27 €	7,27 € excl. Shipping costs Delivery time: 4-6 weeks
16	8164536		8164536 Kabelbaum ECM / Profitec	excl. Shipping costs Delivery time: 4-6 weeks	59,00 €	59,00 € excl. Shipping costs Delivery time: 4-6 weeks
17	8139676		8139676 Netzteil 240V ECM Profitec für PID Steuerung	excl. Shipping costs immediately available, 1 available	33,32 €	33,32 € excl. Shipping costs immediately available, 1 available
18	8101771		8101771 Profitec Pro 700 PID Controller 132 °C with Fast Heat Up and ECO Mode – 12 V	excl. Shipping costs immediately available, 2 available	128,28 €	128,28 € excl. Shipping costs immediately available, 2 available
19	8071453		8071453 Überwurfmutter für Kaffeebezugsschalter ECM Bezzera M10X0,75	excl. Shipping costs immediately available, 6 available	2,39 €	2,39 € excl. Shipping costs immediately available, 6 available

If your article is not listed, please use the following form and enter the desired numbers.
