Rancilio

RANCILIO BOILER S20

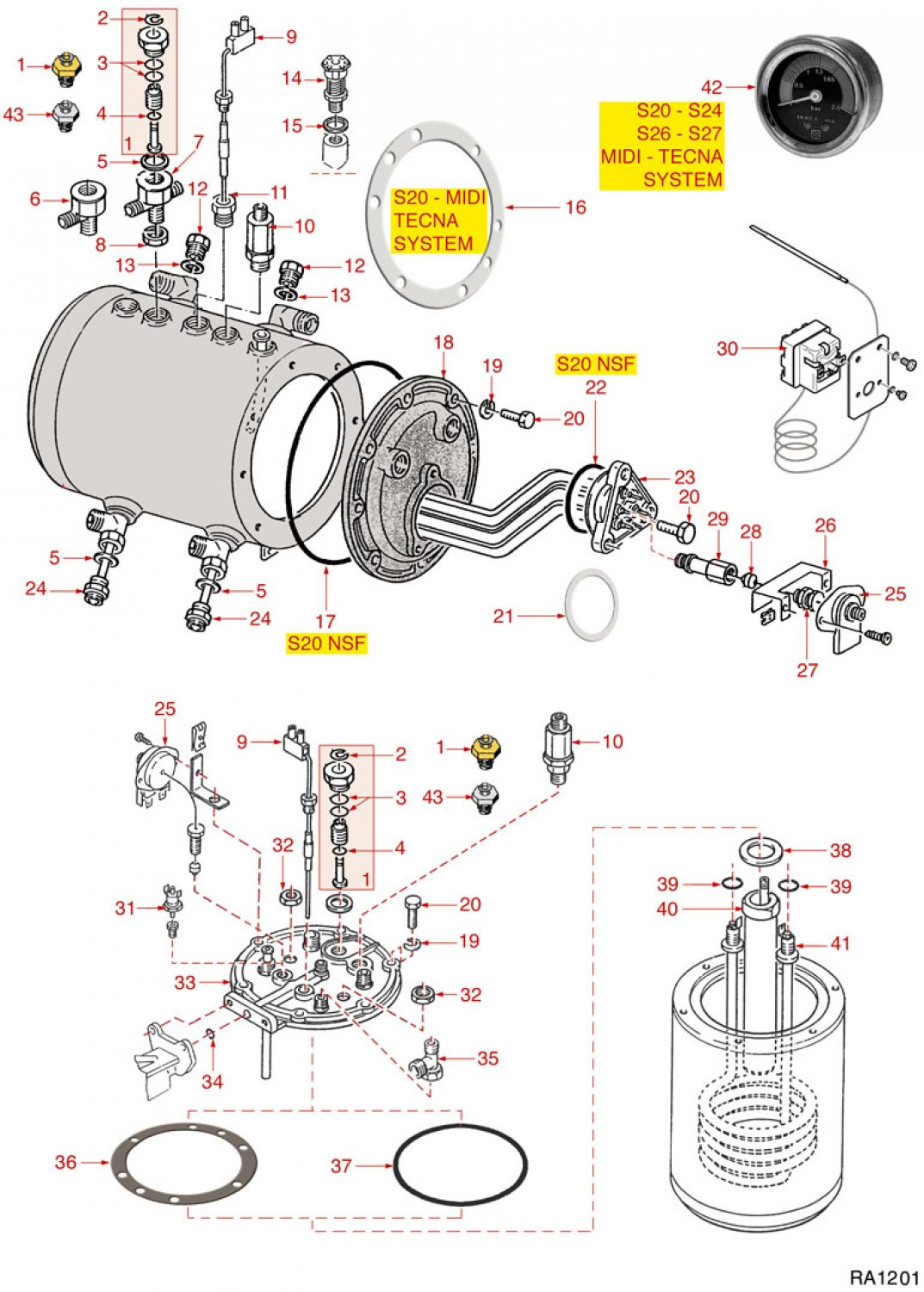

Drawing number 8057410

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1boiler valve o 1 4 rime 8007149
BOILER VALVE ø 1/4″
7,90 €

excl. Shipping costs

immediately available
1boiler valve old model 8007152
Boiler valve - old model
5,65 €

excl. Shipping costs

immediately available, 11 available

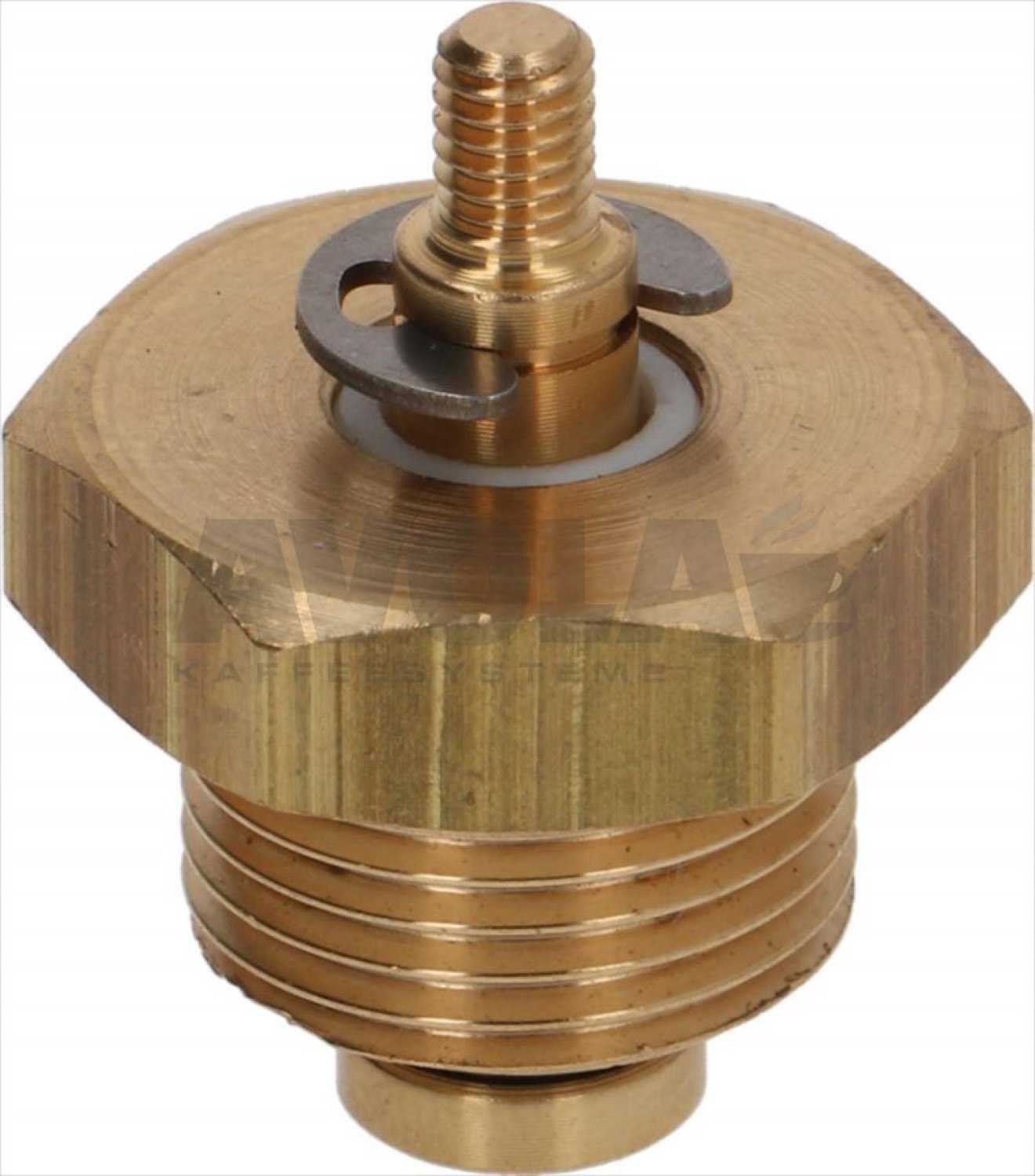

1boiler valve o 3 8 a 8007166
BOILER VALVE ø 3/8 A
Price on request
3o ring 02031 red silicon 8002065
O-RING 02031 - RED SILICON
0,83 €

excl. Shipping costs

immediately available
4gasket or 02021 epdm 8001604
Gasket OR 02021 EPDM
1,09 €

excl. Shipping costs

immediately available
5copper flat gasket 22x17x1 5 mm 8001815
COPPER FLAT GASKET 22x17x1,5 mm
1,01 €

excl. Shipping costs

immediately available

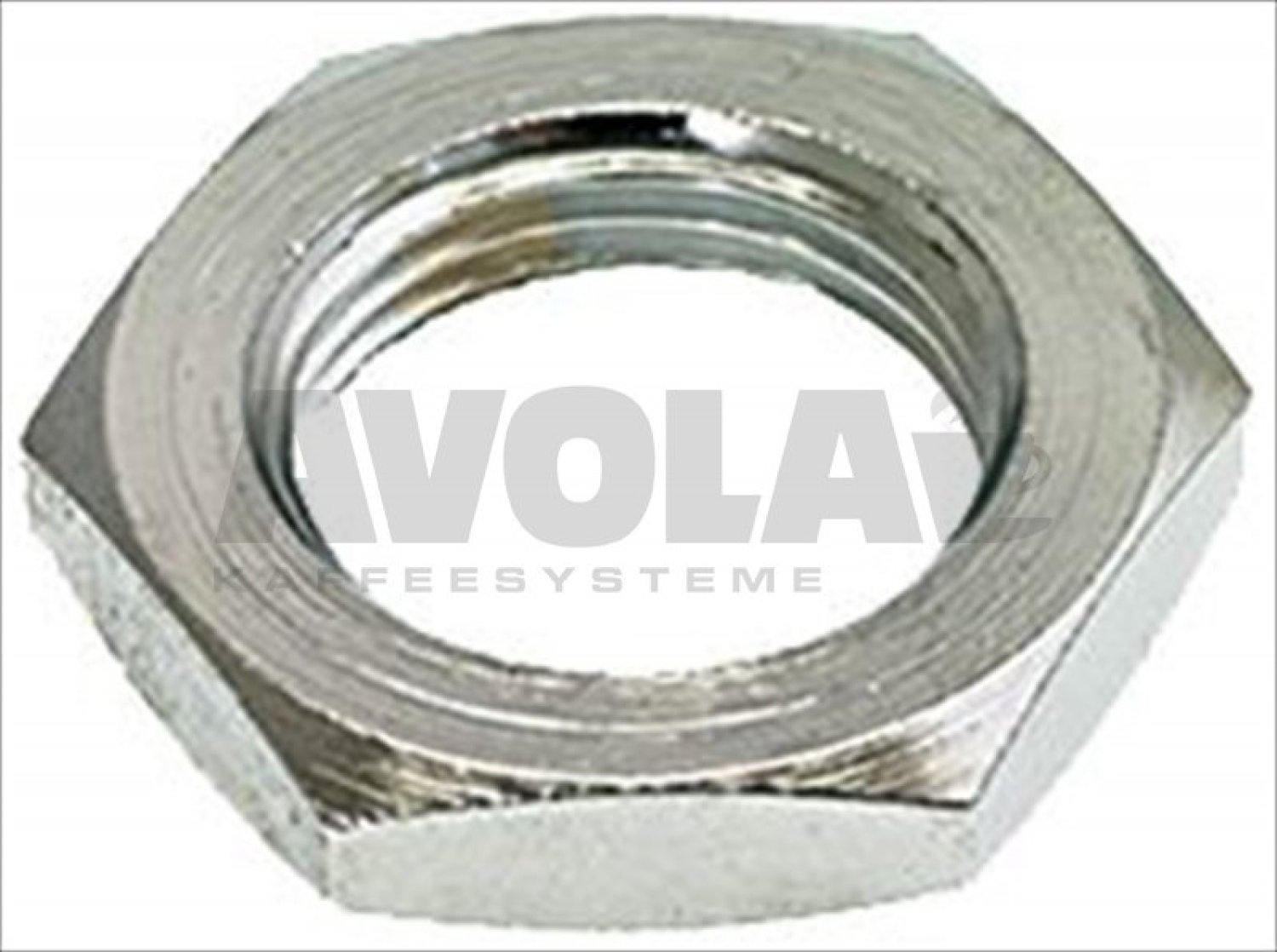

8nut 8005806
NUT
2,62 €

excl. Shipping costs

immediately available, 8 available
9level probe o 1 4 m 115 mm 8005331
LEVEL PROBE ø 1/4 M-115 mm
10,79 €

excl. Shipping costs

immediately available, 5 available
13copper flat gasket 22x17x1 5 mm 8001815
COPPER FLAT GASKET 22x17x1,5 mm
1,01 €

excl. Shipping costs

immediately available
14sicherheitsventil 1 2 zoll 1 8bar ce ped 8101654
Sicherheitsventil 1/2 Zoll 1,8bar CE-PED
26,04 €

excl. Shipping costs

immediately available, 3 available

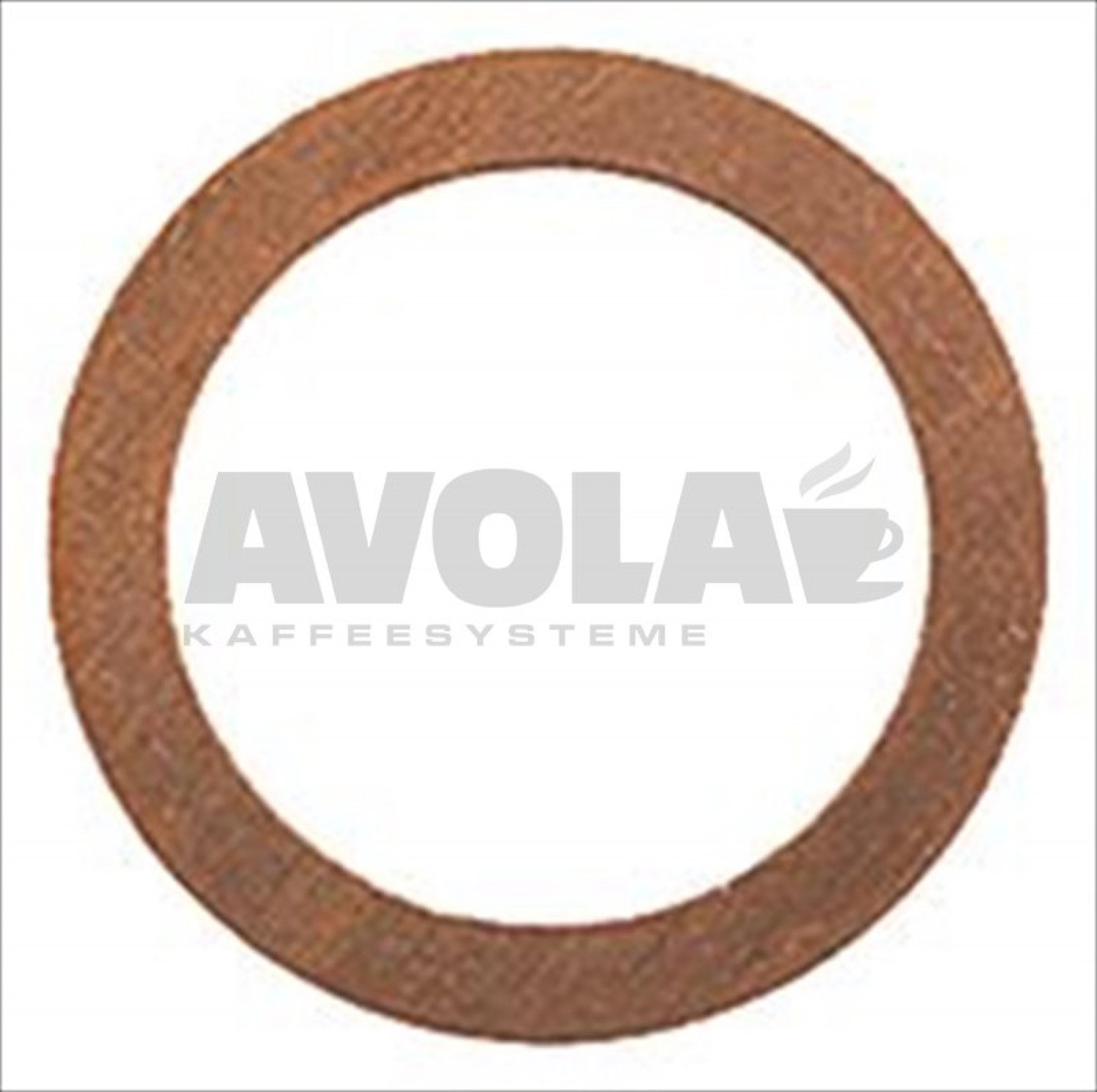

15copper flat gasket o 27x21 5x1 mm 8001991
COPPER FLAT GASKET ø 27x21,5x1 mm
1,31 €

excl. Shipping costs

immediately available, 16 available

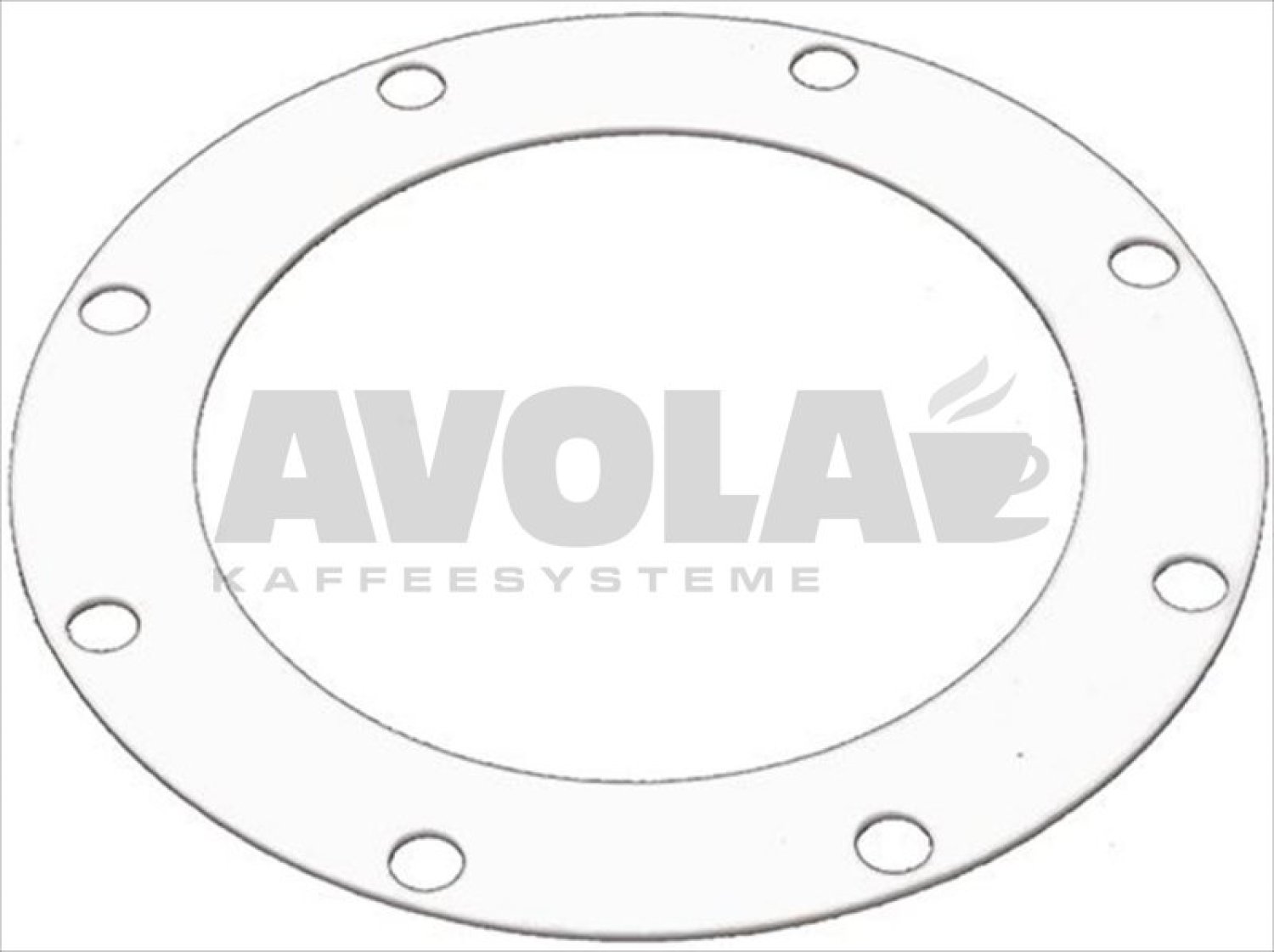

16boiler gasket 8001974
BOILER GASKET
19,03 €

excl. Shipping costs

immediately available, 3 available
16rancilio kesseldichtung o 220x175x2 mm 13 loch old modell 8035606
RANCILIO KESSELDICHTUNG ø 220x175x2 MM 13 LOCH OLD MODELL
28,56 €

excl. Shipping costs

immediately available, 1 available

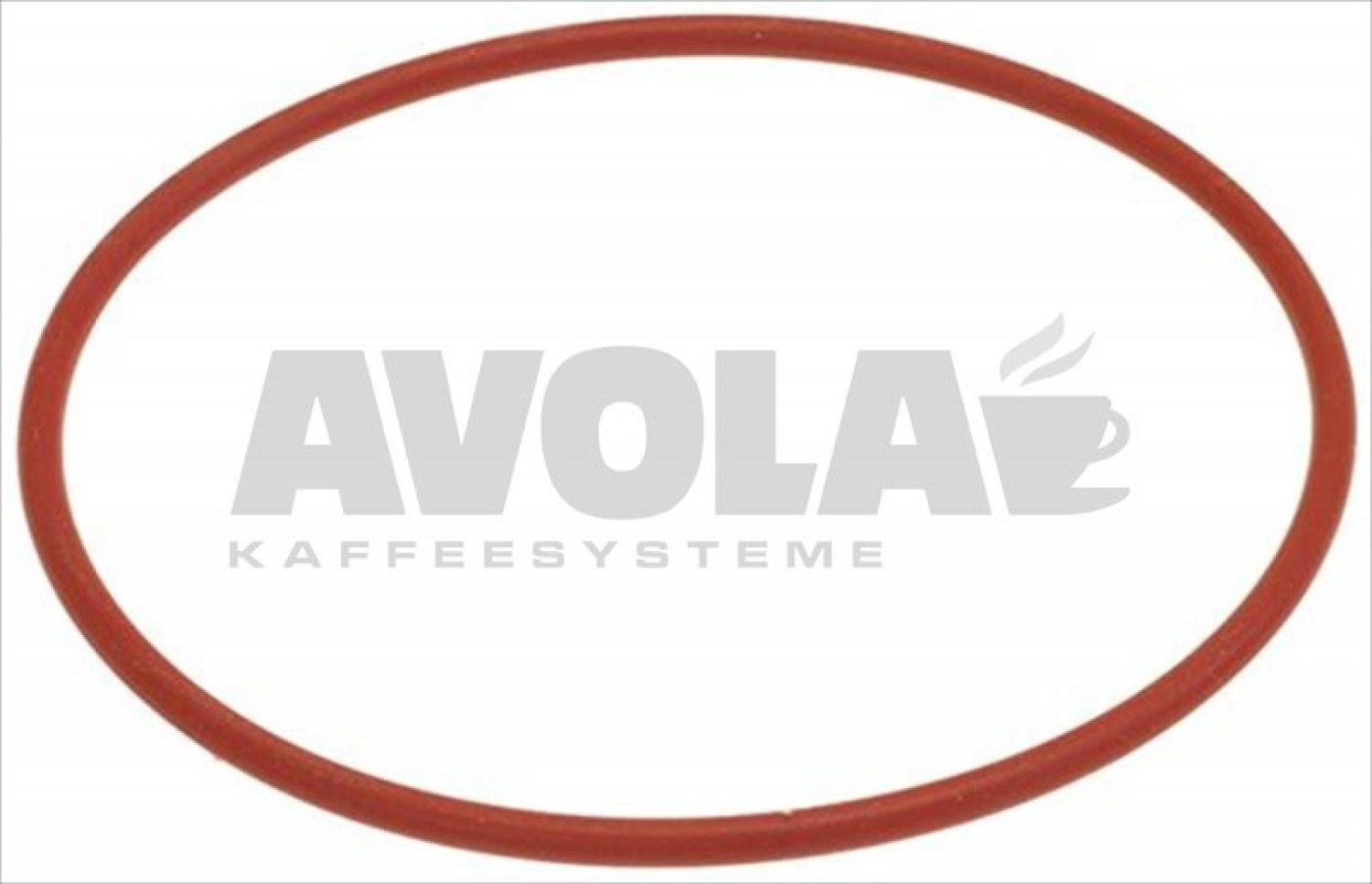

17boiler gasket 8001980
BOILER GASKET
14,41 €

excl. Shipping costs

Delivery time
is determined
20schraube zylinderkopf innensechskant vollgewinde edelstahl m8x20 a2 70 din 912 8061169
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M8x20 A2-70 Din 912
2,67 €

excl. Shipping costs

immediately available

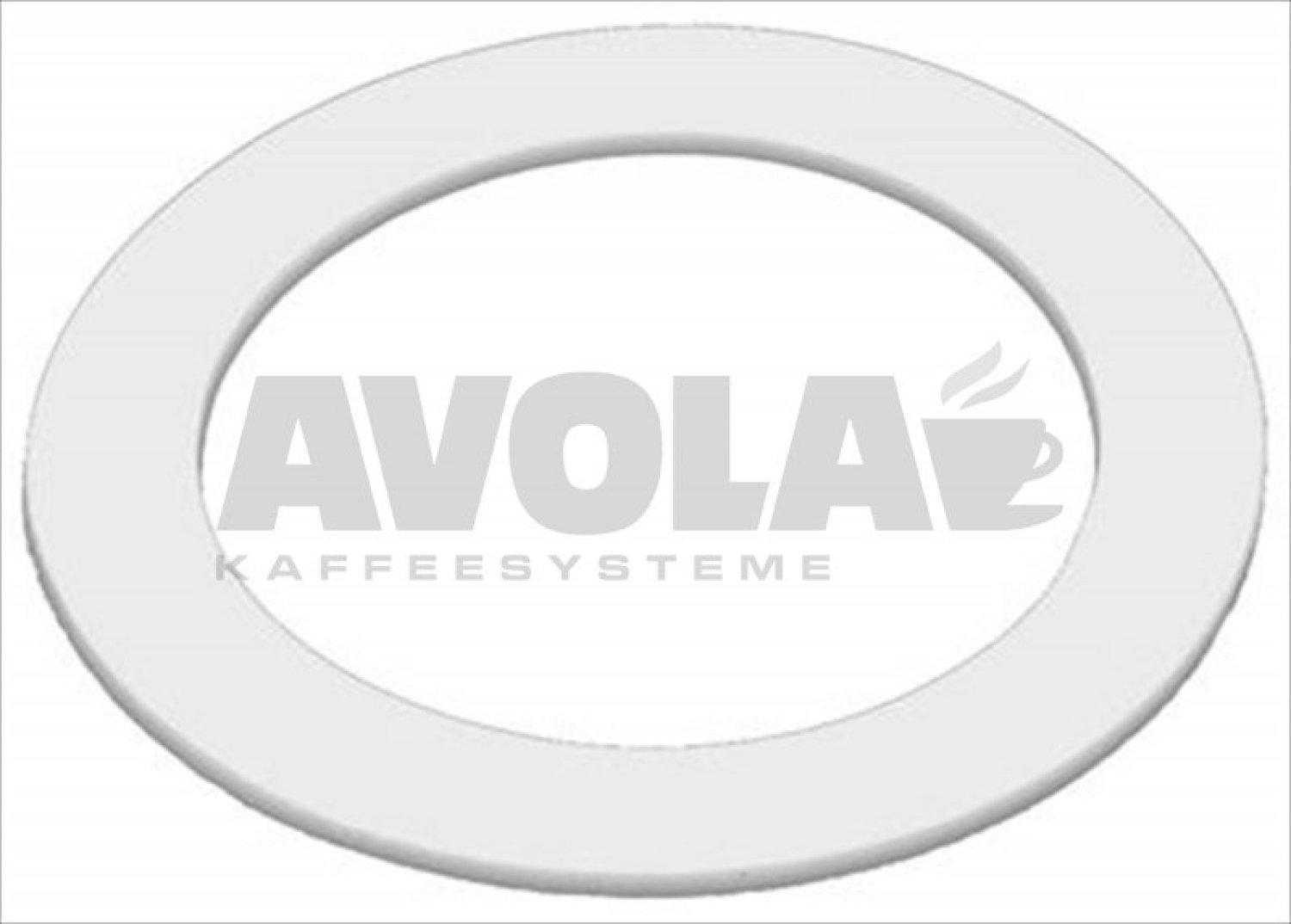

21ptfe flat gasket o 65x47x1 5 mm 8001683
PTFE FLAT GASKET ø 65x47x1,5 mm
4,64 €

excl. Shipping costs

immediately available, 10 available

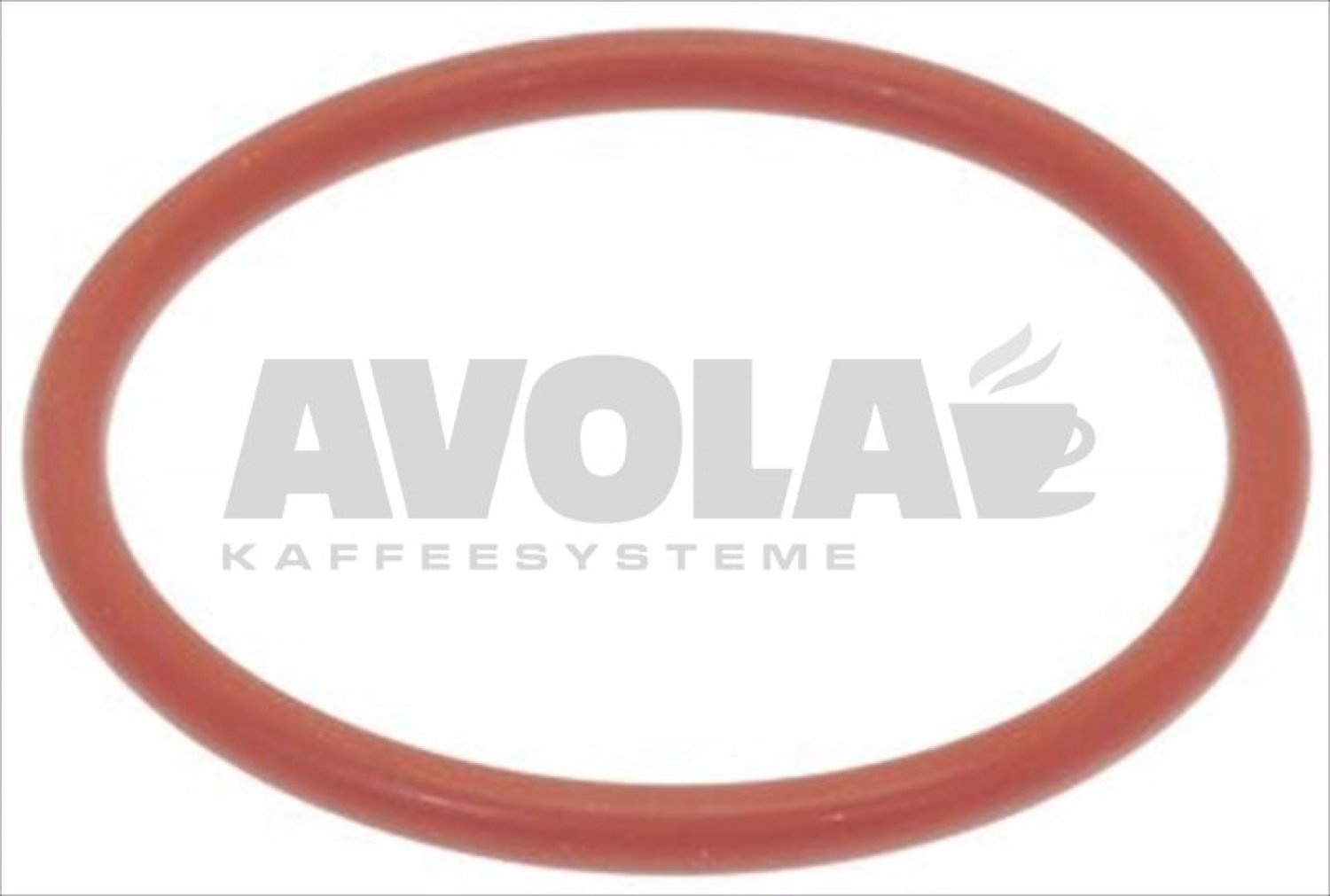

22o ring m 0500 40 red silicone 8001681
O-RING M 0500-40 RED SILICONE
7,75 €

excl. Shipping costs

Delivery time 4-6 weeks..

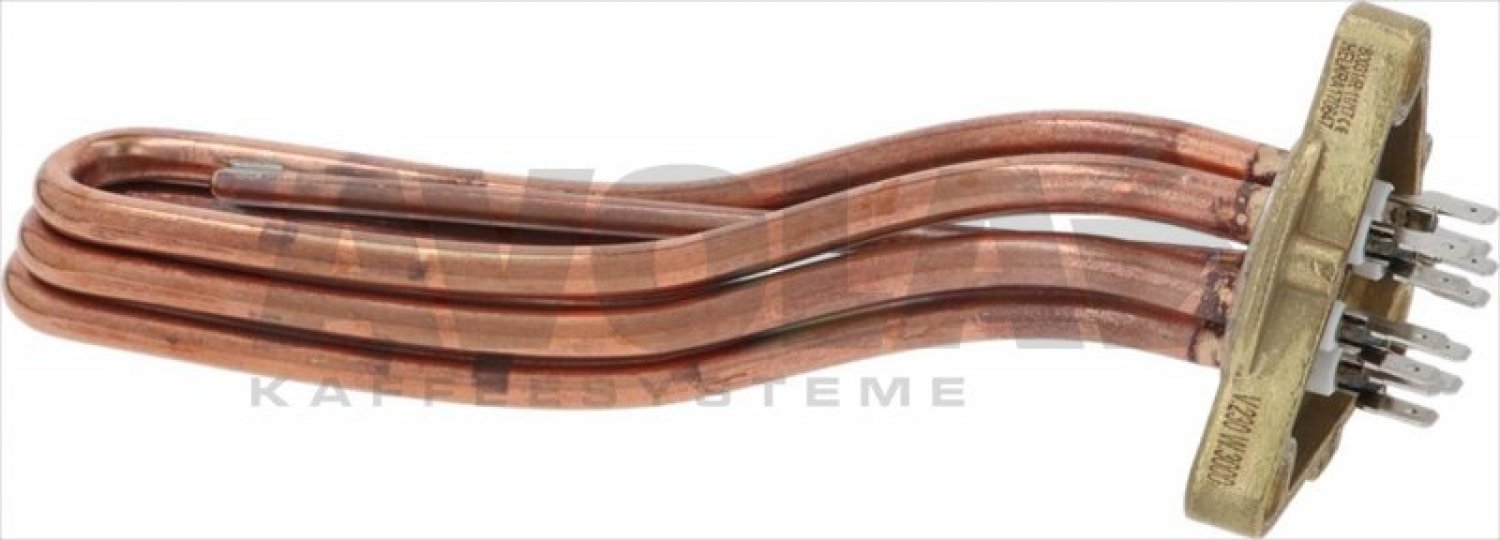

23heating element 3000w 220 380v 8007539
HEATING ELEMENT 3000W 220/380V
88,32 €

excl. Shipping costs

immediately available, 1 available

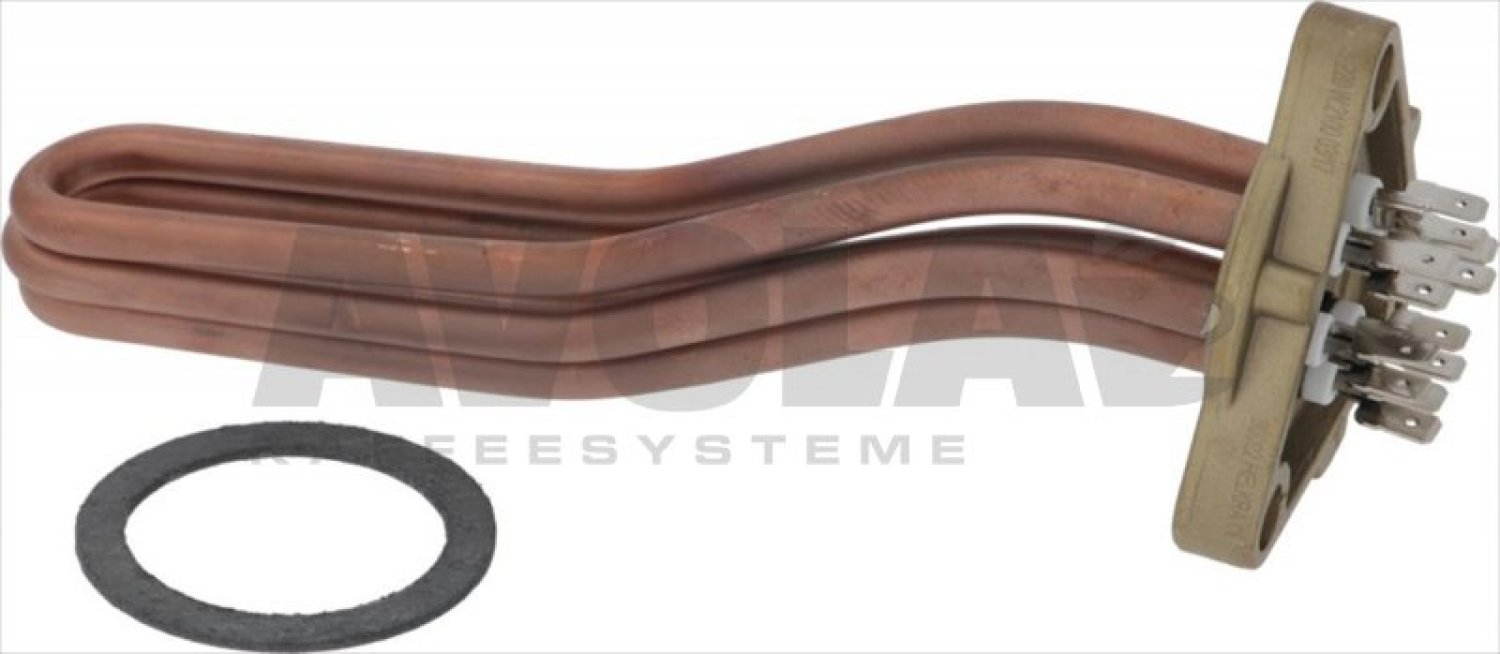

23heating element 2100w 220v 8023189
HEATING ELEMENT 2100W 220V
53,82 €

excl. Shipping costs

Delivery time
is determined

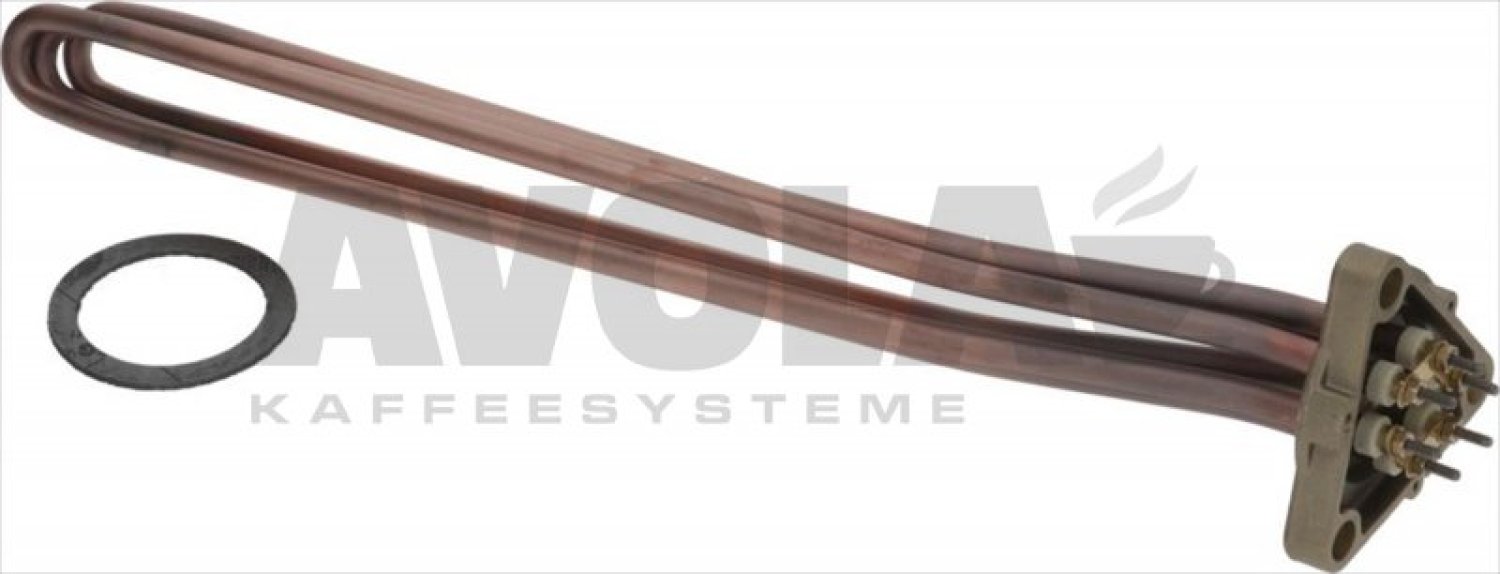

23rancilio heating element 3900w 220v 8023190
RANCILIO HEATING ELEMENT 3900W 220V
55,23 €

excl. Shipping costs

Delivery time
is determined

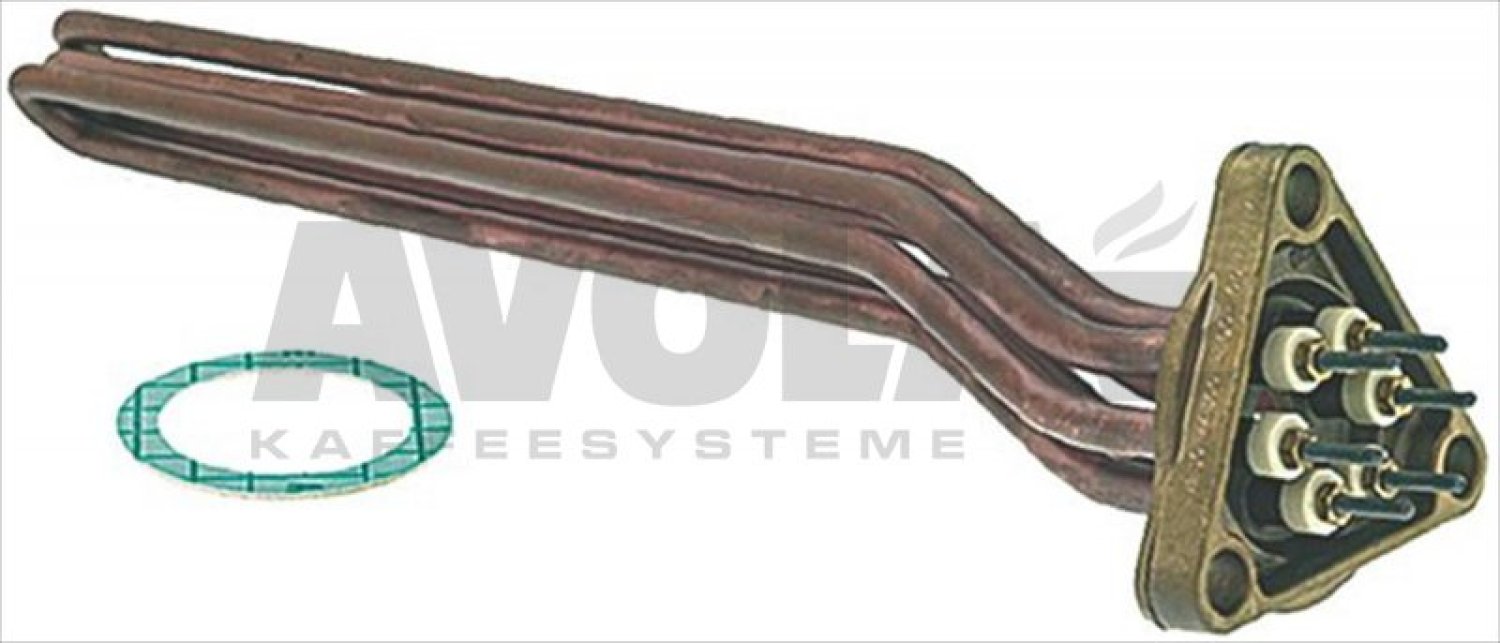

23heating element 4500w 220v 8023191
HEATING ELEMENT 4500W 220V
This article is no longer available

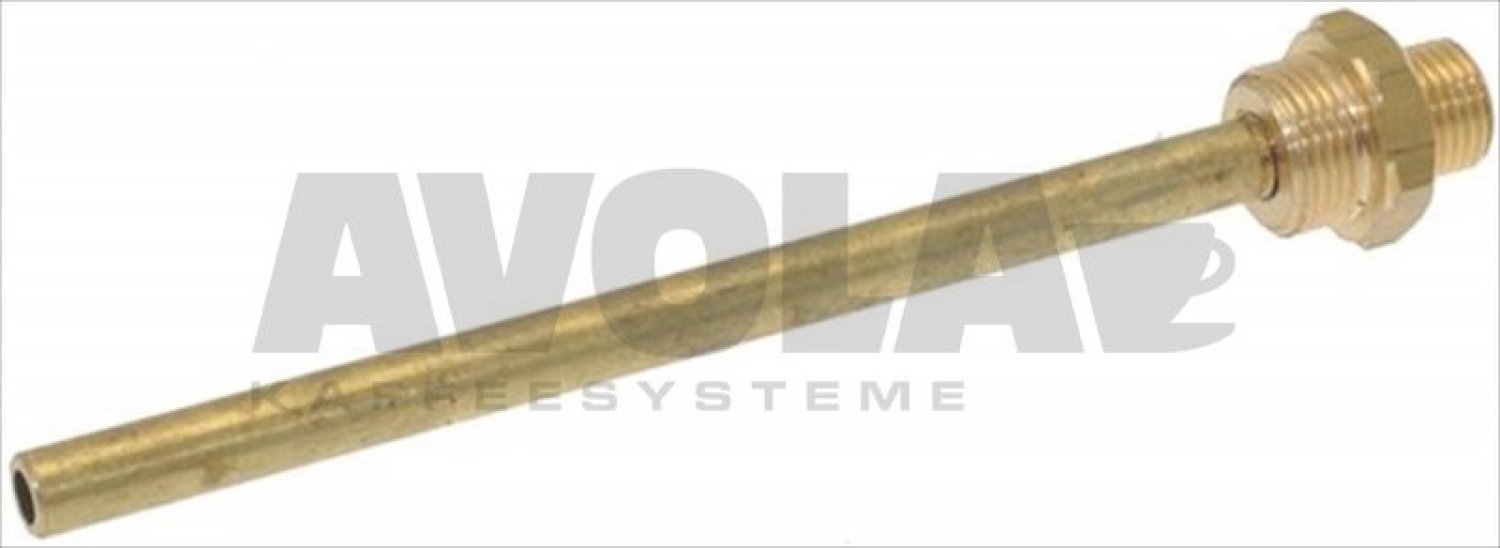

24injection pipe 8006586
INJECTION PIPE
20,16 €

excl. Shipping costs

Delivery time
is determined
25two pole thermostat 165 8026240
TWO-POLE THERMOSTAT 165
This article is no longer available
28rancilio dichtung fuer sicherheitsthermostat heizung 8393188
Rancilio Dichtung für Sicherheitsthermostat Heizung
5,95 €

excl. Shipping costs

Delivery time 2-4 weeks

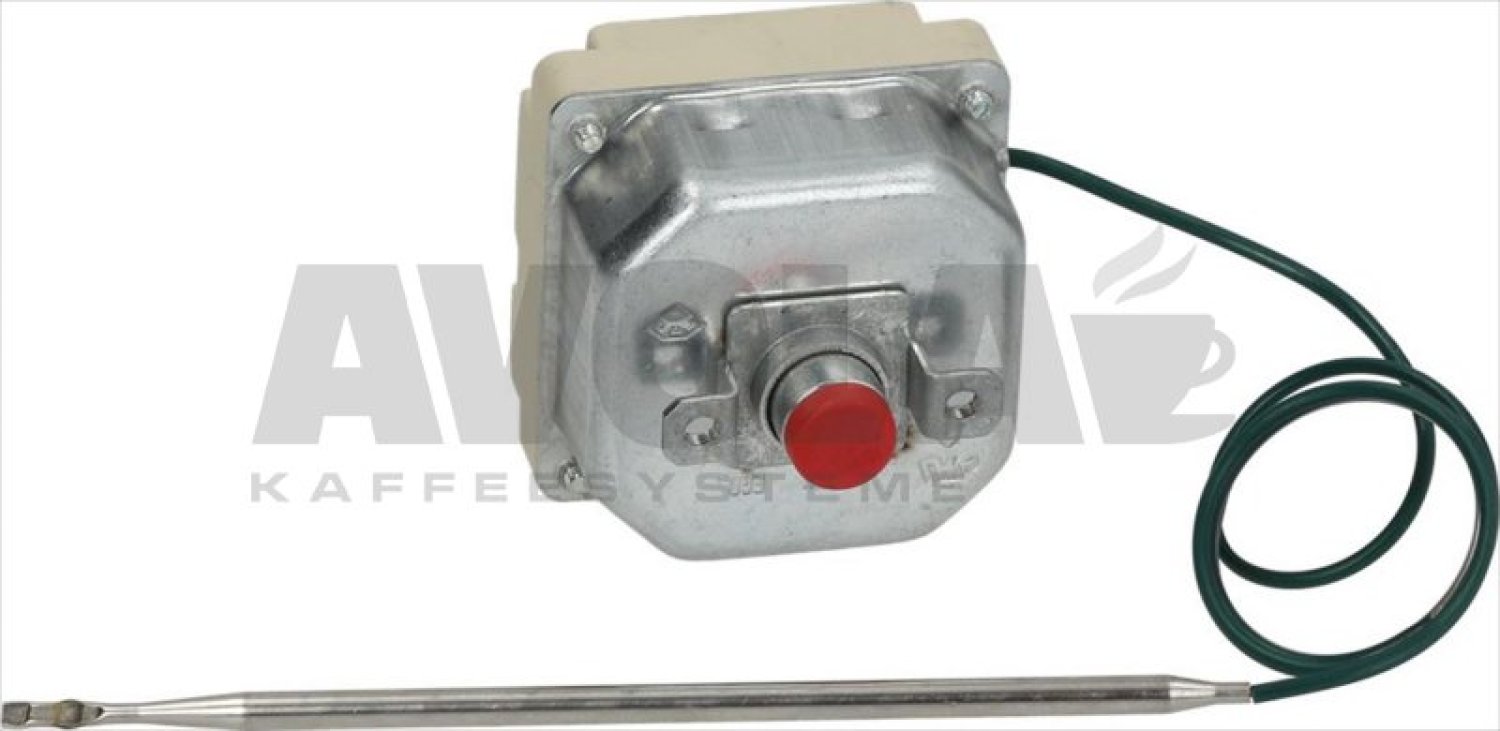

30three phase thermostat 187 8006461
THREE-PHASE THERMOSTAT 187
156,95 €

excl. Shipping costs

immediately available, 1 available

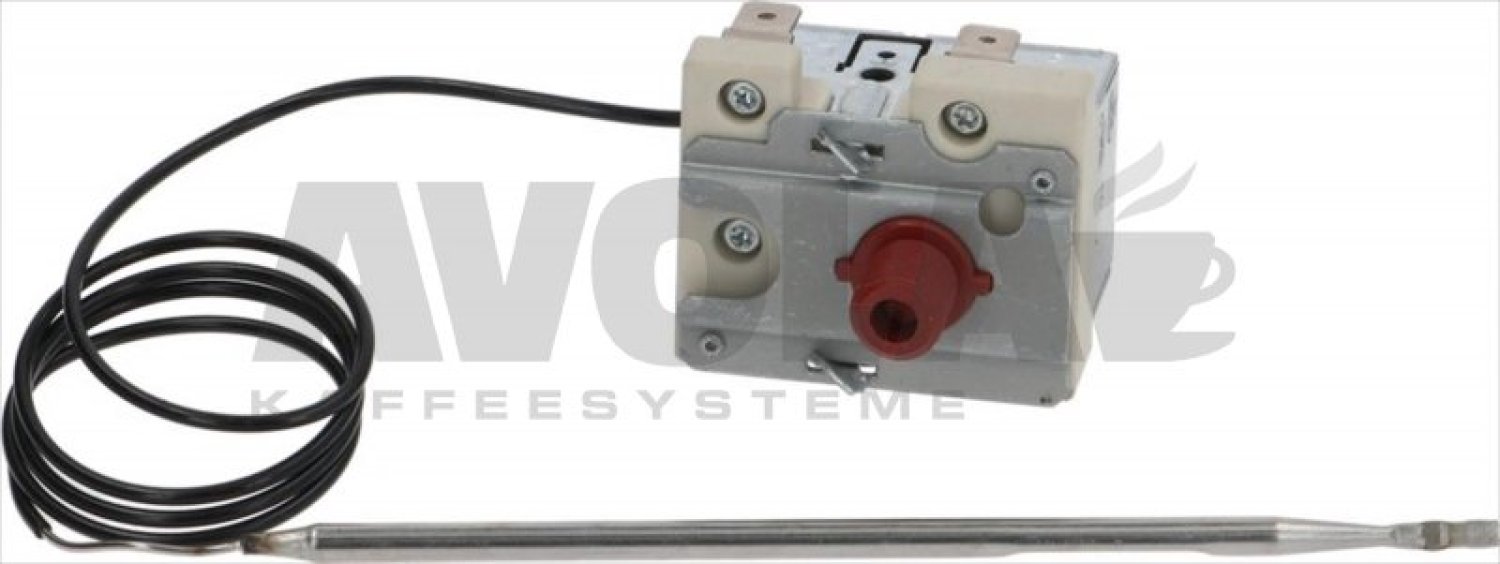

30rancilio classe 8 thermostat 169 deg c 8089474
Rancilio Classe 8 Thermostat 169°C
156,71 €

excl. Shipping costs

Delivery time
is determined

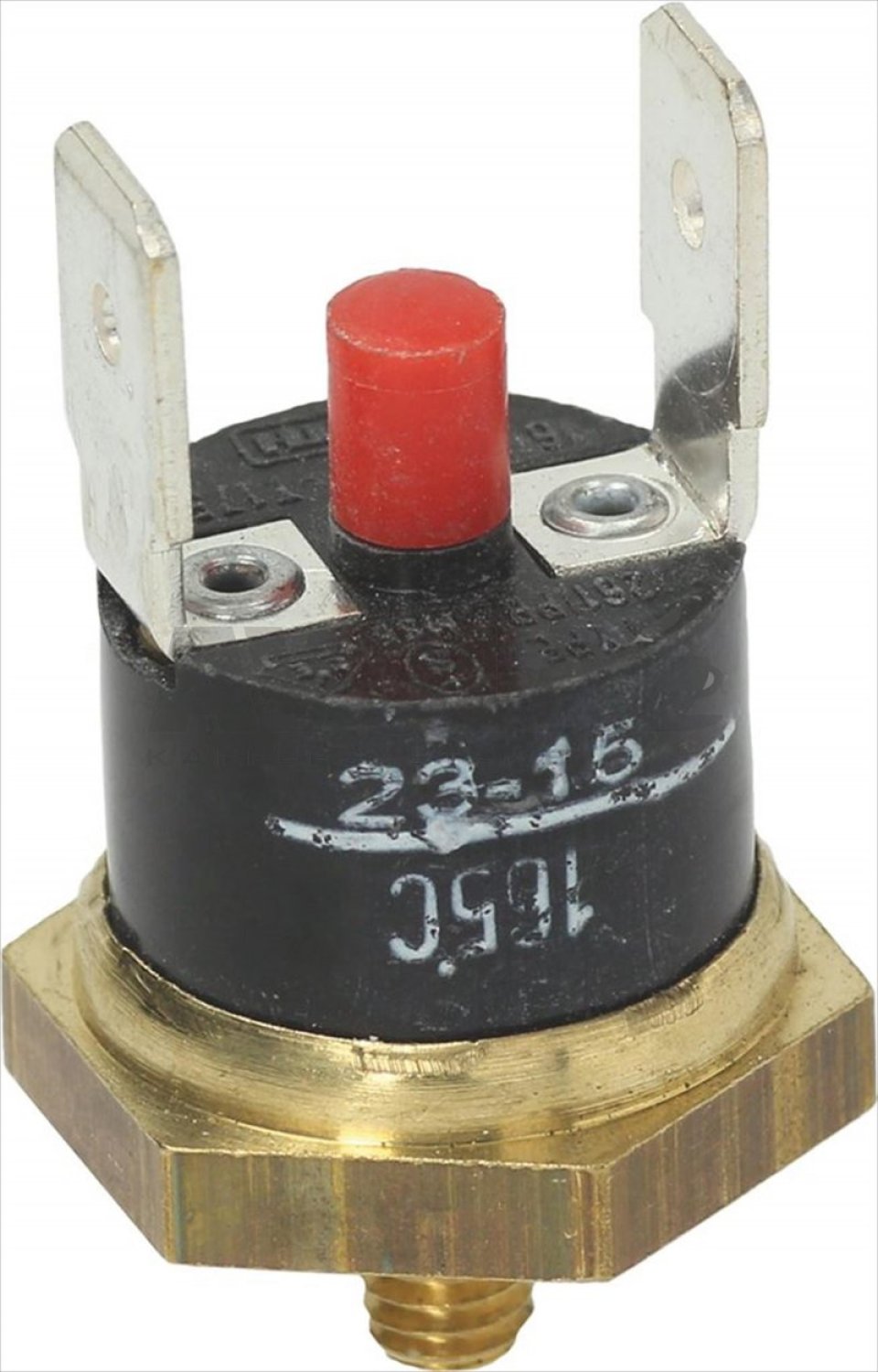

31contact thermostat 165 deg c m4 8006422
CONTACT THERMOSTAT 165°C M4
5,90 €

excl. Shipping costs

immediately available, 14 available
34o ring 02025 viton 8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs

immediately available

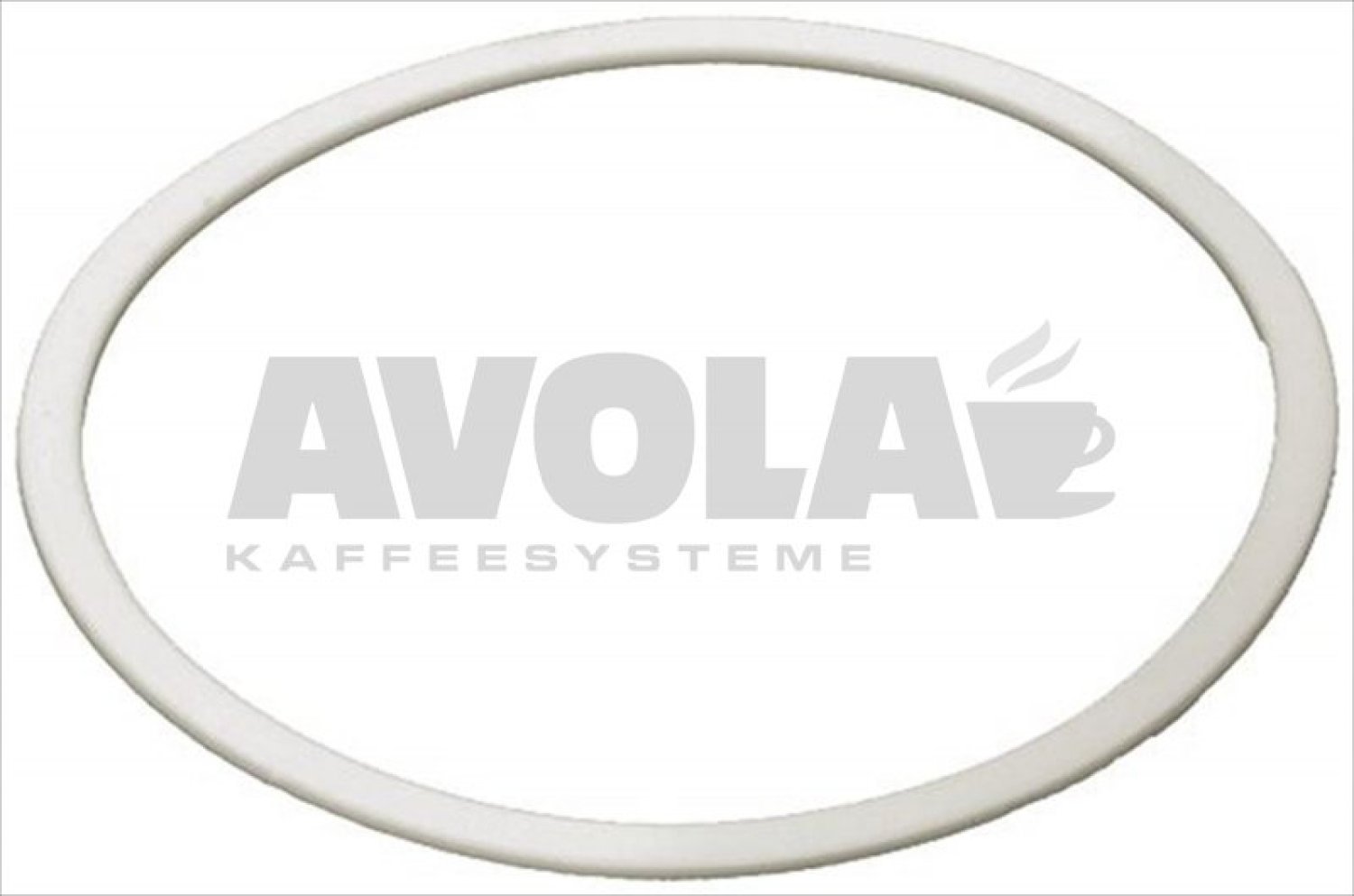

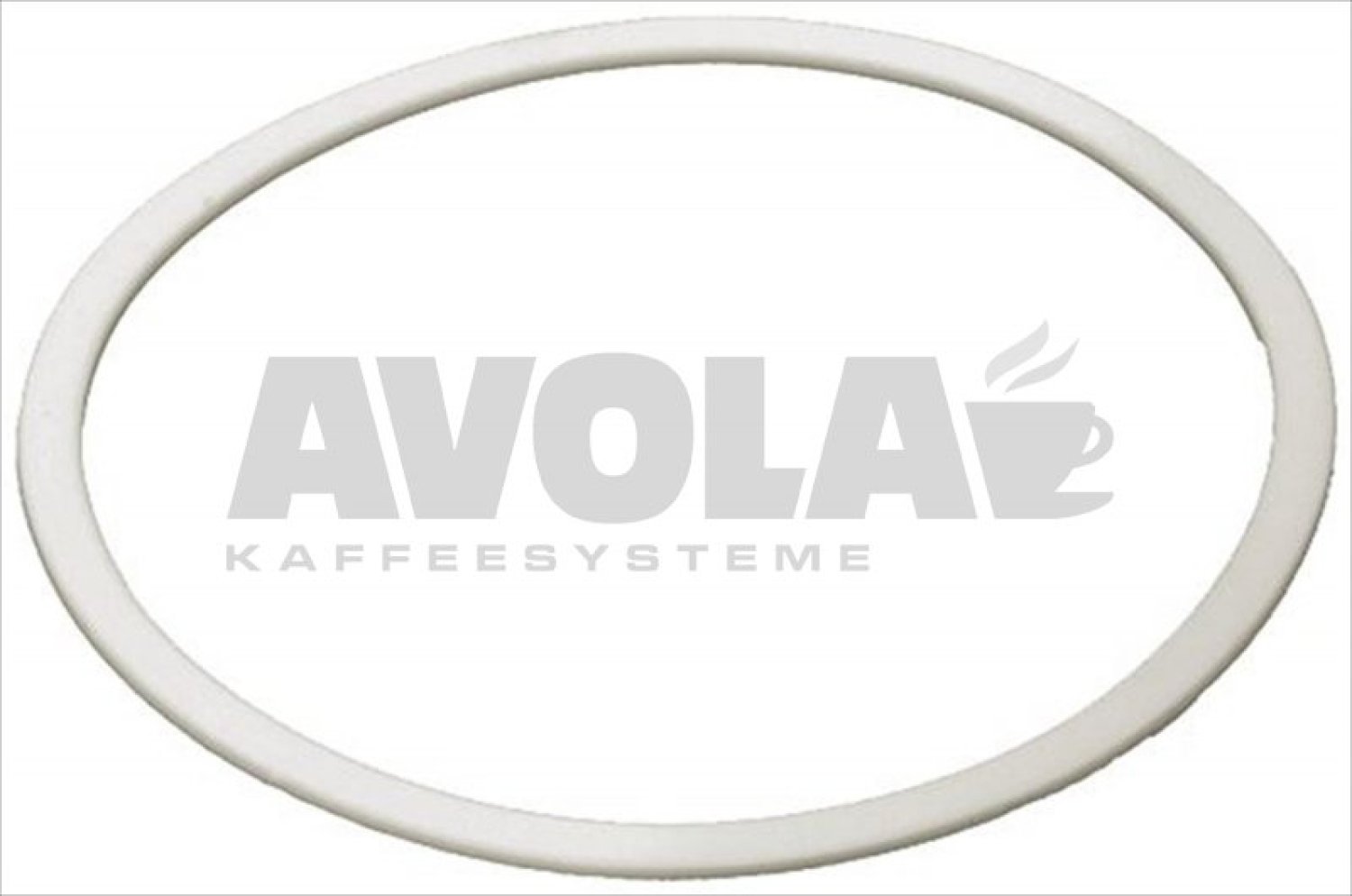

36boiler gasket 8001677
BOILER GASKET
11,82 €

excl. Shipping costs

immediately available, 1 available

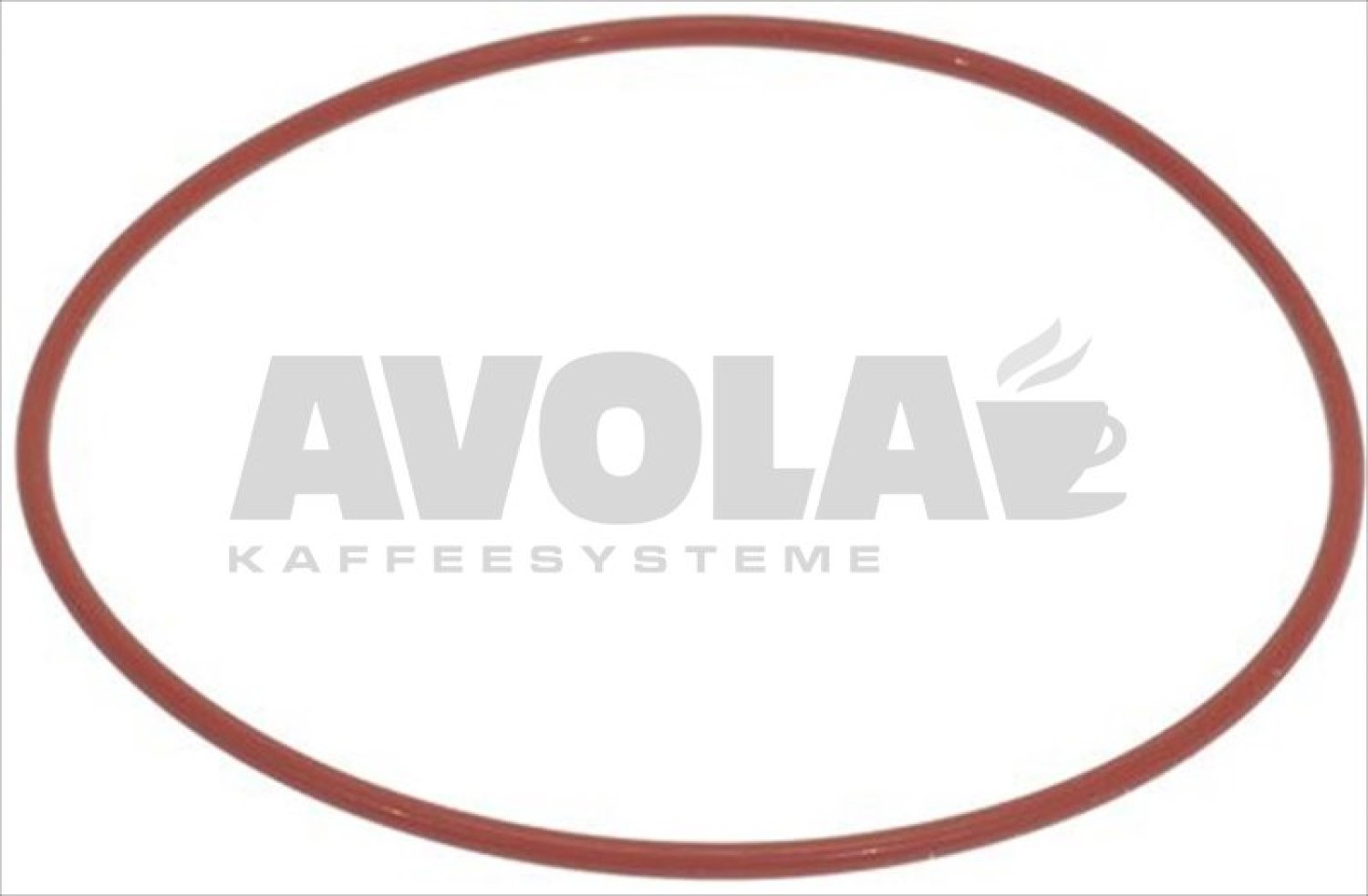

37silicone o ring 04475 8001978
SILICONE O-RING 04475
5,03 €

excl. Shipping costs

immediately available, 18 available
38flat gasket o 32x26x1 mm 8001678
FLAT GASKET ø 32x26x1 mm
1,24 €

excl. Shipping costs

immediately available, 10 available
39red silicone ring 03050 8001686
RED SILICONE RING 03050
1,04 €

excl. Shipping costs

immediately available

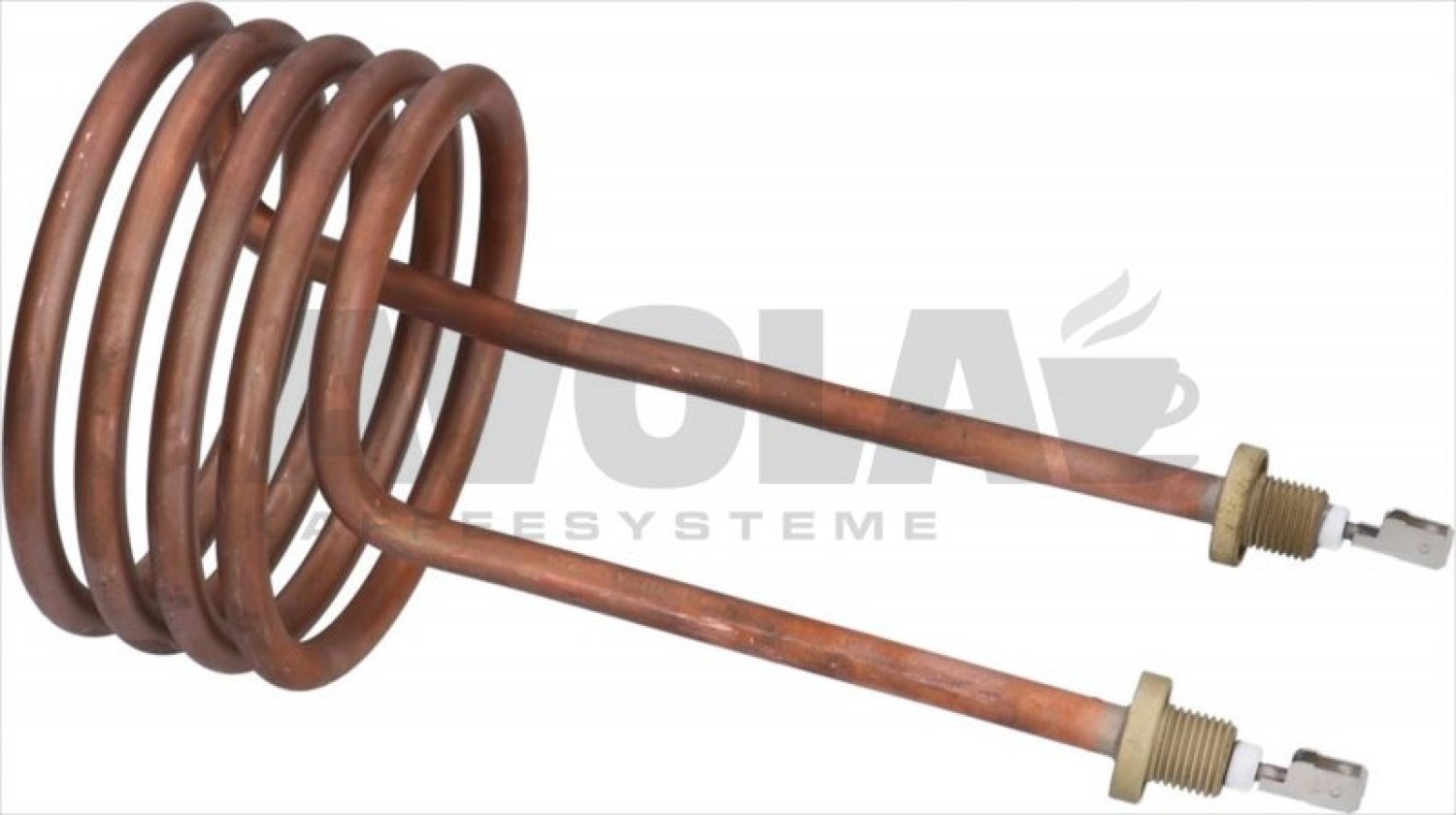

41heating element 1700w 230v 8007644
HEATING ELEMENT 1700W 230V
103,61 €

excl. Shipping costs

immediately available, 1 available

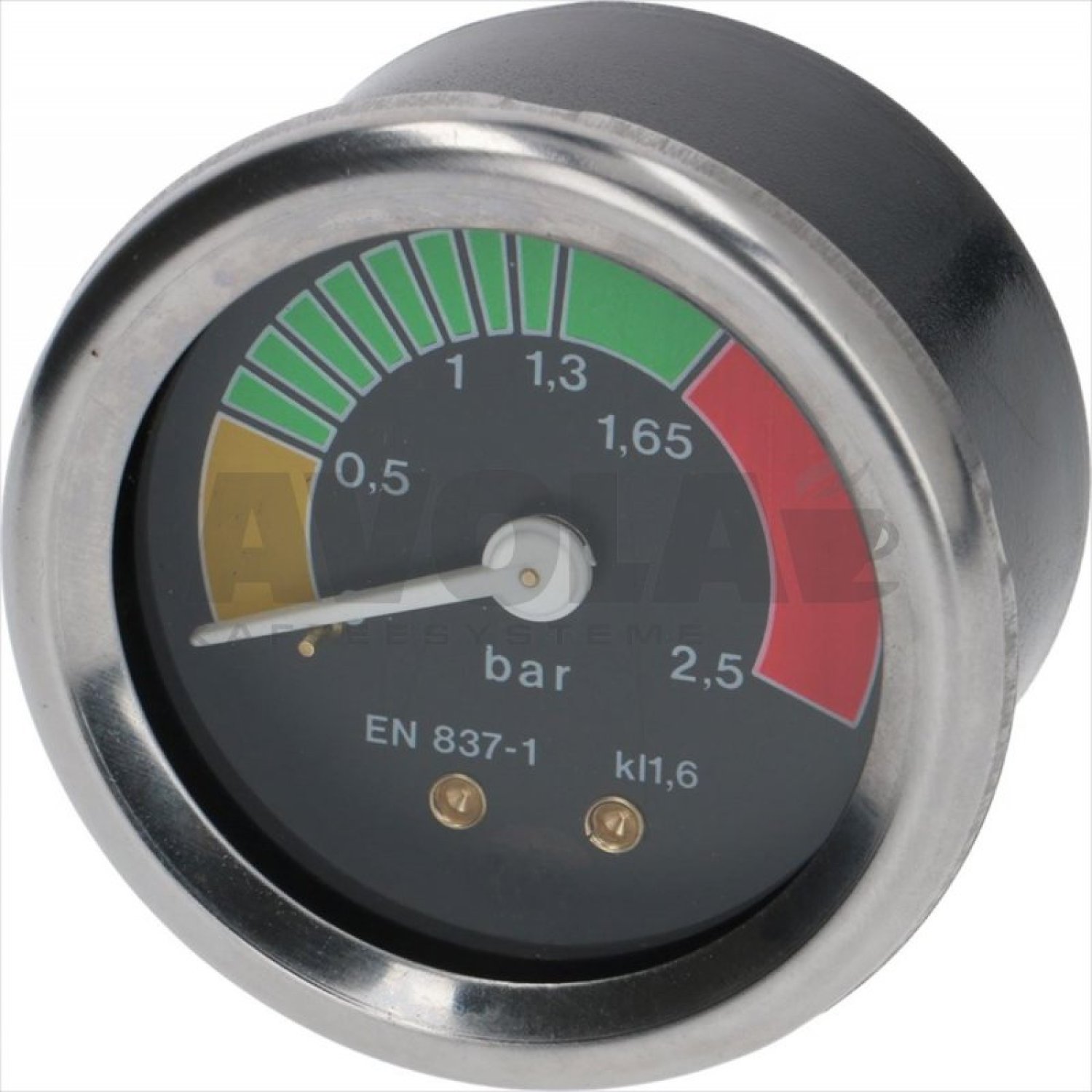

42boiler pressure gauge 8003538
BOILER PRESSURE GAUGE
31,04 €

excl. Shipping costs

Delivery time
is determined

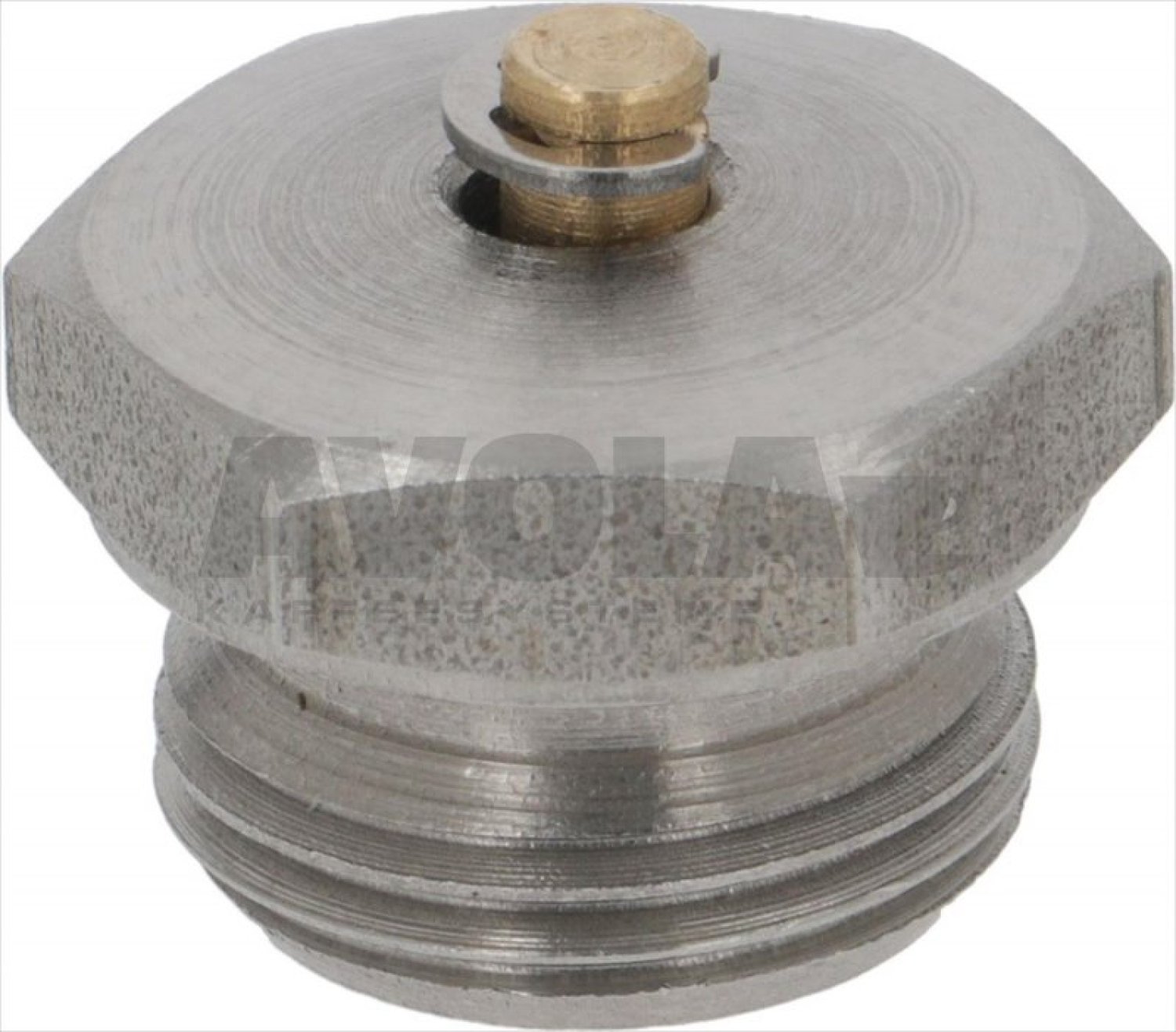

43boiler valve 3 8 8007089
BOILER VALVE 3/8
7,88 €

excl. Shipping costs

immediately available, 7 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
