Rancilio

RANCILIO BOILER Z11

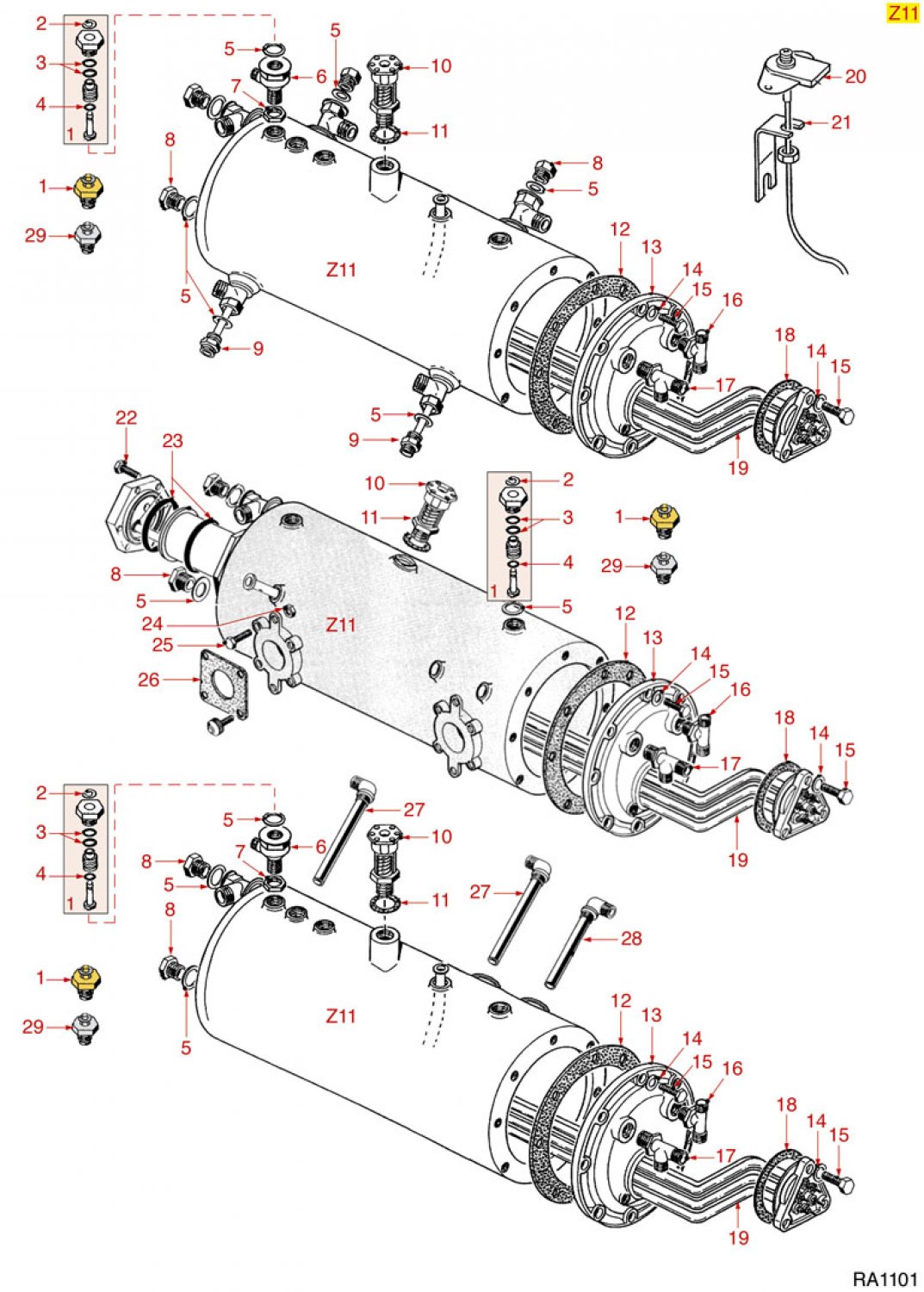

Drawing number 8057409

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1boiler valve o 3 8 a 8007166
BOILER VALVE ø 3/8 A
Price on request
3o ring 02031 red silicon 8002065
O-RING 02031 - RED SILICON
0,84 €

excl. Shipping costs

immediately available
4gasket or 02021 epdm 8001604
Gasket OR 02021 EPDM
1,11 €

excl. Shipping costs

immediately available
5copper flat gasket 22x17x1 5 mm 8001815
COPPER FLAT GASKET 22x17x1,5 mm
1,04 €

excl. Shipping costs

immediately available
7nut 8005806
NUT
2,89 €

excl. Shipping costs

immediately available, 8 available
9injection pipe 8006586
INJECTION PIPE
20,48 €

excl. Shipping costs

Delivery time
is determined
10sicherheitsventil 1 2 zoll 1 8bar ce ped 8101654
Sicherheitsventil 1/2 Zoll 1,8bar CE-PED
26,38 €

excl. Shipping costs

immediately available, 3 available
11copper flat gasket o 27x21 5x1 mm 8001991
COPPER FLAT GASKET ø 27x21,5x1 mm
1,32 €

excl. Shipping costs

immediately available, 16 available
12boiler gasket 8001974
BOILER GASKET
20,60 €

excl. Shipping costs

immediately available, 3 available
12rancilio kesseldichtung o 220x175x2 mm 13 loch old modell 8035606
RANCILIO KESSELDICHTUNG ø 220x175x2 MM 13 LOCH OLD MODELL
28,56 €

excl. Shipping costs

immediately available, 1 available
15schraube zylinderkopf innensechskant vollgewinde edelstahl m8x20 a2 70 din 912 8061169
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M8x20 A2-70 Din 912
2,67 €

excl. Shipping costs

immediately available
18ptfe flat gasket o 65x47x1 5 mm 8001683
PTFE FLAT GASKET ø 65x47x1,5 mm
4,66 €

excl. Shipping costs

immediately available, 10 available
18flat carbo gasket o 63x48x2 mm 8014617
FLAT CARBO GASKET ø 63x48x2 mm
Price on request
19heating element 3000w 220 380v 8007539
HEATING ELEMENT 3000W 220/380V
88,87 €

excl. Shipping costs

immediately available, 1 available

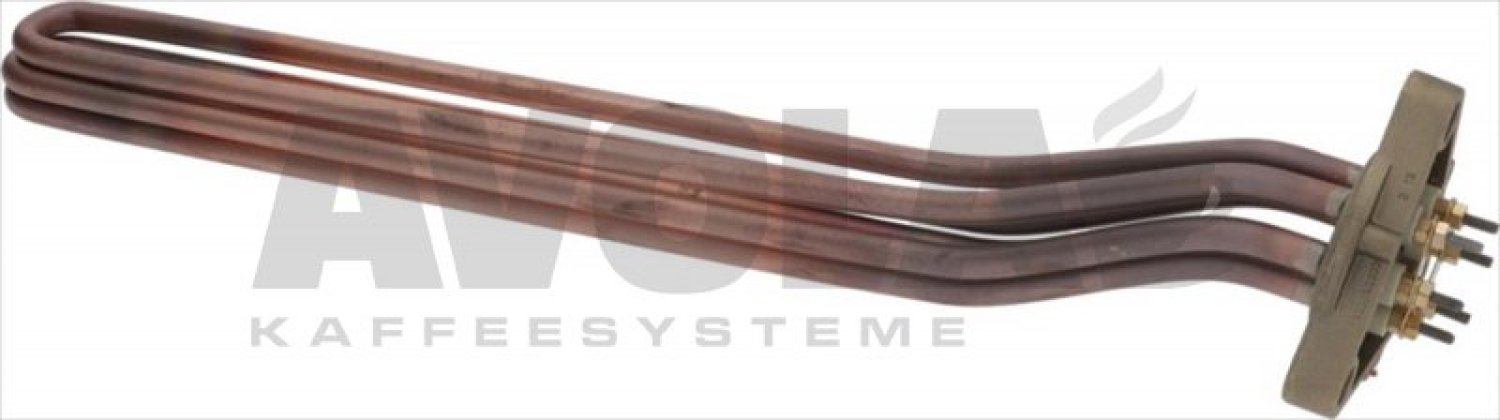

19heating element 6000w 230 380v 8007540
HEATING ELEMENT 6000W 230/380V
90,80 €

excl. Shipping costs

Delivery time
is determined
19rancilio heating element 3900w 220v 8023190
RANCILIO HEATING ELEMENT 3900W 220V
77,08 €

excl. Shipping costs

Delivery time
is determined
19heating element 4500w 220v 8023191
HEATING ELEMENT 4500W 220V
This article is no longer available
20two pole thermostat 165 8026240
TWO-POLE THERMOSTAT 165
This article is no longer available

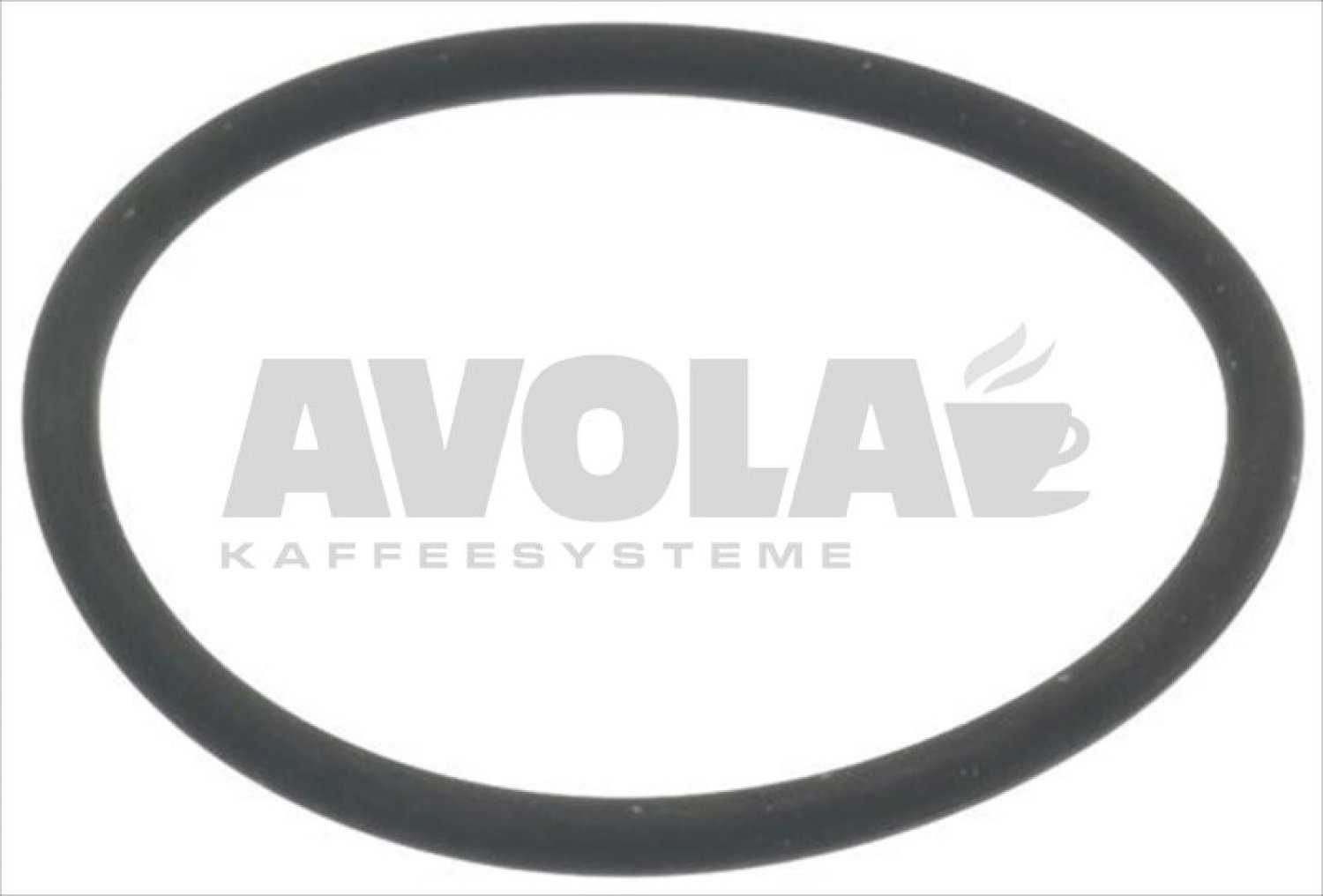

23viton o ring 06300 8001684
VITON O RING 06300
12,09 €

excl. Shipping costs

immediately available, 1 available

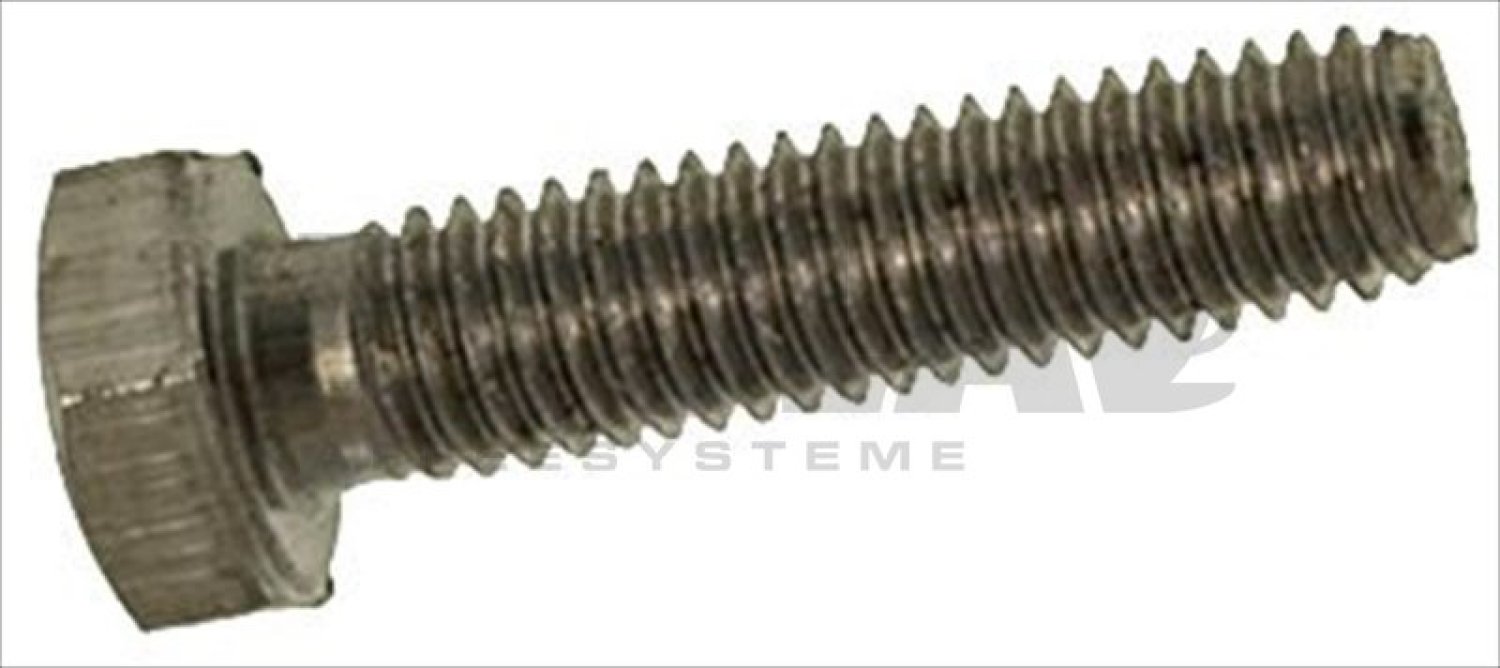

25hexagon head screw m6x25 8001305
HEXAGON HEAD SCREW M6x25
Price on request
26gruppendichtung rancilio 71 5x71 5x2 3mm 8037513
GRUPPENDICHTUNG RANCILIO 71,5x71,5x2,3mm
5,09 €

excl. Shipping costs

immediately available, 10 available
29boiler valve 3 8 8007089
BOILER VALVE 3/8
7,94 €

excl. Shipping costs

immediately available, 7 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
