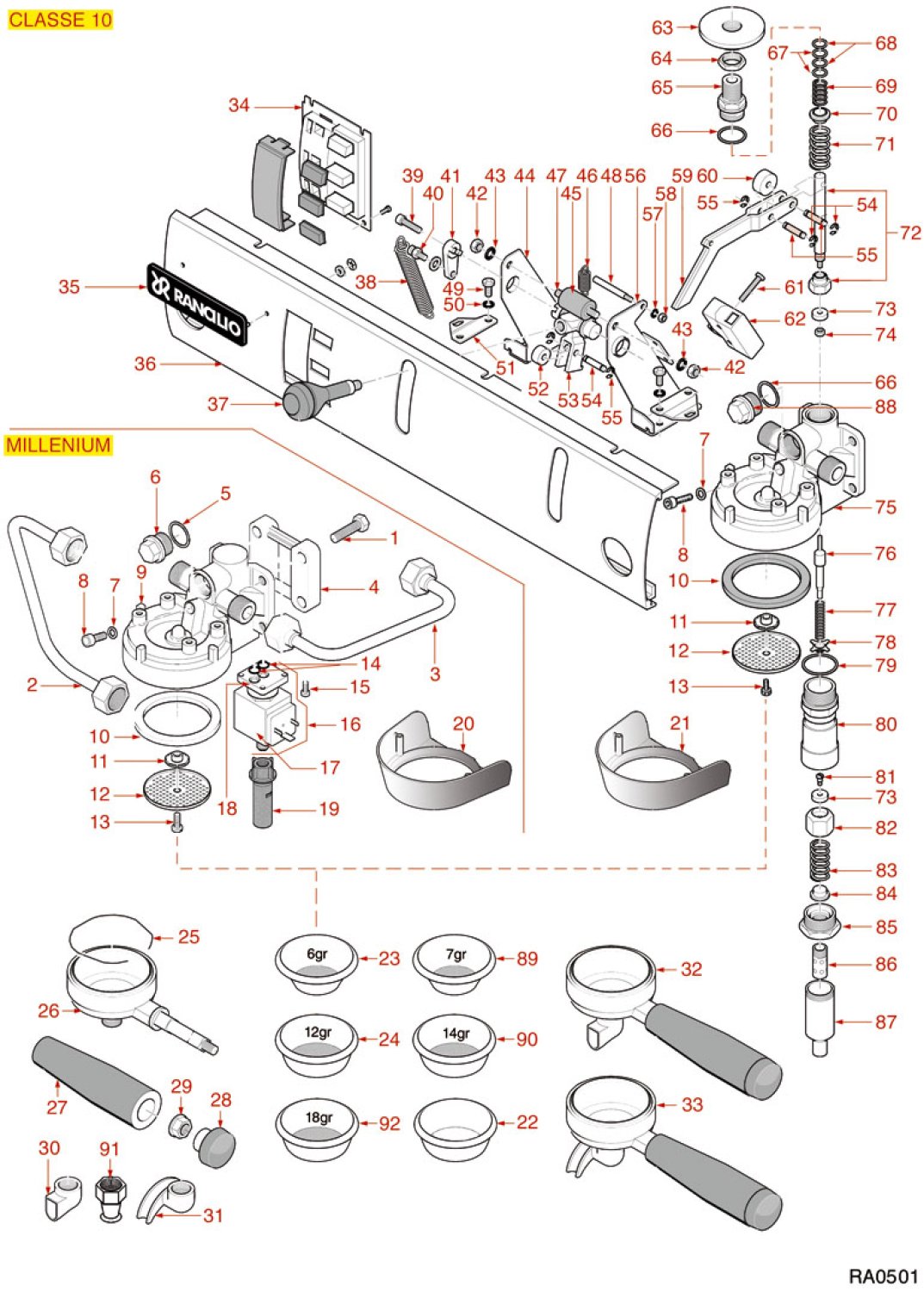

RANCILIO GRUPPE CLASSE 10 UND MILLENIUM

Drawing number 8057403

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
5flat copper gasket o 24x21x1 mm 8001982
FLAT COPPER GASKET ø 24x21x1 mm
0,96 €

excl. Shipping costs

immediately available

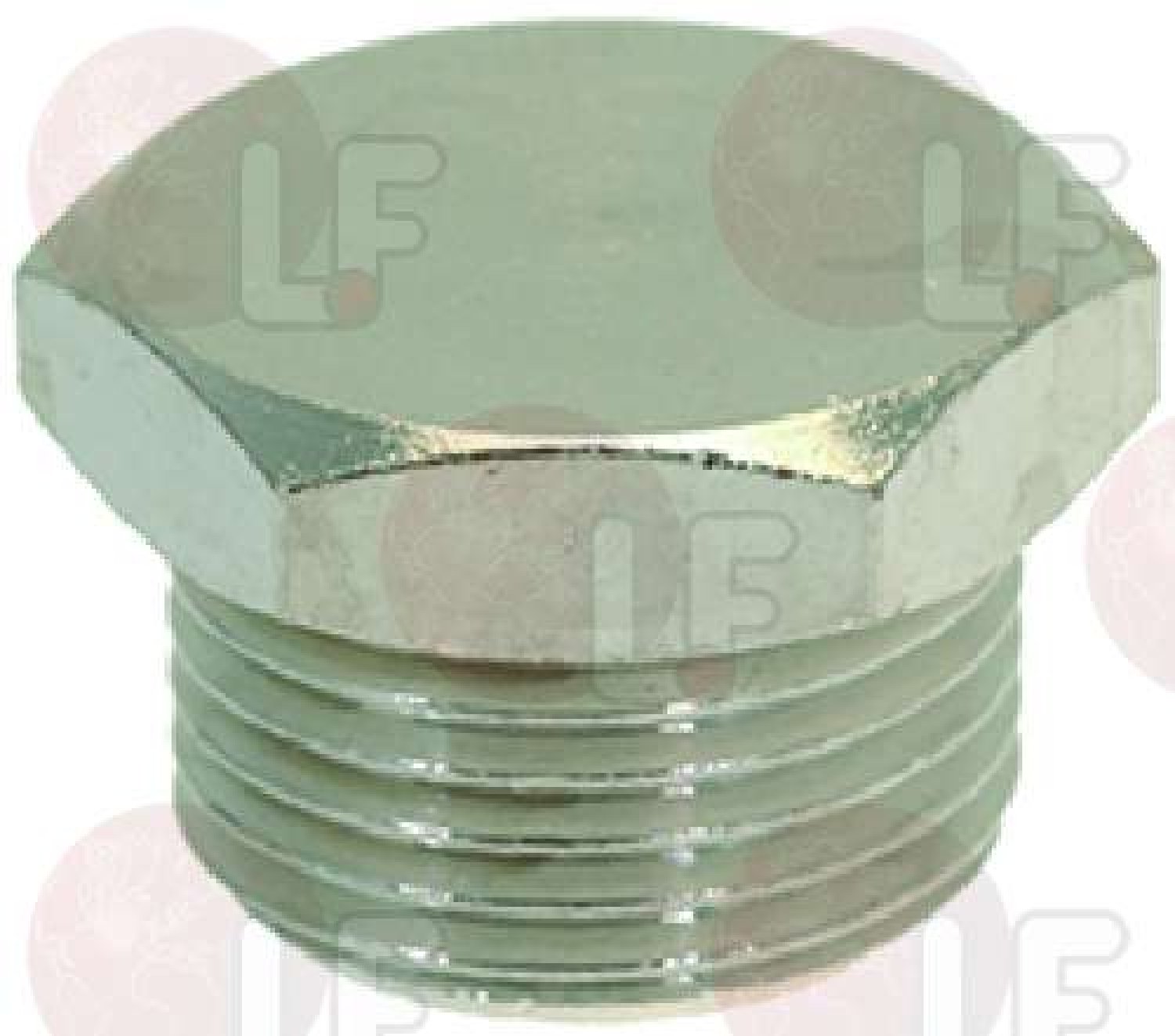

6blindstopfen 1 2 quot m 8062411
BLINDSTOPFEN 1/2 " M
3,45 €

excl. Shipping costs

immediately available, 15 available
7copper flat gasket o 10x6x1 mm 8001983
COPPER FLAT GASKET ø 10x6x1 mm
1,31 €

excl. Shipping costs

immediately available, 14 available
8cylinder head screw m6x8 8001304
CYLINDER HEAD SCREW M6x8
1,67 €

excl. Shipping costs

immediately available, 10 available

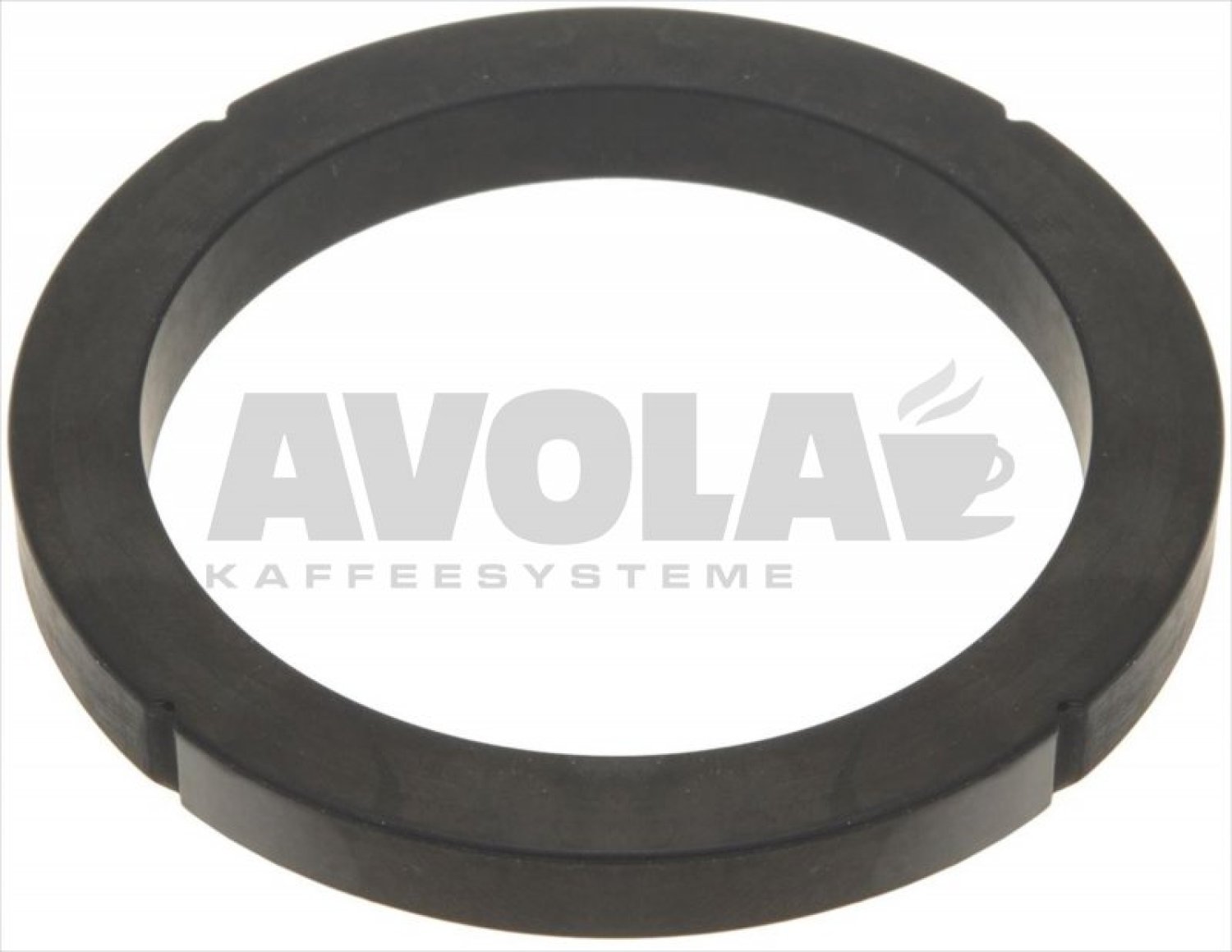

10filter holder gasket 8001984
FILTER HOLDER GASKET
4,09 €

excl. Shipping costs

immediately available
11brew group spray nozzle o 21 mm 8005890
BREW GROUP SPRAY NOZZLE ø 21 mm
9,69 €

excl. Shipping costs

immediately available, 5 available
12shower o 57 5 mm 8000577
SHOWER ø 57,5 mm
4,00 €

excl. Shipping costs

immediately available
13cylinder head screw m5x12 8007321
CYLINDER HEAD SCREW M5x12
1,38 €

excl. Shipping costs

immediately available
14red silicone o ring r5 gasket 8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs

immediately available
14o ring 02025 viton 8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs

immediately available
15schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 912 8061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs

immediately available
163 way solenoid valve lucifer 240v 50hz 8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs

immediately available, 13 available
163 way solenoid valve parker 230v 50 60hz 8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs

immediately available, 15 available
17coil lucifer parker 220 240v 9w 50hz 8000957
COIL LUCIFER/PARKER 220/240V 9W 50Hz
19,92 €

excl. Shipping costs

immediately available, 6 available
17coil parker zb09 9w 220 240v 50 60hz 8012418
COIL PARKER ZB09 9W 220/240V 50/60Hz
20,74 €

excl. Shipping costs

immediately available, 15 available
183 way mechanical component lucifer 8000959
3-WAY MECHANICAL COMPONENT LUCIFER
39,77 €

excl. Shipping costs

immediately available, 7 available
183 way mechanical component parker 8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs

immediately available, 13 available

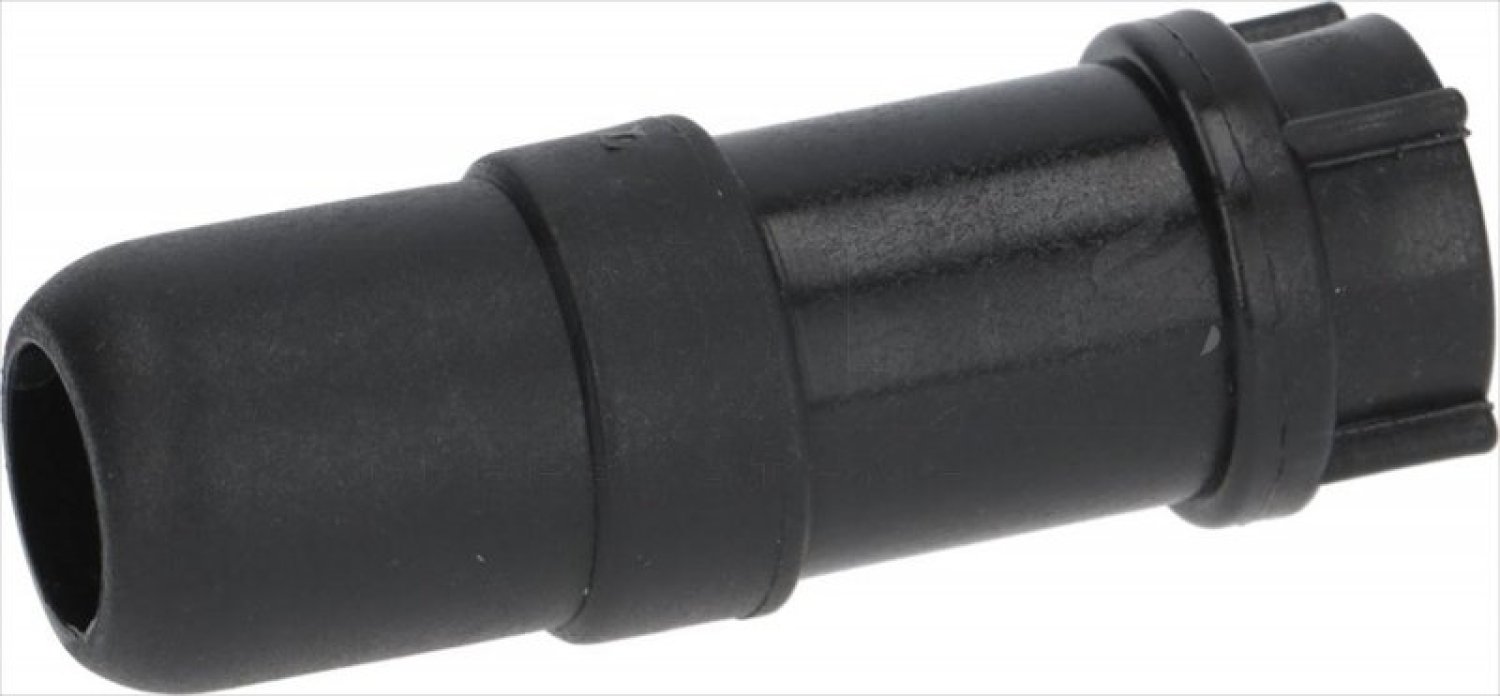

19rancilio drain pipe 8005659
Rancilio DRAIN PIPE
11,02 €

excl. Shipping costs

immediately available, 1 available
21group covering ring 8000003
GROUP COVERING RING
62,95 €

excl. Shipping costs

Delivery time
is determined
22blind filter o58mm 8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs

immediately available
231 cup filter 6 g 8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs

immediately available, 13 available
242 cup filter 12 grams 8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs

immediately available, 7 available
25filter blocking spring o 1 00 mm 8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs

immediately available

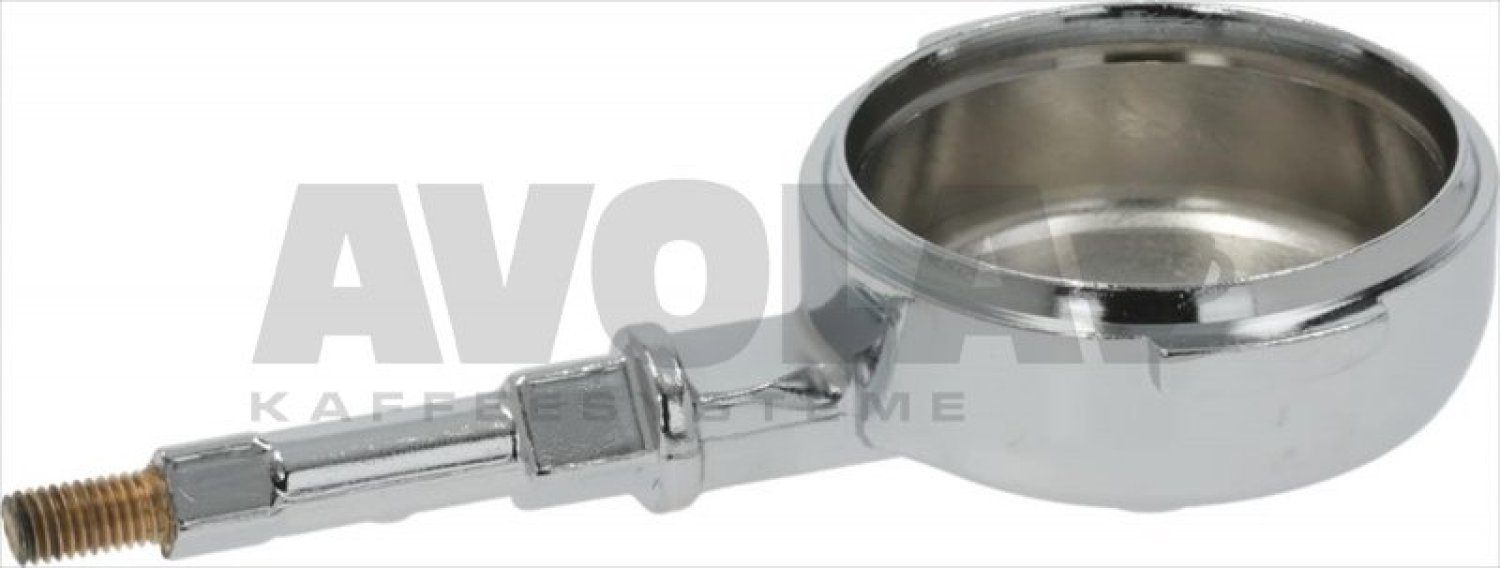

26filter holder rancilio 8001205
FILTER HOLDER RANCILIO
41,57 €

excl. Shipping costs

immediately available, 1 available

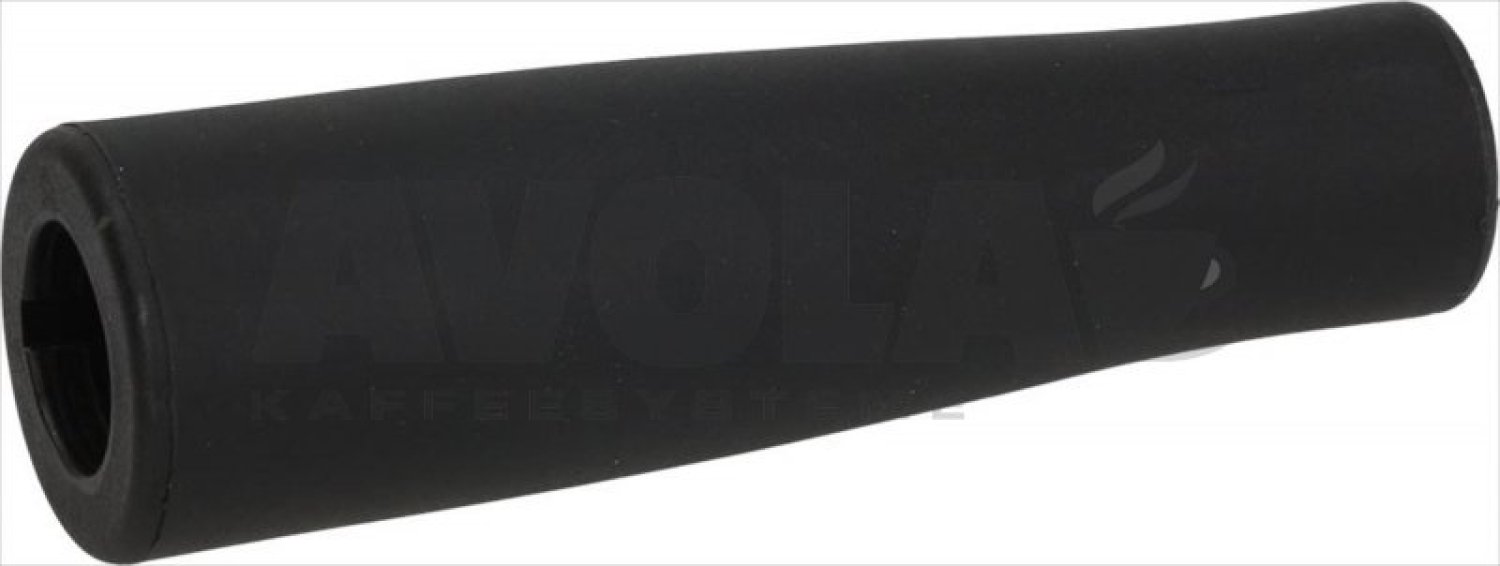

27filter holder knob 8003156
FILTER HOLDER KNOB
32,94 €

excl. Shipping costs

immediately available, 3 available

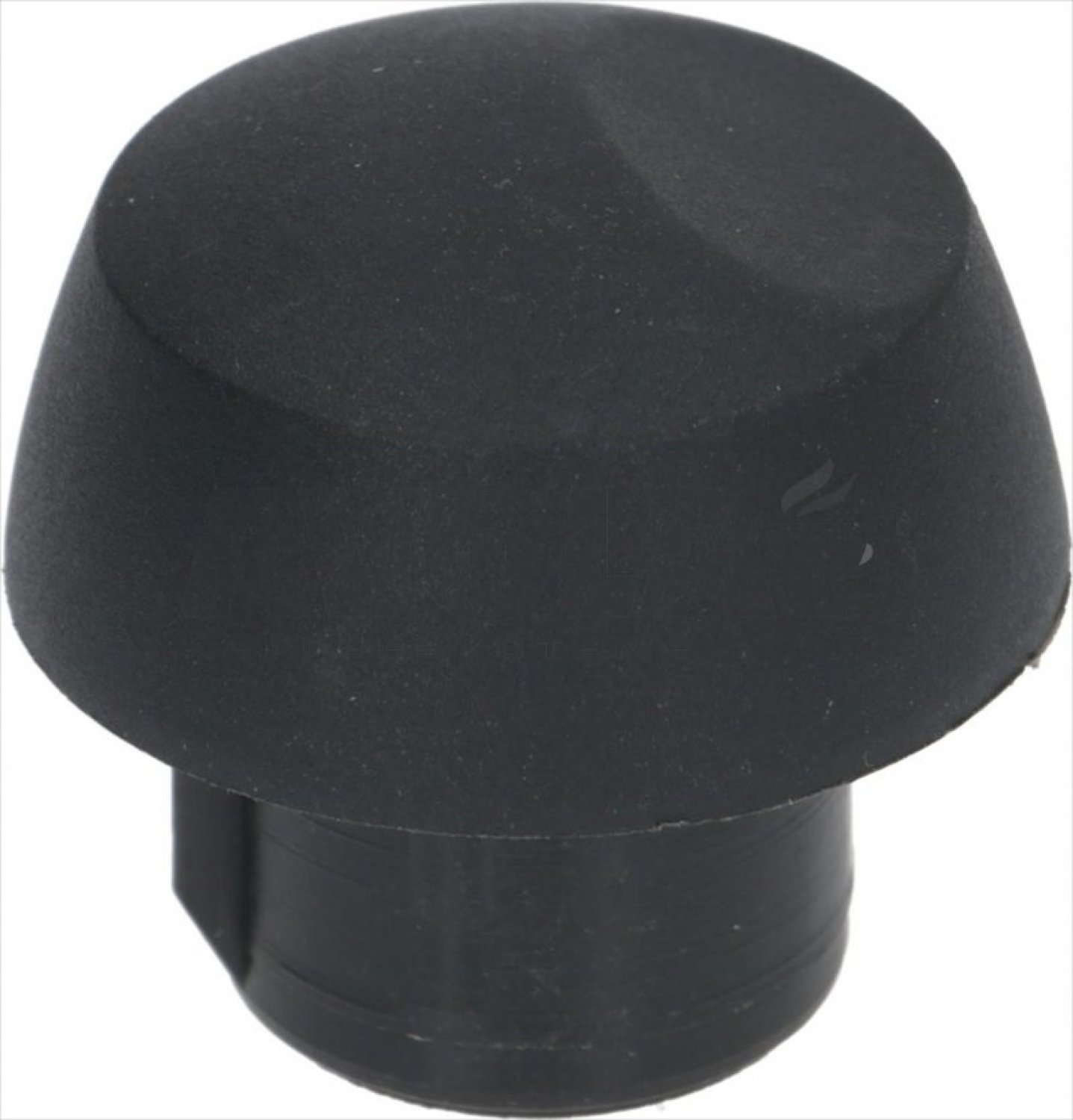

28filter holder knob cap 8003158
FILTER HOLDER KNOB CAP
5,55 €

excl. Shipping costs

immediately available, 3 available
29blind hexagonal nut m8 uni 5721 8003355
BLIND HEXAGONAL NUT M8 UNI 5721
Price on request
29scheibe f schraube sechs kopf m10uni6592 8007249
SCHEIBE F.SCHRAUBE SECHS.KOPF M10UNI6592
Price on request
30single spout o 3 8 8000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs

immediately available, 11 available
31lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne 8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
31double spout o 3 8 8000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs

immediately available, 7 available
321 cup filter holder assembly rancilio 8001117
1 CUP FILTER HOLDER ASSEMBLY RANCILIO
This article is no longer available

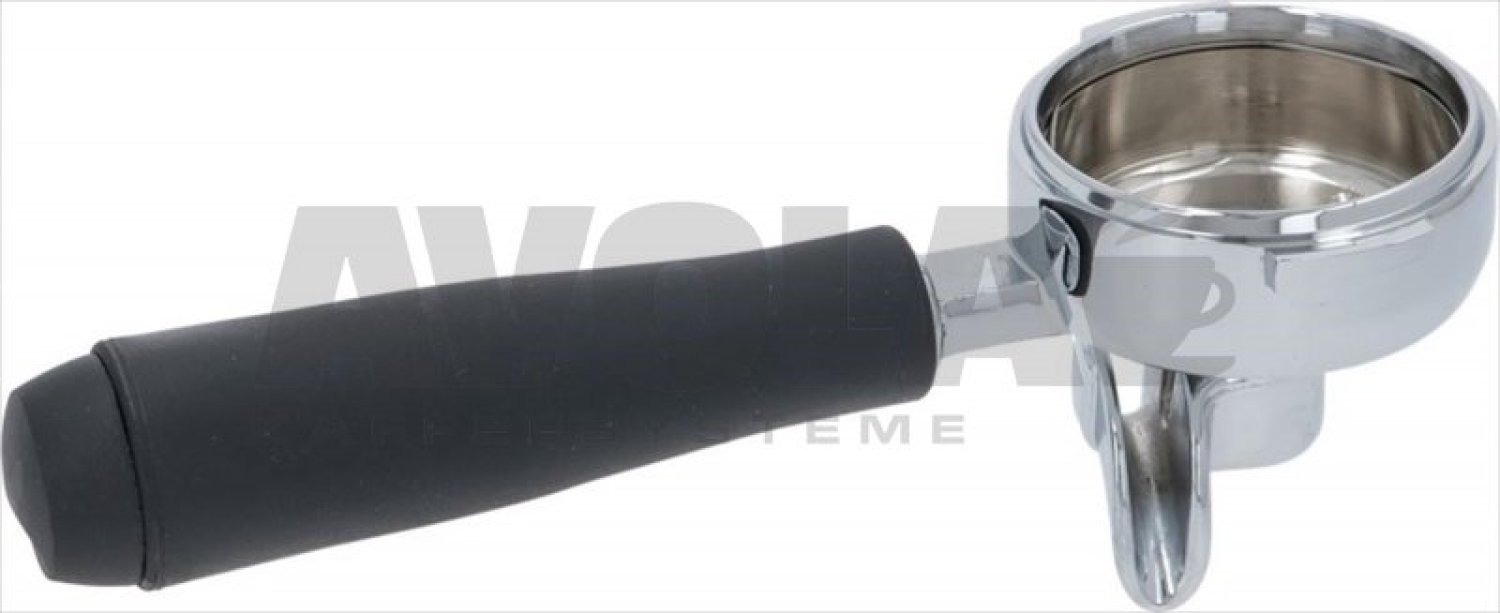

332 cups filter holder assembly rancilio 8001122
2 CUPS FILTER HOLDER ASSEMBLY RANCILIO
This article is no longer available

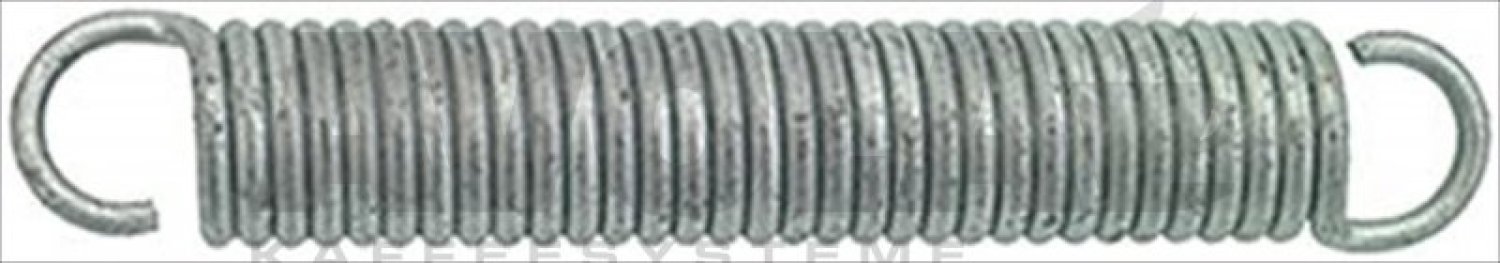

38shock absorber spring 8003849
SHOCK ABSORBER SPRING
5,56 €

excl. Shipping costs

Delivery time
is determined
39countersunk flat head screws m5x16 8007262
COUNTERSUNK FLAT HEAD SCREWS M5x16
0,50 €

excl. Shipping costs

immediately available

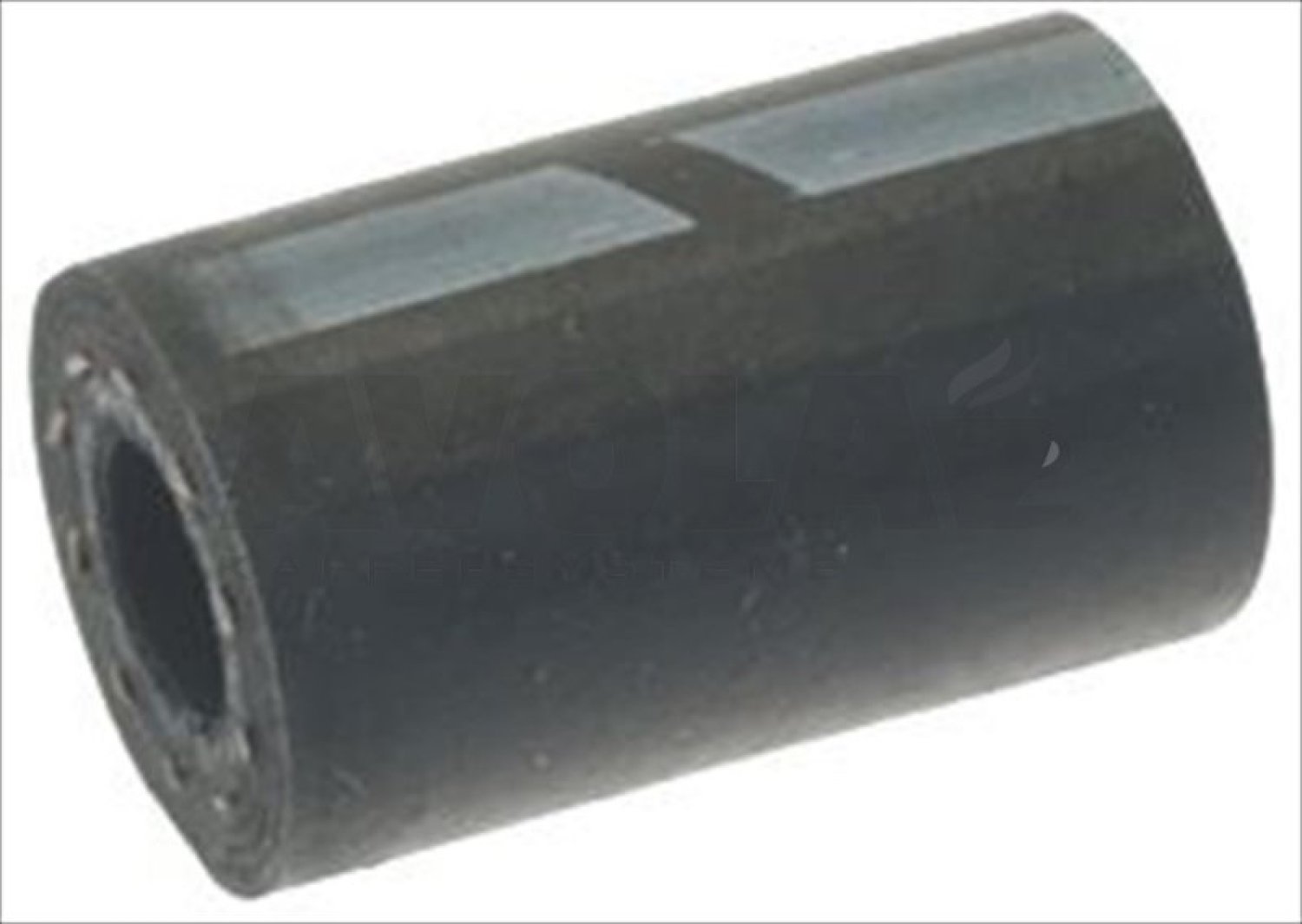

45rubber shock absorber 8000015
RUBBER SHOCK ABSORBER
4,26 €

excl. Shipping costs

Delivery time
is determined

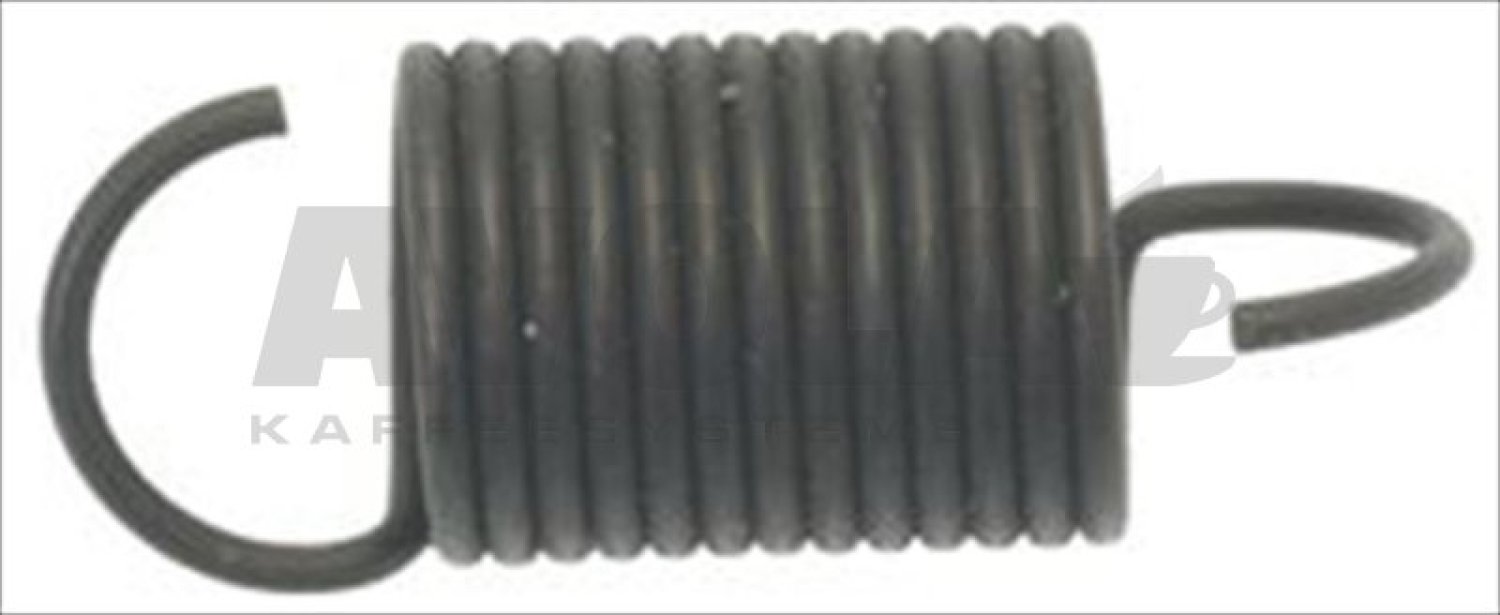

46lever spring 8003562
LEVER SPRING
10,47 €

excl. Shipping costs

Delivery time
is determined
54stainless steel circlip ra 4 uni 7437 8005617
STAINLESS STEEL CIRCLIP RA-4 UNI 7437
0,48 €

excl. Shipping costs

immediately available
55roll pin 8001310
ROLL PIN
2,19 €

excl. Shipping costs

Delivery time
is determined

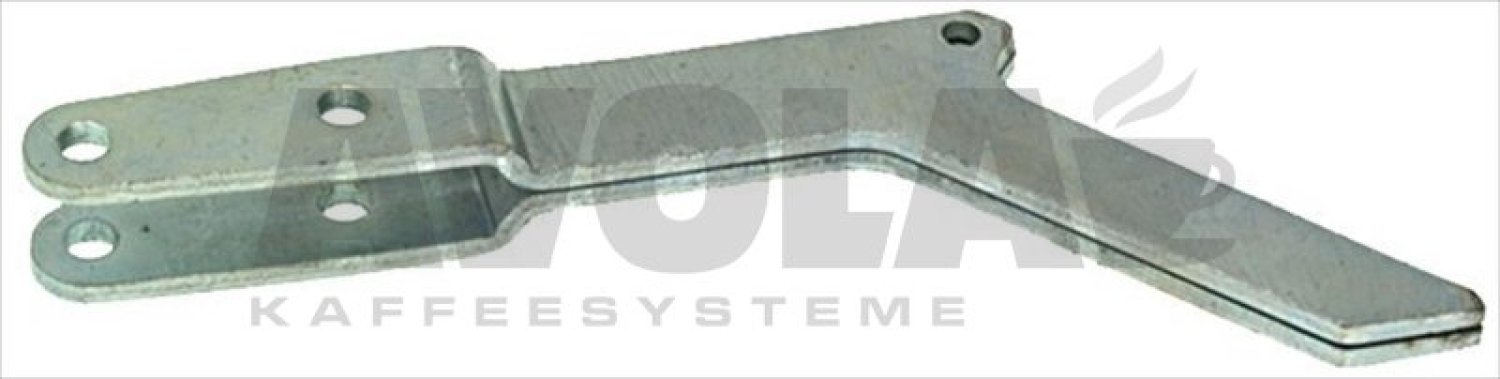

59micro control lever 8001309
MICRO CONTROL LEVER
25,06 €

excl. Shipping costs

Delivery time
is determined

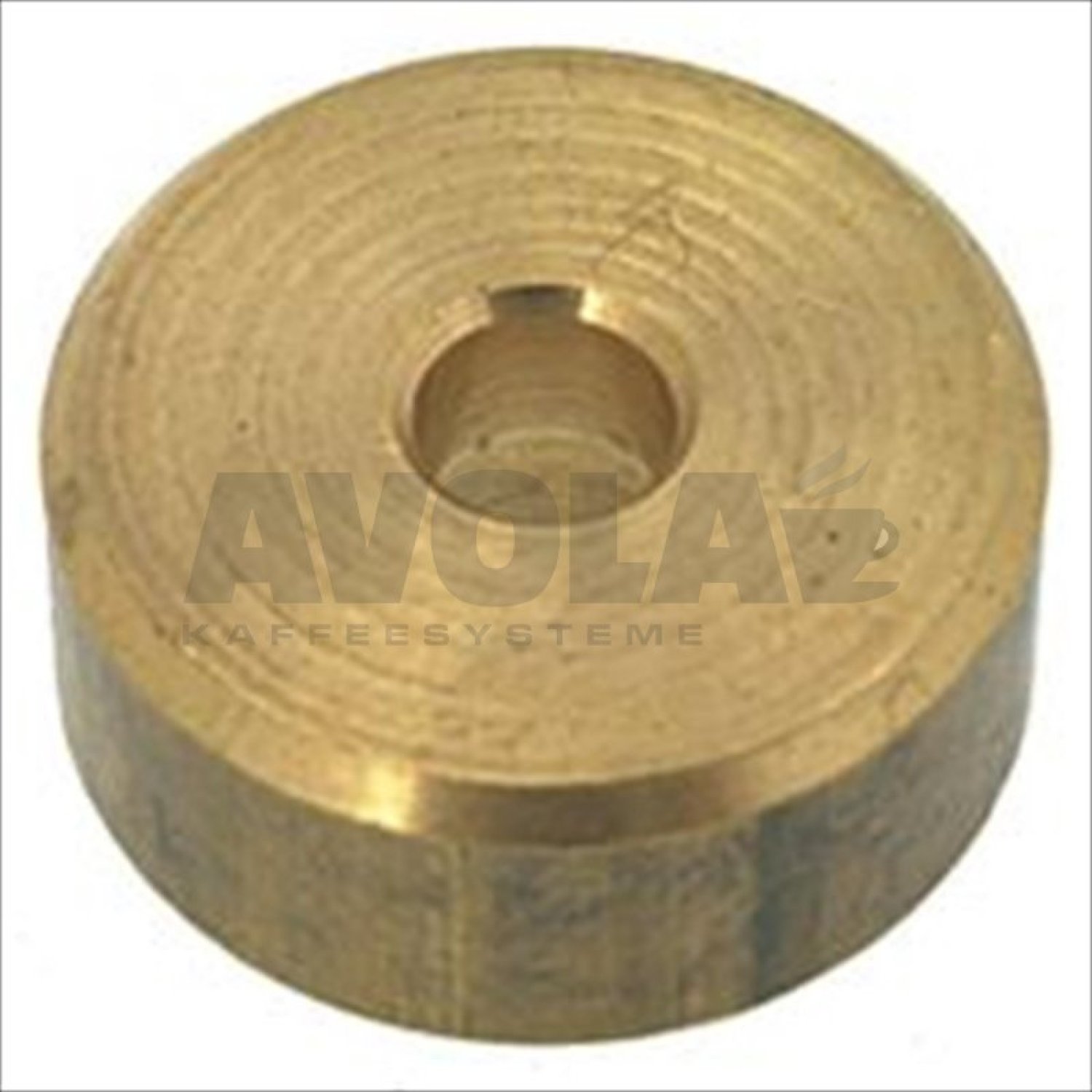

60lever bushing 8005425
LEVER BUSHING
3,61 €

excl. Shipping costs

Delivery time
is determined
62microswitch 5a 250v 8003095
MICROSWITCH 5A 250V
16,70 €

excl. Shipping costs

Delivery time
is determined

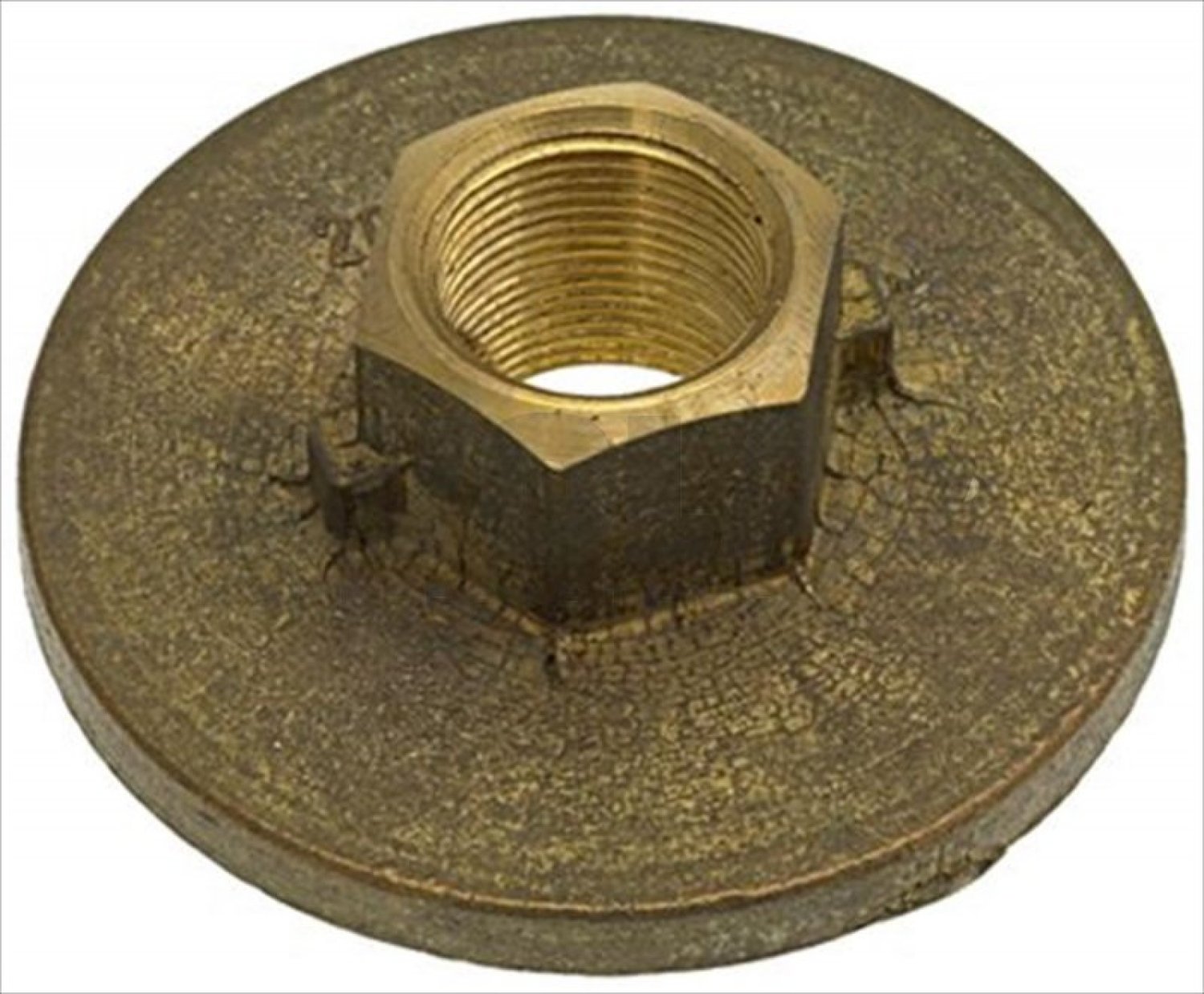

63buchse fuer einstellplatte 8007174
BUCHSE FÜR EINSTELLPLATTE
11,16 €

excl. Shipping costs

Delivery time 4-6 weeks

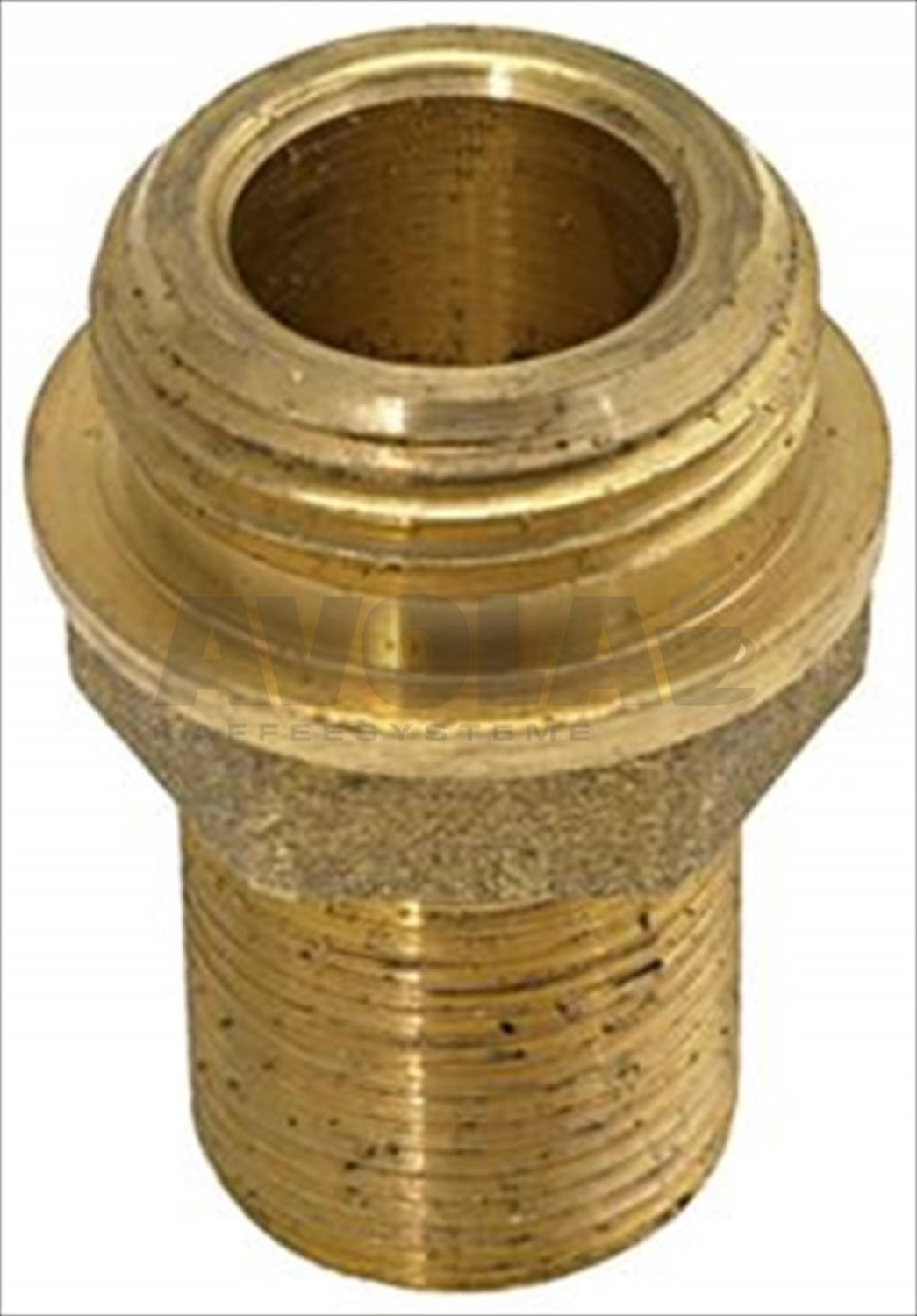

65infusion rod bushing 8007175
INFUSION ROD BUSHING
17,74 €

excl. Shipping costs

Delivery time
is determined
66flat copper gasket o 24x21x1 mm 8001982
FLAT COPPER GASKET ø 24x21x1 mm
0,96 €

excl. Shipping costs

immediately available
67flat ptfe gasket o 12x9x1 mm 8001981
Flat PTFE gasket ø 12x9x1 mm
3,45 €

excl. Shipping costs

Delivery time
is determined
68o ring 02037 epdm 8001975
O-RING 02037 EPDM
0,76 €

excl. Shipping costs

immediately available
69cap spring 8003850
CAP SPRING
1,55 €

excl. Shipping costs

immediately available, 20 available

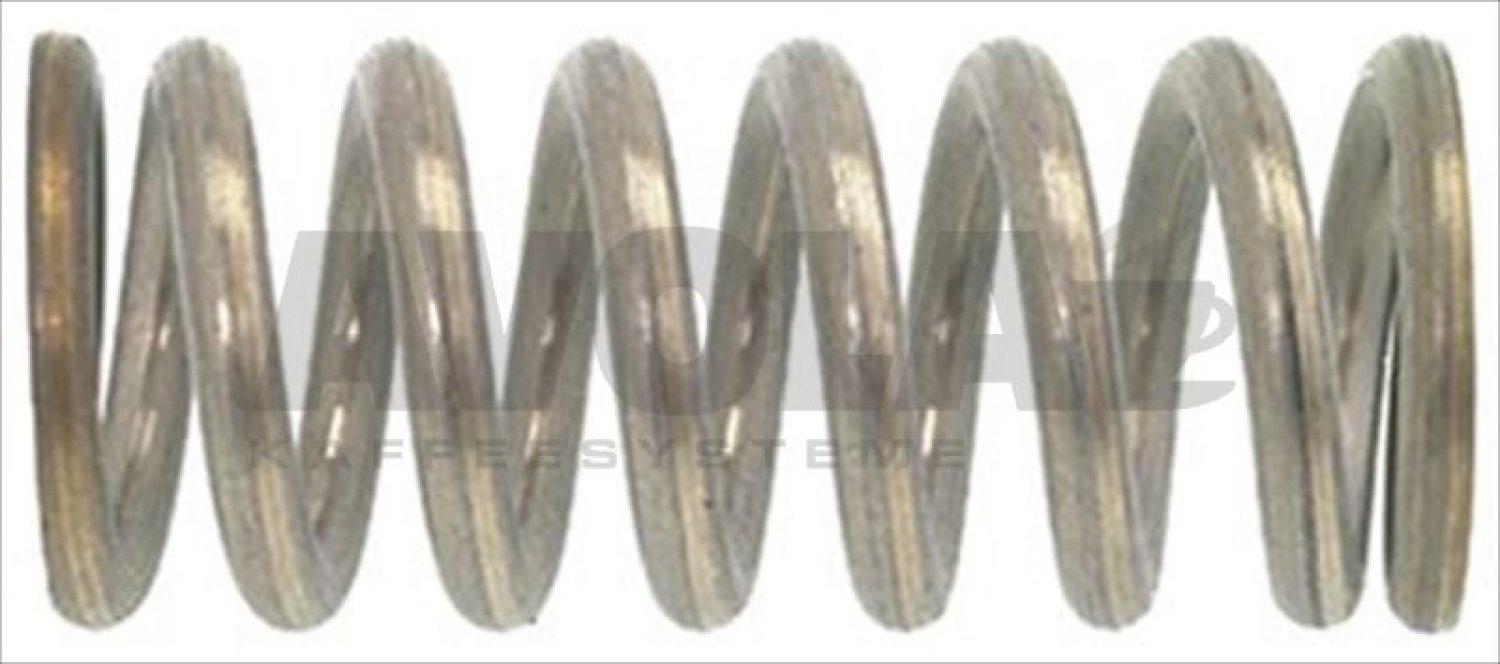

71valve spring 8003851
VALVE SPRING
4,12 €

excl. Shipping costs

immediately available, 1 available
73viton flat gasket 13x4x4 mm 8001990
VITON FLAT GASKET 13x4x4 mm
1,62 €

excl. Shipping costs

immediately available, 18 available
76spindle for control rod 8005201
SPINDLE FOR CONTROL ROD
15,17 €

excl. Shipping costs

Delivery time
is determined

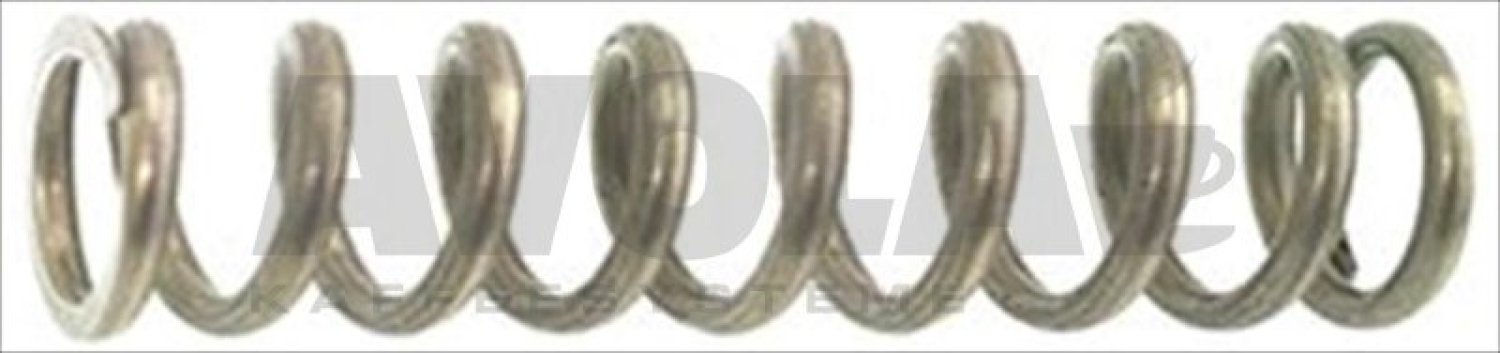

77drain rod spring 8003852
DRAIN ROD SPRING
1,54 €

excl. Shipping costs

Delivery time
is determined

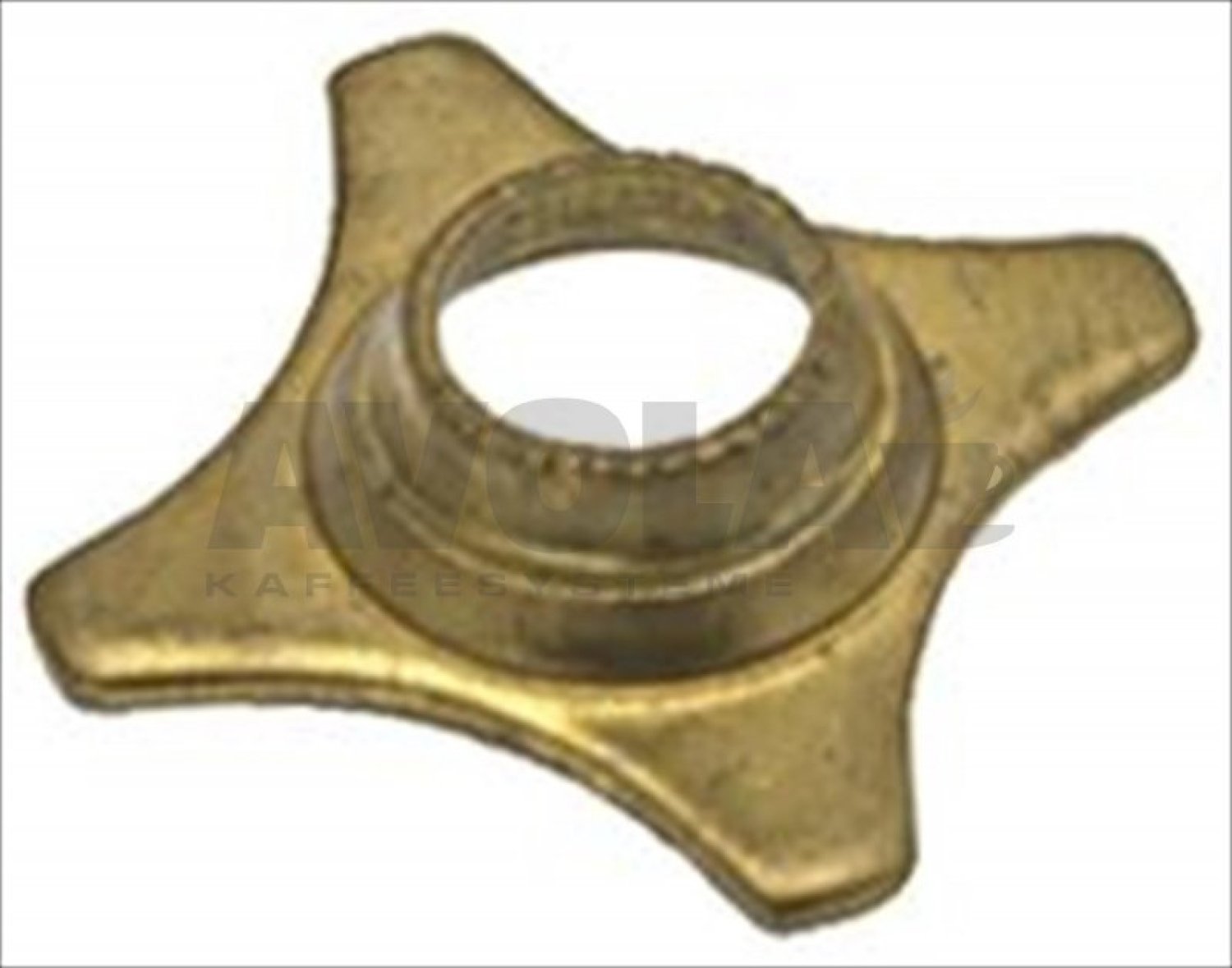

78infusion spring guide bushing 8007171
INFUSION SPRING GUIDE BUSHING
23,99 €

excl. Shipping costs

immediately available, 5 available

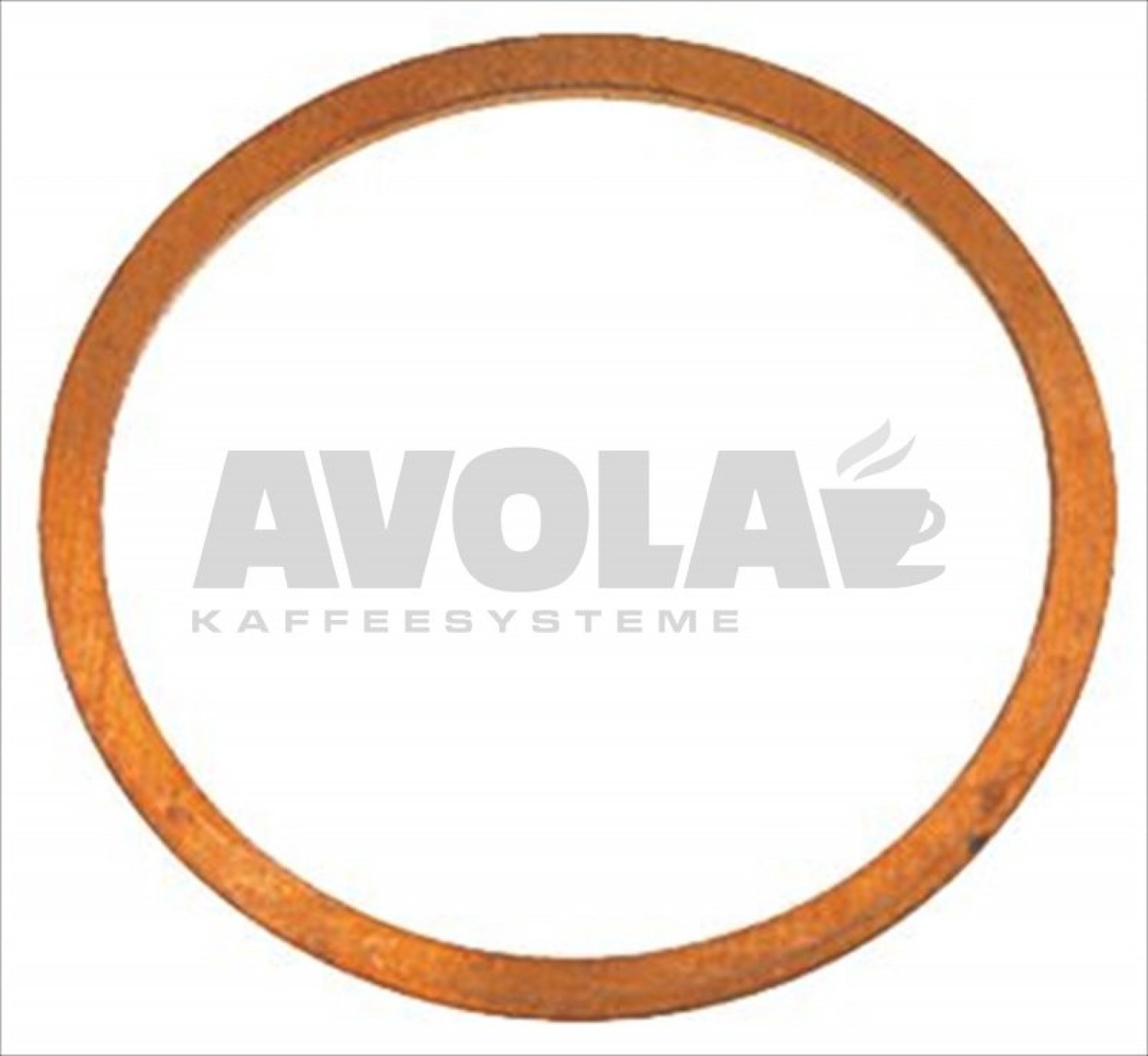

79copper flat gasket 8001995
COPPER FLAT GASKET
1,43 €

excl. Shipping costs

Delivery time
is determined

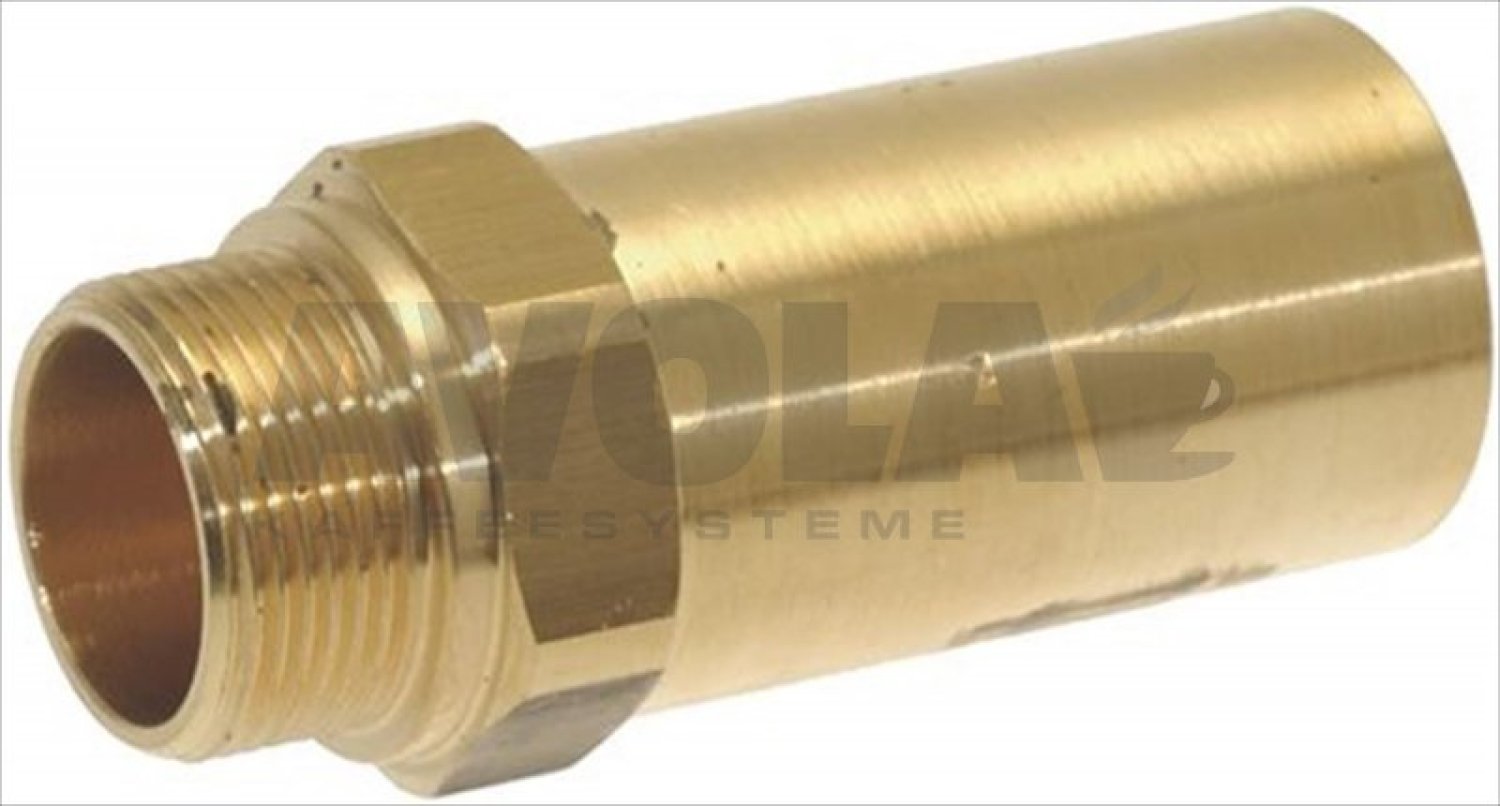

80drain pipe fitting 8007170
DRAIN PIPE FITTING
41,48 €

excl. Shipping costs

Delivery time
is determined

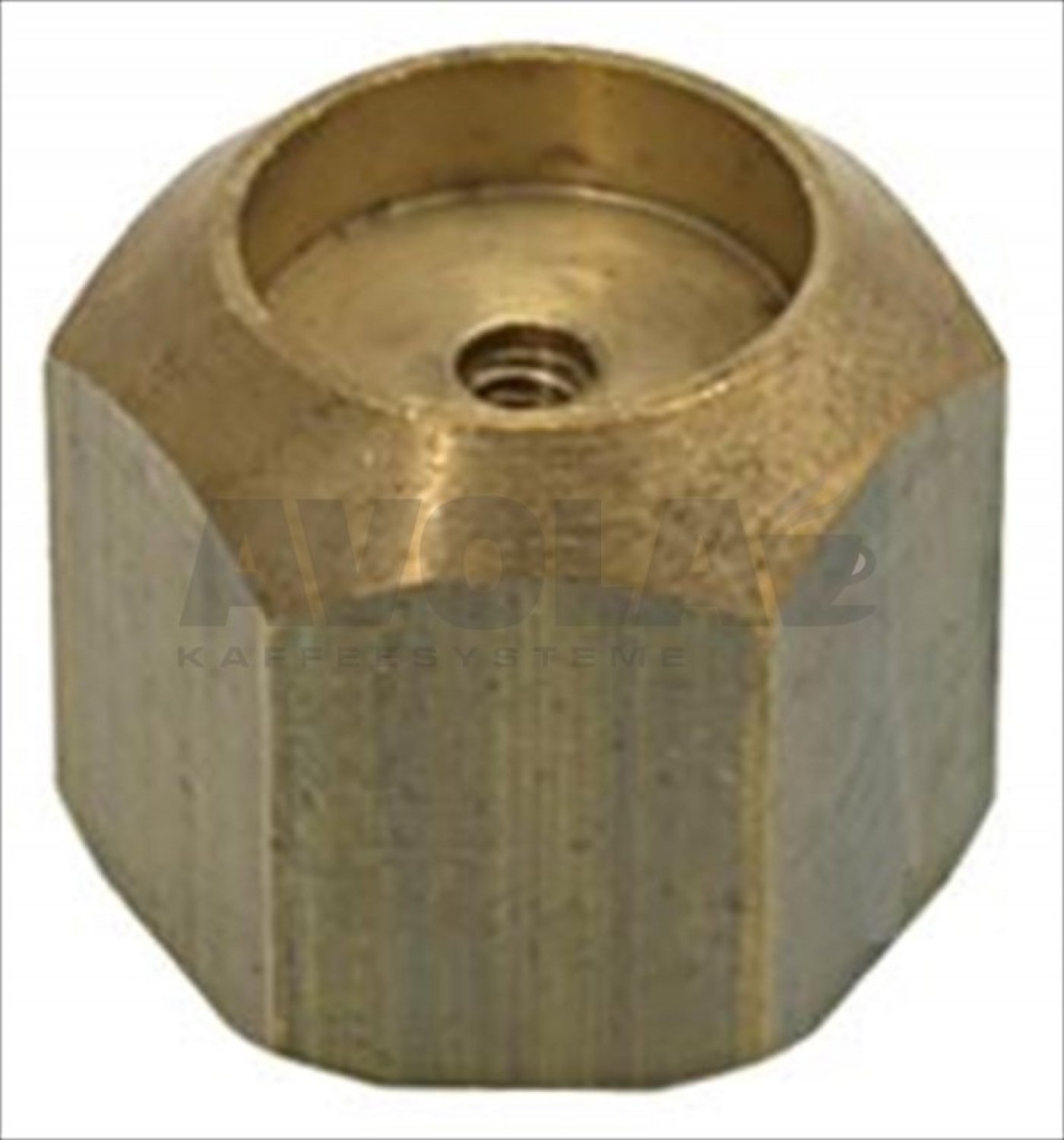

82outlet gasket holder bushing 8007172
OUTLET GASKET HOLDER BUSHING
16,49 €

excl. Shipping costs

Delivery time
is determined
83valve spring o 16x30 mm 8003853
VALVE SPRING ø 16x30 mm
2,18 €

excl. Shipping costs

immediately available, 8 available
84outlet spring guide bushing 8007173
OUTLET SPRING GUIDE BUSHING
24,89 €

excl. Shipping costs

Delivery time
is determined

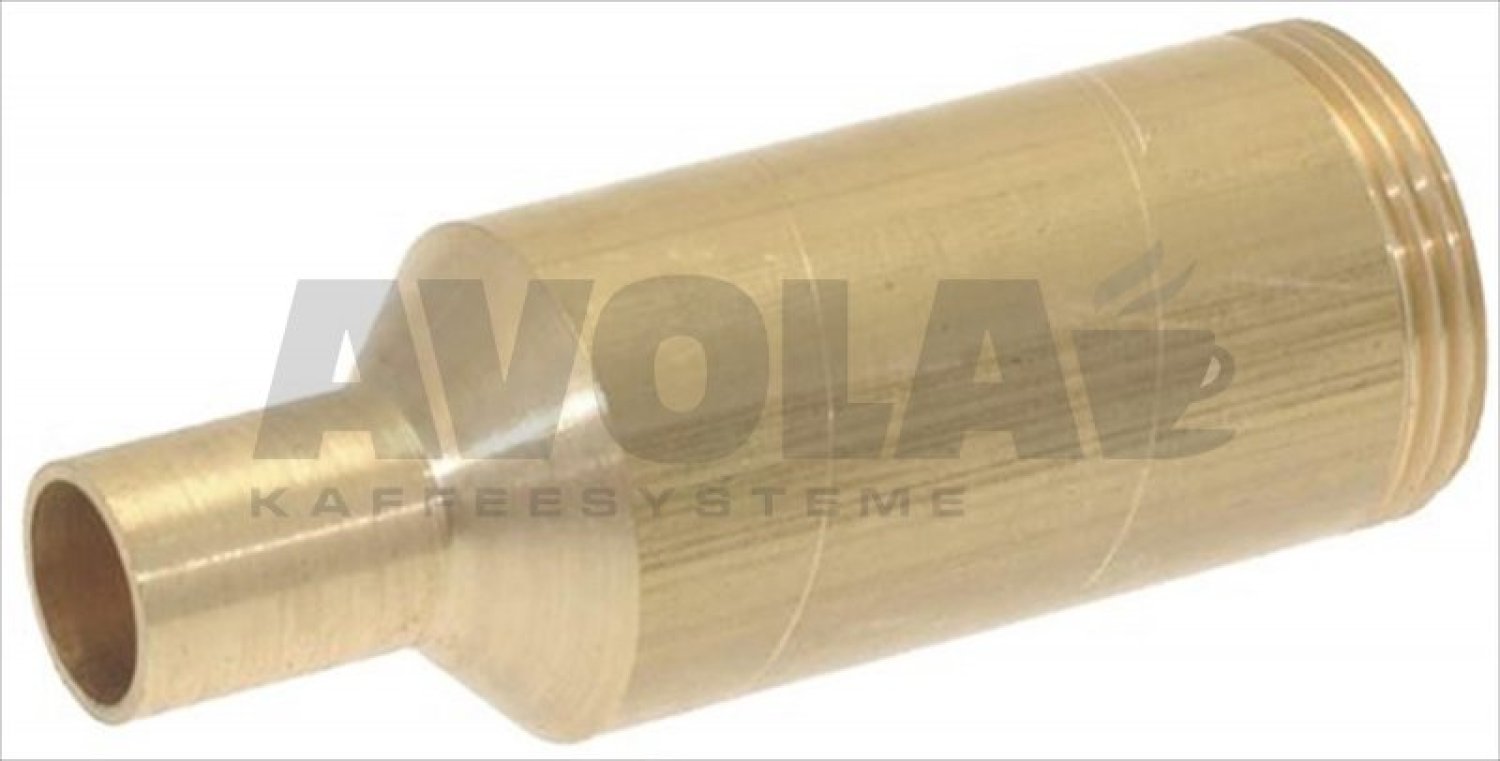

87drain pipe 8005658
DRAIN PIPE
14,22 €

excl. Shipping costs

Delivery time 4-6 weeks..
891 cup filter 7 g 8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs

immediately available, 13 available
902 cup filter 12 grams 8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs

immediately available, 7 available
91straight single spout o 3 8 8000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs

immediately available, 8 available
922 cups filter 18 21gr o 70x28 mm 8001104
2 Cups Filter 18/21gr ø 70x28 mm
4,46 €

excl. Shipping costs

immediately available, 6 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
