Rancilio

RANCILIO HEBELGRUPPE Z9-Z11-S10

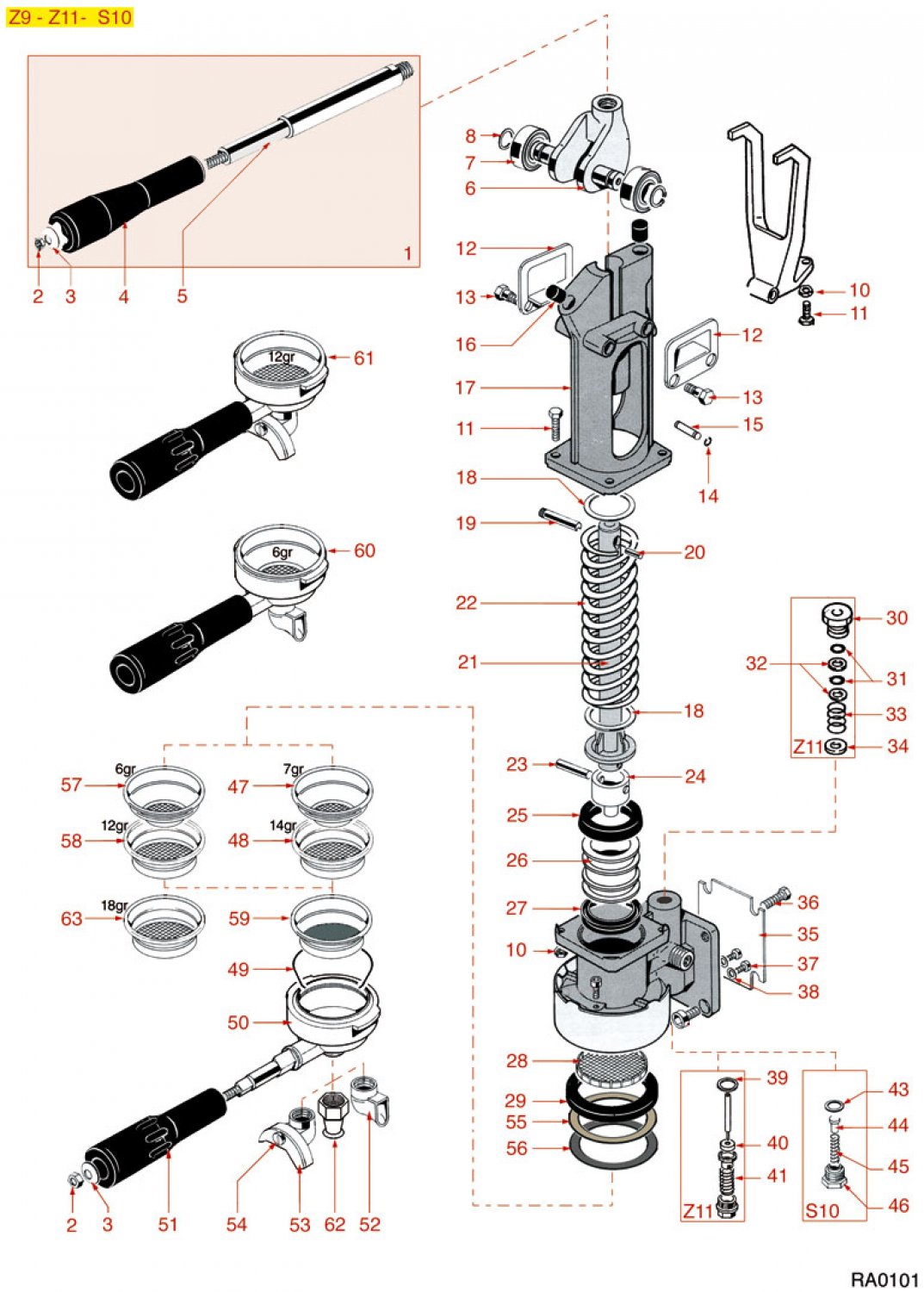

Drawing number 8057399

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:

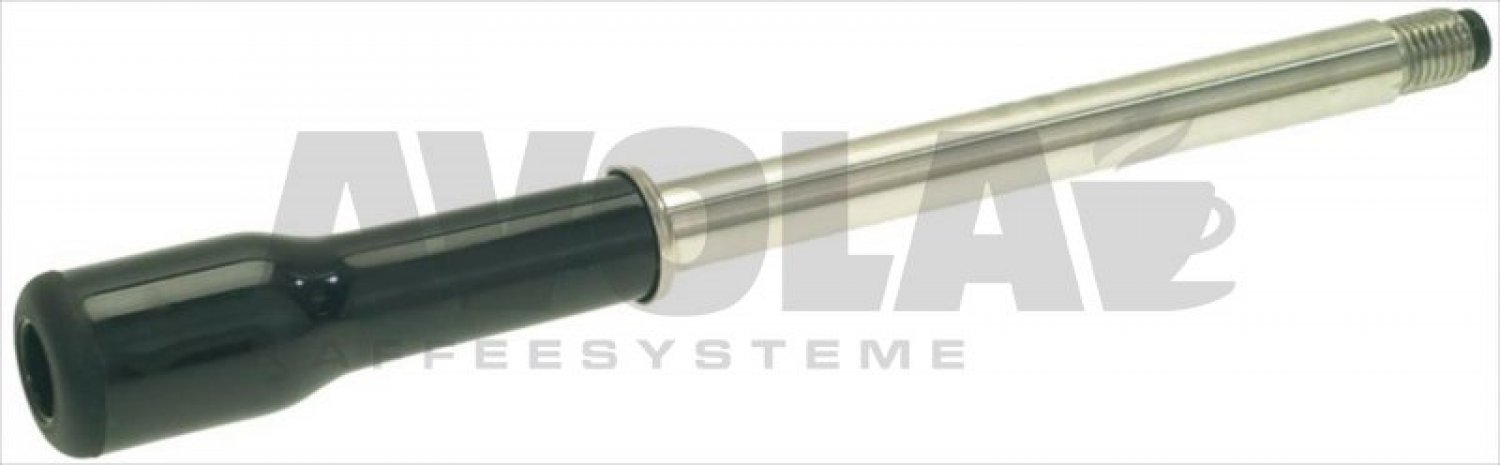

1lever group complete handle8003430
LEVER GROUP COMPLETE HANDLE
99,67 €

excl. Shipping costs
Delivery time 4-6 weeks
2blind hexagonal nut m8 uni 57218003355
BLIND HEXAGONAL NUT M8 UNI 5721
Price on request
3scheibe f schraube sechs kopf m10uni65928007249
SCHEIBE F.SCHRAUBE SECHS.KOPF M10UNI6592
Price on request

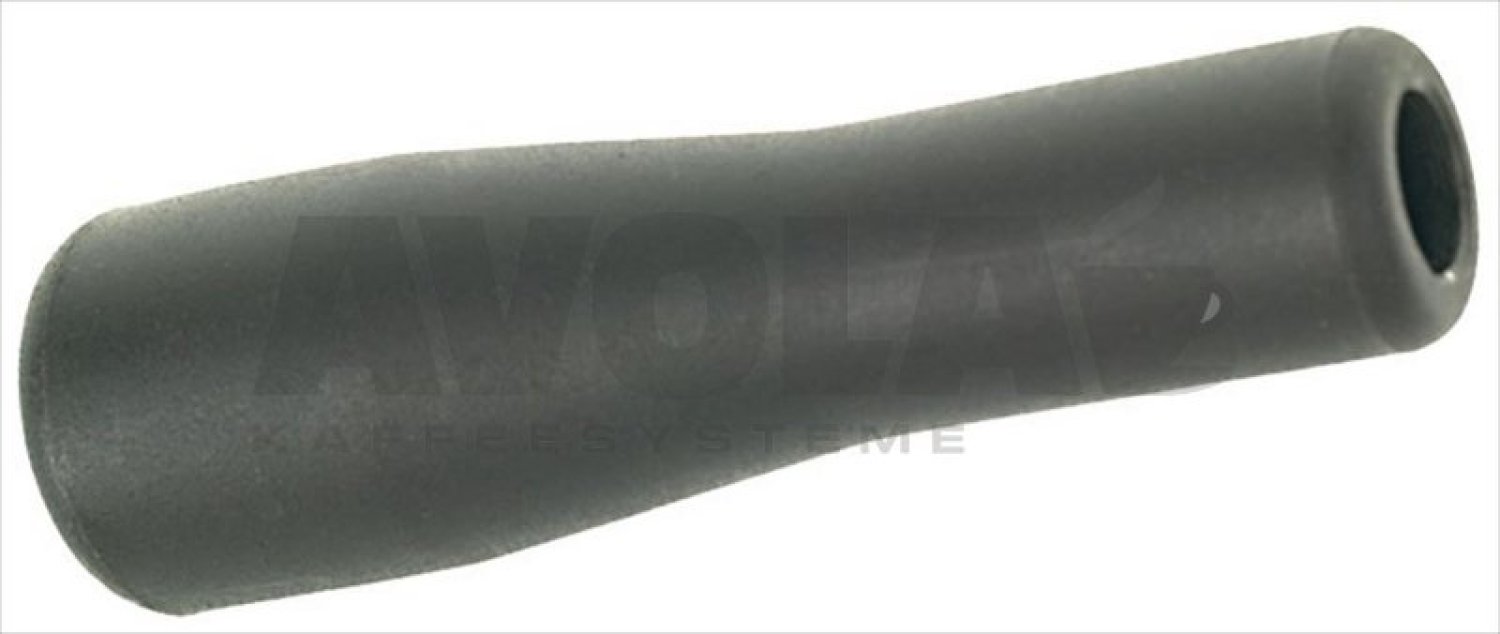

4lever group handle8003402
LEVER GROUP HANDLE
12,52 €

excl. Shipping costs
Delivery time 4-6 weeks

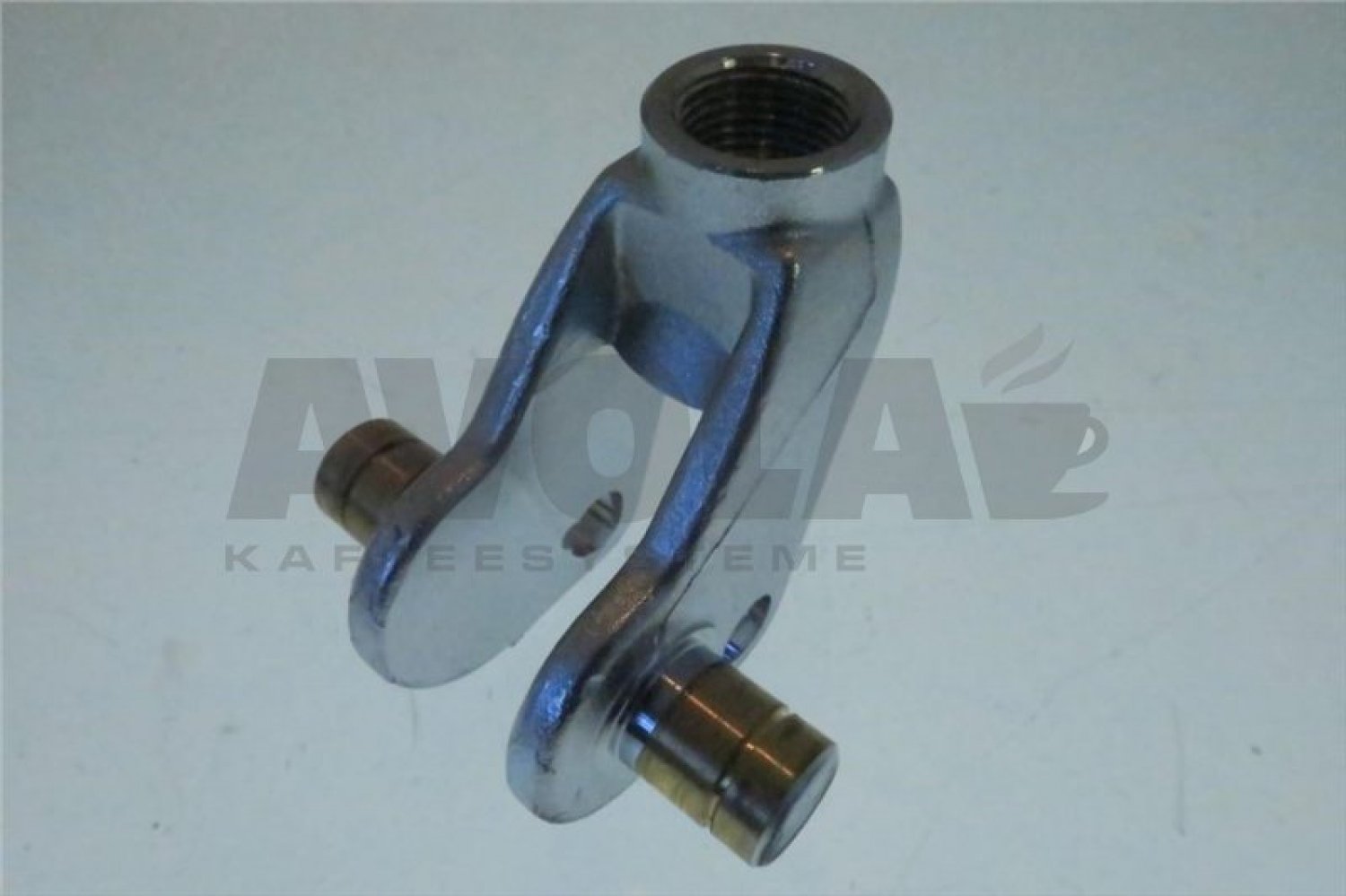

6chromium plated fork for lever group8003431
CHROMIUM-PLATED FORK FOR LEVER GROUP
64,99 €

excl. Shipping costs
Delivery time
is determined
7bearing 6202 zz nsk8000322
BEARING 6202 ZZ NSK
13,13 €

excl. Shipping costs
immediately available, 2 available

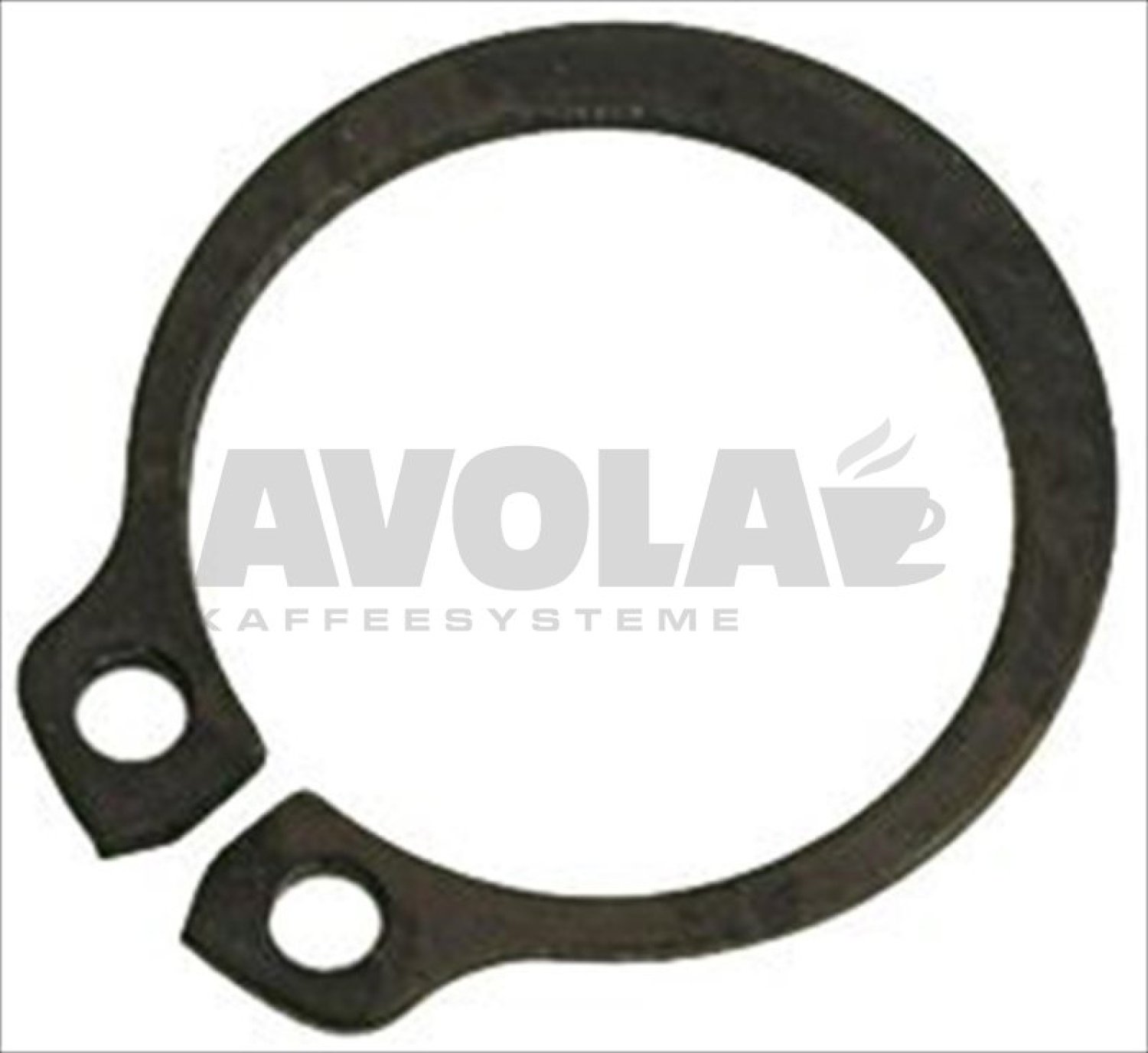

8circlip e 158003432
CIRCLIP E/15
0,96 €

excl. Shipping costs
immediately available
11hexagon head screw m6x258001305
HEXAGON HEAD SCREW M6x25
Price on request
14radial seeger ring8003556
RADIAL SEEGER RING
1,15 €

excl. Shipping costs
immediately available

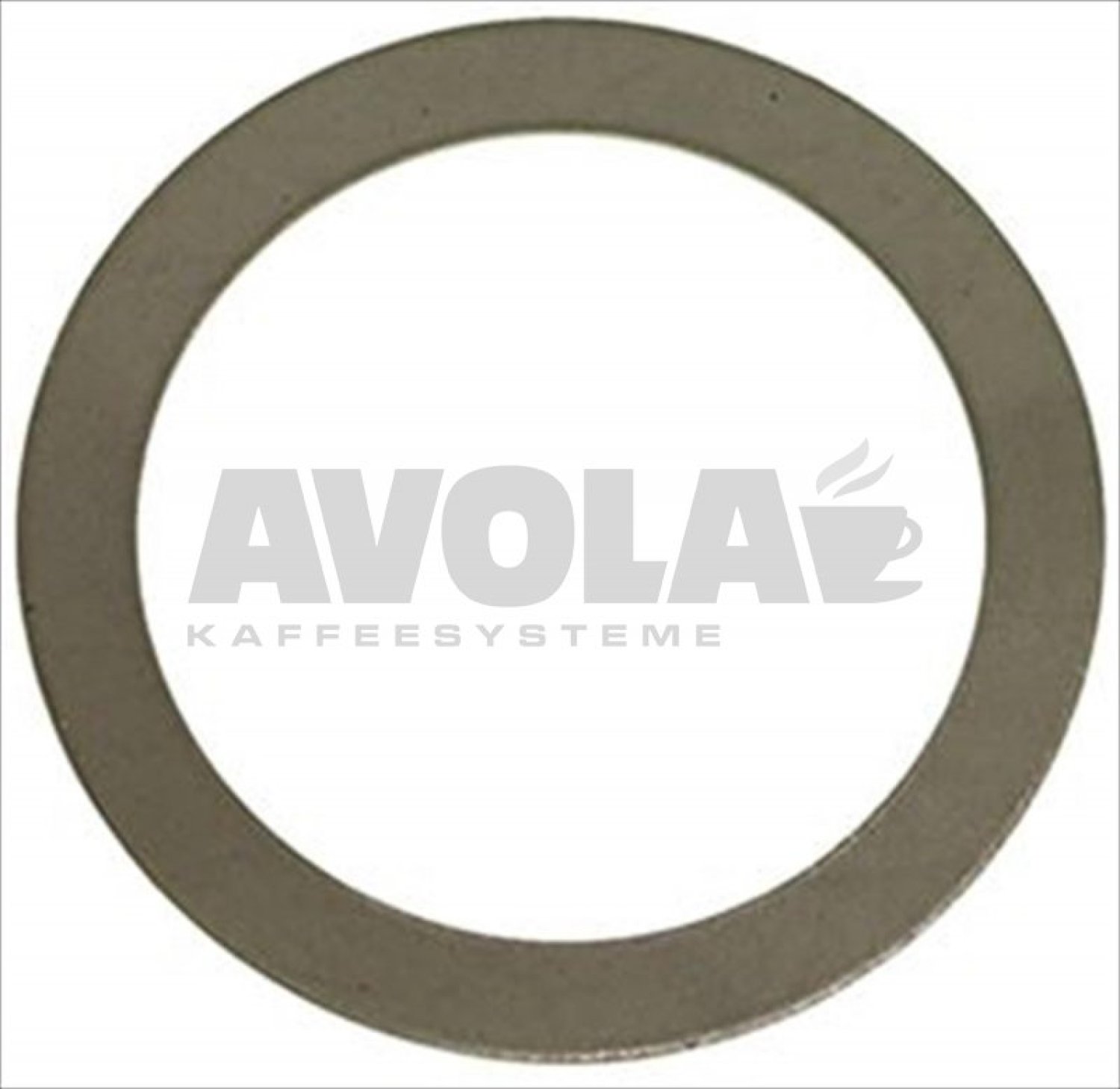

18stainless steel washer for lever8003845
STAINLESS STEEL WASHER FOR LEVER
6,30 €

excl. Shipping costs
immediately available, 3 available

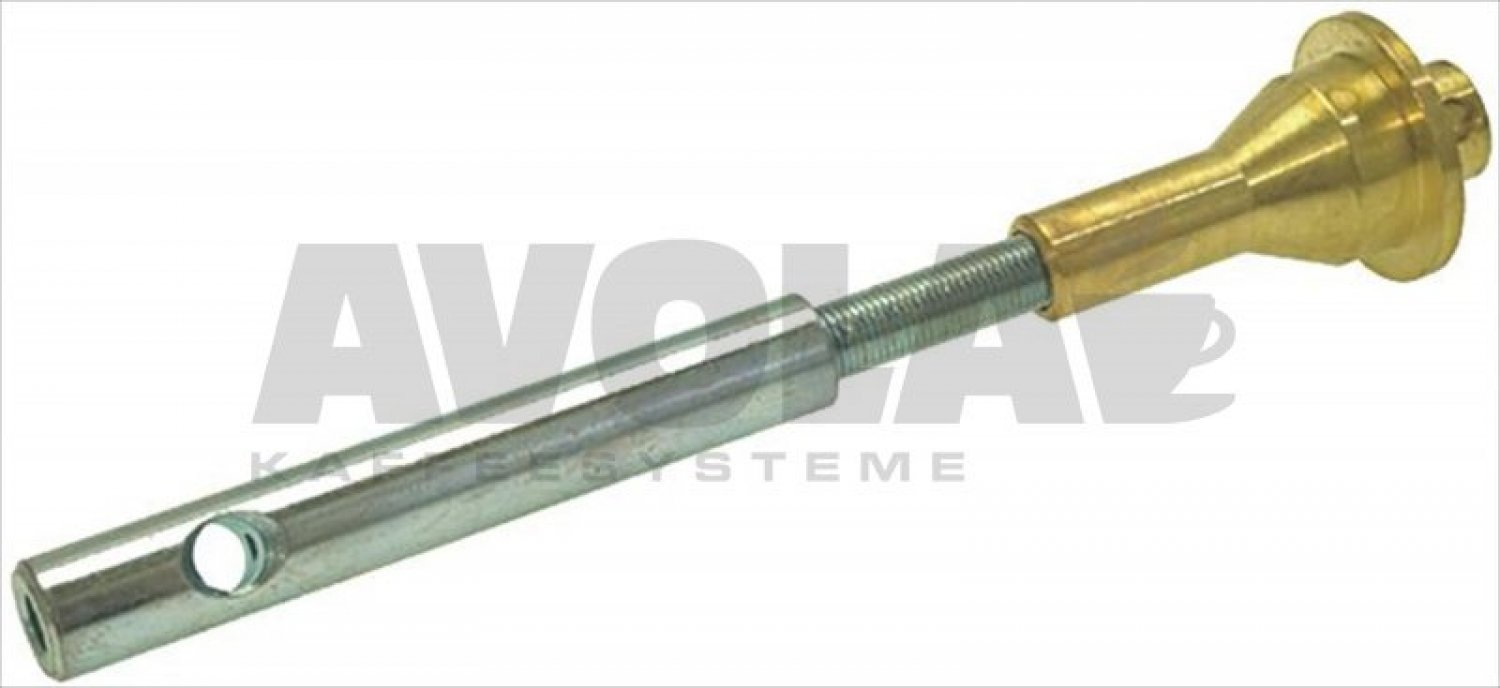

21infusion control lever8003844
INFUSION CONTROL LEVER
68,37 €

excl. Shipping costs
Delivery time
is determined

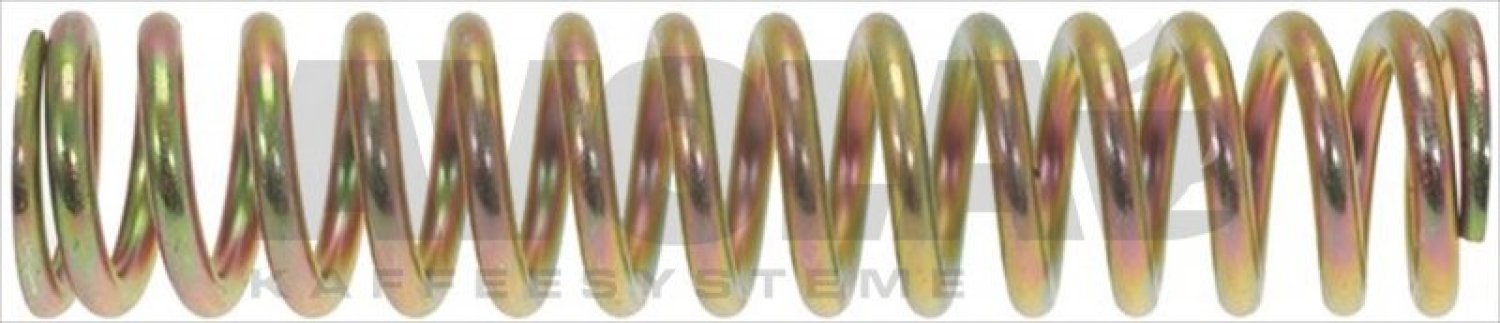

22lever group spring8003843
LEVER GROUP SPRING
28,00 €

excl. Shipping costs
immediately available, 1 available

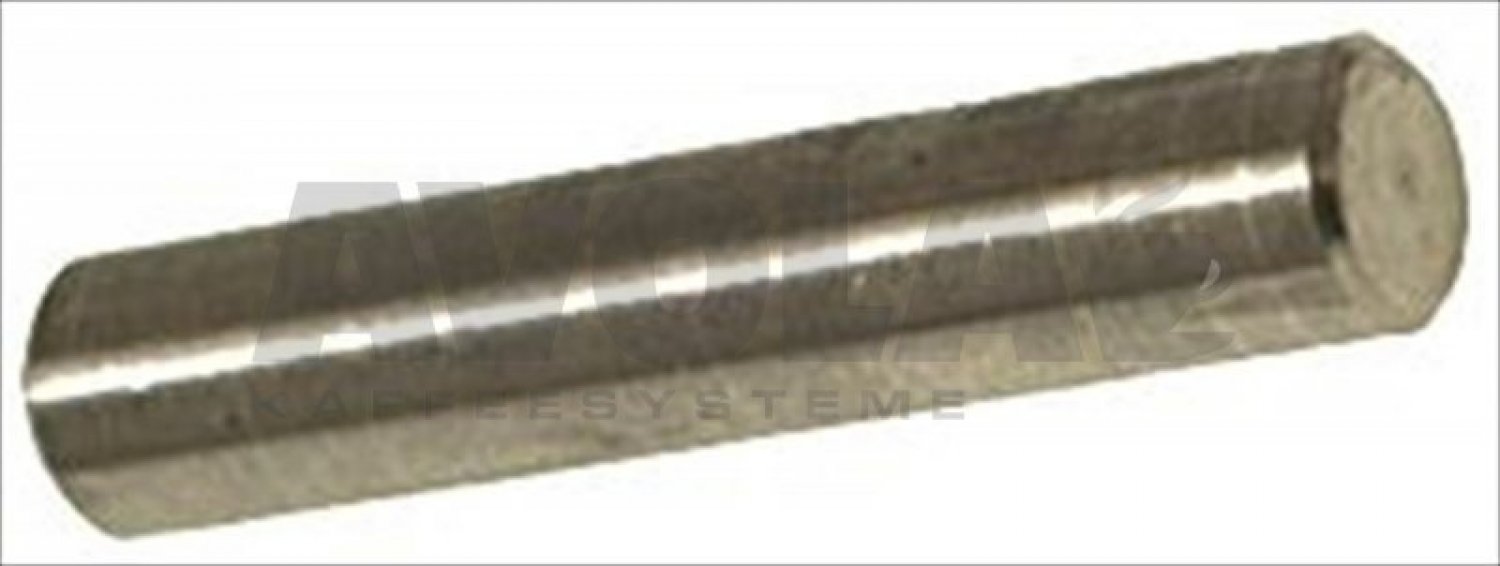

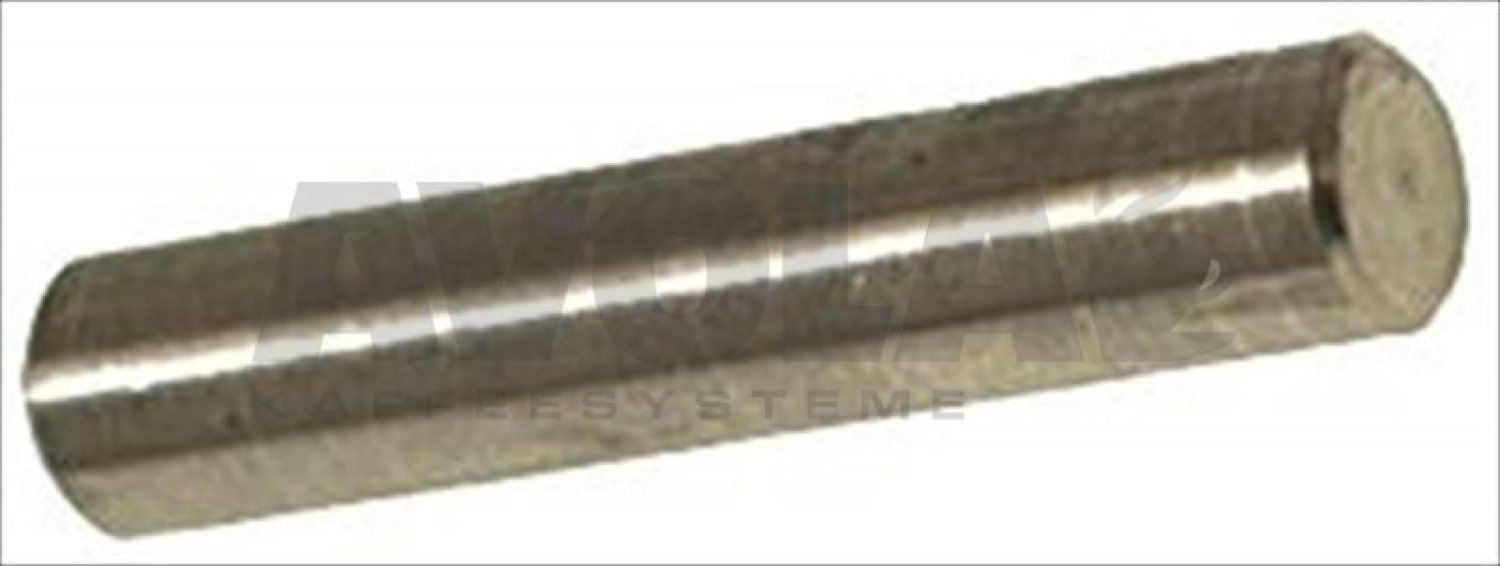

23stift fuer hebel8001307
STIFT FÜR HEBEL
4,57 €

excl. Shipping costs
Delivery time
is determined

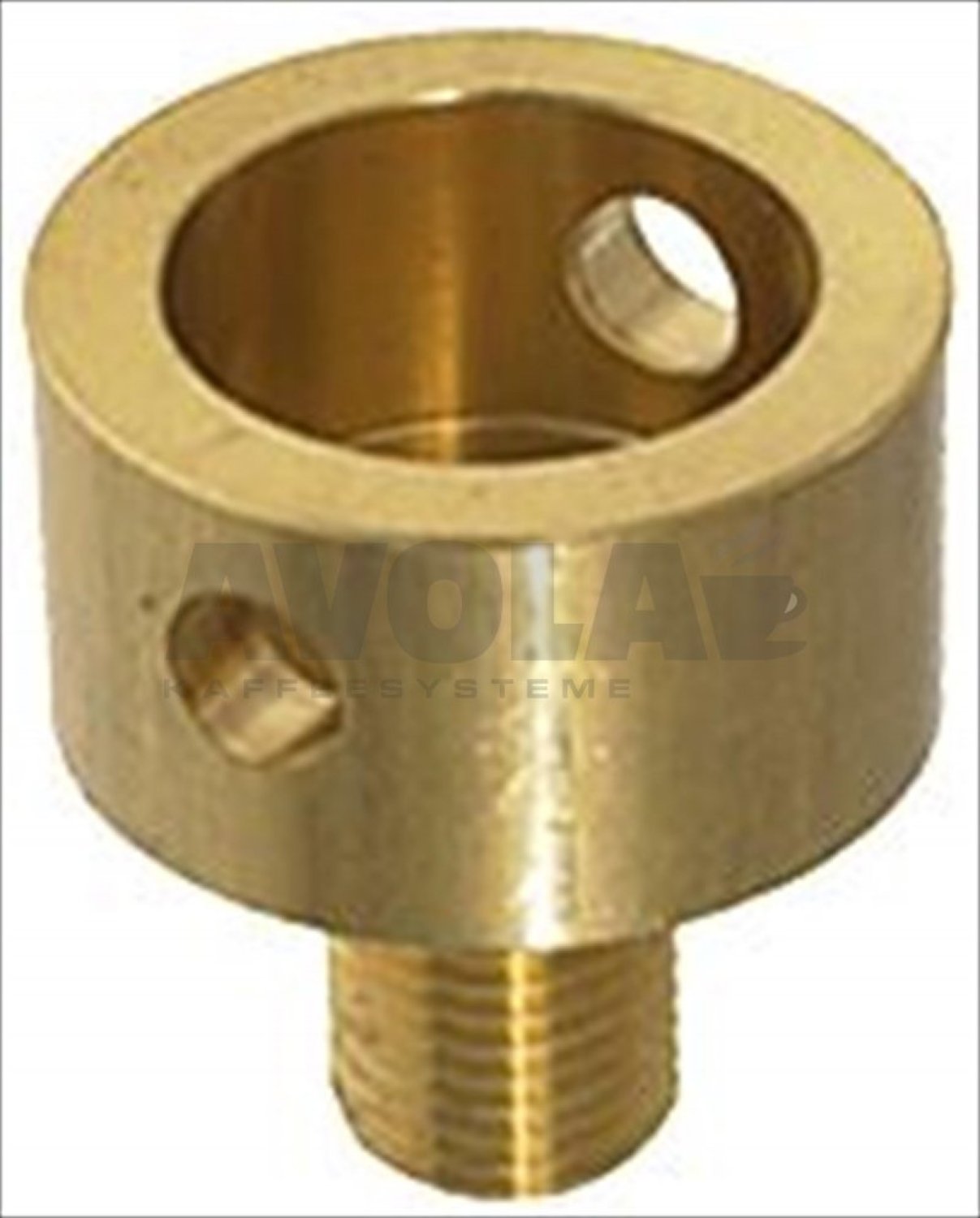

24articulation bushing8001306
ARTICULATION BUSHING
12,17 €

excl. Shipping costs
Delivery time
is determined

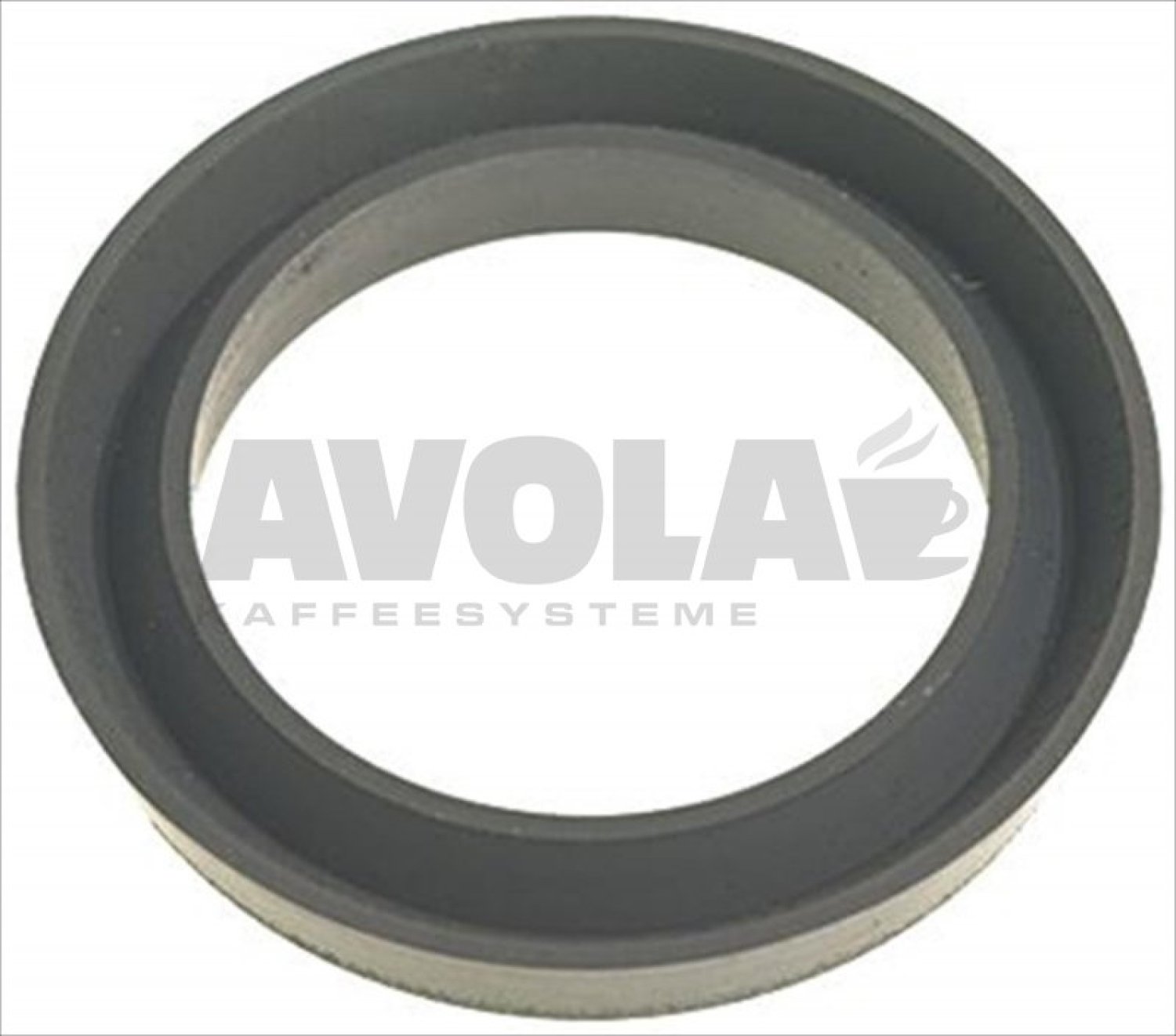

25lip seal o 51x38x7 5 mm8001987
LIP SEAL ø 51x38x7,5 mm
5,95 €

excl. Shipping costs
immediately available, 6 available

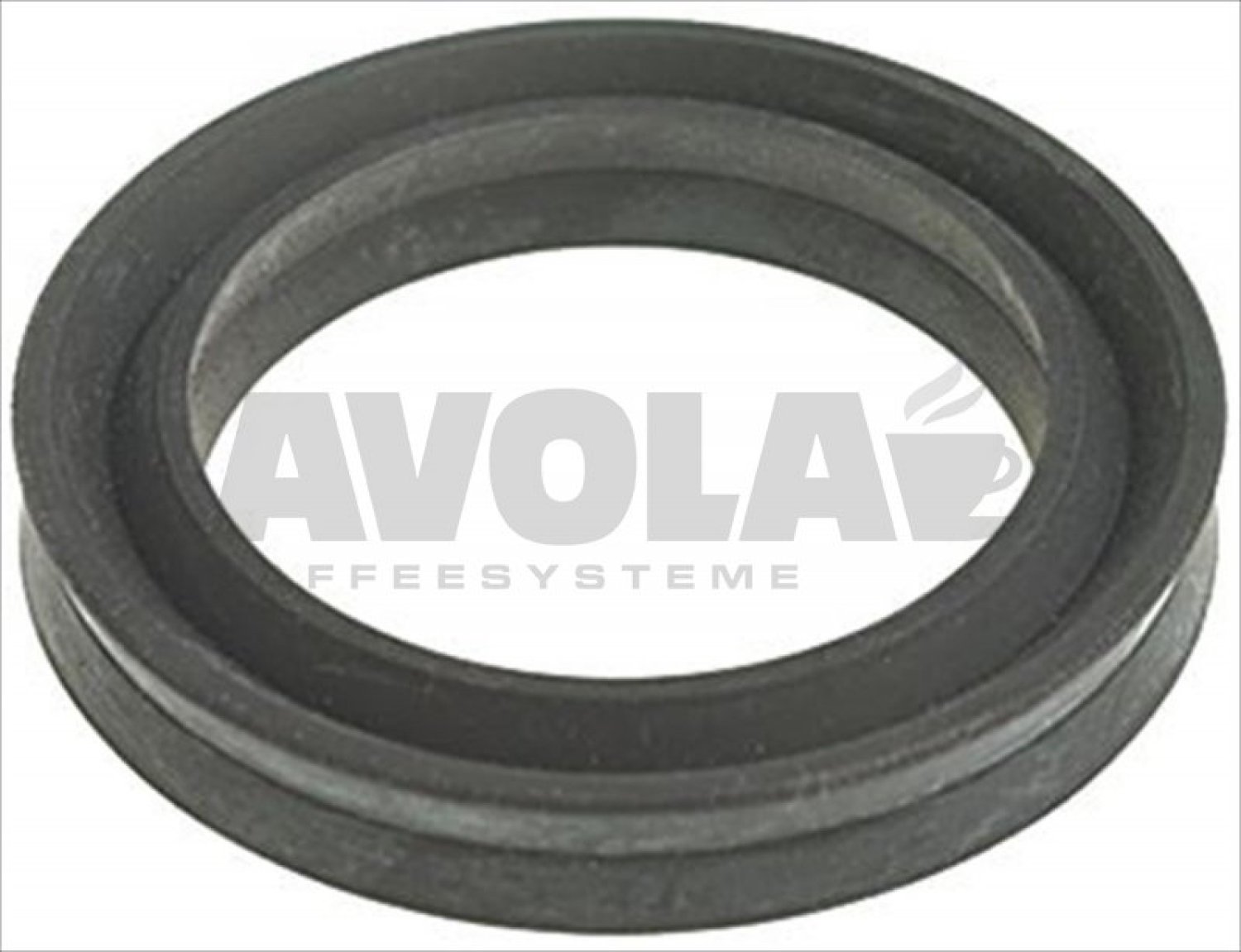

27lip seal o 50x38x7 5 mm8001986
LIP SEAL ø 50x38x7,5 mm
5,40 €

excl. Shipping costs
immediately available, 7 available
28shower screen o 57 5 mm8000548
SHOWER SCREEN ø 57,5 mm
8,85 €

excl. Shipping costs
immediately available, 12 available
29filter holder gasket8001984
FILTER HOLDER GASKET
4,09 €

excl. Shipping costs
immediately available
31o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available
36schraube zylinderkopf innensechskant vollgewinde edelstahl m8x20 a2 70 din 9128061169
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M8x20 A2-70 Din 912
2,67 €

excl. Shipping costs
immediately available
37cylinder head screw m6x88001304
CYLINDER HEAD SCREW M6x8
1,67 €

excl. Shipping costs
immediately available, 10 available
38copper flat gasket o 10x6x1 mm8001983
COPPER FLAT GASKET ø 10x6x1 mm
1,31 €

excl. Shipping costs
immediately available, 10 available
39copper flat gasket o 27x21 5x1 mm8001991
COPPER FLAT GASKET ø 27x21,5x1 mm
1,31 €

excl. Shipping costs
immediately available, 18 available
40viton flat gasket 13x4x4 mm8001990
VITON FLAT GASKET 13x4x4 mm
1,62 €

excl. Shipping costs
immediately available
41valve spring o 16x30 mm8003853
VALVE SPRING ø 16x30 mm
2,18 €

excl. Shipping costs
immediately available, 8 available
43copper flat gasket o 18x14x1 5 mm8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs
immediately available

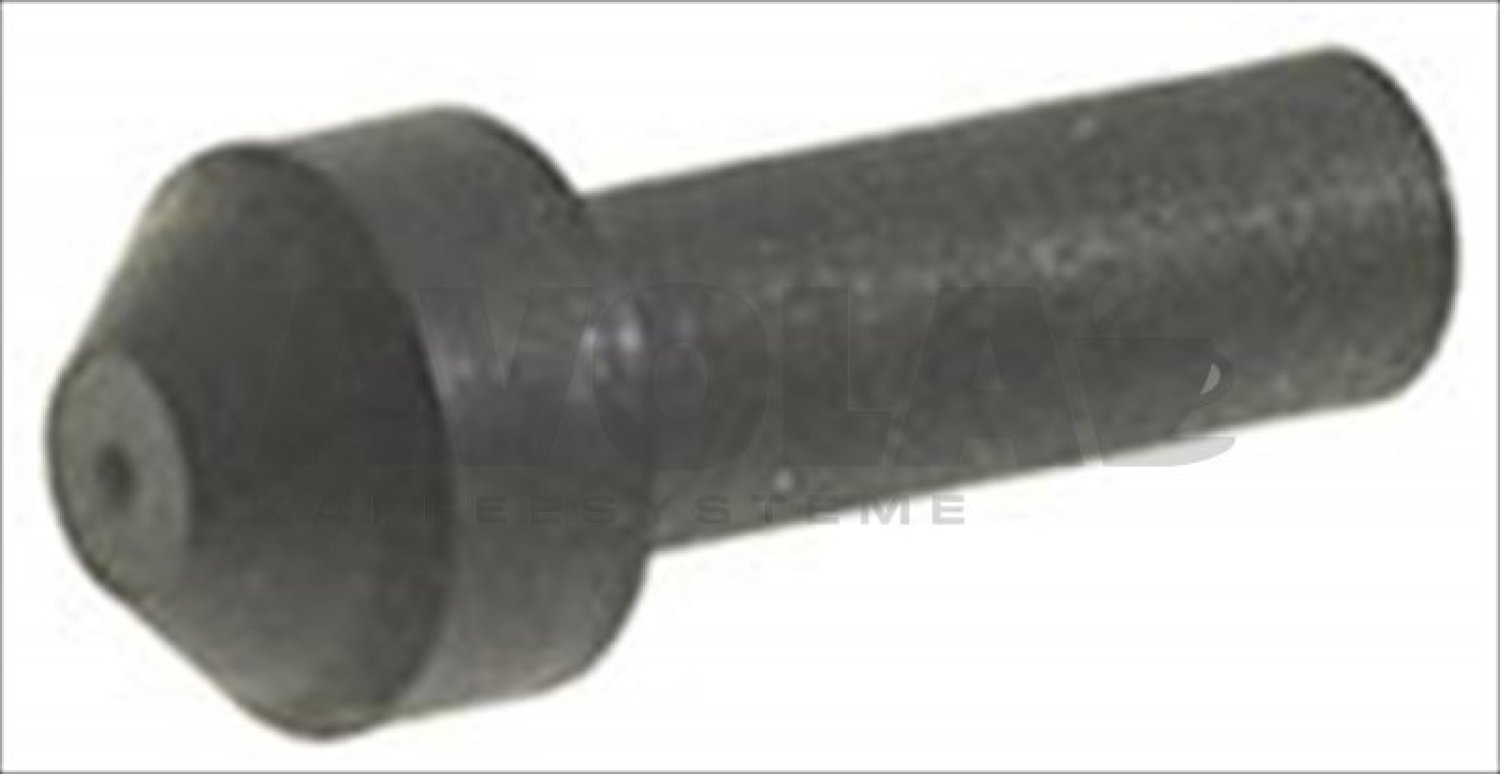

44pin for non return valve8007177
PIN FOR NON RETURN VALVE
7,32 €

excl. Shipping costs
Delivery time
is determined

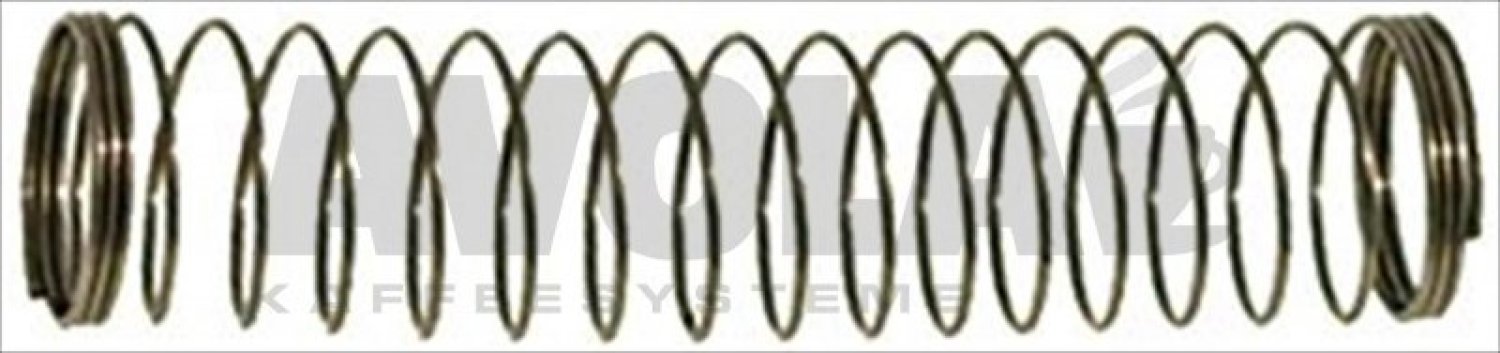

45non return valve spring8007176
NON-RETURN VALVE SPRING
Price on request

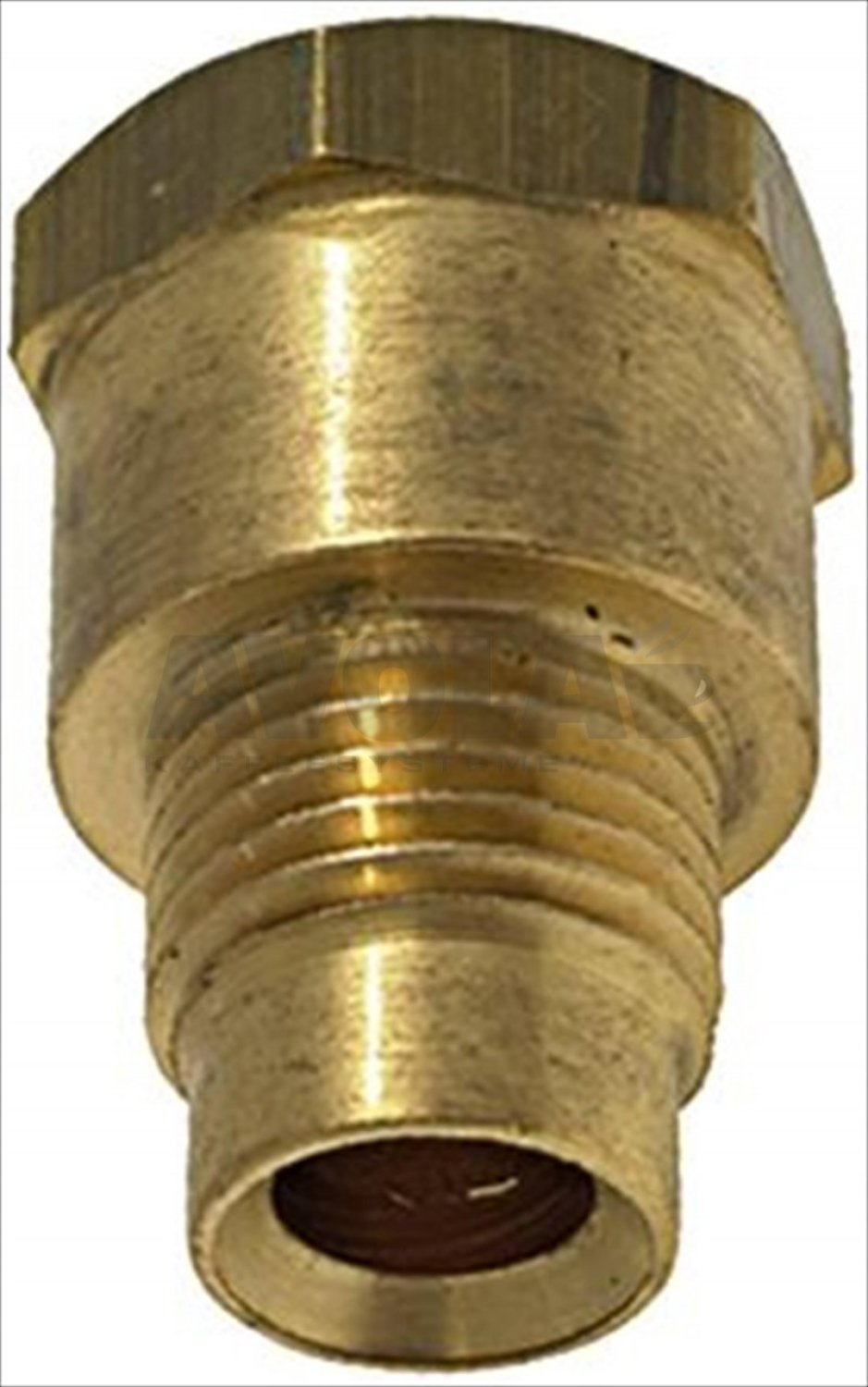

46cap for brew group8006419
CAP FOR BREW GROUP
11,21 €

excl. Shipping costs
Delivery time 4-6 weeks
471 cup filter 7 g8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs
immediately available, 15 available
482 cup filter 12 grams8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs
immediately available, 15 available
49filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available
50filter holder rancilio8001205
FILTER HOLDER RANCILIO
41,57 €

excl. Shipping costs
immediately available, 1 available
51filter holder handle8003354
FILTER HOLDER HANDLE
14,86 €

excl. Shipping costs
Delivery time 4-6 weeks
52single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available, 7 available
53lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
53double spout o 3 88000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs
immediately available, 7 available
54chrome plated screw for spout8001123
CHROME PLATED SCREW FOR SPOUT
3,26 €

excl. Shipping costs
immediately available, 7 available
55paper seal o 70x57x0 8 mm8002175
PAPER SEAL ø 70x57x0,8 mm
0,39 €

excl. Shipping costs
immediately available
56rubber shim8002169
RUBBER SHIM
1,17 €

excl. Shipping costs
immediately available
571 cup filter 6 g8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs
immediately available, 13 available
582 cup filter 12 grams8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs
immediately available, 15 available
59blind filter o58mm8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs
immediately available, 19 available
62straight single spout o 3 88000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs
immediately available, 5 available
632 cups filter 18 21gr o 70x28 mm8001104
2 Cups Filter 18/21gr ø 70x28 mm
4,46 €

excl. Shipping costs
immediately available, 10 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
