Reneka

RENEKA MOSAIC KESSEL UND MOTOR

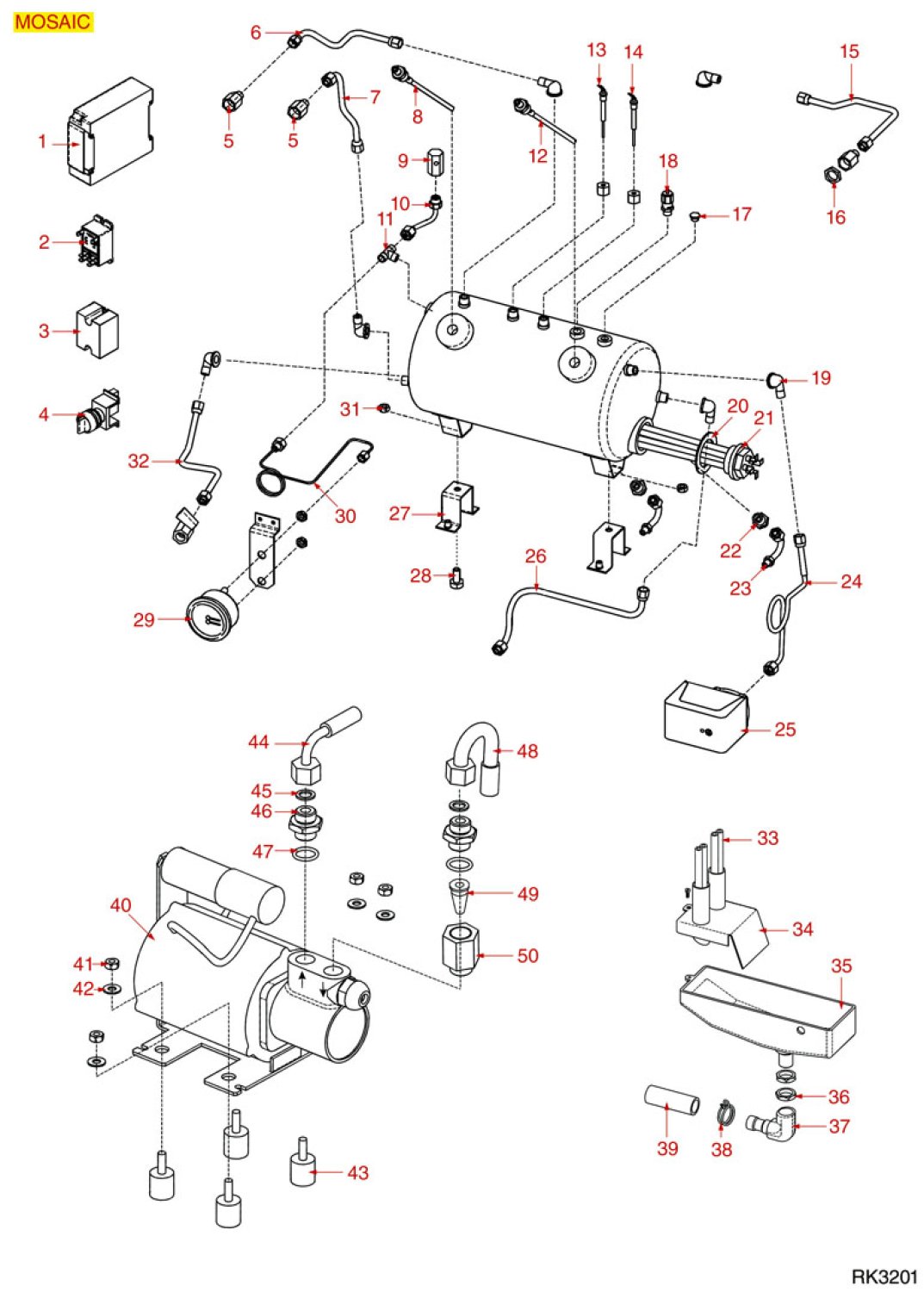

Drawing number 8057433

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
2finder relais 66 82 8 230 0300 30a 230v 8022886
FINDER RELAIS 66.82.8.230.0300 30A 230V
74,71 €

excl. Shipping costs

Delivery time
is determined

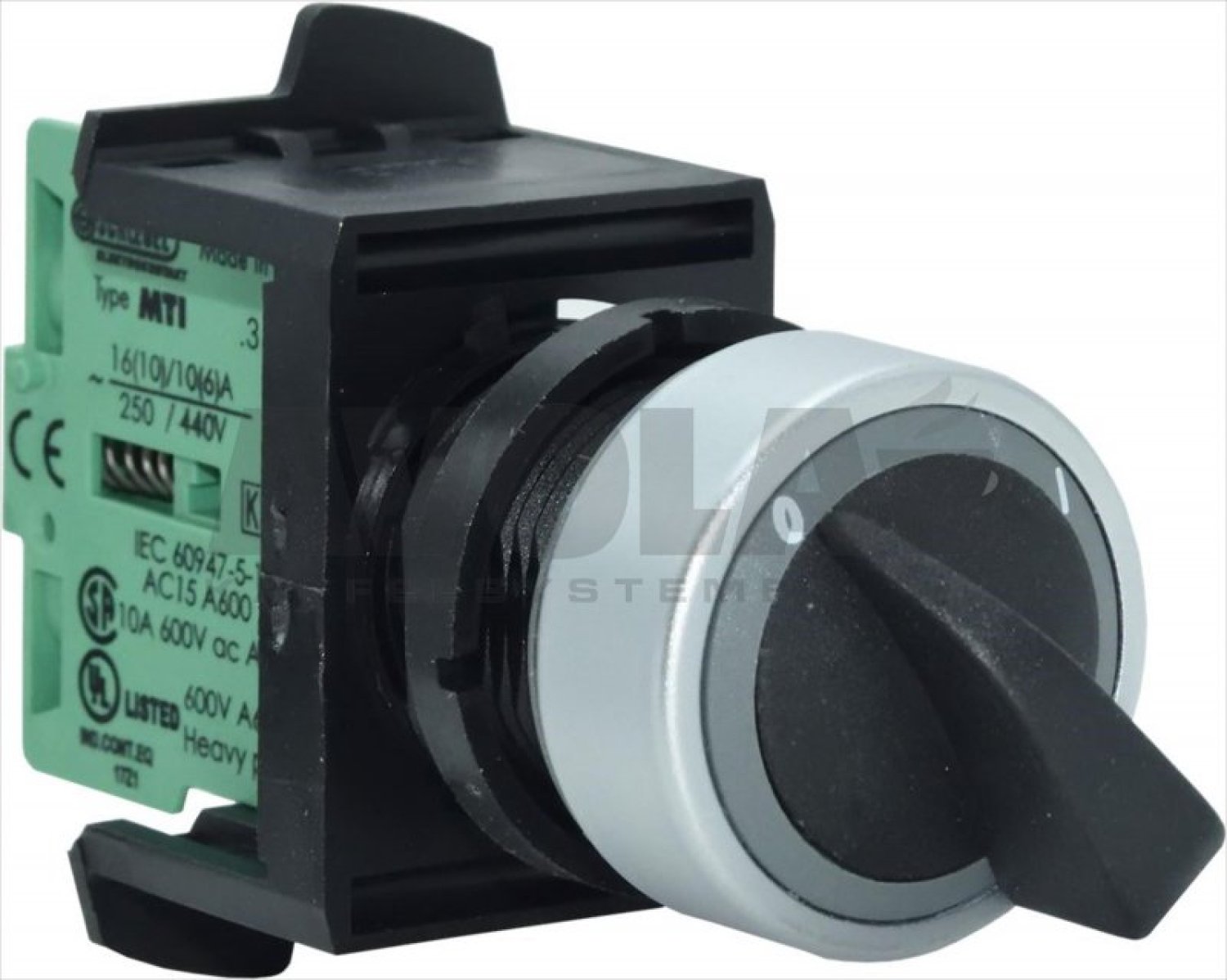

4hauptschalter reneka 0 1 stellungen 8125585
Hauptschalter Reneka 0-1 Stellungen
89,06 €

excl. Shipping costs

Delivery time
is determined
5fitting 8005734
FITTING
4,55 €

excl. Shipping costs

immediately available, 12 available
9boiler valve 1 4 zoll 8064152
BOILER VALVE 1/4 Zoll
7,90 €

excl. Shipping costs

immediately available, 10 available
13level probe 92 mm 8005294
LEVEL PROBE 92 mm
34,11 €

excl. Shipping costs

Delivery time
is determined
14level probe 150 mm 8005295
LEVEL PROBE 150 mm
38,31 €

excl. Shipping costs

Delivery time
is determined
16nut 8005455
NUT
3,38 €

excl. Shipping costs

immediately available, 12 available

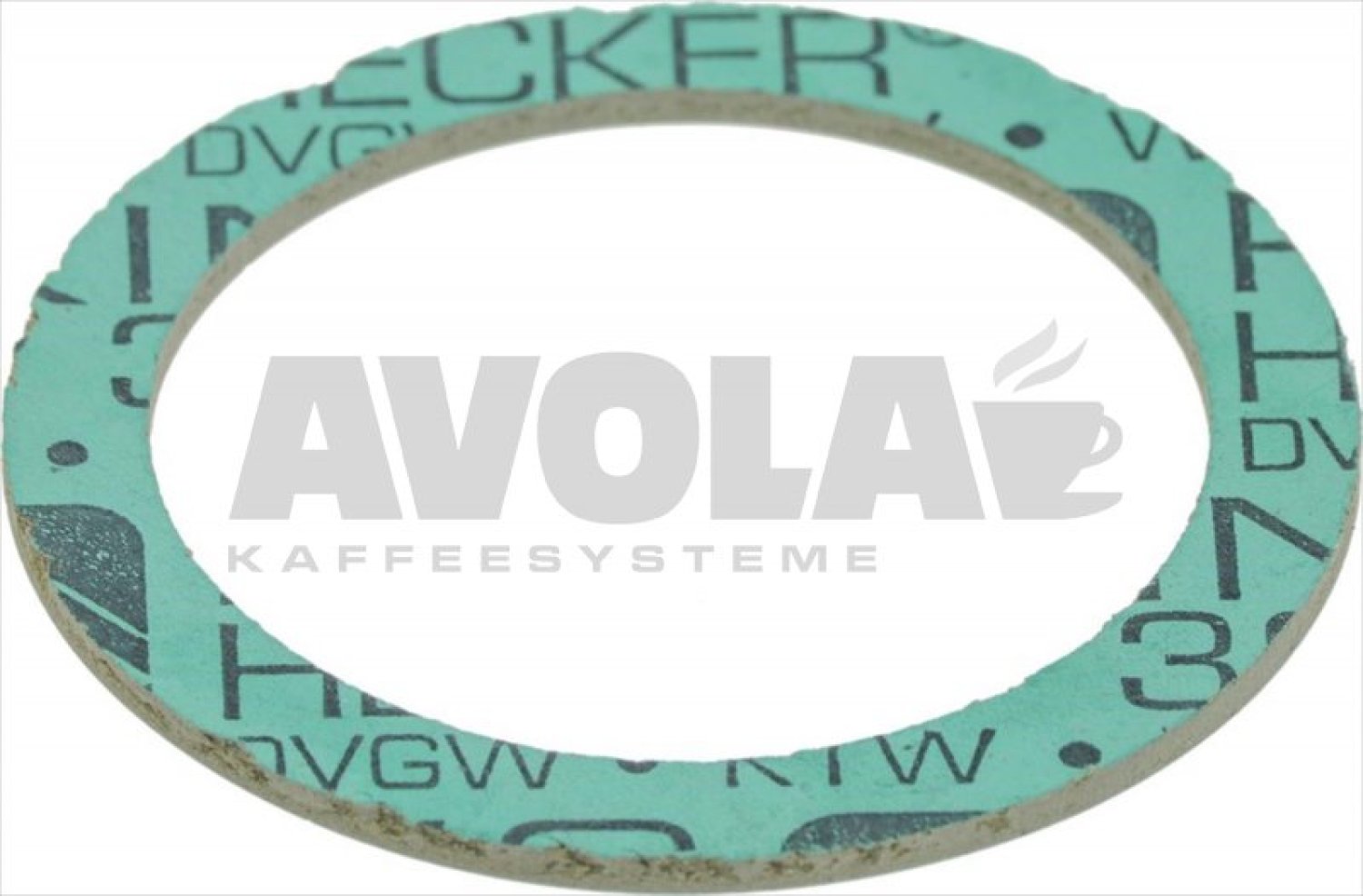

20asbestos free flat gasket o 54x42x2 mm 8014616
ASBESTOS FREE FLAT GASKET ø 54x42x2 mm
5,80 €

excl. Shipping costs

immediately available, 4 available

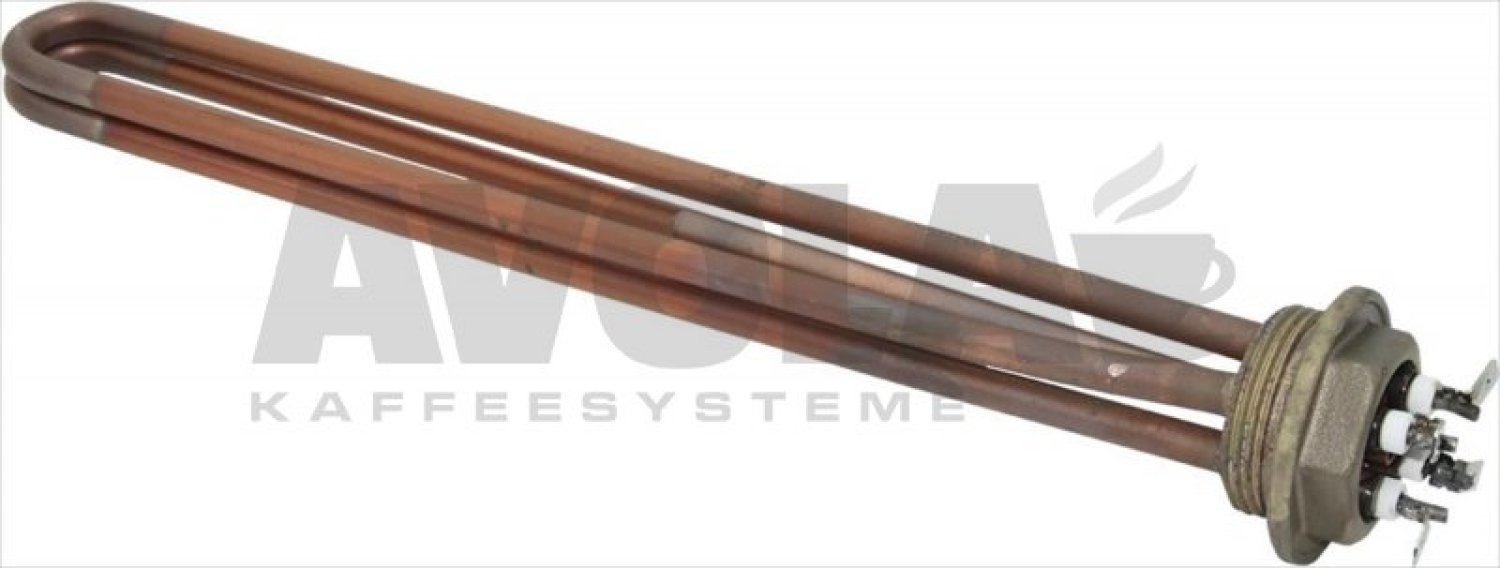

21heating element 3100w 230v 8007568
HEATING ELEMENT 3100W 230V
124,57 €

excl. Shipping costs

Delivery time 4-6 weeks..
22fitting 8005720
FITTING
3,50 €

excl. Shipping costs

immediately available, 13 available
25pressure switch p302 6 3 poles 30a 8005068
PRESSURE SWITCH P302/6 3-POLES 30A
62,26 €
62,26 €

excl. Shipping costs

immediately available, 10 available
28cylinder head screw m8x25 8007309
CYLINDER HEAD SCREW M8x25
1,98 €

excl. Shipping costs

immediately available

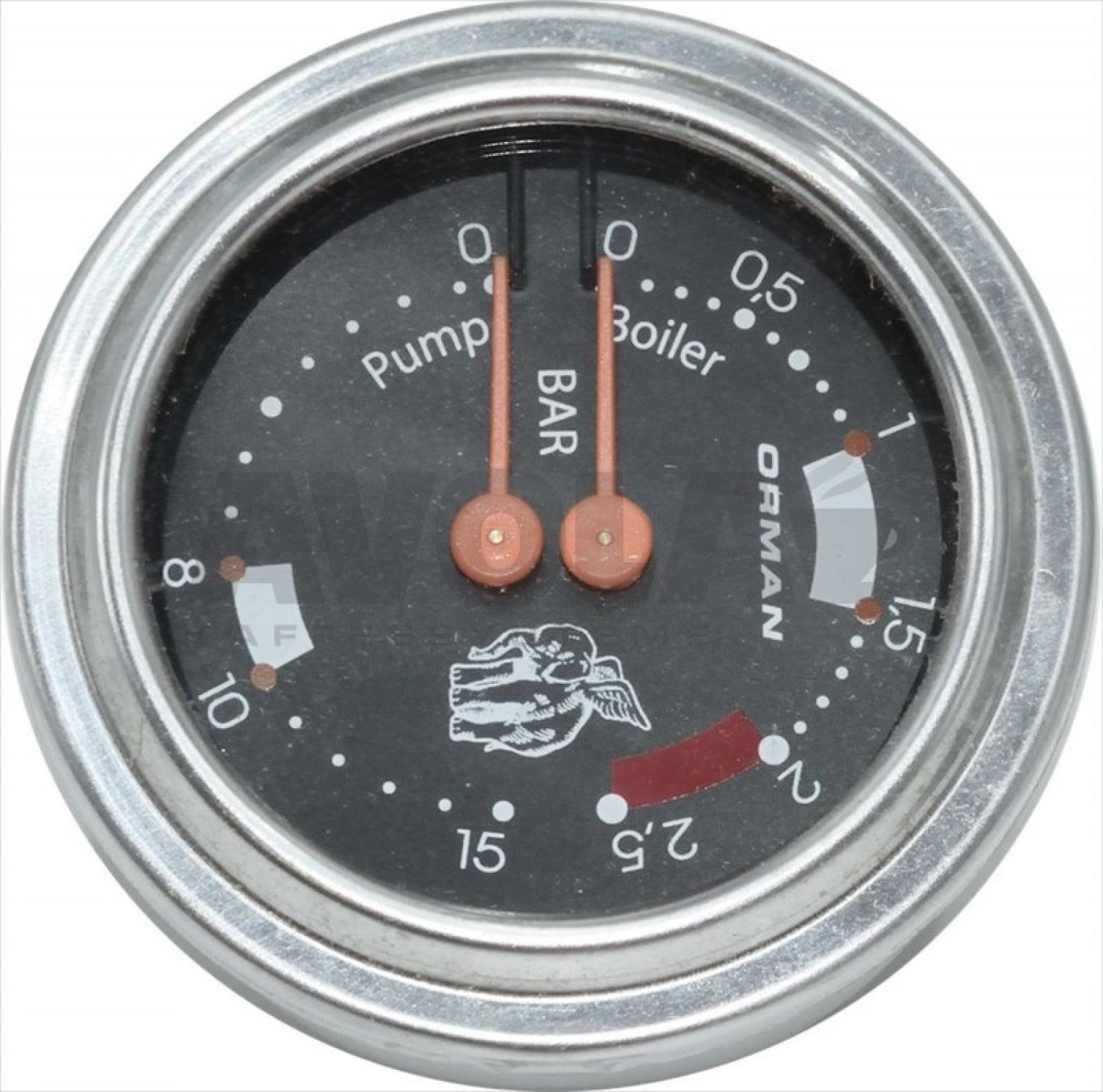

29boiler pump pressure gauge 8003420
BOILER-PUMP PRESSURE GAUGE
Price on request

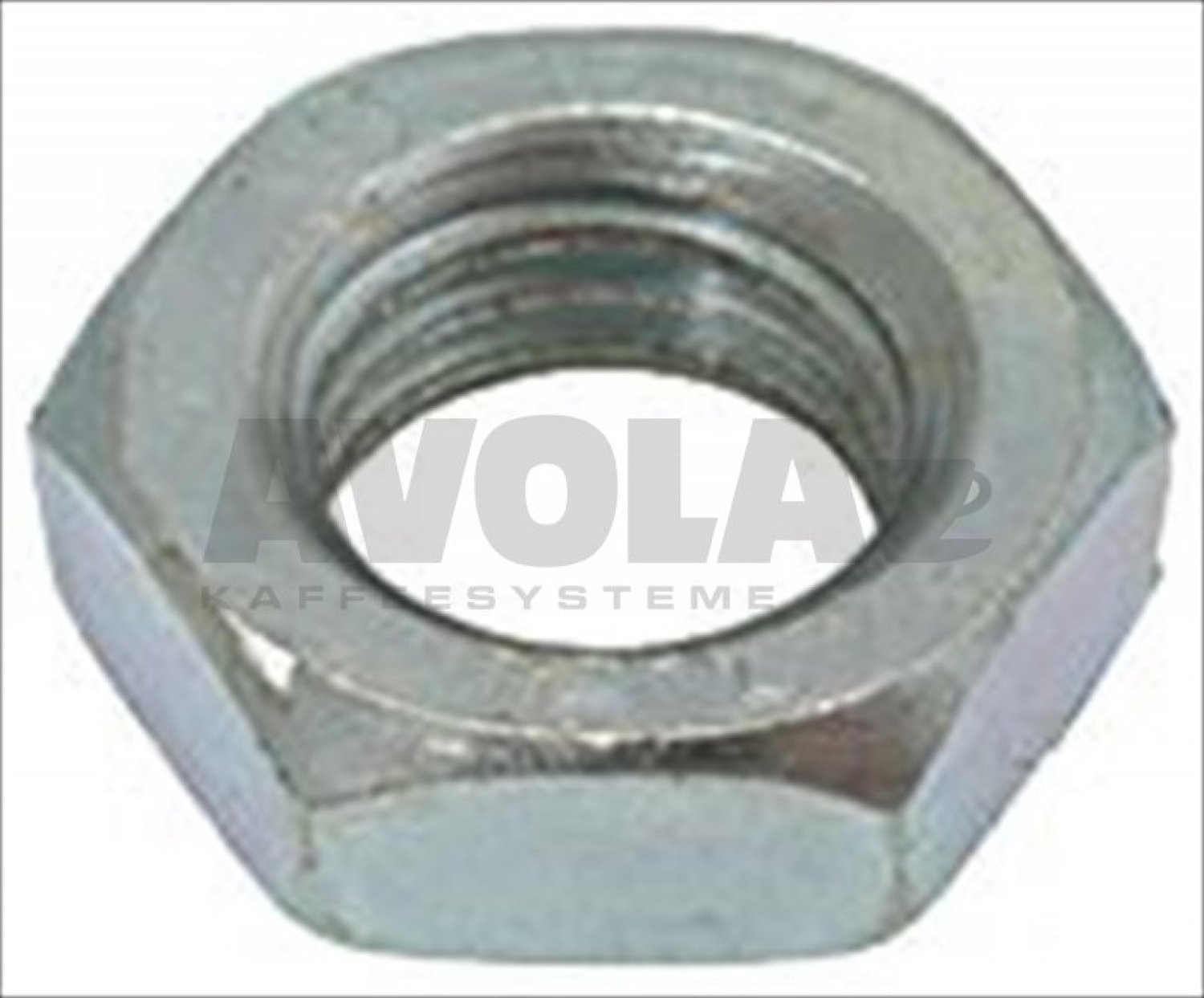

31hexagonal nut m8 short m8 8007325
HEXAGONAL NUT M8 SHORT M8
0,67 €

excl. Shipping costs

immediately available
33silicone hose o 4x7 shore 60 1 m 8006716
Silicone hose ø 4x7 SHORE 60 - 1 m
5,95 €

excl. Shipping costs

immediately available, 12 available
35drain tank with s hole 8000066
DRAIN TANK WITH S-HOLE
68,37 €

excl. Shipping costs

Delivery time 4-6 weeks..
36nut 8005455
NUT
3,38 €

excl. Shipping costs

immediately available, 12 available
39drain pipe elispir o16x23 mm 1 mt 8006711
DRAIN PIPE ELISPIR ø16x23 mm - 1 MT
7,00 €

excl. Shipping costs

immediately available
40rotary vane pump rotoflow 8063787
ROTARY VANE PUMP ROTOFLOW
128,53 €

excl. Shipping costs

immediately available, 2 available
40capacitor micro f 6 3 450v 50 60hz 8011678
CAPACITOR µF 6,3 450v 50/60hz
11,78 €

excl. Shipping costs

immediately available, 3 available
41mid hexagonal nut m6 8007269
MID HEXAGONAL NUT M6
Price on request
45copper flat gasket 22x17x1 5 mm 8001815
COPPER FLAT GASKET 22x17x1,5 mm
1,01 €

excl. Shipping costs

immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
