Reneka

RK0201 GRUPPE KAFFEEAUSGABE MOSAIC

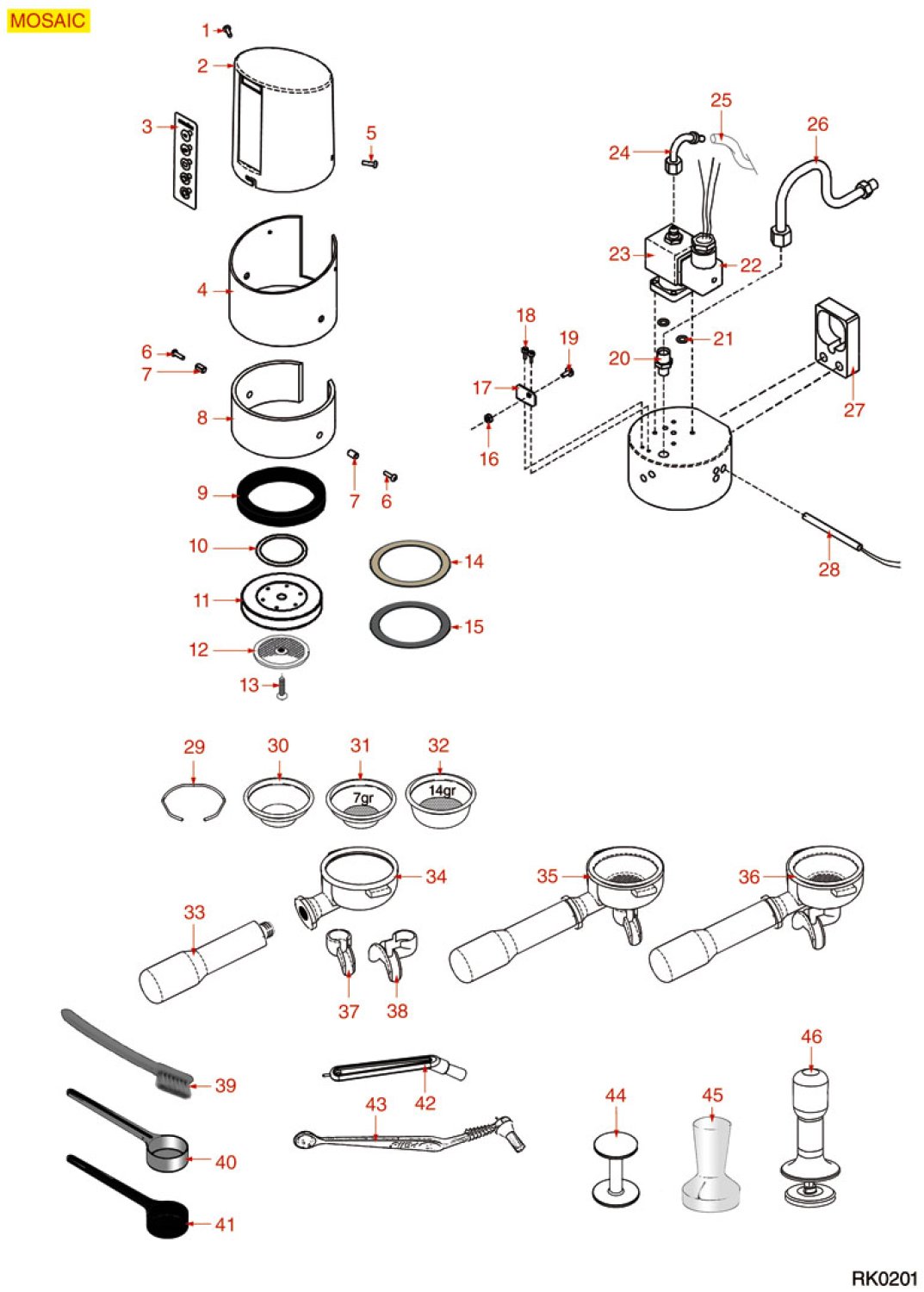

Drawing number 8057421

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:

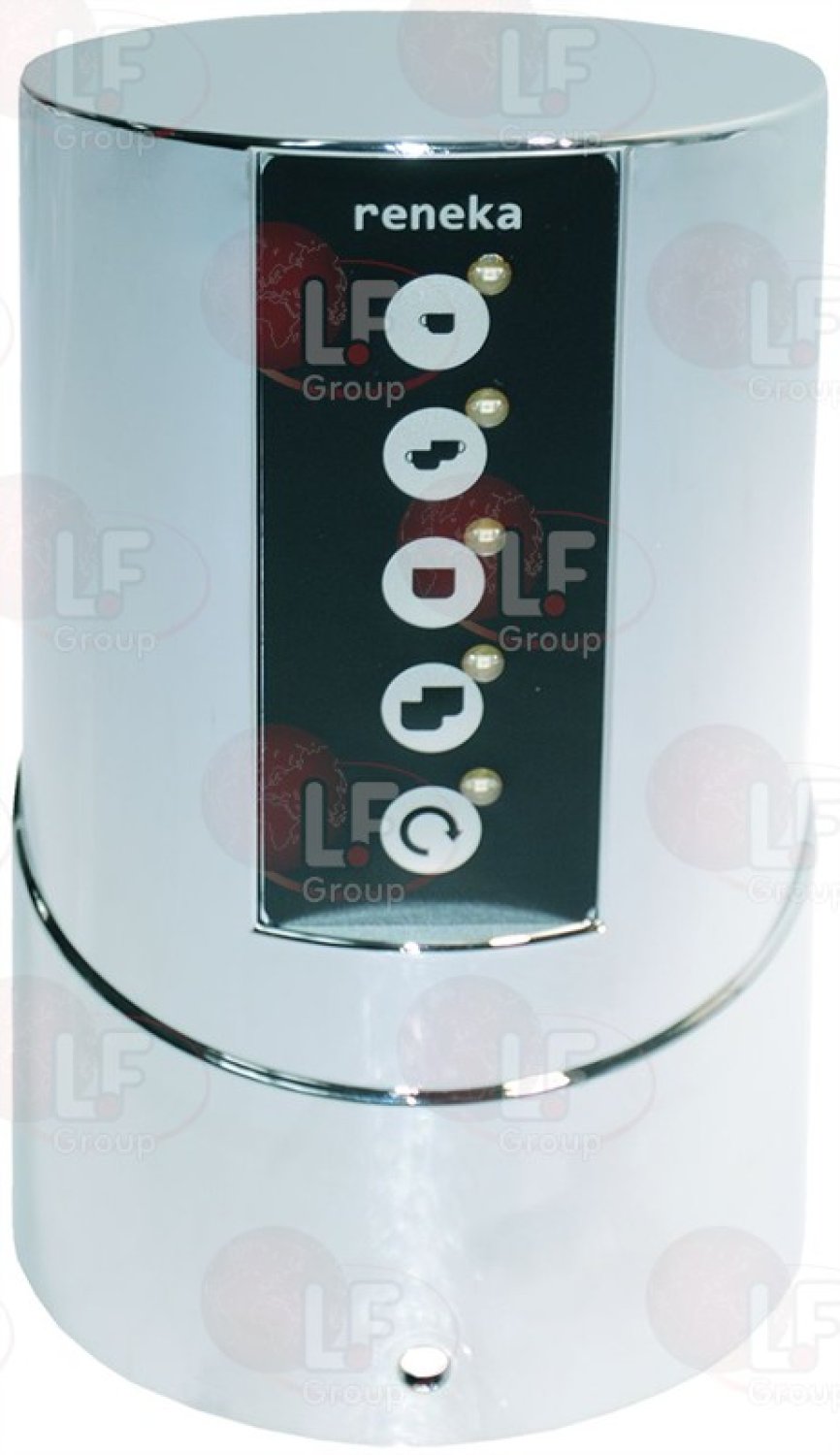

2tastatur reneka mosaic mit gruppenabdeckung 5 tasten led 8080950
Tastatur Reneka Mosaic mit Gruppenabdeckung 5 Tasten LED
This article is no longer available
3tastatur reneka mosaic mit gruppenabdeckung 5 tasten led 8080950
Tastatur Reneka Mosaic mit Gruppenabdeckung 5 Tasten LED
This article is no longer available
5schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 912 8061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs

immediately available

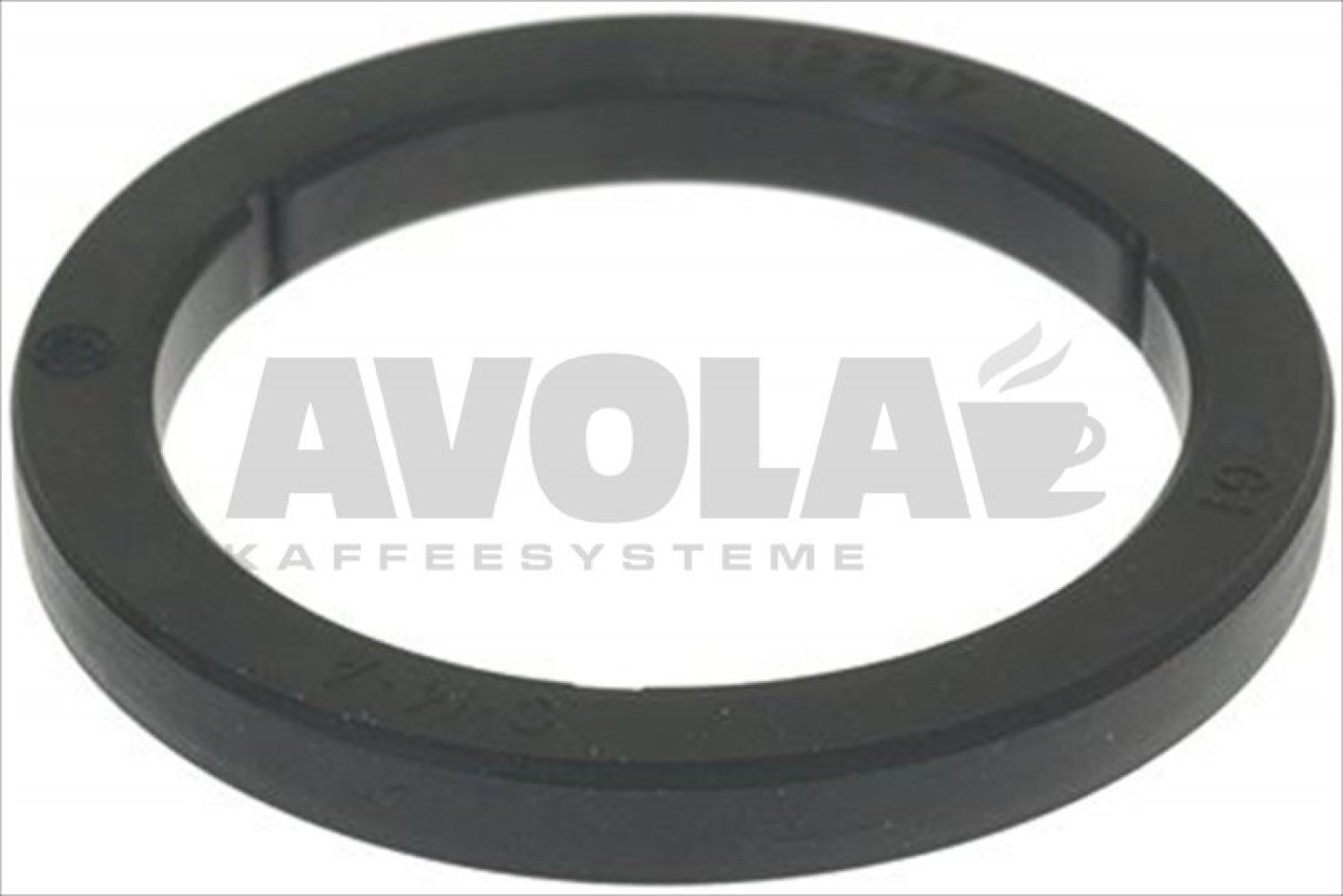

9gasket o 72x56x8 mm 8080061
Gasket ø 72x56x8 mm
5,25 €

excl. Shipping costs

immediately available, 7 available
10o ring 03187 epdm 8013757
O-RING 03187 EPDM
2,08 €

excl. Shipping costs

immediately available, 13 available
12shower 51 50 mm 8000552
SHOWER 51,50 MM
4,56 €

excl. Shipping costs

immediately available
13countersunk flat head screws m5x12 8007270
COUNTERSUNK FLAT HEAD SCREWS M5x12
1,36 €

excl. Shipping costs

immediately available
14paper seal o 70x57x0 8 mm 8002175
PAPER SEAL ø 70x57x0,8 mm
0,39 €

excl. Shipping costs

immediately available
15rubber shim 8002169
RUBBER SHIM
1,17 €

excl. Shipping costs

immediately available, 15 available
20fitting o 1 8 and o 1 4 8005719
FITTING ø 1/8 and ø 1/4
6,08 €

excl. Shipping costs

immediately available, 12 available
21red silicone o ring r5 gasket 8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs

immediately available
22female large connector 8012420
FEMALE LARGE CONNECTOR
2,94 €

excl. Shipping costs

immediately available, 7 available
233 way solenoid valve lucifer 240v 50hz 8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs

immediately available, 13 available
23coil lucifer parker 220 240v 9w 50hz 8000957
COIL LUCIFER/PARKER 220/240V 9W 50Hz
19,92 €

excl. Shipping costs

immediately available, 6 available
233 way mechanical component lucifer 8000959
3-WAY MECHANICAL COMPONENT LUCIFER
39,77 €

excl. Shipping costs

immediately available, 7 available
233 way solenoid valve parker 230v 50 60hz 8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs

immediately available, 15 available
233 way mechanical component parker 8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs

immediately available, 13 available
23coil parker zb09 9w 220 240v 50 60hz 8012418
COIL PARKER ZB09 9W 220/240V 50/60Hz
20,74 €

excl. Shipping costs

immediately available, 16 available
25silicone hose o 4x7 shore 60 1 m 8006716
Silicone hose ø 4x7 SHORE 60 - 1 m
5,95 €

excl. Shipping costs

immediately available, 12 available
29filter blocking spring o 1 00 mm 8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs

immediately available
311 cup filter 7 gr 8001080
1 CUP FILTER 7 gr
5,45 €

excl. Shipping costs

immediately available, 13 available
322 cup filter 12 g 8001083
2-CUP FILTER 12 g
5,45 €

excl. Shipping costs

immediately available, 11 available
33filter holder handle m12 8003349
FILTER HOLDER HANDLE M12
7,79 €

excl. Shipping costs

immediately available, 3 available
34filter holder bfc royal rk 8001218
FILTER HOLDER BFC/ROYAL/RK
22,13 €

excl. Shipping costs

Delivery time
is determined

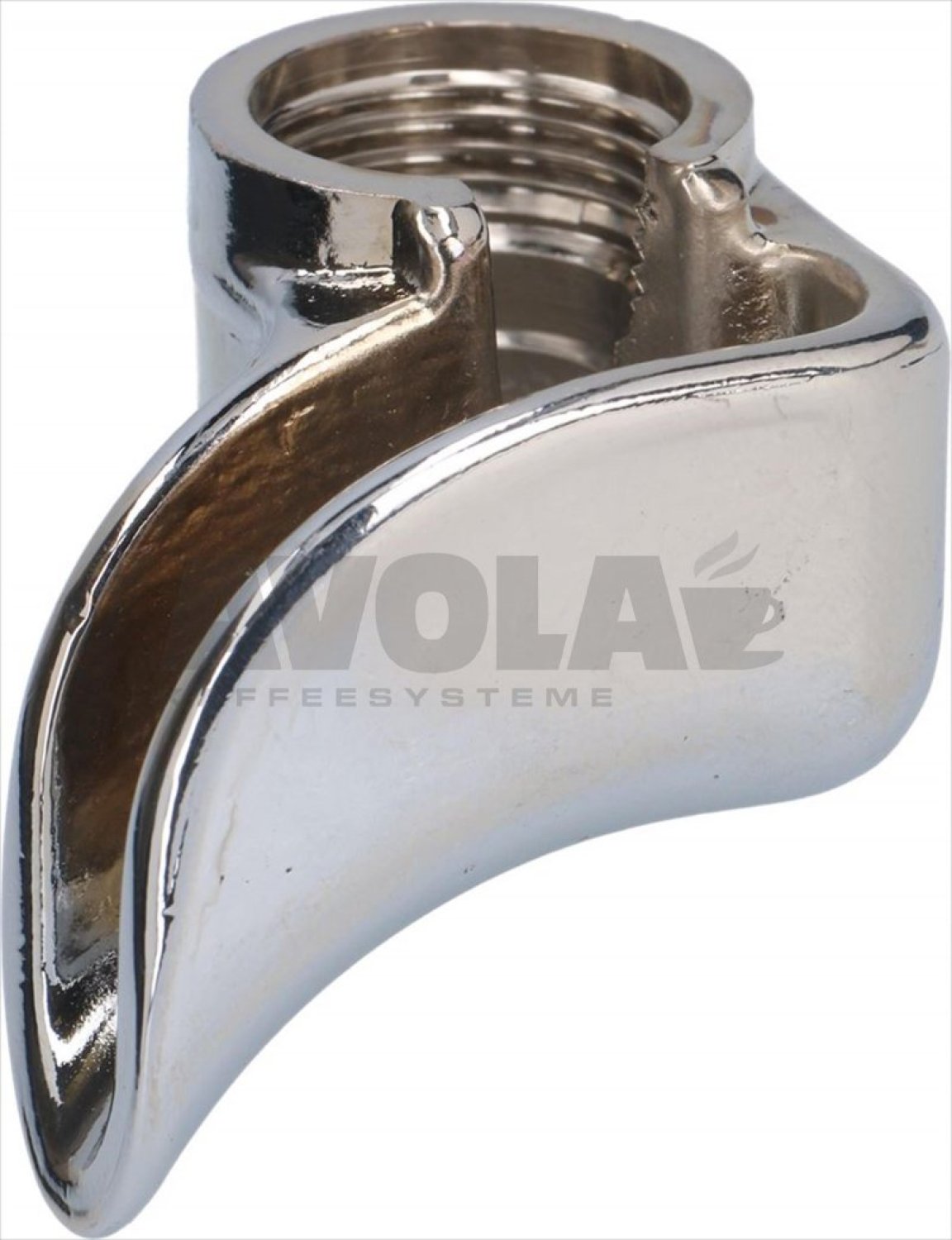

37single spout o 3 8 8000073
SINGLE SPOUT ø 3/8
13,11 €

excl. Shipping costs

immediately available, 3 available
38double spout o 3 8 rime 8000115
Double Spout ø 3/8″
12,90 €

excl. Shipping costs

immediately available, 7 available
39brush for maintenance 8006154
BRUSH FOR MAINTENANCE
4,52 €

excl. Shipping costs

immediately available, 5 available
40stainless steel measuring spoon 20 ml 8000328
STAINLESS STEEL MEASURING SPOON 20 ml
4,97 €

excl. Shipping costs

Delivery time
is determined
41plastic measuring spoon 20 ml 8000327
PLASTIC MEASURING SPOON 20 ml
1,73 €

excl. Shipping costs

immediately available, 6 available
42brush for coffee shower 8006153
BRUSH FOR COFFEE SHOWER
3,92 €

excl. Shipping costs

Delivery time
is determined
43black shower cleaning brush 8006155
BLACK SHOWER CLEANING BRUSH
14,07 €

excl. Shipping costs

immediately available, 6 available
44nylon coffee tamper 8006165
NYLON COFFEE TAMPER
2,75 €

excl. Shipping costs

immediately available, 4 available
45anodised aluminum tamper o 58 mm 8006191
ANODISED ALUMINUM TAMPER ø 58 mm
36,85 €

excl. Shipping costs

Delivery time
is determined
46dynamometric manual coffee tamper 8006217
DYNAMOMETRIC MANUAL COFFEE TAMPER
194,40 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
