Rocket

Cellini - Giotto Plus V2 ab D1208G2P0954 Kessel

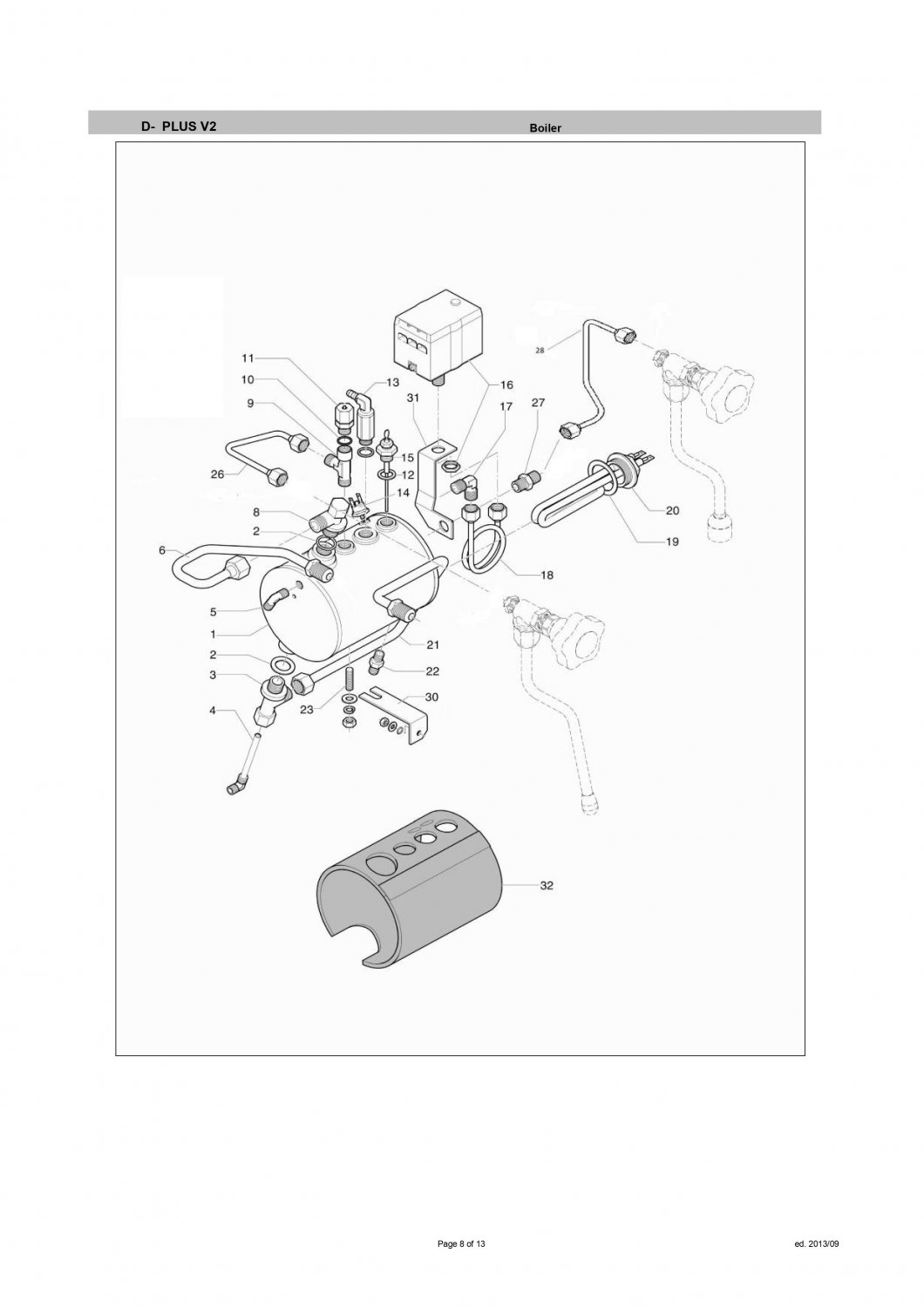

Drawing number 8144545

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
2round copper gasket o 23x17x3 mm 3 8 zoll 8001472
ROUND COPPER GASKET ø 23x17x3 mm - 3/8 Zoll
1,65 €

excl. Shipping costs

immediately available
3rocket kesselfitting t anschluss 3 8a x 1 4i 8125592
Rocket Kesselfitting T-anschluss 3/8A x 1/4i
16,95 €

excl. Shipping costs

immediately available, 4 available
4rocket injektorrohr 1 4 quot 1 8 quot 8141000
Rocket Injektorrohr 1/4" 1/8"
20,11 €

excl. Shipping costs

immediately available, 3 available
5l fitting o 1 8 1 8 8005642
L-FITTING ø 1/8 -1/8
4,49 €

excl. Shipping costs

immediately available, 14 available
6rocket upper pipe hx to group 8073620
Rocket upper pipe HX to group
29,83 €

excl. Shipping costs

Delivery time 4-6 weeks..
8rocket kesselfitting l anschluss o 3 8a 8125591
Rocket Kesselfitting L- Anschluss ø 3/8A -
16,40 €

excl. Shipping costs

immediately available, 6 available
9t stueck 1 4 quot fmm ecm 8101406
T-Stück 1/4" FMM ECM
9,52 €

excl. Shipping costs

immediately available, 7 available
10ptfe flat gasket o18x13x2 mm 8001641
PTFE FLAT GASKET Ø18x13x2 mm
2,21 €

excl. Shipping costs

immediately available
11boiler valve 1 4 zoll 8064152
BOILER VALVE 1/4 Zoll
7,90 €

excl. Shipping costs

immediately available
12ptfe flat gasket 21x16 8x2 mm 8001486
PTFE FLAT GASKET 21x16,8x2 mm
1,37 €

excl. Shipping costs

immediately available
13rocket sicherheitsventil 3 8 rime 1 8 bar 8069010
Rocket Sicherheitsventil 3/8″ - 1,8 bar
26,18 €

excl. Shipping costs

immediately available, 17 available
14original rocket sicherheitsthermostat m4 135 deg c gewindelaenge 6mm 16a 8280862
Original Rocket Sicherheitsthermostat M4 135°C Gewindelänge 6mm 16A
11,90 €

excl. Shipping costs

immediately available
15niveausonde o 1 4 m 80 mm 8073951
Niveausonde ø 1/4 M-80 mm
21,30 €
17,26 €

excl. Shipping costs

immediately available, 8 available
16pressure switch p203t01 2 poles 20a 1 4 8005075
PRESSURE SWITCH P203T01 2-POLES 20A 1/4
74,35 €

excl. Shipping costs

immediately available, 2 available
17nichel platedl fitting 8005879
NICHEL PLATEDL-FITTING
4,76 €

excl. Shipping costs

immediately available, 5 available
18rocket pipe boiler to pressostat 8101411
Rocket pipe boiler to pressostat
20,23 €

excl. Shipping costs

immediately available, 14 available
19teflondichtung fuer heizung 40 5x33 3x3 mm 8139595
Teflondichtung für Heizung 40,5x33,3x3 mm
2,38 €

excl. Shipping costs

immediately available
20original rocket heizung 1200w 230v 8101461
Original Rocket Heizung 1200W 230V
49,50 €

excl. Shipping costs

immediately available, 8 available
20rocket heating element v115 8106114
Rocket Heating element V115
77,35 €

excl. Shipping costs

Delivery time
is determined
21rocket lower pipe hx to group 8080844
Rocket lower pipe HX to group
35,70 €

excl. Shipping costs

immediately available, 2 available
22fitting o 1 8 a 1 8 a 8005709
FITTING ø 1/8 A-1/8 A
2,34 €

excl. Shipping costs

immediately available, 10 available
26rocket cellini giotto mozzafiato appartamento rohr zum dampfhahn 8079670
Rocket Cellini Giotto Mozzafiato Appartamento Rohr zum Dampfhahn
22,32 €

excl. Shipping costs

immediately available, 3 available
27doppelnippel ecm rocket anschluss o 1 4 aussengewinde 1 stueck 8101400
Doppelnippel ECM Rocket Anschluss ø 1/4 Außengewinde (1 Stück)
5,95 €

excl. Shipping costs

immediately available
28rocket rohr kessel zum heisswasserventil ab seriennr d1223 8080610
Rocket Rohr Kessel zum Heisswasserventil AB Seriennr D1223...
19,90 €

excl. Shipping costs

immediately available, 4 available
30 8105800
Rocket Boiler support
6,57 €

excl. Shipping costs

Delivery time
is determined
31rocket pressostat halteblech nicht mehr lieferbar 8101418
Rocket Pressostat Halteblech (nicht mehr lieferbar)
This article is no longer available
32rocket boiler insulation 8069399
ROCKET BOILER INSULATION
15,95 €

excl. Shipping costs

immediately available, 4 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
