Cellini Plus V2 ab D1208G2P0954 Gehäuse

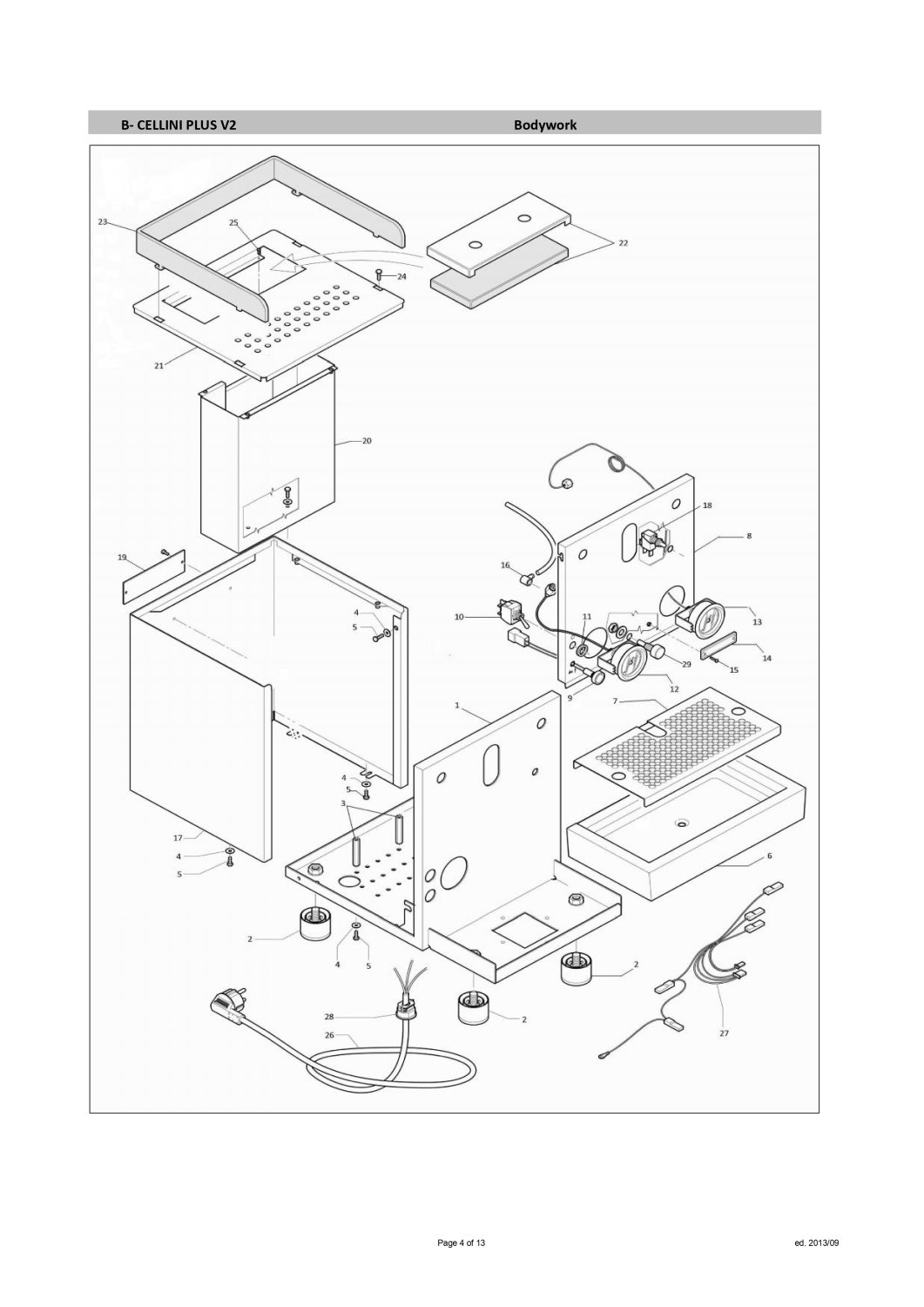

Drawing number 8144544

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1 8106148
Rocket Chassis
85,47 €

excl. Shipping costs

Delivery time
is determined
2 8105857
Rocket Foot 30mm
10,17 €

excl. Shipping costs

Delivery time 4-6 weeks

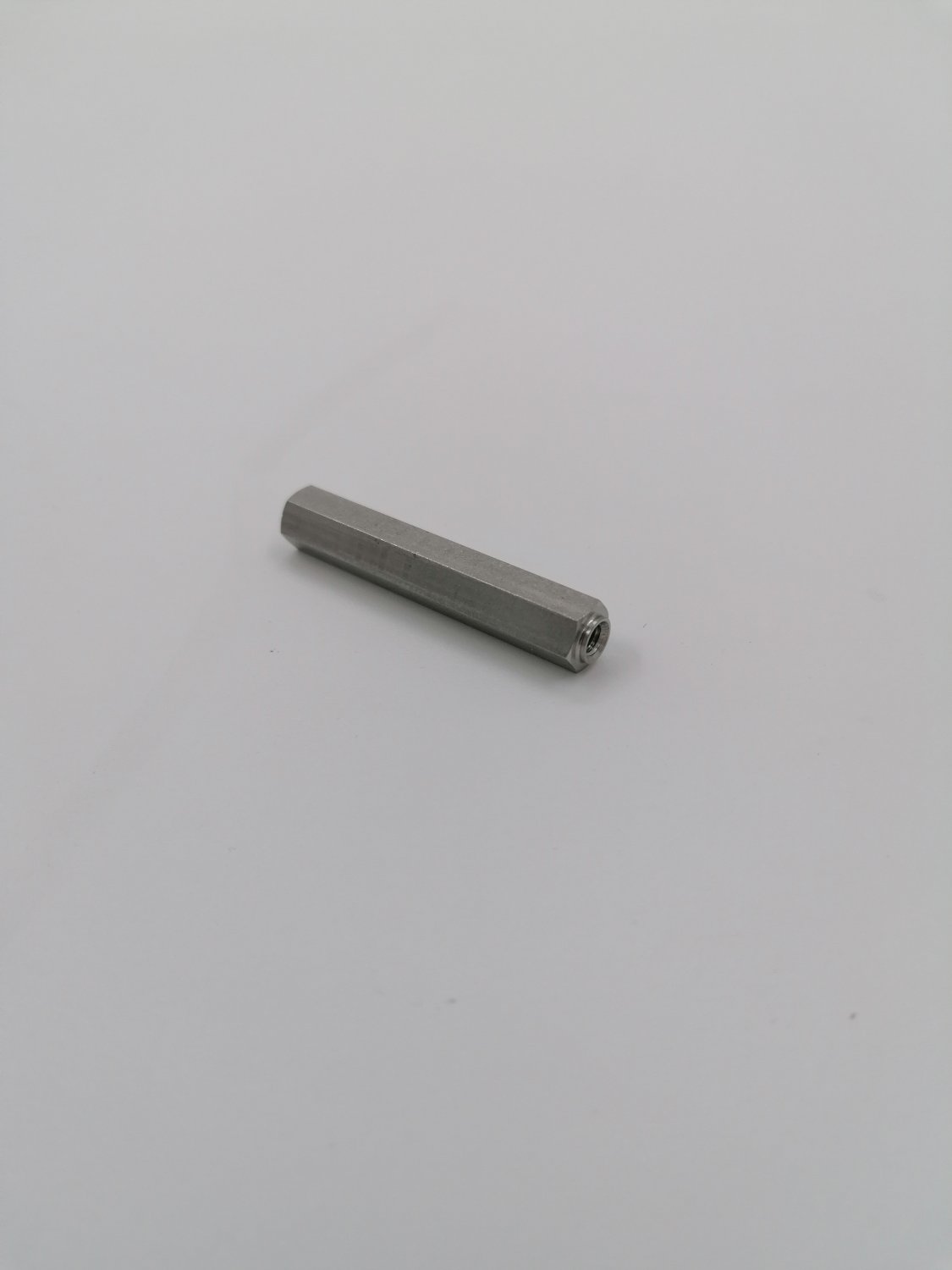

3gewindestange fuer tankaufnahme 8105813
Gewindestange für Tankaufnahme
14,28 €

excl. Shipping costs

immediately available, 1 available
4unterlegscheibe m4 rocket ecm 8101693
Unterlegscheibe M4 Rocket / ECM
1,01 €

excl. Shipping costs

immediately available

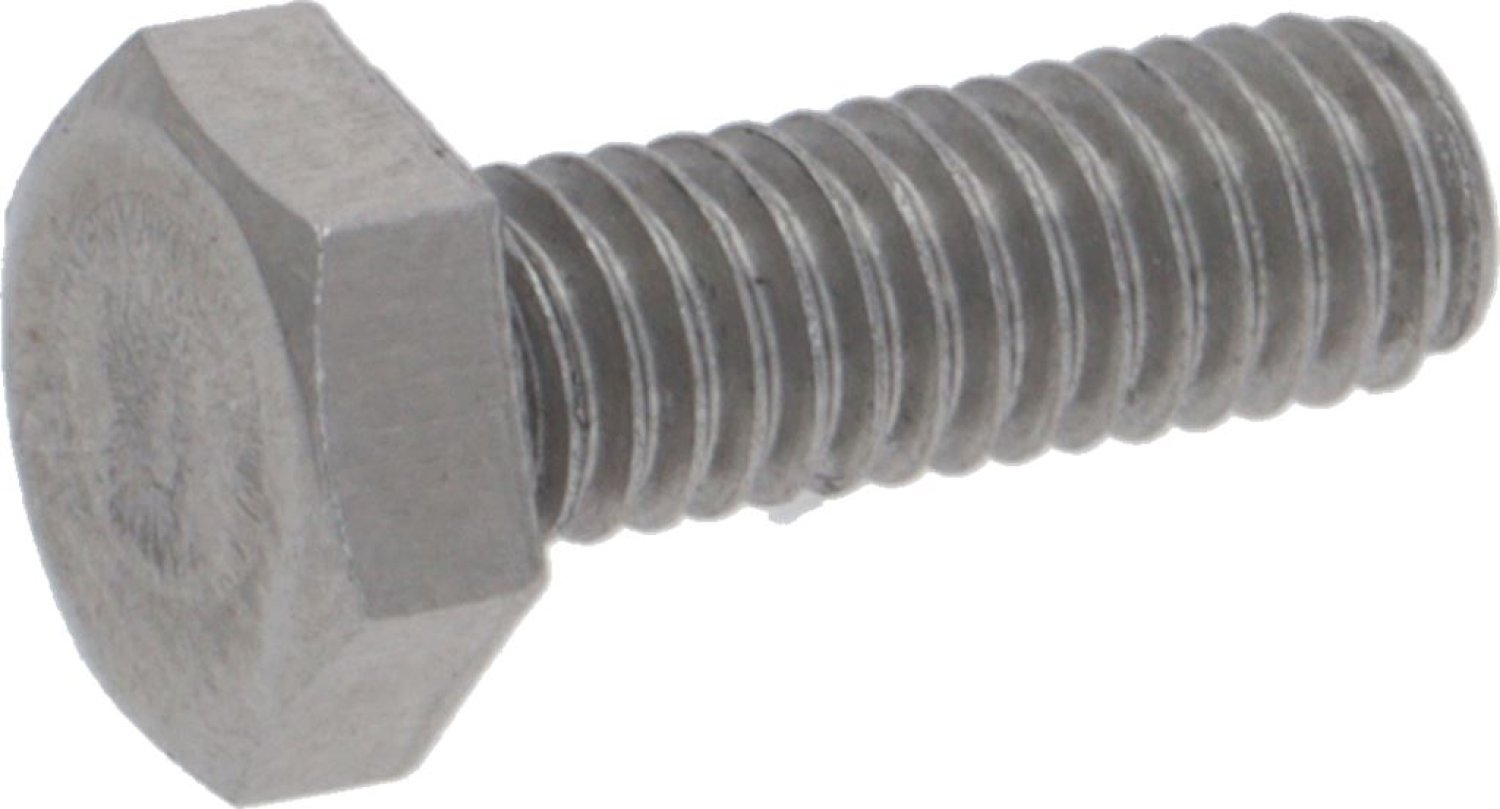

5rocket schraube m4x12 8105746
Rocket Schraube M4x12
1,18 €

excl. Shipping costs

immediately available, 20 available
6 8106182
Rocket Tropfschale ohne Gitter
119,00 €

excl. Shipping costs

Delivery time
is determined
7rocket cellini gitter fuer abtropfschale kurze version 8069101
Rocket Cellini - Gitter für Abtropfschale (kurze Version)
This article is no longer available
8 8106078
Rocket Front Edelstahl poliert
70,78 €

excl. Shipping costs

Delivery time 4-6 weeks..
9rocket control lamp gruen 8069220
Rocket control lamp grün
9,00 €

excl. Shipping costs

immediately available
10rocket hauptschalter kippschalter edelstahl m12x0 75 8105915
Rocket Hauptschalter Kippschalter Edelstahl M12x0,75
16,95 €

excl. Shipping costs

immediately available, 7 available
11 8105810
Rocket Nut
7,14 €

excl. Shipping costs

Delivery time
is determined

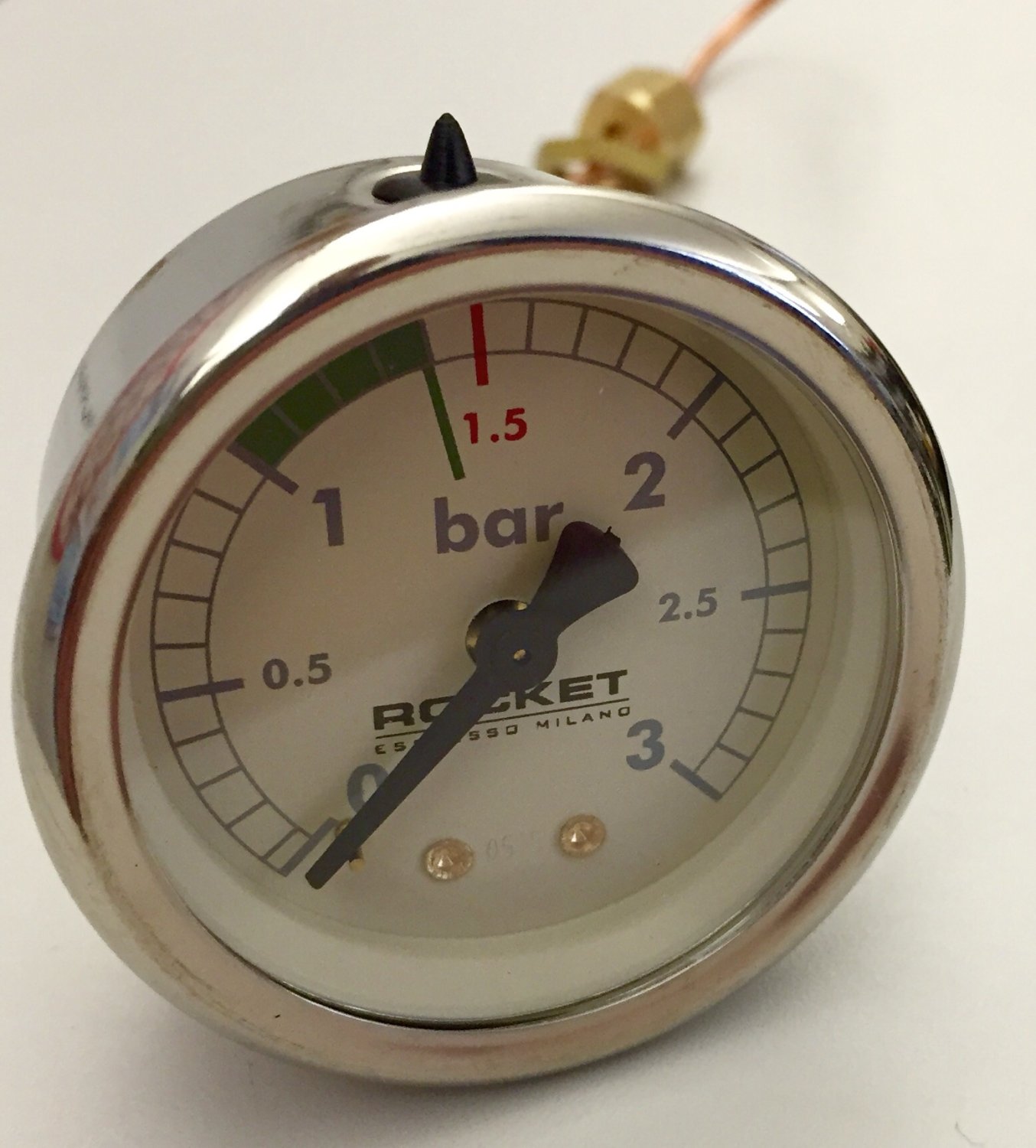

12rocket manometer kesseldruck weiss 0 3 bar cellini plus giotto 8073642
Rocket Manometer Kesseldruck weiss 0-3 Bar Cellini Plus Giotto
36,90 €

excl. Shipping costs

immediately available, 1 available

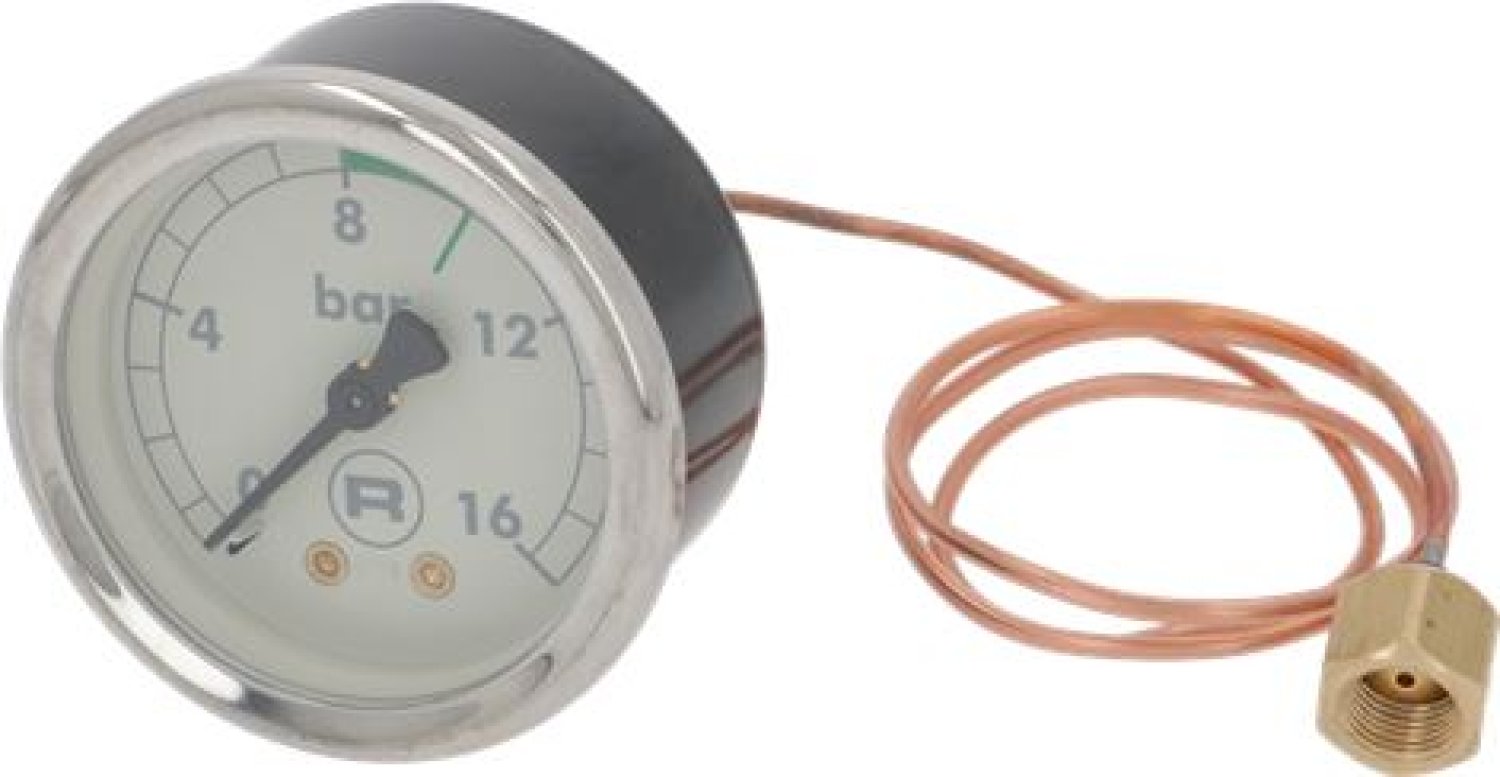

13rocket pumpenmanometer weiss 0 16 bar 8081168
Rocket Pumpenmanometer weiß 0-16 Bar
40,42 €

excl. Shipping costs

immediately available, 4 available

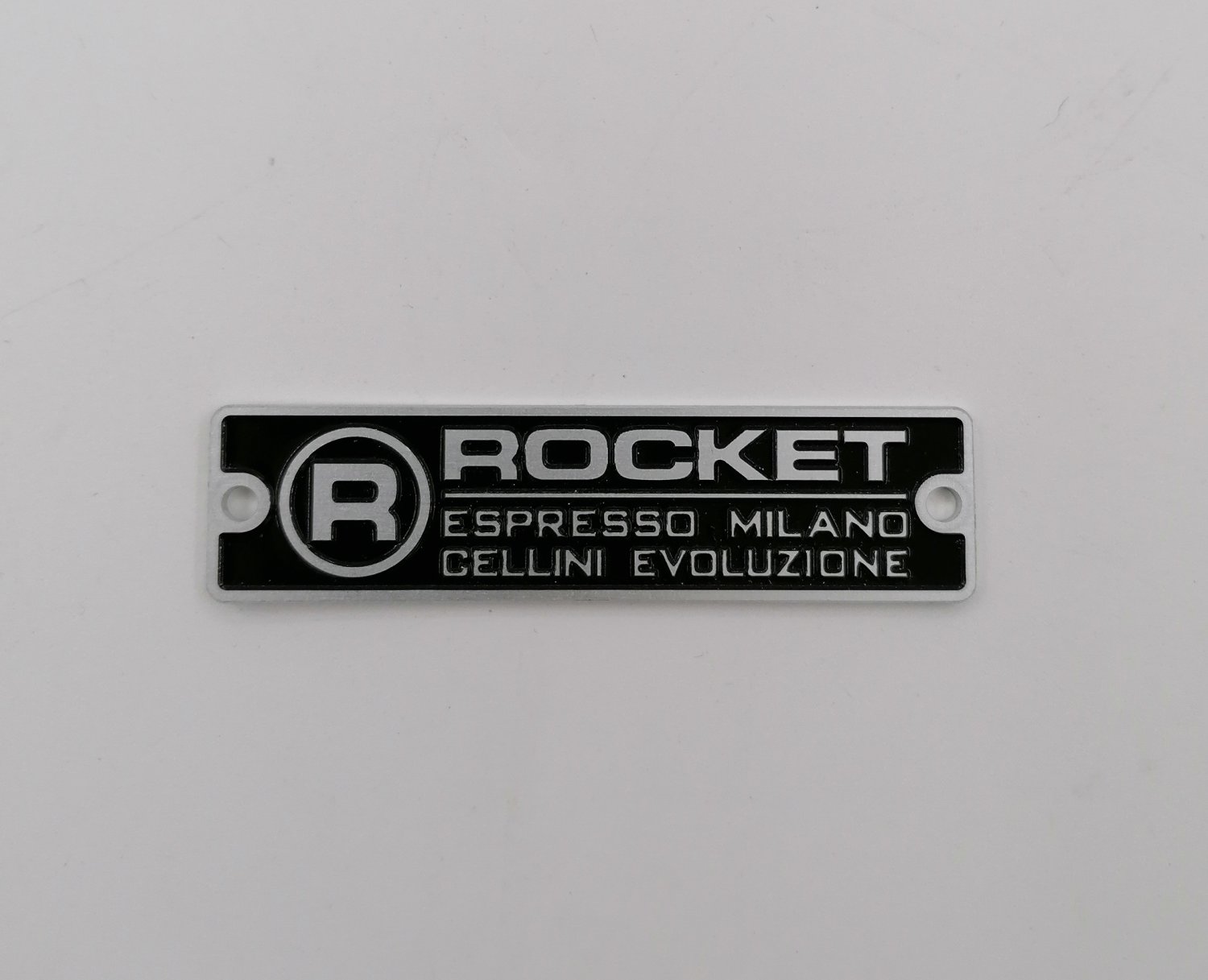

14rocket cellini evoluzione front tag 8105984
Rocket Cellini Evoluzione front tag
29,88 €

excl. Shipping costs

immediately available, 1 available
15rocket screw m3 8105742
Rocket Screw M3
0,36 €

excl. Shipping costs

immediately available
16pipette fitting 90 8005868
PIPETTE FITTING 90
1,50 €

excl. Shipping costs

immediately available
17 8081164
Body Panel Rocket Cellini Evoluzione V2
179,50 €

excl. Shipping costs

Delivery time 4-6 weeks..
18microswitch 10a 250v 8003091
MICROSWITCH 10A 250V
13,69 €

excl. Shipping costs

immediately available, 15 available
19rocket logo emblem 8080706
Rocket Logo Emblem
38,56 €

excl. Shipping costs

Delivery time
is determined
20 8101601
Rocket Tankführung
64,86 €

excl. Shipping costs

Delivery time
is determined

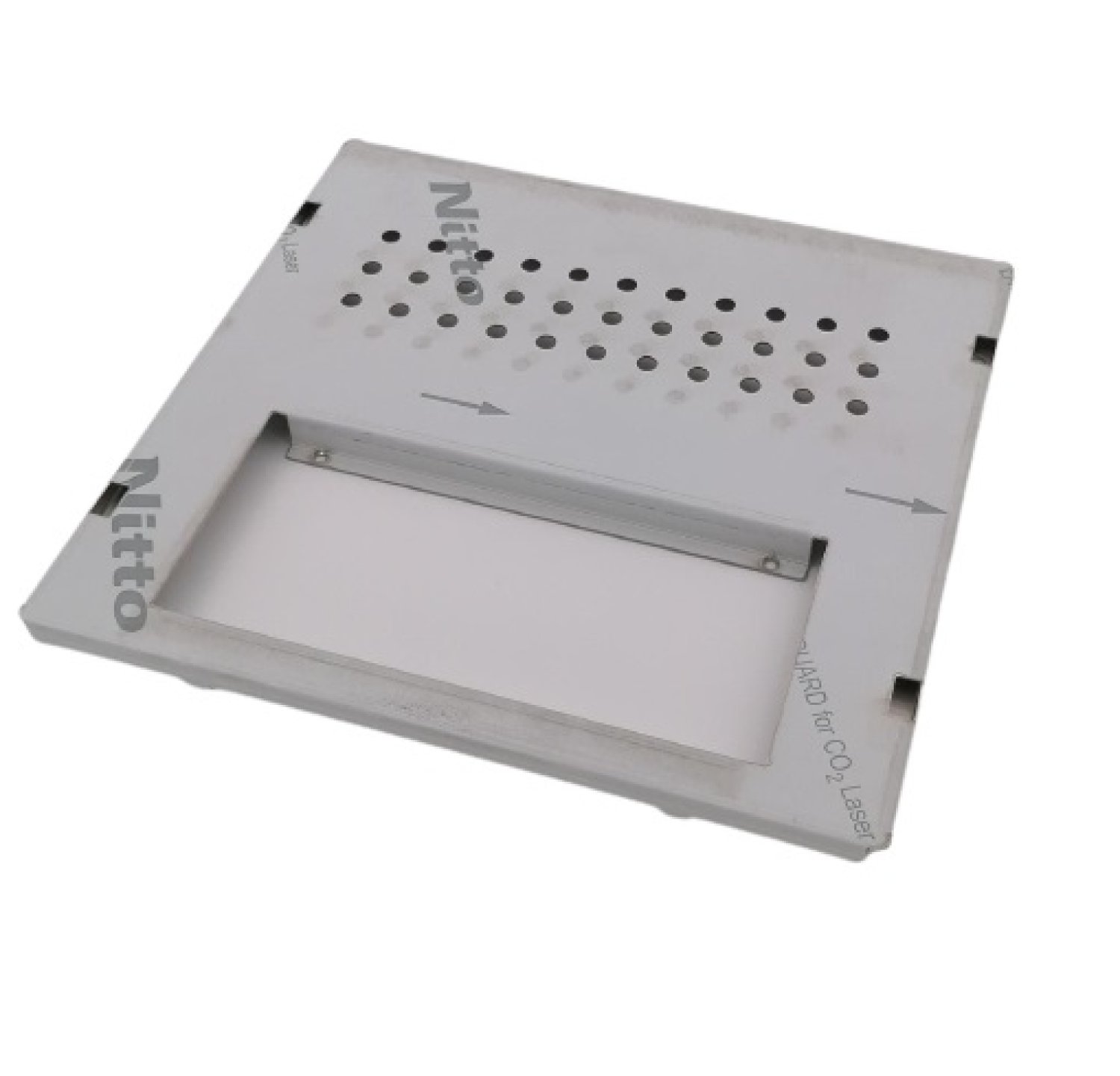

21rocket cellini tassenablage 8106058
Rocket Cellini Tassenablage
71,40 €

excl. Shipping costs

Delivery time 4-6 weeks..
23rocket cellini tassen halterung plexiglas 8073675
Rocket Cellini Tassen Halterung Plexiglas
28,23 €

excl. Shipping costs

Delivery time
is determined
23stainless steel cup frame surround ndash cellini only 8069511
STAINLESS STEEL CUP FRAME SURROUND – CELLINI ONLY
74,90 €

excl. Shipping costs

immediately available, 2 available
24rocket screw m4x16 8105743
Rocket Screw M4x16
1,07 €

excl. Shipping costs

immediately available, 9 available

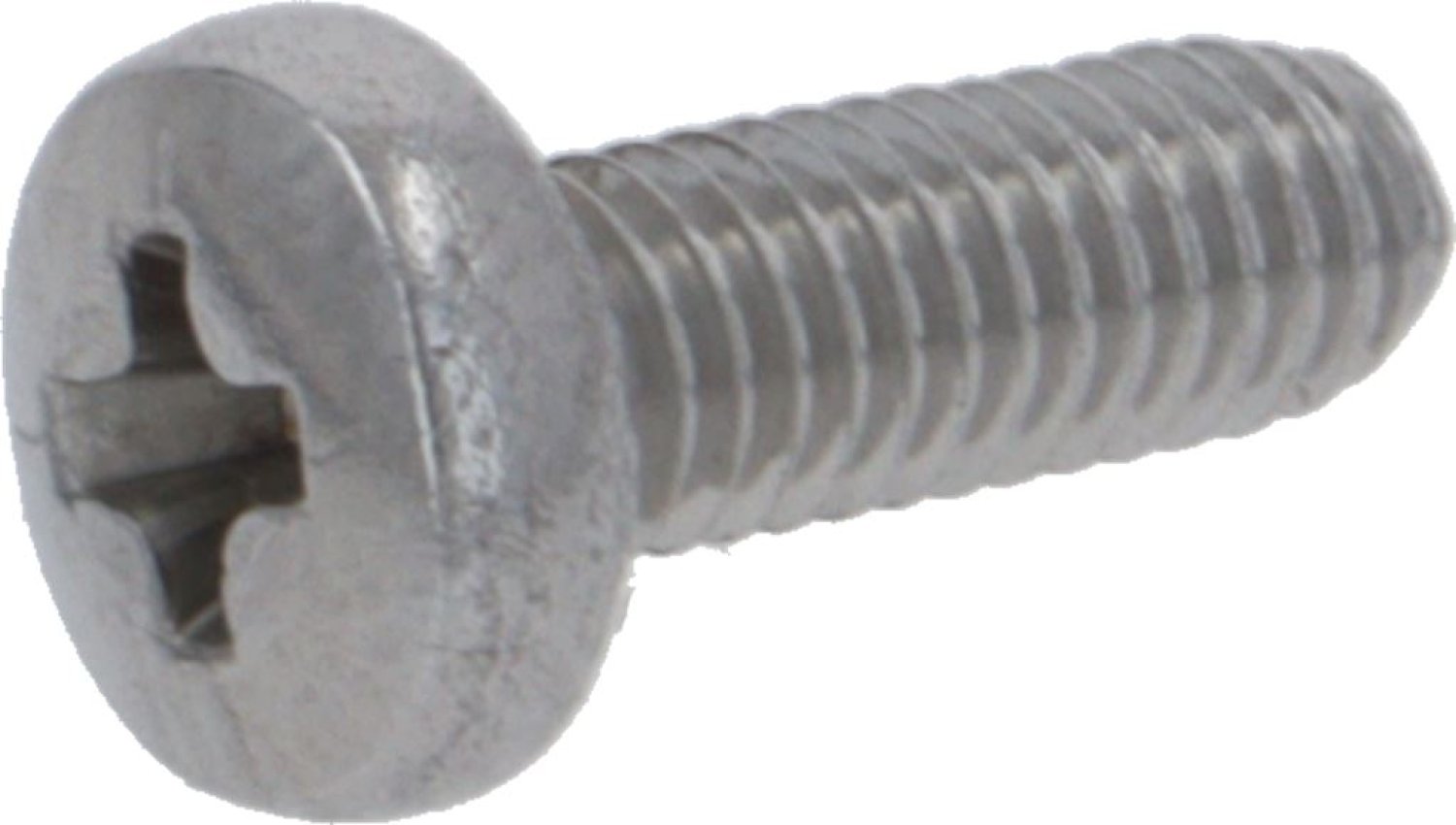

25rocket screw 8105748
Rocket Screw
1,07 €

excl. Shipping costs

immediately available, 5 available
26 8105949
Rocket CE Power cord
21,21 €

excl. Shipping costs

Delivery time 4-6 weeks..

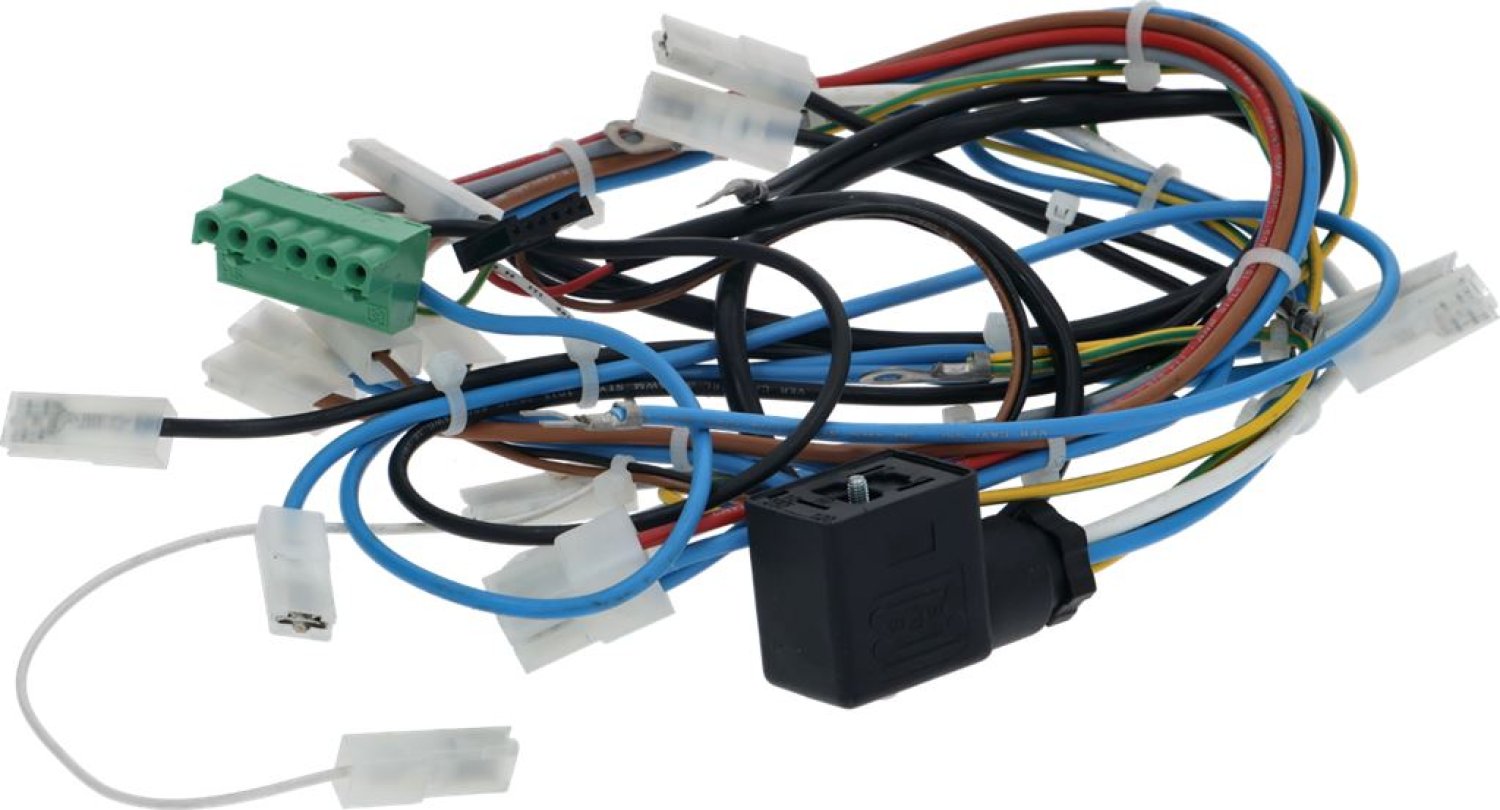

27rocket wiring loom v2 8106018
Rocket Wiring loom V2
38,56 €

excl. Shipping costs

immediately available, 1 available
28 8105789
Rocket Cable retainer
11,78 €

excl. Shipping costs

Delivery time 4-6 weeks..
29rocket expansion auslassstutzen 8101282
Rocket Expansion Auslassstutzen
12,50 €

excl. Shipping costs

immediately available, 2 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
