Rocket

Porta Via Brühgruppe

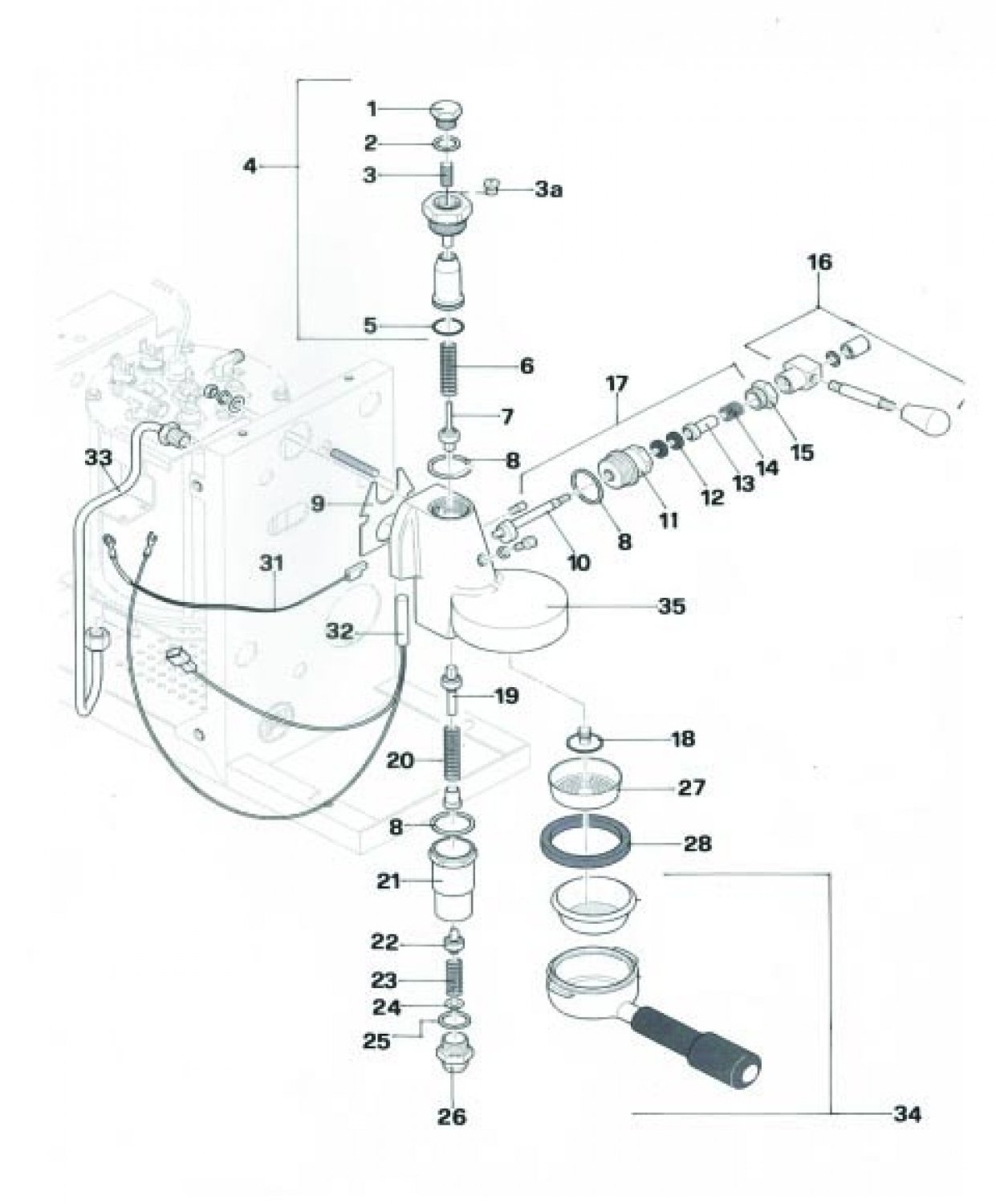

Drawing number 8101521

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1rocket stopfen bruehgruppe 8069006
Rocket Stopfen Brühgruppe
10,54 €

excl. Shipping costs

immediately available, 3 available
2ptfe flat gasket o 16x22 5x2 mm 8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs

immediately available
3water filter o 8 5x22 mm 8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs

immediately available, 18 available
4bruehgruppen kollektor e61 keramik rocket espresso 8080668
Brühgruppen Kollektor E61 Keramik - Rocket Espresso
71,40 €

excl. Shipping costs

immediately available, 4 available
5rocket dichtung fuer gruppenkollektor 1 stueck 8105782
Rocket Dichtung für Gruppenkollektor 1 Stück
3,45 €

excl. Shipping costs

immediately available
6 8105795
Rocket Spring (ersetzt durch 8125549)
Price on request
7rocket einlassventil e61 bruehgruppe ventil oben 1 stueck 8105967
Rocket Einlassventil E61 Brühgruppe Ventil oben (1 Stück)
33,34 €

excl. Shipping costs

immediately available, 7 available
8rocket flachdichtung aus teflon 36x30x3 mm 8079477
ROCKET Flachdichtung aus Teflon 36x30x3 mm
2,50 €

excl. Shipping costs

immediately available
9rocket gruppendichtung 8069008
Rocket Gruppendichtung
4,64 €

excl. Shipping costs

immediately available, 6 available
10rocket nockenwelle bruehgruppe e61 8106013
Rocket Nockenwelle Brühgruppe E61
29,90 €

excl. Shipping costs

immediately available, 6 available
11ecm rocket anschluss nockenwelle e61 verchromt hochglanzpoliert 8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert
19,90 €

excl. Shipping costs

immediately available, 7 available
12epdm flat gasket 15 5x7 5x4 mm 8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs

Delivery time
is determined
13rocket buchse fuer nockenwelle 8105822
Rocket Buchse für Nockenwelle
6,60 €

excl. Shipping costs

immediately available, 2 available
14spring o 15x25 mm 8003821
SPRING ø 15x25 mm
2,02 €

excl. Shipping costs

immediately available, 16 available
15rocket e61 mutter fuer nockenwellenaufnahme 8105804
Rocket E61 Mutter für Nockenwellenaufnahme
10,71 €

excl. Shipping costs

immediately available, 5 available
16rocket e61 bezugshebel 8106071
Rocket E61 Bezugshebel
38,15 €

excl. Shipping costs

immediately available, 2 available
17e61 nockenwelle komplett montiert in fuehrung anschluss verchromt 8106057
E61 Nockenwelle komplett montiert in Führung Anschluss verchromt
49,00 €

excl. Shipping costs

Delivery time 4-6 weeks..
18rocket verteilerscheibe e61 gruppe o 30 mm m10x1 8140833
Rocket Verteilerscheibe E61 Gruppe ø 30 mm M10x1
12,40 €

excl. Shipping costs

immediately available, 3 available
19rocket e61 vorbruehkammernventil ventil mitte 1 stueck 8106001
Rocket E61 Vorbrühkammernventil Ventil Mitte (1 Stück)
16,51 €

excl. Shipping costs

immediately available, 12 available
20 8105795
Rocket Spring (ersetzt durch 8125549)
Price on request
21rocket vorbruehzylinder 8106027
Rocket Vorbrühzylinder
35,70 €

excl. Shipping costs

immediately available, 3 available
22rocket auslassventil e61 8105968
Rocket Auslassventil E61
22,42 €

excl. Shipping costs

immediately available, 3 available
23feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen 8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs

immediately available
24drain jet swirl 8005864
DRAIN JET SWIRL
2,78 €

excl. Shipping costs

immediately available, 5 available
25flat gasket ptfe o 26x21x2 mm 8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs

immediately available
26drain chromium plated fitting 8105825
DRAIN CHROMIUM-PLATED FITTING
7,20 €

excl. Shipping costs

immediately available, 1 available
27ims praezisionsdusche e61 nanotec o 60 mm 200 micro m 8088784
IMS Präzisionsdusche E61 Nanotec ø 60 mm 200µm
16,67 €

excl. Shipping costs

immediately available, 12 available
27shower screen fuer e61 brew unit 8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs

immediately available
27rocket original dusche e61 8393638
Rocket original Dusche E61
8,21 €

excl. Shipping costs

immediately available, 5 available
27ims matrix dusche e61 duschsieb 1 stueck 8280721
IMS Matrix Dusche E61 Duschsieb (1 Stück)
27,95 €

excl. Shipping costs

immediately available, 13 available
28gasket 73x57x8 mm for e61 brew unit 8060996
Gasket 73x57x8 mm - for E61 brew unit
3,90 €

excl. Shipping costs

immediately available
29rocket 2 tassen sieb 8105891
Rocket 2 Tassen Sieb
9,95 €
9,95 €

excl. Shipping costs

immediately available, 6 available
29rocket eintassen sieb 8105878
Rocket Eintassen-Sieb
6,95 €

excl. Shipping costs

immediately available, 7 available
34rocket bottomless portafilter 8073510
Rocket bottomless portafilter
39,90 €

excl. Shipping costs

immediately available, 2 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
