Rocket Appartamento TCA Kesselfüllung Expansiosnventil

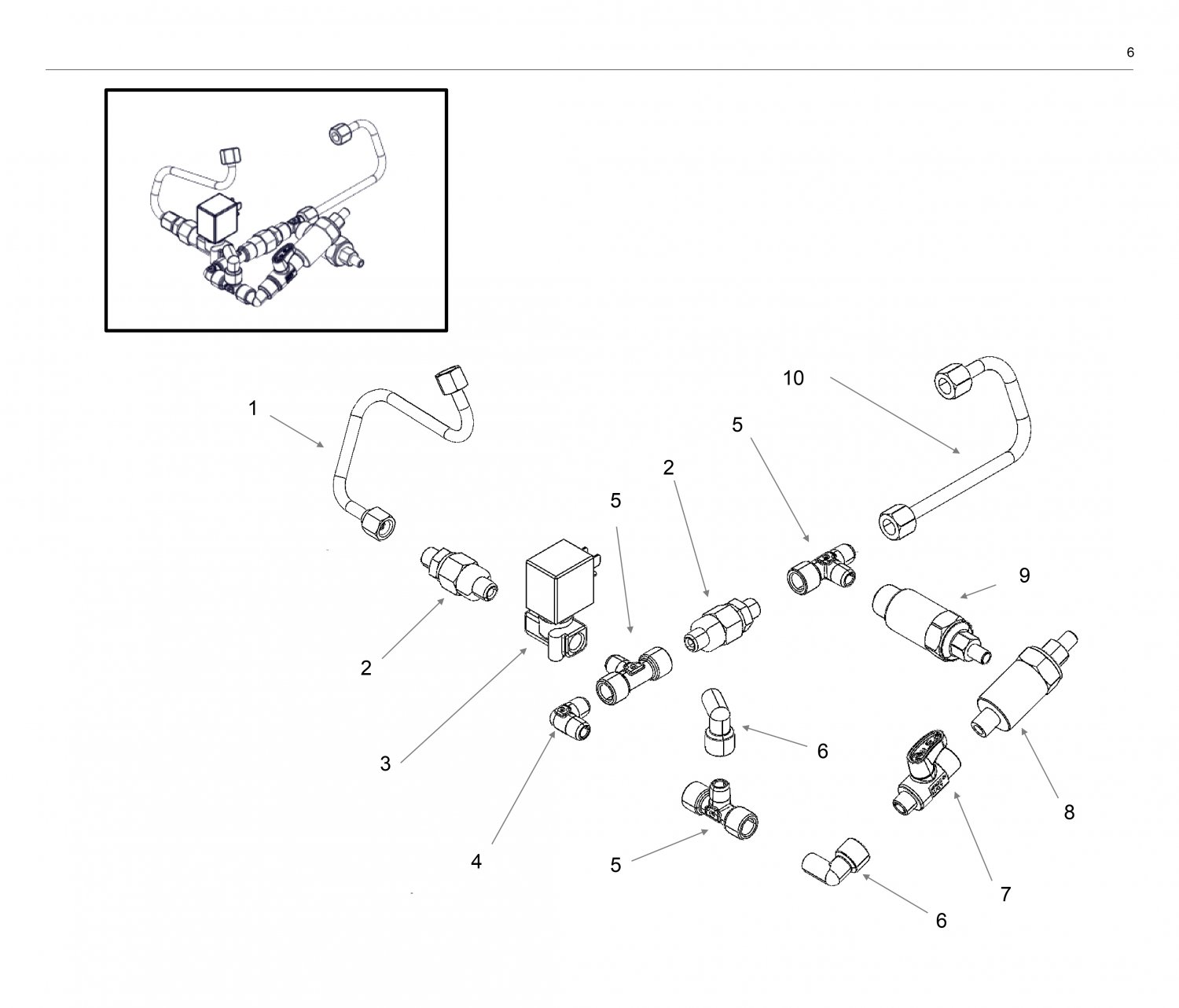

Drawing number 8392585

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:

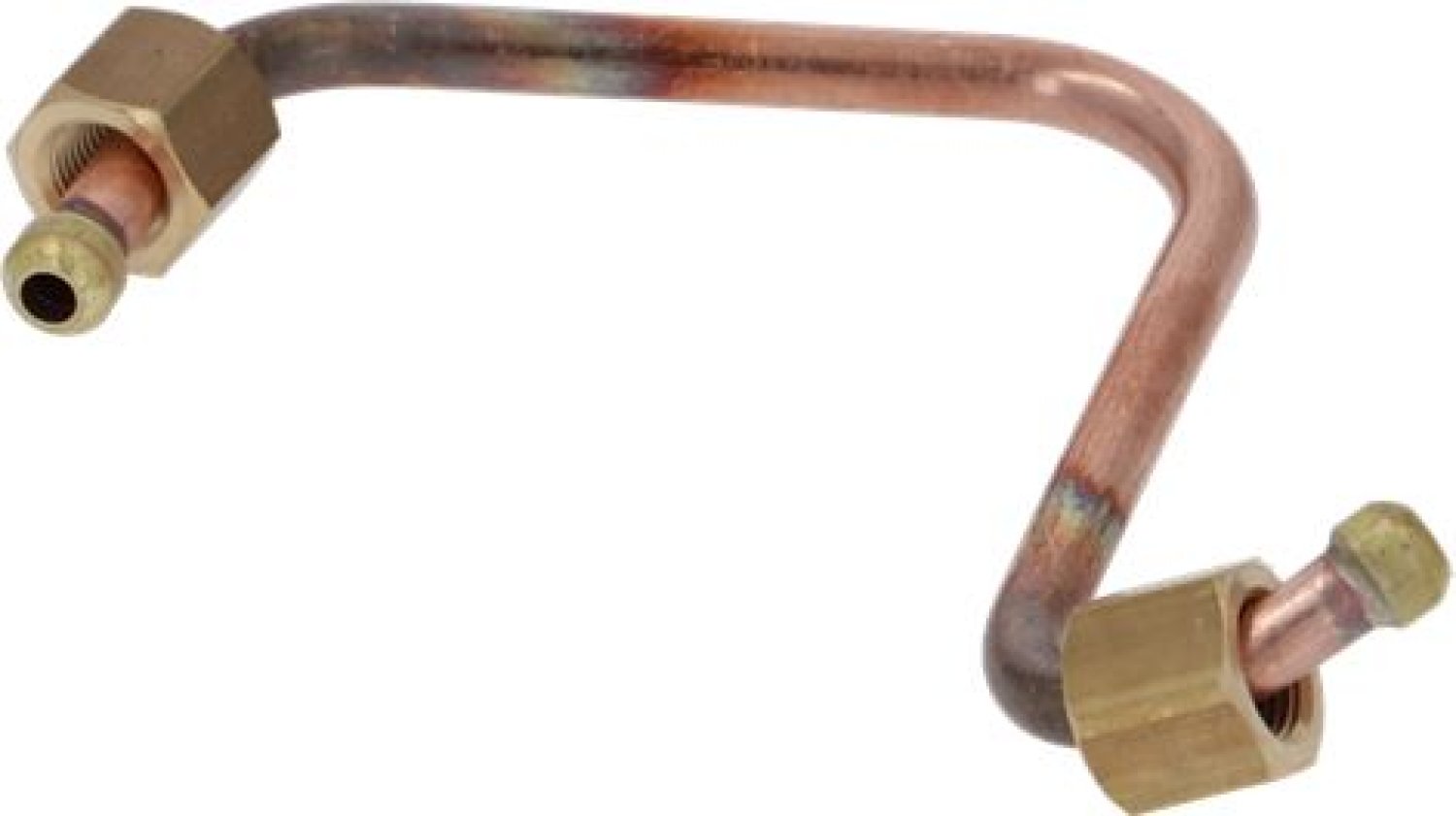

1kesselfuellrohr appartamento tca 8393588
KESSELFÜLLROHR APPARTAMENTO TCA
25,05 €

excl. Shipping costs
immediately available, 4 available
2rueckschlagventil o 1 8 quot m 1 8 m bsp 8280846
Rückschlagventil ø 1/8 " M-1/8 M BSP
11,11 €

excl. Shipping costs
immediately available
3rocket 2 way solenoid valve 1 8 quot o2 0 mm 115v for r58 type r r60v tca 8399976
Rocket 2-Way Solenoid Valve 1/8" Ø2.0 mm 115V for R58 / Type R / R60V / TCA
46,99 €

excl. Shipping costs
Delivery time
is determined
3ode 2 way solenoid valve 1 8 quot 230v 5w ndash orifice o2 3 mm 8000815
ODE 2-Way Solenoid Valve 1/8" 230V 5W – Orifice Ø2.3 mm
26,41 €

excl. Shipping costs
immediately available, 20 available
5t anschluss o 1 8 i 1 8a 1 8 i vernickelt 8005873
T- Anschluss ø 1/8 I-1/8a-1/8 I vernickelt
7,31 €

excl. Shipping costs
immediately available, 6 available
6l fitting o 1 8 8005885
L-FITTING ø 1/8
5,58 €

excl. Shipping costs
immediately available, 11 available
7 8105986
Rocket Valve 1/8 MF
30,35 €

excl. Shipping costs
immediately available, 1 available
8expansionsventil rocket 9 bar 1 8 m 8079718
Expansionsventil Rocket 9 Bar 1/8 M
19,90 €

excl. Shipping costs
immediately available, 5 available
9ecm rocket expansion valve o 1 8 8068993
ECM Rocket EXPANSION VALVE ø 1/8
16,90 €

excl. Shipping costs
immediately available, 3 available
10 8393429
TUBO ALIMENTAZIONE SCAMBIATORE APP TCA
27,25 €

excl. Shipping costs
Delivery time 4-6 weeks

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
