ROCKET CELLINI - GIOTTO EVOLUTION V2 ab D1306C2V0730 KESSEL

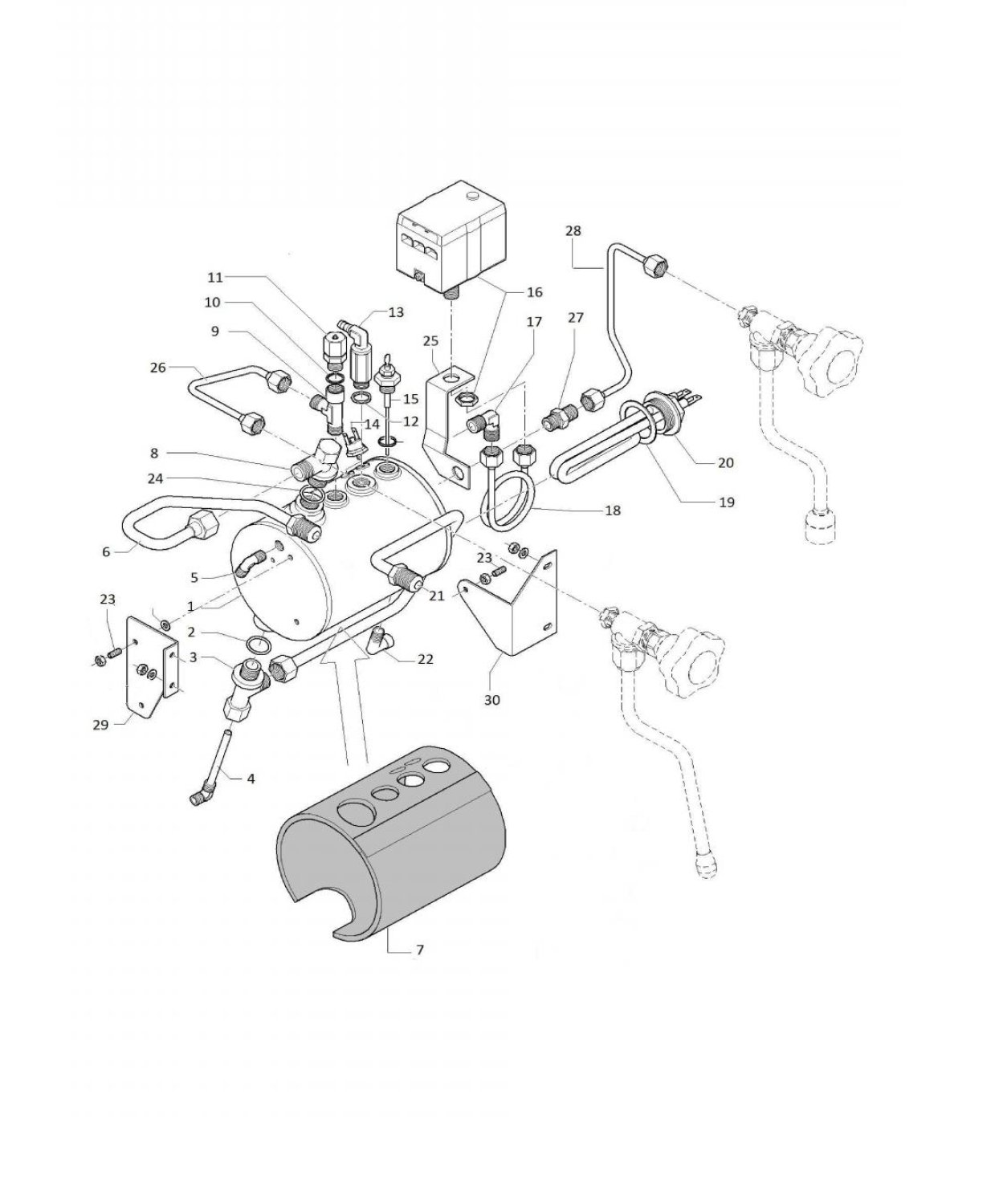

Drawing number 8063231

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1rocket giotto cellini mozzafiato evo boiler kessel 8069605
Rocket Giotto Cellini Mozzafiato Evo Boiler Kessel
267,80 €

excl. Shipping costs

immediately available, 3 available
2round copper gasket o 23x17x3 mm 3 8 zoll 8001472
ROUND COPPER GASKET ø 23x17x3 mm - 3/8 Zoll
1,65 €

excl. Shipping costs

immediately available
3rocket kesselfitting t anschluss 3 8a x 1 4i 8125592
Rocket Kesselfitting T-anschluss 3/8A x 1/4i
16,95 €

excl. Shipping costs

immediately available, 3 available
4ecm technika injektorrohr 8079607
ECM Technika Injektorrohr
9,52 €

excl. Shipping costs

immediately available, 3 available
5l fitting o 1 8 1 8 8005642
L-FITTING ø 1/8 -1/8
4,49 €

excl. Shipping costs

immediately available, 9 available
6rocket upper pipe hx to group 8073620
Rocket upper pipe HX to group
29,83 €

excl. Shipping costs

immediately available, 2 available
7rocket boiler insulation 8069399
ROCKET BOILER INSULATION
19,99 €

excl. Shipping costs

immediately available, 2 available
8rocket kesselfitting l anschluss o 3 8a 8125591
Rocket Kesselfitting L- Anschluss ø 3/8A -
16,40 €

excl. Shipping costs

immediately available, 2 available
10copper flat gasket o 18x14x1 5 mm 8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs

immediately available
11fluid o tech 1 4 quot bsp unterdruckventil antivakuumventil edelstahl 8393315
Fluid-o-tech 1/4" BSP Unterdruckventil Antivakuumventil Edelstahl
34,90 €

excl. Shipping costs

immediately available, 20 available
11o 1 4 rime boiler valve 8007153
ø 1/4″ - BOILER VALVE
7,52 €

excl. Shipping costs

immediately available
12ptfe flat gasket 21x16 8x2 mm 8001486
PTFE FLAT GASKET 21x16,8x2 mm
1,37 €

excl. Shipping costs

immediately available, 14 available
13rocket sicherheitsventil 3 8 rime 1 8 bar 8069010
Rocket Sicherheitsventil 3/8″ - 1,8 bar
26,18 €

excl. Shipping costs

immediately available, 6 available
14original rocket sicherheitsthermostat m4 135 deg c gewindelaenge 6mm 16a 8280862
Original Rocket Sicherheitsthermostat M4 135°C Gewindelänge 6mm 16A
11,90 €

excl. Shipping costs

immediately available
15niveausonde o 1 4 m 80 mm 8073951
Niveausonde ø 1/4 M-80 mm
21,30 €
17,26 €

excl. Shipping costs

immediately available, 6 available
16pressure switch p303t01 3 poles 20a 1 4 8005077
PRESSURE SWITCH P303T01 3-POLES 20A 1/4
89,50 €
89,50 €

excl. Shipping costs

immediately available, 2 available
17nichel platedl fitting 8005879
NICHEL PLATEDL-FITTING
4,76 €

excl. Shipping costs

immediately available, 10 available
19carbo flat gasket o 41x33x3 mm 1 rime 8001821
CARBO FLAT GASKET ø 41x33x3 mm 1″
2,44 €

excl. Shipping costs

immediately available, 15 available
19teflondichtung fuer heizung 40 5x33 3x3 mm 8139595
Teflondichtung für Heizung 40,5x33,3x3 mm
2,38 €

excl. Shipping costs

immediately available
20heating element 1350w 220v 8007588
HEATING ELEMENT 1350W 220V
29,90 €

excl. Shipping costs

immediately available, 6 available
20original rocket heizung 1200w 230v 8101461
Original Rocket Heizung 1200W 230V
49,50 €

excl. Shipping costs

immediately available, 2 available
21rocket lower pipe hx to group 8080844
Rocket lower pipe HX to group
35,70 €

excl. Shipping costs

immediately available, 2 available
22l fitting o 1 8 8005885
L-FITTING ø 1/8
5,46 €

excl. Shipping costs

immediately available, 11 available
23rocket dichtung zur entkopplung des kessels 1 stueck 5 5x12x3 8352554
Rocket Dichtung zur Entkopplung des Kessels (1 Stück) 5,5X12X3
1,79 €

excl. Shipping costs

immediately available, 6 available
24round copper gasket o 23x17x3 mm 3 8 zoll 8001472
ROUND COPPER GASKET ø 23x17x3 mm - 3/8 Zoll
1,65 €

excl. Shipping costs

immediately available
26rocket cellini giotto appartamento rohr zum dampfhahn 8079670
Rocket Cellini Giotto Appartamento Rohr zum Dampfhahn
22,32 €

excl. Shipping costs

immediately available, 5 available
27fitting o 1 4 8005710
Fitting ø 1/4
3,64 €

excl. Shipping costs

immediately available, 20 available
28rocket rohr kessel zum heisswasserventil ab seriennr d1223 8080610
Rocket Rohr Kessel zum Heisswasserventil AB Seriennr D1223...
19,90 €

excl. Shipping costs

immediately available, 4 available
28rocket rohr kessel zum heisswasserventil bis seriennr d1223 8080585
Rocket Rohr Kessel zum Heisswasserventil bis Seriennr D1223...
29,50 €

excl. Shipping costs

immediately available, 4 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
