ROCKET CELLINI - GIOTTO PLUS V2 HYDRAULISCHE ANLAGE

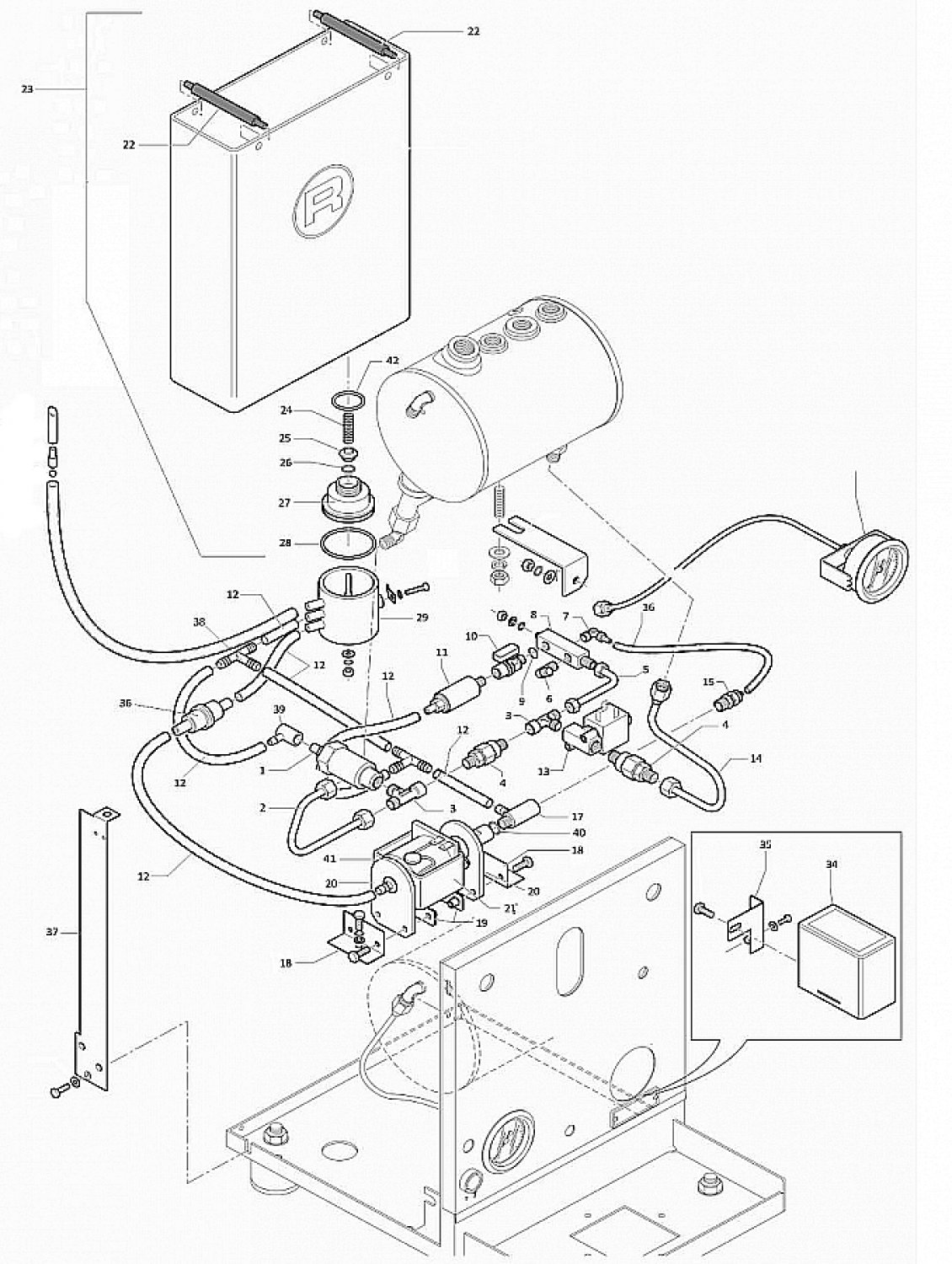

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Pos.:	Item No.:	Image:	Description:	Shipment:	Price (inkl. VAT):	Qty.:
1	8068993		8068993 ECM Rocket EXPANSION VALVE ø 1/8	excl. Shipping costs immediately available, 3 available	16,90 €	16,90 € excl. Shipping costs immediately available, 3 available
4	8280846		8280846 Rückschlagventil ø 1/8 " M-1/8 M BSP	excl. Shipping costs immediately available	11,11 €	11,11 € excl. Shipping costs immediately available
8	8105948		8105948 Rocket Hydraulic block	excl. Shipping costs Delivery time: 4-6 weeks	28,56 €	28,56 € excl. Shipping costs Delivery time: 4-6 weeks
11	8079718		8079718 Expansionsventil Rocket 9 Bar 1/8 M	excl. Shipping costs immediately available, 5 available	19,90 €	19,90 € excl. Shipping costs immediately available, 5 available
12	8006817		8006817 Silicone Hose 5 x 8 mm, Platinum Cured, Made in Germany	excl. Shipping costs Delivery time 4-6 weeks	3,95 €	3,95 € excl. Shipping costs Delivery time 4-6 weeks
13	8000815		8000815 ODE 2-Way Solenoid Valve 1/8" 230V 5W – Orifice Ø2.3 mm	excl. Shipping costs immediately available, 19 available	26,41 €	26,41 € excl. Shipping costs immediately available, 19 available
15	8022397		8022397 Straight Hose Fitting 1/8 Inch with Union Nut for 4 x 6 mm PTFE Tube	excl. Shipping costs immediately available, 6 available	5,36 €	5,36 € excl. Shipping costs immediately available, 6 available
16	8006801		8006801 TEFLON PIPE ø 4x6 mm - 1 M	excl. Shipping costs immediately available, 12.8 available	5,50 €	5,50 € excl. Shipping costs immediately available, 12.8 available
17	8005269		8005269 Pump valve S2	excl. Shipping costs immediately available, 18 available	7,94 € 6,97 €	7,94 € 6,97 € excl. Shipping costs immediately available, 18 available
21	8001016		8001016 ULKA EX5 Vibration Pump – 48 W – 230 V – 50 Hz	excl. Shipping costs immediately available	14,90 €	14,90 € excl. Shipping costs immediately available
22	8079392		8079392 Rocket Wassertank Plastik Halterung	excl. Shipping costs immediately available, 13 available	2,38 €	2,38 € excl. Shipping costs immediately available, 13 available

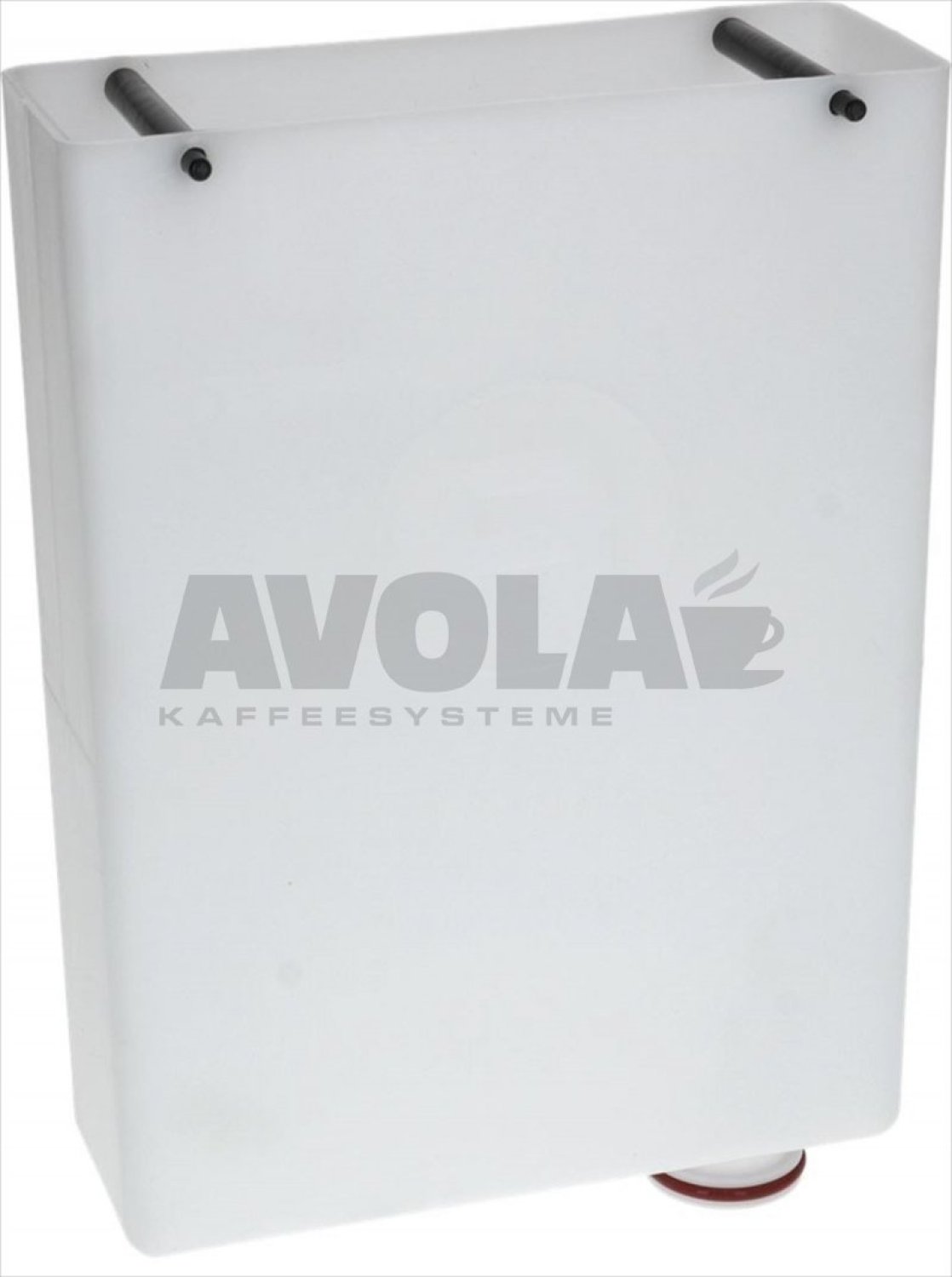

23	8069514		8069514 Rocket Wassertank komplett Cellini - Giotto	excl. Shipping costs immediately available, 3 available	37,52 €	37,52 € excl. Shipping costs immediately available, 3 available
26	8002065		8002065 O-RING 02031 - RED SILICON	excl. Shipping costs immediately available	0,86 €	0,86 € excl. Shipping costs immediately available

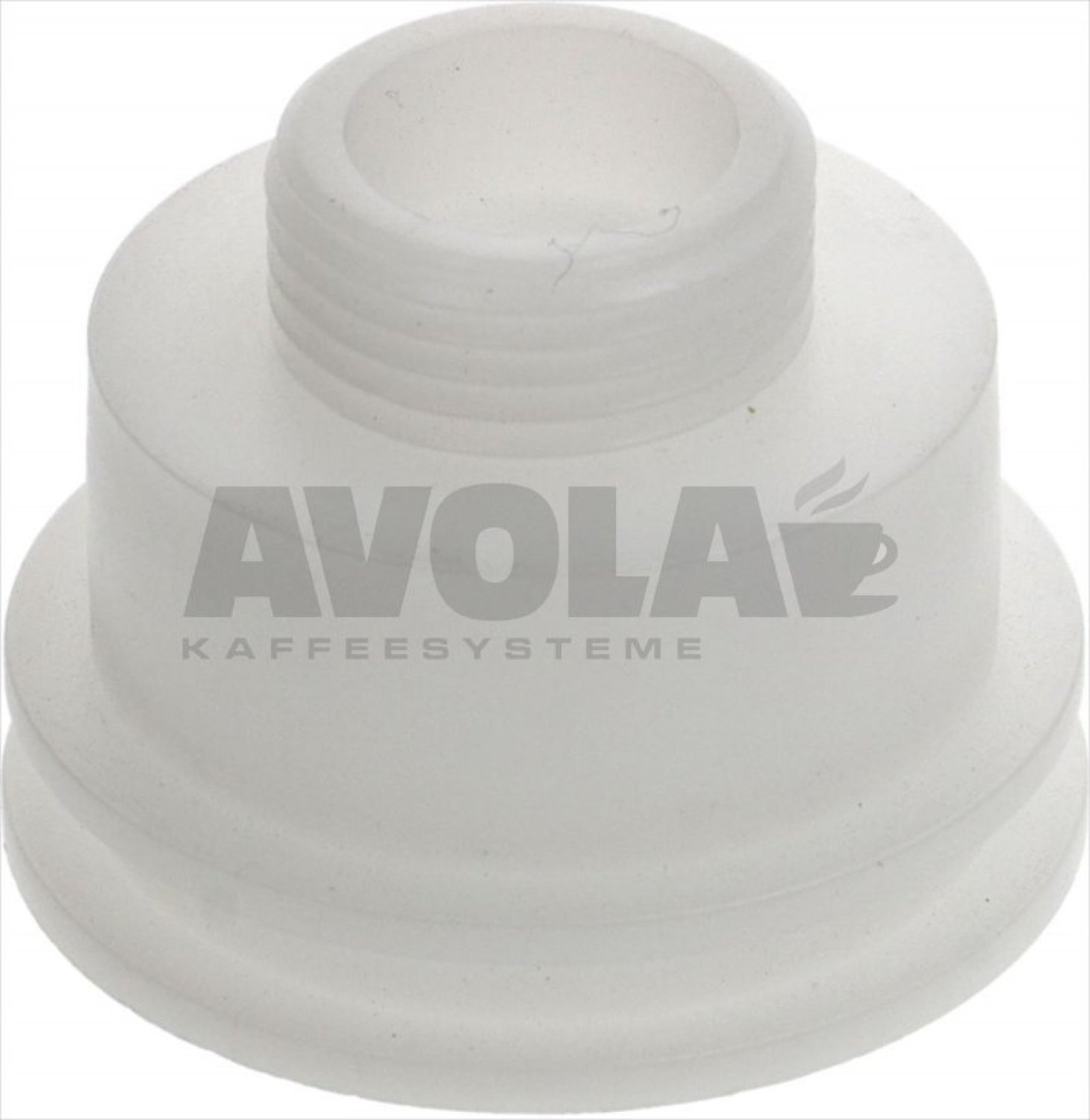

27	8101775		8101775 Rocket Wassertankadapter Unterteil ohne Dichtung	excl. Shipping costs immediately available, 14 available	3,83 €	3,83 € excl. Shipping costs immediately available, 14 available

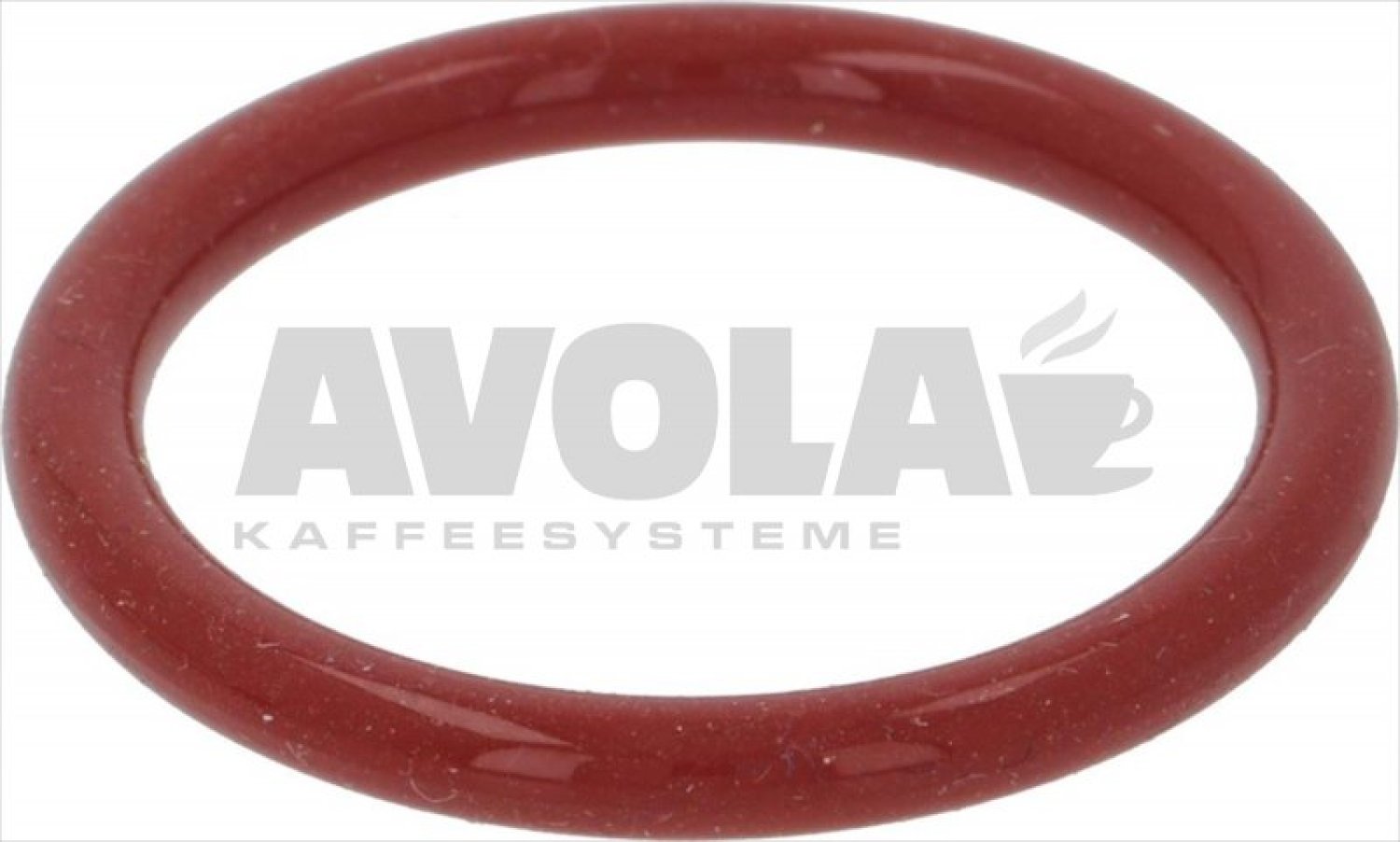

28	8068995		8068995 Rocket O- Ring Tankstutzen	excl. Shipping costs immediately available	2,50 €	2,50 € excl. Shipping costs immediately available
29	8068996		8068996 Rocket New Water Tank Holder for Appartamento / Porta Via / Type V	excl. Shipping costs immediately available, 5 available	11,21 €	11,21 € excl. Shipping costs immediately available, 5 available
34	8069017		8069017 Rocket Electronic Control Unit PRO.EL.IND LIV-RET3A / GICAR 9.1.41.92G – 230 V	excl. Shipping costs immediately available, 6 available	95,45 €	95,45 € excl. Shipping costs immediately available, 6 available
36	8059181		8059181 INLET PASS-THROUGH FILER - Ø8mm	excl. Shipping costs immediately available	3,19 €	3,19 € excl. Shipping costs immediately available
40	8001810		8001810 FKM O-Ring Seal 02025 – 6.07 x 1.78 mm	excl. Shipping costs Delivery time is determined	0,88 €	0,88 € excl. Shipping costs Delivery time is determined

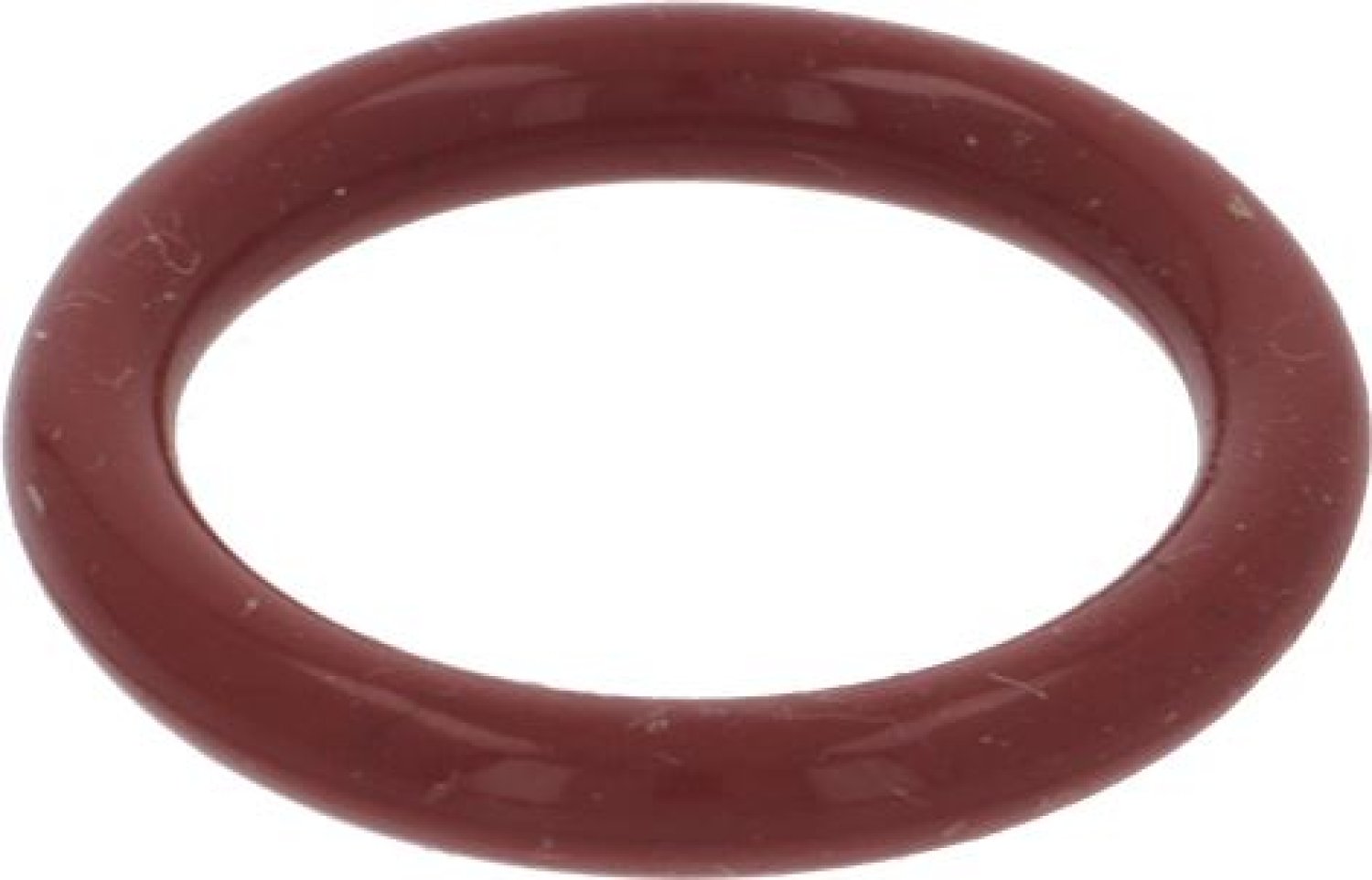

42	8069001		8069001 Rocket Dichtung Tankkupplung	excl. Shipping costs immediately available, 19 available	4,76 €	4,76 € excl. Shipping costs immediately available, 19 available

If your article is not listed, please use the following form and enter the desired numbers.
