Rocket Giotto - Cellini Brühgruppe Plus PID

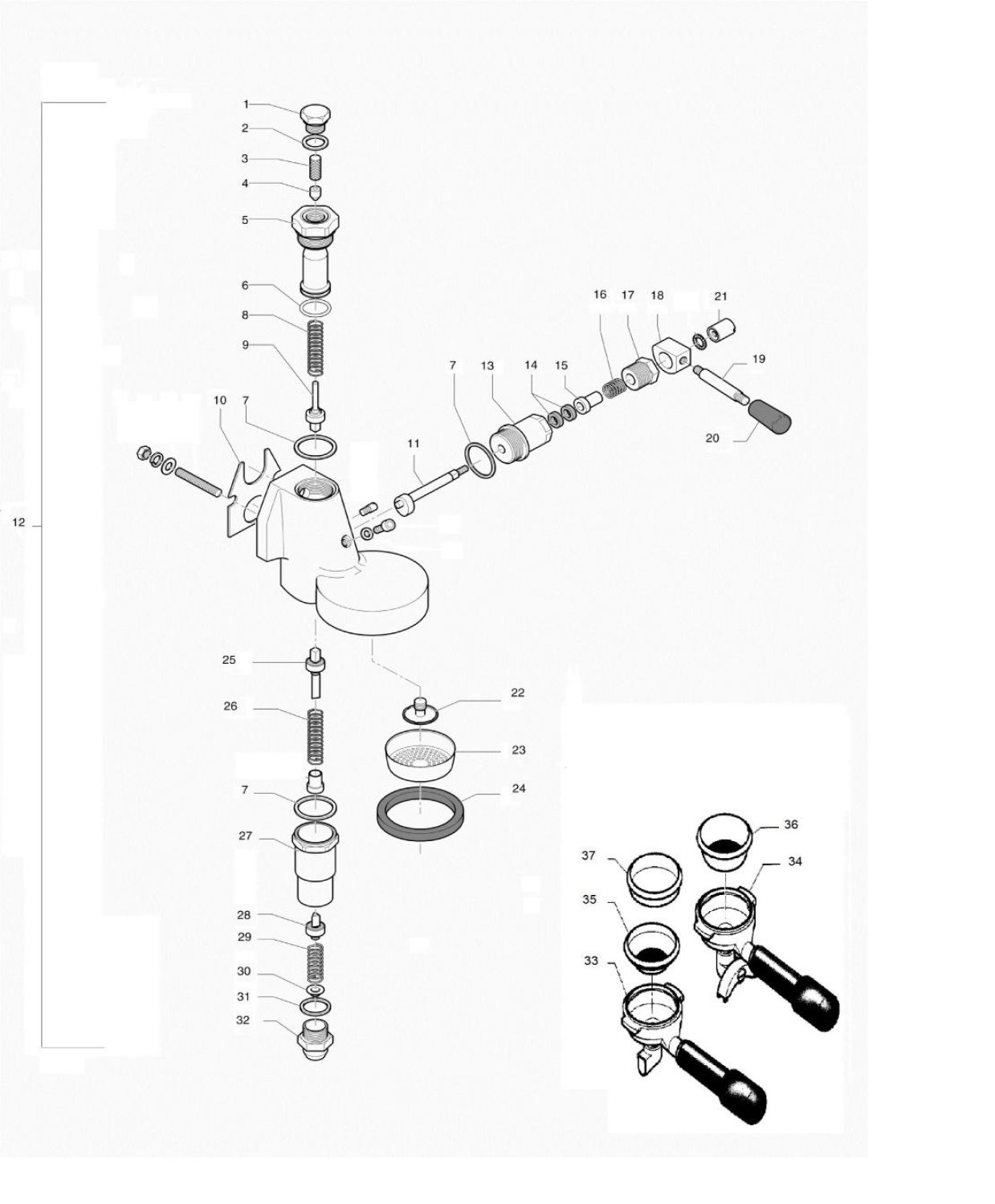

Drawing number 8079503

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1deckel fuer auslaufgruppe o 16 mm8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs
immediately available, 11 available
2ptfe flat gasket o 16x22 5x2 mm8001581
PTFE Flat Gasket ø 16x22,5x2 mm
1,65 €

excl. Shipping costs
immediately available
3water filter o 8 5x22 mm8001115
Water Filter ø 8,5x22 mm
1,79 €

excl. Shipping costs
immediately available
4nozzle m6x1 hole8006971
Nozzle M6x1 Hole
4,46 €

excl. Shipping costs
immediately available, 4 available
5e61 gruppenpilz kollektor oben verchromt grosse nut 8073648
E61 Gruppenpilz Kollektor oben verchromt (große Nut)
35,70 €

excl. Shipping costs
immediately available, 15 available
6o ring 04075 epdm8001699
O-RING 04075 EPDM
0,77 €

excl. Shipping costs
immediately available
7rocket flachdichtung aus teflon 36x30x3 mm8079477
Rocket Flachdichtung aus Teflon 36x30x3 mm
2,50 €

excl. Shipping costs
immediately available
8spring o 14x45 mm8003820
Spring ø 14x45 mm
1,57 €

excl. Shipping costs
immediately available
9complete spout valve8007091
Complete Spout Valve
7,90 €

excl. Shipping costs
immediately available
10rocket gruppendichtung8069008
Rocket Gruppendichtung
4,64 €

excl. Shipping costs
immediately available, 17 available
11cam rod for e61 coffee group8005124
Cam Rod For E61 Coffee Group
11,90 €

excl. Shipping costs
immediately available, 19 available
13ecm rocket anschluss nockenwelle e61 verchromt hochglanzpoliert8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt Hochglanzpoliert
19,90 €

excl. Shipping costs
immediately available, 5 available
13ecm rocket anschluss nockenwelle e61 verchromt hochglanzpoliert8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt Hochglanzpoliert
19,90 €

excl. Shipping costs
immediately available, 5 available
14epdm flat gasket 15 5x7 5x4 mm8001570
EPDM Flat Gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs
immediately available
15cam guide bushing8001571
Cam Guide Bushing
5,93 €

excl. Shipping costs
immediately available, 20 available
16spring o 14 6x21 mm8003547
Spring ø 14,6x21 mm
3,55 €

excl. Shipping costs
immediately available
17stuffing gland chrome plated fitting8006414
Stuffing Gland Chrome-plated Fitting
7,87 €

excl. Shipping costs
immediately available, 4 available
18chromium plated cam8002188
Chromium-plated Cam
20,22 €

excl. Shipping costs
immediately available, 5 available
19micro control spindle8002795
Micro Control Spindle
11,54 €

excl. Shipping costs
immediately available, 2 available
20brewing group handle8003320
Brewing Group Handle
6,05 €

excl. Shipping costs
immediately available, 3 available
21chromium plated cap m68002794
Chromium-plated Cap M6
3,51 €

excl. Shipping costs
immediately available, 8 available
22group spray nozzle o 30 mm m10x1 e618006987
Group Spray Nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs
immediately available

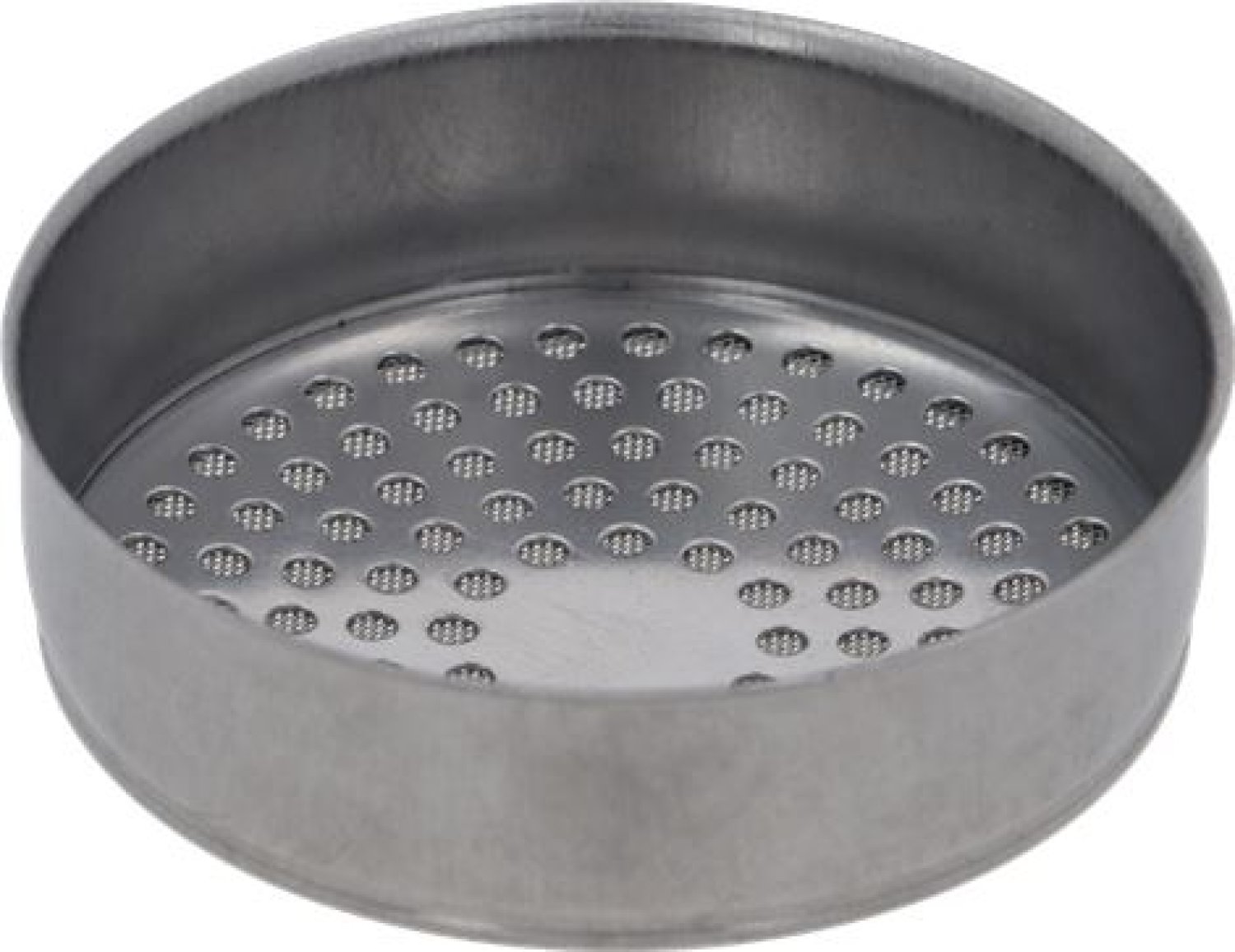

23shower screen fuer e61 brew unit8000608
Shower Screen für E61 Brew Unit
5,44 €

excl. Shipping costs
immediately available
23ims matrix dusche e61 duschsieb8280721
IMS Matrix Dusche E61 Duschsieb
27,95 €

excl. Shipping costs
immediately available, 13 available
24cafelat e61 portafilter gasket 73x57x8 mm red8081202
Cafelat E61 Portafilter Gasket 73x57x8 mm Red
5,95 €

excl. Shipping costs
immediately available
24rubber shim o 73 5x59x1 mm epdm8002168
Rubber Shim ø 73,5x59x1 mm EPDM
1,05 €

excl. Shipping costs
immediately available
24gasket 73x57x8 mm for e61 brew unit8060996
Gasket 73x57x8 mm - For E61 Brew Unit
3,90 €

excl. Shipping costs
immediately available

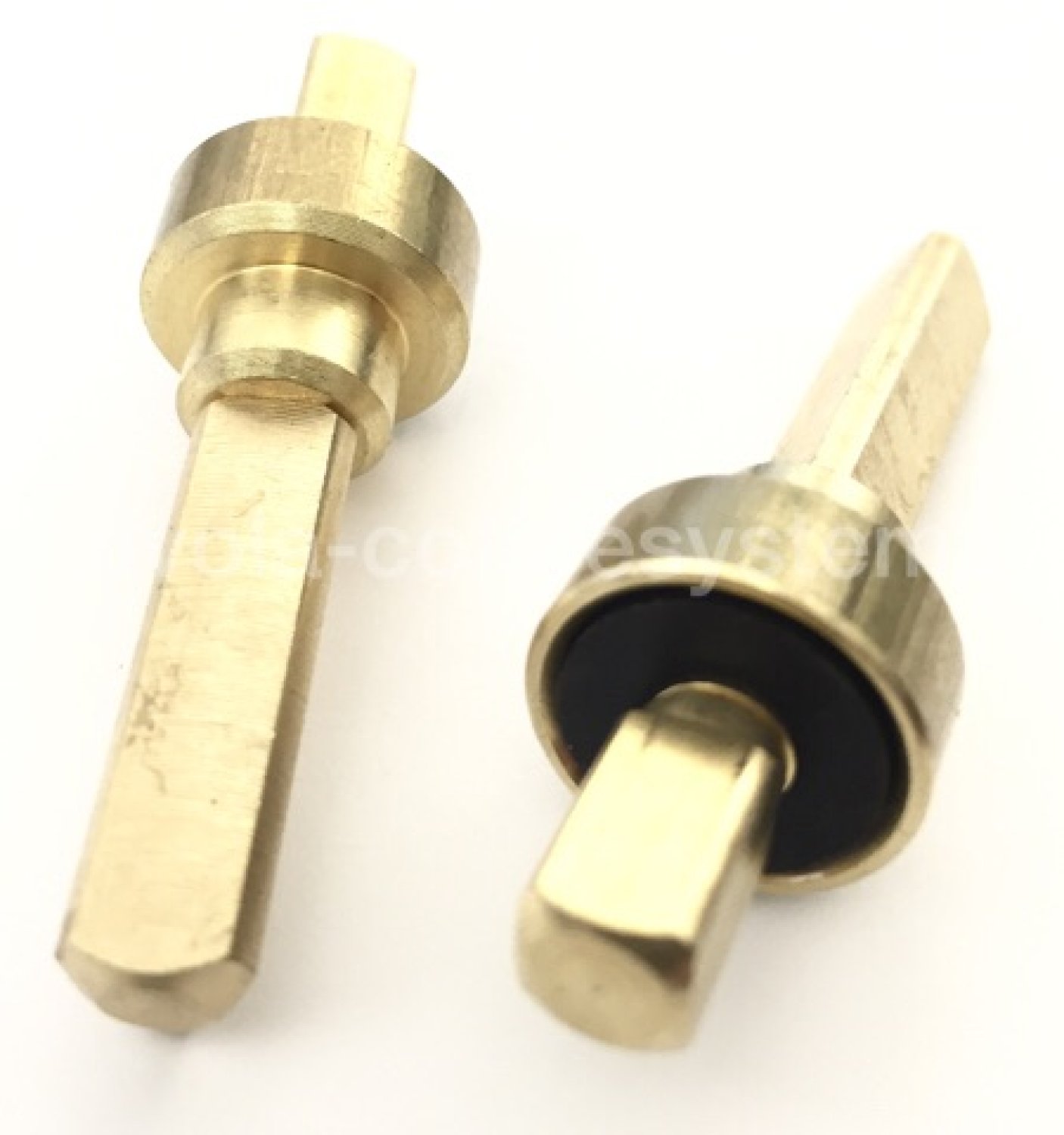

25rocket original ventilstift e61 mitte vorbruehkammer 1 stueck 8079295
Rocket Original Ventilstift E61 Mitte Vorbrühkammer (1 Stück)
26,79 €

excl. Shipping costs
immediately available, 14 available
26spring o 14x45 mm8003820
Spring ø 14x45 mm
1,57 €

excl. Shipping costs
immediately available
28e61 drain valve with gasket8007125
E61 Drain Valve With Gasket
9,17 €

excl. Shipping costs
immediately available
29spring o 14 5x32 mm8003603
Spring ø 14,5x32 mm
3,76 €

excl. Shipping costs
immediately available, 8 available
30drain jet swirl8005864
Drain Jet Swirl
2,78 €

excl. Shipping costs
immediately available, 16 available
31flat gasket ptfe o 26x21x2 mm8001415
Flat Gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs
immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
