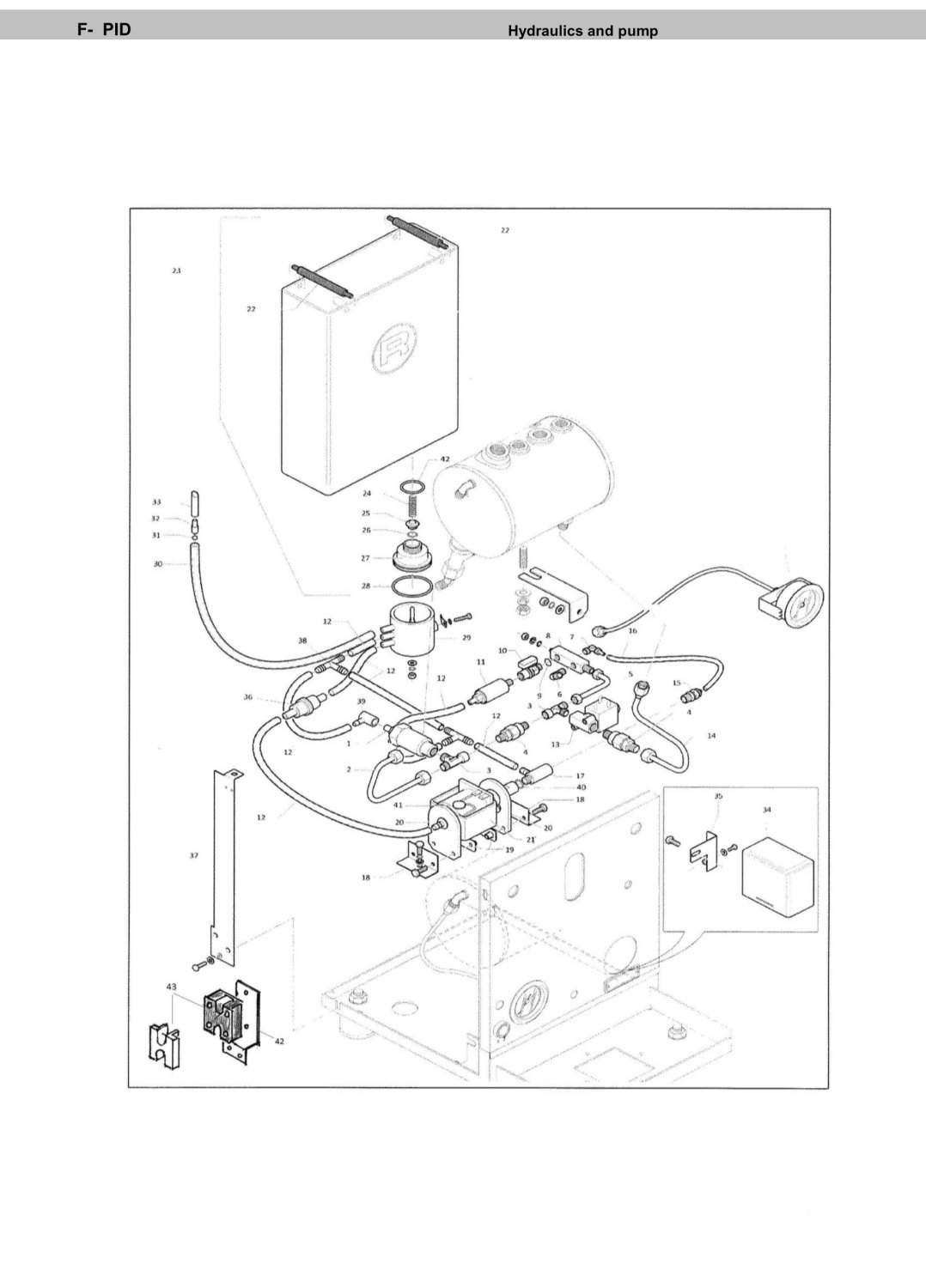

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.
| Pos.: |
Item No.: |
Image: |
Description: |
Shipment: |
Price
(inkl. VAT): |
Qty.: |
| 1 | 8068993 |  |
8068993
ECM Rocket EXPANSION VALVE ø 1/8
|
excl. Shipping costs
immediately available, 13 available
|
16,90 €
|
|
| 2 | 8105901 |  |
8105901
ECM - Rocket Inlet pipe heat exchanger 1/8"
|
excl. Shipping costs
immediately available, 3 available
|
25,29 €
|
|
| 3 | 8105820 |  |
8105820
Rocket T Connector 1/8M 1/8M 1/8F
|
excl. Shipping costs
immediately available, 3 available
|
8,14 €
|
|
| 4 | 8280846 |  |
8280846
Rückschlagventil ø 1/8 " M-1/8 M BSP
|
excl. Shipping costs
immediately available
|
11,11 €
|
|
| 5 | 8105900 | |
8105900
Rocket Valve block pipe
|
excl. Shipping costs
Delivery time: 4-6 weeks
|
15,32 €
|
|
| 6 | 8005642 |  |
8005642
L-FITTING ø 1/8 -1/8
|
excl. Shipping costs
immediately available, 15 available
|
4,65 €
|
|
| 7 | 8105859 | |
8105859
Rocket L Connector 1/8 6x4 pipe
|
excl. Shipping costs
Delivery time: 4-6 weeks
|
10,32 €
|
|
| 8 | 8105948 | |
8105948
Rocket Hydraulic block
|
excl. Shipping costs
Delivery time: 4-6 weeks
|
28,56 €
|
|
| 9 | 8105772 | |
8105772
Rocket 1/8 Copper gasket
|
excl. Shipping costs
Delivery time: 4-6 weeks
|
3,57 €
|
|
| 10 | 8186540 |  |
8186540

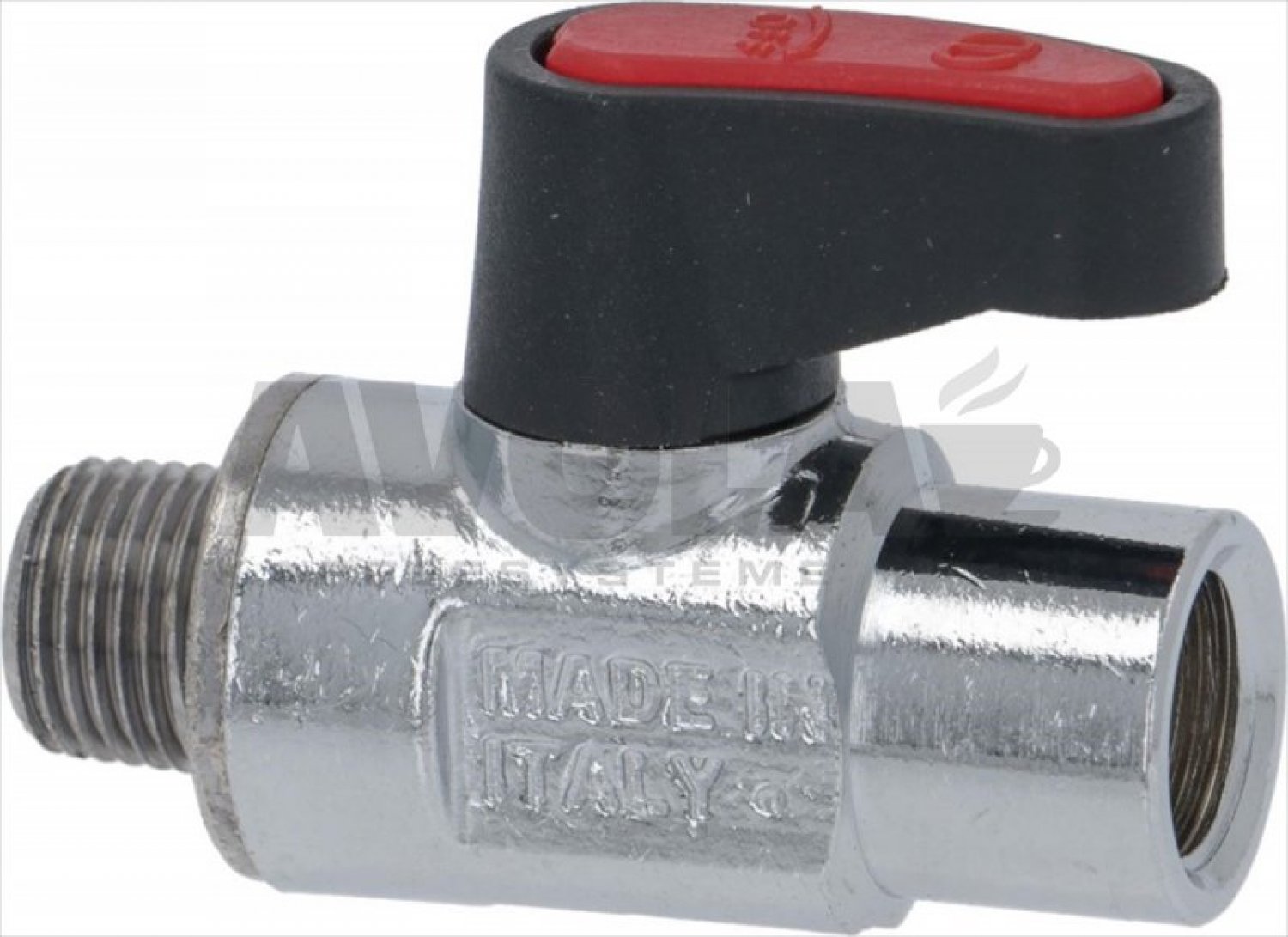

Kugelventil ø 1/8M-1/8F Absperrhahn
|
excl. Shipping costs
immediately available, 10 available
|
13,84 €
|
|
| 11 | 8079718 |  |
8079718

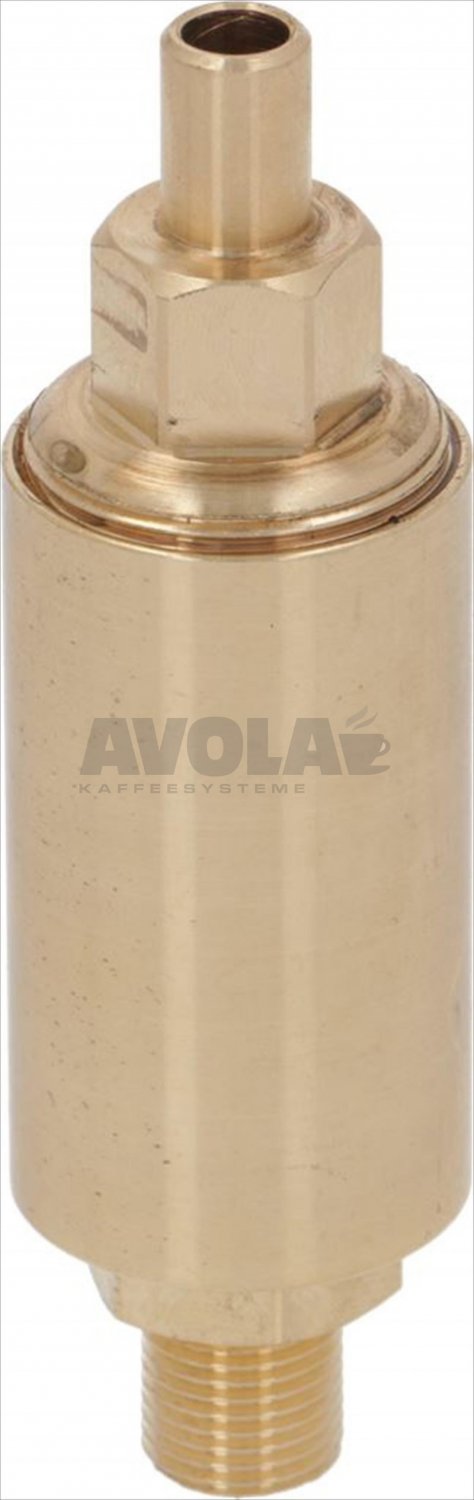

Expansionsventil Rocket 9 Bar 1/8 M
|
excl. Shipping costs
immediately available, 8 available
|
19,90 €
|
|
| 12 | 8006817 |  |
8006817
Silicone Hose 5 x 8 mm, Platinum Cured, Made in Germany
|
excl. Shipping costs
Delivery time 4-6 weeks
|
3,95 €
|
|
| 13 | 8000815 |  |
8000815
ODE 2-Way Solenoid Valve 1/8" 230V 5W – Orifice Ø2.3 mm
|
excl. Shipping costs
immediately available
|
26,41 €
|
|
| 14 | 8079624 |  |
8079624
ECM - Rocket Kesselfüllrohr
|
excl. Shipping costs
immediately available, 7 available
|
17,85 €
|
|
| 15 | 8022397 |  |
8022397
Straight Hose Fitting 1/8 Inch with Union Nut for 4 x 6 mm PTFE Tube
|
excl. Shipping costs
immediately available, 8 available
|
5,36 €
|
|
| 16 | 8006801 |  |
8006801
TEFLON PIPE ø 4x6 mm - 1 M
|
excl. Shipping costs
immediately available, 8.8 available
|
5,50 €
|
|
| 17 | 8005269 |  |
8005269
Pump valve S2
|
excl. Shipping costs
immediately available, 3 available
|
7,94 €
6,97 €
|
|
| 18 | 8105780 | |
8105780
Rocket Pump support
|
excl. Shipping costs
Delivery time 4-6 weeks
|
5,18 €
|
|
| 19 | 8105796 | |
8105796
Rocket Pump support
|
excl. Shipping costs
Delivery time: 4-6 weeks
|
5,85 €
|
|
| 20 | 8105769 | |
8105769
Rocket Rubber support (ersetzt durch 8125546)
|
|
Price on request
|
| 21 | 8001016 |  |
8001016
ULKA EX5 Vibration Pump – 48 W – 230 V – 50 Hz
|
excl. Shipping costs
immediately available
|
14,90 €
|
|
| 22 | 8079392 |  |
8079392
Rocket Wassertank Plastik Halterung
|
excl. Shipping costs
immediately available, 13 available
|
2,38 €
|
|
| 23 | 8069514 |  |
8069514

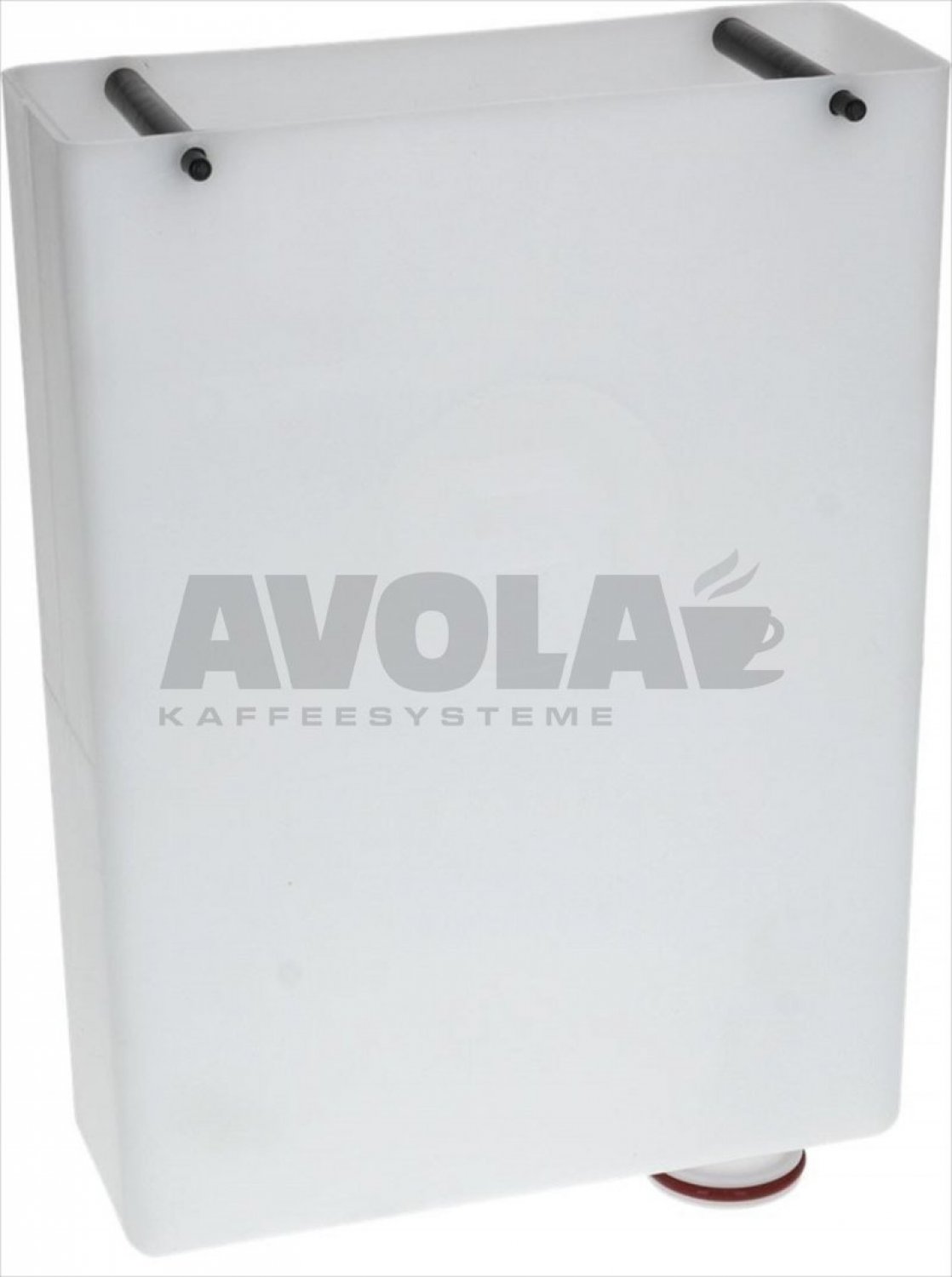

Rocket Wassertank komplett Cellini - Giotto
|
excl. Shipping costs
immediately available, 3 available
|
37,52 €
|
|
| 24 | 8079476 |  |
8079476

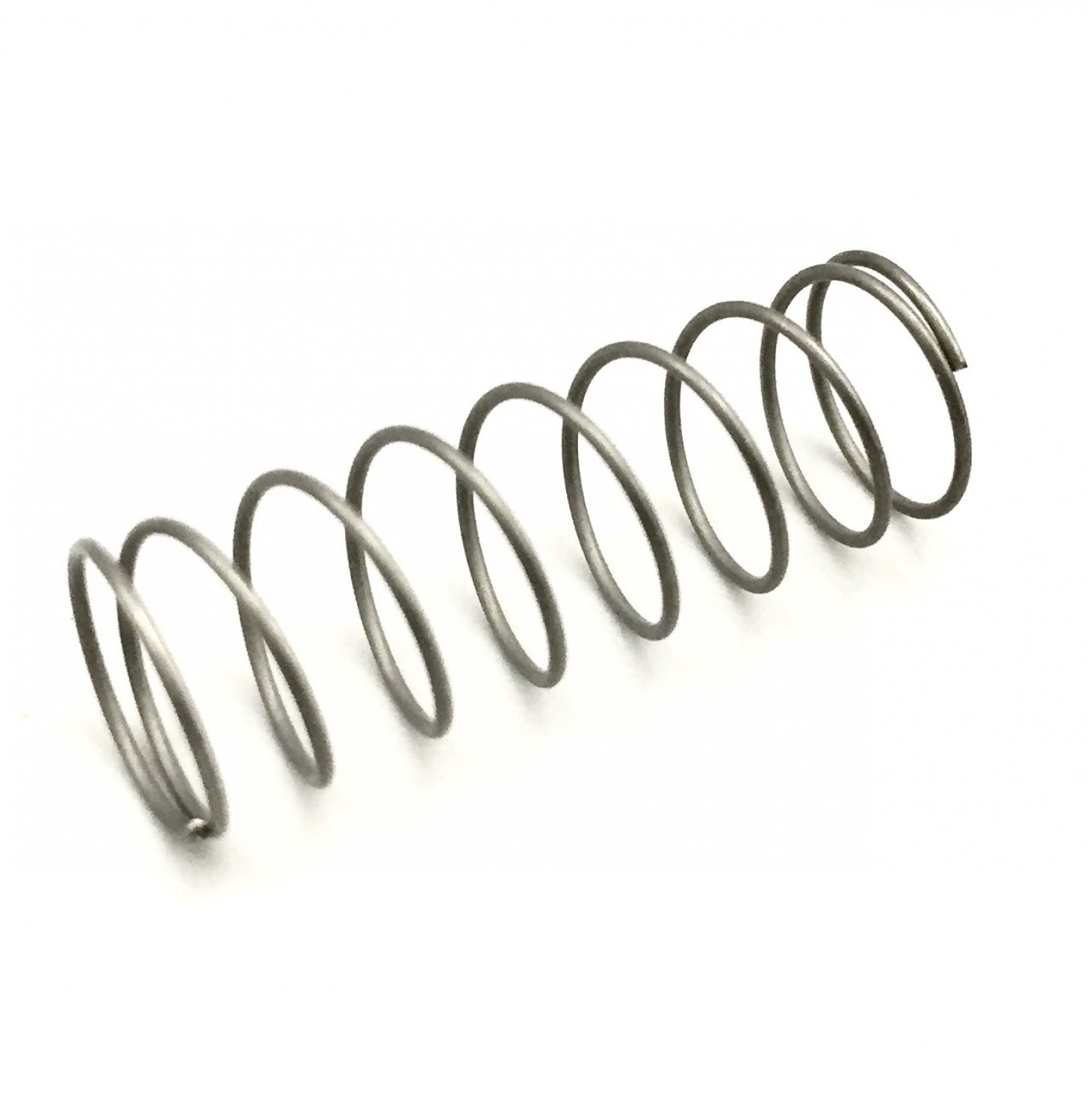

Rocket Wassertank Feder
|
excl. Shipping costs
immediately available
|
2,38 €
|
|
| 25 | 8105847 |  |
8105847
Rocket Dichtungsträger Wassertankventil (1 Stück)
|
excl. Shipping costs
immediately available, 2 available
|
5,90 €
|
|
| 26 | 8002065 |  |
8002065
O-RING 02031 - RED SILICON
|
excl. Shipping costs
immediately available
|
0,86 €
|
|
| 27 | 8101775 |  |
8101775

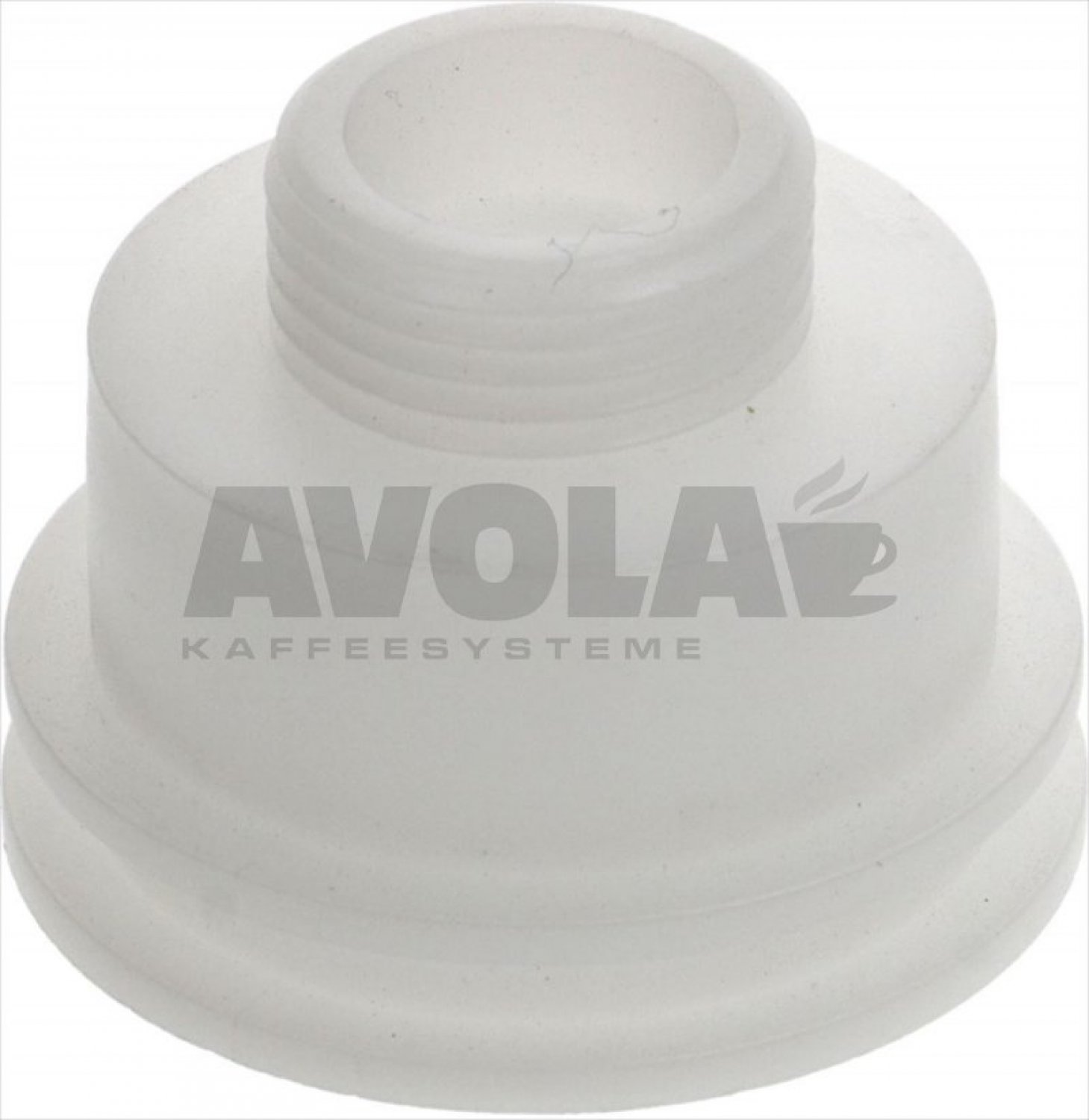

Rocket Wassertankadapter Unterteil ohne Dichtung
|
excl. Shipping costs
immediately available, 14 available
|
3,83 €
|
|
| 28 | 8068995 |  |
8068995
Rocket O- Ring Tankstutzen
|
excl. Shipping costs
immediately available
|
2,50 €
|
|
| 29 | 8068996 |  |
8068996
Rocket New Water Tank Holder for Appartamento / Porta Via / Type V
|
excl. Shipping costs
immediately available, 8 available
|
11,21 €
|
|
| 29 | 8105749 |  |
8105749
Rocket O-Ring
|
excl. Shipping costs
immediately available
|
1,19 €
|
|
| 29 | 8068999 |  |
8068999

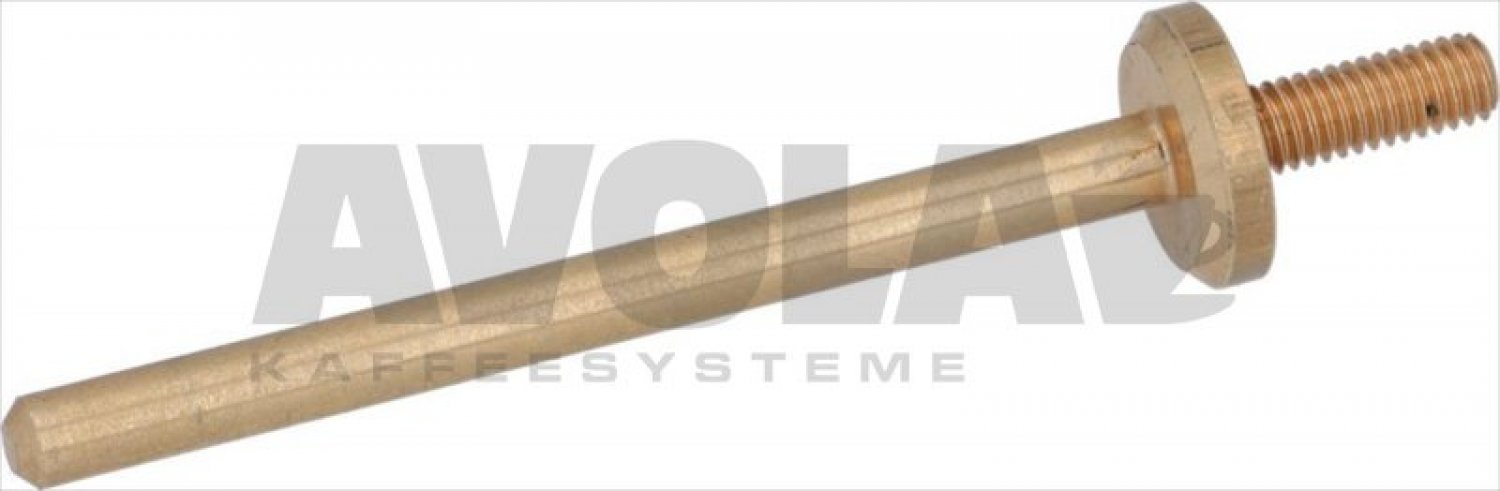

Rocket Opening valve rod
|
excl. Shipping costs
immediately available, 7 available
|
17,55 €
|
|
| 29 | 8068996 | |
8068996
Rocket New Water Tank Holder for Appartamento / Porta Via / Type V
|
excl. Shipping costs
immediately available, 8 available
|
11,21 €
|
|
| 30 | 8006820 |  |
8006820
SILICONE HOSE ø 6x10 SHORE 60 - 1 m
|
excl. Shipping costs
immediately available, 10.9 available
|
6,09 €
|
|
| 31 | 8073687 |  |
8073687
Glaskugel ø 5 mm Tankaufnahmen Be- und Entlüftung
|
excl. Shipping costs
immediately available, 12 available
|
1,93 €
|
|
| 32 | 8105794 |  |
8105794

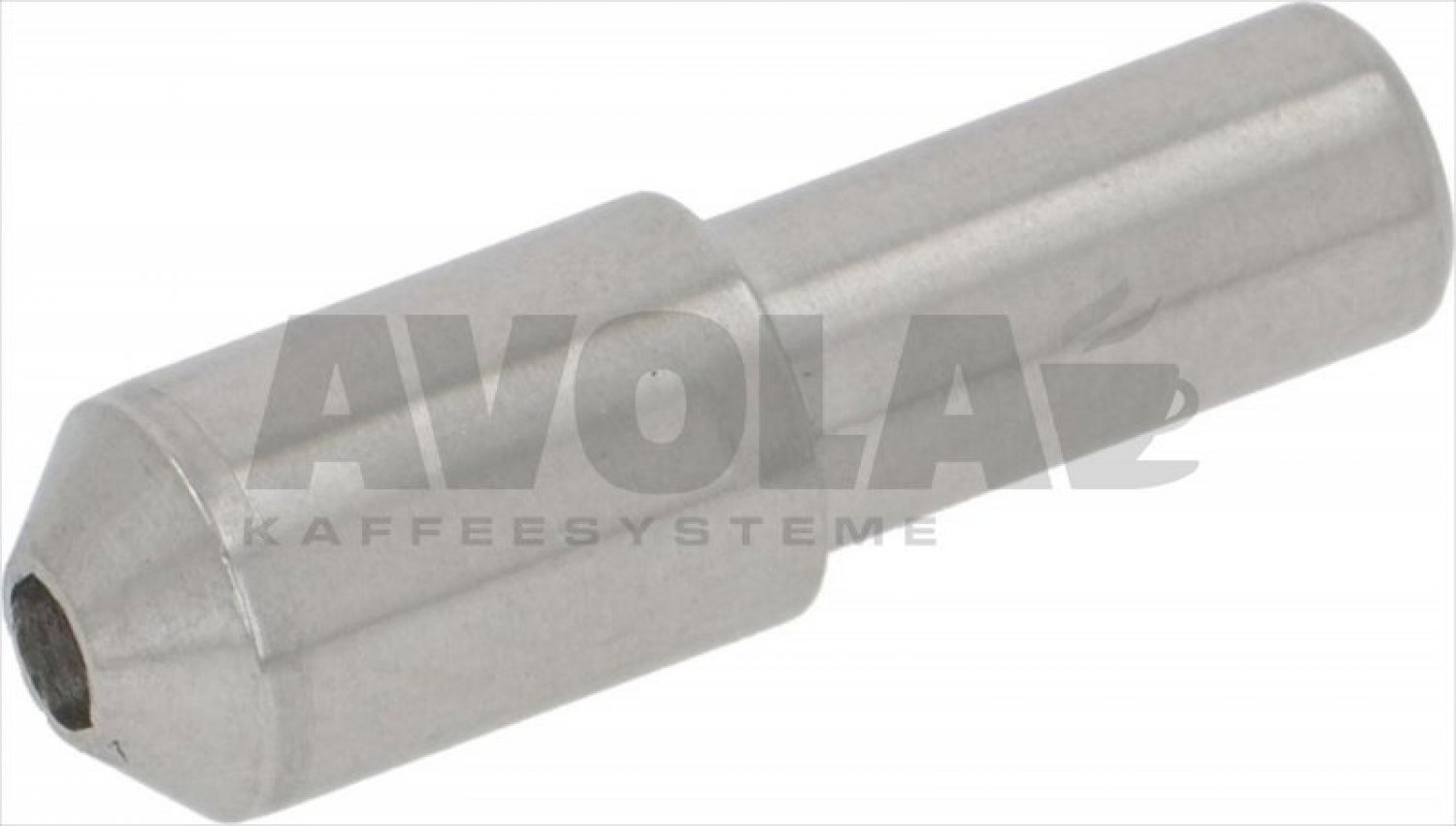

Rocket Schlauchverbinder für Tankaufnahmenentlüftung bis D2318R5810697
|
excl. Shipping costs
immediately available, 7 available
|
5,71 €
|
|
| 33 | 8006716 |  |
8006716
Silicone hose ø 4x7 SHORE 60 - 1 m
|
excl. Shipping costs
immediately available, 3 available
|
6,14 €
|
|
| 34 | 8069017 |  |
8069017
Rocket Electronic Control Unit PRO.EL.IND LIV-RET3A / GICAR 9.1.41.92G – 230 V
|
excl. Shipping costs
immediately available, 4 available
|
95,45 €
|
|
| 35 | 8105799 | |
8105799
Rocket Control Box support
|
excl. Shipping costs
Delivery time: 4-6 weeks
|
17,85 €
|
|
| 36 | 8059181 |  |
8059181
INLET PASS-THROUGH FILER - Ø8mm
|
excl. Shipping costs
immediately available
|
3,19 €
|
|
| 37 | 8105829 | |
8105829
Rocket Halter für Silikonschlauch
|
excl. Shipping costs
Delivery time 4-6 weeks
|
12,50 €
|
|
| 38 | 8063089 |  |
8063089
T-SHAPED HOSE END FITTING
|
excl. Shipping costs
immediately available, 5 available
|
5,47 €
|
|
| 39 | 8005868 |  |
8005868
PIPETTE FITTING 90
|
excl. Shipping costs
immediately available
|
1,52 €
|
|
| 40 | 8001810 |  |
8001810
FKM O-Ring Seal 02025 – 6.07 x 1.78 mm
|
excl. Shipping costs
immediately available
|
0,88 €
|
|
| 41 | 8105844 | |
8105844
Rocket Pump thermoprotector
|
excl. Shipping costs
Delivery time: 4-6 weeks
|
9,42 €
|
|
| 42 | 8105893 | |
8105893
Rocket SSR Support
|
excl. Shipping costs
Delivery time: 4-6 weeks
|
14,74 €
|
|
| 42 | 8069001 |  |
8069001
Rocket Dichtung Tankkupplung
|
excl. Shipping costs
immediately available, 15 available
|
4,76 €
|
|
| 43 | 8073044 |  |
8073044
BEZZERA RELAIS FOR PID
|
excl. Shipping costs
immediately available, 3 available
|
49,69 €
|
|
If your article is not listed, please use the following form and enter the desired numbers.
