Saeco

SAECO INCANTO - B

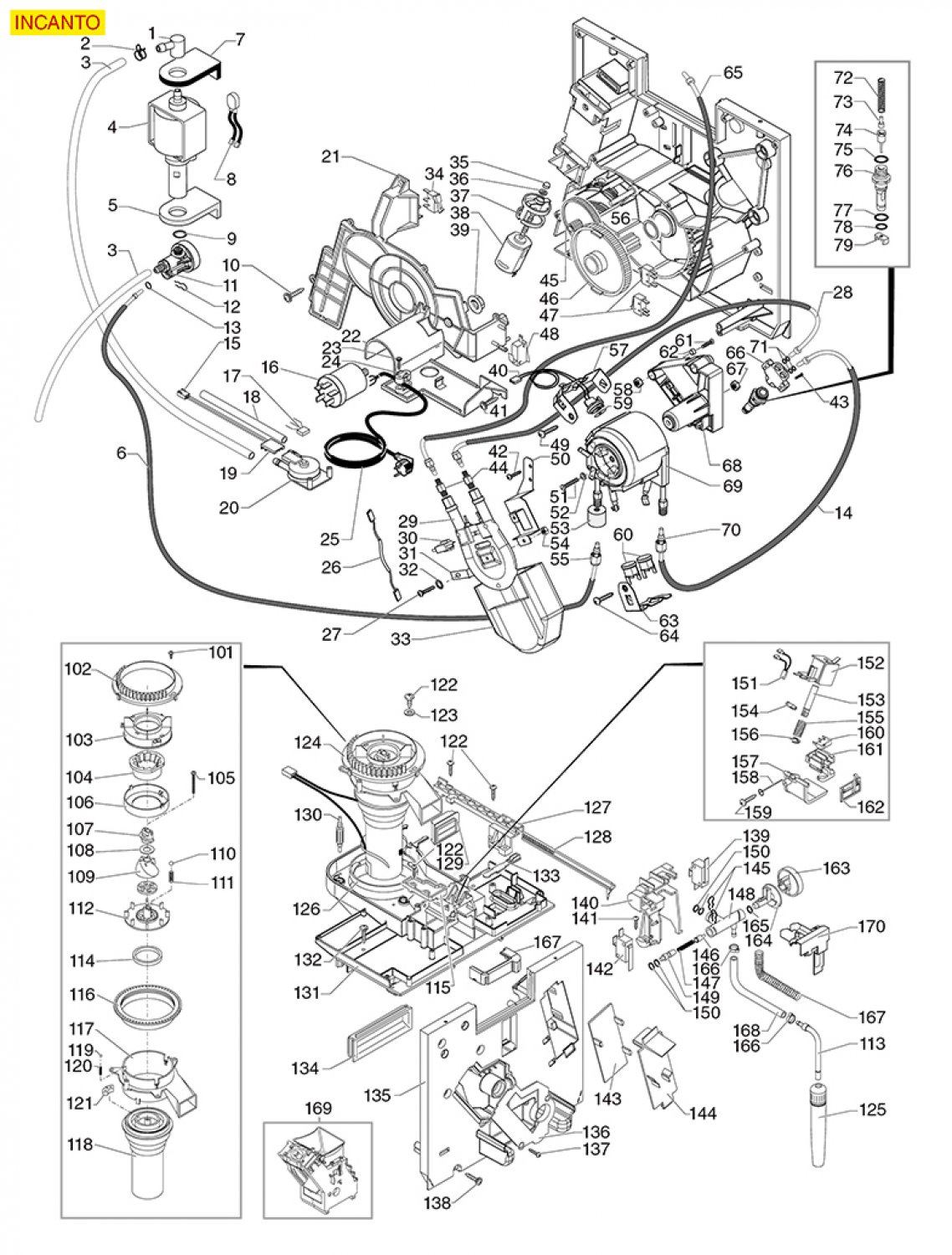

Drawing number 8073659

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1pipette fitting 90 8005868
PIPETTE FITTING 90
1,51 €

excl. Shipping costs

immediately available
2double wire clamp 8 8 9 3 100 pcs 8062705
DOUBLE-WIRE CLAMP 8.8-9.3 - 100 PCS
1,13 €

excl. Shipping costs

immediately available
3silicone hose o 5x8 shore 60 1m 8006817
Silicone hose ø 5x8 SHORE 60 - 1m
3,95 €

excl. Shipping costs

immediately available
4vibratory pump ulka ex5 48w 230v 50hz 8001016
VIBRATORY PUMP ULKA EX5 48W 230V 50Hz
14,90 €

excl. Shipping costs

immediately available
5square damper ex ep ek ea 8005273
SQUARE DAMPER EX-EP-EK-EA
2,64 €

excl. Shipping costs

immediately available
6tubo silicone nero o 7 5x9 3x1000 mm 8175435
TUBO SILICONE NERO ø 7,5x9,3x1000 mm
21,17 €

excl. Shipping costs

Delivery time
is determined
7square damper ex ep ek ea 8005273
SQUARE DAMPER EX-EP-EK-EA
2,64 €

excl. Shipping costs

immediately available
9o ring 02031 epdm 8001647
O-RING 02031 EPDM
1,20 €

excl. Shipping costs

immediately available
11expansion valve o 1 8 a 8mm 8066710
EXPANSION VALVE ø 1/8 A-8mm
17,87 €

excl. Shipping costs

Delivery time
is determined
12fork spring for pipe 8003745
FORK SPRING FOR PIPE
1,05 €

excl. Shipping costs

immediately available
13o ring 02015 epdm 8001335
O-RING 02015 EPDM
1,02 €

excl. Shipping costs

immediately available
20saeco volumenzaehler flowmeter 8064828
Saeco Volumenzähler Flowmeter
28,77 €

excl. Shipping costs

immediately available, 1 available
29heating element 1000w 230v 8007489
HEATING ELEMENT 1000W 230V
This article is no longer available
32saeco zahnscheibe 8842 a4 8042638
Saeco Zahnscheibe 8842 A4
1,94 €

excl. Shipping costs

immediately available, 19 available
34microswitch 0 3a 30v 8003046
MICROSWITCH 0.3A 30V
8,44 €

excl. Shipping costs

Delivery time
is determined
45gear 8047580
GEAR
4,22 €

excl. Shipping costs

Delivery time
is determined
47microswitch 0 3a 30v 8003046
MICROSWITCH 0.3A 30V
8,44 €

excl. Shipping costs

Delivery time
is determined
55leitung boiler sicherheitsventil 8080289
LEITUNG BOILER-SICHERHEITSVENTIL
36,21 €

excl. Shipping costs

Delivery time 4-6 weeks..
60contact thermostat 175 8045218
CONTACT THERMOSTAT 175
10,42 €

excl. Shipping costs

immediately available, 8 available
65leitung boilergruppe caldaia gruppo 8080301
LEITUNG BOILERGRUPPE CALDAIA-GRUPPO
18,75 €

excl. Shipping costs

Delivery time 4-6 weeks..
71o ring 02015 silicon 8001735
O-RING 02015 SILICON
1,04 €

excl. Shipping costs

immediately available
72spring 8066397
SPRING
Price on request
73saeco valve pin 8066515
Saeco VALVE PIN
2,88 €

excl. Shipping costs

Delivery time
is determined
74piston assembly saeco 8052660
PISTON ASSEMBLY Saeco
6,96 €

excl. Shipping costs

immediately available, 1 available
75red silicone o ring orm 0080 20 8002017
RED SILICONE O-RING ORM 0080-20
0,76 €

excl. Shipping costs

immediately available
76pin for valve 8054832
PIN FOR VALVE
18,29 €

excl. Shipping costs

Delivery time
is determined
77o ring m 0090 20 red silicone 8001841
O-RING M 0090-20 RED SILICONE
0,92 €

excl. Shipping costs

immediately available
78o ring m 0050 20 red silicone 8001842
O-RING M 0050-20 RED SILICONE
1,65 €

excl. Shipping costs

immediately available
107increment pin 8066488
INCREMENT PIN
1,99 €

excl. Shipping costs

Delivery time
is determined
109conic grind burrs saeco gaggia pair rh 8003971
CONIC.GRIND.BURRS SAECO-GAGGIA (PAIR) RH
28,86 €

excl. Shipping costs

immediately available, 1 available
118coffee grinder motor 230vdc 8066219
COFFEE GRINDER MOTOR 230VDC
145,23 €

excl. Shipping costs

Delivery time
is determined
125cappuccinatore 8163951
CAPPUCCINATORE
18,18 €

excl. Shipping costs

Delivery time
is determined
146piston assembly 8046265
PISTON ASSEMBLY
11,36 €

excl. Shipping costs

immediately available, 3 available
150o ring 02015 epdm 8001335
O-RING 02015 EPDM
1,02 €

excl. Shipping costs

immediately available
160microswitch 16a 250v 8016308
MICROSWITCH 16A 250V
9,59 €

excl. Shipping costs

immediately available, 3 available
164ventilspindel heisswasser dampfventil 8043083
VENTILSPINDEL HEISSWASSER DAMPFVENTIL
This article is no longer available
165o ring 02018 epdm 8064737
O-RING 02018 EPDM
1,70 €

excl. Shipping costs

immediately available, 8 available
166hose clamp 8066677
HOSE CLAMP
2,11 €

excl. Shipping costs

immediately available, 15 available
169black coffee group 8040392
BLACK COFFEE GROUP
This article is no longer available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
