SAECO ODEA GIRO - B

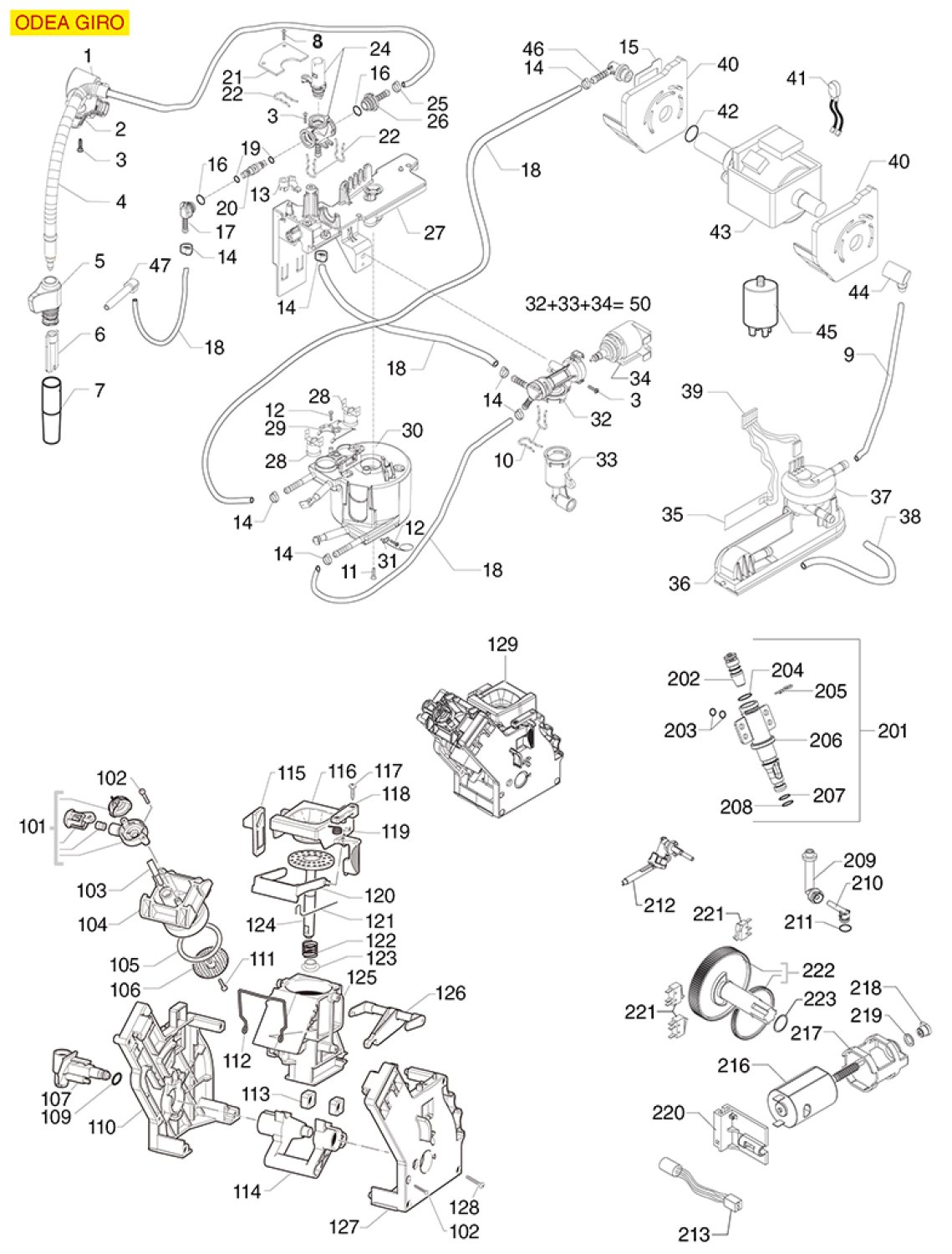

Drawing number 8080481

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:

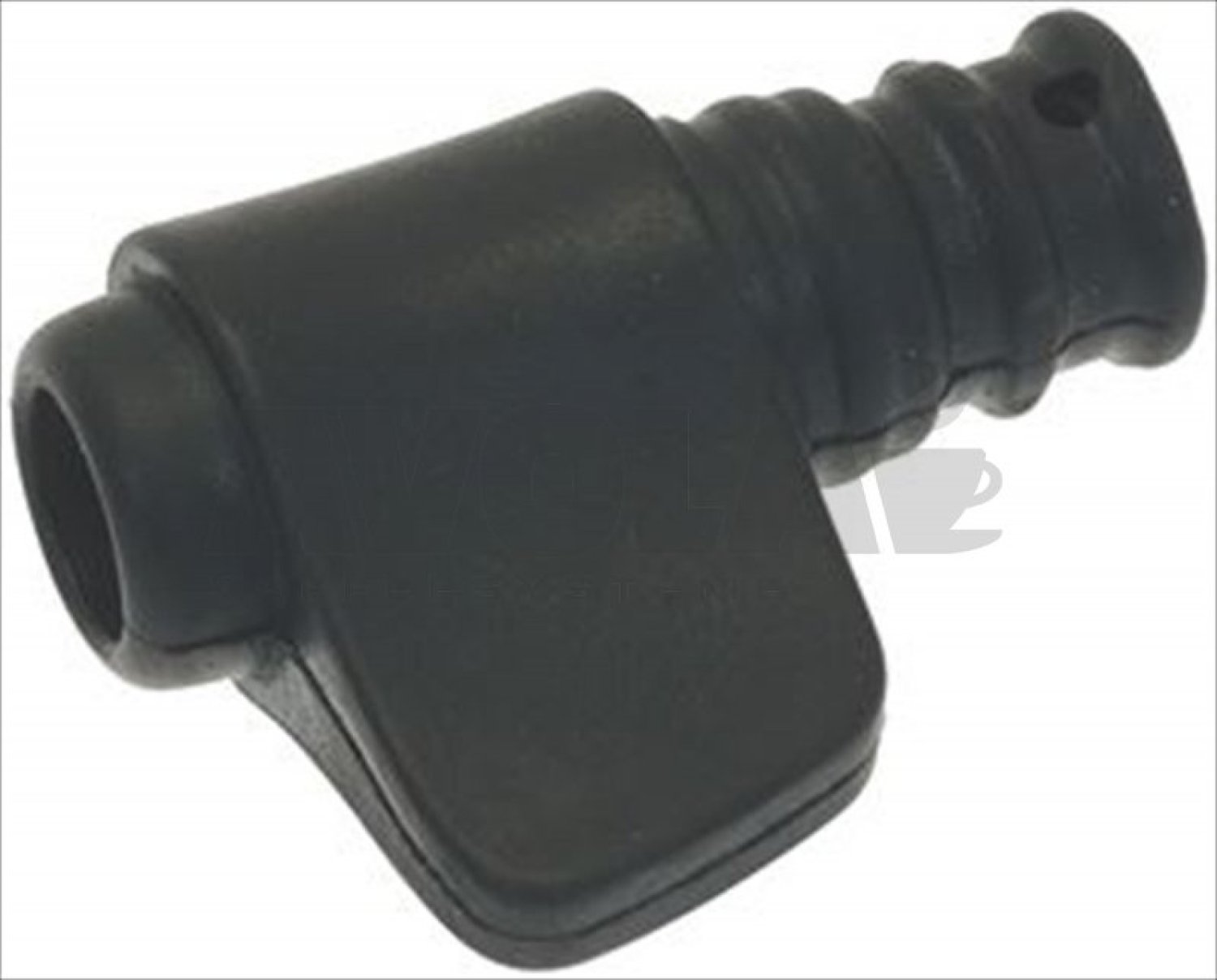

5burn preventing pipe handgrip 8002014
BURN PREVENTING PIPE HANDGRIP
This article is no longer available
6steam spray noozle 8006659
STEAM SPRAY NOOZLE
3,17 €

excl. Shipping costs

Delivery time
is determined
7steam nozzle 8006658
STEAM NOZZLE
31,19 €

excl. Shipping costs

Delivery time
is determined
9silikonschlauch o 5x8 shore 60 100 m 8073971
SILIKONSCHLAUCH ø 5x8 SHORE 60 - 100 m
202,25 €

excl. Shipping costs

Delivery time
is determined
9silicone hose o 5x8 shore 60 1m 8006817
Silicone hose ø 5x8 SHORE 60 - 1m
3,95 €

excl. Shipping costs

immediately available
14hose clamp o 7 8 9 5 mm 8068216
HOSE CLAMP ø 7.8-9.5 mm
2,30 €

excl. Shipping costs

immediately available
16o ring 0108 viton 8066106
O-RING 0108 VITON
1,05 €

excl. Shipping costs

immediately available
19o ring 02012 viton 8002007
O-RING 02012 VITON
1,19 €

excl. Shipping costs

immediately available, 10 available

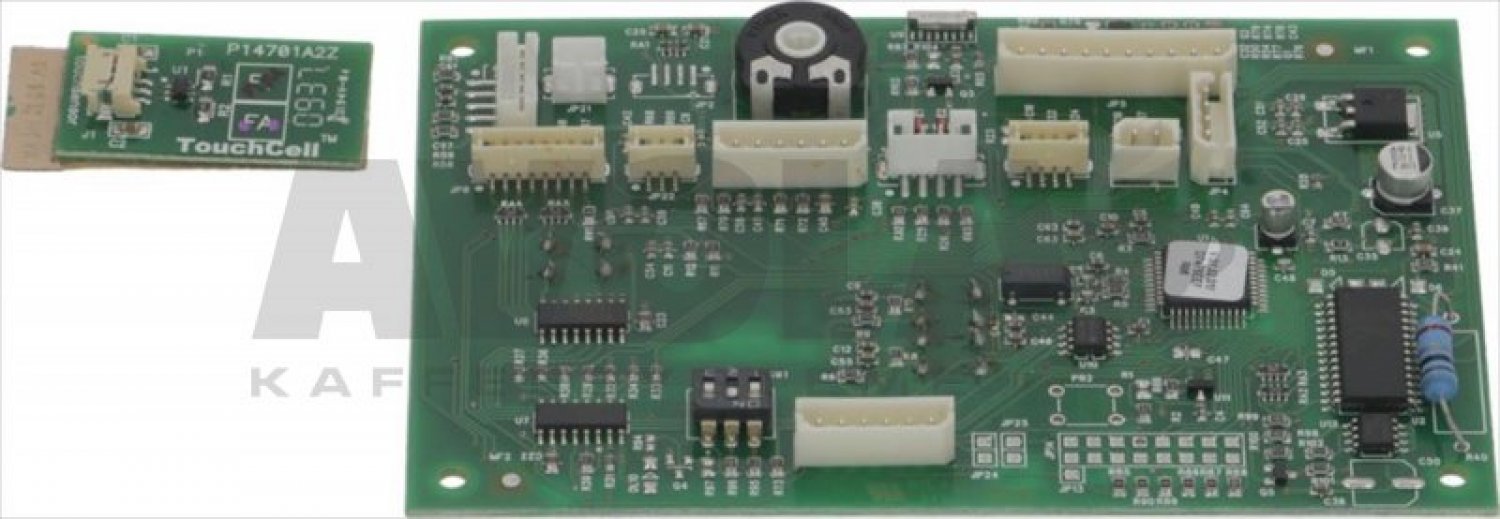

21cpu circuit board 8006253
CPU CIRCUIT BOARD
203,81 €

excl. Shipping costs

Delivery time 4-6 weeks..

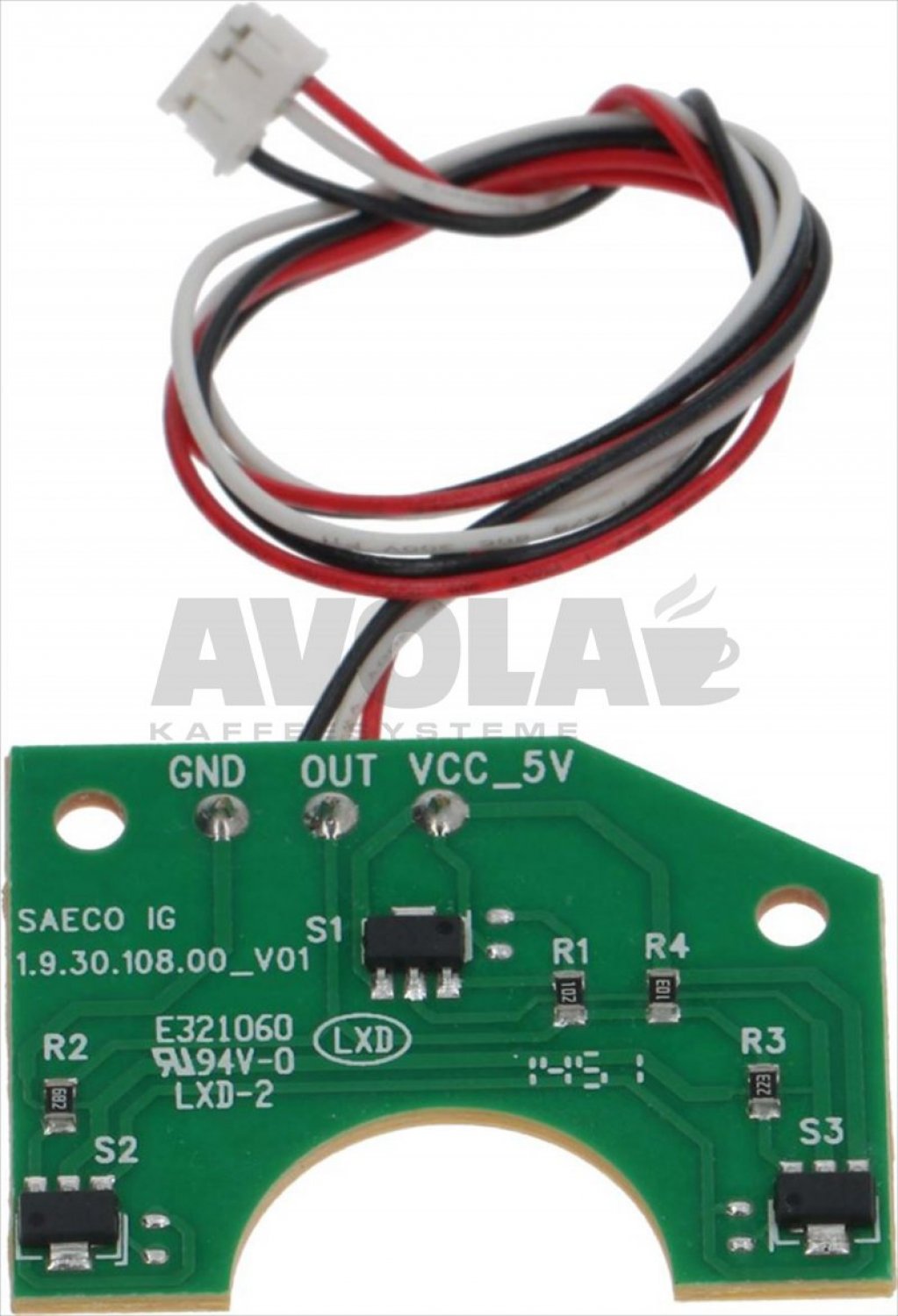

21steam tap circuit board 8006259
STEAM TAP CIRCUIT BOARD
27,48 €

excl. Shipping costs

Delivery time 4-6 weeks..

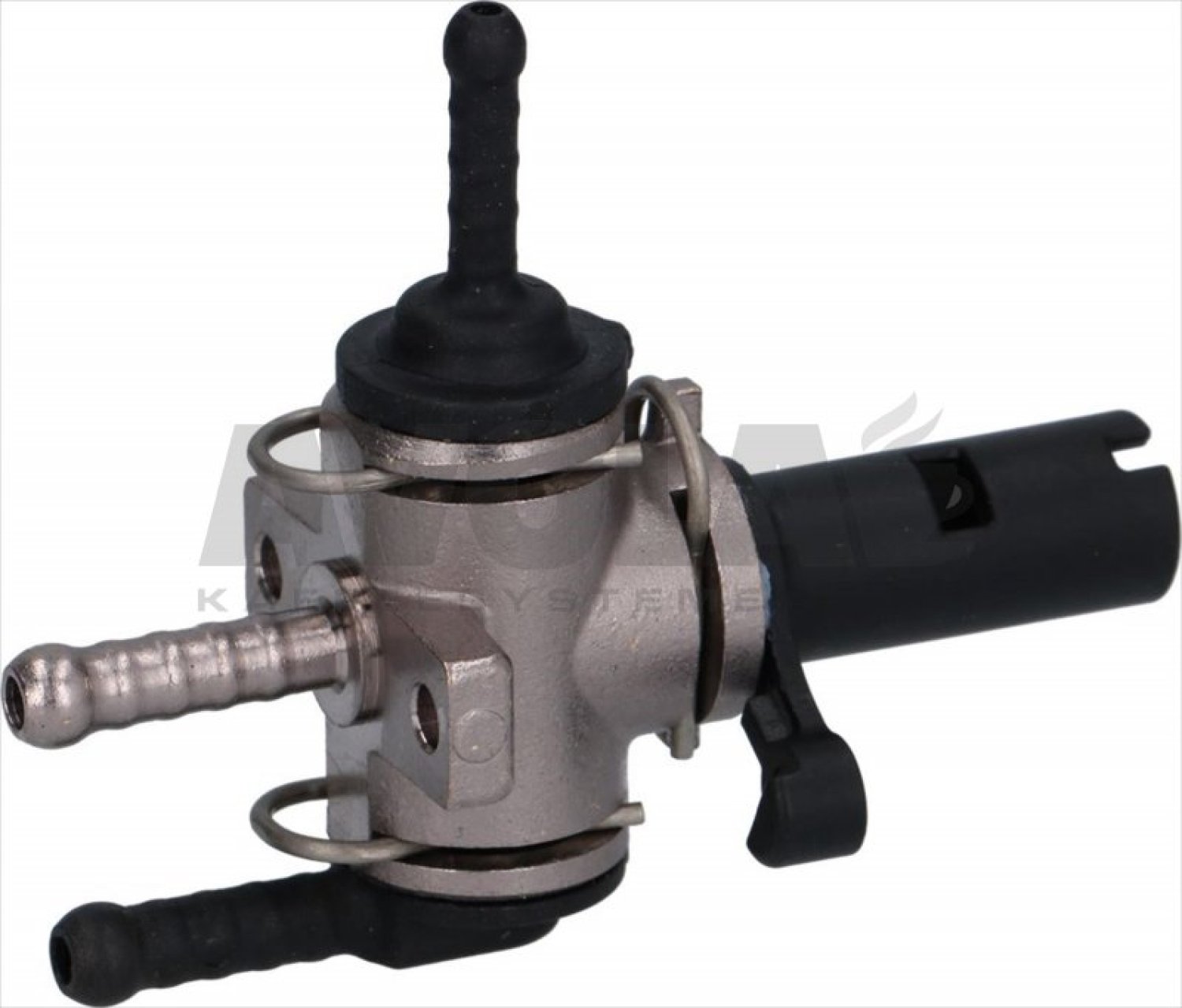

24water steam tap 8005508
WATER/STEAM TAP
This article is no longer available
25hose clamp 8066677
HOSE CLAMP
2,11 €

excl. Shipping costs

immediately available, 15 available
28contact thermostat 175 8045218
CONTACT THERMOSTAT 175
10,42 €

excl. Shipping costs

immediately available, 8 available
31temperaturfuehler ntc boiler 8080239
TEMPERATURFÜHLER NTC BOILER
18,81 €

excl. Shipping costs

Delivery time
is determined

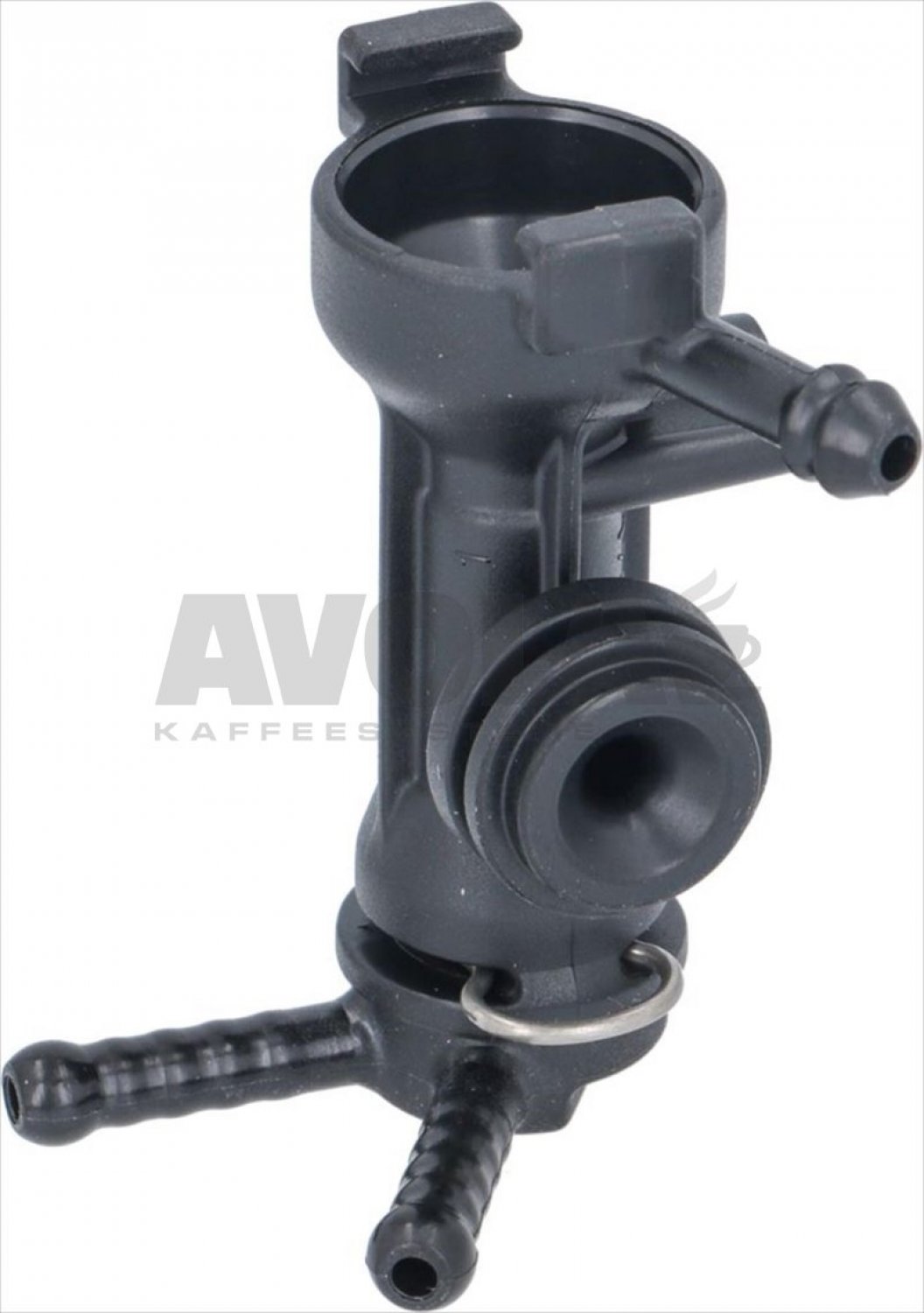

32gehaeuse fuer ablaufsmagnetvenitl p0049 8080230
GEHÄUSE FÜR ABLAUFSMAGNETVENITL P0049
28,27 €

excl. Shipping costs

Delivery time
is determined

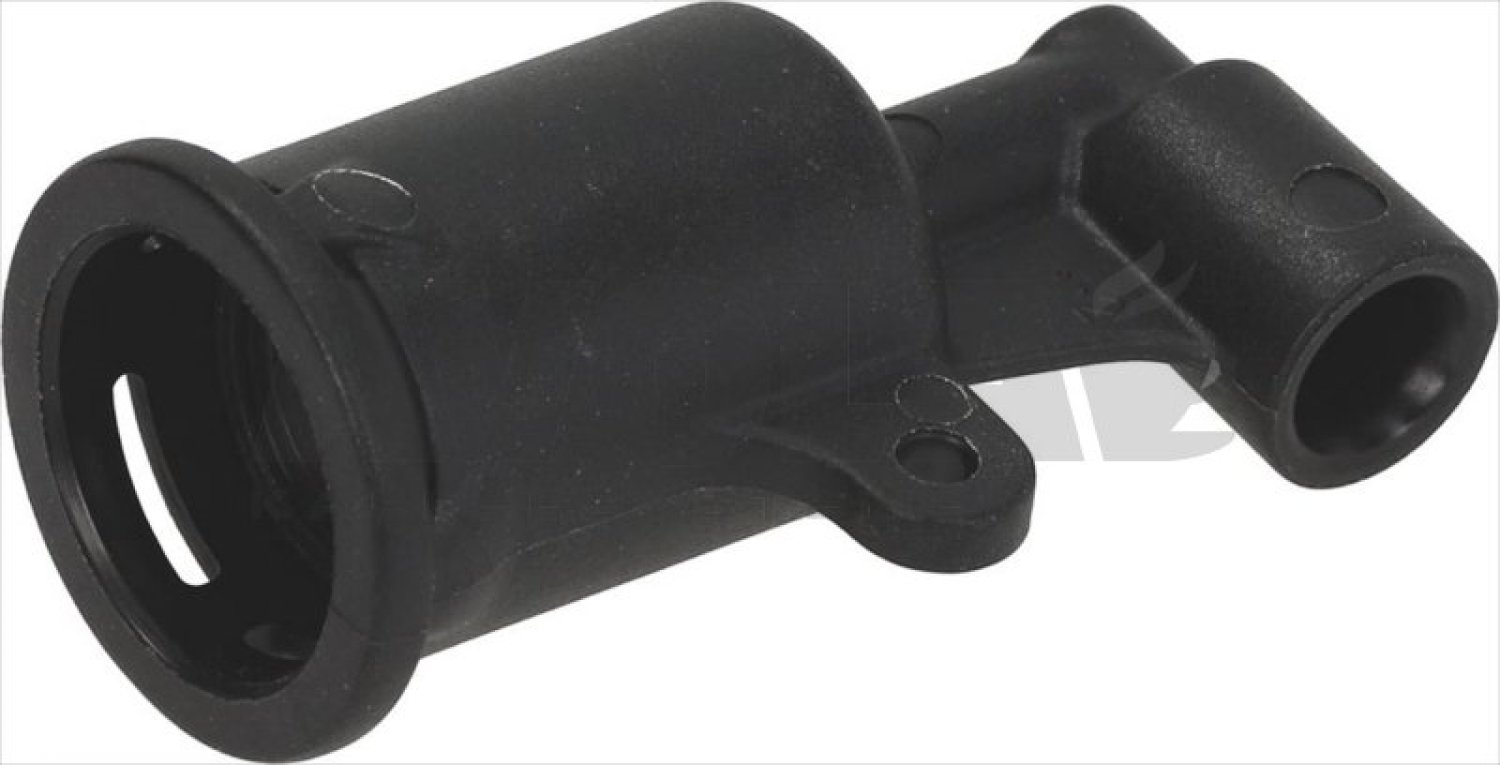

33anschluss fuer ablaufsventil 8064938
ANSCHLUSS FÜR ABLAUFSVENTIL
This article is no longer available

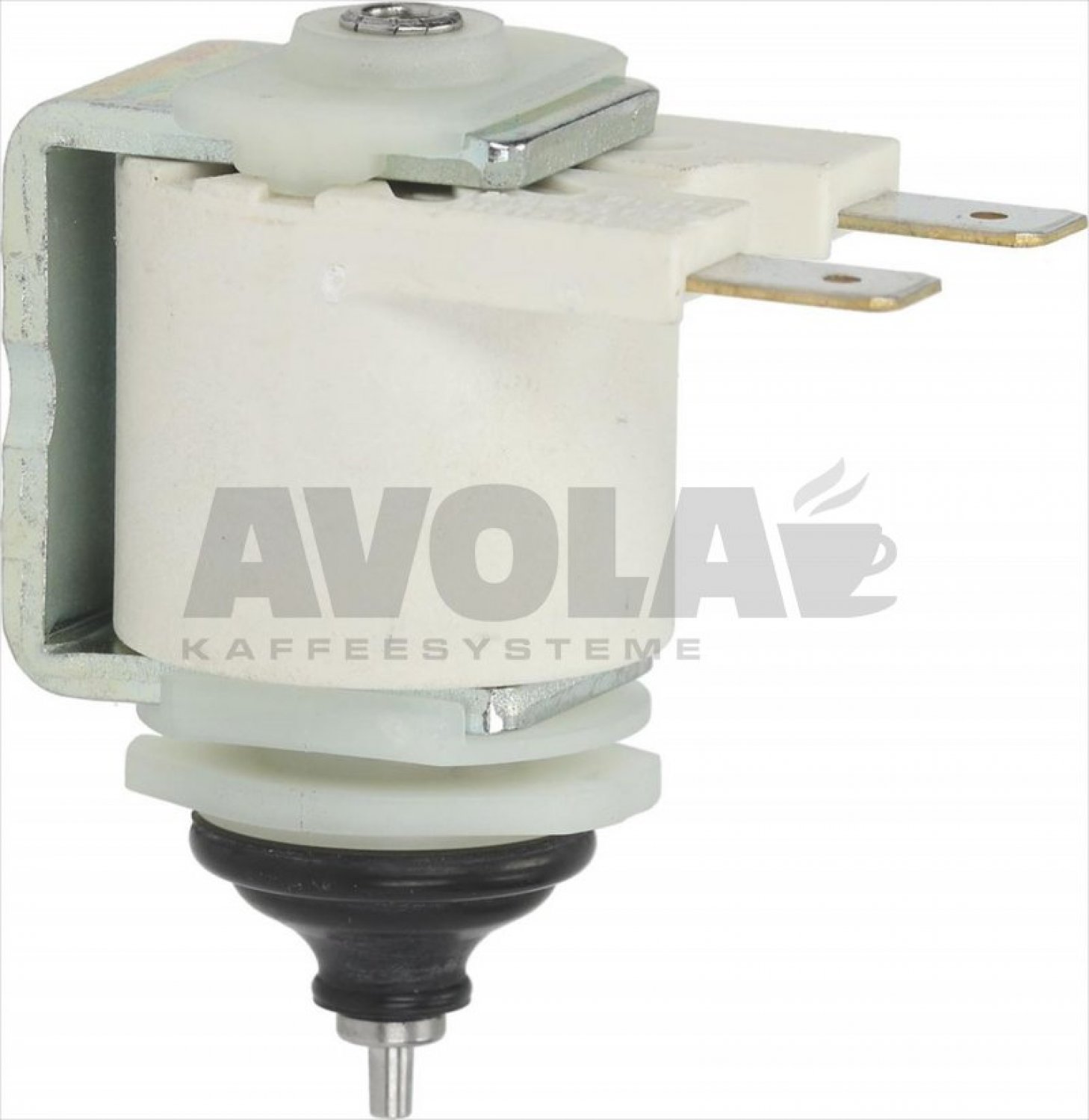

34spule fuer ablaufsmagnetventil 230v 8080292
SPULE FÜR ABLAUFSMAGNETVENTIL 230V
52,26 €

excl. Shipping costs

Delivery time
is determined
37silikonschauch o 5x10 shore 60 100 m 8073972
SILIKONSCHAUCH ø 5x10 SHORE 60 - 100 m
598,80 €

excl. Shipping costs

Delivery time 4-6 weeks..

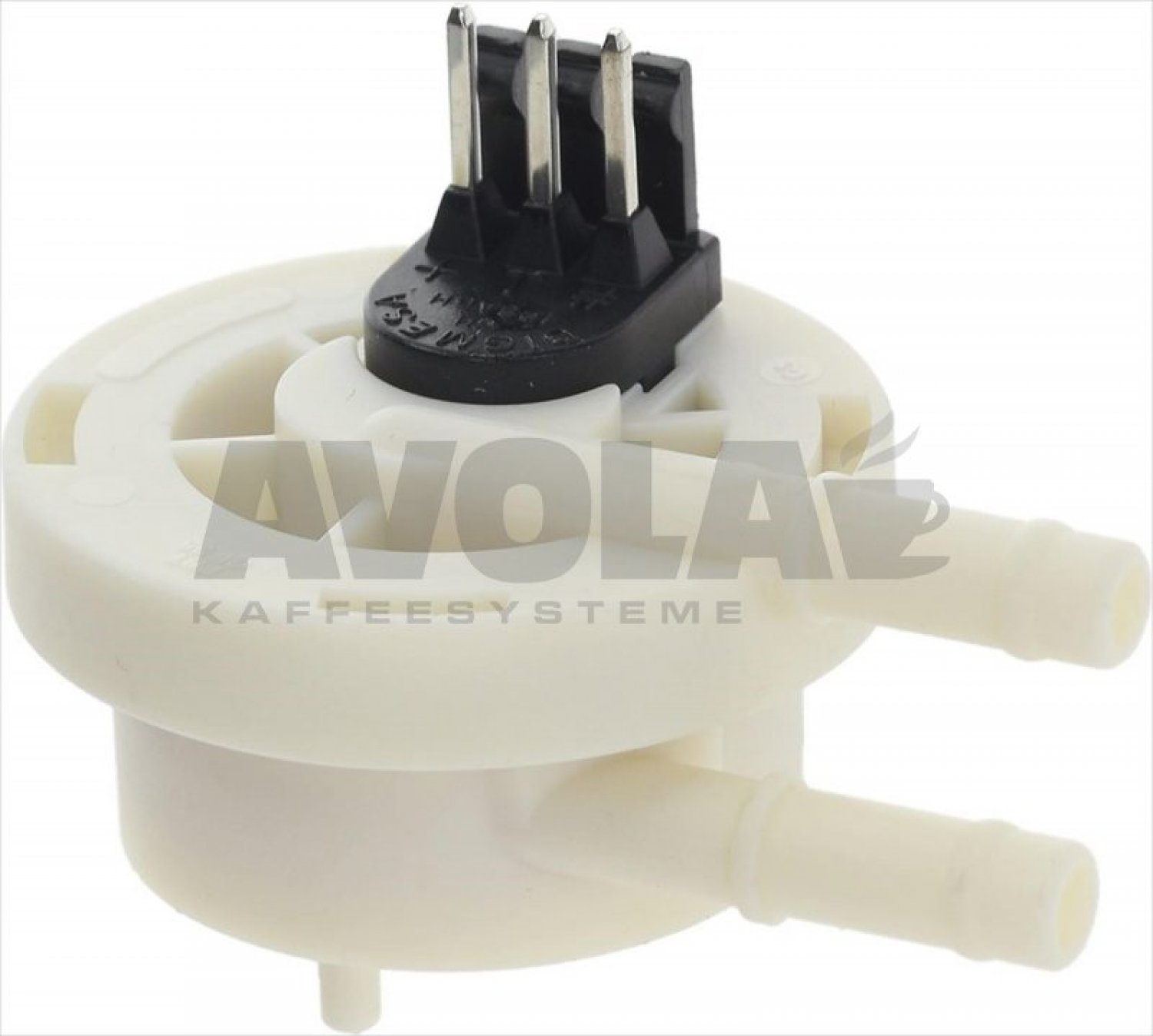

38volumenzaehler 974 9521 b nsf 8073988
VOLUMENZÄHLER 974-9521-B NSF
17,78 €

excl. Shipping costs

Delivery time 4-6 weeks..
42o ring 02031 epdm 8001647
O-RING 02031 EPDM
1,20 €

excl. Shipping costs

immediately available
43vibratory pump ep5gw 48w 230v 50hz 8005276
VIBRATORY PUMP EP5GW 48W 230V 50Hz
28,70 €

excl. Shipping costs

immediately available, 1 available
43vibrationspumpe ep5 41w 120v 60hz 8074145
VIBRATIONSPUMPE EP5 41W 120V 60Hz
31,37 €

excl. Shipping costs

Delivery time
is determined
44pipette fitting 90 8005868
PIPETTE FITTING 90
1,51 €

excl. Shipping costs

immediately available
50 8058271
Feder Münzeinwurf
1,18 €

excl. Shipping costs

Delivery time: 4-6 weeks
101saeco ventil fuer bruehgruppe sbs ventil 8097966
SAECO VENTIL FÜR BRÜHGRUPPE SBS Ventil
18,00 €

excl. Shipping costs

Delivery time
is determined
103saeco schlauch im kolben der bruehgruppe 8080304
Saeco Schlauch im Kolben der Brühgruppe
2,56 €

excl. Shipping costs

immediately available, 4 available
104gegenkolben fuer kaffeegruppe 8 g 8080305
GEGENKOLBEN FÜR KAFFEEGRUPPE 8 g
9,53 €

excl. Shipping costs

Delivery time
is determined
105silicone o ring orm 00320 40 8002018
SILICONE O-RING ORM 00320-40
2,95 €

excl. Shipping costs

immediately available, 10 available
106auslaufdusche o 35 8 mm 8080340
Auslaufdusche ø 35,8 mm
21,37 €

excl. Shipping costs

Delivery time
is determined
107schlauchmuffe fuer wassereinlauf schwarz 8080326
Schlauchmuffe für Wassereinlauf schwarz
6,00 €

excl. Shipping costs

Delivery time
is determined
109o ring 02025 epdm 8018566
O-RING 02025 EPDM
1,05 €

excl. Shipping costs

immediately available
112ausgleichsfeder 49 mm 8079962
Ausgleichsfeder 49 mm
3,02 €

excl. Shipping costs

Delivery time
is determined
115hakenplatte fuer gruppe 8080345
HAKENPLATTE FÜR GRUPPE
16,17 €

excl. Shipping costs

Delivery time
is determined
116kaffeegruppebehaelter schwarz 8080279
KAFFEEGRUPPEBEHÄLTER SCHWARZ
Price on request
119feder fuer gruppenbehaelter smart 8080285
FEDER FÜR GRUPPENBEHÄLTER SMART
3,96 €

excl. Shipping costs

immediately available, 19 available
121ausgleichsfeder 44 mm 8080280
AUSGLEICHSFEDER 44 mm
Price on request
122feder o 14x28 mm fuer gruppenkolben 8080351
FEDER ø 14x28 mm FÜR GRUPPENKOLBEN
3,53 €

excl. Shipping costs

immediately available, 4 available
125kaffeebehaelter fuer gruppe o 39 5 mm 8080349
KAFFEEBEHÄLTER FÜR GRUPPE ø 39,5 mm
31,02 €

excl. Shipping costs

Delivery time
is determined

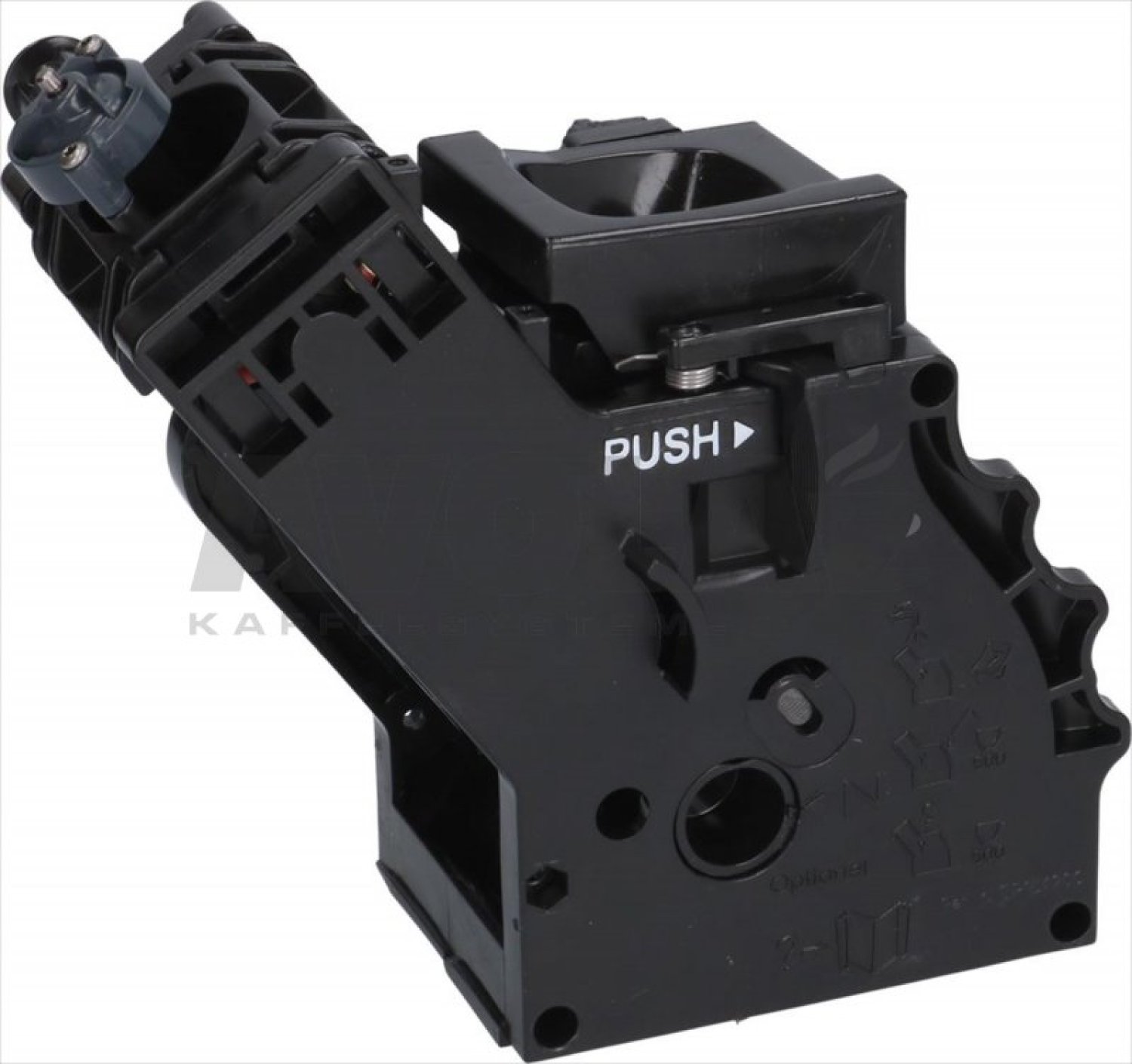

129black coffee assembly 8040622
BLACK COFFEE ASSEMBLY
108,75 €

excl. Shipping costs

Delivery time
is determined
203o ring 02015 silicon 8001735
O-RING 02015 SILICON
1,04 €

excl. Shipping costs

immediately available
204orm gasket 0060 20 red silicone 8066109
ORM GASKET 0060-20 RED SILICONE
1,57 €

excl. Shipping costs

immediately available
205fork spring for pipe 8003745
FORK SPRING FOR PIPE
1,05 €

excl. Shipping costs

immediately available
207o ring m 0090 20 red silicone 8001841
O-RING M 0090-20 RED SILICONE
0,92 €

excl. Shipping costs

immediately available
208o ring m 0050 20 red silicone 8001842
O-RING M 0050-20 RED SILICONE
1,65 €

excl. Shipping costs

immediately available

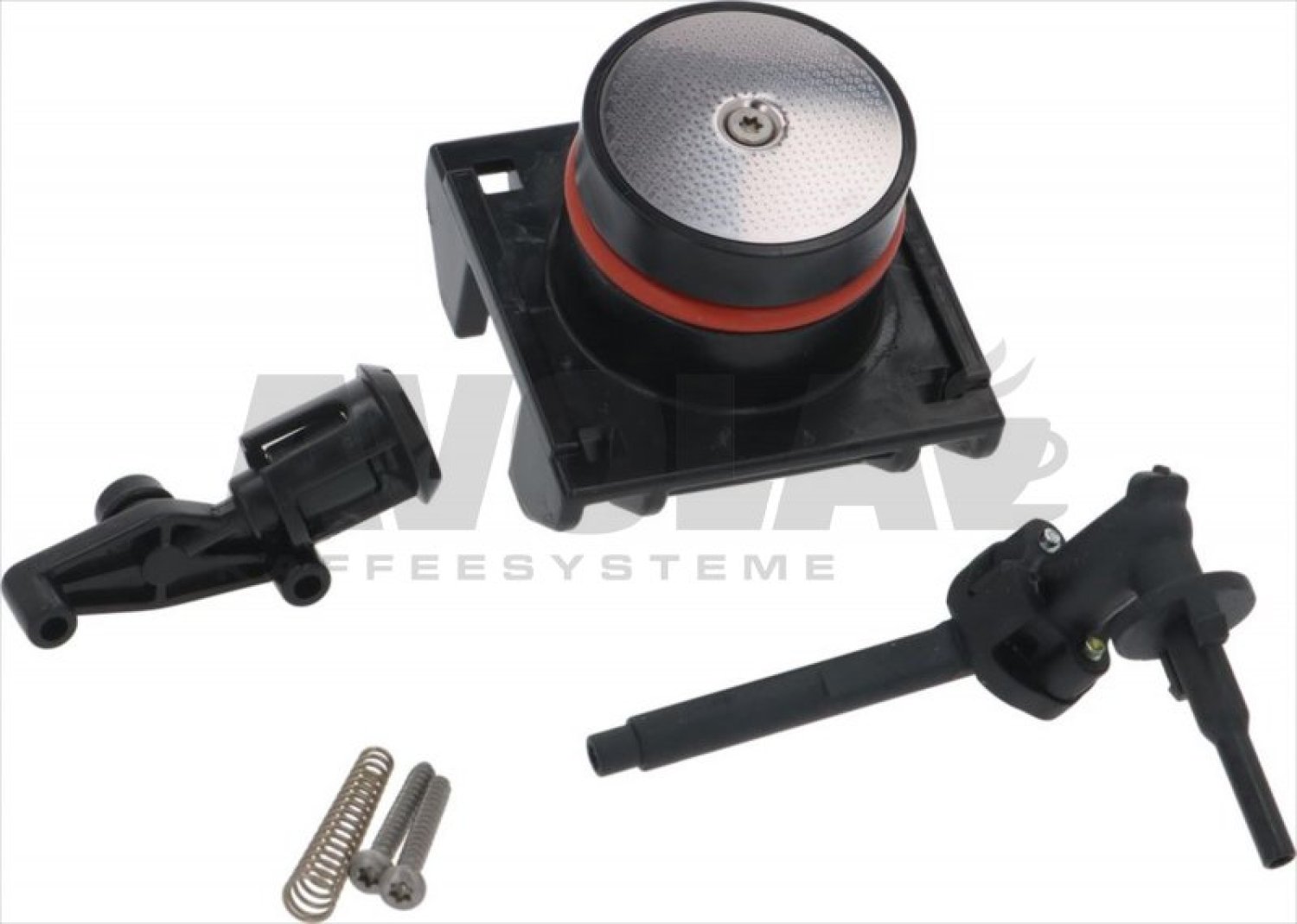

212coffee delivery valve 8002202
COFFEE DELIVERY VALVE
56,64 €

excl. Shipping costs

Delivery time
is determined

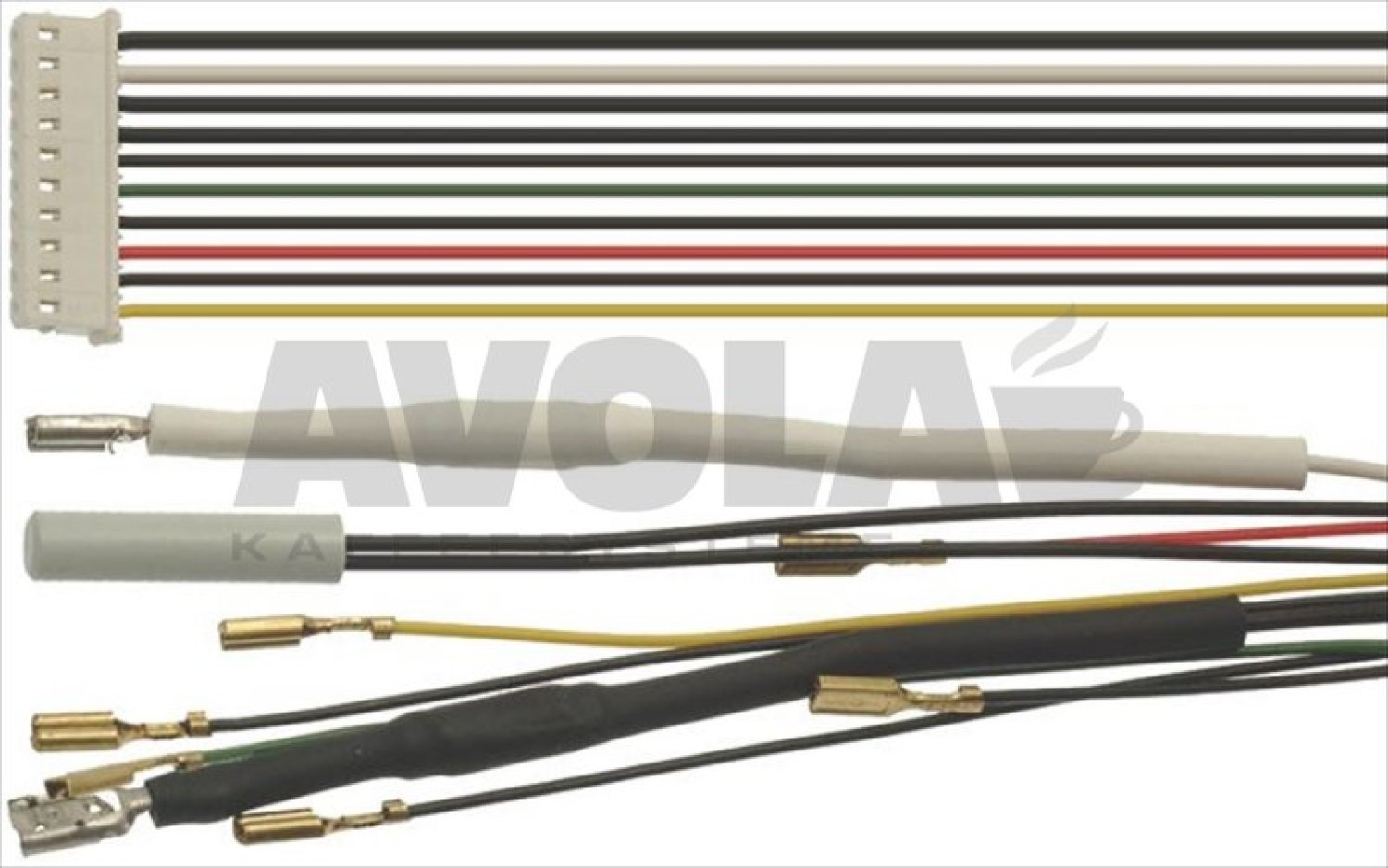

21310 poles connector for plate unit 8006255
10 POLES CONNECTOR FOR PLATE UNIT
43,89 €

excl. Shipping costs

Delivery time
is determined
221microswitch 0 3a 30v 8003046
MICROSWITCH 0.3A 30V
8,44 €

excl. Shipping costs

Delivery time
is determined

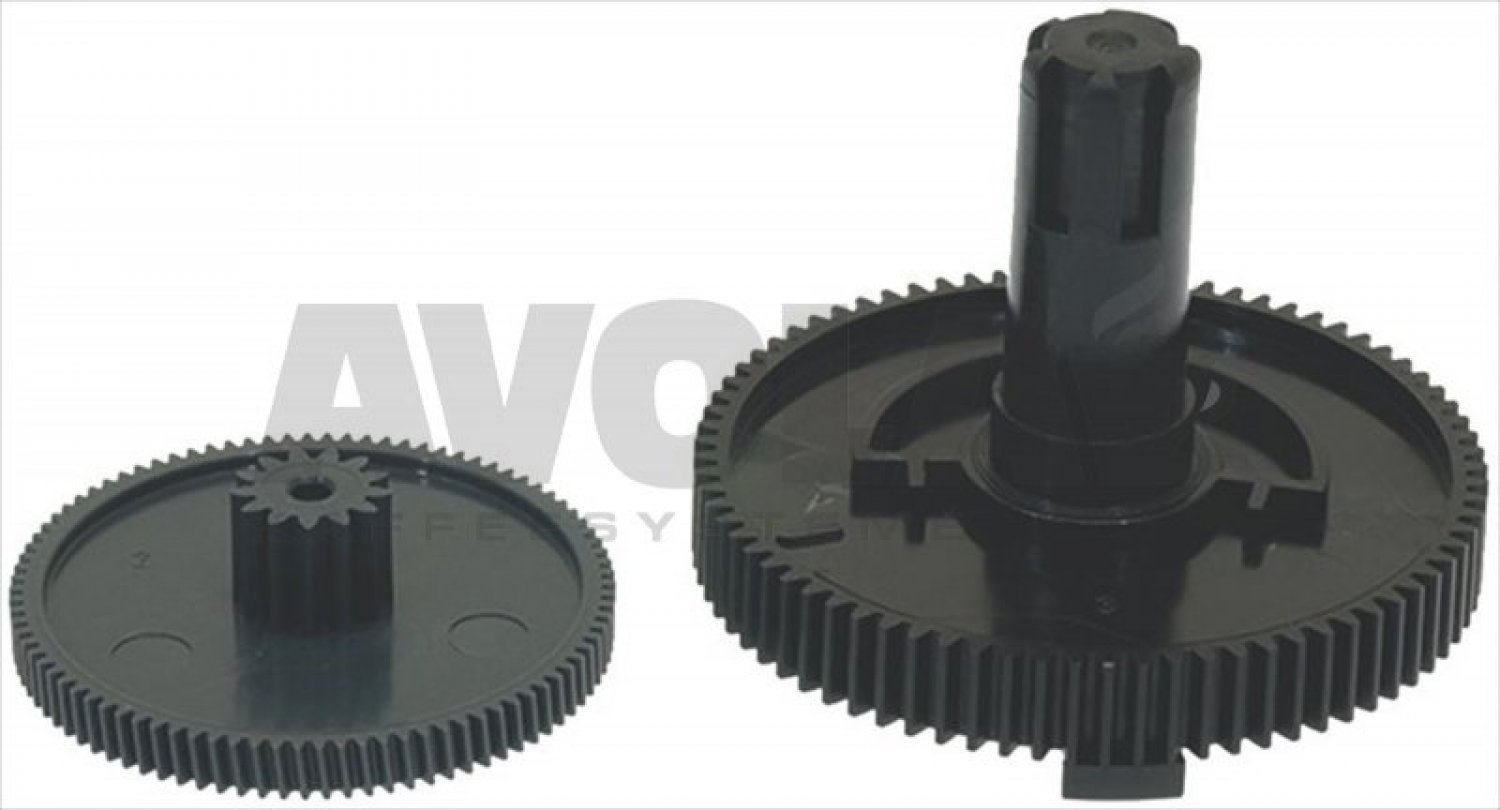

222gearmotor kit p124 8002722
GEARMOTOR KIT P124
29,79 €

excl. Shipping costs

Delivery time 4-6 weeks..

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
