San Marco Grinder

SAN MARCO DOSIERMAHLWERK SM90-SM90A OLD

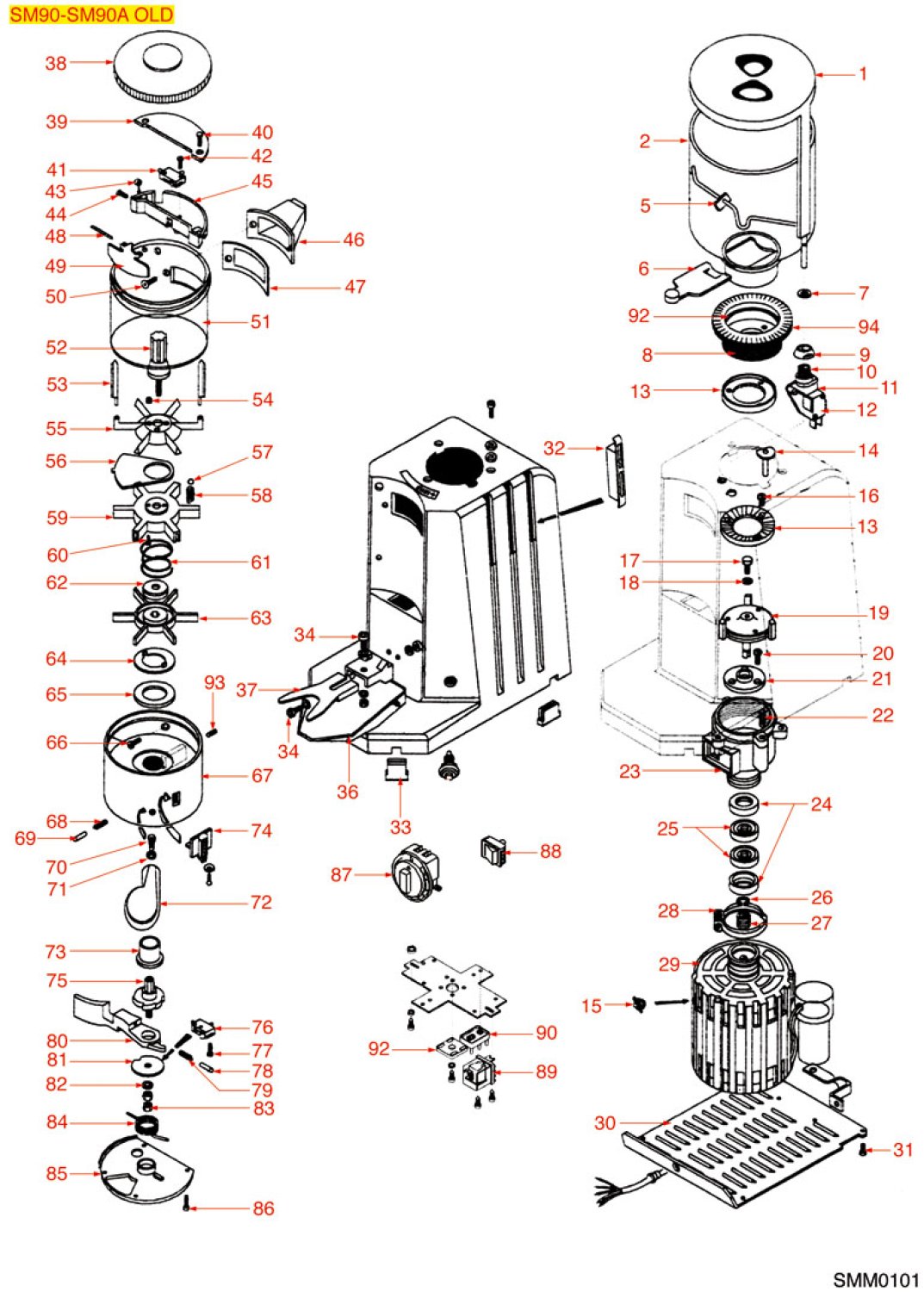

Drawing number 8057452

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1coffee hopper lid 8004127
COFFEE HOPPER LID
17,59 €

excl. Shipping costs

Delivery time 4-6 weeks..
2san marco coffee hopper 8000355
San Marco COFFEE HOPPER
36,76 €

excl. Shipping costs

Delivery time
is determined
5complete magnet 8002872
COMPLETE MAGNET
11,53 €

excl. Shipping costs

Delivery time
is determined
6coffee hopper closing sheet 8004120
COFFEE HOPPER CLOSING SHEET
5,40 €

excl. Shipping costs

Delivery time
is determined
7o ring 02018 epdm 8064737
O-RING 02018 EPDM
1,70 €

excl. Shipping costs

immediately available

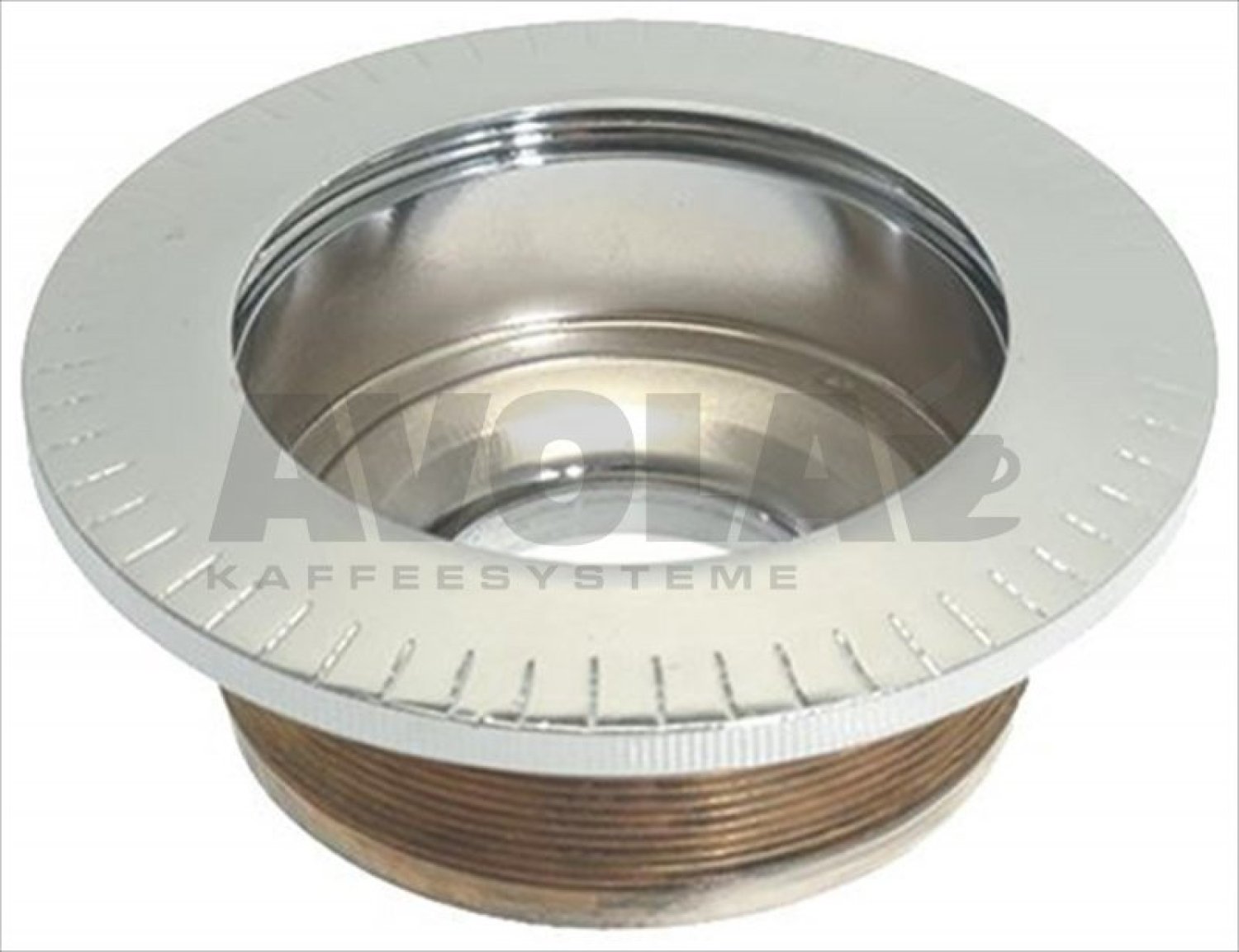

8gr burrs holder upper ring nut 8003890
GR.BURRS HOLDER UPPER RING NUT
102,17 €

excl. Shipping costs

Delivery time 4-6 weeks..
9threaded ring nut 8004119
THREADED RING NUT
4,18 €

excl. Shipping costs

Delivery time 4-6 weeks..
11microswitch spring 8003577
MICROSWITCH SPRING
This article is no longer available
12microswitch 16a 250v 8016308
MICROSWITCH 16A 250V
9,59 €

excl. Shipping costs

immediately available, 3 available

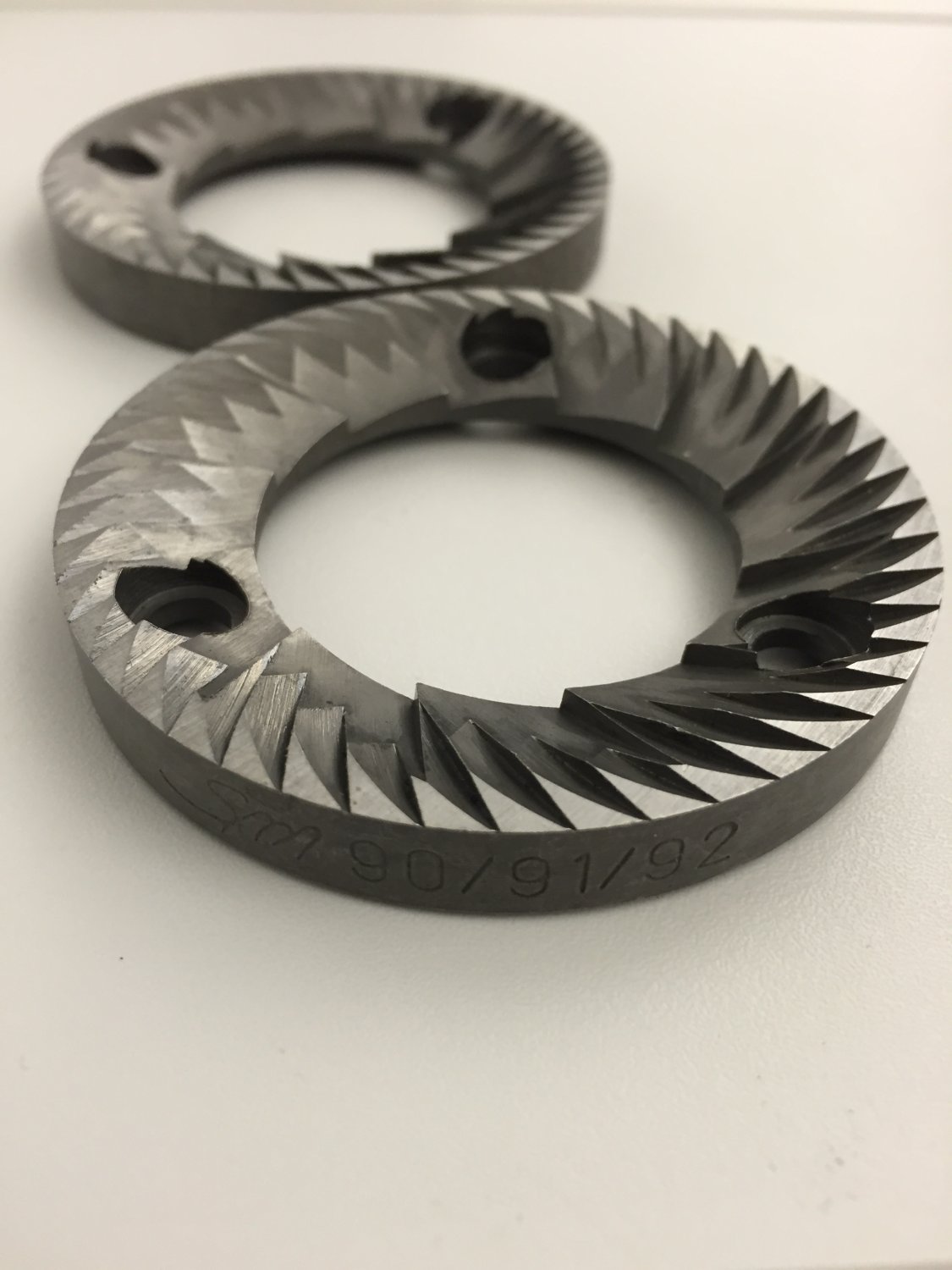

13mahlscheiben paar la san marco original 64x37x8 5 mm 8073609
Mahlscheiben Paar La San Marco Original 64x37x8,5 mm
49,94 €

excl. Shipping costs

immediately available, 4 available

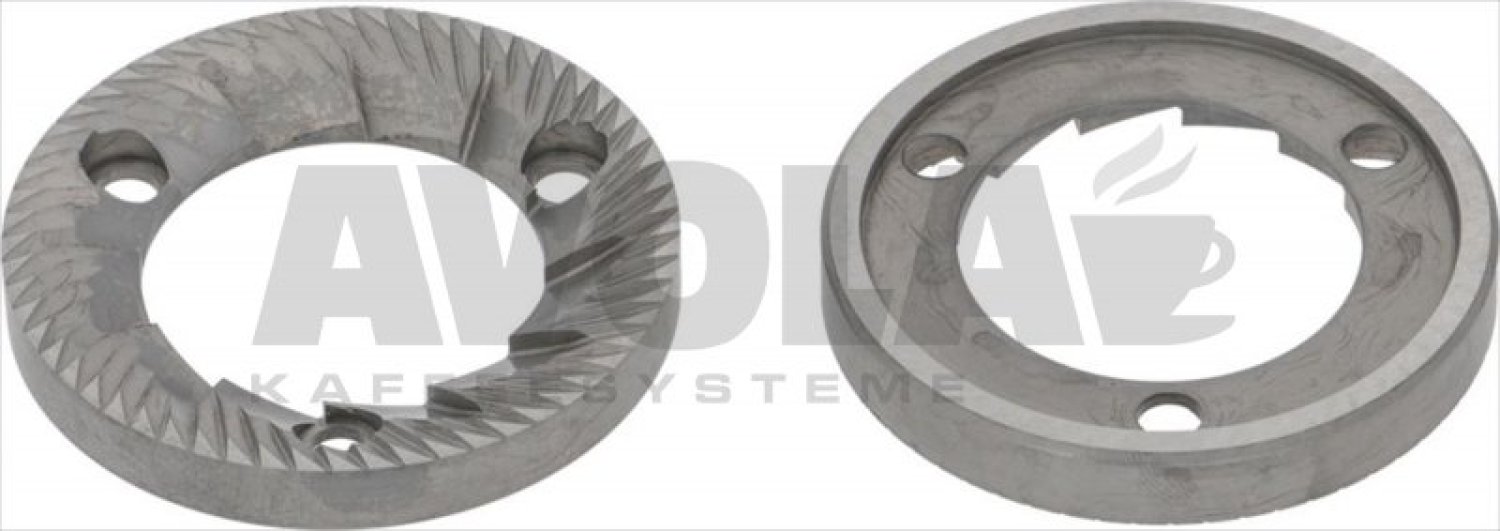

13grinding burrs san marco pair rh 8003959
GRINDING BURRS SAN MARCO (PAIR) RH
23,98 €

excl. Shipping costs

immediately available, 2 available

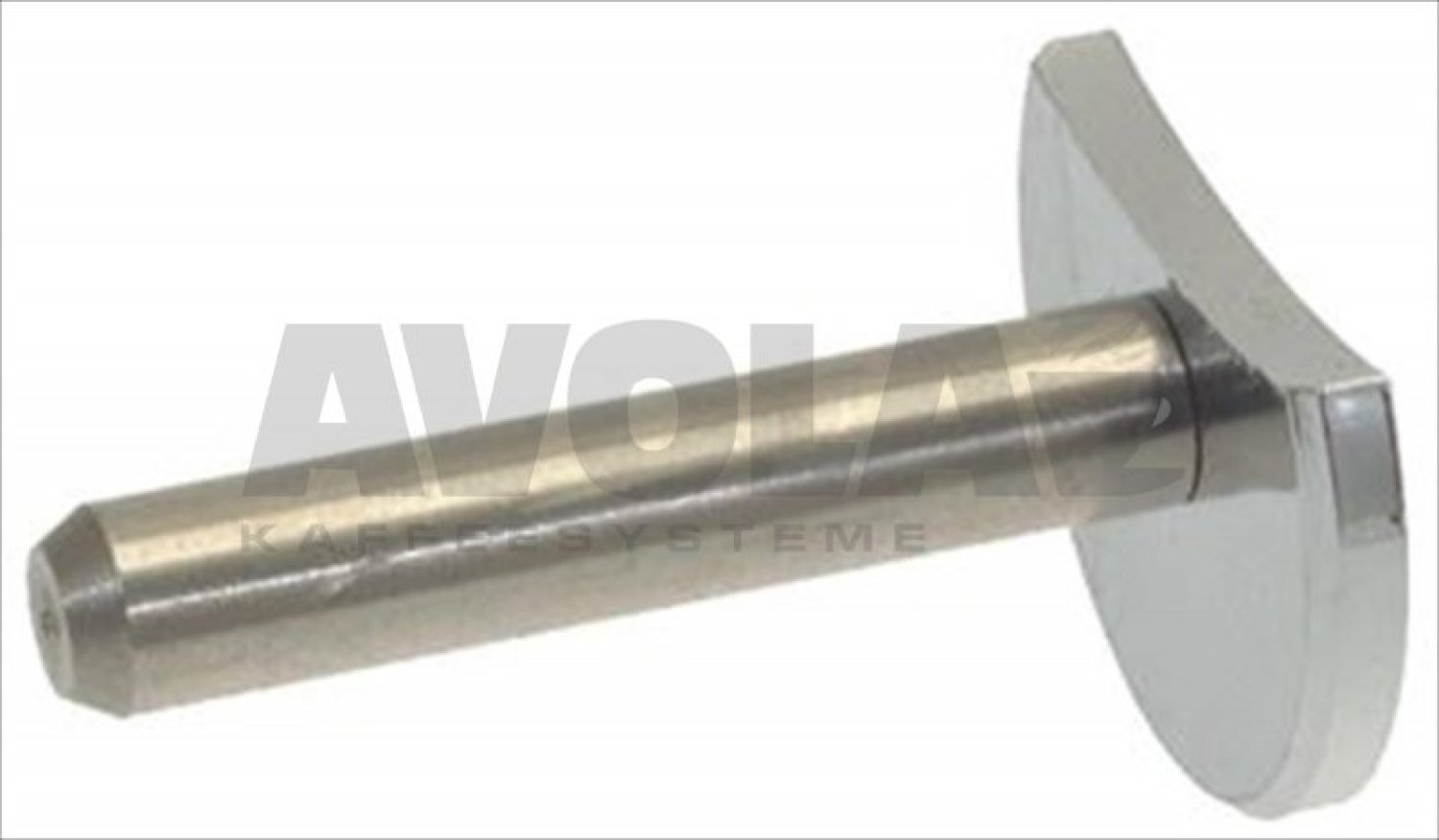

14adjustment pin 8004123
ADJUSTMENT PIN
12,30 €

excl. Shipping costs

Delivery time 4-6 weeks..
16cylinder head screw m5x12 8007321
CYLINDER HEAD SCREW M5x12
1,38 €

excl. Shipping costs

immediately available

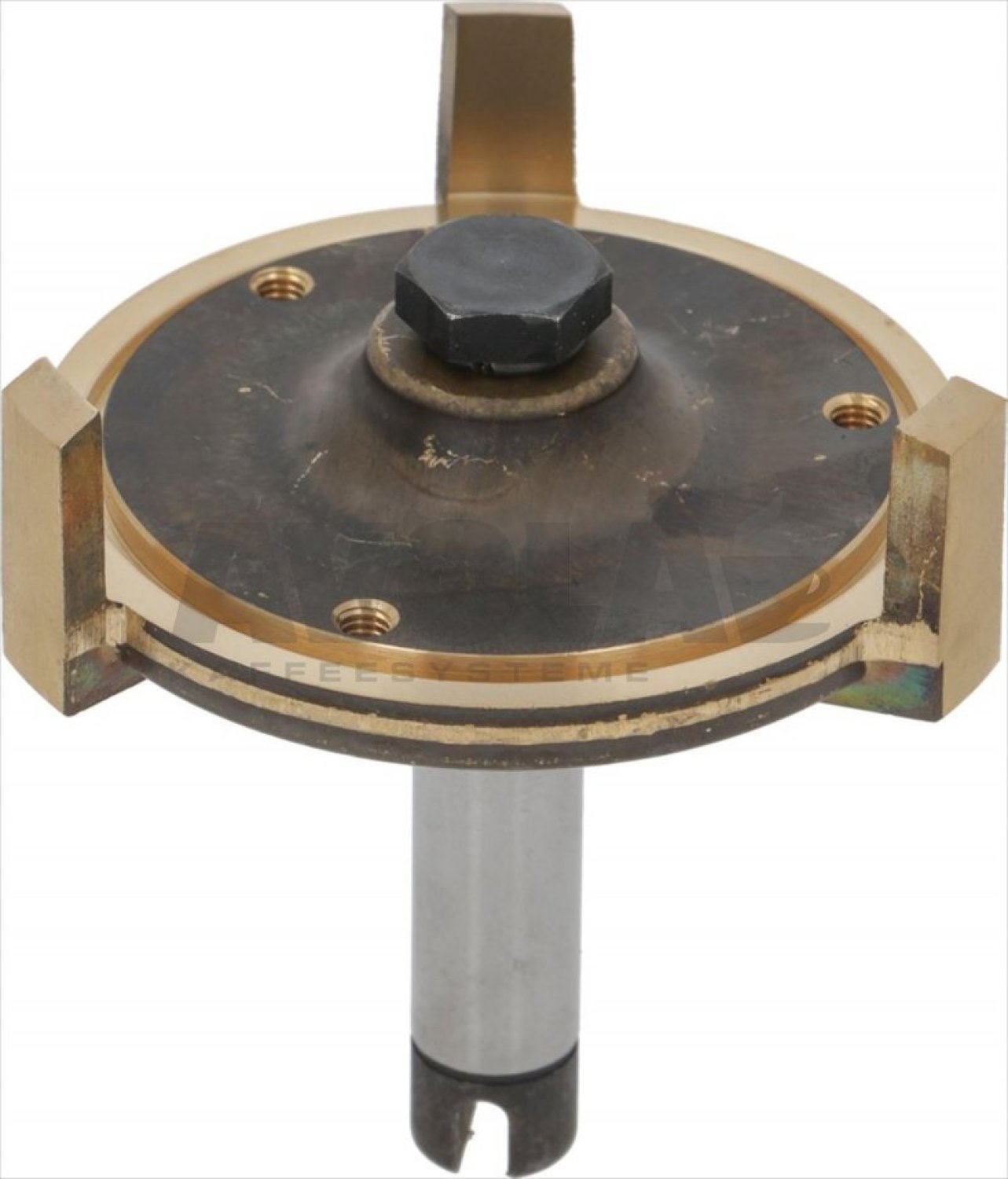

19grinding burrs bottom holder 8003894
GRINDING BURRS BOTTOM HOLDER
88,08 €

excl. Shipping costs

Delivery time 4-6 weeks..
22pin spring o 5 5x32 mm 8003706
Pin spring ø 5,5x32 mm
2,62 €

excl. Shipping costs

immediately available, 1 available
24bearing gasket 8004128
BEARING GASKET
2,70 €

excl. Shipping costs

Delivery time
is determined
28stainless steel clamp for flange pump 8001277
STAINLESS STEEL CLAMP FOR FLANGE PUMP
6,97 €

excl. Shipping costs

immediately available, 8 available
33rectangular foot 8004592
RECTANGULAR FOOT
This article is no longer available
36coffee collecting tray 8004578
COFFEE COLLECTING TRAY
22,79 €

excl. Shipping costs

Delivery time 4-6 weeks..
37filter holder fork 8003893
FILTER HOLDER FORK
This article is no longer available
38la san marco doser lid 8004108
LA SAN MARCO DOSER LID
This article is no longer available
39microswitch box lid 8004117
MICROSWITCH BOX LID
5,84 €

excl. Shipping costs

Delivery time
is determined
43sechskantmutter m4 messing 8075588
SECHSKANTMUTTER M4 Messing
Price on request
45microswitch box 8004118
MICROSWITCH BOX
9,79 €

excl. Shipping costs

Delivery time
is determined
46gasket for coffee outlet opening 8004113
GASKET FOR COFFEE OUTLET OPENING
7,19 €

excl. Shipping costs

Delivery time
is determined
47gasket for coffee outlet opening 8001708
GASKET FOR COFFEE OUTLET OPENING
4,61 €

excl. Shipping costs

immediately available, 18 available
48pin for flap 8002898
PIN FOR FLAP
5,83 €

excl. Shipping costs

Delivery time
is determined
49overflow flap 8004124
OVERFLOW FLAP
17,78 €

excl. Shipping costs

immediately available, 1 available
51doser cylinder 8004109
DOSER CYLINDER
21,77 €

excl. Shipping costs

Delivery time
is determined
52dose adjustment knob 8004116
DOSE ADJUSTMENT KNOB
15,12 €

excl. Shipping costs

Delivery time 4-6 weeks..
53scraper for doser 8005345
SCRAPER FOR DOSER
2,18 €

excl. Shipping costs

immediately available, 4 available
54hexagonal nut m3 8005446
HEXAGONAL NUT M3
0,55 €

excl. Shipping costs

immediately available
55san marco top star 8005335
San Marco TOP STAR
7,93 €

excl. Shipping costs

Delivery time 4-6 weeks..
56san marco dividing sheet 8004122
SAN MARCO DIVIDING SHEET
3,36 €

excl. Shipping costs

Delivery time
is determined
57locking ball 8004125
LOCKING BALL
3,67 €

excl. Shipping costs

Delivery time
is determined
58spring for star closing ball 8003581
SPRING FOR STAR CLOSING BALL
Price on request
59central star 8005340
CENTRAL STAR
9,10 €

excl. Shipping costs

Delivery time 4-6 weeks..
61star spring 8003576
STAR SPRING
6,52 €

excl. Shipping costs

Delivery time 4-6 weeks..
63bottom star 8005339
BOTTOM STAR
9,10 €

excl. Shipping costs

Delivery time 4-6 weeks..
68pin spring 8003705
PIN SPRING
5,24 €

excl. Shipping costs

Delivery time 4-6 weeks..
74counter for coffee grinder doser 8004484
COUNTER FOR COFFEE GRINDER/DOSER
47,58 €

excl. Shipping costs

Delivery time
is determined
756 teeth pawl with knob 8002815
6-TEETH PAWL WITH KNOB
58,68 €

excl. Shipping costs

Delivery time
is determined
76microswitch 10 4 a 250v 8059597
MICROSWITCH 10(4)A 250V
10,53 €

excl. Shipping costs

immediately available, 2 available
78doser lever pin 8005174
DOSER LEVER PIN
8,38 €

excl. Shipping costs

Delivery time 4-6 weeks..
79pin spring 8003578
PIN SPRING
3,02 €

excl. Shipping costs

Delivery time
is determined
80doser lever 8004112
DOSER LEVER
16,64 €

excl. Shipping costs

Delivery time
is determined
84doser lever return spring 8003580
DOSER LEVER RETURN SPRING
5,28 €

excl. Shipping costs

Delivery time
is determined
87timer 5 minutes c20 8027301
TIMER 5 MINUTES C20
49,54 €

excl. Shipping costs

Delivery time 4-6 weeks..
88green bipolar switch 16a 250v 8020352
GREEN BIPOLAR SWITCH 16A 250V
7,76 €

excl. Shipping costs

Delivery time
is determined
89power relay finder 55 32 8 230 0040 8022753
POWER RELAY FINDER 55.32.8.230.0040
36,10 €

excl. Shipping costs

Delivery time
is determined
92o ring 0171 epdm 8001940
O-RING 0171 EPDM
3,06 €

excl. Shipping costs

immediately available, 13 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
