San Marco Grinder

SMM0201 DOSIERMAHLWERK SM90-SM90A NEW

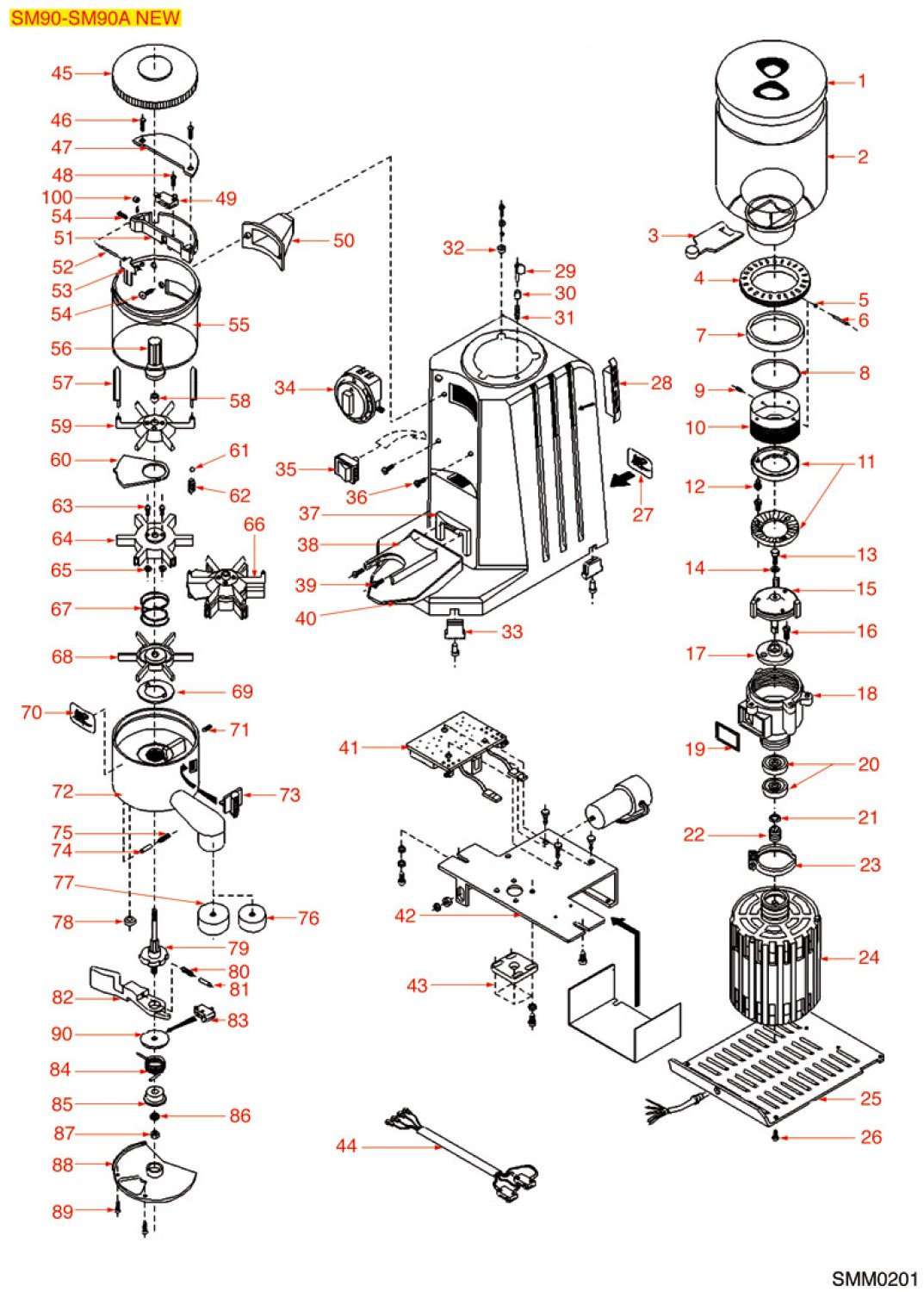

Drawing number 8057453

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1coffee hopper lid 8000447
COFFEE HOPPER LID
22,82 €

excl. Shipping costs

Delivery time
is determined
2san marco coffee hopper 8000355
San Marco COFFEE HOPPER
36,76 €

excl. Shipping costs

Delivery time
is determined
3coffee hopper closing sheet 8004120
COFFEE HOPPER CLOSING SHEET
5,40 €

excl. Shipping costs

Delivery time
is determined
5stainless steel circlip ra 4 uni 7437 8005617
STAINLESS STEEL CIRCLIP RA-4 UNI 7437
0,43 €

excl. Shipping costs

immediately available
7gasket 8001918
GASKET
16,71 €

excl. Shipping costs

Delivery time 4-6 weeks
8o ring 0171 epdm 8001940
O-RING 0171 EPDM
3,06 €

excl. Shipping costs

immediately available, 12 available

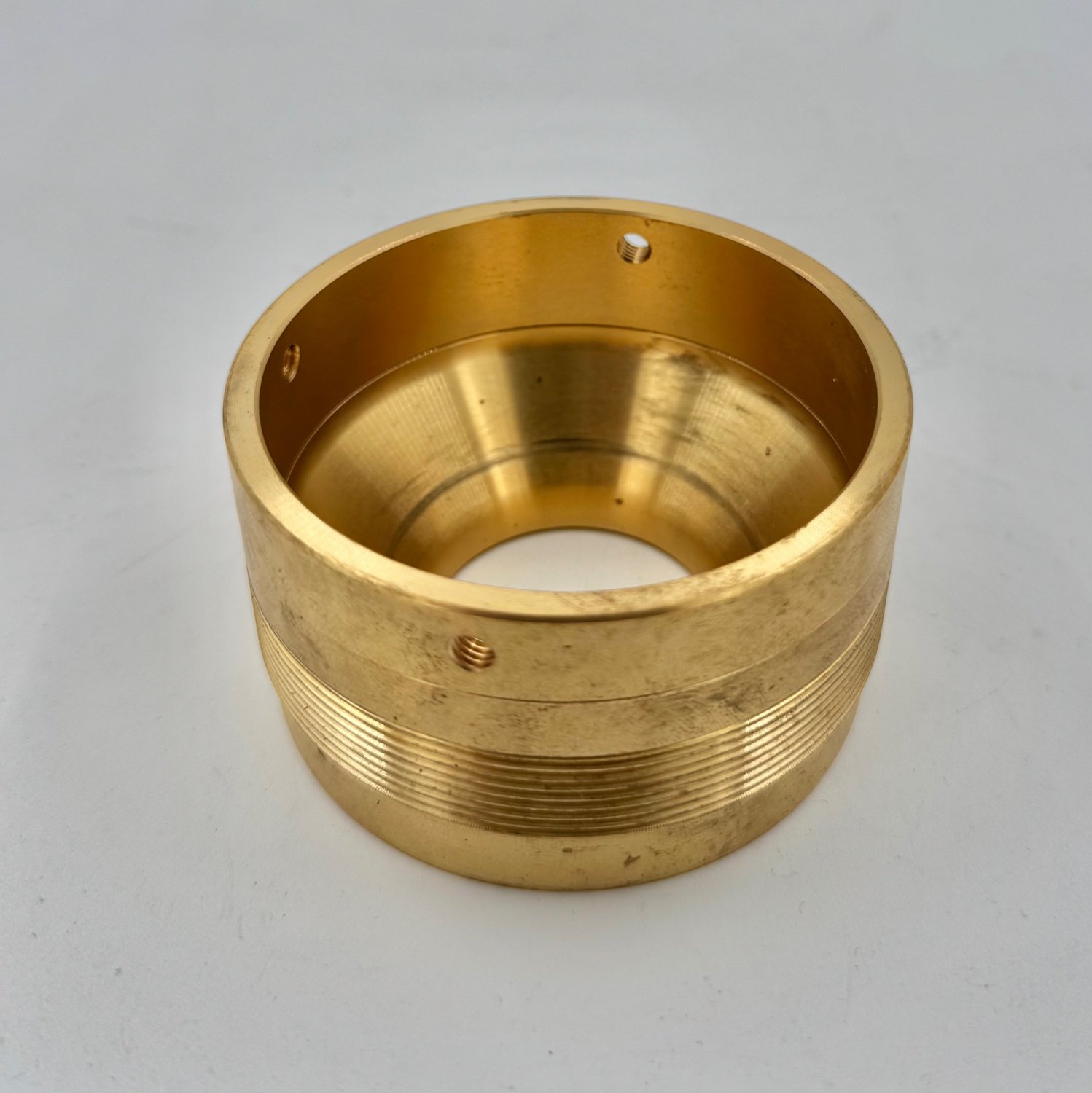

10grinding burrs upper holder sm90 sm91 sm92 8004014
GRINDING BURRS UPPER HOLDER - SM90-SM91-SM92
115,03 €

excl. Shipping costs

immediately available, 2 available
11grinding burrs san marco pair rh 8003959
GRINDING BURRS SAN MARCO (PAIR) RH
23,98 €

excl. Shipping costs

immediately available, 2 available
11mahlscheiben paar la san marco original 64x37x8 5 mm 8073609
Mahlscheiben Paar La San Marco Original 64x37x8,5 mm
49,94 €

excl. Shipping costs

immediately available, 4 available
12cylinder head screw m5x12 8007321
CYLINDER HEAD SCREW M5x12
1,38 €

excl. Shipping costs

immediately available
15grinding burrs bottom holder 8003894
GRINDING BURRS BOTTOM HOLDER
88,08 €

excl. Shipping costs

Delivery time 4-6 weeks..
19gasket for coffee outlet opening 8001708
GASKET FOR COFFEE OUTLET OPENING
4,61 €

excl. Shipping costs

immediately available, 18 available
22feder fuer motorstift 8003579
Feder für Motorstift
4,53 €

excl. Shipping costs

Delivery time
is determined
23stainless steel clamp for flange pump 8001277
STAINLESS STEEL CLAMP FOR FLANGE PUMP
6,97 €

excl. Shipping costs

immediately available, 8 available
29san marco locking pin 8004478
San Marco LOCKING PIN
7,94 €

excl. Shipping costs

Delivery time
is determined
30bushing 8004470
BUSHING
1,93 €

excl. Shipping costs

Delivery time
is determined
31pin spring o 5 5x32 mm 8003706
Pin spring ø 5,5x32 mm
2,62 €

excl. Shipping costs

immediately available, 1 available
33rectangular foot 8004592
RECTANGULAR FOOT
This article is no longer available
34timer 5 minutes c20 8027301
TIMER 5 MINUTES C20
49,54 €

excl. Shipping costs

Delivery time 4-6 weeks..
35green bipolar switch 16a 250v 8020352
GREEN BIPOLAR SWITCH 16A 250V
7,76 €

excl. Shipping costs

Delivery time
is determined

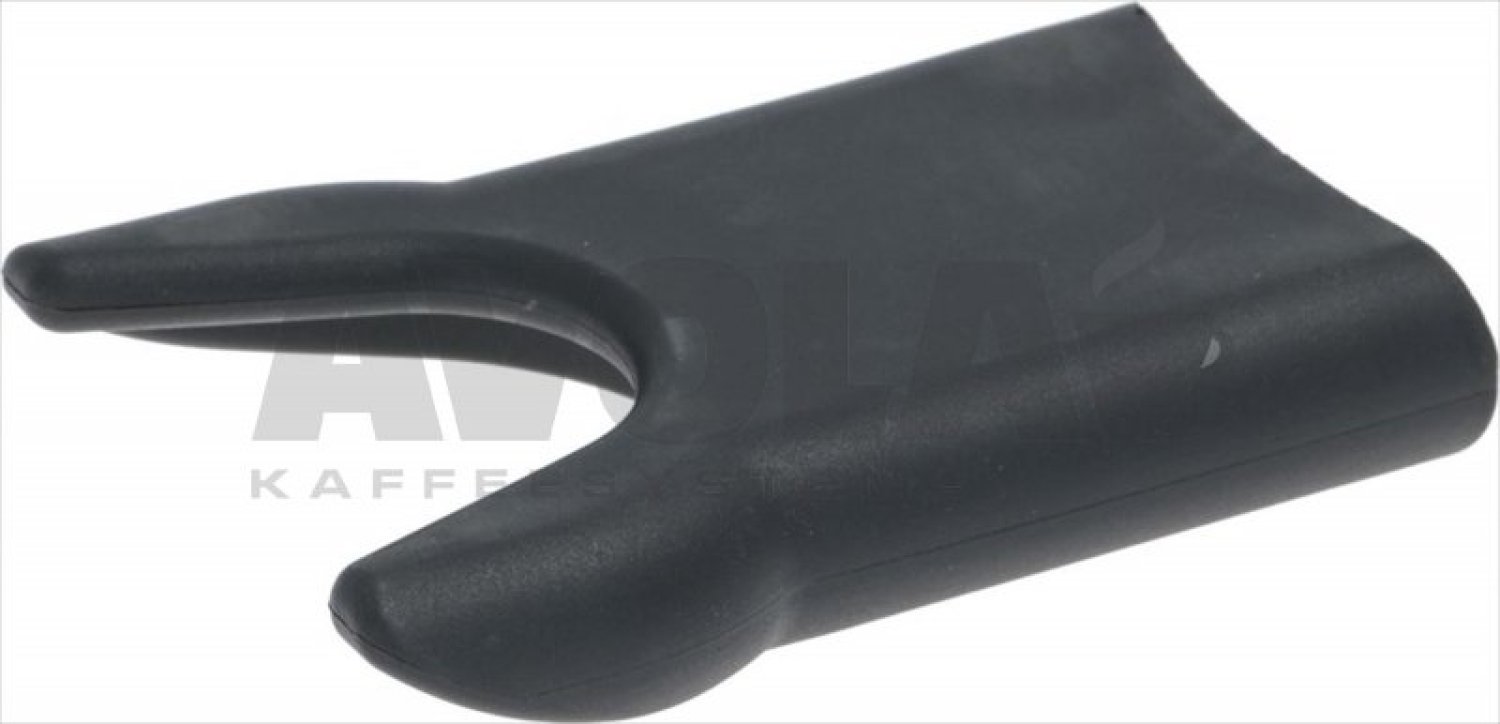

38filter holder fork 8001162
FILTER HOLDER FORK
11,82 €

excl. Shipping costs

Delivery time
is determined
41san marco printed circuit board 230v 8006252
SAN MARCO PRINTED CIRCUIT BOARD 230V
80,91 €
80,91 €

excl. Shipping costs

Delivery time
is determined
45la san marco doser lid 8004108
LA SAN MARCO DOSER LID
This article is no longer available
47microswitch box lid 8004117
MICROSWITCH BOX LID
5,84 €

excl. Shipping costs

Delivery time
is determined
49microswitch 16a 250v 8016308
MICROSWITCH 16A 250V
9,59 €

excl. Shipping costs

immediately available, 3 available
50gasket for coffee outlet opening 8004113
GASKET FOR COFFEE OUTLET OPENING
7,19 €

excl. Shipping costs

Delivery time
is determined
51microswitch box 8004118
MICROSWITCH BOX
9,79 €

excl. Shipping costs

Delivery time
is determined
52pin for flap 8002898
PIN FOR FLAP
5,83 €

excl. Shipping costs

Delivery time
is determined
53overflow flap 8004124
OVERFLOW FLAP
17,78 €

excl. Shipping costs

immediately available, 1 available
55doser cylinder 8004109
DOSER CYLINDER
21,77 €

excl. Shipping costs

Delivery time
is determined
56adjustment knob 8003190
ADJUSTMENT KNOB
11,08 €

excl. Shipping costs

Delivery time 4-6 weeks..
57scraper for doser 8005345
SCRAPER FOR DOSER
2,18 €

excl. Shipping costs

immediately available, 4 available
59san marco top star 8005335
San Marco TOP STAR
7,93 €

excl. Shipping costs

Delivery time 4-6 weeks..
60san marco dividing sheet 8004122
SAN MARCO DIVIDING SHEET
3,36 €

excl. Shipping costs

Delivery time
is determined
61locking ball 8004125
LOCKING BALL
3,67 €

excl. Shipping costs

Delivery time
is determined
62spring for star closing ball 8003581
SPRING FOR STAR CLOSING BALL
Price on request
64central star 8005340
CENTRAL STAR
9,10 €

excl. Shipping costs

Delivery time 4-6 weeks..
65hexagonal nut m3 8005446
HEXAGONAL NUT M3
0,55 €

excl. Shipping costs

immediately available
67star spring 8003576
STAR SPRING
6,52 €

excl. Shipping costs

Delivery time 4-6 weeks..
68bottom star 8005339
BOTTOM STAR
9,10 €

excl. Shipping costs

Delivery time 4-6 weeks..
73counter for coffee grinder doser 8004484
COUNTER FOR COFFEE GRINDER/DOSER
47,58 €

excl. Shipping costs

Delivery time
is determined
75pin spring 8003705
PIN SPRING
5,24 €

excl. Shipping costs

Delivery time 4-6 weeks..
76tamper 8006181
TAMPER
6,55 €

excl. Shipping costs

Delivery time 4-6 weeks..
77san marco presser o 56 5 mm 8006182
SAN MARCO PRESSER ø 56,5 mm
8,22 €

excl. Shipping costs

immediately available, 1 available
79doser lever pin 8004114
DOSER LEVER PIN
42,76 €

excl. Shipping costs

Delivery time 4-6 weeks..
80pin spring 8003578
PIN SPRING
3,02 €

excl. Shipping costs

Delivery time
is determined
81doser lever pin 8005174
DOSER LEVER PIN
8,38 €

excl. Shipping costs

Delivery time 4-6 weeks..
82doser lever 8004112
DOSER LEVER
16,64 €

excl. Shipping costs

Delivery time
is determined
83microswitch 10 4 a 250v 8059597
MICROSWITCH 10(4)A 250V
10,53 €

excl. Shipping costs

immediately available, 2 available
84doser lever return spring 8003580
DOSER LEVER RETURN SPRING
5,28 €

excl. Shipping costs

Delivery time
is determined
87mid hexagonal nut m6 8007269
MID HEXAGONAL NUT M6
Price on request
100sechskantmutter m4 messing 8075588
SECHSKANTMUTTER M4 Messing
Price on request

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
