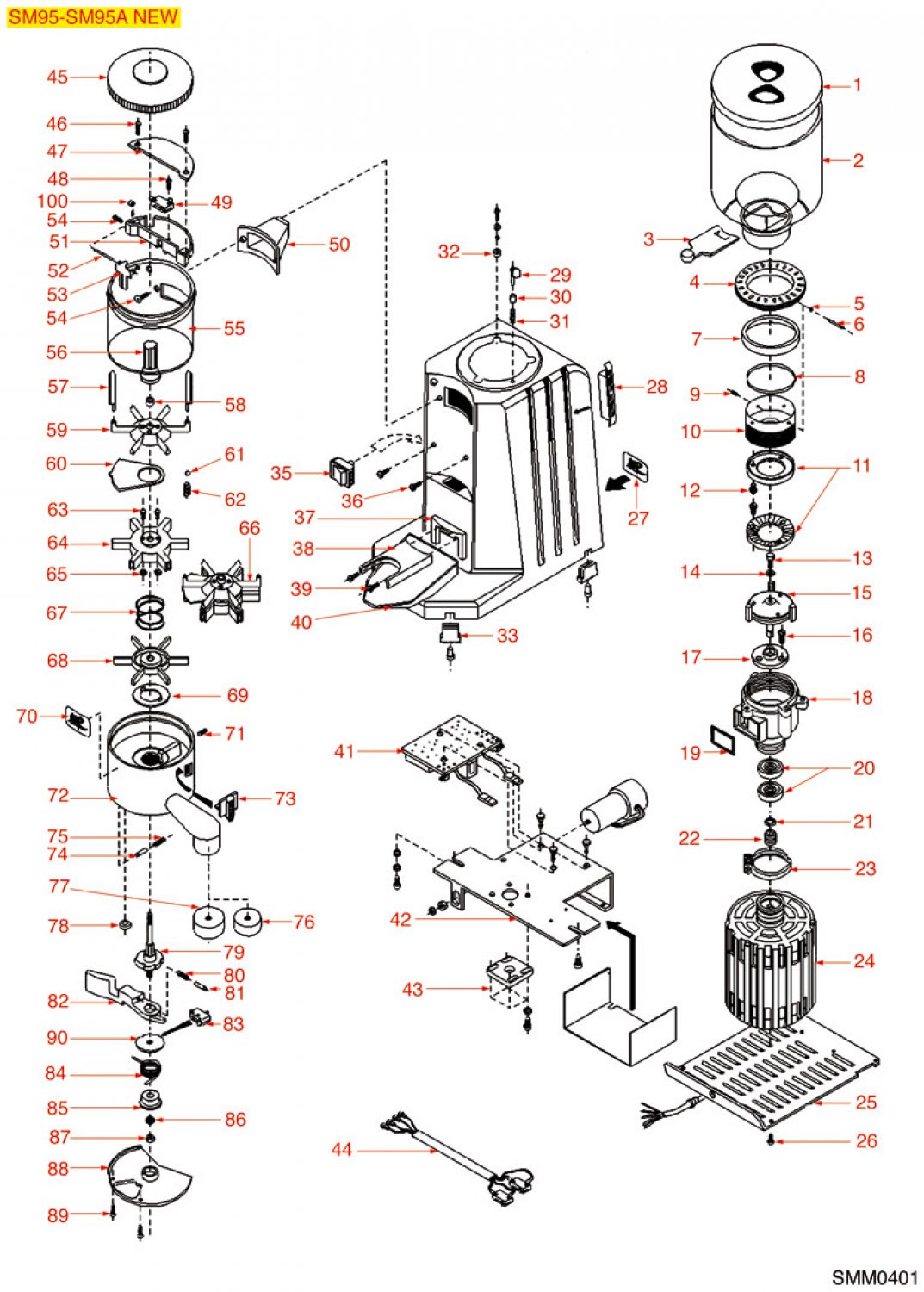

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.
Pos.: | Item No.: | Image: | Description: | Shipment: | Price (inkl. 19% VAT): | Qty.: |
---|
1 | 8000447 |  | 8000447 COFFEE HOPPER LID | excl. Shipping costs Delivery time is determined |
22,48 € | |

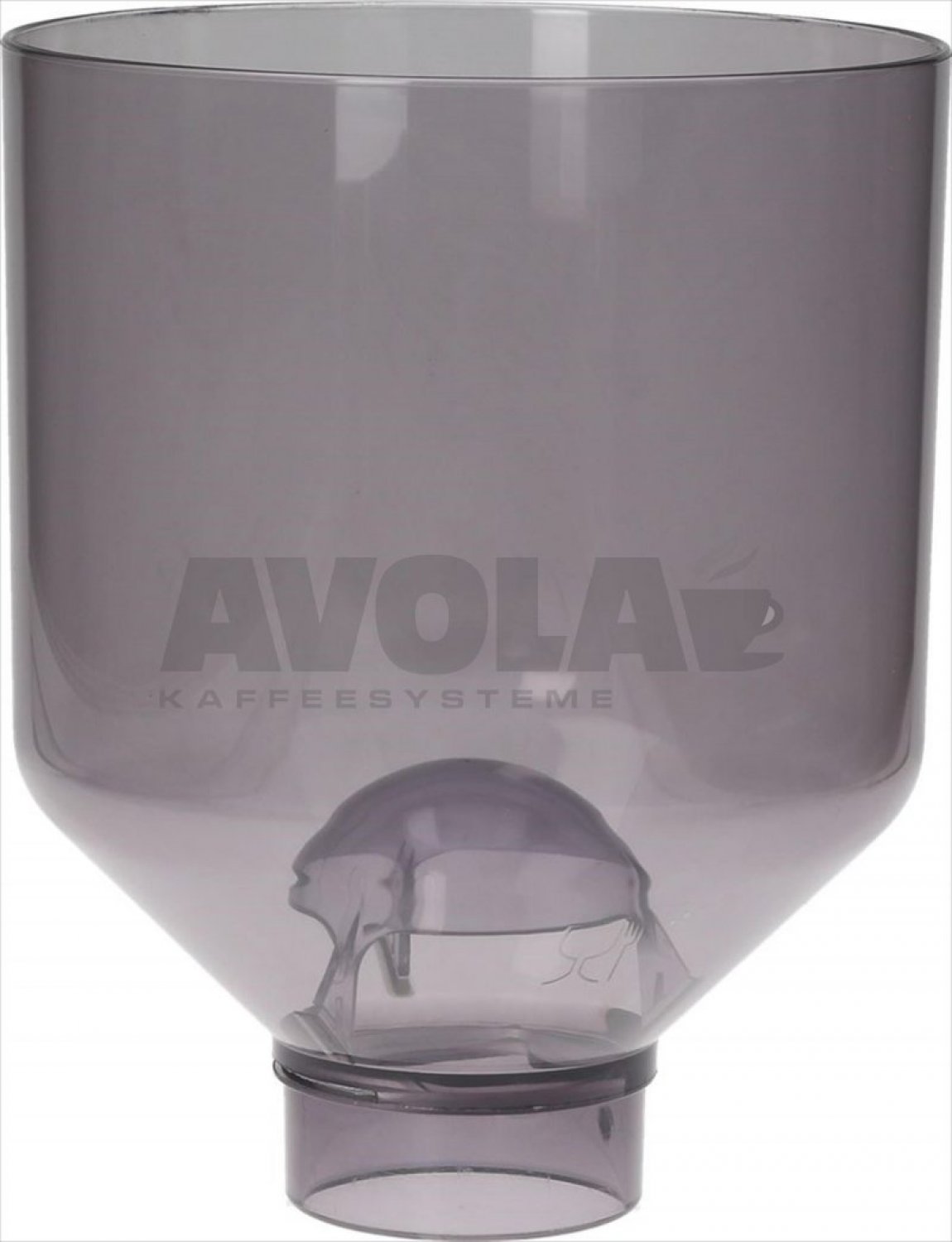

2 | 8000355 |  | 8000355 San Marco COFFEE HOPPER | excl. Shipping costs Delivery time is determined |
36,21 € | |
3 | 8004120 |  | 8004120 COFFEE HOPPER CLOSING SHEET | excl. Shipping costs Delivery time is determined |
5,30 € | |
5 | 8005617 |  | 8005617 STAINLESS STEEL CIRCLIP RA-4 UNI 7437 | excl. Shipping costs immediately available |
0,48 € | |

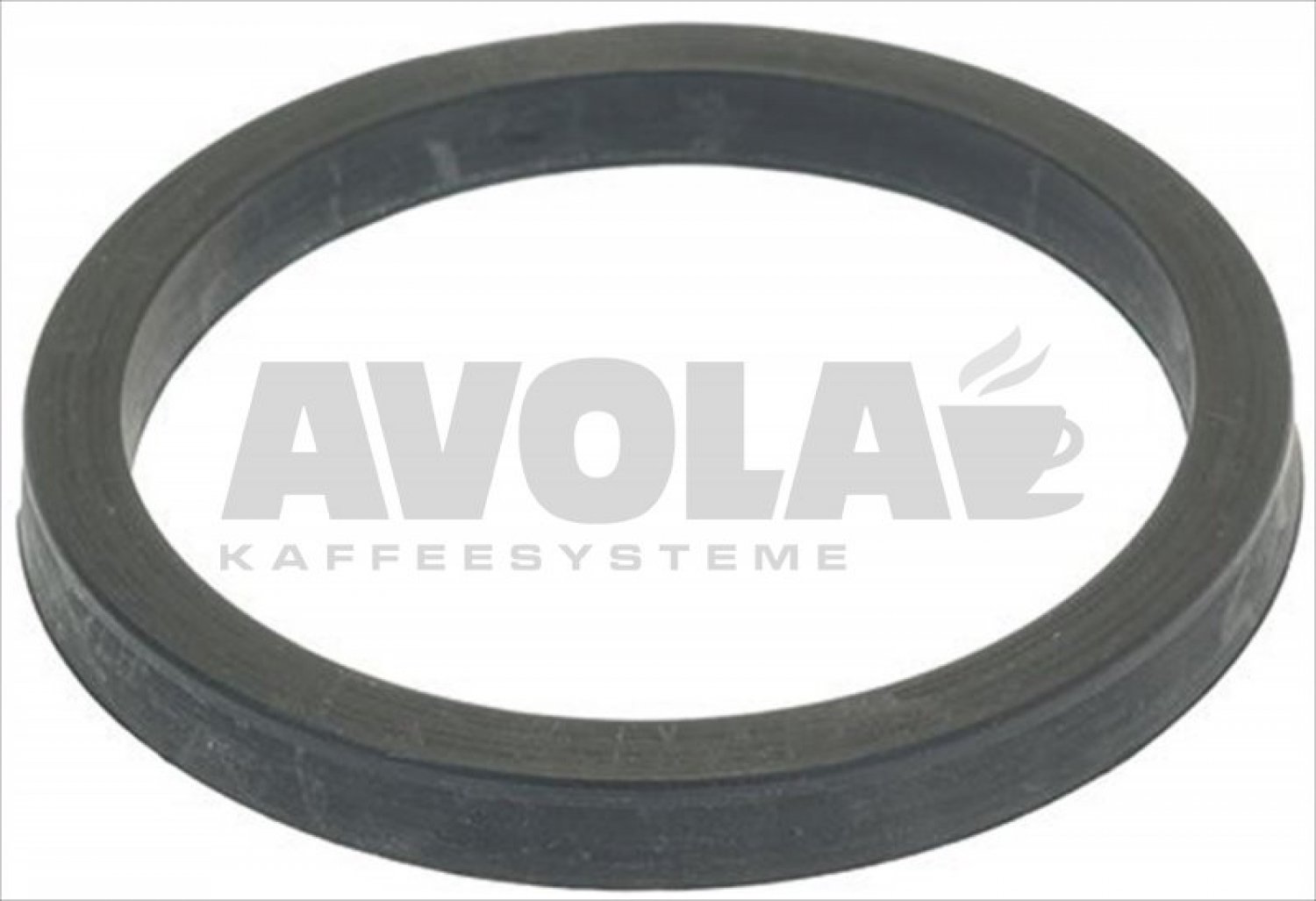

7 | 8001918 |  | 8001918 GASKET | excl. Shipping costs Delivery time 4-6 weeks |
7,15 € | |
8 | 8001940 |  | 8001940 O-RING 0171 EPDM | excl. Shipping costs immediately available, 12 available |
3,03 € | |

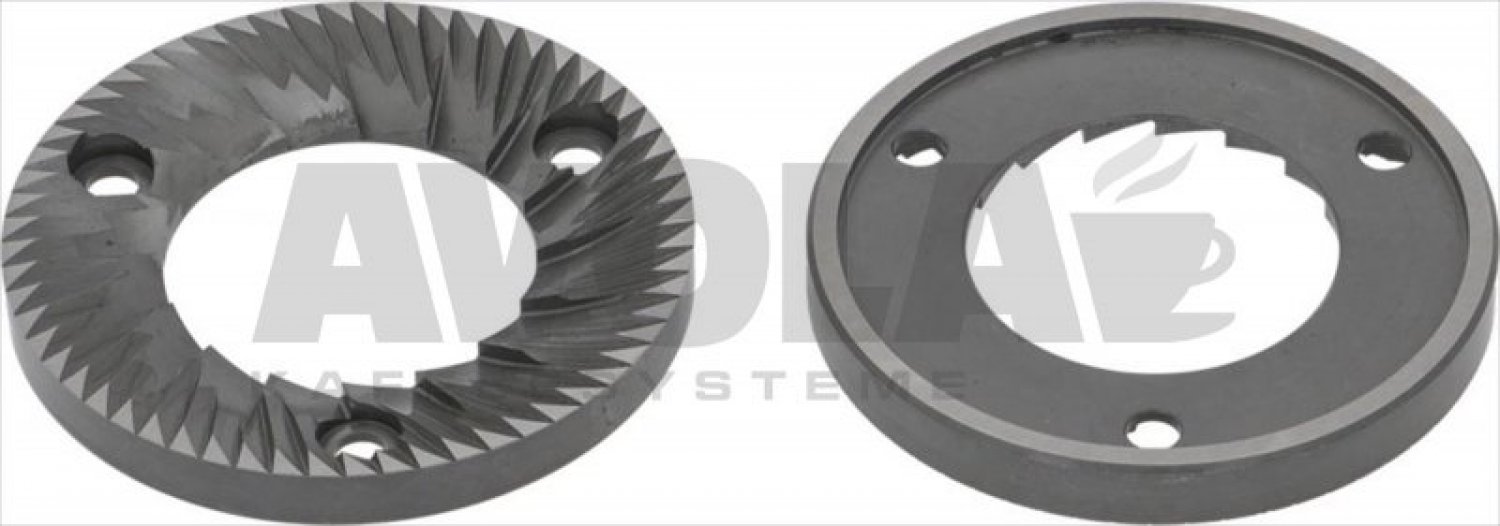

11 | 8003960 |  | 8003960 GRINDING BURRS SAN MARCO (PAIR) RH | excl. Shipping costs immediately available, 1 available |
42,66 € | |
11 | 8281312 |  | 8281312 Original San Marco Mahlscheiben 84x45x9mm rechtsdrehend | excl. Shipping costs immediately available, 3 available |
65,45 € | |
12 | 8007321 |  | 8007321 CYLINDER HEAD SCREW M5x12 | excl. Shipping costs immediately available |
1,38 € | |
19 | 8001708 |  | 8001708 GASKET FOR COFFEE OUTLET OPENING | excl. Shipping costs immediately available, 18 available |
4,57 € | |
22 | 8003579 |  | 8003579 San Marco Feder für Motorstift | excl. Shipping costs immediately available, 3 available |
4,51 € | |

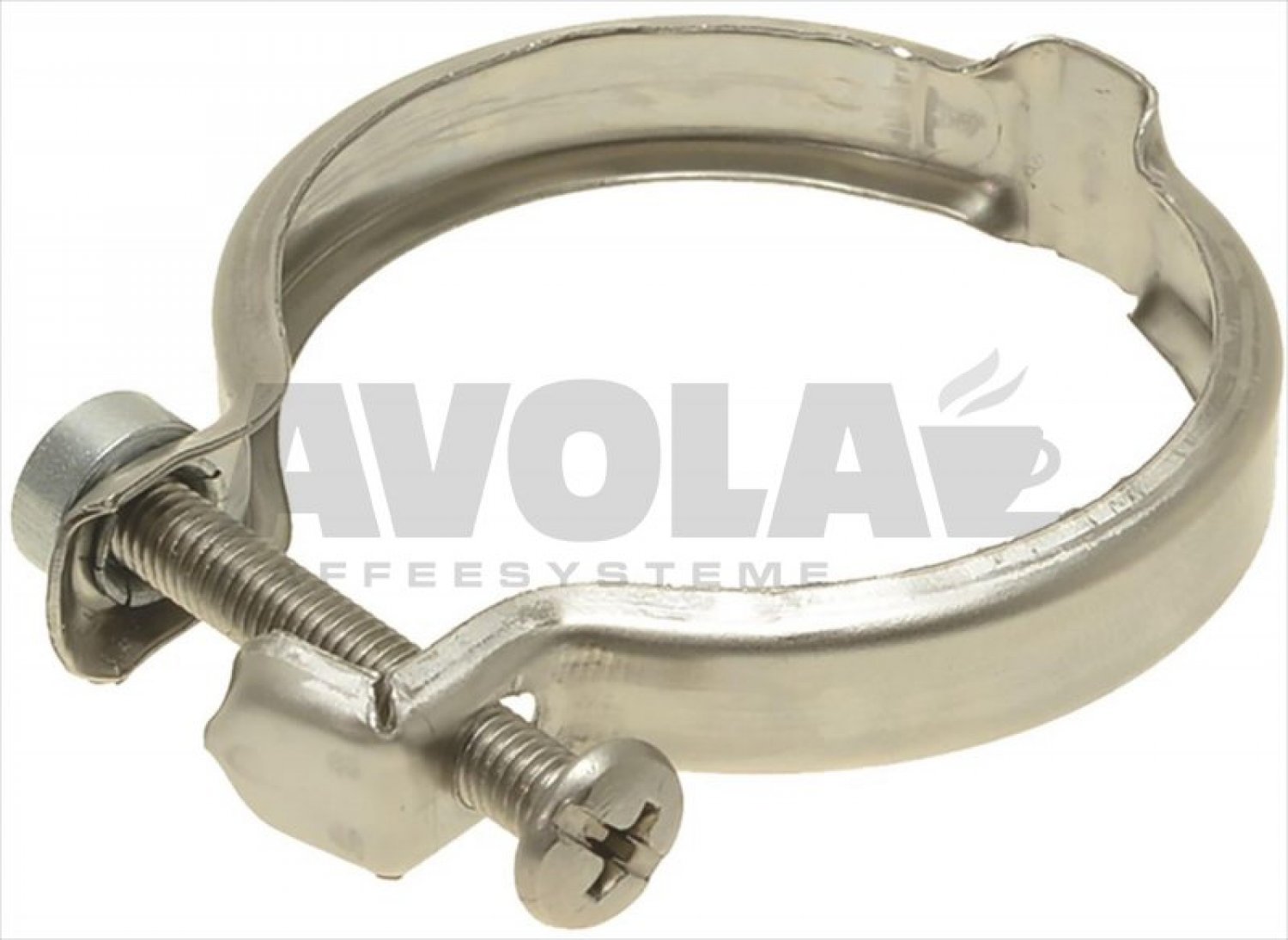

23 | 8001277 |  | 8001277 STAINLESS STEEL CLAMP FOR FLANGE PUMP | excl. Shipping costs immediately available, 8 available |
6,90 € | |
29 | 8004478 |  | 8004478 San Marco LOCKING PIN | excl. Shipping costs Delivery time is determined |
5,55 € | |
30 | 8004470 |  | 8004470 BUSHING | excl. Shipping costs Delivery time 4-6 weeks |
1,88 € | |
31 | 8003706 |  | 8003706 Pin spring ø 5,5x32 mm | excl. Shipping costs immediately available, 1 available |
2,59 € | |
33 | 8004592 |  | 8004592 RECTANGULAR FOOT | |
| |
35 | 8020352 |  | 8020352 GREEN BIPOLAR SWITCH 16A 250V | excl. Shipping costs Delivery time 4-6 weeks |
11,17 € | |
38 | 8001162 |  | 8001162 FILTER HOLDER FORK | excl. Shipping costs Delivery time is determined |
5,75 € | |
41 | 8006252 |  | 8006252 SAN MARCO PRINTED CIRCUIT BOARD 230V | excl. Shipping costs Delivery time is determined |
79,69 € 79,69 € | |

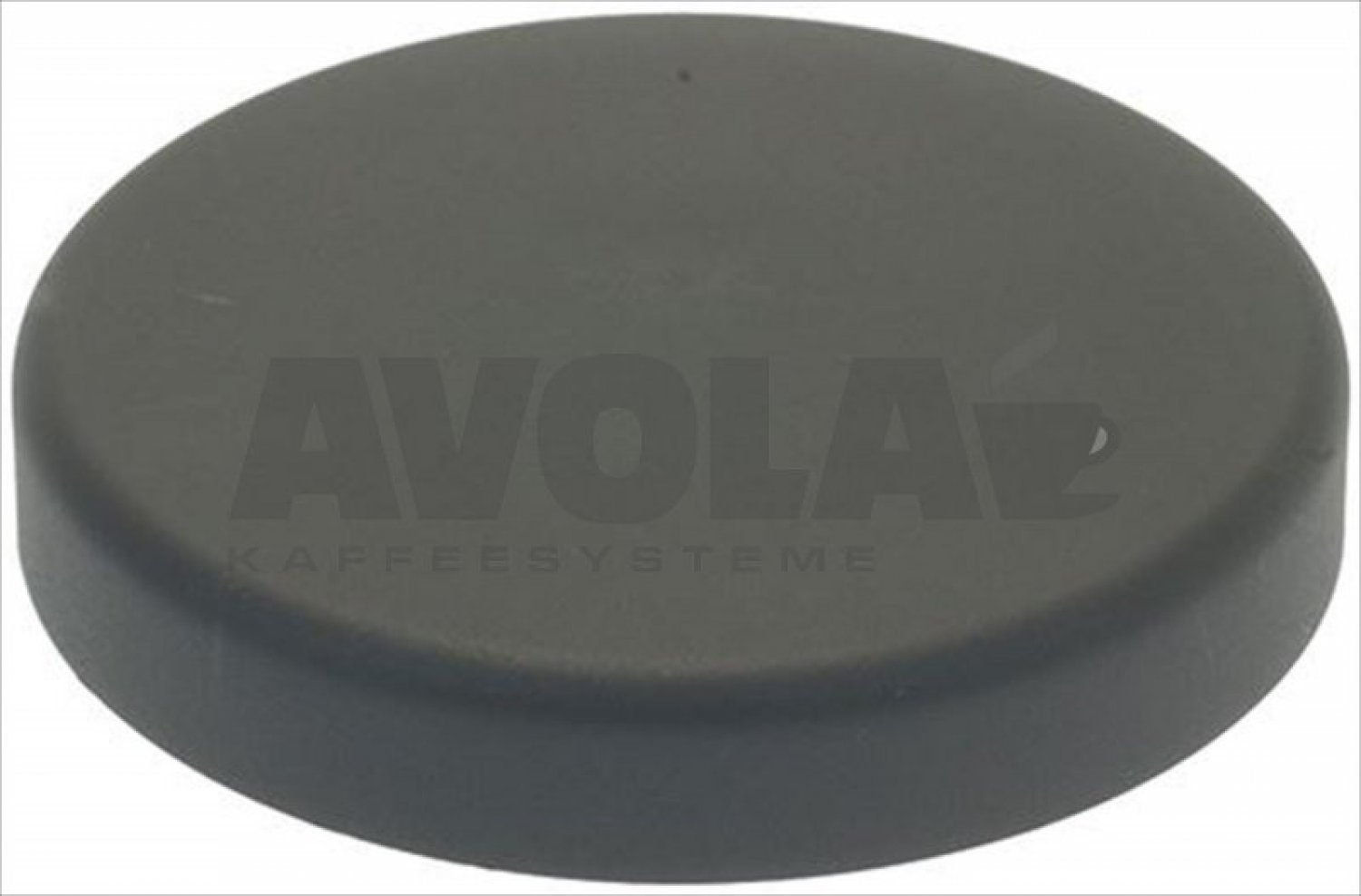

45 | 8004108 |  | 8004108 LA SAN MARCO DOSER LID | |
| |
47 | 8004117 |  | 8004117 MICROSWITCH BOX LID | excl. Shipping costs Delivery time is determined |
5,71 € | |
49 | 8016308 |  | 8016308 MICROSWITCH 16A 250V | excl. Shipping costs immediately available, 3 available |
9,54 € | |
50 | 8004113 |  | 8004113 GASKET FOR COFFEE OUTLET OPENING | excl. Shipping costs Delivery time is determined |
6,85 € | |

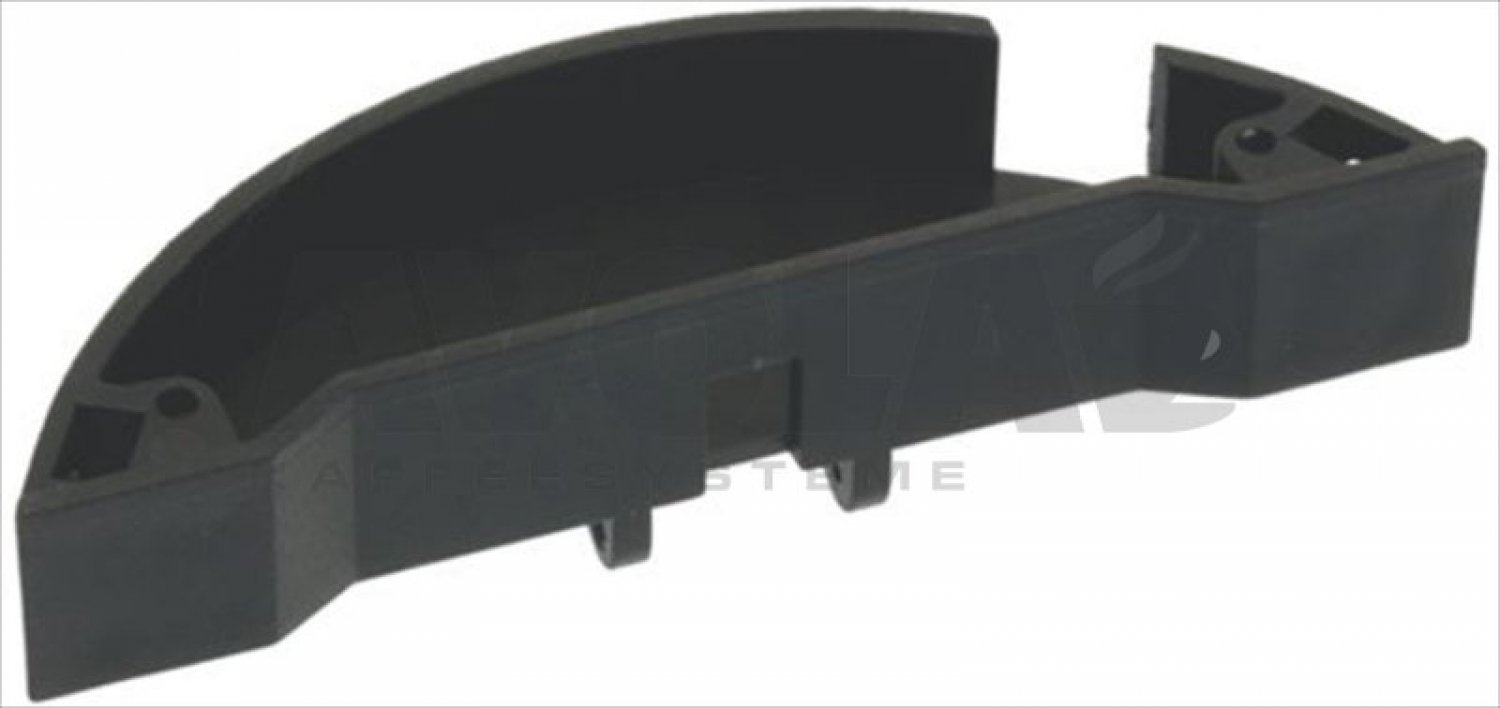

51 | 8004118 |  | 8004118 MICROSWITCH BOX | excl. Shipping costs Delivery time is determined |
9,64 € | |
52 | 8002898 |  | 8002898 PIN FOR FLAP | excl. Shipping costs Delivery time is determined |
3,58 € | |

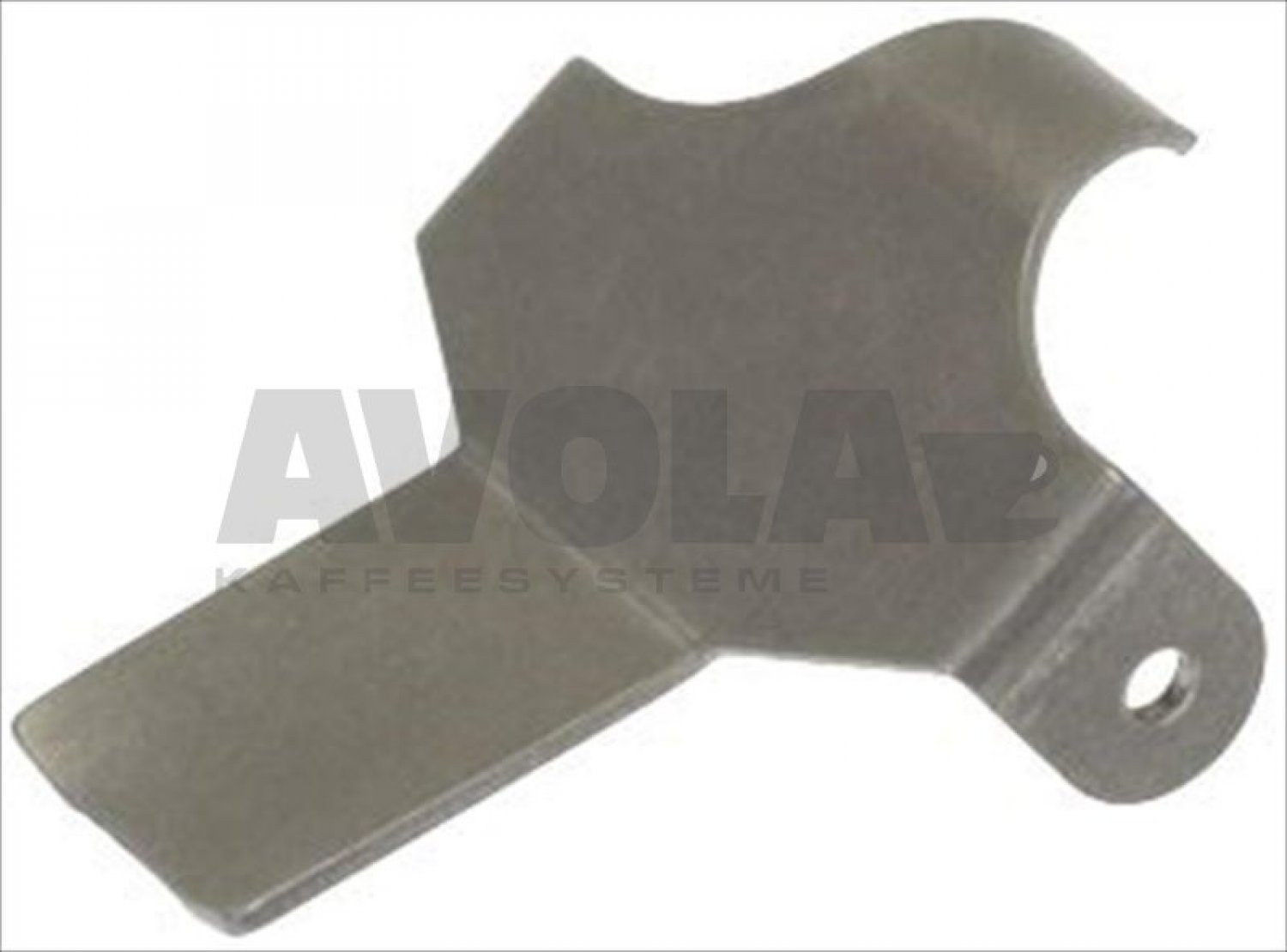

53 | 8004124 |  | 8004124 OVERFLOW FLAP | excl. Shipping costs immediately available, 1 available |
17,70 € | |

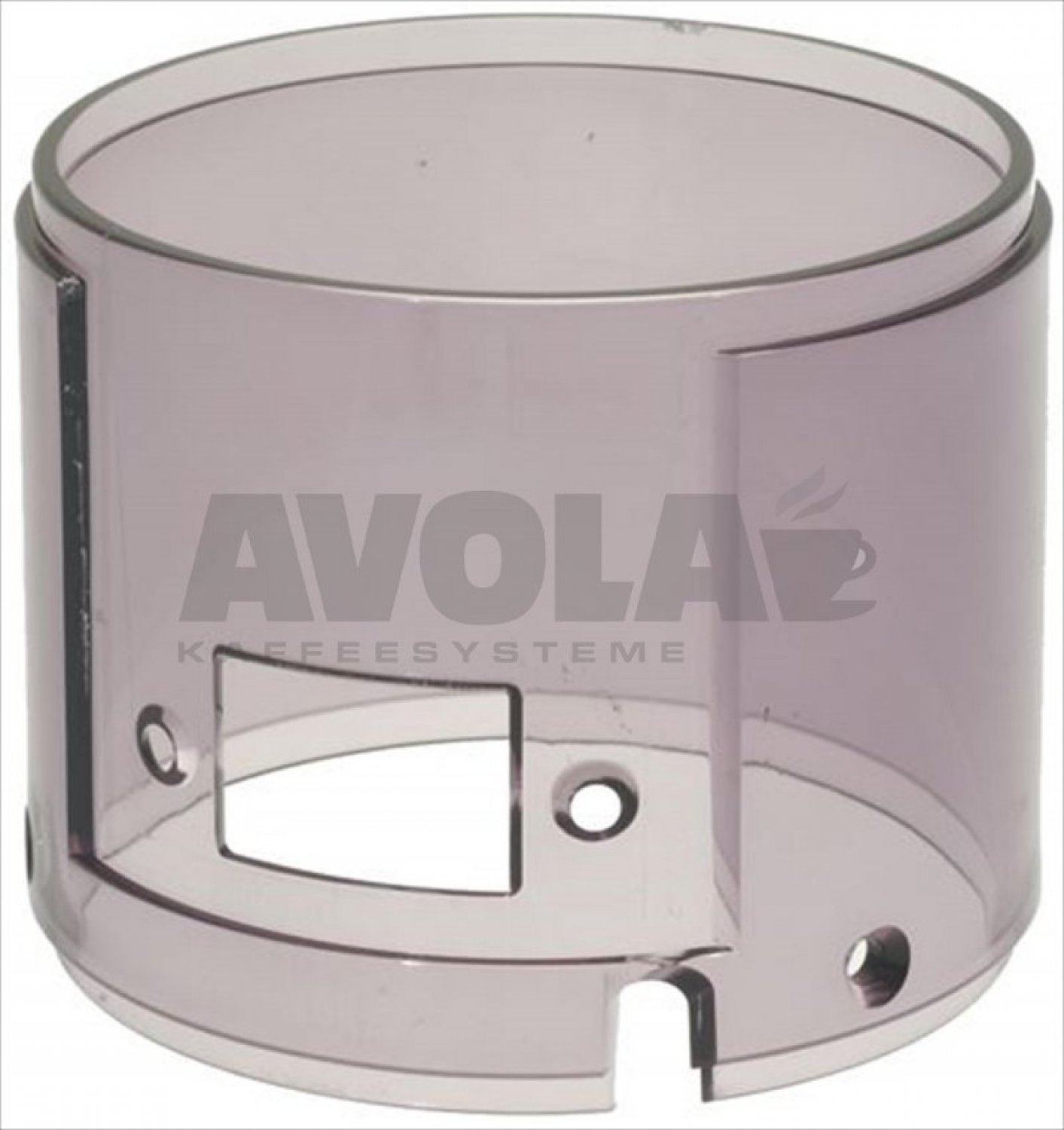

55 | 8004109 |  | 8004109 DOSER CYLINDER | excl. Shipping costs Delivery time is determined |
21,43 € | |
56 | 8003190 |  | 8003190 ADJUSTMENT KNOB | excl. Shipping costs Delivery time is determined |
10,91 € | |
57 | 8005345 |  | 8005345 SCRAPER FOR DOSER | excl. Shipping costs immediately available, 4 available |
2,17 € | |
59 | 8005335 |  | 8005335 San Marco TOP STAR | excl. Shipping costs Delivery time is determined |
10,59 € | |
60 | 8004122 |  | 8004122 SAN MARCO DIVIDING SHEET | excl. Shipping costs Delivery time is determined |
6,71 € | |
61 | 8004125 |  | 8004125 LOCKING BALL | excl. Shipping costs Delivery time is determined |
1,51 € | |
62 | 8003581 |  | 8003581 SPRING FOR STAR CLOSING BALL | excl. Shipping costs Delivery time is determined |
| |
64 | 8005340 |  | 8005340 CENTRAL STAR | excl. Shipping costs Delivery time is determined |
7,34 € | |
65 | 8005446 |  | 8005446 HEXAGONAL NUT M3 | excl. Shipping costs immediately available |
0,55 € | |
67 | 8003576 |  | 8003576 STAR SPRING | excl. Shipping costs Delivery time 4-6 weeks |
4,52 € | |
68 | 8005339 |  | 8005339 BOTTOM STAR | excl. Shipping costs Delivery time 4-6 weeks |
7,40 € | |
73 | 8004111 |  | 8004111 COUNTER FOR COFFEE GRINDER | excl. Shipping costs immediately available, 1 available |
41,65 € | |

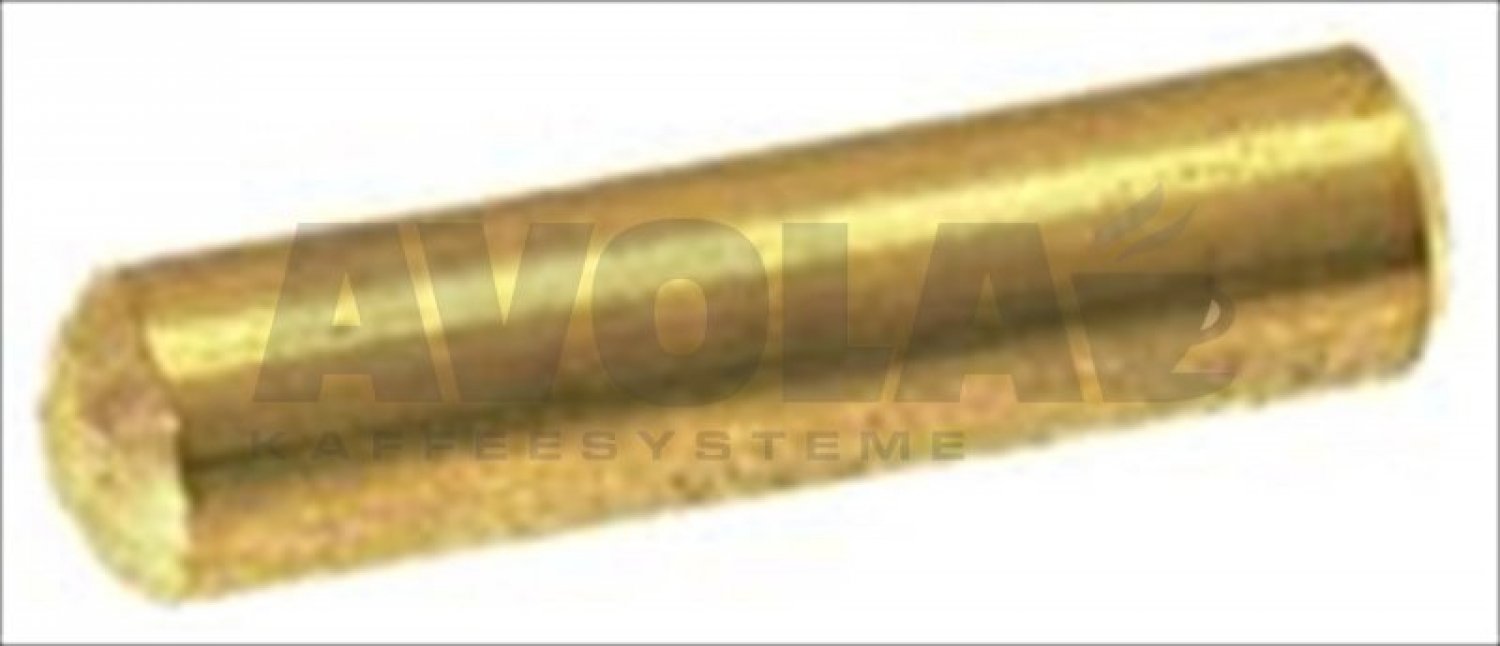

74 | 8005214 |  | 8005214 BOLZEN ø 4x16 mm | excl. Shipping costs immediately available, 11 available |
1,26 € | |
75 | 8003705 |  | 8003705 PIN SPRING | excl. Shipping costs Delivery time 4-6 weeks |
3,56 € | |
76 | 8006181 |  | 8006181 TAMPER | excl. Shipping costs Delivery time 4-6 weeks |
6,44 € | |
77 | 8006182 |  | 8006182 SAN MARCO PRESSER ø 56,5 mm | excl. Shipping costs immediately available, 1 available |
8,14 € | |
79 | 8004114 |  | 8004114 DOSER LEVER PIN | excl. Shipping costs Delivery time 4-6 weeks |
22,84 € | |
80 | 8003578 |  | 8003578 PIN SPRING | excl. Shipping costs Delivery time is determined |
1,26 € | |

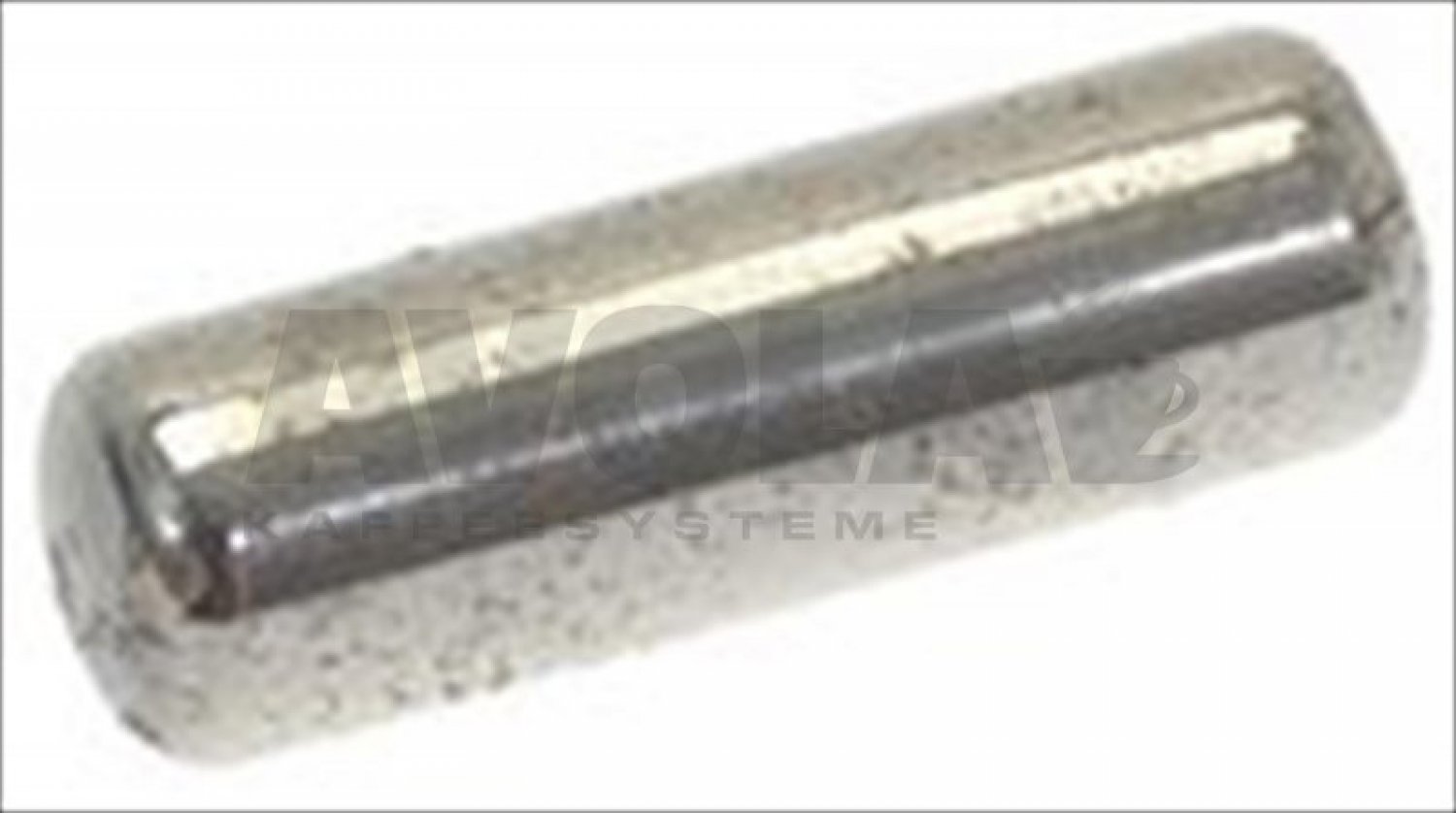

81 | 8005174 |  | 8005174 DOSER LEVER PIN | excl. Shipping costs Delivery time 4-6 weeks |
5,93 € | |
82 | 8004112 |  | 8004112 DOSER LEVER | excl. Shipping costs Delivery time is determined |
13,24 € | |
83 | 8059597 |  | 8059597 MICROSWITCH 10(4)A 250V | excl. Shipping costs immediately available, 2 available |
11,40 € | |

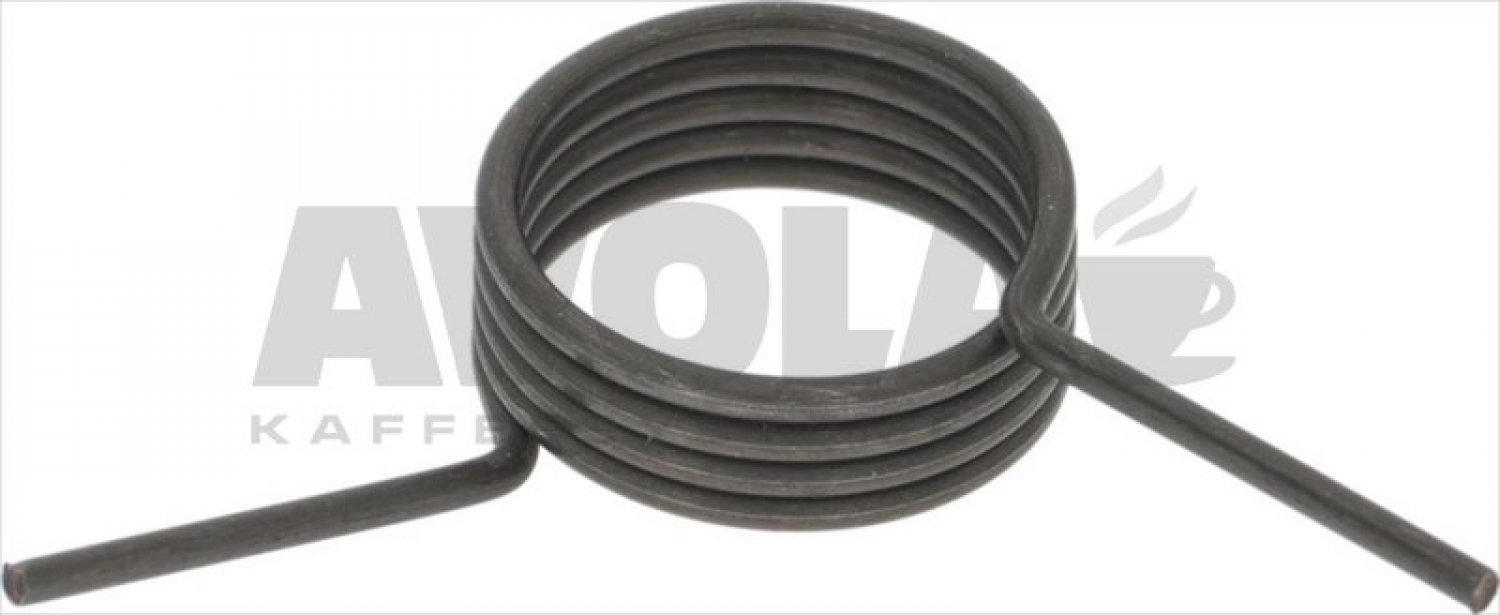

84 | 8003580 |  | 8003580 DOSER LEVER RETURN SPRING | excl. Shipping costs Delivery time is determined |
5,18 € | |
87 | 8007269 |  | 8007269 MID HEXAGONAL NUT M6 | excl. Shipping costs Delivery time is determined |
| |
100 | 8075588 |  | 8075588 SECHSKANTMUTTER M4 Messing | excl. Shipping costs immediately available |
| |
If your article is not listed, please use the following form and enter the desired numbers.
