San Marco Grinder

SMM0601 DOSIERMAHLWERK SMMK-SMFK

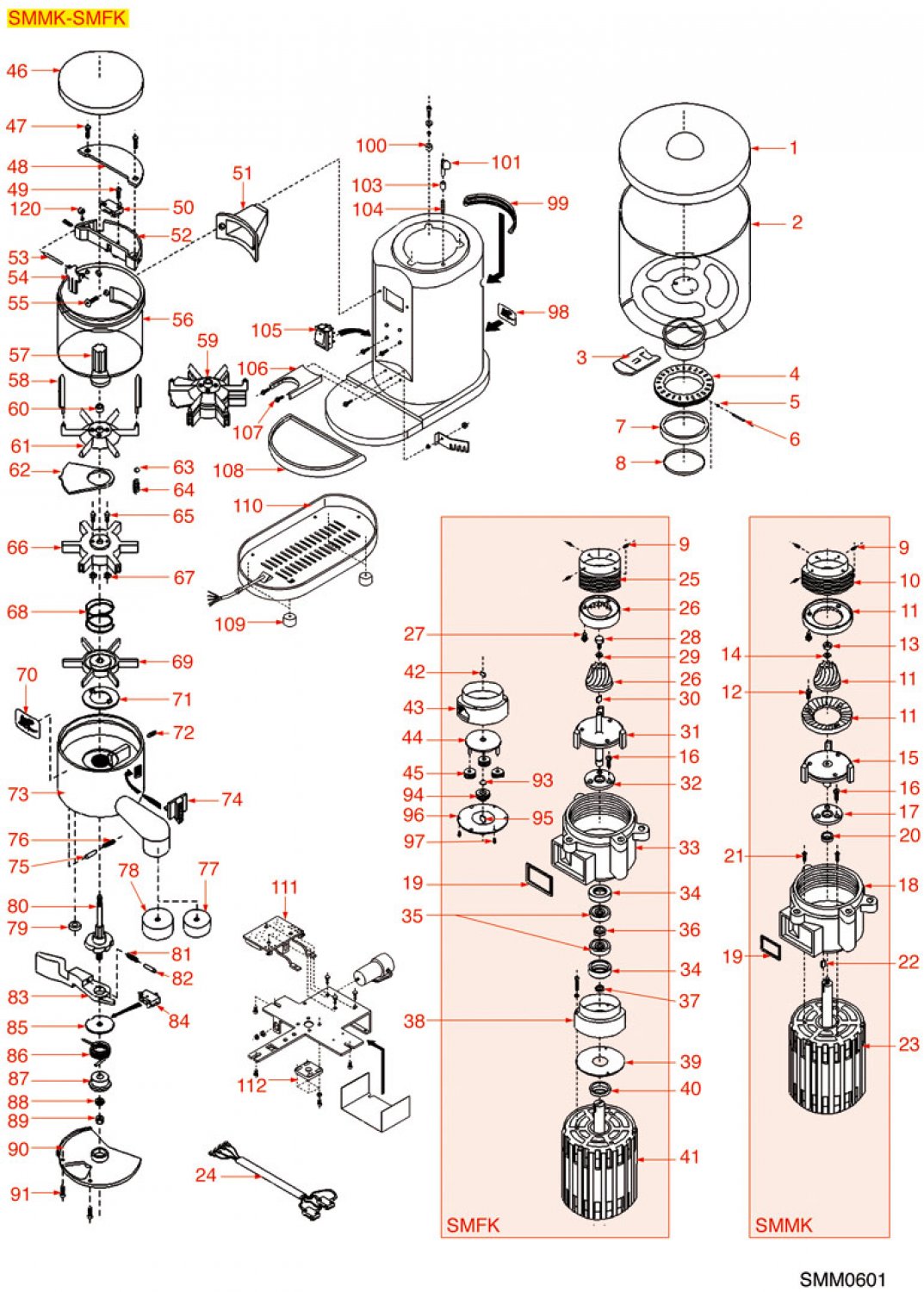

Drawing number 8057457

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1coffee hopper lid 8004126
COFFEE HOPPER LID
21,32 €

excl. Shipping costs

Delivery time 4-6 weeks..
2coffee container 4 6 l 8000354
COFFEE CONTAINER 4.6 L
70,92 €

excl. Shipping costs

immediately available, 2 available
2coffee container 6 l 8000356
COFFEE CONTAINER 6 L
Price on request
3coffee hopper closing sheet 8004121
COFFEE HOPPER CLOSING SHEET
4,41 €

excl. Shipping costs

Delivery time 4-6 weeks..
5stainless steel circlip ra 4 uni 7437 8005617
STAINLESS STEEL CIRCLIP RA-4 UNI 7437
0,48 €

excl. Shipping costs

immediately available
7gasket 8001918
GASKET
7,15 €

excl. Shipping costs

Delivery time 4-6 weeks
8o ring 0171 epdm 8001940
O-RING 0171 EPDM
3,03 €

excl. Shipping costs

immediately available, 15 available

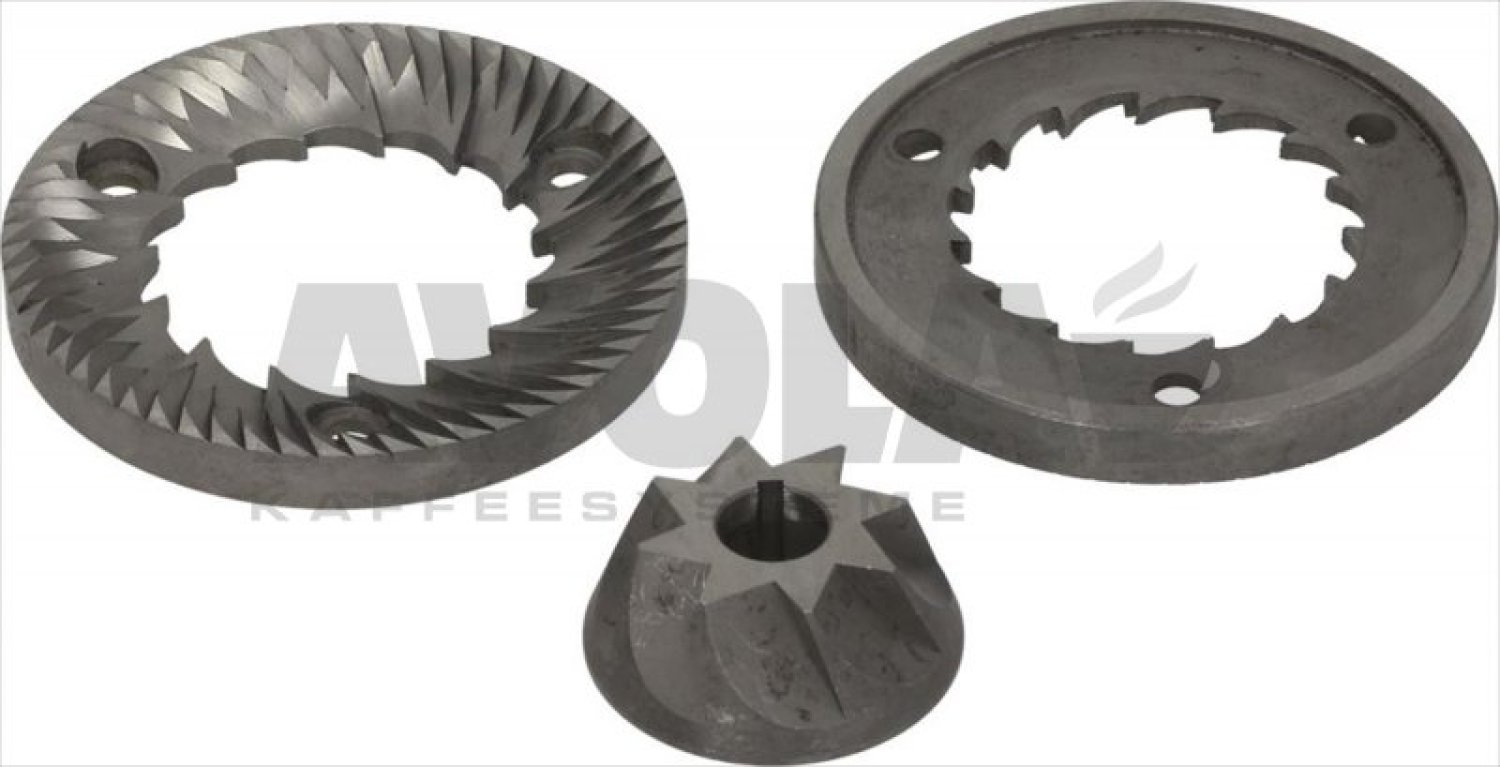

11half conical grind burr s marco pair rh 8003896
HALF CONICAL GRIND.BURR S.MARCO(PAIR) RH
110,02 €

excl. Shipping costs

Delivery time
is determined
12cylinder head screw m5x12 8007321
CYLINDER HEAD SCREW M5x12
1,38 €

excl. Shipping costs

immediately available
19gasket for coffee outlet opening 8001708
GASKET FOR COFFEE OUTLET OPENING
4,57 €

excl. Shipping costs

immediately available, 18 available
26conical grind burrs san marco pair rh 8004005
CONICAL GRIND.BURRS SAN MARCO (PAIR) RH
85,81 €

excl. Shipping costs

immediately available, 1 available
27schraube zylinderkopf innensechskant vollgewinde edelstahl m4x16 8036670
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x16
1,19 €

excl. Shipping costs

immediately available
46doser lid 8004115
DOSER LID
7,41 €

excl. Shipping costs

Delivery time
is determined
48microswitch box lid 8004117
MICROSWITCH BOX LID
5,71 €

excl. Shipping costs

Delivery time
is determined
50microswitch 16a 250v 8016308
MICROSWITCH 16A 250V
9,54 €

excl. Shipping costs

immediately available, 3 available
51gasket for coffee outlet opening 8004113
GASKET FOR COFFEE OUTLET OPENING
6,85 €

excl. Shipping costs

Delivery time
is determined
52microswitch box 8004118
MICROSWITCH BOX
9,64 €

excl. Shipping costs

Delivery time
is determined
53pin for flap 8002898
PIN FOR FLAP
3,58 €

excl. Shipping costs

Delivery time
is determined
54overflow flap 8004124
OVERFLOW FLAP
17,70 €

excl. Shipping costs

immediately available, 1 available
56doser cylinder 8004109
DOSER CYLINDER
21,43 €

excl. Shipping costs

Delivery time
is determined
57dose adjustment knob 8004129
DOSE ADJUSTMENT KNOB
15,89 €

excl. Shipping costs

Delivery time 4-6 weeks
58doser scraper 8005393
DOSER SCRAPER
1,93 €

excl. Shipping costs

Delivery time
is determined
61top star 8005338
TOP STAR
6,53 €

excl. Shipping costs

Delivery time
is determined
62san marco dividing sheet 8004122
SAN MARCO DIVIDING SHEET
6,71 €

excl. Shipping costs

Delivery time
is determined
63locking ball 8004125
LOCKING BALL
1,51 €

excl. Shipping costs

Delivery time
is determined
64spring for star closing ball 8003581
SPRING FOR STAR CLOSING BALL
Price on request
66central star 8005336
CENTRAL STAR
7,94 €

excl. Shipping costs

Delivery time
is determined
67hexagonal nut m3 8005446
HEXAGONAL NUT M3
0,55 €

excl. Shipping costs

immediately available
68star spring 8003576
STAR SPRING
4,52 €

excl. Shipping costs

Delivery time 4-6 weeks
69bottom star 8005334
BOTTOM STAR
6,81 €

excl. Shipping costs

Delivery time 4-6 weeks..
74counter for coffee grinder 8004111
COUNTER FOR COFFEE GRINDER
41,65 €

excl. Shipping costs

immediately available, 1 available
75bolzen o 4x16 mm 8005214
BOLZEN ø 4x16 mm
1,26 €

excl. Shipping costs

immediately available, 11 available
76pin spring 8003705
PIN SPRING
3,56 €

excl. Shipping costs

Delivery time 4-6 weeks..
77coffee tamper 8006178
COFFEE TAMPER
Price on request
78tamper 8006169
TAMPER
8,66 €

excl. Shipping costs

Delivery time 4-6 weeks..
80doser lever pin 8004114
DOSER LEVER PIN
22,84 €

excl. Shipping costs

Delivery time 4-6 weeks
81pin spring 8003578
PIN SPRING
1,26 €

excl. Shipping costs

Delivery time
is determined
82doser lever pin 8005174
DOSER LEVER PIN
5,93 €

excl. Shipping costs

Delivery time 4-6 weeks..
83doser lever 8004112
DOSER LEVER
13,24 €

excl. Shipping costs

Delivery time
is determined
84microswitch 10 4 a 250v 8059597
MICROSWITCH 10(4)A 250V
11,40 €

excl. Shipping costs

immediately available, 2 available
86doser lever return spring 8003580
DOSER LEVER RETURN SPRING
5,18 €

excl. Shipping costs

Delivery time
is determined
89mid hexagonal nut m6 8007269
MID HEXAGONAL NUT M6
Price on request
103bushing 8004470
BUSHING
1,88 €

excl. Shipping costs

Delivery time 4-6 weeks..
104pin spring o 5 5x32 mm 8003706
Pin spring ø 5,5x32 mm
2,59 €

excl. Shipping costs

immediately available, 1 available
105black bipolar switch 16a 250v 8020541
BLACK BIPOLAR SWITCH 16A 250V
13,08 €

excl. Shipping costs

immediately available, 9 available
106filter holder fork 8003897
FILTER HOLDER FORK
9,10 €

excl. Shipping costs

Delivery time 4-6 weeks..
108la san marco coffee collection tray 8004577
LA SAN MARCO COFFEE COLLECTION TRAY
12,39 €

excl. Shipping costs

immediately available, 1 available
111san marco printed circuit board 230v 8006252
SAN MARCO PRINTED CIRCUIT BOARD 230V
79,69 €
79,69 €

excl. Shipping costs

Delivery time
is determined
120sechskantmutter m4 messing 8075588
SECHSKANTMUTTER M4 Messing
Price on request

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
