San Marco Grinder

SAN MARCO SM95-SM95A OLD

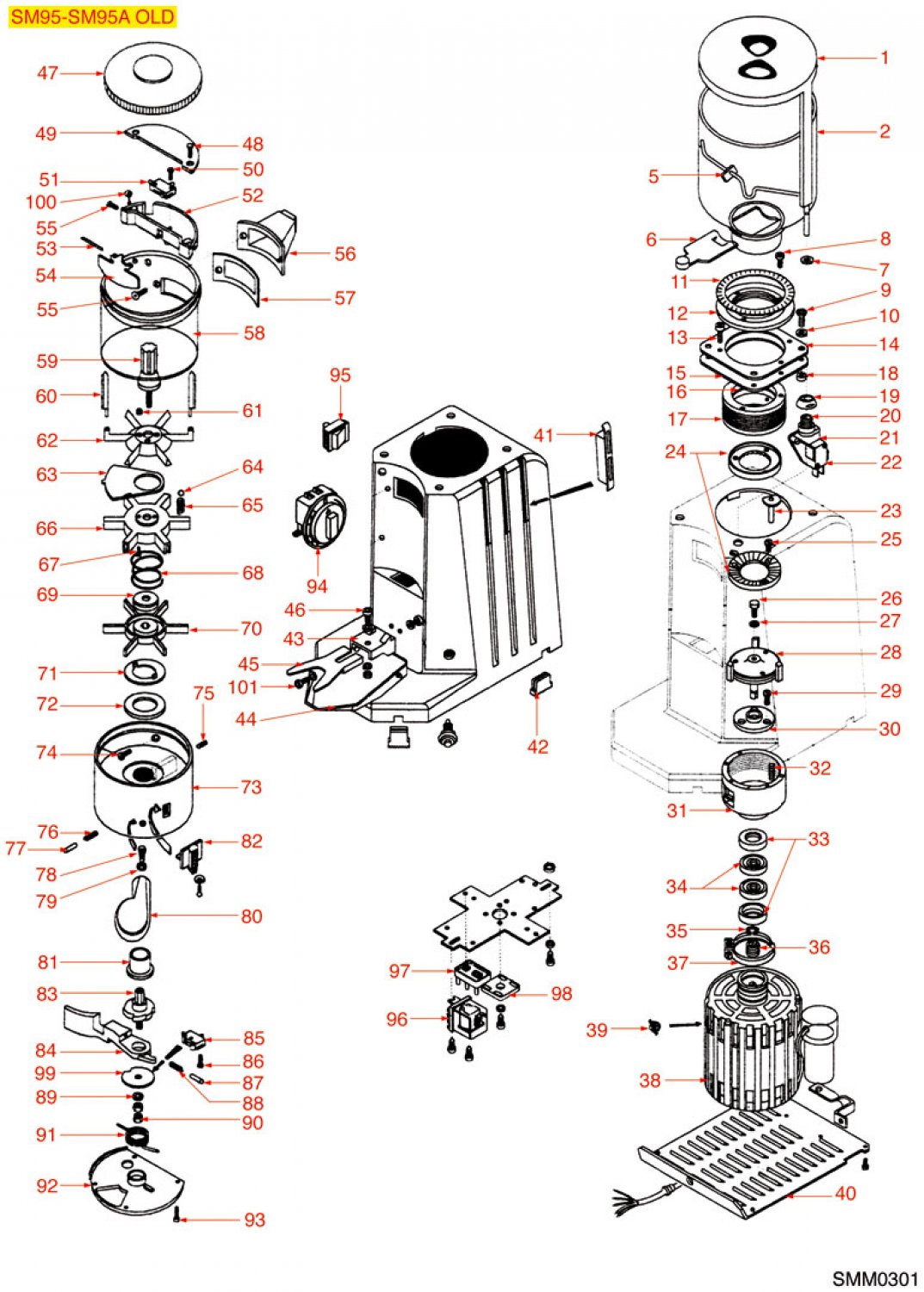

Drawing number 8057454

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1coffee hopper lid 8004127
COFFEE HOPPER LID
17,59 €

excl. Shipping costs

Delivery time 4-6 weeks..
2san marco coffee hopper 8000355
San Marco COFFEE HOPPER
36,21 €

excl. Shipping costs

Delivery time
is determined
5complete magnet 8002872
COMPLETE MAGNET
10,04 €

excl. Shipping costs

Delivery time
is determined
6coffee hopper closing sheet 8004120
COFFEE HOPPER CLOSING SHEET
5,30 €

excl. Shipping costs

Delivery time
is determined
7o ring 02018 epdm 8064737
O-RING 02018 EPDM
1,70 €

excl. Shipping costs

immediately available
16o ring 0171 epdm 8001940
O-RING 0171 EPDM
3,03 €

excl. Shipping costs

immediately available, 15 available
19threaded ring nut 8004119
THREADED RING NUT
4,18 €

excl. Shipping costs

Delivery time 4-6 weeks..
21microswitch spring 8003577
MICROSWITCH SPRING
This article is no longer available
22microswitch 16a 250v 8016308
MICROSWITCH 16A 250V
9,54 €

excl. Shipping costs

immediately available, 3 available
24grinding burrs san marco pair rh 8003960
GRINDING BURRS SAN MARCO (PAIR) RH
42,66 €

excl. Shipping costs

immediately available, 1 available
24original san marco mahlscheiben 84x45x9mm rechtsdrehend 8281312
Original San Marco Mahlscheiben 84x45x9mm rechtsdrehend
65,45 €

excl. Shipping costs

immediately available, 3 available
25cylinder head screw m5x12 8007321
CYLINDER HEAD SCREW M5x12
1,38 €

excl. Shipping costs

immediately available
28grinding burrs bottom holder 8004004
GRINDING BURRS BOTTOM HOLDER
108,15 €

excl. Shipping costs

Delivery time 4-6 weeks
32pin spring o 5 5x32 mm 8003706
Pin spring ø 5,5x32 mm
2,59 €

excl. Shipping costs

immediately available, 1 available

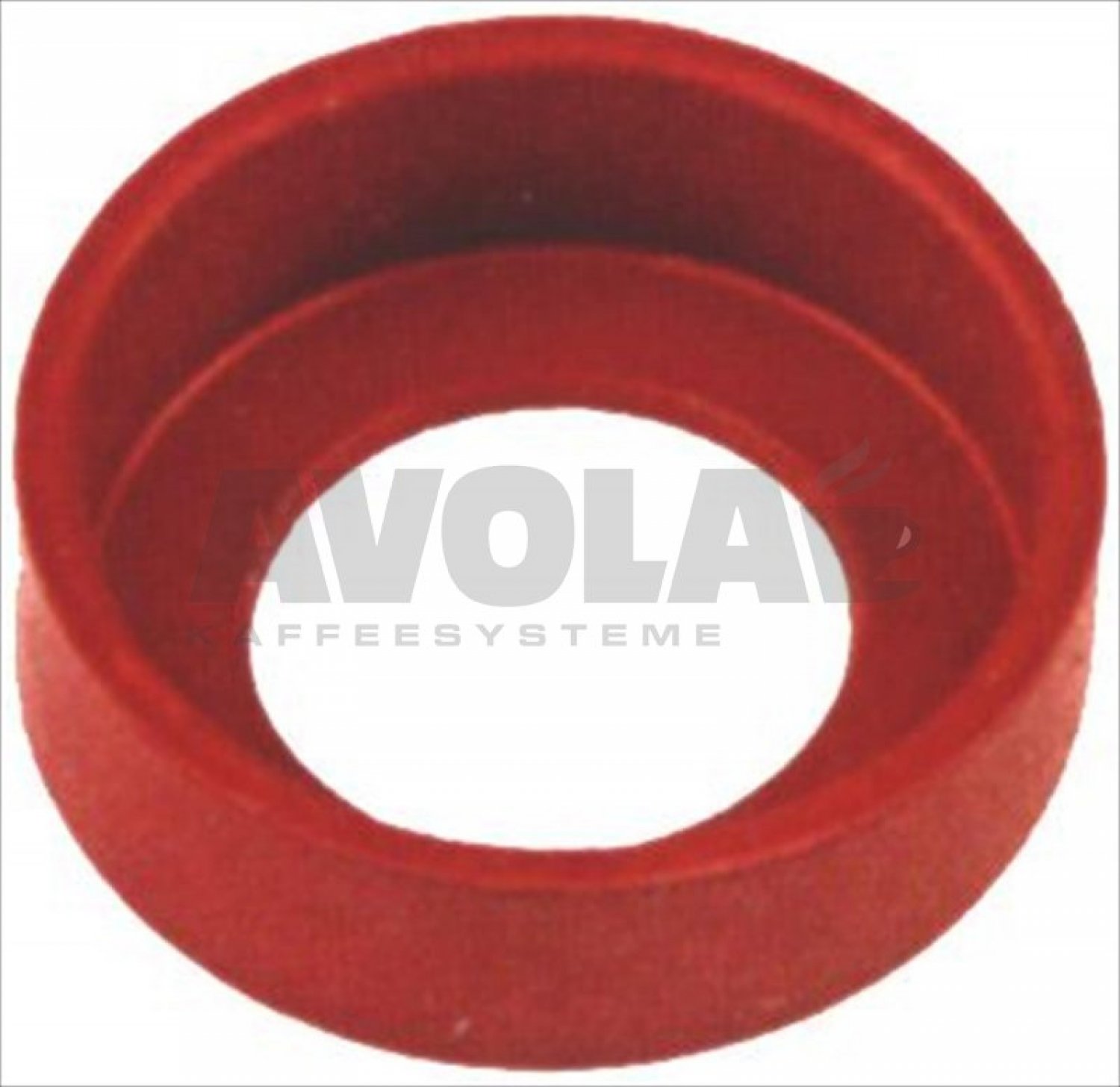

33bearing gasket 8004128
BEARING GASKET
2,63 €

excl. Shipping costs

Delivery time
is determined
36san marco feder fuer motorstift 8003579
San Marco Feder für Motorstift
4,51 €

excl. Shipping costs

immediately available, 3 available
37stainless steel clamp for flange pump 8001277
STAINLESS STEEL CLAMP FOR FLANGE PUMP
6,90 €

excl. Shipping costs

immediately available, 8 available
42rectangular foot 8004592
RECTANGULAR FOOT
This article is no longer available

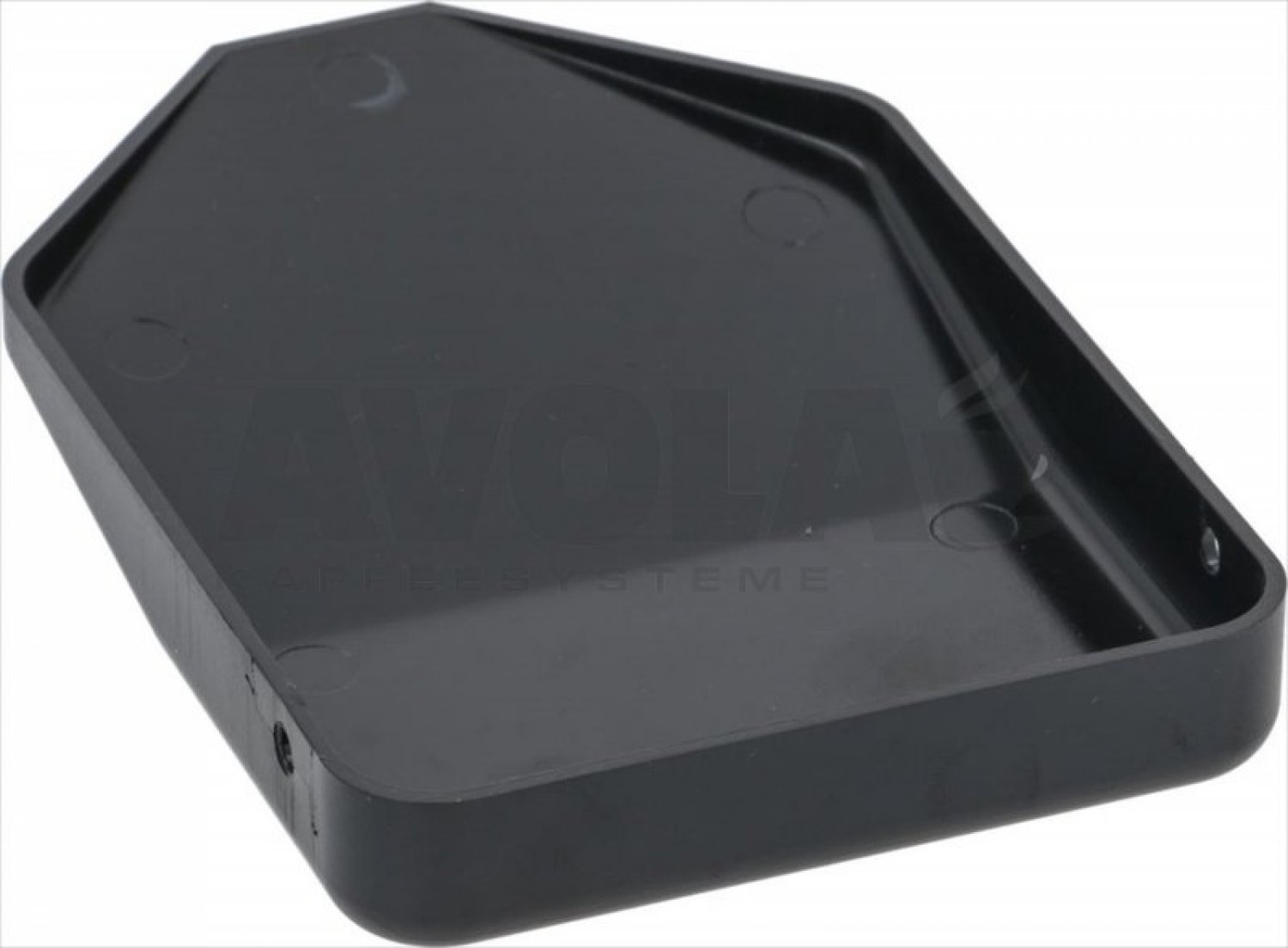

44coffee collecting tray 8004578
COFFEE COLLECTING TRAY
22,79 €

excl. Shipping costs

Delivery time 4-6 weeks..
45filter holder fork 8003893
FILTER HOLDER FORK
This article is no longer available
47la san marco doser lid 8004108
LA SAN MARCO DOSER LID
This article is no longer available
49microswitch box lid 8004117
MICROSWITCH BOX LID
5,71 €

excl. Shipping costs

Delivery time
is determined
51microswitch 16a 250v 8016308
MICROSWITCH 16A 250V
9,54 €

excl. Shipping costs

immediately available, 3 available
52microswitch box 8004118
MICROSWITCH BOX
9,64 €

excl. Shipping costs

Delivery time
is determined
53pin for flap 8002898
PIN FOR FLAP
3,58 €

excl. Shipping costs

Delivery time
is determined
54overflow flap 8004124
OVERFLOW FLAP
17,70 €

excl. Shipping costs

immediately available, 1 available
56gasket for coffee outlet opening 8004113
GASKET FOR COFFEE OUTLET OPENING
6,85 €

excl. Shipping costs

Delivery time
is determined
57gasket for coffee outlet opening 8001708
GASKET FOR COFFEE OUTLET OPENING
4,57 €

excl. Shipping costs

immediately available, 18 available
58doser cylinder 8004109
DOSER CYLINDER
21,43 €

excl. Shipping costs

Delivery time
is determined
59dose adjustment knob 8004116
DOSE ADJUSTMENT KNOB
15,12 €

excl. Shipping costs

Delivery time 4-6 weeks..
60scraper for doser 8005345
SCRAPER FOR DOSER
2,17 €

excl. Shipping costs

immediately available, 4 available
61hexagonal nut m3 8005446
HEXAGONAL NUT M3
0,55 €

excl. Shipping costs

immediately available
62san marco top star 8005335
San Marco TOP STAR
10,59 €

excl. Shipping costs

Delivery time
is determined
63san marco dividing sheet 8004122
SAN MARCO DIVIDING SHEET
6,71 €

excl. Shipping costs

Delivery time 4-6 weeks..
64locking ball 8004125
LOCKING BALL
1,51 €

excl. Shipping costs

Delivery time
is determined
65spring for star closing ball 8003581
SPRING FOR STAR CLOSING BALL
Price on request
66central star 8005340
CENTRAL STAR
7,34 €

excl. Shipping costs

Delivery time 4-6 weeks..
68star spring 8003576
STAR SPRING
4,52 €

excl. Shipping costs

Delivery time 4-6 weeks
70bottom star 8005339
BOTTOM STAR
7,40 €

excl. Shipping costs

Delivery time
is determined
76pin spring 8003705
PIN SPRING
3,56 €

excl. Shipping costs

Delivery time 4-6 weeks..
77bolzen o 4x16 mm 8005214
BOLZEN ø 4x16 mm
1,26 €

excl. Shipping costs

immediately available, 11 available
82counter for coffee grinder 8004111
COUNTER FOR COFFEE GRINDER
41,65 €

excl. Shipping costs

immediately available, 1 available
836 teeth pawl with knob 8002815
6-TEETH PAWL WITH KNOB
45,77 €

excl. Shipping costs

Delivery time
is determined
84doser lever 8004112
DOSER LEVER
13,24 €

excl. Shipping costs

Delivery time
is determined
85microswitch 10 4 a 250v 8059597
MICROSWITCH 10(4)A 250V
11,40 €

excl. Shipping costs

immediately available, 2 available
87doser lever pin 8005174
DOSER LEVER PIN
5,93 €

excl. Shipping costs

Delivery time 4-6 weeks..
88pin spring 8003578
PIN SPRING
1,26 €

excl. Shipping costs

Delivery time
is determined
90mid hexagonal nut m6 8007269
MID HEXAGONAL NUT M6
Price on request
91doser lever return spring 8003580
DOSER LEVER RETURN SPRING
5,18 €

excl. Shipping costs

Delivery time
is determined
94timer 5 minutes c20 8027301
TIMER 5 MINUTES C20
25,26 €

excl. Shipping costs

Delivery time
is determined
95green bipolar switch 16a 250v 8020352
GREEN BIPOLAR SWITCH 16A 250V
11,17 €

excl. Shipping costs

Delivery time
is determined
96power relay finder 55 32 8 230 0040 8022753
POWER RELAY FINDER 55.32.8.230.0040
35,56 €

excl. Shipping costs

Delivery time
is determined
100sechskantmutter m4 messing 8075588
SECHSKANTMUTTER M4 Messing
Price on request

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
