San Marco

LA SAN MARCO GRUPPE KAFFEEAUSGABE 100 SE DTC

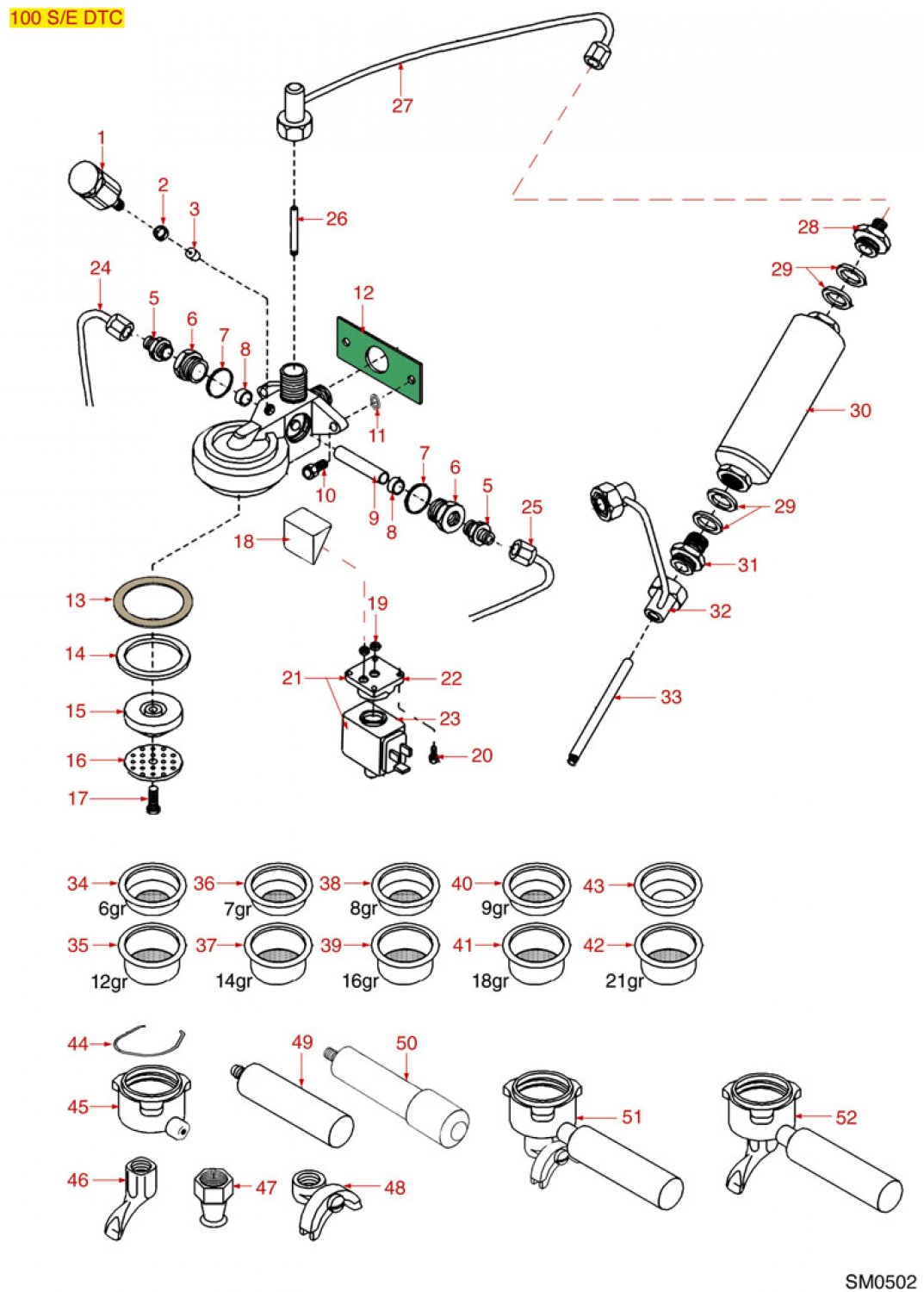

Drawing number 8057440

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1la san marco group infuser 8002696
La San Marco GROUP INFUSER
35,22 €

excl. Shipping costs

immediately available, 2 available
2o ring 0117 epdm 8018537
O-RING 0117 EPDM
0,73 €

excl. Shipping costs

immediately available

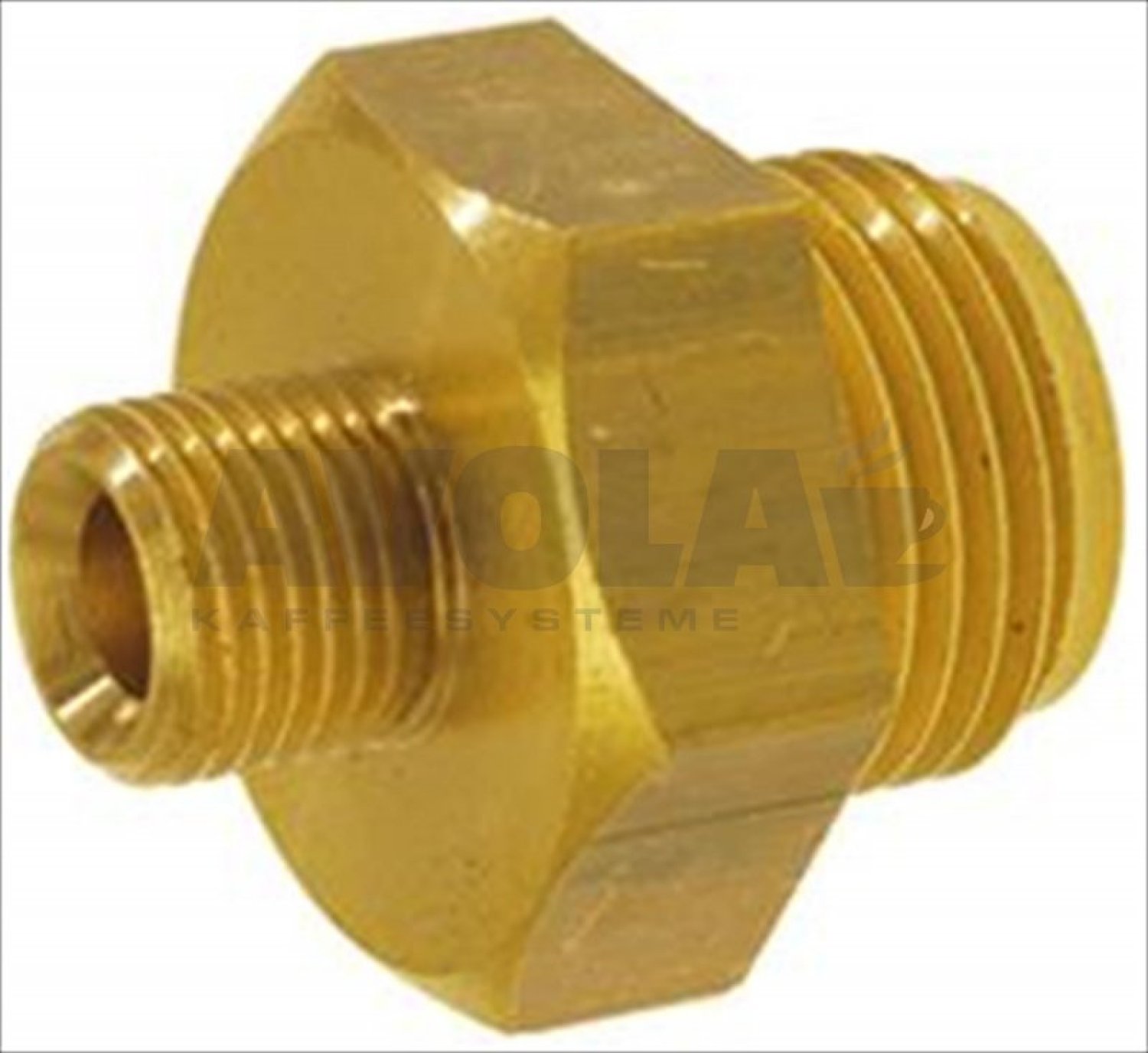

5group fitting 8005824
GROUP FITTING
15,34 €

excl. Shipping costs

Delivery time
is determined

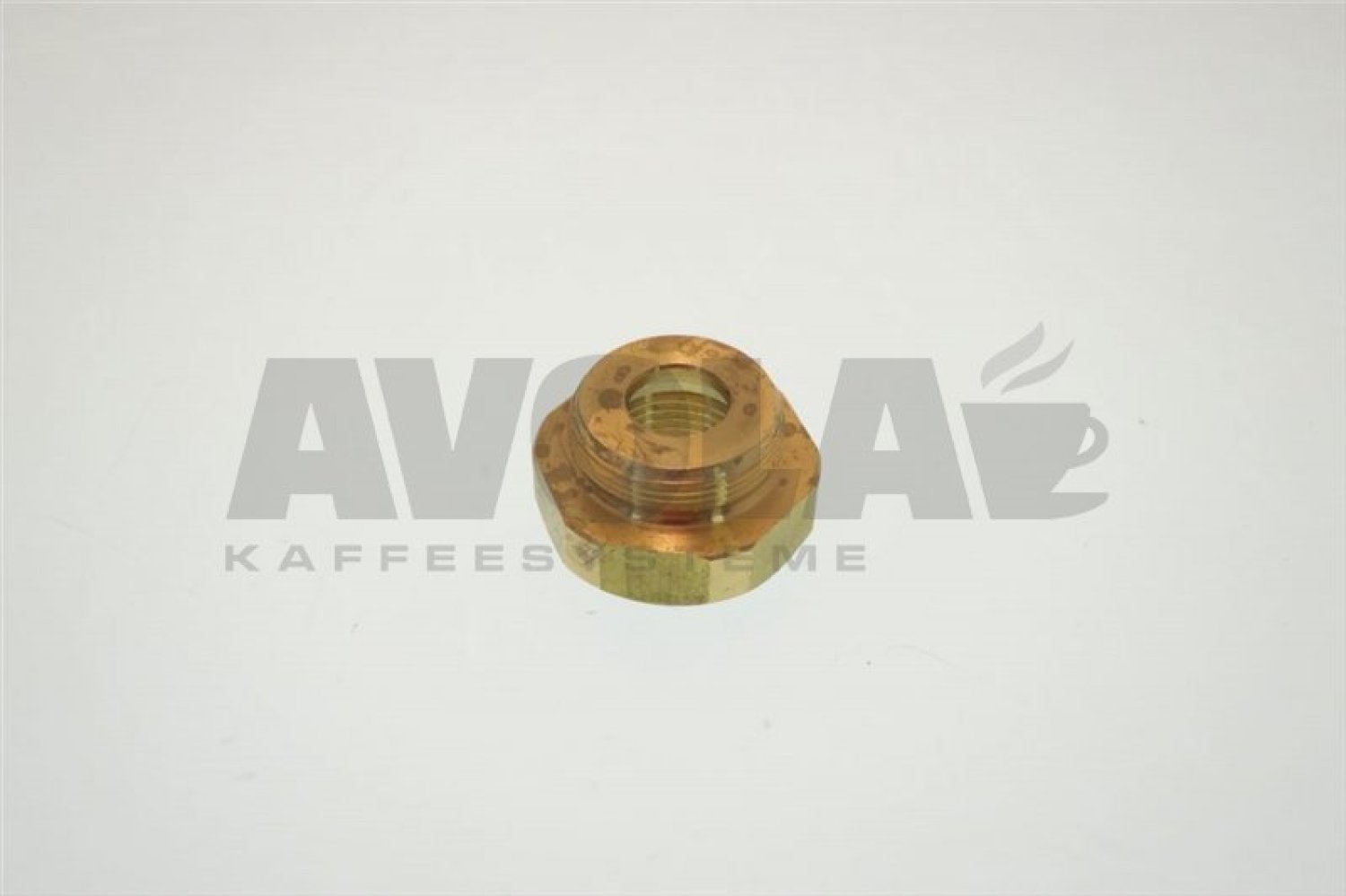

6reducer o 3 8 8005825
REDUCER ø 3/8
13,66 €

excl. Shipping costs

immediately available, 2 available

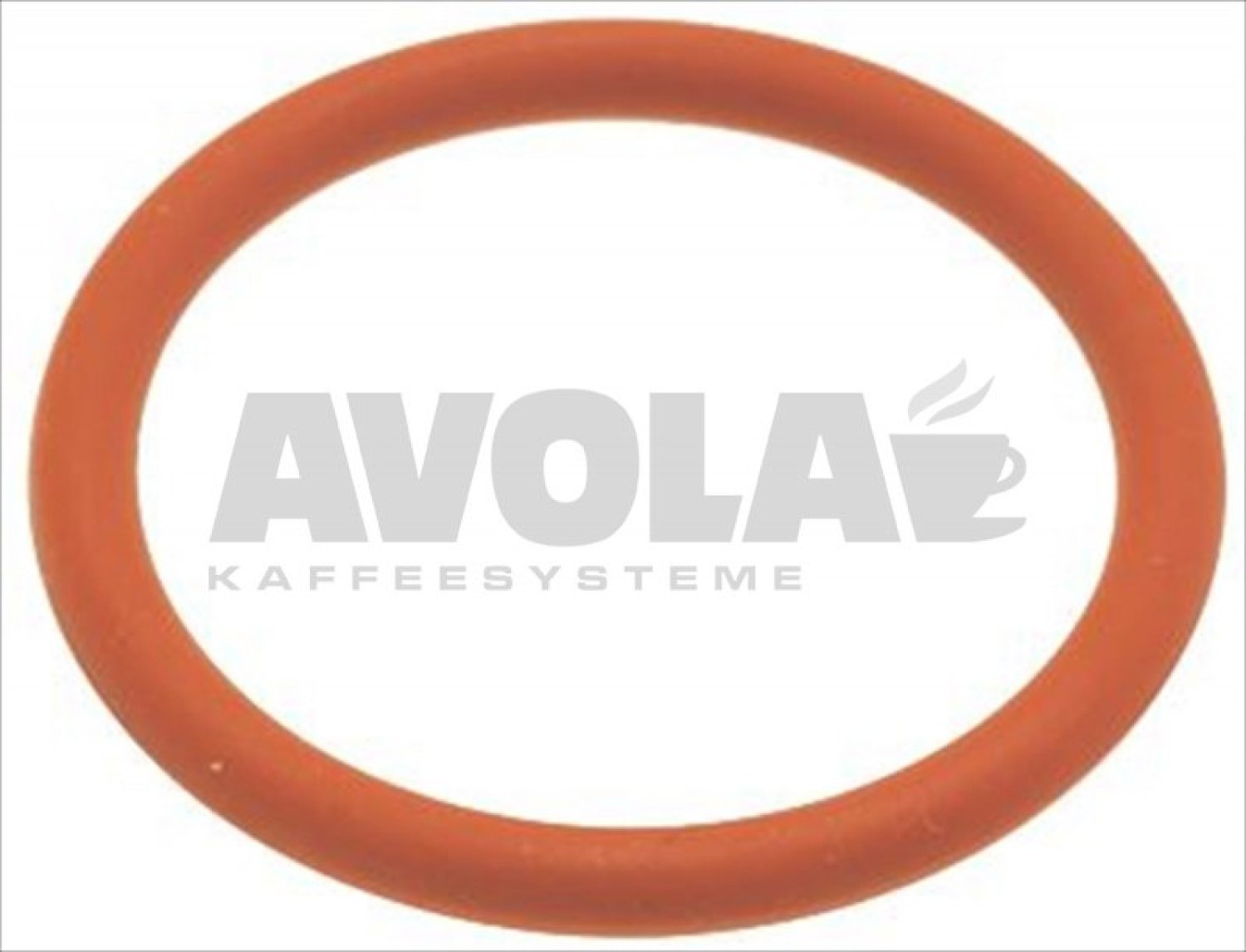

7gasket or 0130 silicone 8001556
GASKET OR 0130 SILICONE
Price on request
7red silicone o ring 03087 8001969
RED SILICONE O-RING 03087
1,57 €

excl. Shipping costs

immediately available

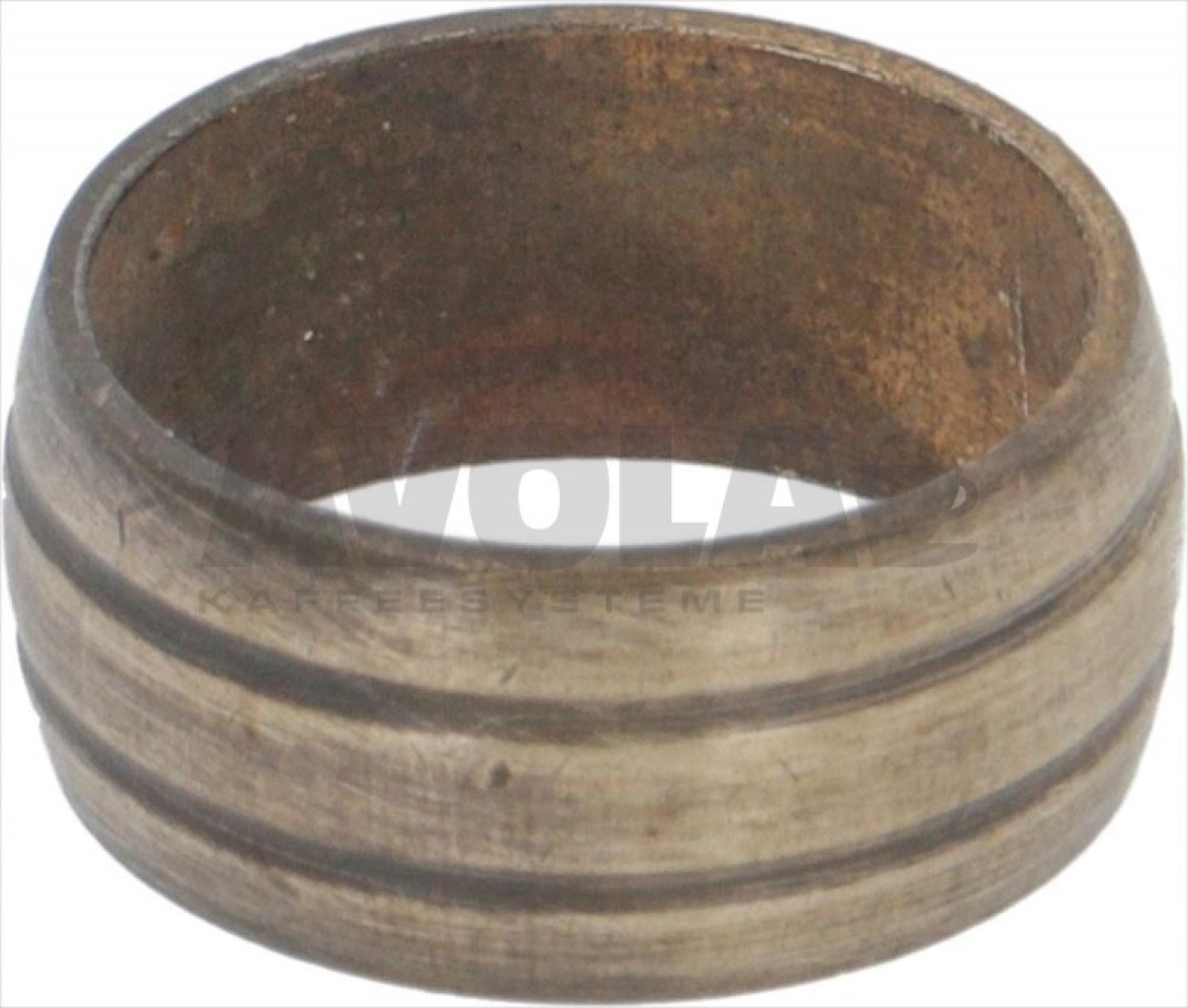

8pipe olive 8021989
PIPE OLIVE
3,55 €

excl. Shipping costs

immediately available, 4 available

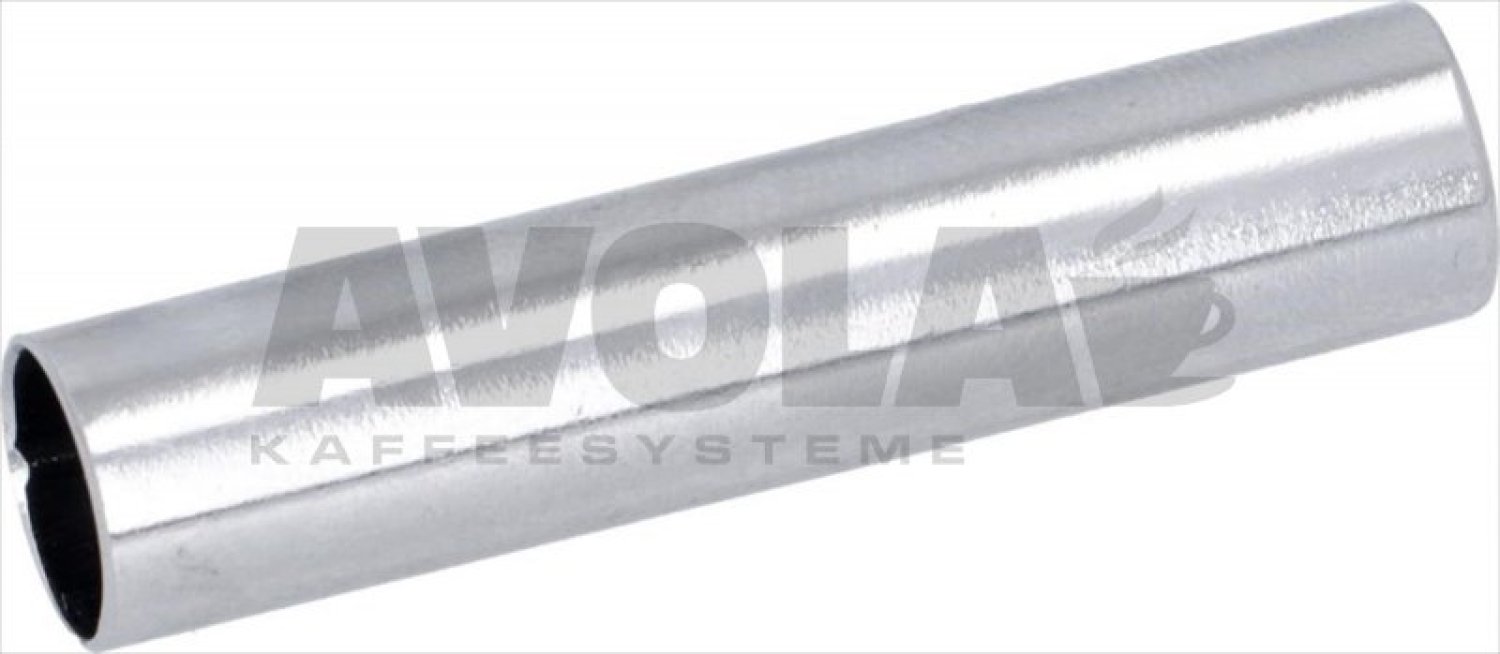

9refrigeration pipe 8006792
REFRIGERATION PIPE
6,33 €

excl. Shipping costs

Delivery time
is determined
10schraube zylinderkopf innensechskant vollgewinde edelstahl m8x20 a2 70 din 912 8061169
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M8x20 A2-70 Din 912
2,67 €

excl. Shipping costs

immediately available
12coffee group gasket 95x45 mm 8001742
COFFEE GROUP GASKET 95x45 mm
5,34 €

excl. Shipping costs

immediately available, 13 available
13rubber piece o 64x53x1 mm epdm 8063523
RUBBER PIECE ø 64x53x1 mm EPDM
1,06 €

excl. Shipping costs

immediately available
13paper seal o 64x53x0 7 mm 8002176
Paper seal ø 64x53x0,7 mm
0,54 €

excl. Shipping costs

immediately available
14filter holder gasket o 64x53x5 5 mm 8002016
FILTER HOLDER GASKET ø 64x53x5,5 mm
3,84 €

excl. Shipping costs

immediately available
14la san marco silikon dichtung siebtraegerdichtung 64 6x53xh 5 5mm 8279244
La San Marco Silikon Dichtung Siebträgerdichtung 64,6X53XH.5.5MM
5,95 €

excl. Shipping costs

immediately available
14la san marco original siebtraegerdichtung mit praegung 8079300
La San Marco Original Siebträgerdichtung mit Prägung
5,90 €

excl. Shipping costs

immediately available
15shower holder diffuser 8000645
SHOWER HOLDER DIFFUSER
25,32 €

excl. Shipping costs

Delivery time 4-6 weeks..
16shower screen o 48 mm 8000580
SHOWER SCREEN ø 48 mm
4,63 €

excl. Shipping costs

immediately available
17showerscrew m5x20 8007250
SHOWERSCREW M5x20
1,25 €

excl. Shipping costs

immediately available
19red silicone o ring r5 gasket 8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs

immediately available
20low cylinder head screw m4x12 8001290
LOW CYLINDER HEAD SCREW M4x12
2,24 €

excl. Shipping costs

immediately available
213 way solenoid valve lucifer 240v 50hz 8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs

immediately available, 8 available
213 way solenoid valve parker 230v 50 60hz 8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs

immediately available, 7 available
223 way mechanical component lucifer 8000959
3-WAY MECHANICAL COMPONENT LUCIFER
39,77 €

excl. Shipping costs

immediately available, 9 available
223 way mechanical component parker 8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs

immediately available, 13 available
23coil lucifer parker 220 240v 9w 50hz 8000957
COIL LUCIFER/PARKER 220/240V 9W 50Hz
19,92 €

excl. Shipping costs

immediately available, 5 available
23coil parker zb09 9w 220 240v 50 60hz 8012418
COIL PARKER ZB09 9W 220/240V 50/60Hz
20,74 €

excl. Shipping costs

immediately available, 13 available

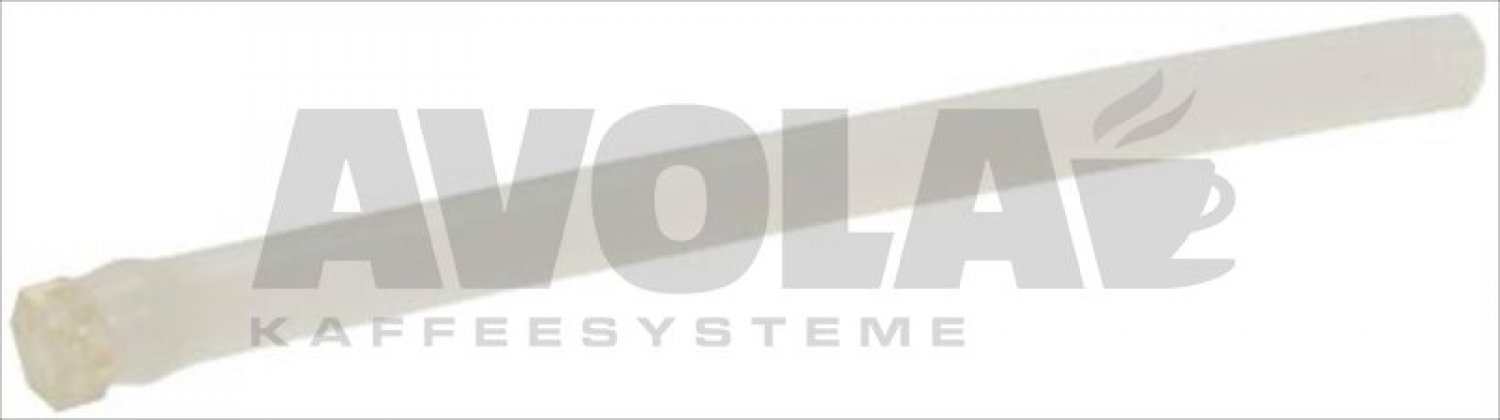

26nozzle group 8006972
NOZZLE GROUP
18,66 €

excl. Shipping costs

Delivery time
is determined
26nozzle group 8006997
NOZZLE GROUP
10,09 €

excl. Shipping costs

immediately available, 3 available

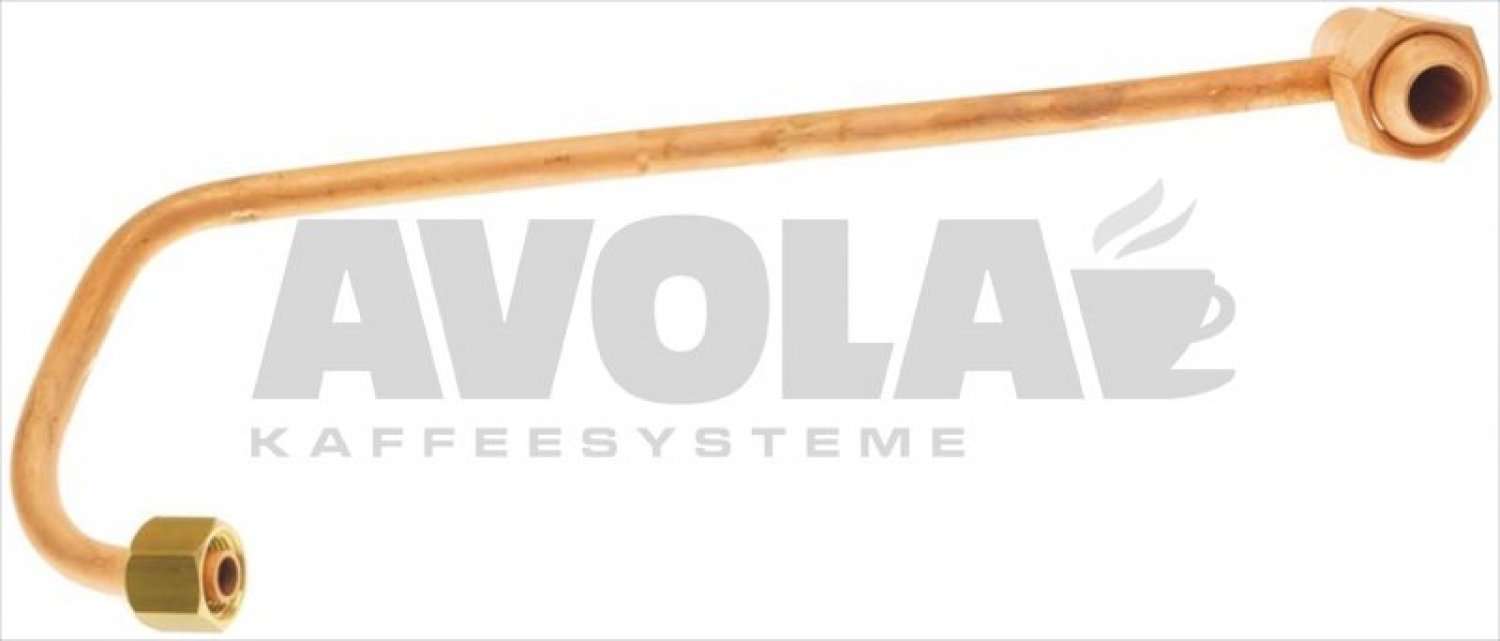

27exchanger assembly pipe 8006777
EXCHANGER ASSEMBLY PIPE
57,80 €

excl. Shipping costs

Delivery time 4-6 weeks..
28upper thermal fitting 8005822
UPPER THERMAL FITTING
21,86 €

excl. Shipping costs

Delivery time 4-6 weeks..
29ptfe flat gasket o 27x21x2 mm 8001555
PTFE FLAT GASKET ø 27x21x2 mm
3,12 €

excl. Shipping costs

immediately available

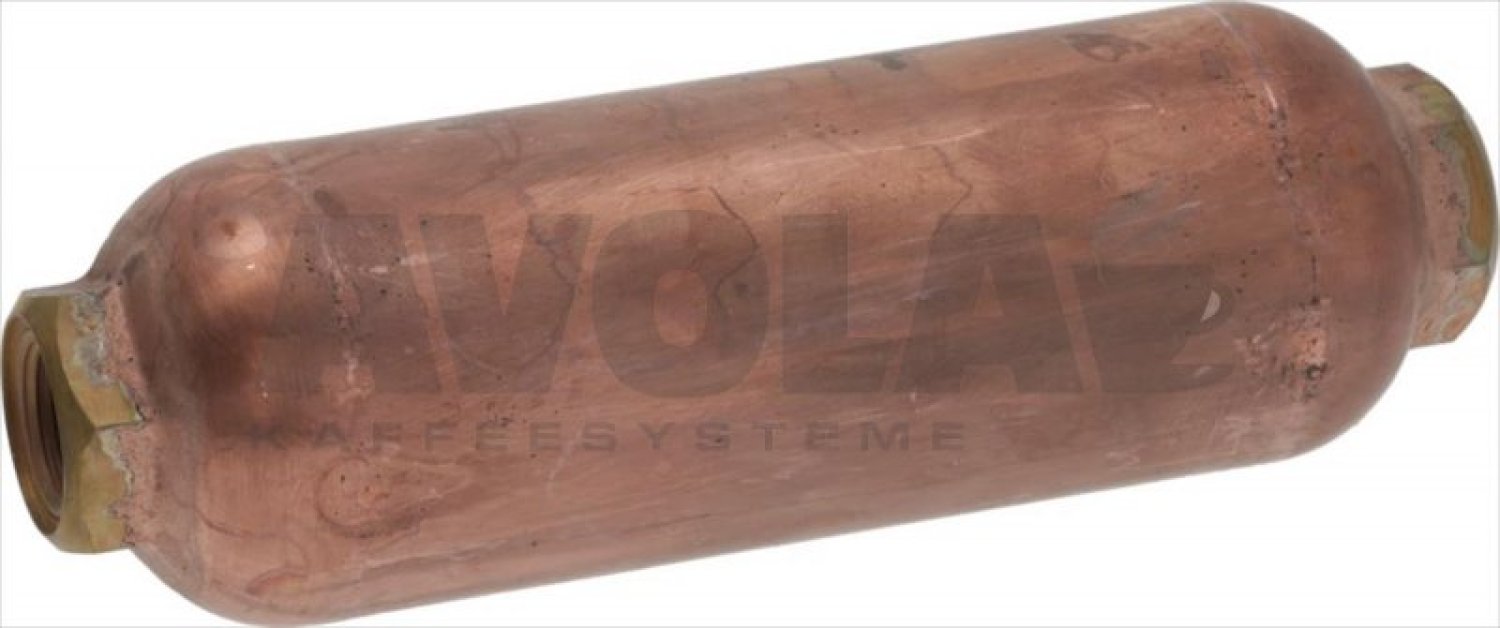

30thermal pipe 8006778
THERMAL PIPE
136,66 €

excl. Shipping costs

immediately available, 1 available
31lower thermal fitting 3 4 8005823
LOWER THERMAL FITTING 3/4
21,30 €

excl. Shipping costs

Delivery time
is determined
32exchanger assembly pipe 8006785
EXCHANGER ASSEMBLY PIPE
59,00 €

excl. Shipping costs

immediately available, 1 available
341 cup filter 6 gr 8001047
1 CUP FILTER 6 gr
5,63 €

excl. Shipping costs

immediately available, 7 available
352 cups filter 12 gr 8001073
2 CUPS FILTER 12 gr
5,55 €

excl. Shipping costs

immediately available, 8 available
36coffee filter 1 cup 7 grams 8001086
Coffee filter 1 cup 7 grams
7,41 €

excl. Shipping costs

immediately available, 8 available
37filter 2 cups 14 gr new type 8001084
FILTER 2 CUPS 14 gr NEW TYPE
5,68 €

excl. Shipping costs

immediately available, 4 available
381 cup filter 8 gr 8001085
1-CUP FILTER 8 gr
5,85 €

excl. Shipping costs

immediately available, 3 available
392 cup filter 16 g 8001087
2 CUP FILTER 16 g
7,18 €

excl. Shipping costs

immediately available, 6 available
401 cup filter 9 gr 8001053
1 CUP FILTER 9 gr
6,39 €

excl. Shipping costs

immediately available, 6 available
412 cups filter 18 gr 8001054
2 CUPS FILTER 18 gr
7,79 €

excl. Shipping costs

immediately available, 7 available
422 cups filter 21 gr 8001055
2 CUPS FILTER 21 gr
6,14 €

excl. Shipping costs

immediately available, 2 available
43la san marco blind filter 8001093
La San Marco BLIND FILTER
2,92 €

excl. Shipping costs

immediately available, 8 available
44filter blocking spring o 1 00 mm 8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs

immediately available
45filter holder san marco 8001040
FILTER HOLDER SAN MARCO
85,28 €

excl. Shipping costs

Delivery time
is determined
46single spout o 3 8 8000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs

immediately available, 7 available
47straight single spout o 3 8 8000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs

immediately available, 8 available
48lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne 8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
48double spout o 3 8 8000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs

immediately available, 7 available
49satin black knob for filter holder m10 8003206
SATIN BLACK KNOB FOR FILTER HOLDER M10
Price on request
49san marco black knob for filter holder m10 8003207
San Marco black knob for filter holder M10
12,90 €

excl. Shipping costs

immediately available, 3 available
50filter holder handle m10 8003350
FILTER HOLDER HANDLE M10
6,55 €

excl. Shipping costs

immediately available, 3 available
512 cups filter holder assembly san marco 8001182
2 CUPS FILTER HOLDER ASSEMBLY SAN MARCO
36,53 €

excl. Shipping costs

Delivery time
is determined
521 cup filter holder assembly san marco 8001232
1 CUP FILTER HOLDER ASSEMBLY SAN MARCO
41,58 €

excl. Shipping costs

immediately available, 2 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
