LA SAN MARCO GRUPPE KAFFEEAUSGABE MANUELL MODELL OLD

Drawing number 8057438

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
2ptfe flat gasket o 28x 23x2 mm8001546
PTFE FLAT GASKET ø 28x 23x2 mm
1,64 €

excl. Shipping costs
immediately available, 13 available
3tap spring o 16 x 218003801
TAP SPRING ø 16 x 21
1,75 €

excl. Shipping costs
immediately available, 18 available
4gasket holder bushing8007143
GASKET HOLDER BUSHING
This article is no longer available
5epdm flat gasket o 16 5x6x4 mm8001547
EPDM FLAT GASKET ø 16,5x6x4 mm
1,67 €

excl. Shipping costs
immediately available, 14 available
6top group pin8005152
TOP GROUP PIN
7,02 €

excl. Shipping costs
immediately available, 1 available
7microswitch 20a 380v8003092
MICROSWITCH 20A 380V
65,91 €

excl. Shipping costs
Delivery time 4-6 weeks
8group gasket o 87x75x5 8 mm8001549
GROUP GASKET ø 87x75x5,8 mm
3,17 €

excl. Shipping costs
immediately available, 6 available
9spring ring radial8005547
SPRING RING RADIAL
0,52 €

excl. Shipping costs
immediately available, 16 available
10drain fork pin8005149
DRAIN FORK PIN
4,19 €

excl. Shipping costs
Delivery time 4-6 weeks
11brewing group handle8003320
BREWING GROUP HANDLE
6,05 €

excl. Shipping costs
immediately available, 2 available
13flachdichtung aus fkm o 13 5x4x4 mm8001434
FLACHDICHTUNG AUS FKM ø 13,5x4x4 mm
Price on request
14outlet fitting8005856
OUTLET FITTING
18,09 €

excl. Shipping costs
immediately available, 2 available
15stainless steel ball8005090
STAINLESS STEEL BALL
2,71 €

excl. Shipping costs
immediately available, 3 available
16spring o 12x15 mm8003822
SPRING ø 12x15 mm
2,32 €

excl. Shipping costs
immediately available, 15 available

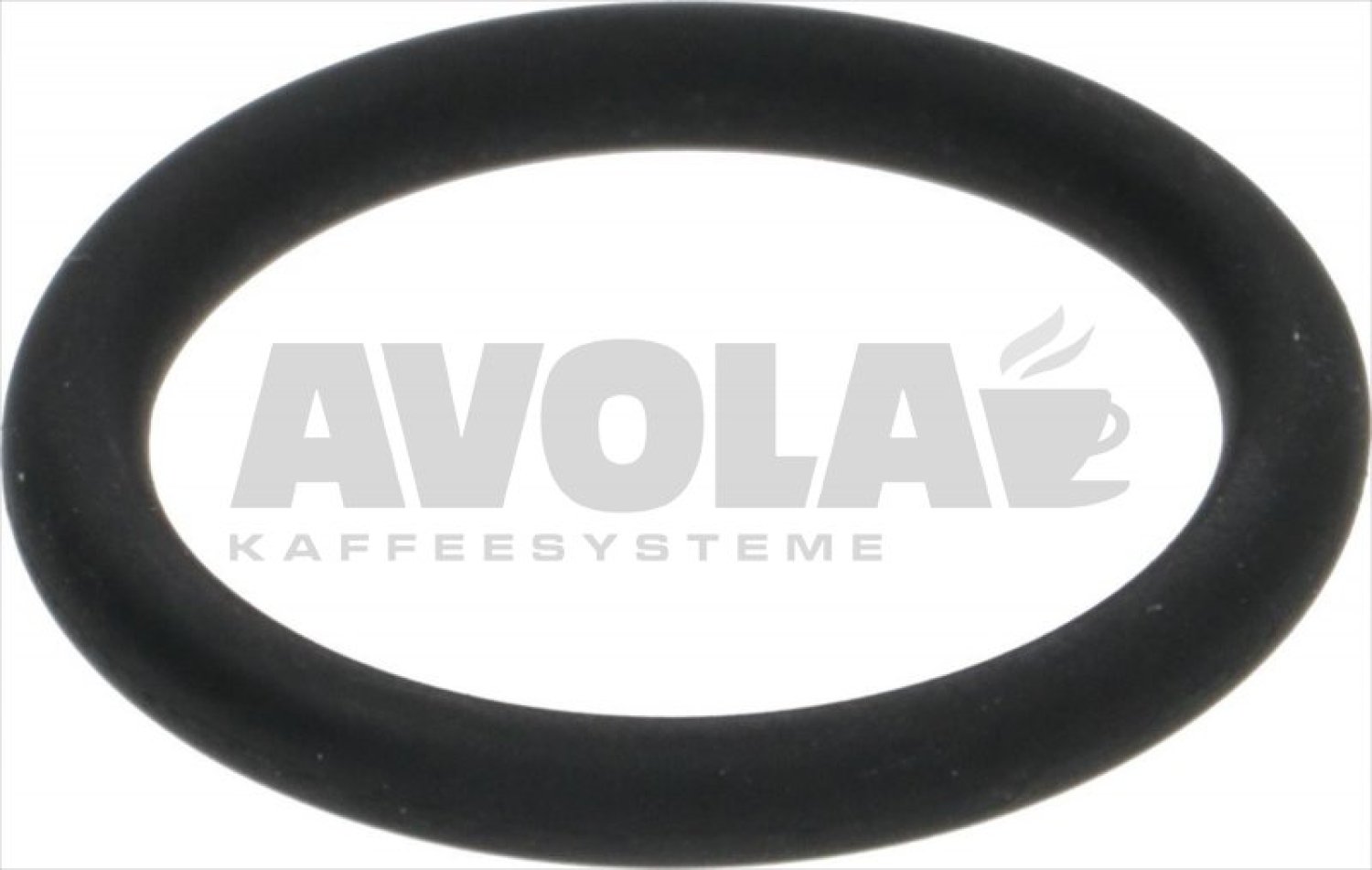

17o ring 03075 epdm8001598
O-RING 03075 EPDM
0,77 €

excl. Shipping costs
immediately available
18rubber piece o 64x53x1 mm epdm8063523
RUBBER PIECE ø 64x53x1 mm EPDM
1,06 €

excl. Shipping costs
immediately available
18paper seal o 64x53x0 7 mm8002176
Paper seal ø 64x53x0,7 mm
0,54 €

excl. Shipping costs
immediately available
19filter holder gasket o 64x53x5 5 mm8002016
FILTER HOLDER GASKET ø 64x53x5,5 mm
3,84 €

excl. Shipping costs
immediately available, 20 available
19la san marco silikon dichtung siebtraegerdichtung 64 6x53xh 5 5mm8279244
La San Marco Silikon Dichtung Siebträgerdichtung 64,6X53XH.5.5MM
5,95 €

excl. Shipping costs
immediately available, 20 available
19la san marco original siebtraegerdichtung mit praegung8079300
La San Marco Original Siebträgerdichtung mit Prägung
5,90 €

excl. Shipping costs
immediately available
20group gasket o 51x19x1 mm8001550
GROUP GASKET ø 51x19x1 mm
3,97 €

excl. Shipping costs
immediately available, 10 available
218125886
San Marco Verteilerscheibe Gruppe FCS Duschenträger
31,23 €

excl. Shipping costs
Delivery time
is determined
22shower screen o 48 mm8000580
SHOWER SCREEN ø 48 mm
4,63 €

excl. Shipping costs
immediately available
23showerscrew m5x208007250
SHOWERSCREW M5x20
1,25 €

excl. Shipping costs
immediately available

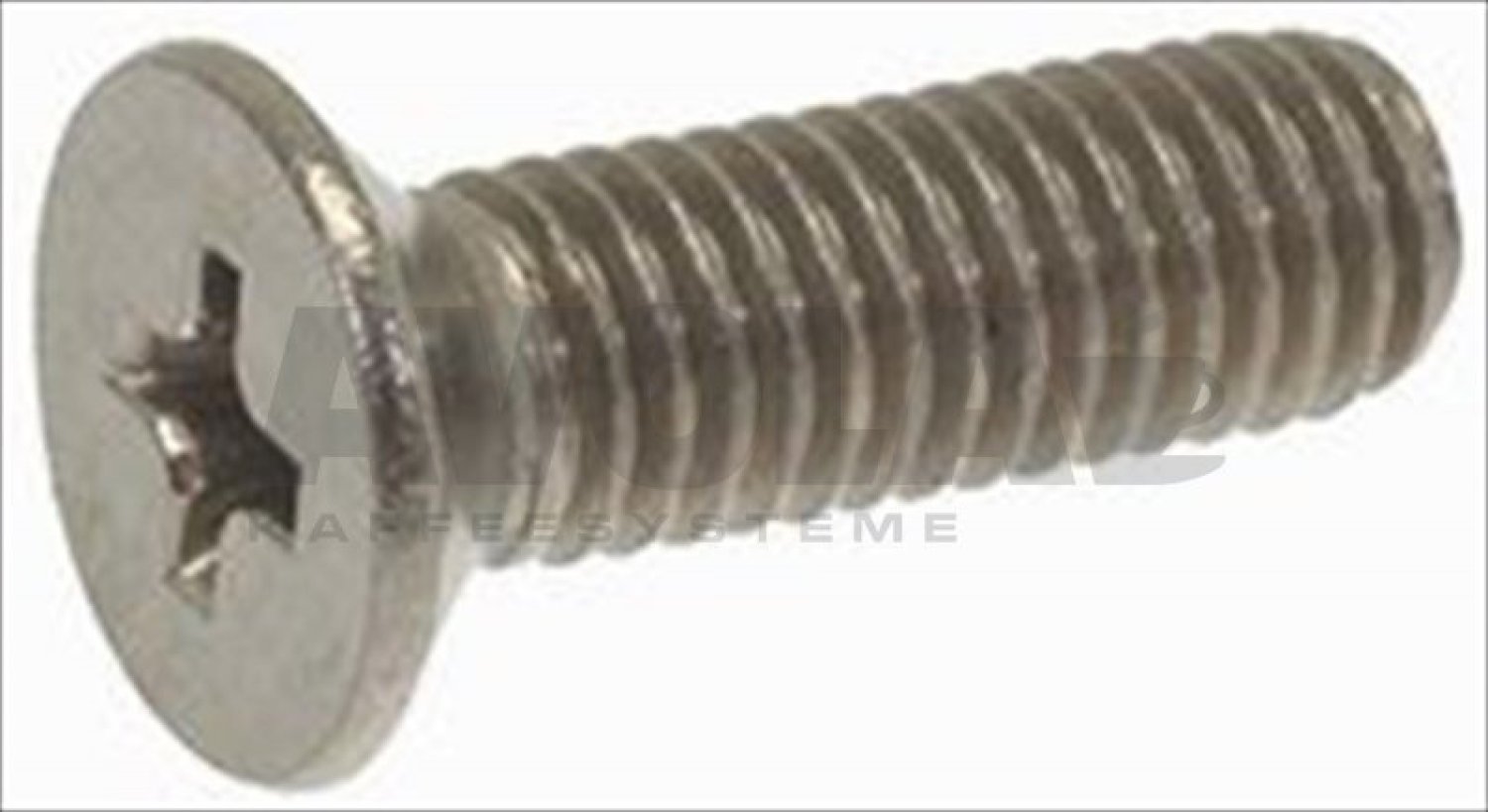

23countersunk flat head screws m5x168007262
COUNTERSUNK FLAT HEAD SCREWS M5x16
0,50 €

excl. Shipping costs
immediately available
24o ring gasket 0178 red silicone8007655
O-RING GASKET 0178 RED SILICONE
6,99 €

excl. Shipping costs
immediately available, 6 available
25o ring gasket or 0178 epdm8014621
O-RING GASKET OR 0178 EPDM
2,61 €

excl. Shipping costs
immediately available, 10 available
261 cup filter 6 gr8001047
1 CUP FILTER 6 gr
5,63 €

excl. Shipping costs
immediately available, 10 available
272 cups filter 12 gr8001073
2 CUPS FILTER 12 gr
5,55 €

excl. Shipping costs
immediately available, 5 available
28coffee filter 1 cup 7 grams8001086
Coffee filter 1 cup 7 grams
7,41 €

excl. Shipping costs
immediately available, 7 available
29filter 2 cups 14 gr new type8001084
FILTER 2 CUPS 14 gr NEW TYPE
5,68 €

excl. Shipping costs
immediately available, 6 available
301 cup filter 8 gr8001085
1-CUP FILTER 8 gr
5,85 €

excl. Shipping costs
immediately available, 5 available
312 cup filter 16 g8001087
2 CUP FILTER 16 g
7,18 €

excl. Shipping costs
immediately available, 6 available
321 cup filter 9 gr8001053
1 CUP FILTER 9 gr
6,39 €

excl. Shipping costs
immediately available, 3 available
332 cups filter 18 gr8001054
2 CUPS FILTER 18 gr
7,79 €

excl. Shipping costs
immediately available, 11 available
342 cups filter 21 gr8001055
2 CUPS FILTER 21 gr
6,14 €

excl. Shipping costs
immediately available, 3 available
35la san marco blind filter8001093
La San Marco BLIND FILTER
2,92 €

excl. Shipping costs
immediately available, 9 available
36filter holder san marco8001207
FILTER HOLDER SAN MARCO
26,08 €

excl. Shipping costs
immediately available, 2 available
37single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available, 7 available
38straight single spout o 3 88000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs
immediately available, 5 available
39lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
39double spout o 3 88000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs
immediately available, 7 available
40san marco black knob for filter holder m108003207
San Marco black knob for filter holder M10
12,90 €

excl. Shipping costs
immediately available, 4 available
41filter holder handle m108003350
FILTER HOLDER HANDLE M10
6,55 €

excl. Shipping costs
immediately available, 3 available
42filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available
432 cups filter holder assembly san marco8001182
2 CUPS FILTER HOLDER ASSEMBLY SAN MARCO
36,53 €

excl. Shipping costs
immediately available, 3 available
441 cup filter holder assembly san marco8001232
1 CUP FILTER HOLDER ASSEMBLY SAN MARCO
41,58 €

excl. Shipping costs
immediately available, 3 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
