LA SAN MARCO WASSER-DAMPFHAEHNE

Drawing number 8057444

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:

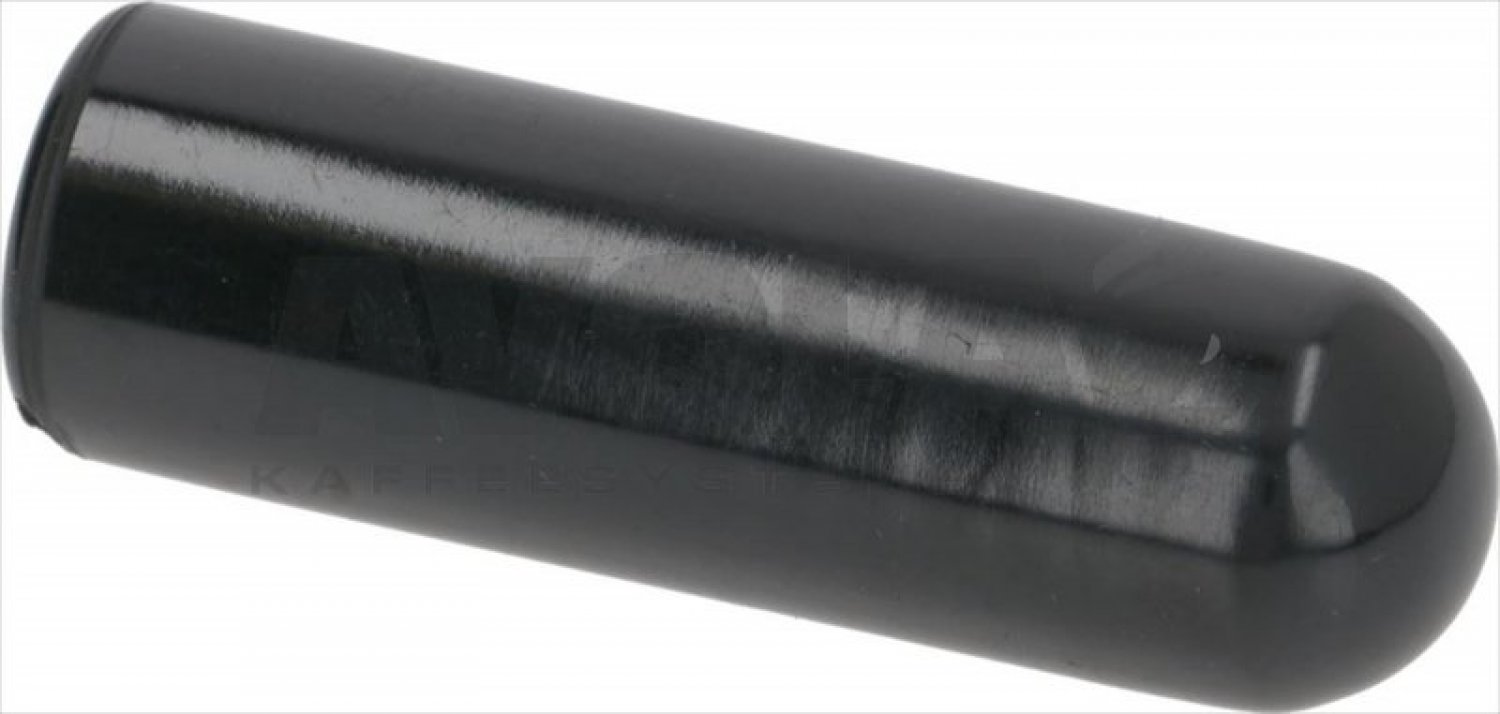

1water steam tap knob 8003321
WATER/STEAM TAP KNOB
13,71 €

excl. Shipping costs

immediately available, 4 available

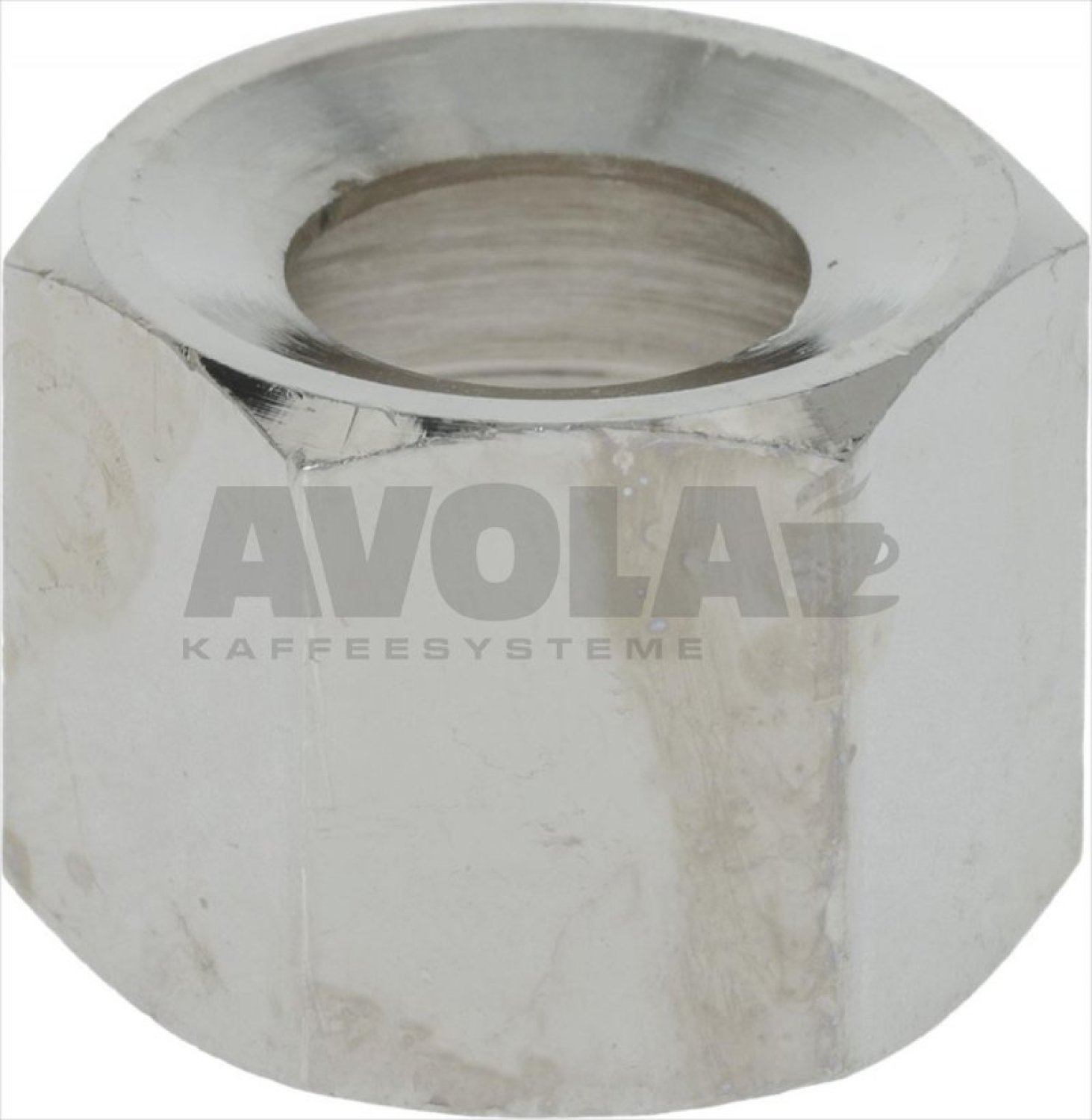

2nickel plated nut 8007286
NICKEL-PLATED NUT
6,53 €

excl. Shipping costs

Delivery time
is determined

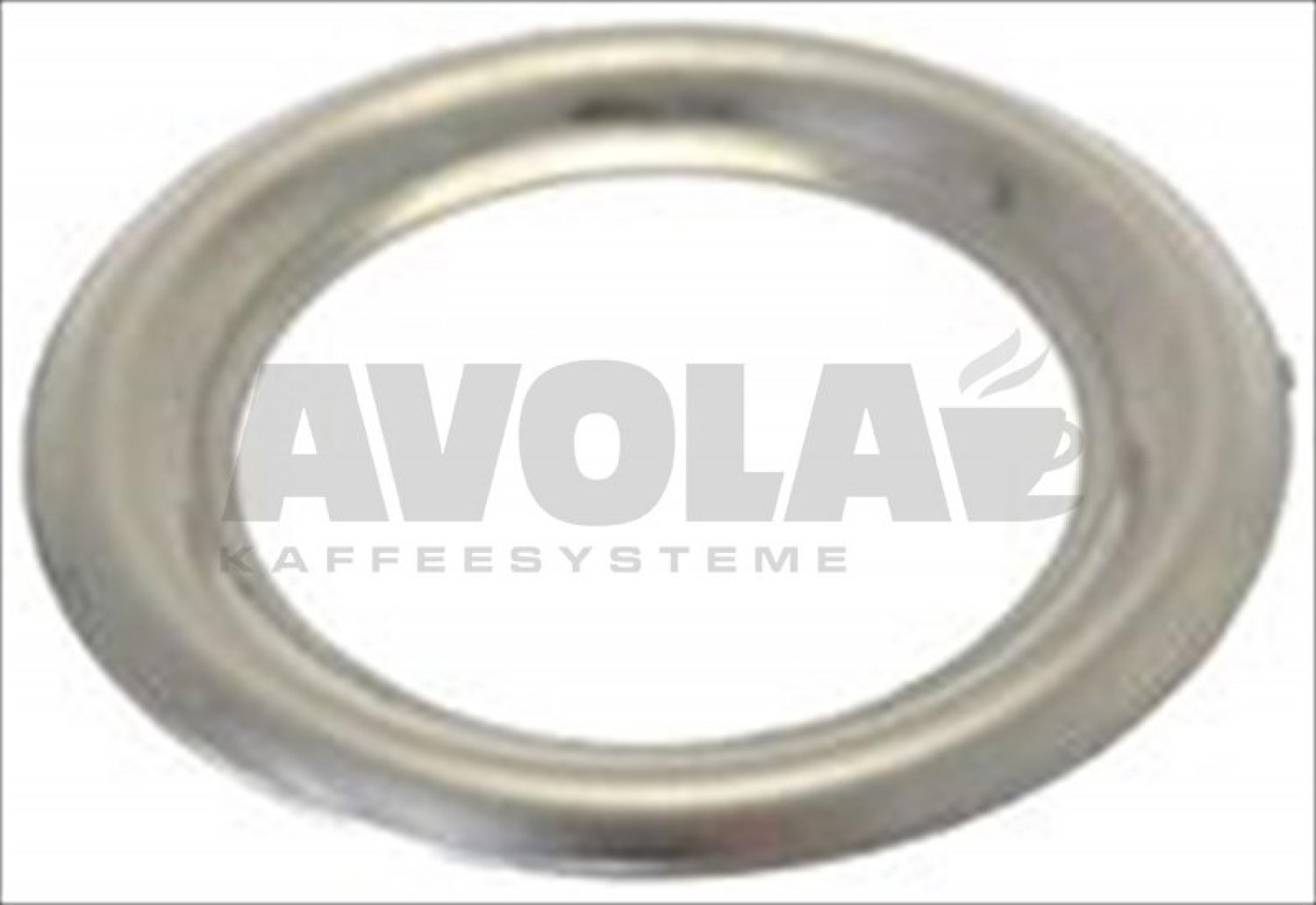

3shaped stainless steel washer 8001692
SHAPED STAINLESS STEEL WASHER
4,71 €

excl. Shipping costs

immediately available, 11 available

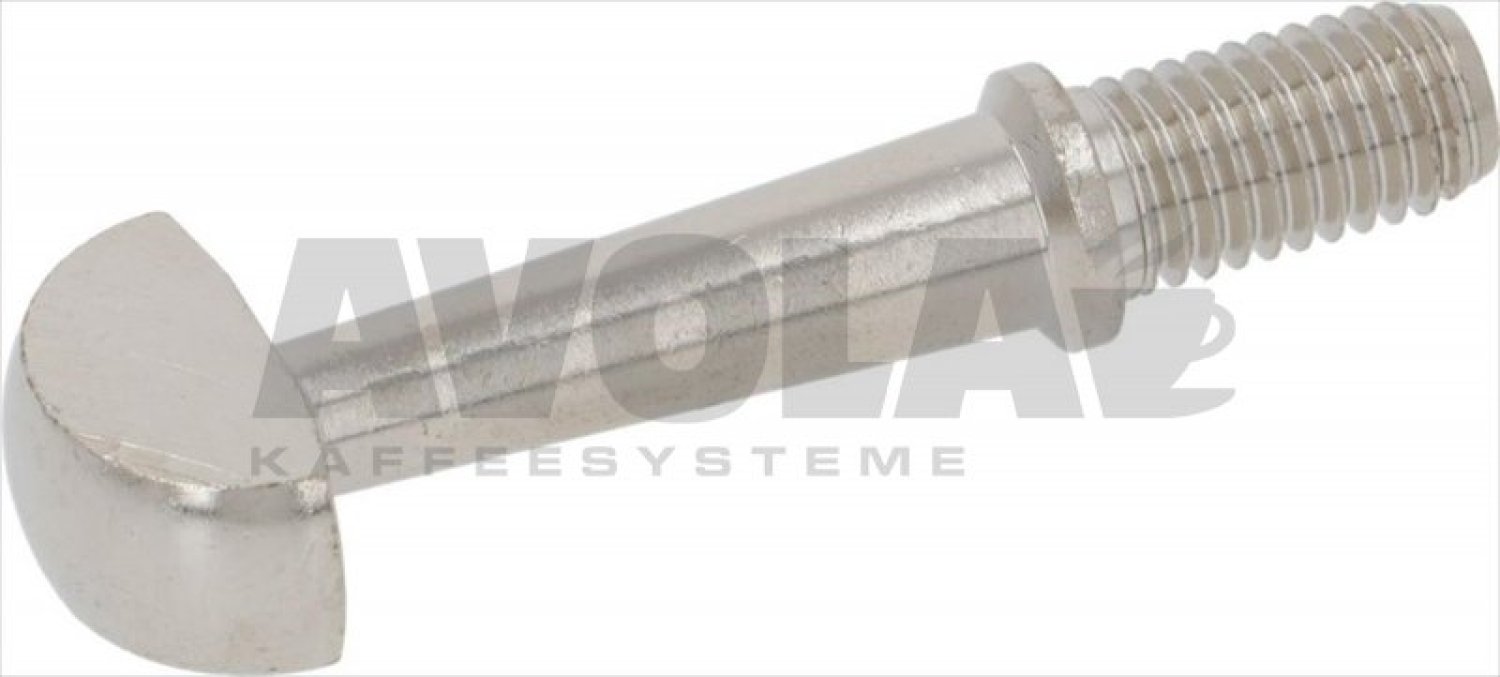

4lever spindle for tap 8005172
LEVER SPINDLE FOR TAP
14,05 €

excl. Shipping costs

immediately available, 1 available

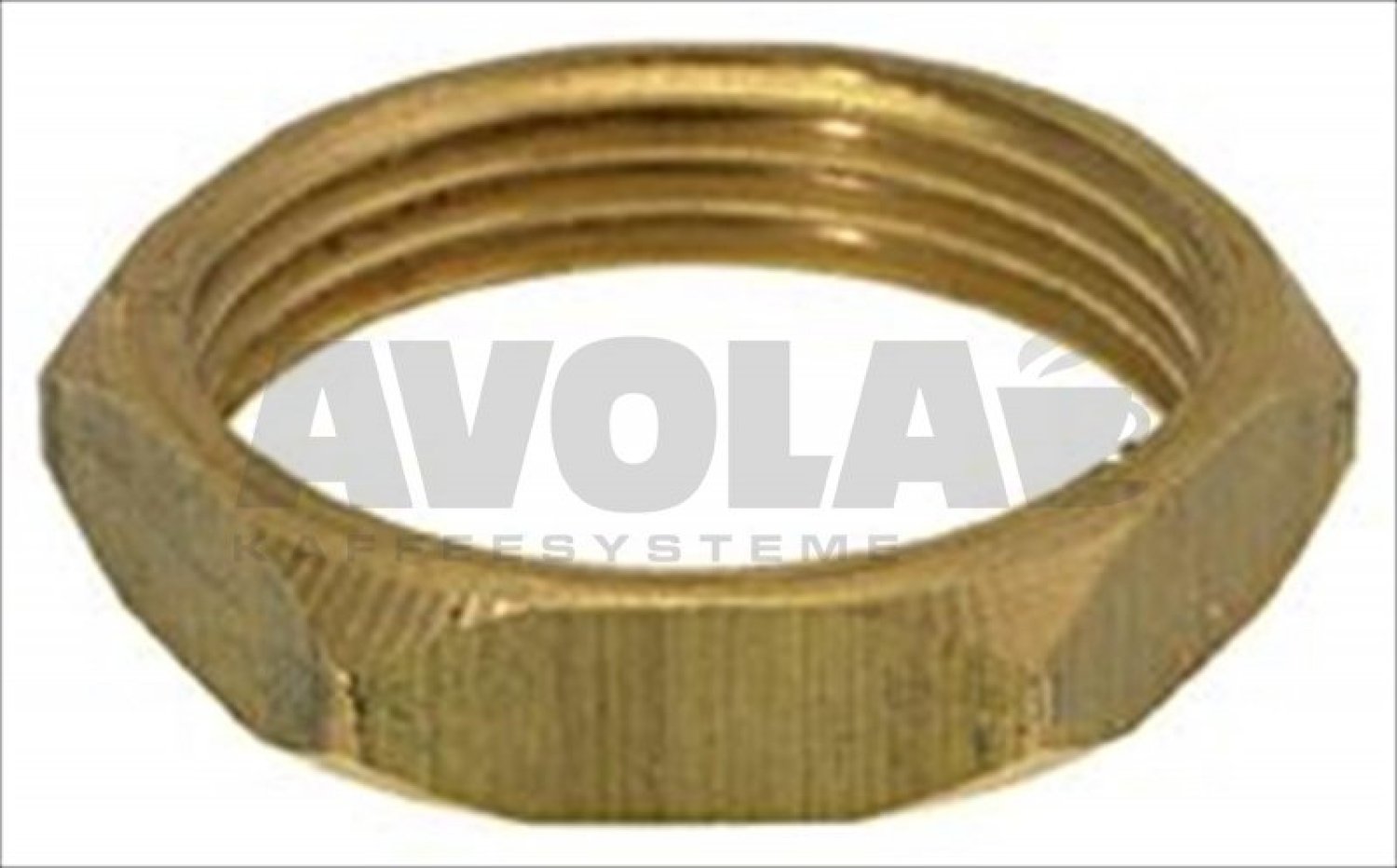

5tap fitting 8005852
TAP FITTING
3,06 €

excl. Shipping costs

Delivery time
is determined
6st steel shield for tap 8000324
ST.STEEL SHIELD FOR TAP
2,76 €

excl. Shipping costs

immediately available, 6 available
7tap spring o 16 x 21 8003801
TAP SPRING ø 16 x 21
1,75 €

excl. Shipping costs

immediately available, 17 available

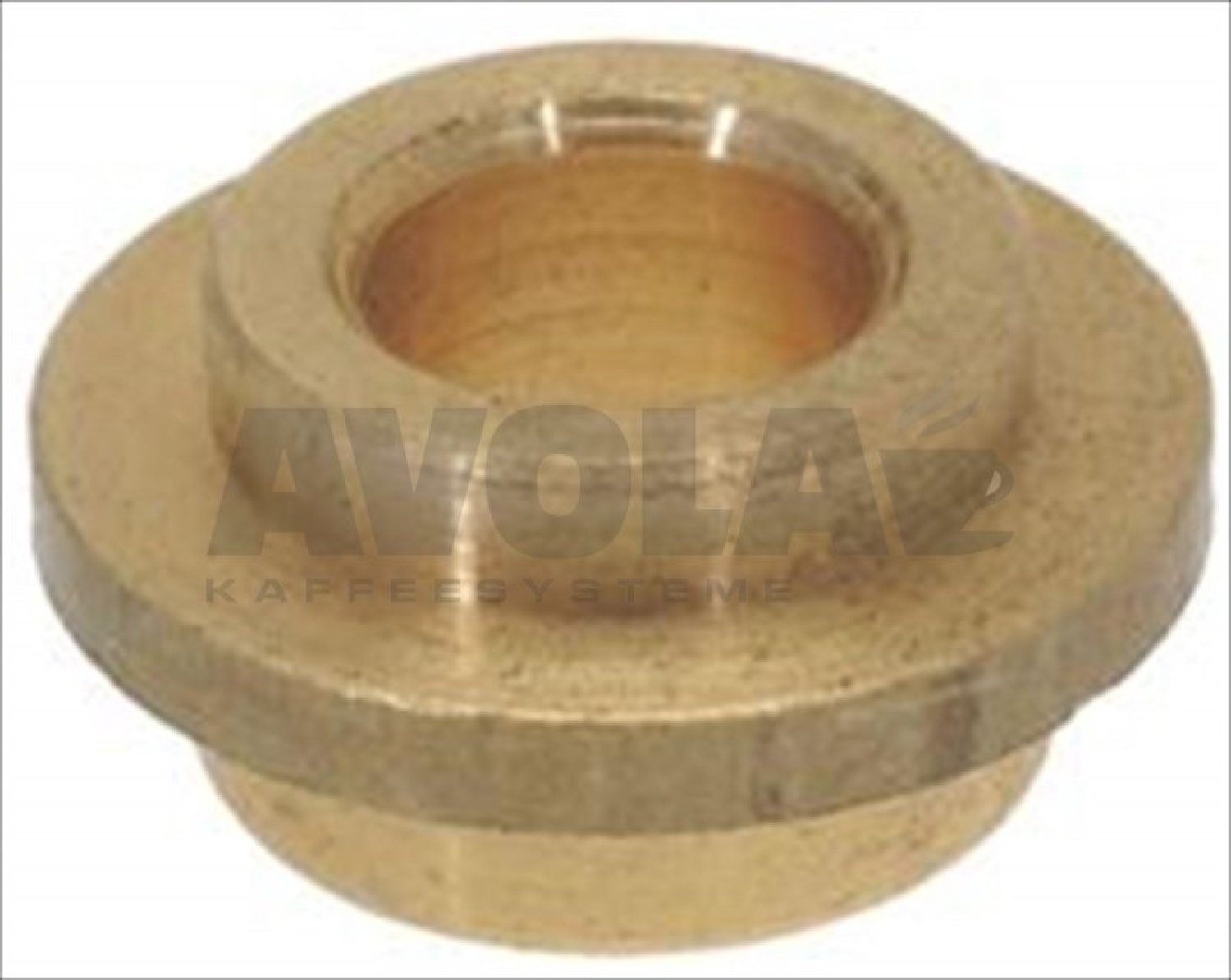

8gasket holder 8001691
GASKET HOLDER
2,61 €

excl. Shipping costs

immediately available, 9 available
9conical ptfe seal o 12 5x7x5 5 mm 8001611
CONICAL PTFE SEAL ø 12,5x7x5,5 mm
0,82 €

excl. Shipping costs

immediately available, 13 available

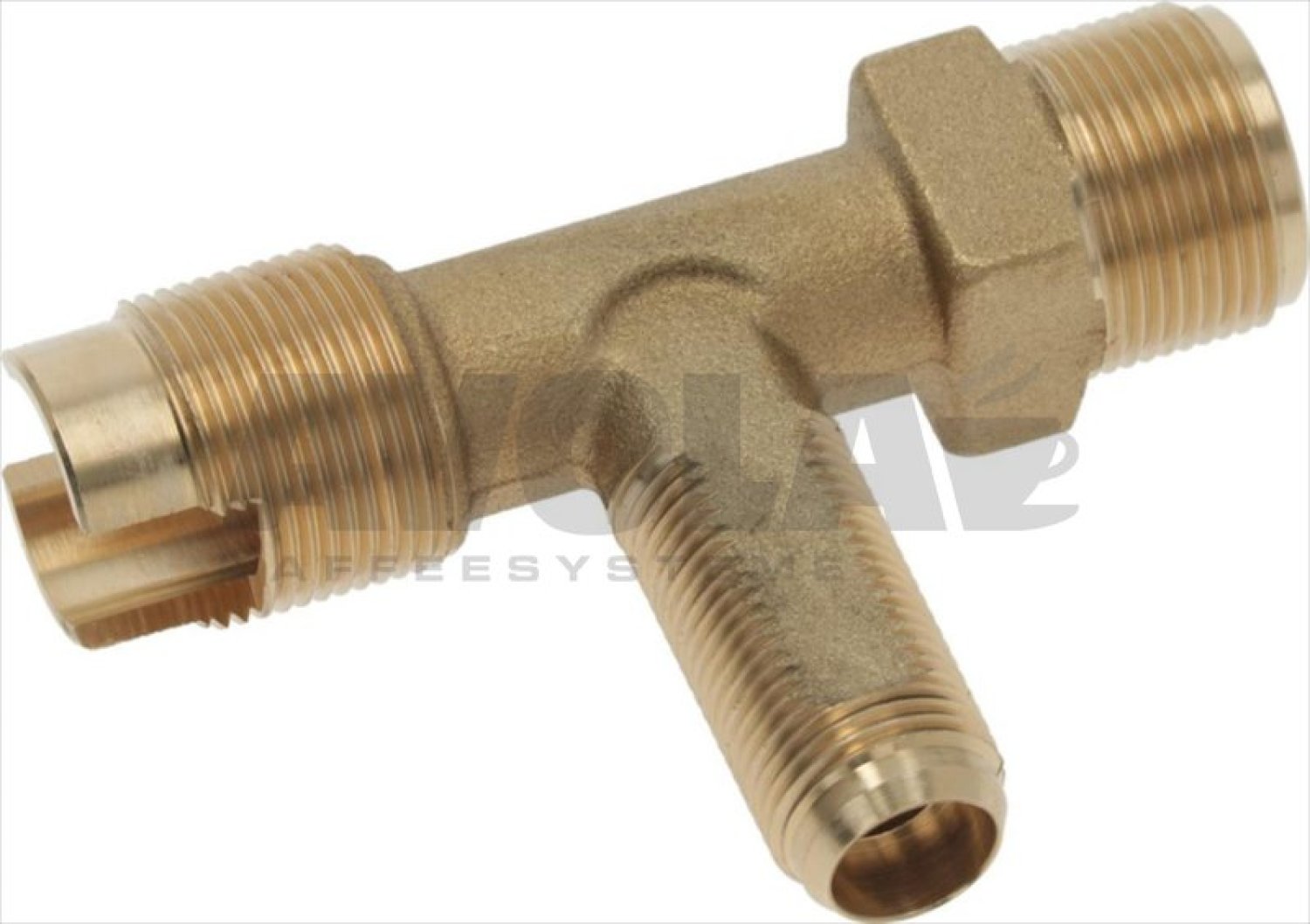

10san marco tap body 8005598
San Marco TAP BODY
29,43 €

excl. Shipping costs

Delivery time
is determined
11brass nut o 3 8 8005663
BRASS NUT ø 3/8
2,90 €

excl. Shipping costs

immediately available, 9 available
12la san marco tap spindle 8005150
La San Marco TAP SPINDLE
2,98 €

excl. Shipping costs

Delivery time
is determined
13flat gasket silicon o 15x5 5x4 mm 8079301
flat gasket silicon ø 15x5,5x4 mm
2,68 €

excl. Shipping costs

immediately available, 20 available
13epdm flat gasket o 15x5 5x4 mm 8001610
EPDM flat gasket ø 15x5,5x4 mm
1,07 €

excl. Shipping costs

immediately available, 9 available
14san marco valve body 8007144
San Marco valve body
6,33 €

excl. Shipping costs

Delivery time
is determined

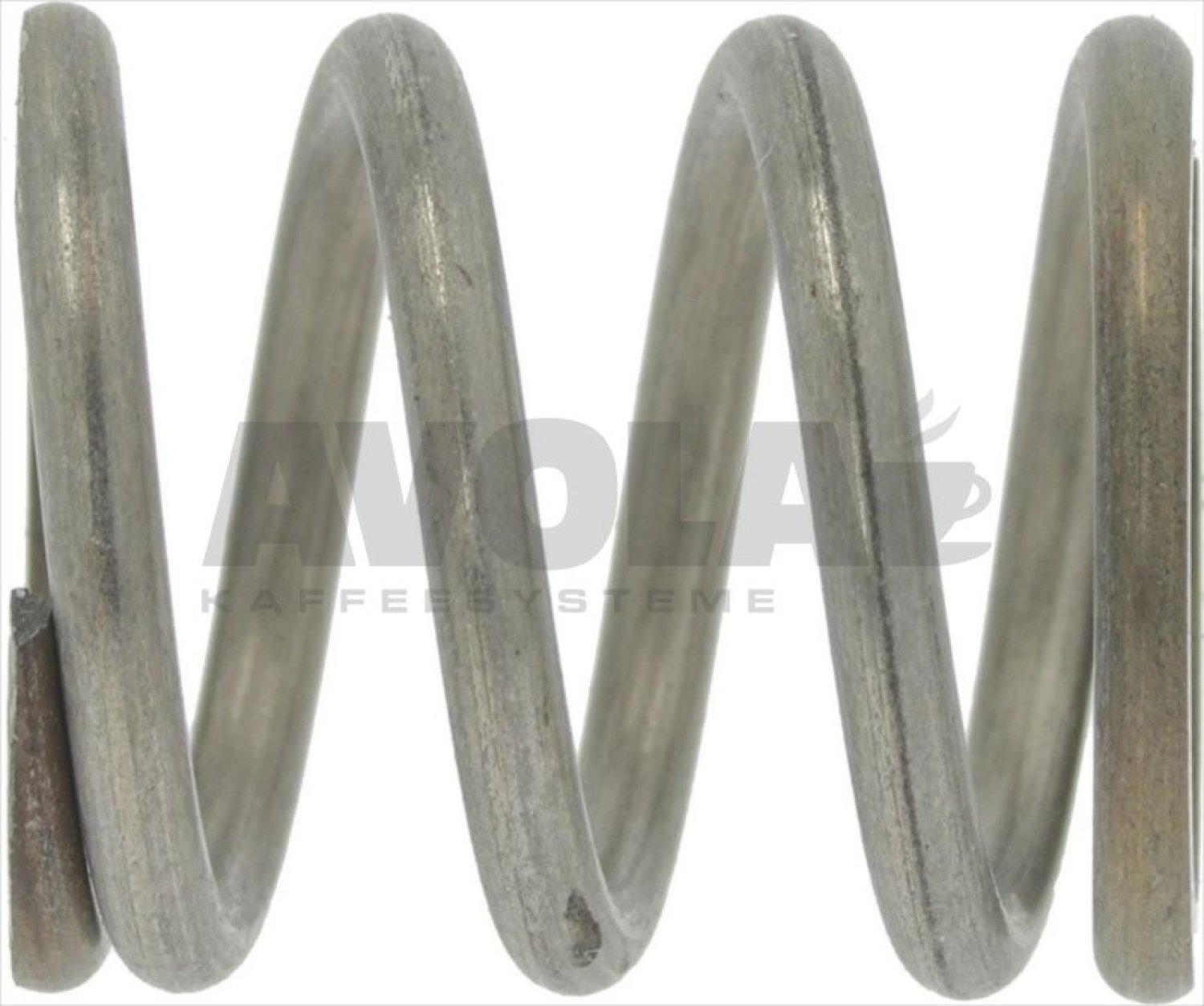

15san marco valve spring o 16x20 mm 8003824
San Marco valve spring ø 16x20 mm
2,21 €

excl. Shipping costs

immediately available, 15 available
16asbestos free flat gasket o 23 5x20x1 mm 8001609
ASBESTOS FREE FLAT GASKET ø 23,5x20x1 mm
1,21 €

excl. Shipping costs

immediately available

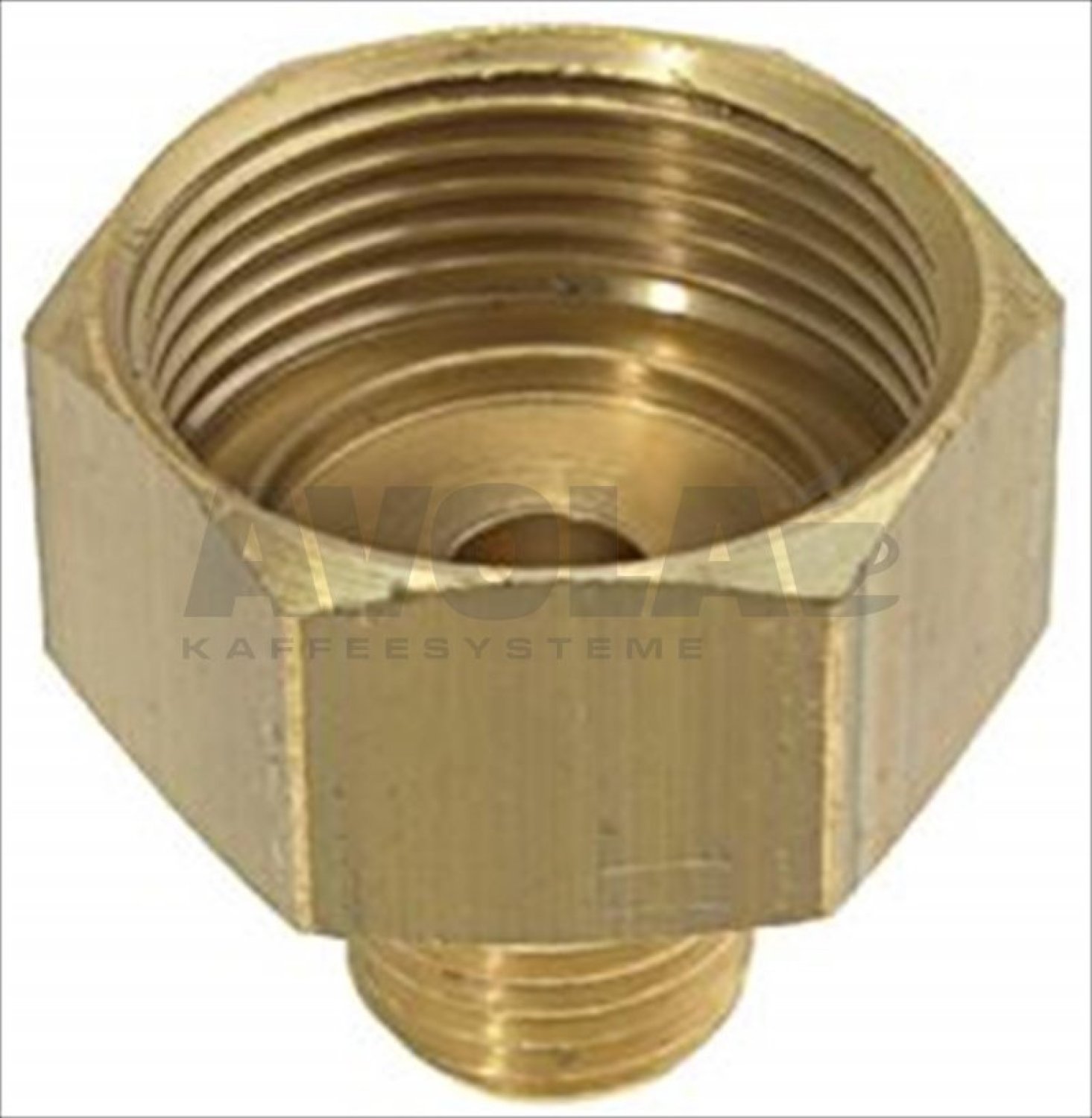

17tap coupling o 1 4 8005851
TAP COUPLING ø 1/4
8,81 €

excl. Shipping costs

immediately available, 4 available
19spring o 12x15 mm 8003822
SPRING ø 12x15 mm
2,32 €

excl. Shipping costs

immediately available, 15 available
20washer 8001554
WASHER
1,51 €

excl. Shipping costs

immediately available, 13 available

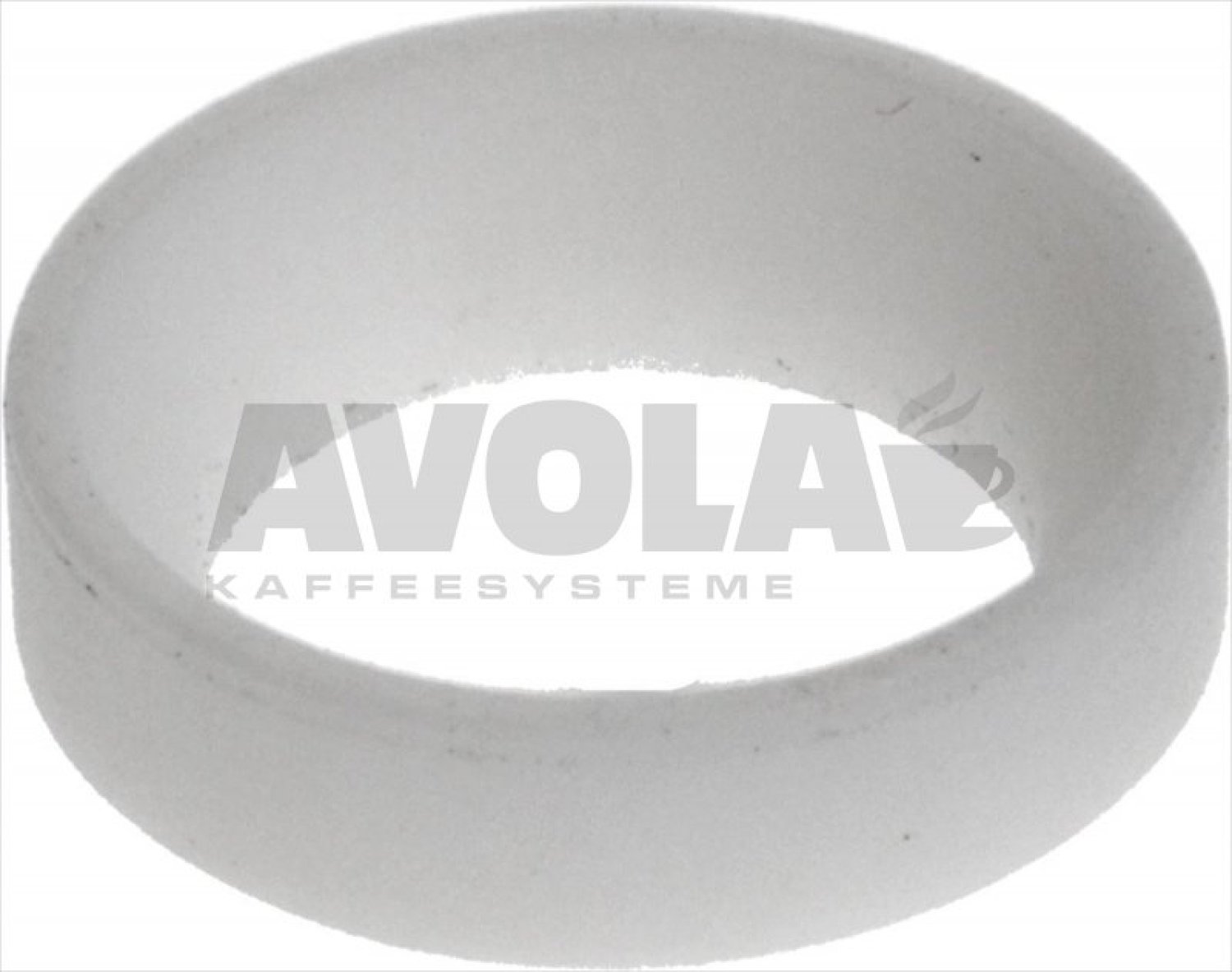

21conical ptfe seal 8001612
CONICAL PTFE SEAL
1,11 €

excl. Shipping costs

immediately available
22conical ptfe seal o 16x20 mm 8001959
CONICAL PTFE SEAL ø 16x20 mm
4,01 €

excl. Shipping costs

immediately available, 9 available

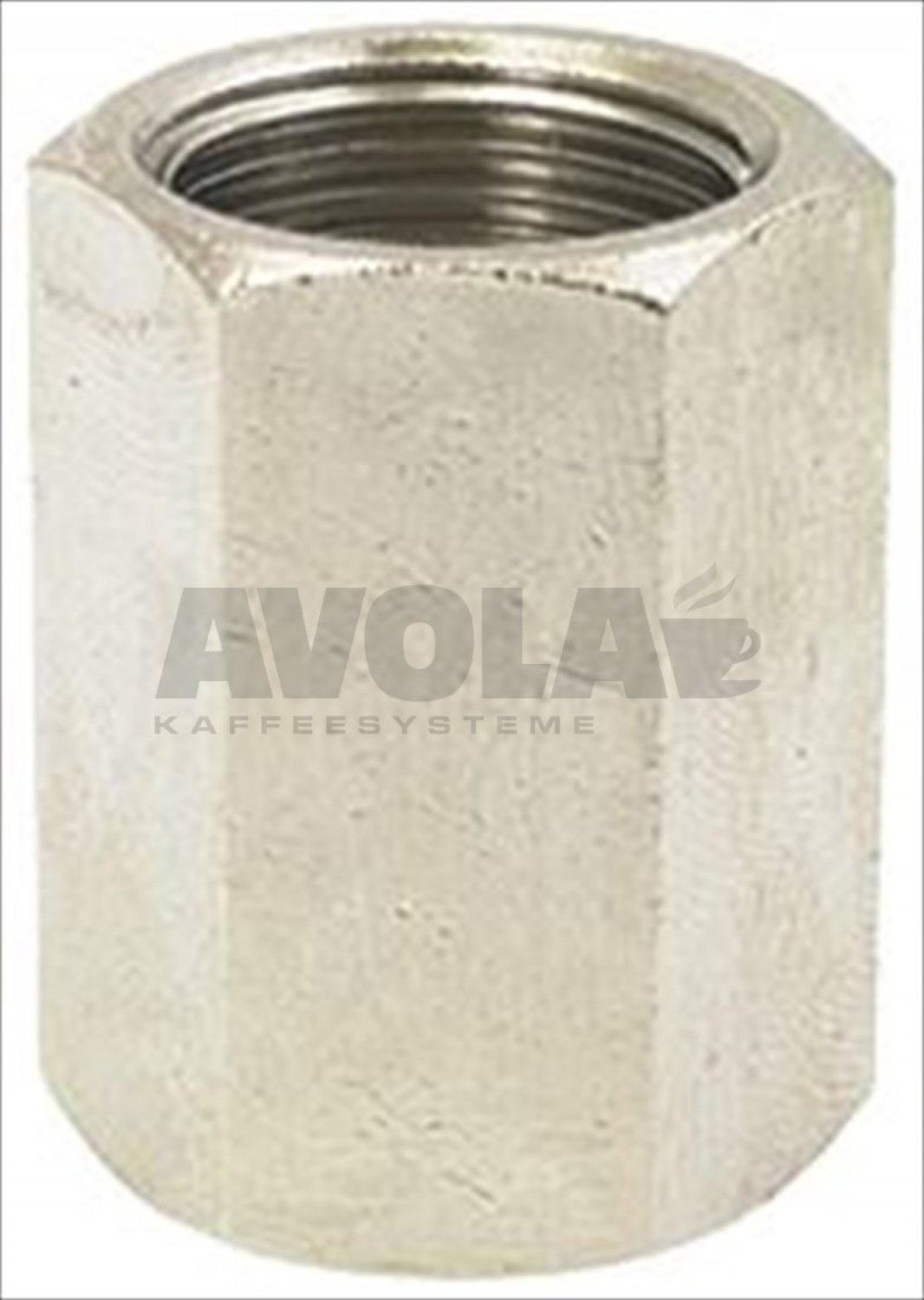

23steam tube fitting o 3 8 8005836
STEAM TUBE FITTING ø 3/8
6,81 €

excl. Shipping costs

immediately available, 1 available

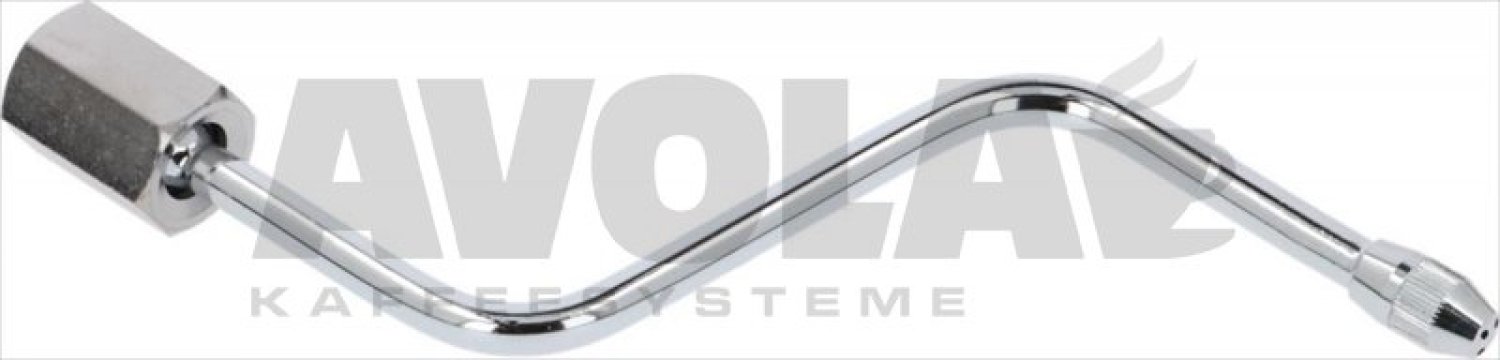

26steam pipe complete 8006881
STEAM PIPE COMPLETE
33,01 €

excl. Shipping costs

Delivery time
is determined

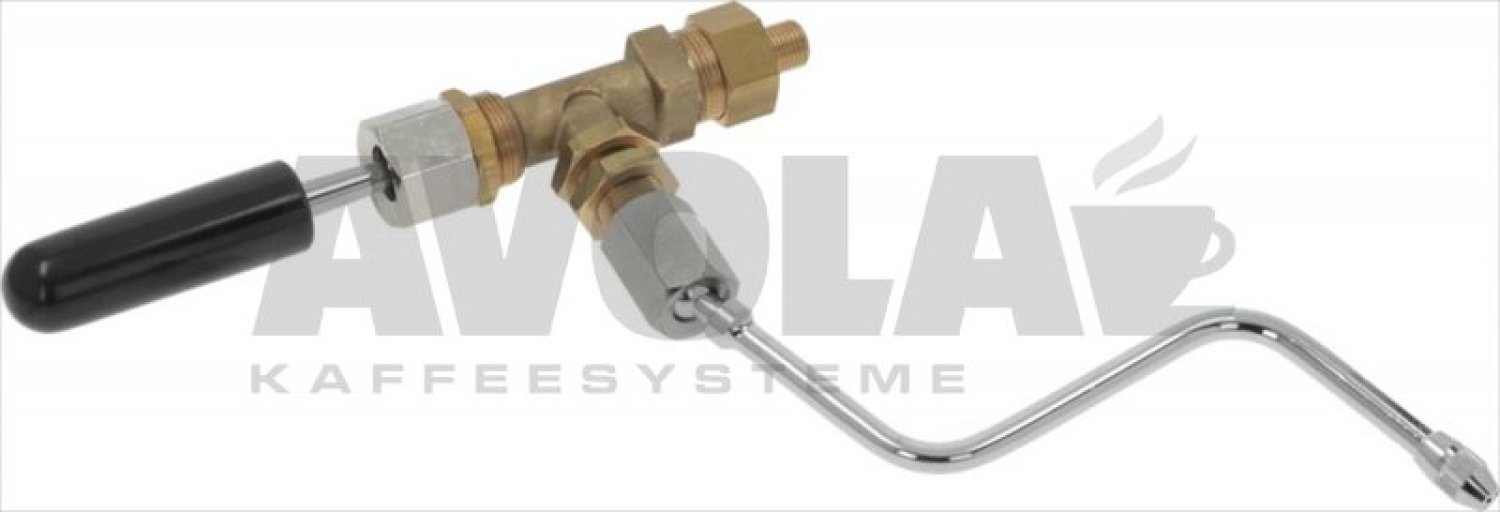

27la san marco steam tap assembly 8005599
La San Marco STEAM TAP ASSEMBLY
102,34 €

excl. Shipping costs

immediately available, 1 available

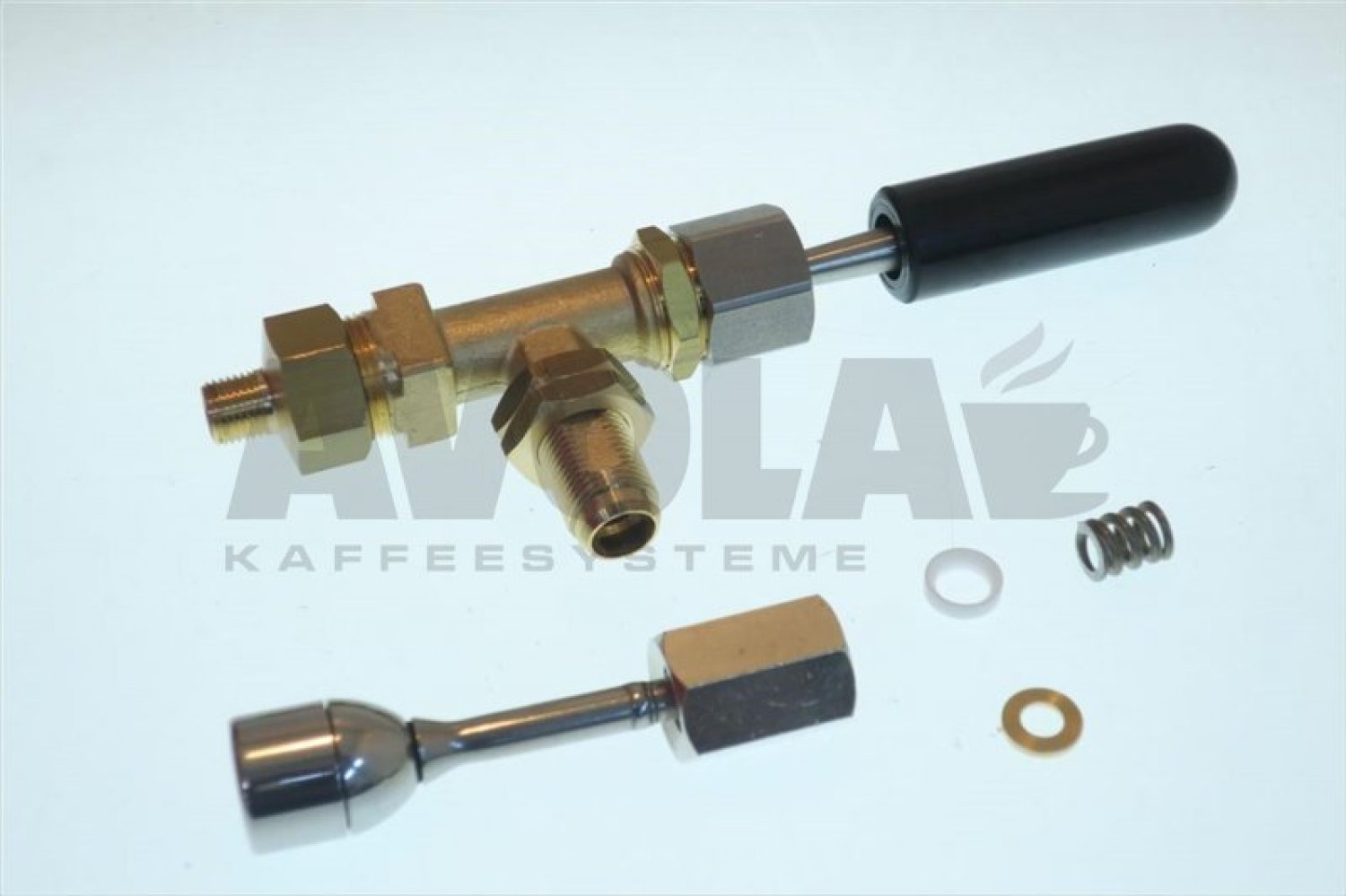

28san marco heisswasserventil komplett inkl lanze 85 95 8125563
San Marco Heißwasserventil komplett inkl. Lanze 85 - 95
119,00 €

excl. Shipping costs

immediately available, 1 available

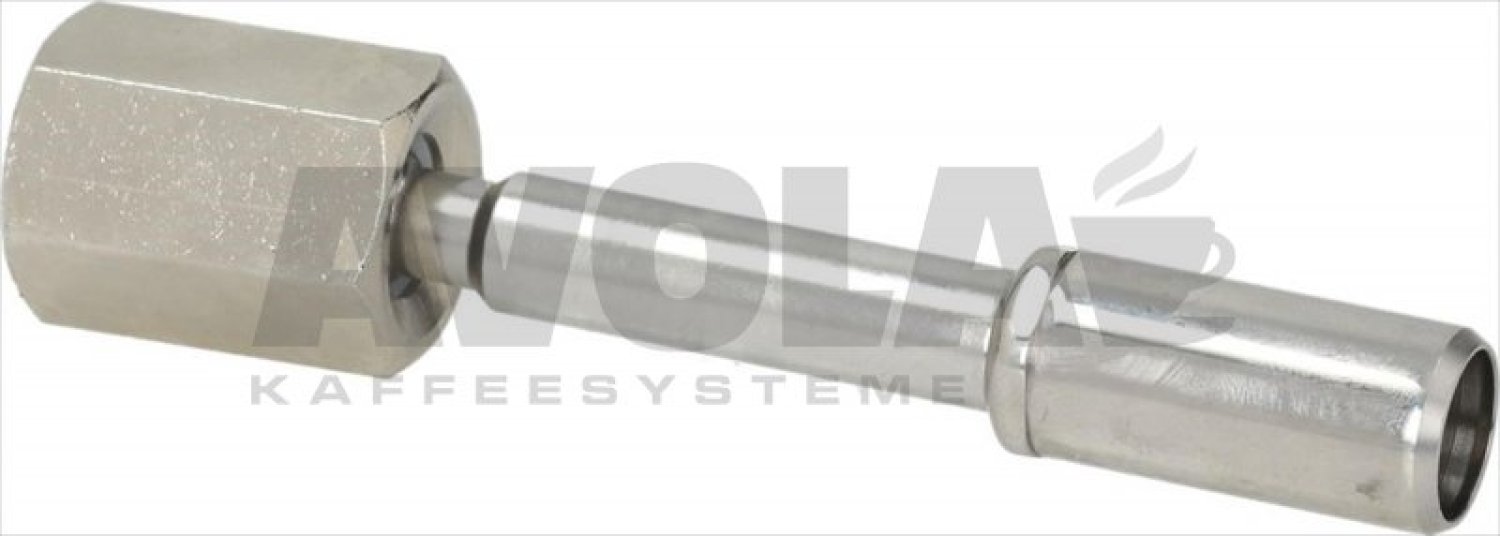

29san marco water pipe 8006794
San Marco WATER PIPE
53,45 €

excl. Shipping costs

immediately available, 1 available

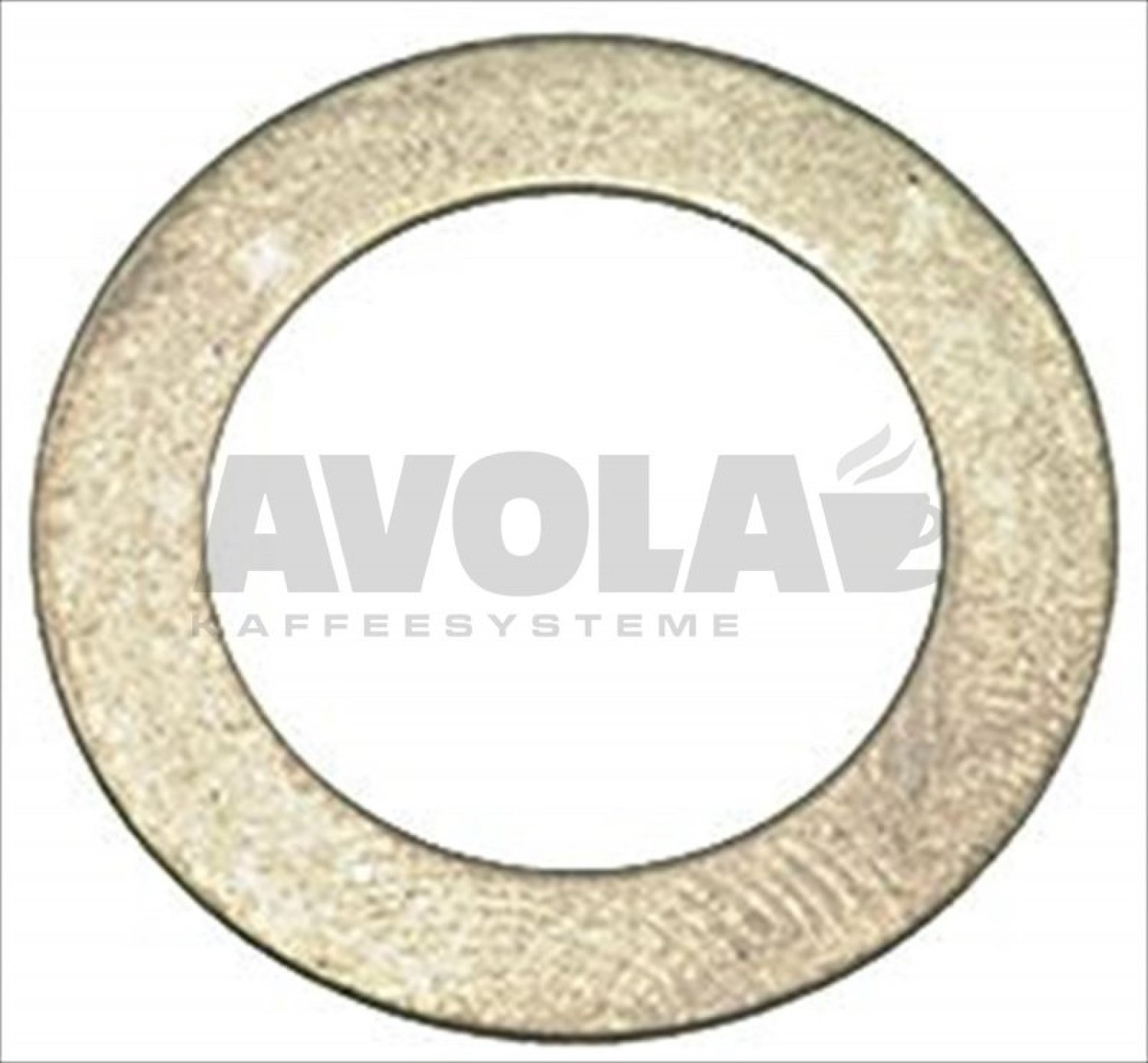

30st steel washer o 23x15x0 5 8001439
ST.STEEL WASHER ø 23x15x0,5
2,02 €

excl. Shipping costs

immediately available, 6 available

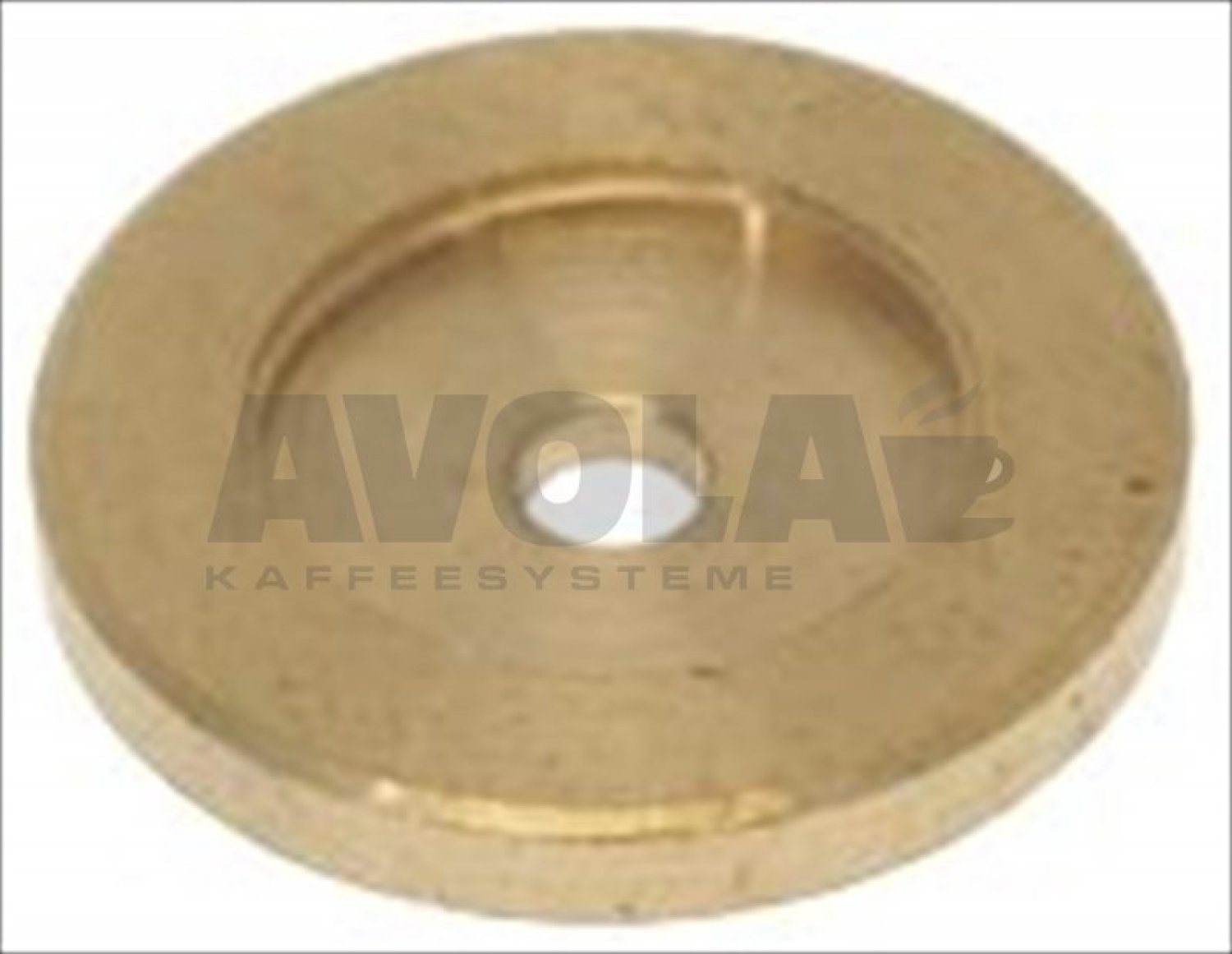

31washer for articulation o 14 mm 8001957
WASHER FOR ARTICULATION Ø 14 mm
2,46 €

excl. Shipping costs

Delivery time
is determined

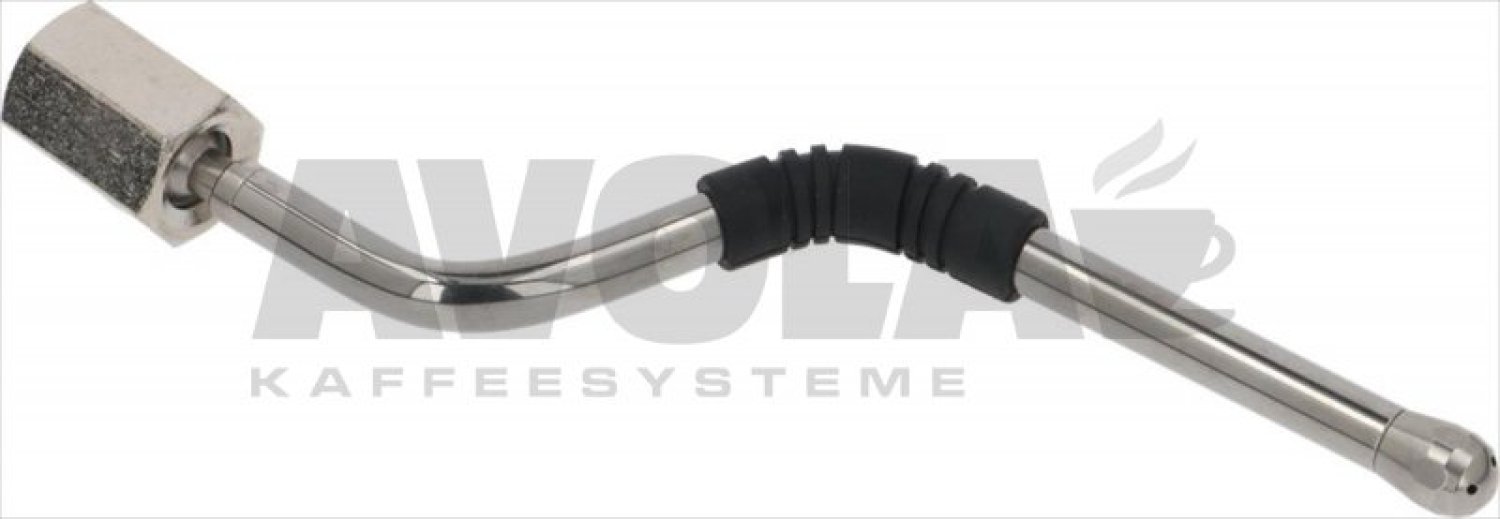

36st steel compl steam pipe 8006642
ST.STEEL COMPL.STEAM PIPE
61,53 €

excl. Shipping costs

Delivery time
is determined
37san marco dampfhahn komplett 8077260
San Marco Dampfhahn komplett
198,04 €

excl. Shipping costs

Delivery time
is determined
38fitting o 1 4 8005710
Fitting ø 1/4
3,64 €

excl. Shipping costs

immediately available, 18 available
39washer 8001554
WASHER
1,51 €

excl. Shipping costs

immediately available, 13 available

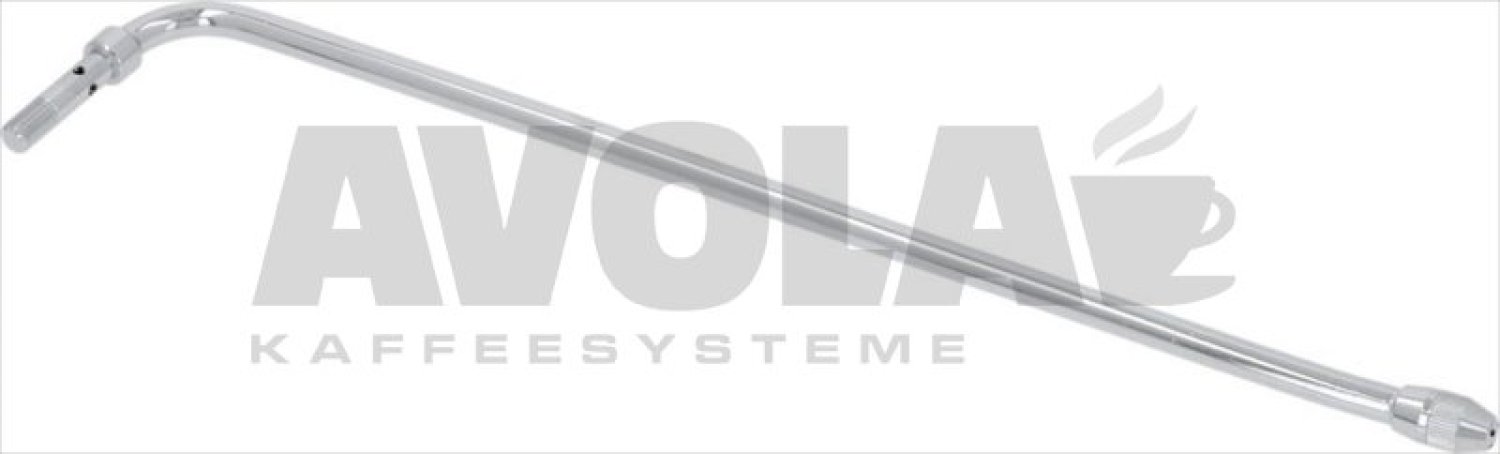

43steam pipe complete 8006880
STEAM PIPE COMPLETE
This article is no longer available
45conical ptfe seal o 12x8x4 mm 8001551
CONICAL PTFE SEAL ø 12x8x4 mm
1,84 €

excl. Shipping costs

immediately available, 6 available
46brass washer 8001440
BRASS WASHER
Price on request
47spring o 12x15 mm 8003822
SPRING ø 12x15 mm
2,32 €

excl. Shipping costs

immediately available, 15 available
48brass washer 8001440
BRASS WASHER
Price on request
49hahnanschluss 8005853
HAHNANSCHLUSS
2,03 €

excl. Shipping costs

Delivery time 4-6 weeks..

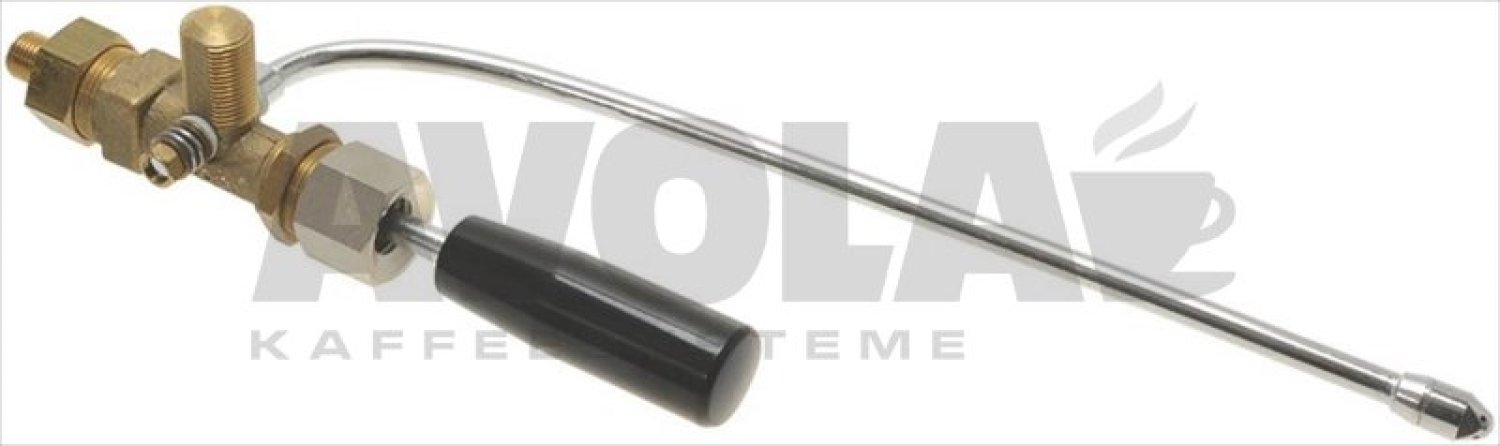

50complete water steam tap 8005603
COMPLETE WATER STEAM TAP
This article is no longer available

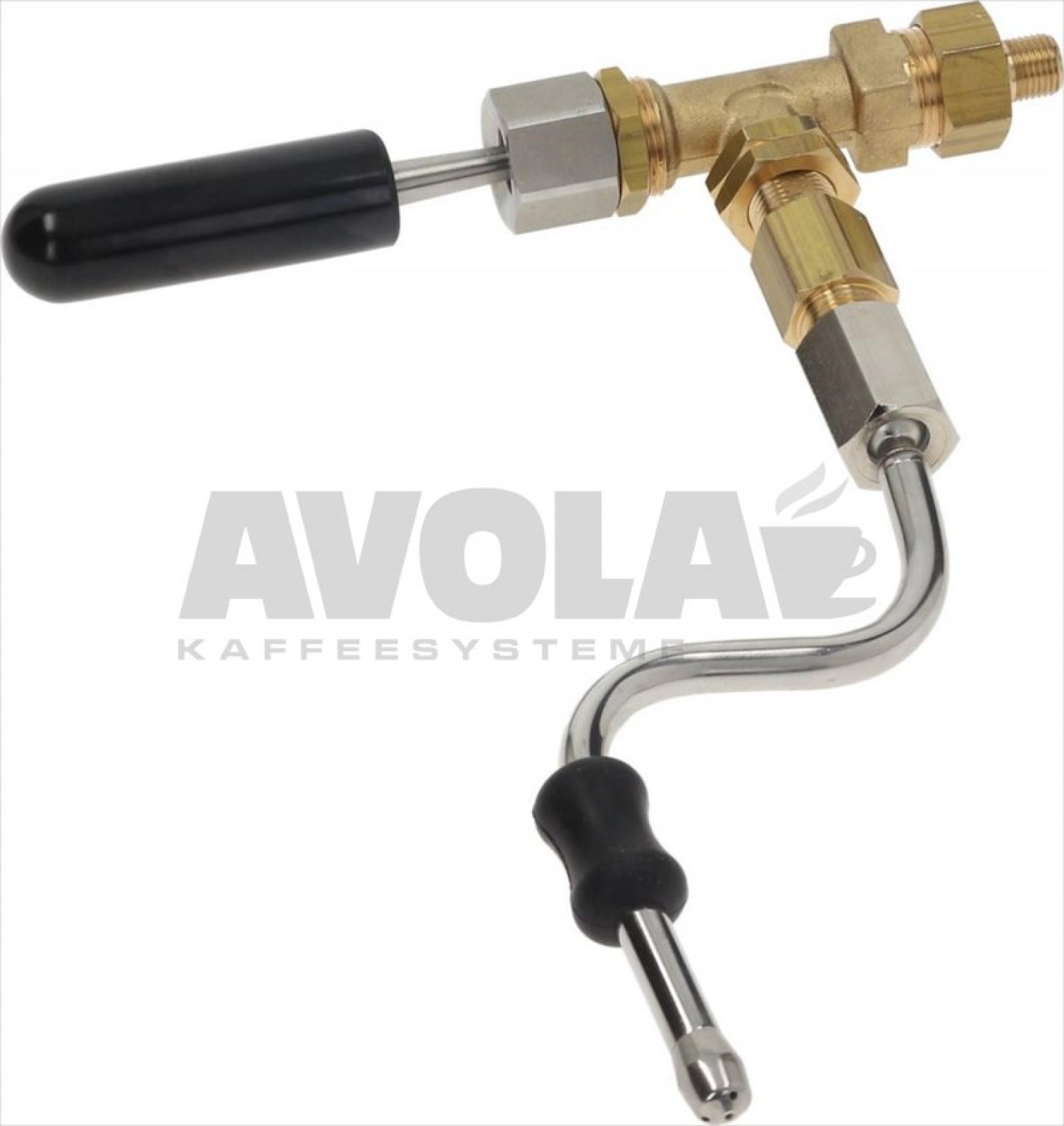

52complete steam tap 8006646
COMPLETE STEAM TAP
211,68 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
