SAN REMO MILANO LX BRÜHGRUPPE - WASSER DAMPFHAHN

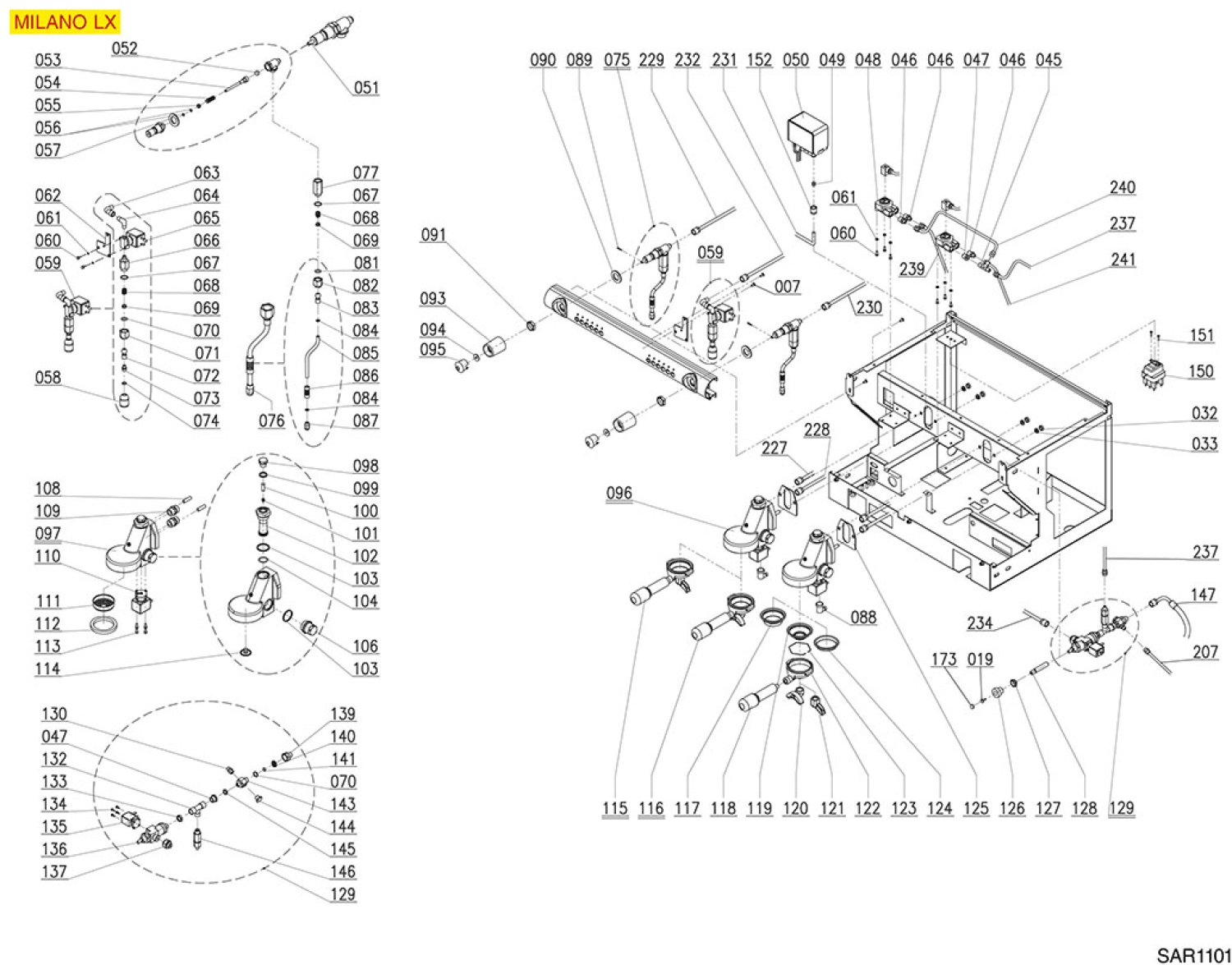

Drawing number 8069031

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
47 8337052
Sanremo Fitting 1/4M 1/8F OT57 C/SM.
Price on request
50pressure switch p302 6 3 poles 30a 8005068
PRESSURE SWITCH P302/6 3-POLES 30A
62,26 €
62,26 €

excl. Shipping costs

immediately available, 8 available
51water steam tap 8005473
WATER/STEAM TAP
39,00 €

excl. Shipping costs

immediately available, 2 available
52blond gasket o 12x5 8 mm silicon 8001670
blond gasket ø 12x5,8 mm silicon
1,20 €

excl. Shipping costs

immediately available
53water steam tap pin 8005137
WATER/STEAM TAP PIN
17,02 €

excl. Shipping costs

immediately available, 3 available
54tap spring 8003795
TAP SPRING
1,80 €

excl. Shipping costs

immediately available, 10 available
55spring bushing 8001521
SPRING BUSHING
1,42 €

excl. Shipping costs

immediately available, 6 available
56o ring epdm r5 8048968
O-RING EPDM R5
1,25 €

excl. Shipping costs

immediately available, 12 available
57copper flat gasket 22x17x1 5 mm 8001815
COPPER FLAT GASKET 22x17x1,5 mm
1,01 €

excl. Shipping costs

immediately available
58water pipe nozzle 1 8 8006744
WATER PIPE NOZZLE 1/8
8,20 €

excl. Shipping costs

immediately available, 5 available
67o ring 02062 green viton 8064352
O-RING 02062 GREEN VITON
2,43 €

excl. Shipping costs

immediately available, 20 available
67or dichtung 02062 fkm gr 8137958
OR-DICHTUNG 02062 FKM GR
Price on request
68spring o 12x16 5 mm 8003554
SPRING ø 12x16,5 mm
2,88 €

excl. Shipping costs

immediately available, 11 available
69steam tap joint bushing 8002144
STEAM TAP JOINT BUSHING
4,46 €

excl. Shipping costs

immediately available, 3 available
70 8362966
OR 115 EPDM D11,91x2,62 SNODO RUB.*****
Price on request
76dampfrohr komplett edelstahl o 10 mm 8074041
DAMPFROHR KOMPLETT EDELSTAHL ø 10 mm
61,37 €

excl. Shipping costs

Delivery time
is determined
81 8361667
OR LANCE JOINT OR10 EPDM 12.1X2.7
1,79 €

excl. Shipping costs

Delivery time
is determined
84o ring dichtung orm 0060 12 epdm 8140517
O-Ring Dichtung ORM 0060-12 EPDM
1,33 €

excl. Shipping costs

immediately available
86burn preventing rubberp f pipe 8064582
BURN PREVENTING RUBBERP.F/PIPE
4,39 €

excl. Shipping costs

immediately available, 8 available
89stainless steel pin 8024568
STAINLESS STEEL PIN
0,42 €

excl. Shipping costs

immediately available
94scheibe 20x6 3x1 5 aisi304 8219715
Scheibe 20x6,3x1,5 AISI304
1,19 €

excl. Shipping costs

immediately available, 13 available
98deckel fuer auslaufgruppe o 16 mm 8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs

immediately available, 15 available
99ptfe flat gasket o 22x17x2 mm 8001572
PTFE FLAT GASKET ø 22x17x2 mm
1,69 €

excl. Shipping costs

immediately available
100water filter o 8 5x22 mm 8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs

immediately available
101nozzle m6x1 hole 8006984
NOZZLE M6x1 HOLE
3,27 €

excl. Shipping costs

immediately available, 8 available
102chromium plated upper sleeve 8063314
CHROMIUM-PLATED UPPER SLEEVE
39,00 €
39,00 €

excl. Shipping costs

immediately available, 8 available
103ptfe flat gasket o 35x30x2 mm 8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs

immediately available
104o ring 0128 epdm 8014714
O-RING 0128 EPDM
0,94 €

excl. Shipping costs

immediately available
106chromium plated side cap 8006380
CHROMIUM-PLATED SIDE CAP
14,96 €

excl. Shipping costs

Delivery time
is determined
108stainless steel m8x25 mm stud 8001292
STAINLESS STEEL M8x25 mm STUD
1,42 €

excl. Shipping costs

immediately available, 5 available
1103 way solenoid valve parker 230v 50 60hz 8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs

immediately available, 11 available
111shower screen fuer e61 brew unit 8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs

immediately available, 11 available
112filter holder gasket o 73x57x8 mm 8001902
FILTER HOLDER GASKET Ø 73x57x8 mm
3,47 €

excl. Shipping costs

immediately available, 17 available
114group spray nozzle o 30 mm m10x1 e61 8006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs

immediately available
115san remo siebtraeger komplett 1 tasse sanremo 1er inkl sieb 8243001
San Remo Siebträger komplett 1 Tasse Sanremo 1er inkl. Sieb
114,09 €

excl. Shipping costs

Delivery time
is determined
116san remo siebtraeger komplett 2 tassen sanremo 2er inkl sieb 8193117
San Remo Siebträger komplett 2 Tassen Sanremo 2er inkl. Sieb
105,78 €

excl. Shipping costs

Delivery time
is determined
1172 cup filter 12 grams 8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs

immediately available, 6 available
118filter holder handle m12 8003349
FILTER HOLDER HANDLE M12
7,79 €

excl. Shipping costs

immediately available, 4 available
1191 cup filter 6 g 8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs

immediately available, 14 available
120lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne 8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
120double spout o 3 8 8000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs

immediately available, 9 available
120double spout o 3 8 25 00mm 8000123
DOUBLE SPOUT ø 3/8 - 25,00mm
7,14 €

excl. Shipping costs

immediately available, 7 available
121single spout o 3 8 8000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs

immediately available, 14 available
121single spout o 3 8 kurz 24 50mm 8000128
SINGLE SPOUT ø 3/8 kurz 24,50mm
5,74 €

excl. Shipping costs

immediately available, 8 available
123s steel filter locking spring 8003542
S/STEEL FILTER LOCKING SPRING
1,45 €

excl. Shipping costs

immediately available
123filter blocking spring o 1 00 mm 8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs

immediately available
124blind filter o58mm 8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs

immediately available
125coffee group gasket 80x70x2 mm 8001624
COFFEE GROUP GASKET 80x70x2 mm
3,51 €

excl. Shipping costs

immediately available, 12 available
125coffee group gasket 77x73x2 mm 8001729
COFFEE GROUP GASKET 77x73x2 mm
8,44 €

excl. Shipping costs

immediately available, 7 available
129 8213172
MASSELLO CARICO ACQUA SANREMO
390,32 €

excl. Shipping costs

Delivery time 4-6 weeks..

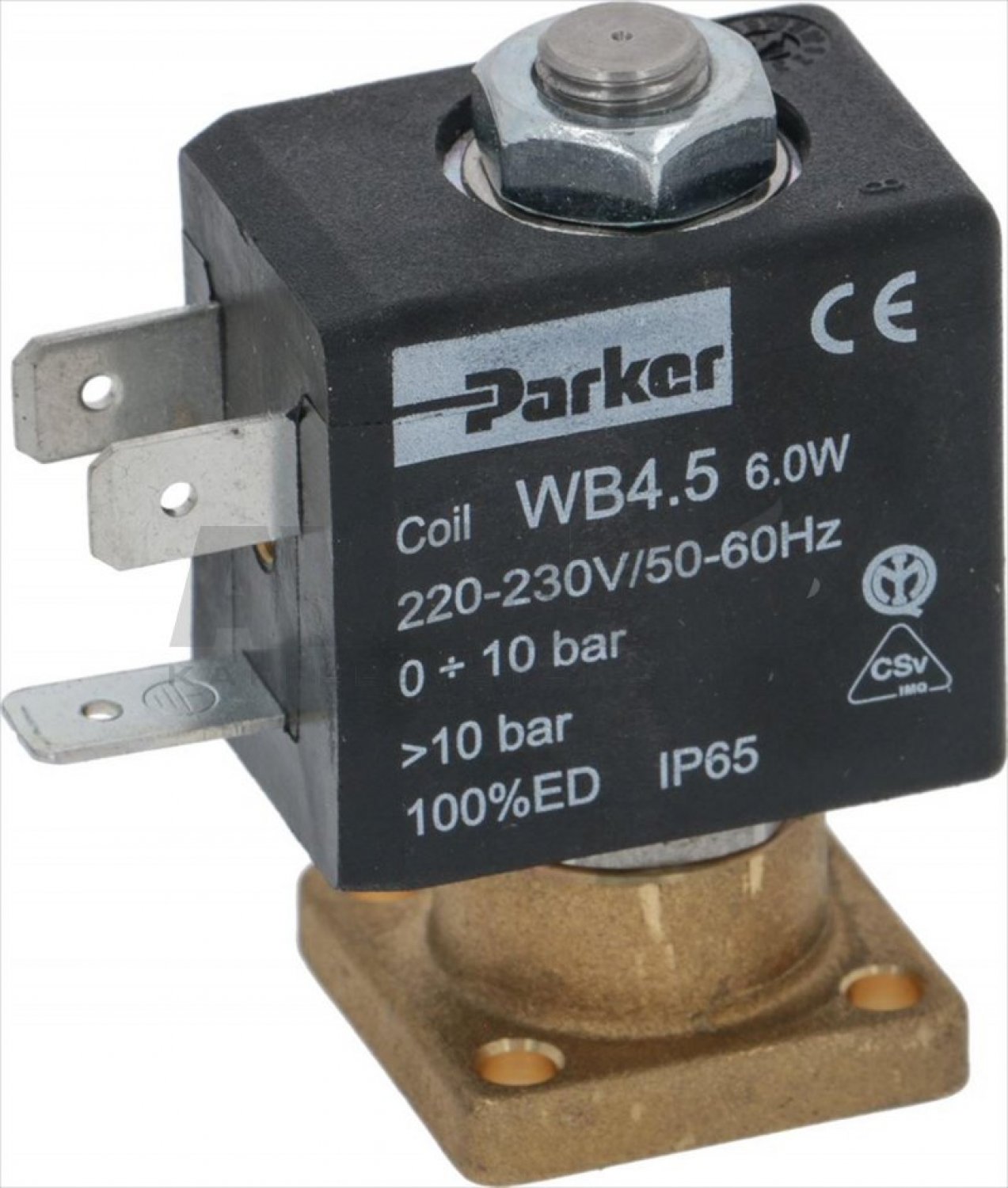

135magnetventil parker 2 wege 230v 50 60hz 175bv 8076513
MAGNETVENTIL PARKER 2-WEGE 230V 50/60Hz 175BV
88,26 €

excl. Shipping costs

Delivery time
is determined

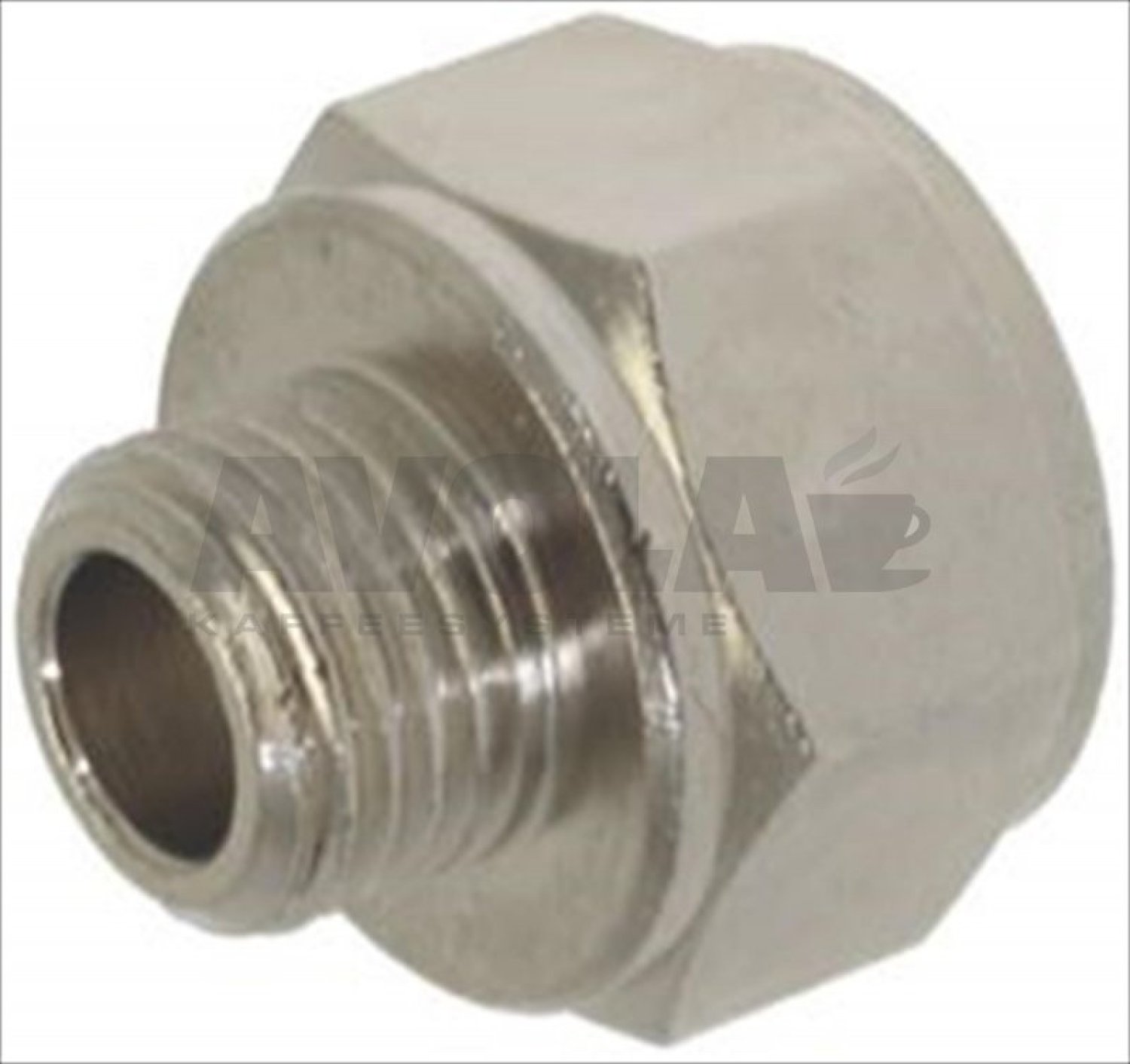

139nichel plated fitting 8022424
NICHEL-PLATED FITTING
6,66 €

excl. Shipping costs

Delivery time
is determined
141o ring 03037 fkm 8060058
O-RING 03037 FKM
4,09 €

excl. Shipping costs

immediately available

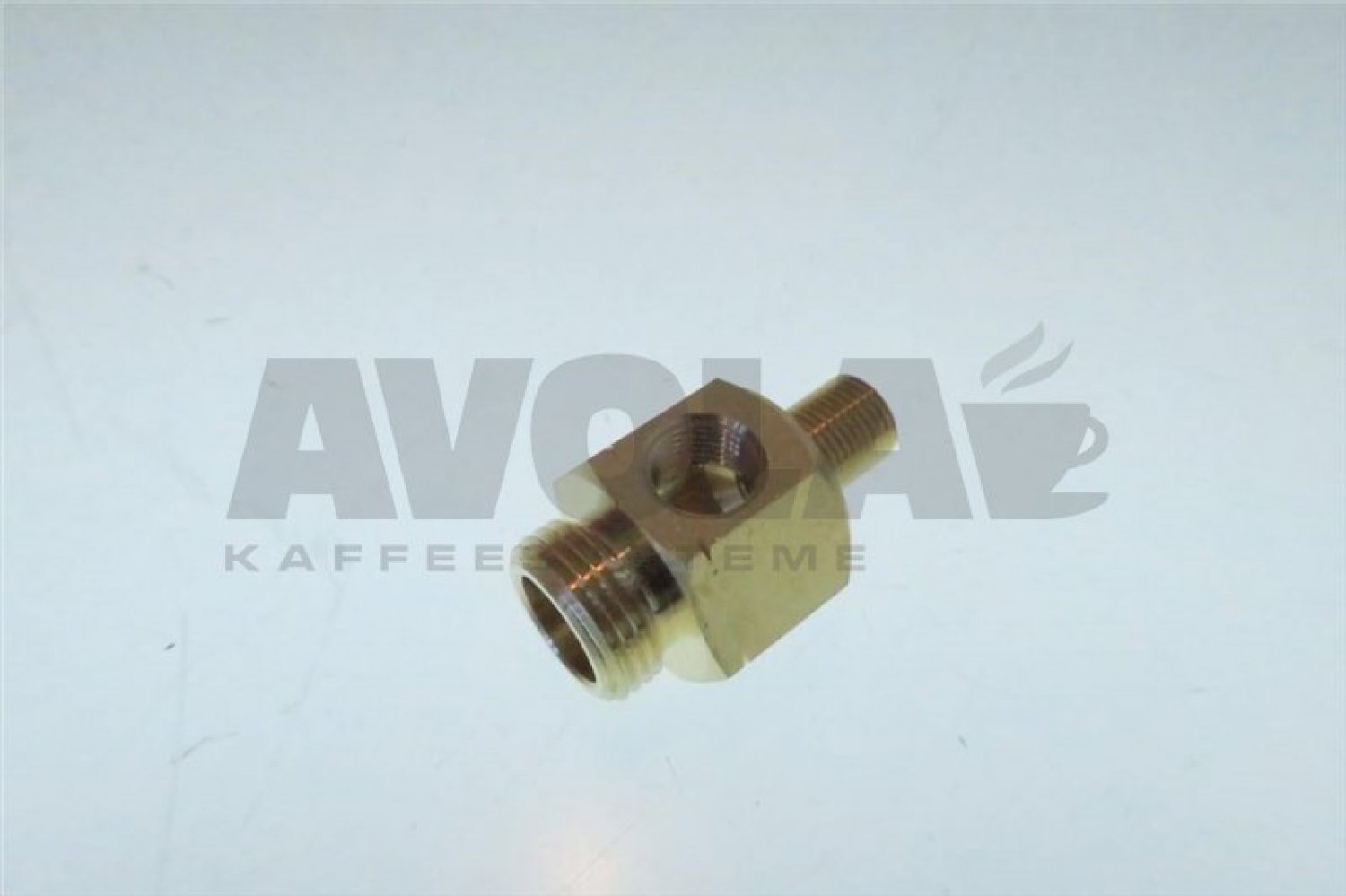

143sanremo fitting 22x38 mfm 8231357
Sanremo Fitting 22X38 MFM
29,75 €

excl. Shipping costs

Delivery time
is determined

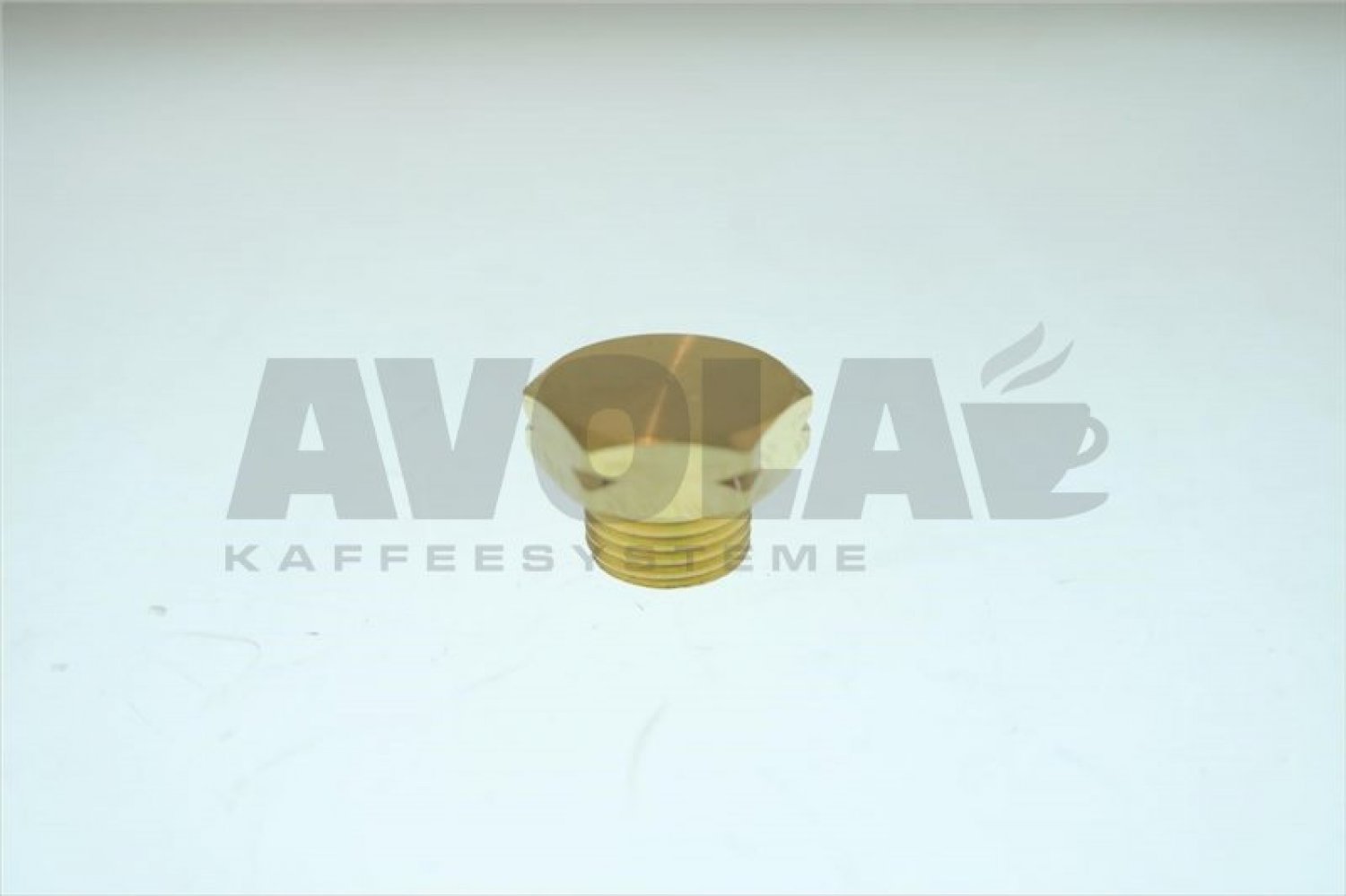

144sanremo fitting 1 8 quot m ot57 gr 8337051
Sanremo Fitting 1/8"M OT57 GR.
Price on request
146rueckschlagventil o 1 4 a 1 8 a 8074054
RÜCKSCHLAGVENTIL ø 1/4 A-1/8 A
36,51 €

excl. Shipping costs

Delivery time
is determined
150three phase thermostat 169 8006515
THREE-PHASE THERMOSTAT 169
44,53 €

excl. Shipping costs

Delivery time
is determined
