Sanremo

SANREMO PISA BRÜHGRUPPE - WASSER DAMPFHAHN

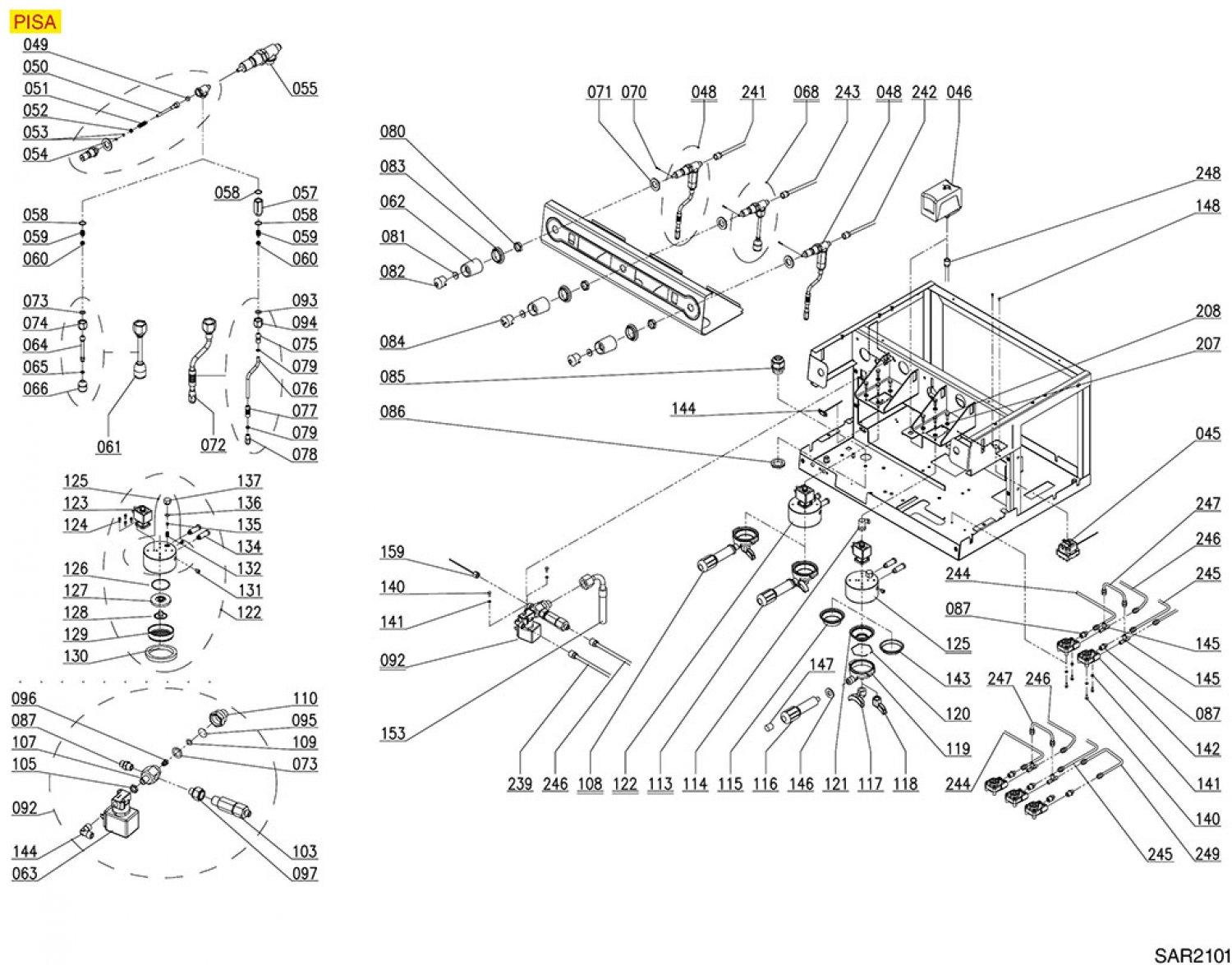

Drawing number 8069034

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
45three phase thermostat 169 8006515
THREE-PHASE THERMOSTAT 169
44,53 €

excl. Shipping costs

Delivery time
is determined
46pressure switch p302 6 3 poles 30a 8005068
PRESSURE SWITCH P302/6 3-POLES 30A
62,26 €
62,26 €

excl. Shipping costs

immediately available, 17 available
49blond gasket o 12x5 8 mm silicon 8001670
blond gasket ø 12x5,8 mm silicon
1,20 €

excl. Shipping costs

immediately available
50water steam tap pin 8005137
WATER/STEAM TAP PIN
17,02 €

excl. Shipping costs

immediately available, 3 available
51tap spring 8003795
TAP SPRING
1,80 €

excl. Shipping costs

immediately available, 10 available
52spring bushing 8001521
SPRING BUSHING
1,42 €

excl. Shipping costs

immediately available, 6 available
53o ring epdm r5 8048968
O-RING EPDM R5
1,25 €

excl. Shipping costs

immediately available, 12 available
54copper flat gasket 22x17x1 5 mm 8001815
COPPER FLAT GASKET 22x17x1,5 mm
1,01 €

excl. Shipping costs

immediately available
55dampfhahn san remo ohne knebel ohne lanze 8080222
Dampfhahn San Remo ohne Knebel, ohne Lanze
50,27 €

excl. Shipping costs

immediately available, 2 available
58o ring 02062 green viton 8064352
O-RING 02062 GREEN VITON
2,43 €

excl. Shipping costs

immediately available, 20 available
59spring o 12x16 5 mm 8003554
SPRING ø 12x16,5 mm
2,88 €

excl. Shipping costs

immediately available, 11 available
60steam tap joint bushing 8002144
STEAM TAP JOINT BUSHING
4,46 €

excl. Shipping costs

immediately available, 3 available
61wasserrohr komplett verchromt 8074040
WASSERROHR KOMPLETT VERCHROMT
76,03 €

excl. Shipping costs

Delivery time
is determined

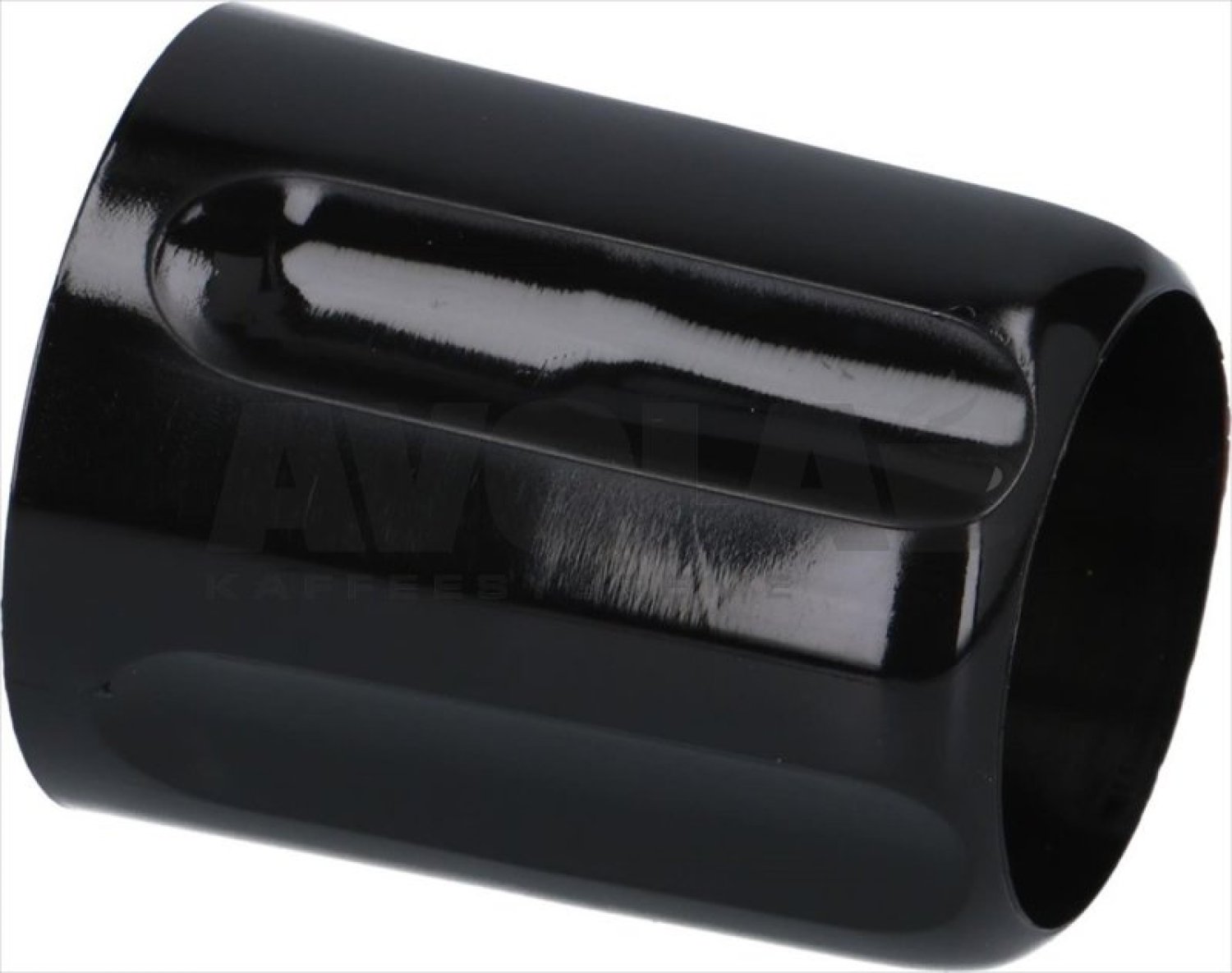

62drehknopf dampf wasserhahn 8073865
DREHKNOPF DAMPF-/WASSERHAHN
17,56 €

excl. Shipping costs

Delivery time
is determined
632 way solenoid valve lucifer 240v 50hz 8000975
2-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,99 €

excl. Shipping costs

immediately available, 5 available

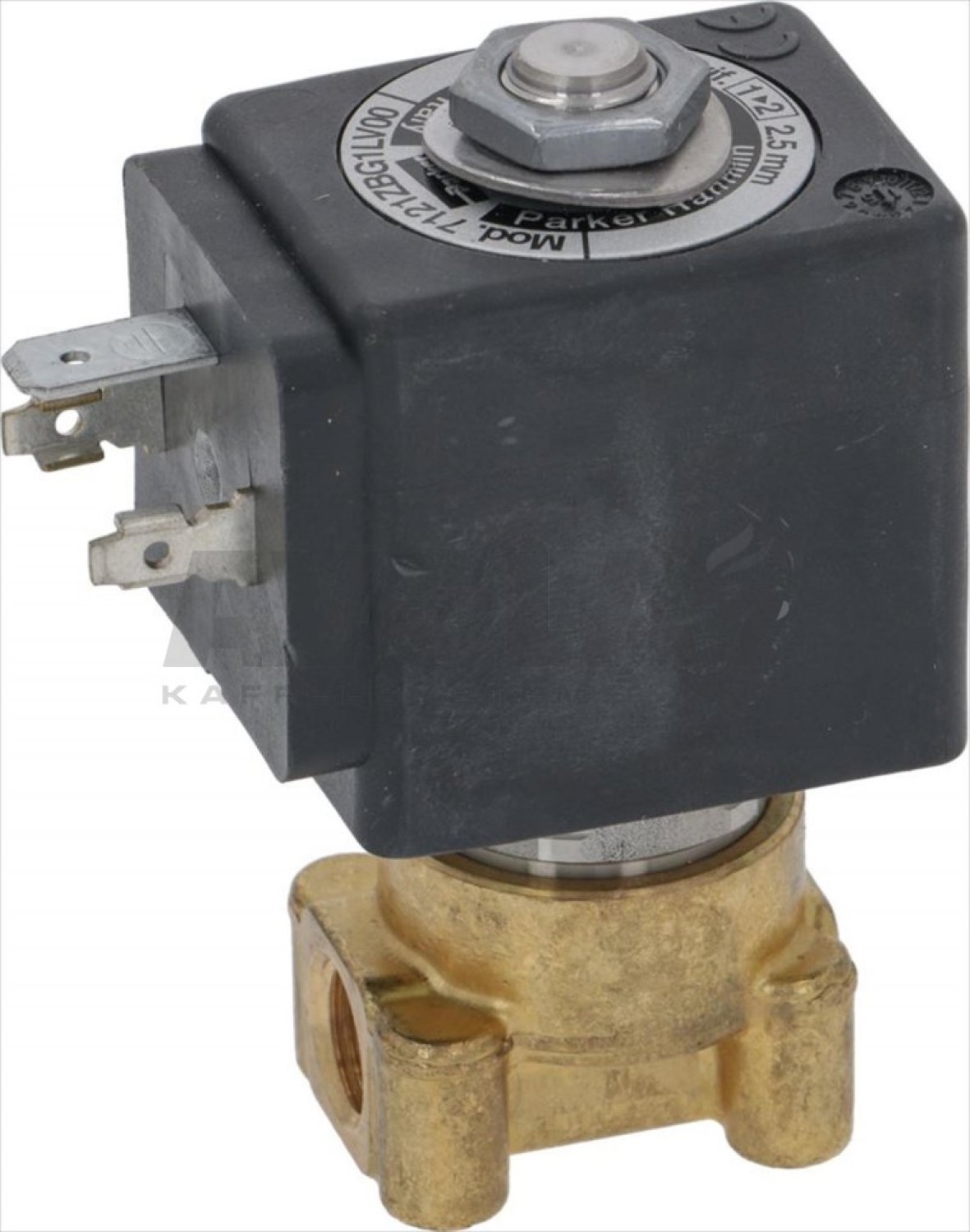

632 way solenoid valve lucifer 115v 60hz 8063422
2-WAY SOLENOID VALVE LUCIFER 115V 60Hz
50,82 €

excl. Shipping costs

Delivery time
is determined
66water pipe nozzle 1 8 8006744
WATER PIPE NOZZLE 1/8
8,20 €

excl. Shipping costs

immediately available, 4 available
68wasser hahn komplett 8074036
WASSER HAHN KOMPLETT
153,76 €

excl. Shipping costs

Delivery time 4-6 weeks..
70stainless steel pin 8024568
STAINLESS STEEL PIN
0,42 €

excl. Shipping costs

immediately available
71rondella d20 zn piana uni 6592 8215654
RONDELLA D20 ZN PIANA UNI 6592
Price on request
72 8213290
TUBO VAPORE INOX SANREMO VE-F
32,06 €

excl. Shipping costs

Delivery time 4-6 weeks..
73o ring 0115 epdm 8001977
O-RING 0115 EPDM
0,93 €

excl. Shipping costs

immediately available, 16 available
74nut 8069365
NUT
9,52 €

excl. Shipping costs

immediately available, 13 available
77burn preventing rubberp f pipe 8064582
BURN PREVENTING RUBBERP.F/PIPE
4,39 €

excl. Shipping costs

immediately available, 8 available
78bfc dampfduese 4 loch aussengewinde 8 5 mm o 1 5 mm 1 stueck 8174152
BFC Dampfdüse 4-Loch Außengewinde 8,5 mm ø 1,5 mm (1 Stück)
11,90 €

excl. Shipping costs

immediately available, 2 available

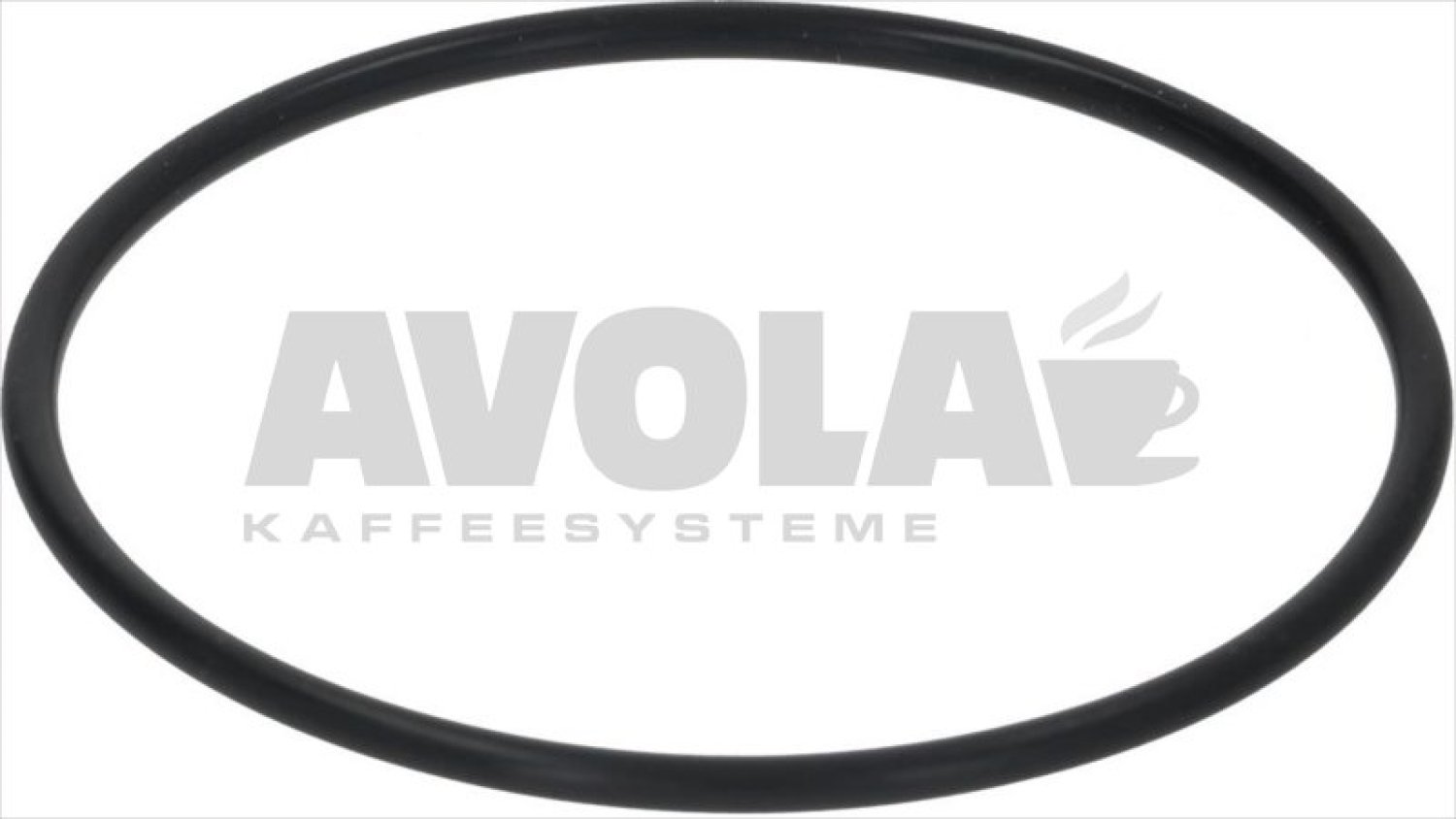

79or tubo lancia mlx or 188 epdm 8192077
OR TUBO LANCIA MLX OR 188 EPDM
1,20 €

excl. Shipping costs

Delivery time
is determined

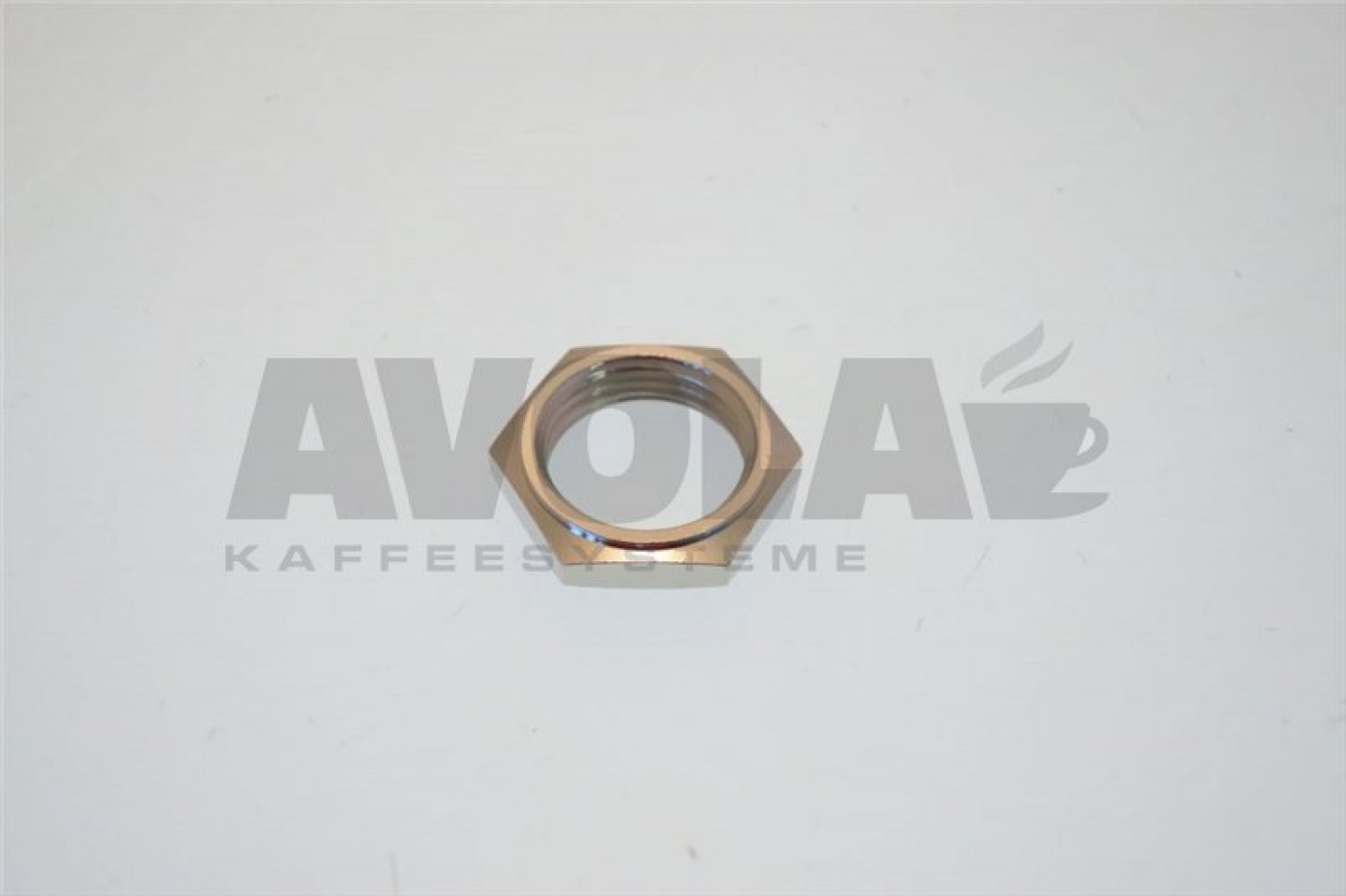

80mezzo dado 1 2 rialzato nich 8202982
MEZZO DADO 1/2 RIALZATO NICH.
6,55 €

excl. Shipping costs

Delivery time 4-6 weeks..
81scheibe 20x6 3x1 5 aisi304 8219715
Scheibe 20x6,3x1,5 AISI304
1,19 €

excl. Shipping costs

immediately available, 13 available

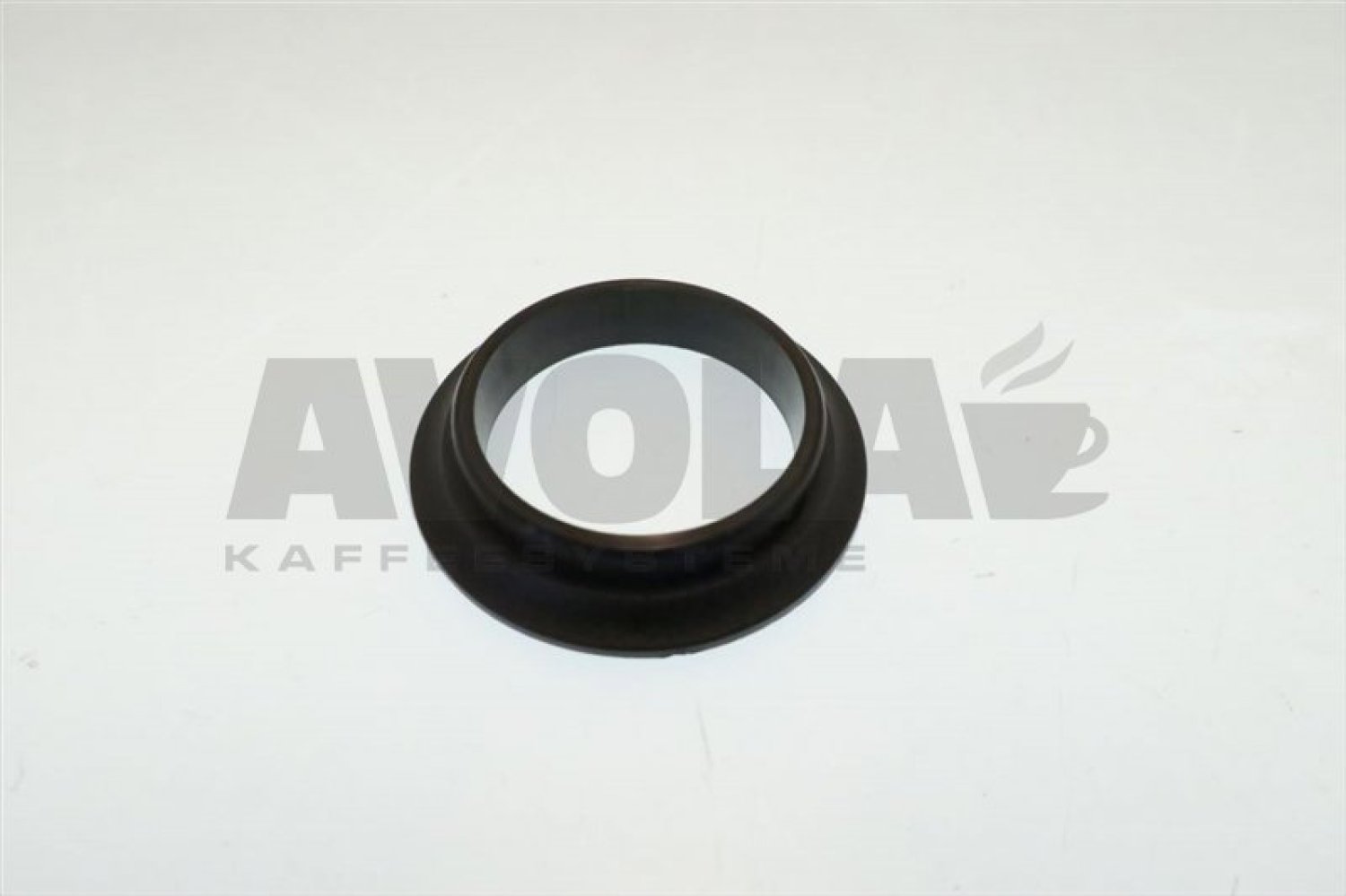

83ghiera manopola acqua vap 8213382
GHIERA MANOPOLA ACQUA/VAP
2,03 €

excl. Shipping costs

Delivery time 4-6 weeks..

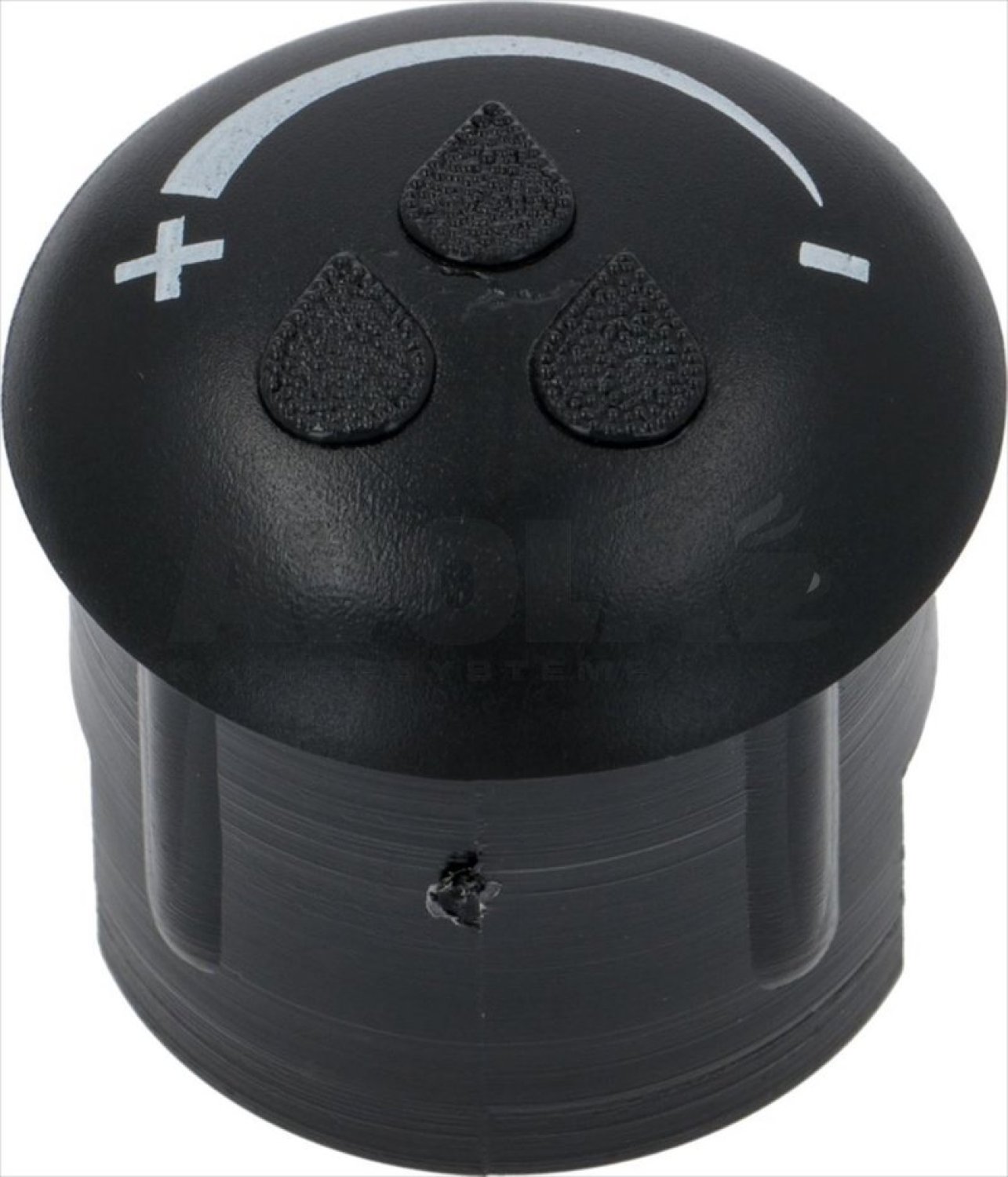

84wassereinsatz fuer drehknopf 8073866
WASSEREINSATZ FÜR DREHKNOPF
4,17 €

excl. Shipping costs

Delivery time
is determined
93dichtung or r10 epdm 8074069
Dichtung OR R10 EPDM
1,23 €

excl. Shipping costs

immediately available, 13 available

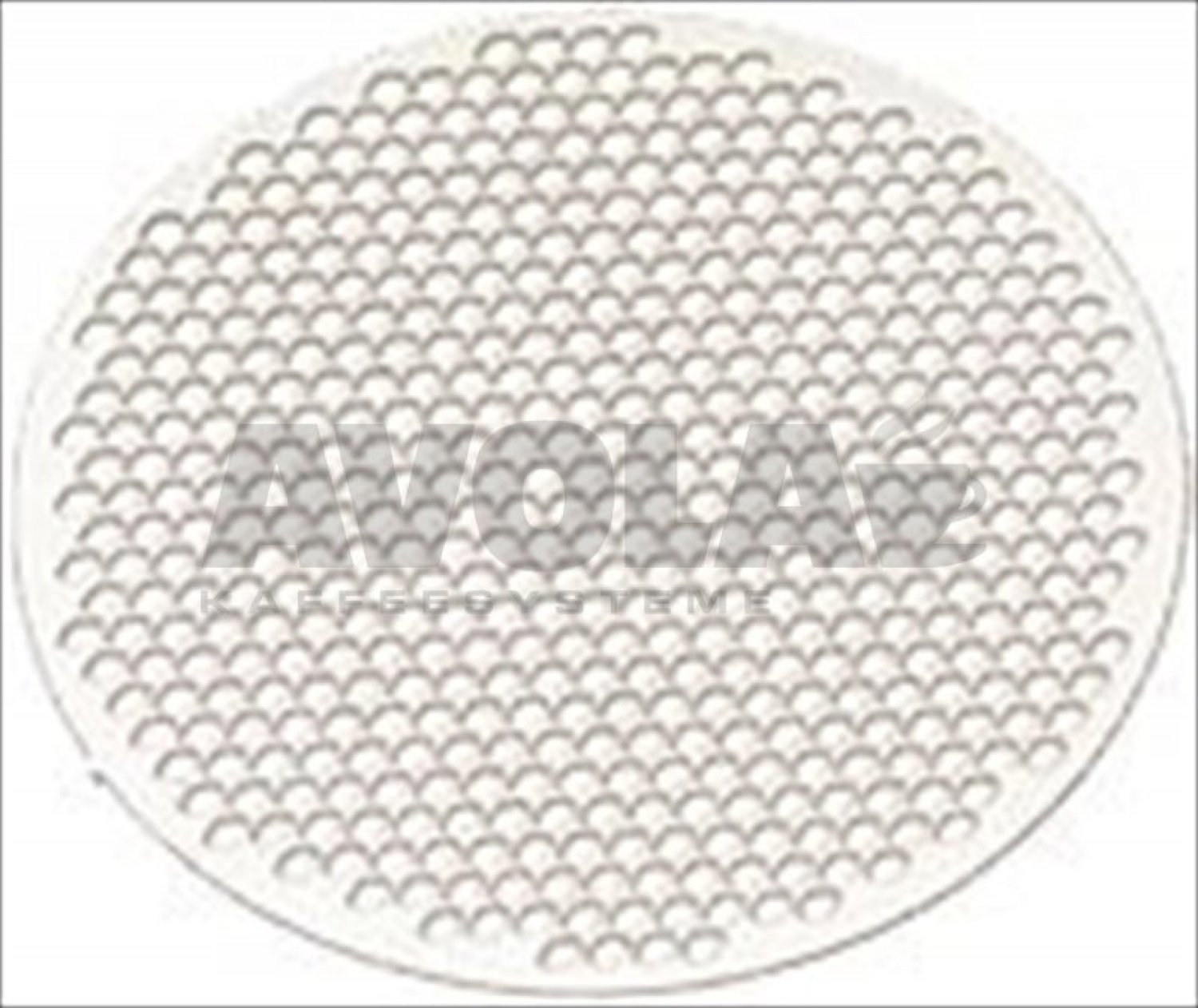

95wasserfilter edelstahl o 15 mm 8073749
WASSERFILTER EDELSTAHL ø 15 mm
1,19 €

excl. Shipping costs

Delivery time
is determined
97nichel plated fitting o 1 4 a 1 8 i 8022425
NICHEL-PLATED FITTING ø 1/4 A-1/8 I
4,15 €

excl. Shipping costs

immediately available, 12 available
103rueckschlagventil o 1 4 a 1 8 a 8074054
RÜCKSCHLAGVENTIL ø 1/4 A-1/8 A
36,51 €

excl. Shipping costs

Delivery time
is determined
109o ring 03037 fkm 8060058
O-RING 03037 FKM
4,09 €

excl. Shipping costs

immediately available
110nichel plated fitting 8022424
NICHEL-PLATED FITTING
6,66 €

excl. Shipping costs

Delivery time
is determined
114elbow fitting 8069359
ELBOW FITTING
12,02 €

excl. Shipping costs

immediately available, 2 available
1152 cup filter 12 grams 8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
