Spaziale

GRUPPE KAFFEEAUSGABE S1-S3-S3-SPAZIO-NEW

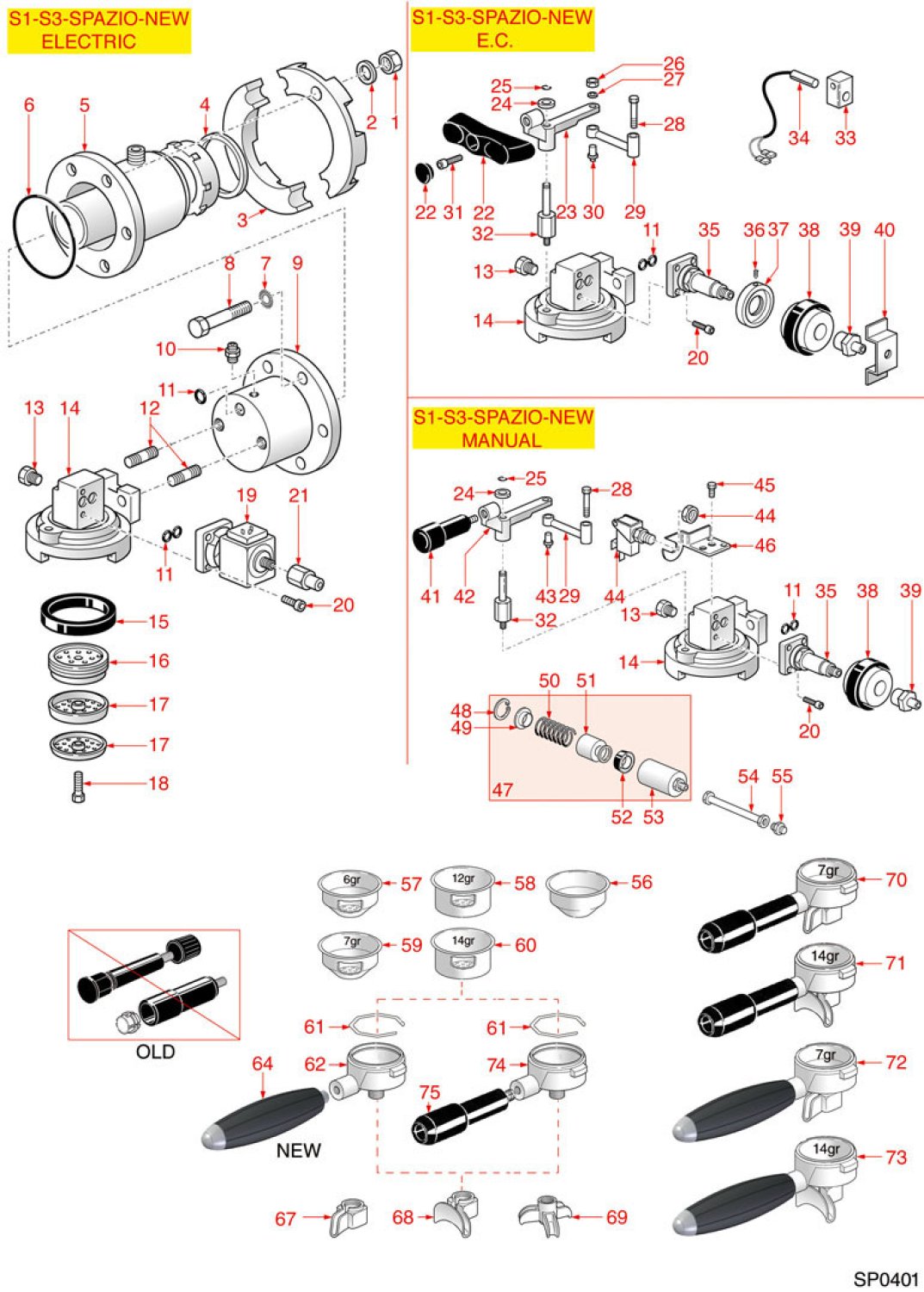

Drawing number 8057479

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:

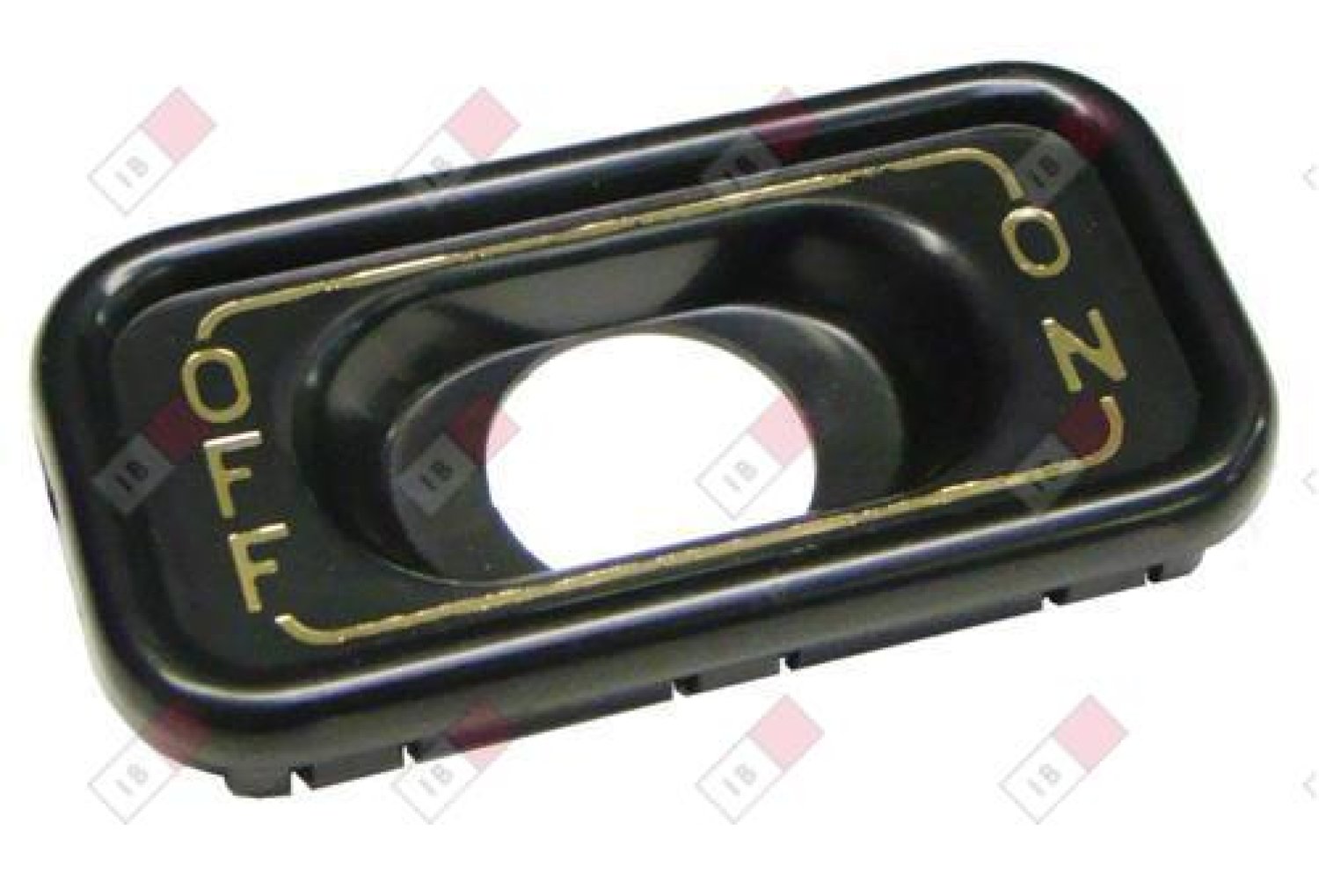

0la spaziale ultra blende manuelle gruppe8079494
LA SPAZIALE ULTRA BLENDE MANUELLE GRUPPE
9,83 €

excl. Shipping costs
Delivery time
is determined
3halbring aus aluminium8000006
HALBRING AUS ALUMINIUM
9,06 €

excl. Shipping costs
Delivery time 4-6 weeks
4ptfe flat gasket8001806
PTFE FLAT GASKET
2,73 €

excl. Shipping costs
immediately available, 20 available
6coffee group gasket8001705
COFFEE GROUP GASKET
6,38 €

excl. Shipping costs
immediately available, 2 available
6spaziale o ring 04312 viton8001880
SPAZIALE O-RING 04312 VITON
4,02 €

excl. Shipping costs
immediately available, 7 available
11red silicone o ring r5 gasket8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs
immediately available
11o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available
12low cylinder head screw m10x208002199
LOW CYLINDER HEAD SCREW M10x20
2,06 €

excl. Shipping costs
immediately available, 16 available

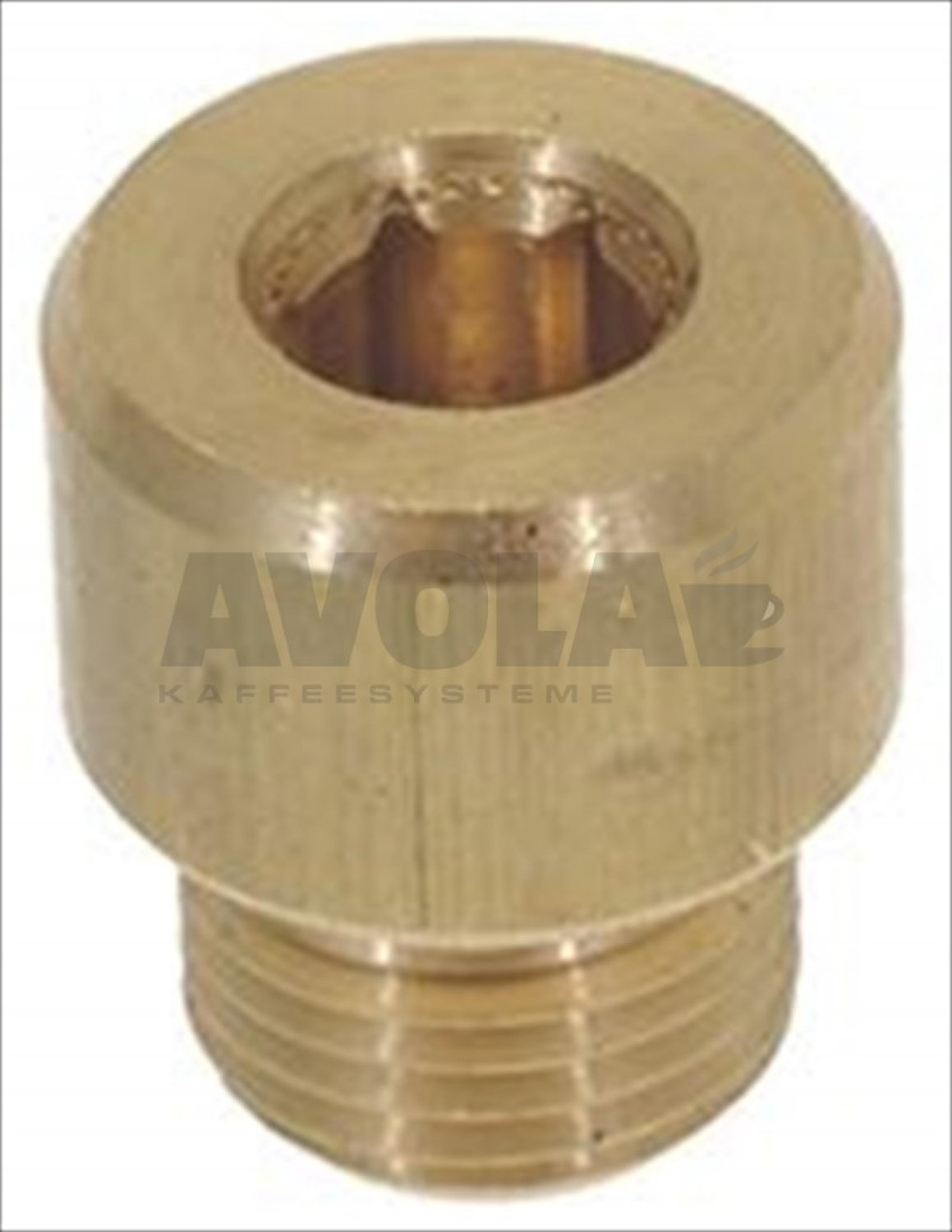

13spaziale blindstopfen 1 8m8163401
Spaziale Blindstopfen 1/8M
10,42 €

excl. Shipping costs
immediately available, 3 available
15filter holder gasket8002035
FILTER HOLDER GASKET
5,83 €

excl. Shipping costs
immediately available, 11 available
15la spaziale siebtraegerdichtung original o 64x52x7 mm8080221
La Spaziale Siebträgerdichtung Original ø 64x52x7 mm
7,03 €

excl. Shipping costs
immediately available, 18 available
16shower holder diffuser8000618
SHOWER HOLDER DIFFUSER
45,40 €

excl. Shipping costs
Delivery time
is determined
16shower holder diffuser8000619
SHOWER HOLDER DIFFUSER
36,84 €

excl. Shipping costs
immediately available, 1 available
16shower holder diffuser8000646
SHOWER HOLDER DIFFUSER
31,21 €

excl. Shipping costs
immediately available, 1 available
17shower screen o 49 52 mm8000585
SHOWER SCREEN ø 49/52 mm
7,91 €

excl. Shipping costs
immediately available, 6 available
18hexagon head screw m5x258007320
HEXAGON HEAD SCREW M5x25
1,43 €

excl. Shipping costs
immediately available
193 way solenoid valve parker 230v 50 60hz8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs
immediately available, 17 available

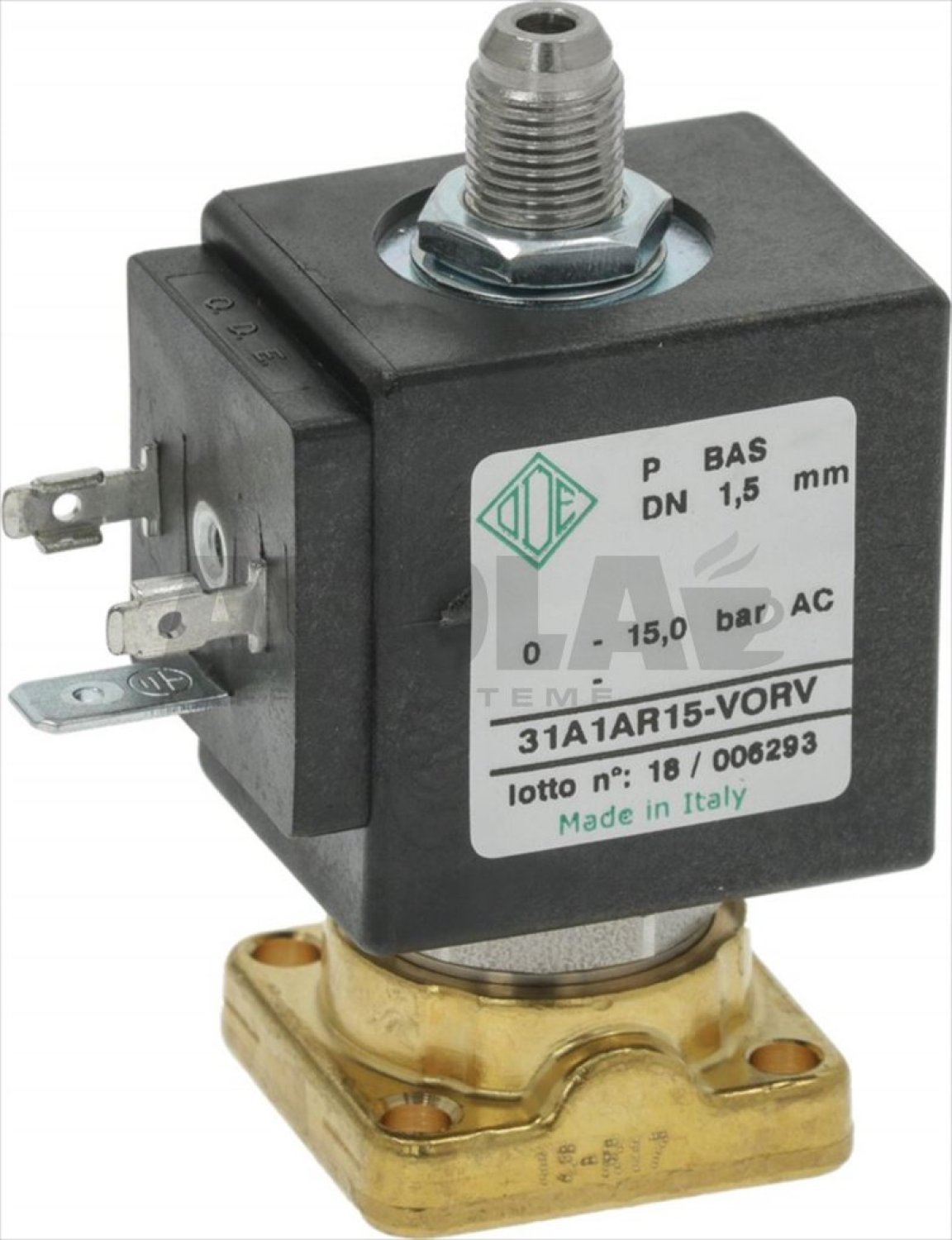

19solenoid valve ode 3 ways 230v 14 5w8000990
SOLENOID VALVE ODE 3 WAYS 230V 14,5W
39,25 €

excl. Shipping costs
immediately available, 3 available
20schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available
21solenoid valve outlet fitting8005816
SOLENOID VALVE OUTLET FITTING
4,45 €

excl. Shipping costs
Delivery time
is determined

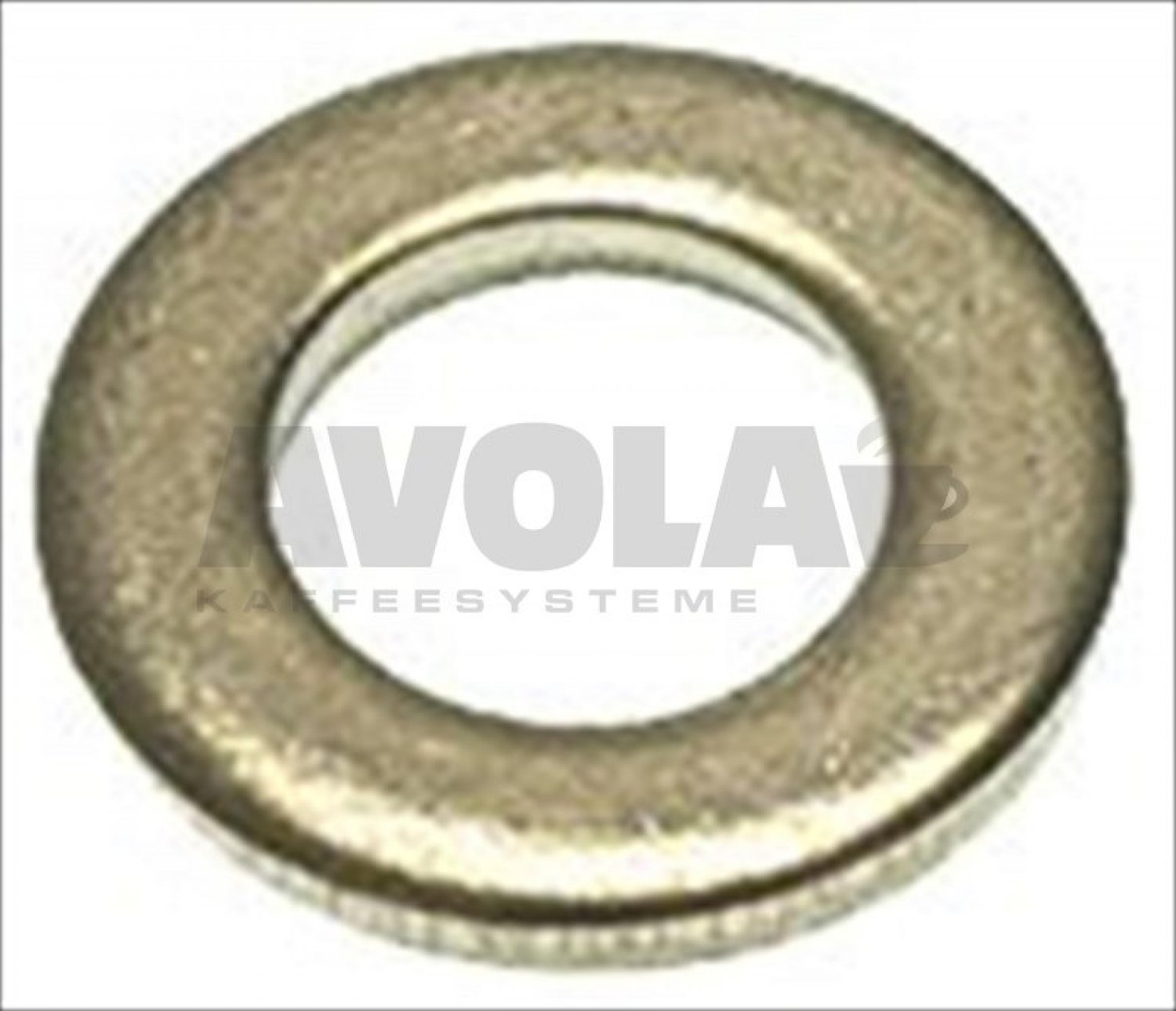

24metallscheibe o 10x6 5x1 5 mm8007280
METALLSCHEIBE ø 10x6,5x1,5 mm
Price on request
26hexagonal nut m4 medium8005615
HEXAGONAL NUT M4 MEDIUM
Price on request
28magnet screw8007323
MAGNET SCREW
5,15 €

excl. Shipping costs
Delivery time 4-6 weeks

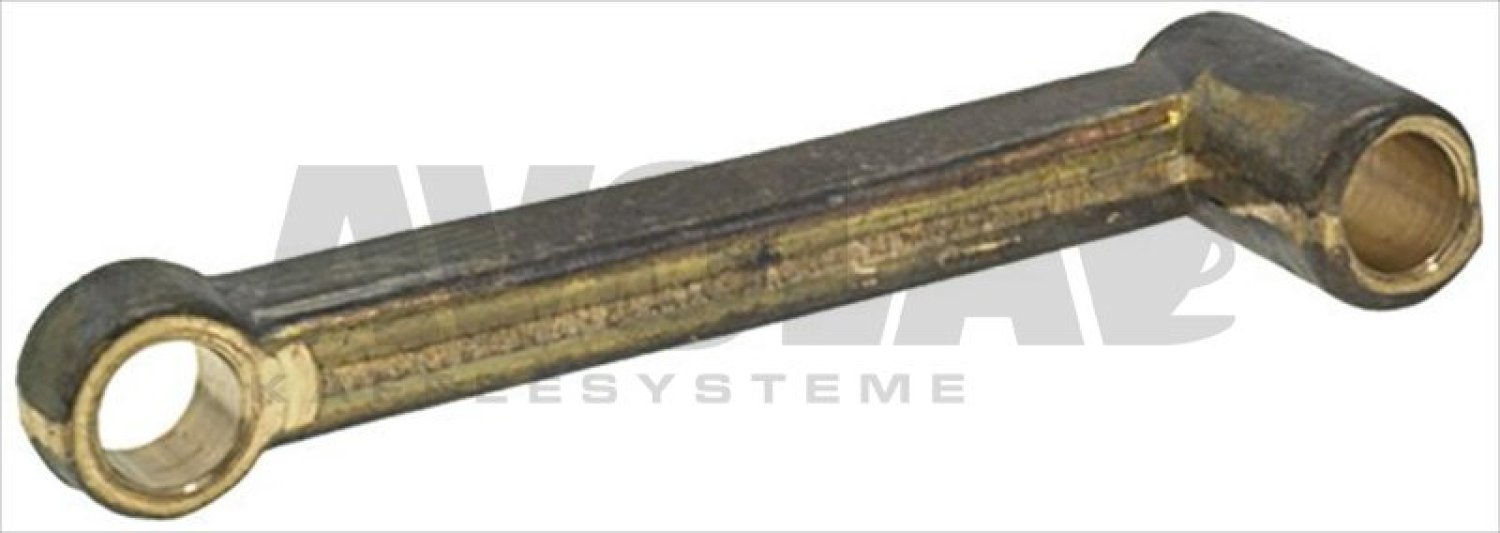

29magnet control lever8002803
MAGNET CONTROL LEVER
12,76 €

excl. Shipping costs
Delivery time 4-6 weeks
31schraube zylinderkopf innensechskant vollgewinde edelstahl m8x20 a2 70 din 9128061169
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M8x20 A2-70 Din 912
2,67 €

excl. Shipping costs
immediately available

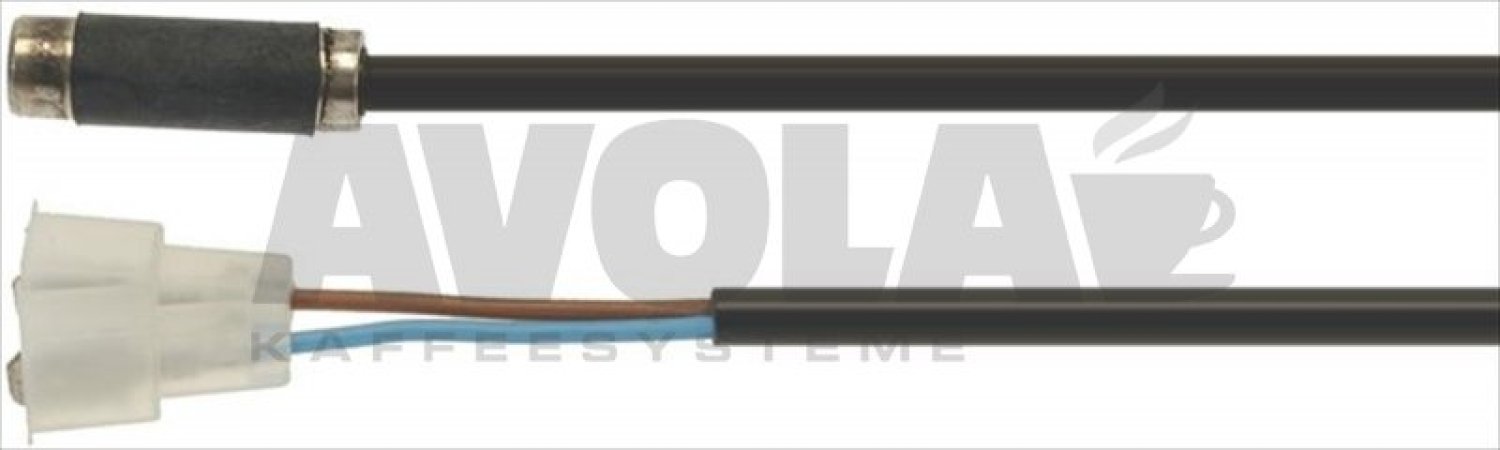

34magnetic microswitch8003048
MAGNETIC MICROSWITCH
29,16 €

excl. Shipping costs
Delivery time 4-6 weeks
353 way mechanical component lucifer8000959
3-WAY MECHANICAL COMPONENT LUCIFER
39,77 €

excl. Shipping costs
immediately available, 3 available
353 way mechanical component parker8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs
immediately available, 12 available

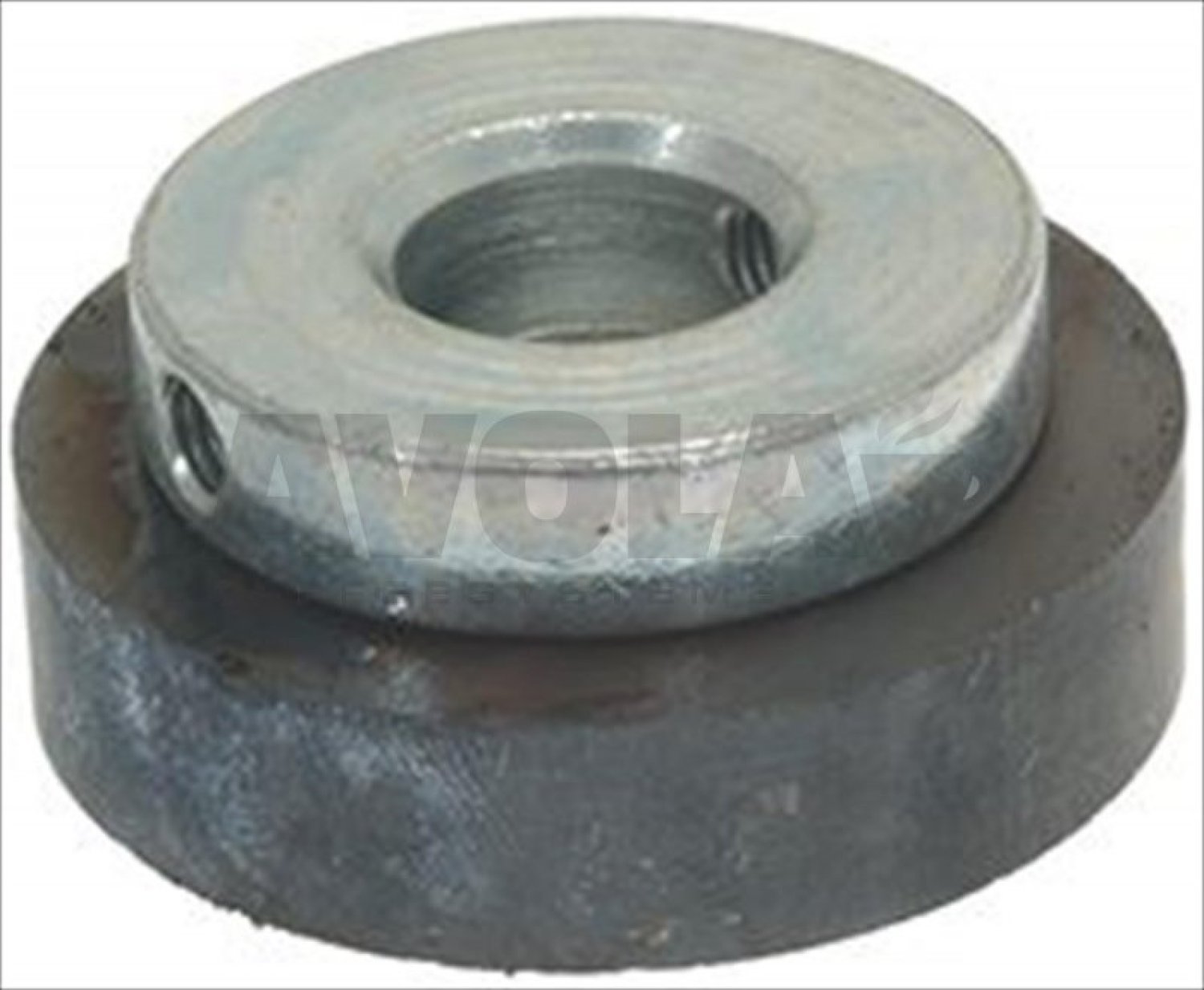

38permanent magnet8003083
PERMANENT MAGNET
20,66 €

excl. Shipping costs
Delivery time 4-6 weeks

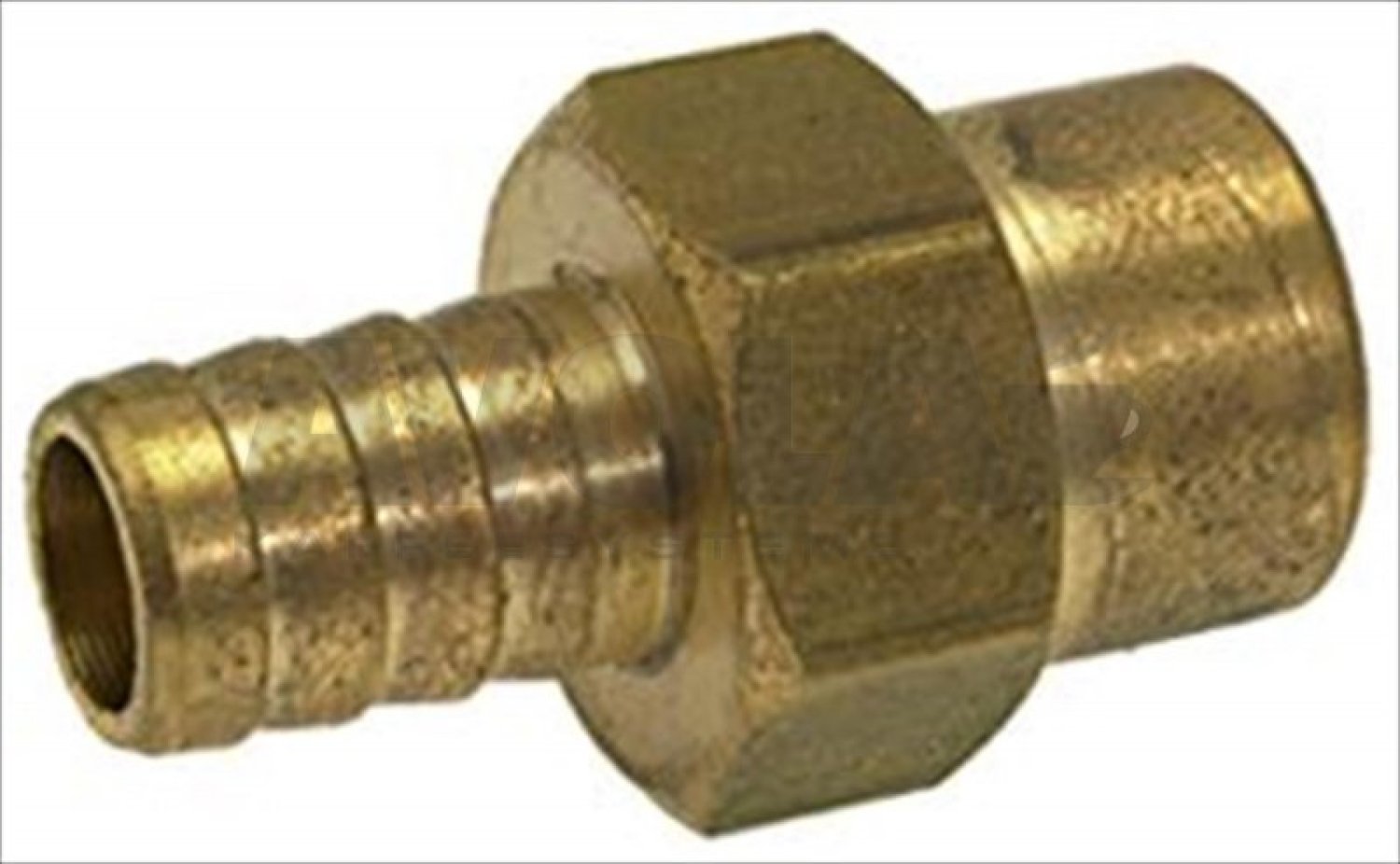

39valve outlet fitting8005815
VALVE OUTLET FITTING
3,42 €

excl. Shipping costs
Delivery time
is determined

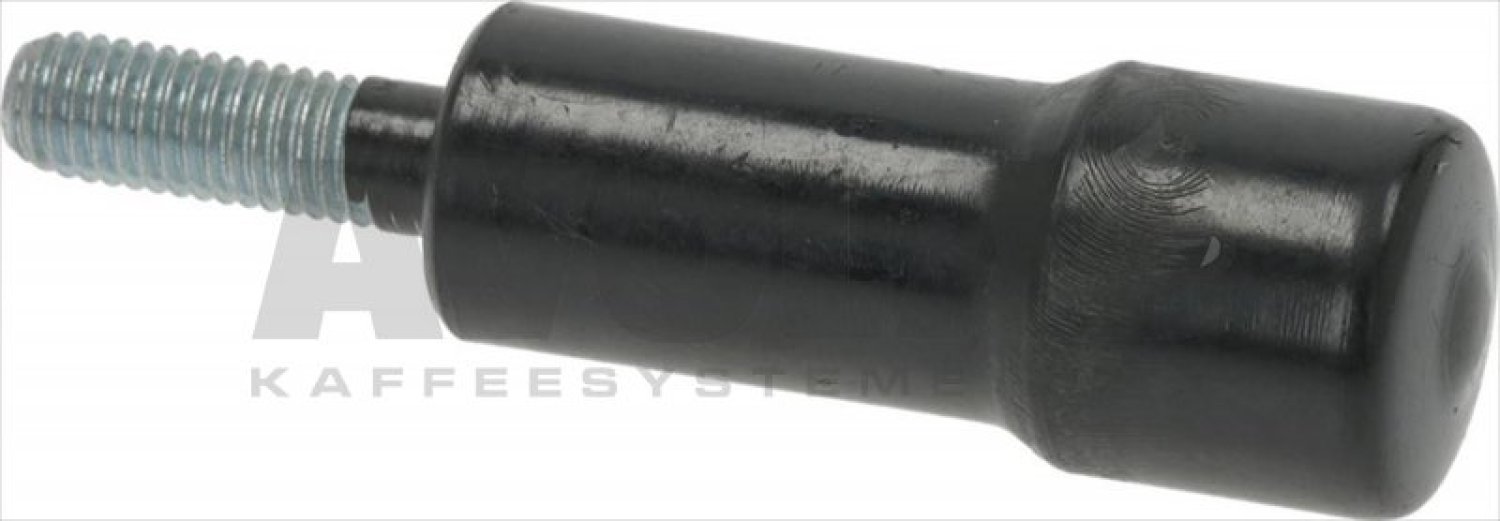

41brewing group handle8003358
BREWING GROUP HANDLE
11,78 €

excl. Shipping costs
Delivery time 4-6 weeks

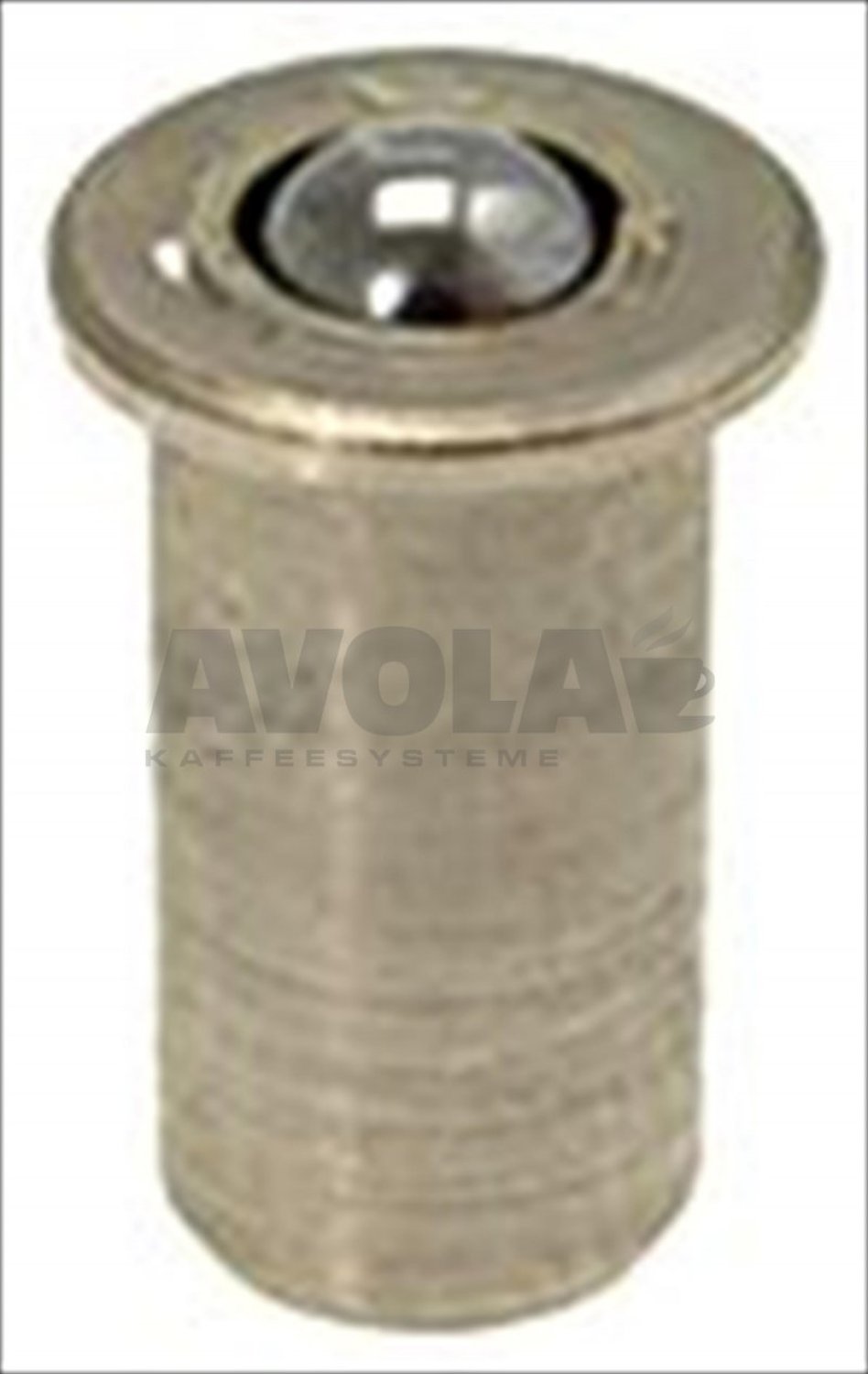

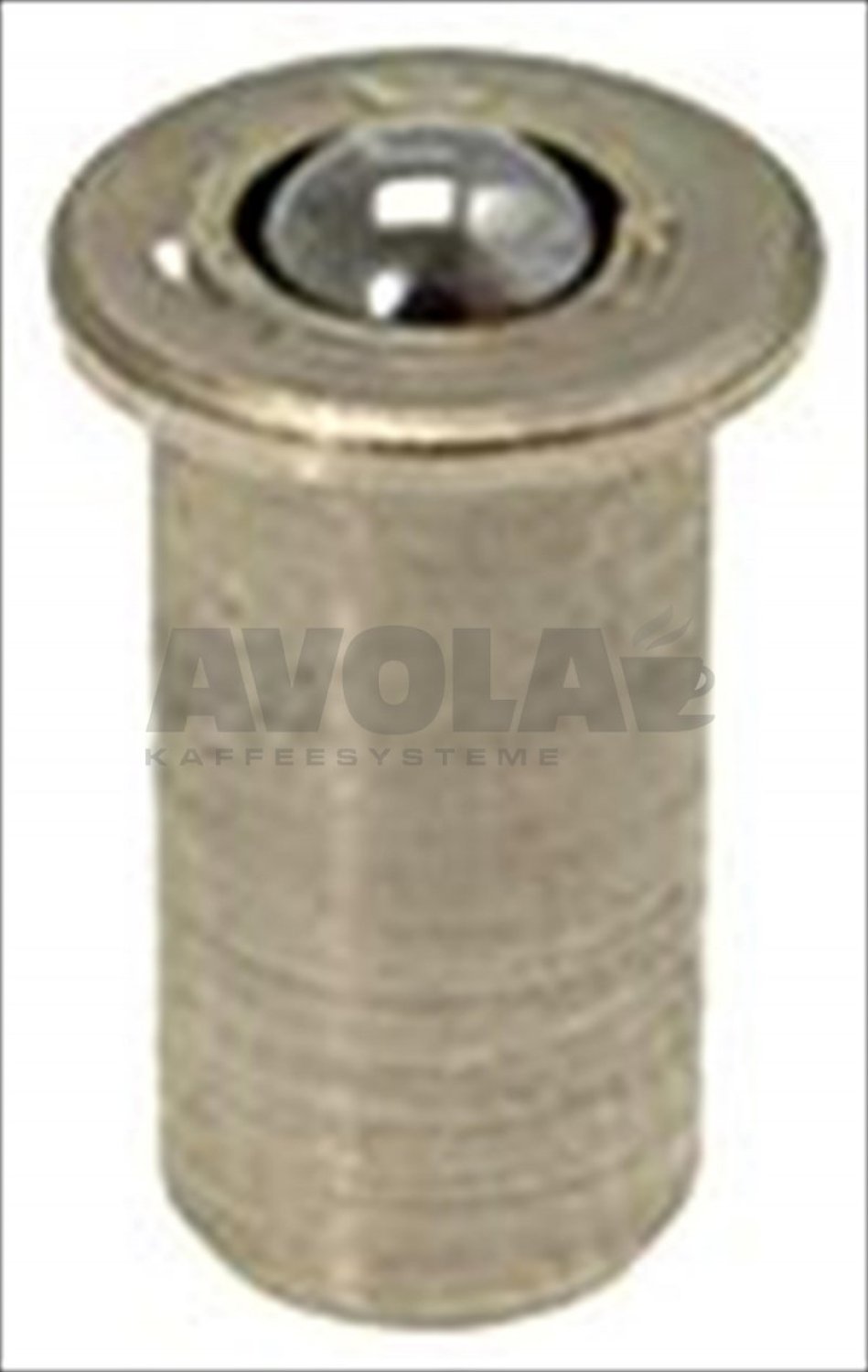

43pin for ball8005161
PIN FOR BALL
Price on request

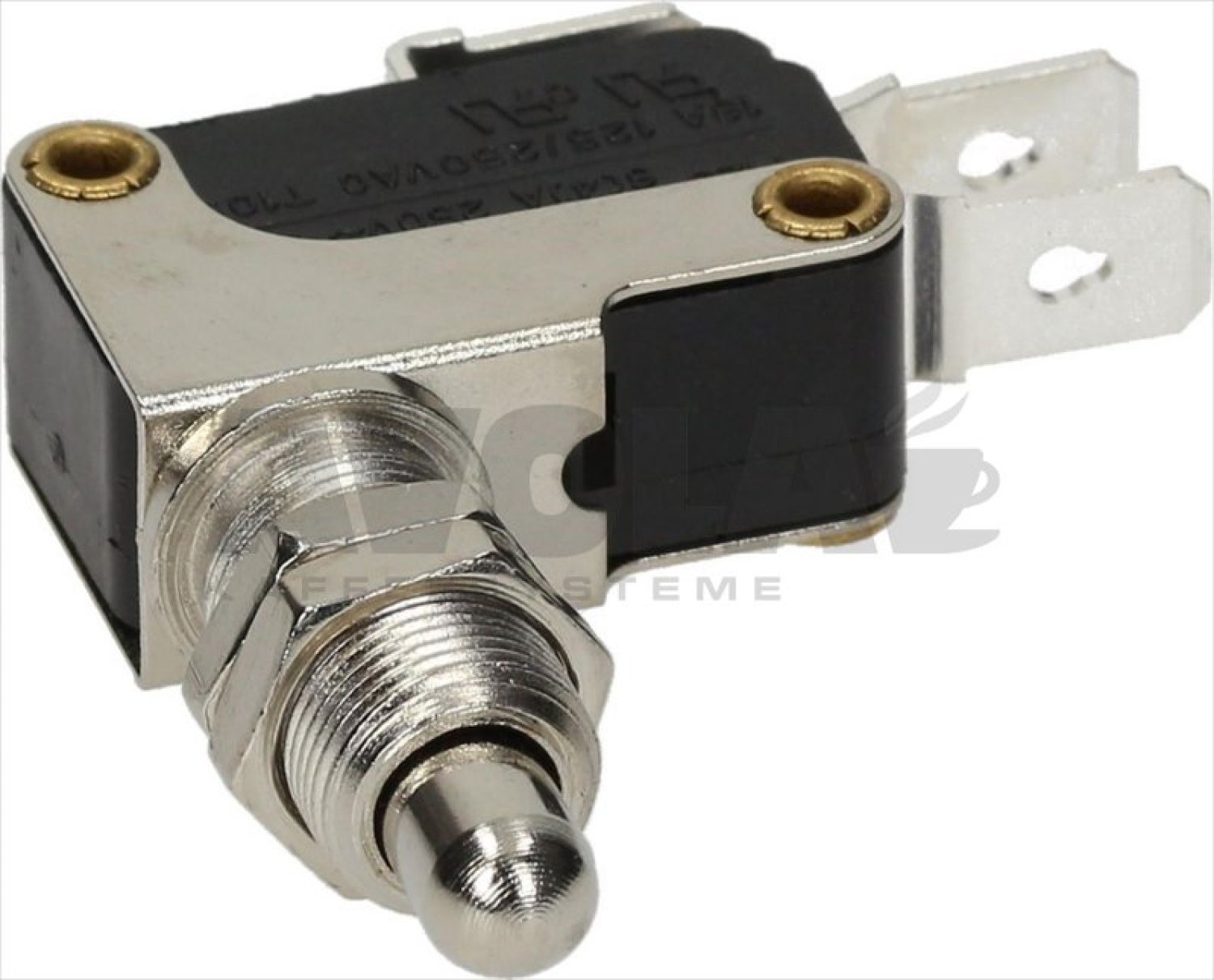

44microswitch 16 4 a 250v8016531
MICROSWITCH 16(4)A 250V
13,95 €

excl. Shipping costs
immediately available, 4 available
47infuser assembly8002698
INFUSER ASSEMBLY
95,01 €

excl. Shipping costs
Delivery time 4-6 weeks
48seeger ring j 288003694
SEEGER RING J-28
1,65 €

excl. Shipping costs
Delivery time 4-6 weeks
49buchse federdruck fuer bruehgruppe8002697
BUCHSE FEDERDRUCK FÜR BRÜHGRUPPE
6,01 €

excl. Shipping costs
Delivery time 4-6 weeks
50infuser spring8003695
INFUSER SPRING
3,81 €

excl. Shipping costs
Delivery time 4-6 weeks
52lip gasket8001891
LIP GASKET
6,09 €

excl. Shipping costs
Delivery time
is determined
55fitting o 1 8 a 1 8 a8005709
FITTING ø 1/8 A-1/8 A
2,34 €

excl. Shipping costs
immediately available, 8 available
56blind filter 53mm la spaziale8001090
BLIND FILTER 53mm La Spaziale
5,22 €

excl. Shipping costs
immediately available, 6 available
571 cup filter 6 gr8001068
1 CUP FILTER 6 gr
6,18 €

excl. Shipping costs
immediately available, 3 available
582 cups filter 12 gr8001069
2 CUPS FILTER 12 gr
5,03 €

excl. Shipping costs
immediately available, 7 available
591 cup filter 7 gr8001088
1 CUP FILTER 7 gr
6,56 €

excl. Shipping costs
immediately available, 3 available
602 cup filter 14 grams8001089
2-CUP FILTER 14 GRAMS
6,77 €

excl. Shipping costs
immediately available, 3 available
61filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available
62filter holder spaziale8001212
FILTER HOLDER SPAZIALE
42,38 €

excl. Shipping costs
Delivery time
is determined
67one way spout8000114
ONE-WAY SPOUT
13,09 €

excl. Shipping costs
immediately available, 3 available
68double spout o 3 8 rime8000115
Double Spout ø 3/8″
5,95 €

excl. Shipping costs
immediately available, 7 available
69triple spout o 3 88000129
TRIPLE SPOUT ø 3/8
10,01 €

excl. Shipping costs
immediately available, 1 available
72filter holder assembly 1 cup spaziale8001235
FILTER HOLDER ASSEMBLY 1 CUP SPAZIALE
69,16 €

excl. Shipping costs
immediately available, 1 available
73complete filter holder 2 cups spaziale8001236
COMPLETE FILTER HOLDER 2 CUPS SPAZIALE
68,37 €

excl. Shipping costs
immediately available, 1 available
74filter holder spaziale8001211
FILTER HOLDER SPAZIALE
30,35 €

excl. Shipping costs
Delivery time
is determined
75filter holder handle m128003351
FILTER HOLDER HANDLE M12
8,51 €

excl. Shipping costs
immediately available, 7 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
