Spaziale

GRUPPE KAFFEEAUSGABE S40

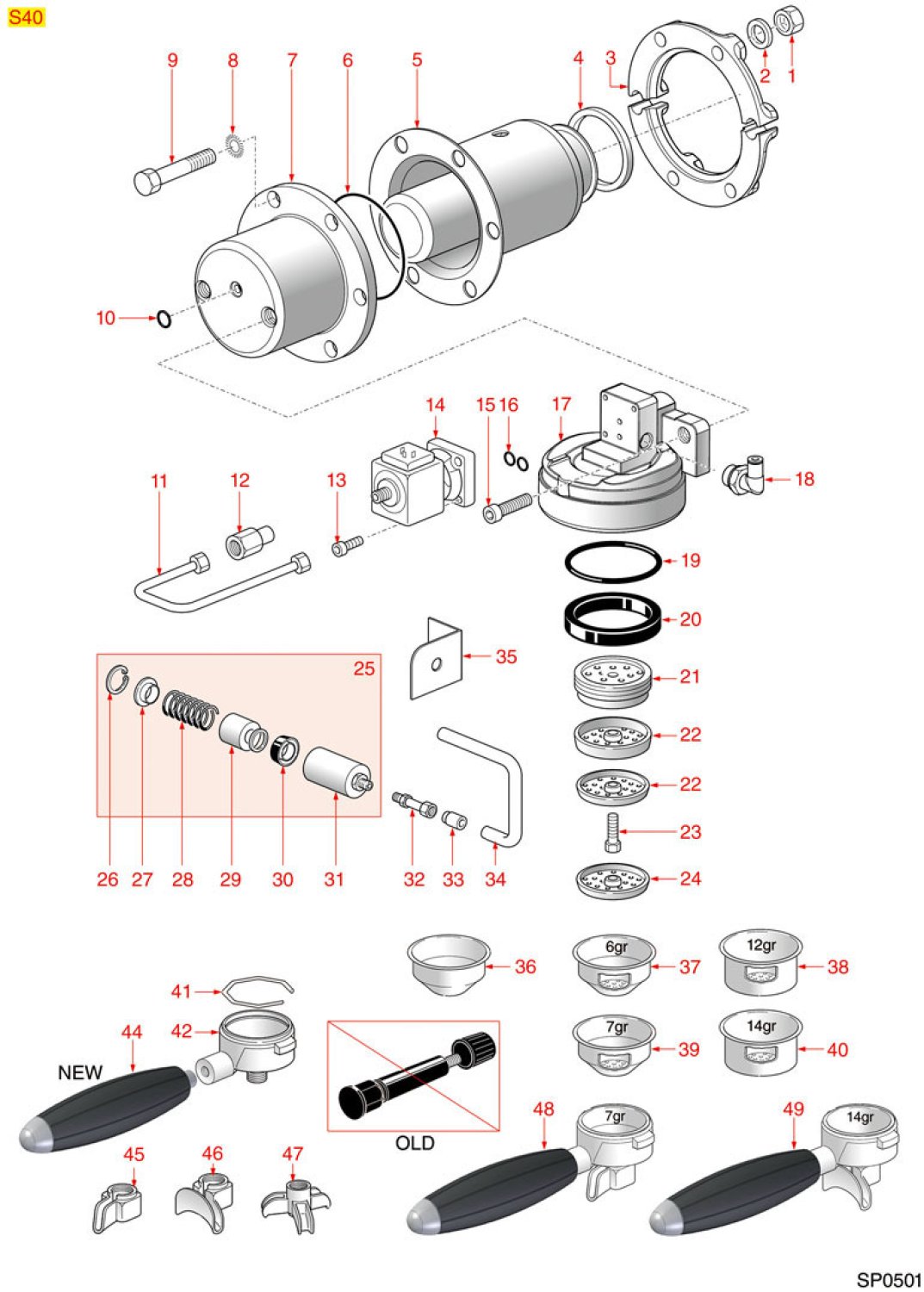

Drawing number 8057480

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1hexagonal nut m8 medium 8011323
HEXAGONAL NUT M8 MEDIUM
1,04 €

excl. Shipping costs

immediately available, 4 available
3halbring aus aluminium 8000006
HALBRING AUS ALUMINIUM
9,06 €

excl. Shipping costs

Delivery time 4-6 weeks..
4ptfe flat gasket 8001806
PTFE FLAT GASKET
2,73 €

excl. Shipping costs

immediately available, 13 available
6spaziale o ring 04312 viton 8001880
SPAZIALE O-RING 04312 VITON
4,02 €

excl. Shipping costs

immediately available, 8 available
10o ring 02025 viton 8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs

immediately available

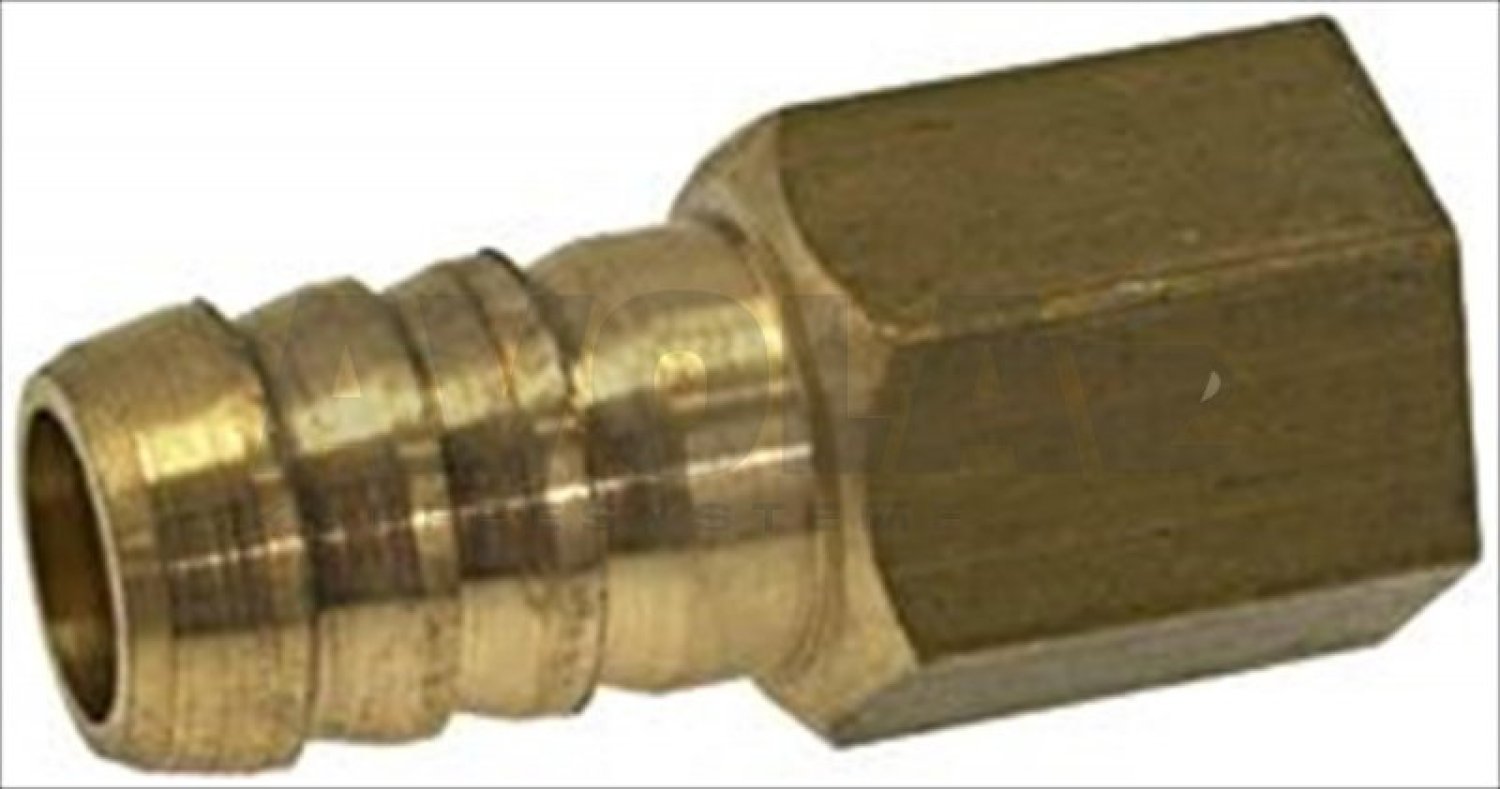

12solenoid valve outlet fitting 8005816
SOLENOID VALVE OUTLET FITTING
4,45 €

excl. Shipping costs

Delivery time
is determined
13schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 912 8061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs

immediately available
143 way solenoid valve lucifer 240v 50hz 8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs

immediately available, 8 available
14coil lucifer parker 220 240v 9w 50hz 8000957
COIL LUCIFER/PARKER 220/240V 9W 50Hz
19,92 €

excl. Shipping costs

immediately available, 6 available
143 way mechanical component lucifer 8000959
3-WAY MECHANICAL COMPONENT LUCIFER
39,77 €

excl. Shipping costs

immediately available, 7 available
143 way solenoid valve parker 230v 50 60hz 8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs

immediately available, 17 available
143 way mechanical component parker 8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs

immediately available, 3 available
14coil parker zb09 9w 220 240v 50 60hz 8012418
COIL PARKER ZB09 9W 220/240V 50/60Hz
20,74 €

excl. Shipping costs

immediately available, 17 available
16red silicone o ring r5 gasket 8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs

immediately available
16o ring 02025 viton 8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs

immediately available
20filter holder gasket 8002035
FILTER HOLDER GASKET
5,83 €

excl. Shipping costs

immediately available, 9 available
20la spaziale siebtraegerdichtung original o 64x52x7 mm 8080221
La Spaziale Siebträgerdichtung Original ø 64x52x7 mm
7,03 €

excl. Shipping costs

immediately available, 16 available
21shower holder diffuser 8000618
SHOWER HOLDER DIFFUSER
45,40 €

excl. Shipping costs

Delivery time
is determined
21shower holder diffuser 8000619
SHOWER HOLDER DIFFUSER
36,84 €

excl. Shipping costs

immediately available, 1 available
21shower holder diffuser 8000646
SHOWER HOLDER DIFFUSER
31,21 €

excl. Shipping costs

immediately available, 1 available
22shower screen o 49 52 mm 8000585
SHOWER SCREEN ø 49/52 mm
7,91 €

excl. Shipping costs

immediately available, 9 available
23hexagon head screw m5x25 8007320
HEXAGON HEAD SCREW M5x25
1,43 €

excl. Shipping costs

immediately available

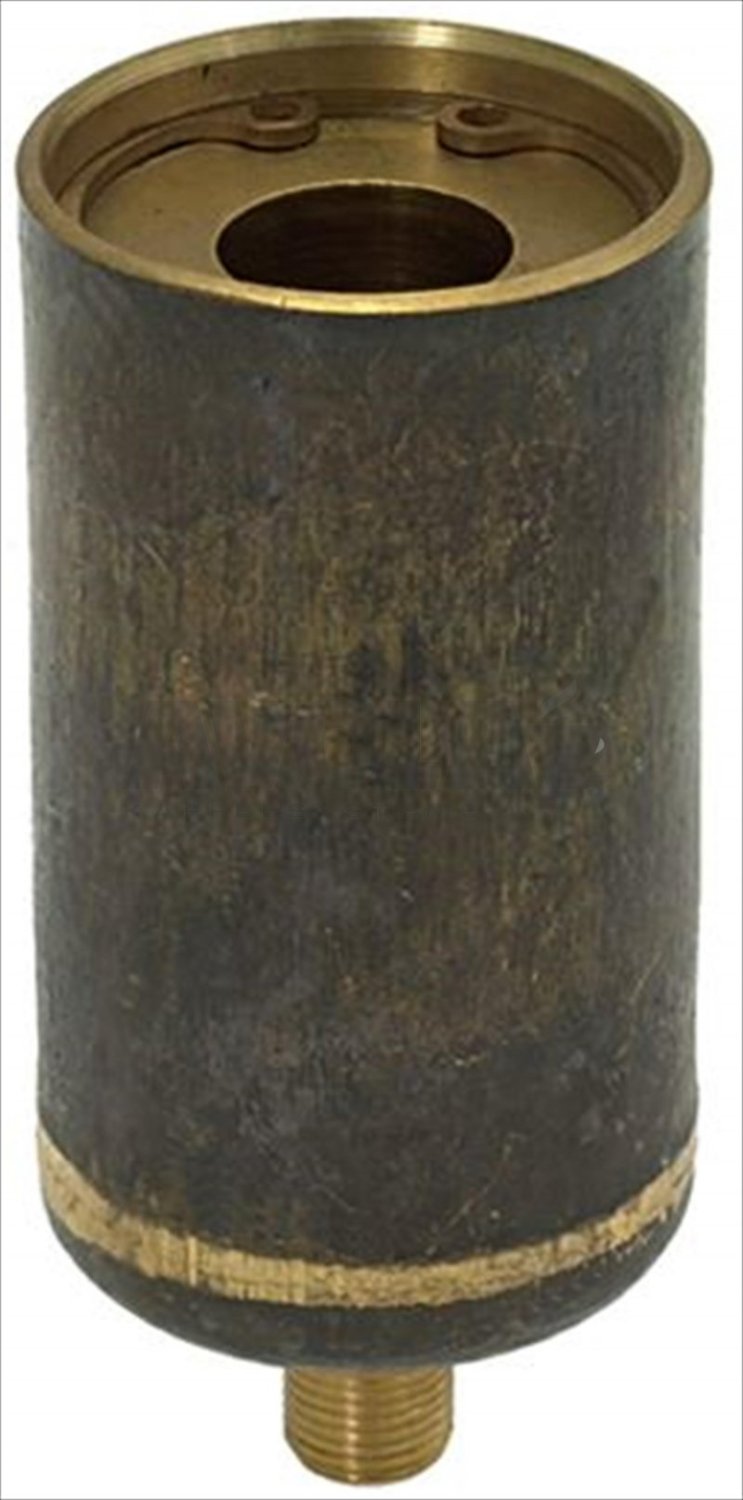

25infuser assembly 8002698
INFUSER ASSEMBLY
95,01 €

excl. Shipping costs

Delivery time 4-6 weeks..

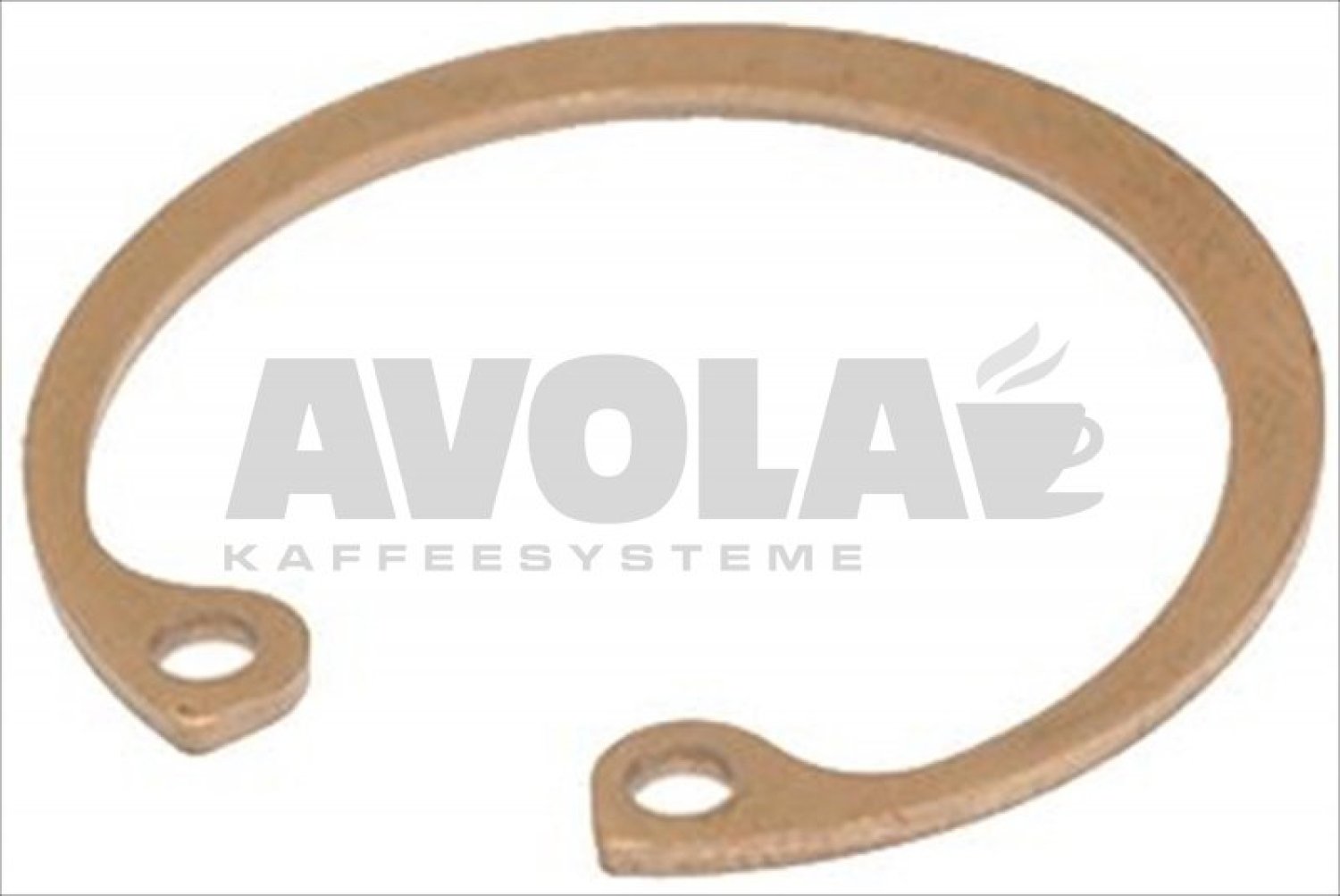

26seeger ring j 28 8003694
SEEGER RING J-28
1,65 €

excl. Shipping costs

Delivery time 4-6 weeks..

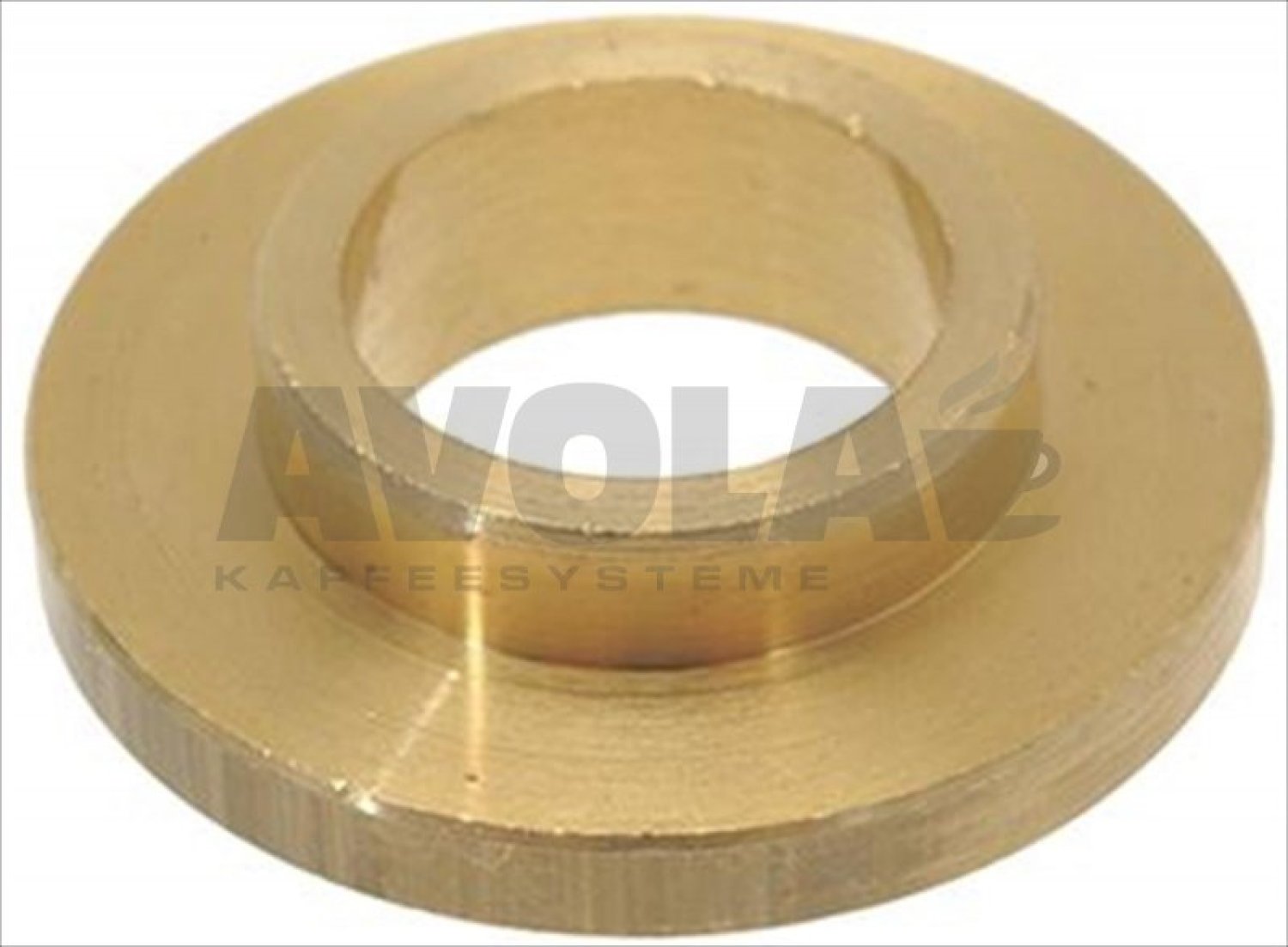

27buchse federdruck fuer bruehgruppe 8002697
BUCHSE FEDERDRUCK FÜR BRÜHGRUPPE
6,01 €

excl. Shipping costs

Delivery time 4-6 weeks..

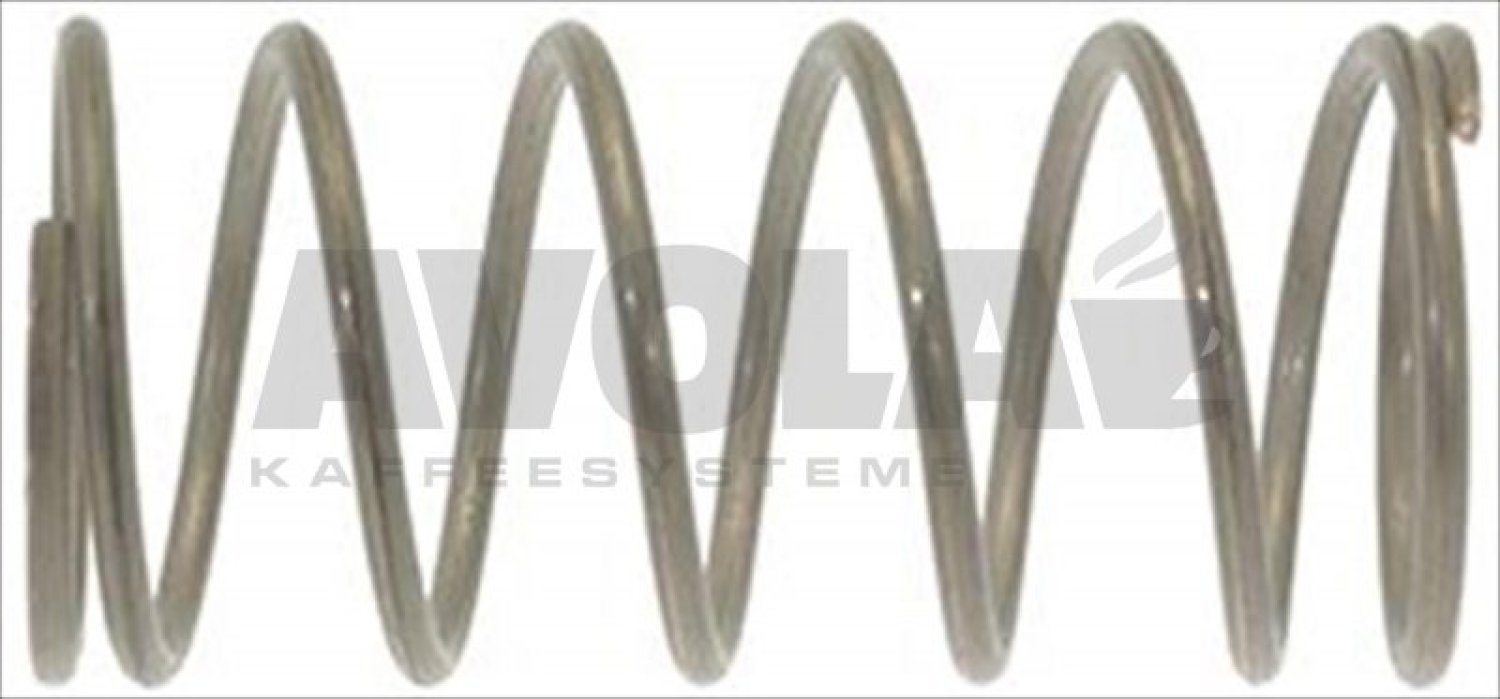

28infuser spring 8003695
INFUSER SPRING
3,81 €

excl. Shipping costs

Delivery time 4-6 weeks..

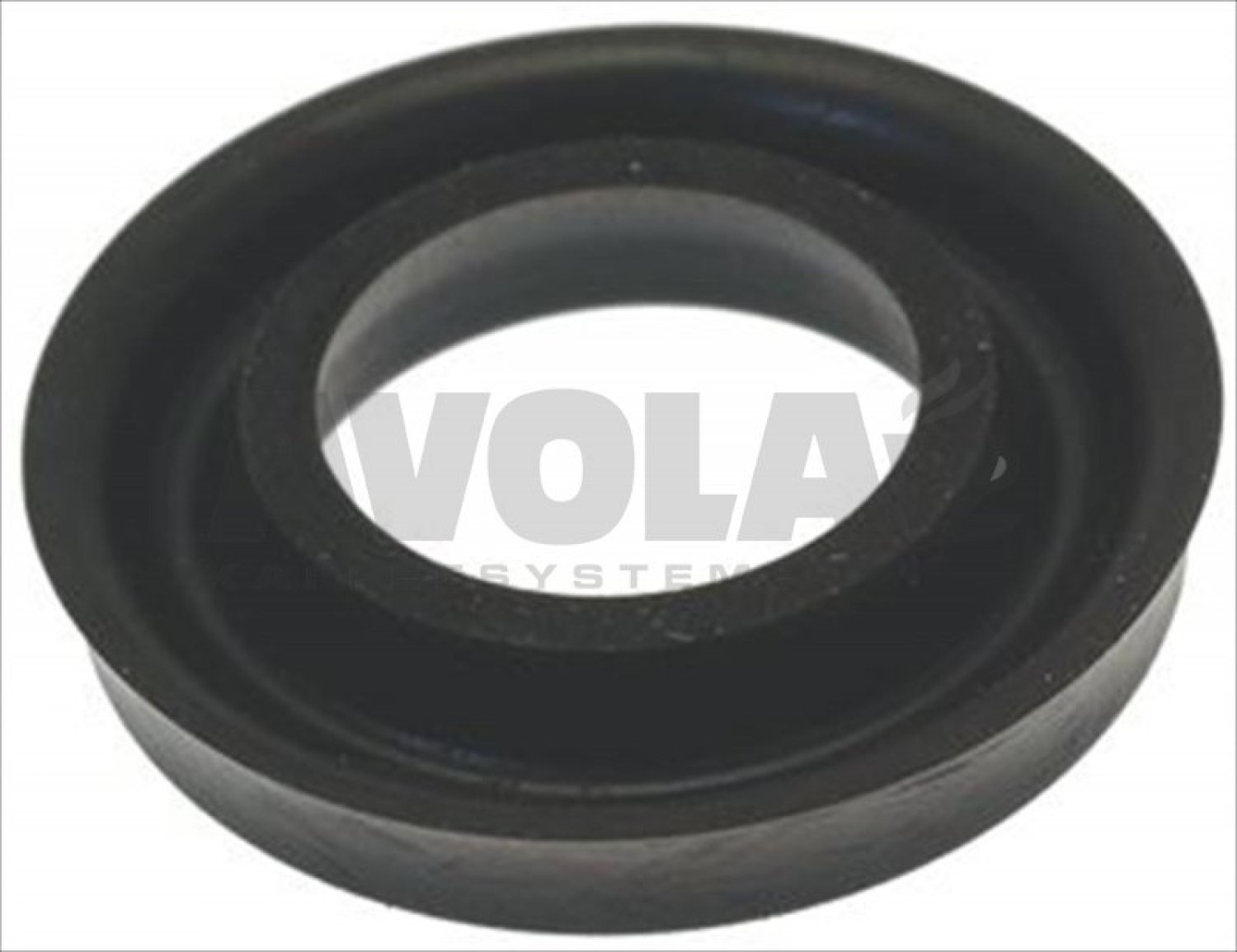

30lip gasket 8001891
LIP GASKET
6,09 €

excl. Shipping costs

Delivery time
is determined
36blind filter 53mm la spaziale 8001090
BLIND FILTER 53mm La Spaziale
5,22 €

excl. Shipping costs

immediately available, 4 available
371 cup filter 6 gr 8001068
1 CUP FILTER 6 gr
6,18 €

excl. Shipping costs

immediately available, 3 available
382 cups filter 12 gr 8001069
2 CUPS FILTER 12 gr
5,03 €

excl. Shipping costs

immediately available, 6 available
391 cup filter 7 gr 8001088
1 CUP FILTER 7 gr
6,56 €

excl. Shipping costs

immediately available, 10 available
402 cup filter 14 grams 8001089
2-CUP FILTER 14 GRAMS
6,77 €

excl. Shipping costs

immediately available, 7 available
41s steel filter locking spring 8003542
S/STEEL FILTER LOCKING SPRING
1,45 €

excl. Shipping costs

immediately available
42filter holder spaziale 8001212
FILTER HOLDER SPAZIALE
42,38 €

excl. Shipping costs

Delivery time
is determined
45one way spout o 3 8 8000114
ONE-WAY SPOUT ø 3/8
13,09 €

excl. Shipping costs

immediately available, 3 available
46double spout o 3 8 rime 8000115
Double Spout ø 3/8″
5,95 €

excl. Shipping costs

immediately available, 4 available
47triple spout o 3 8 8000129
TRIPLE SPOUT ø 3/8
10,01 €

excl. Shipping costs

immediately available, 1 available
48filter holder assembly 1 cup spaziale 8001235
FILTER HOLDER ASSEMBLY 1 CUP SPAZIALE
69,16 €

excl. Shipping costs

immediately available, 1 available
49complete filter holder 2 cups spaziale 8001236
COMPLETE FILTER HOLDER 2 CUPS SPAZIALE
68,37 €

excl. Shipping costs

immediately available, 1 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
