Spaziale

HYDRAULISCHE-ANLAGE 1GRUPPE NEW-EP-EC-EK

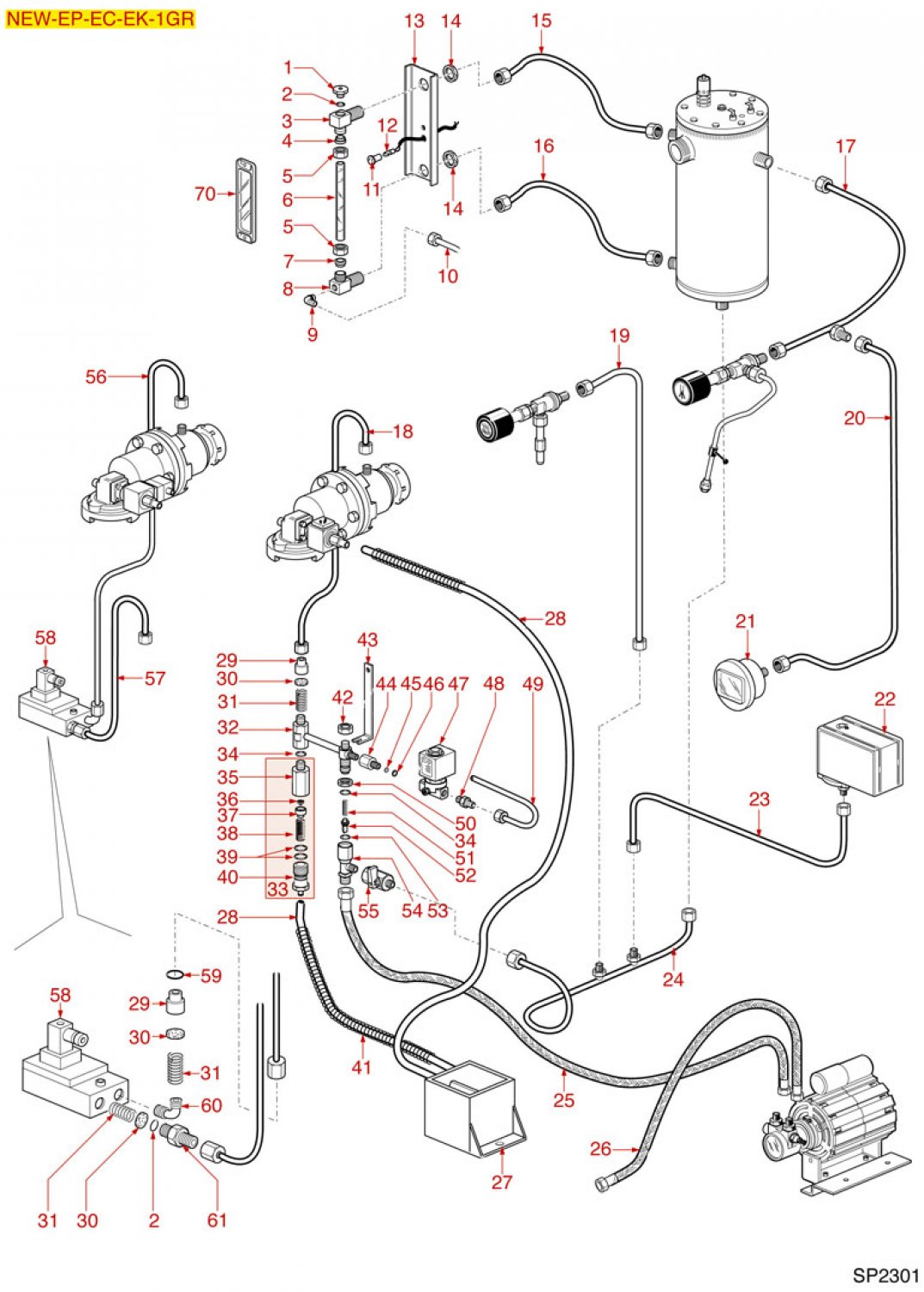

Drawing number 8057491

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1boiler valve o 1 4 rime 8007149
BOILER VALVE ø 1/4″
7,90 €

excl. Shipping costs

immediately available, 12 available
1boiler valve old model 8007152
Boiler valve - old model
5,65 €

excl. Shipping costs

immediately available, 11 available
2o ring 0114 viton 8001910
O-RING 0114 VITON
1,04 €

excl. Shipping costs

immediately available

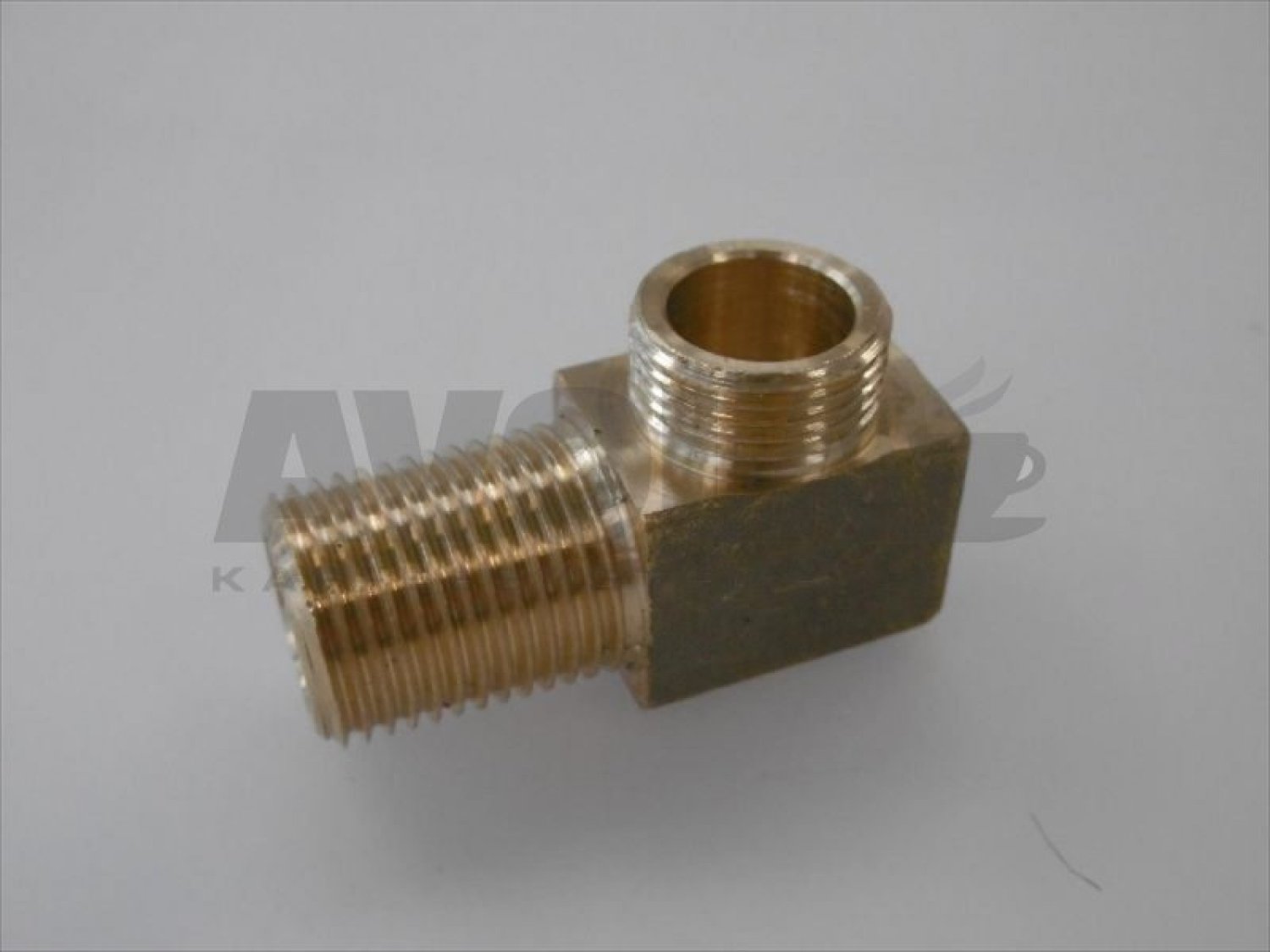

3spaziale wasserstandsglas aufnahme oben nicht mehr lieferbar siehe 8337145 8185647
Spaziale Wasserstandsglas Aufnahme oben (nicht mehr lieferbar siehe 8337145)
22,61 €

excl. Shipping costs

Delivery time 4-6 weeks..
4flat epdm gasket 8001504
FLAT EPDM GASKET
0,86 €

excl. Shipping costs

immediately available
5glass fastening nut 8007281
GLASS FASTENING NUT
5,62 €

excl. Shipping costs

Delivery time 4-6 weeks..
6level glass o 11x150 mm 8007035
LEVEL GLASS ø 11x150 mm
6,18 €

excl. Shipping costs

immediately available, 1 available
7flat red silicone gasket 8001913
Flat red silicone gasket
2,84 €

excl. Shipping costs

Delivery time
is determined
9nichel platedl fitting 8005879
NICHEL PLATEDL-FITTING
4,76 €

excl. Shipping costs

immediately available, 5 available
11green lamp receptacle 8015689
GREEN LAMP RECEPTACLE
2,44 €

excl. Shipping costs

immediately available, 1 available
12signalleuchte neutral 230v 8002731
SIGNALLEUCHTE NEUTRAL 230V
Price on request
14nut o 1 2 8005857
NUT ø 1/2
2,77 €

excl. Shipping costs

immediately available, 6 available
21boiler pressure gauge 8003471
BOILER PRESSURE GAUGE
46,40 €

excl. Shipping costs

Delivery time 4-6 weeks..
22pressure switch p302 6 3 poles 30a 8005068
PRESSURE SWITCH P302/6 3-POLES 30A
62,26 €
62,26 €

excl. Shipping costs

immediately available, 13 available
25flex hose o 3 8 fp x fp l 100 cm 8006848
FLEX HOSE ø 3/8 Fp x Fp L.100 cm
19,88 €

excl. Shipping costs

immediately available, 1 available
26flex hose 8006850
FLEX HOSE
14,92 €

excl. Shipping costs

Delivery time
is determined
27outlet tank 8007236
OUTLET TANK
33,43 €

excl. Shipping costs

Delivery time
is determined
29jet group 8006964
JET GROUP
2,99 €

excl. Shipping costs

immediately available, 4 available
30water filter o 7 mm 8001121
WATER FILTER ø 7 mm
2,88 €

excl. Shipping costs

immediately available, 12 available
31jet spring o 6 5x13 mm 8003689
JET SPRING ø 6,5x13 mm
2,88 €

excl. Shipping costs

immediately available, 1 available
33expansion valve o 1 4 rime 8007160
EXPANSION VALVE ø 1/4″
16,04 €

excl. Shipping costs

immediately available, 7 available
34o ring 0115 viton 8001890
O-RING 0115 VITON
1,49 €

excl. Shipping costs

immediately available
36flat epdm gasket 8001427
FLAT EPDM GASKET
1,06 €

excl. Shipping costs

immediately available
37gasket holder for tap 8001873
GASKET HOLDER FOR TAP
5,72 €

excl. Shipping costs

Delivery time
is determined
39viton o ring r9 0121 8001522
VITON O-RING R9 0121
1,40 €

excl. Shipping costs

immediately available, 13 available
44duesenanschluss autoniveau 8005817
DÜSENANSCHLUSS AUTONIVEAU
7,58 €

excl. Shipping costs

Delivery time 4-6 weeks..
45stainless steel water filter 8001034
STAINLESS STEEL WATER FILTER
2,78 €

excl. Shipping costs

immediately available, 15 available
472 way solenoid valve parker 240v 50 60hz 8000813
2-WAY SOLENOID VALVE PARKER 240V 50/60Hz
64,76 €

excl. Shipping costs

Delivery time
is determined
48fitting o 1 8 a 1 8 a 8005709
FITTING ø 1/8 A-1/8 A
2,34 €

excl. Shipping costs

immediately available, 10 available
50nut 8005455
NUT
3,38 €

excl. Shipping costs

immediately available, 13 available
51spring 8x30 mm 8003708
SPRING 8x30 mm
1,95 €

excl. Shipping costs

immediately available, 17 available
52triangular non return valve 8007062
TRIANGULAR NON-RETURN VALVE
3,49 €

excl. Shipping costs

Delivery time
is determined
53o ring 02031 viton 8001897
O-RING 02031 VITON
0,90 €

excl. Shipping costs

immediately available, 10 available
54la spaziale non return valve body 8007059
La Spaziale NON-RETURN VALVE BODY
22,97 €

excl. Shipping costs

Delivery time 4-6 weeks..
55ball valve o 1 4 rime in and out 8029763
ball valve ø 1/4″ in and out
12,97 €

excl. Shipping costs

immediately available, 8 available
58volumetric flowmeter gicar 24v 8006911
VOLUMETRIC FLOWMETER GICAR 24V
66,56 €

excl. Shipping costs

immediately available, 2 available
59flat ptfe gasket 8001898
FLAT PTFE GASKET
1,34 €

excl. Shipping costs

Delivery time
is determined
60nichel platedl fitting 8005879
NICHEL PLATEDL-FITTING
4,76 €

excl. Shipping costs

immediately available, 5 available
61fitting o 1 8 and o 1 4 8005719
FITTING ø 1/8 and ø 1/4
6,08 €

excl. Shipping costs

immediately available, 14 available
70level plate 30x110 mm 8002682
LEVEL PLATE 30x110 mm
7,03 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
